Full-wave Spread Spectrum Induced Polarization System
Full-wave Spread Spectrum Induced Polarization System was New generation IP survey system.

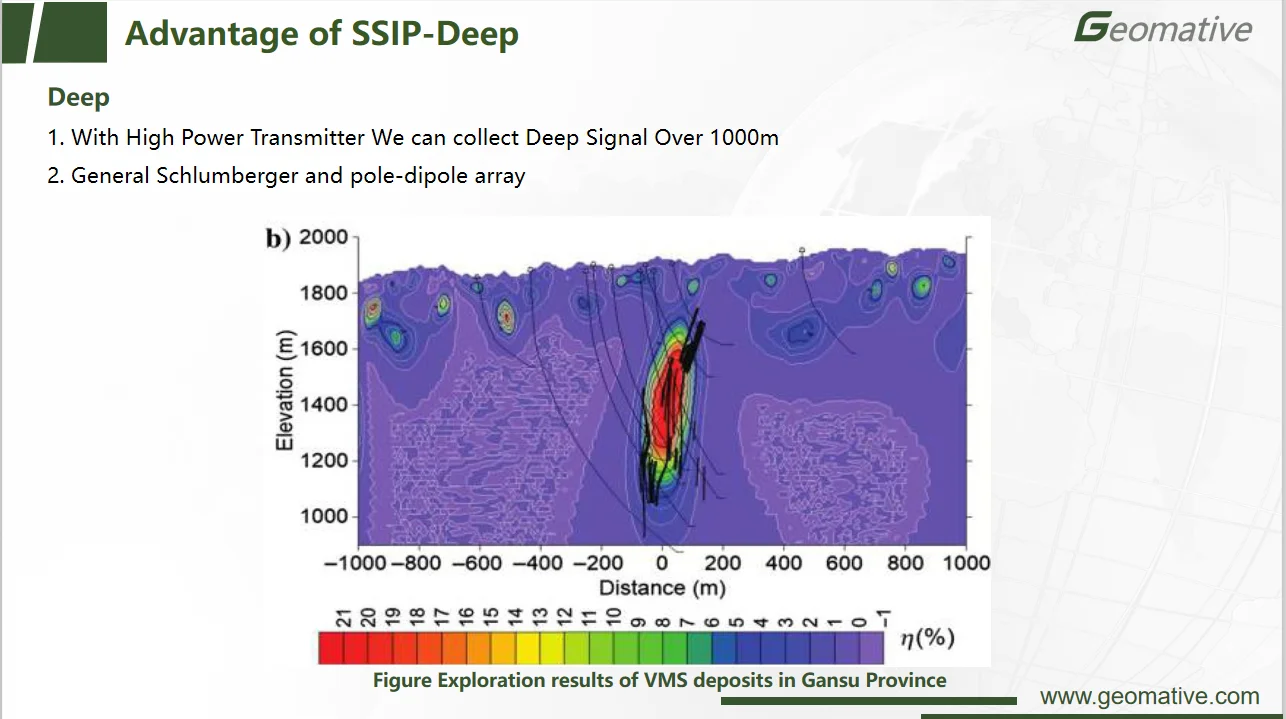

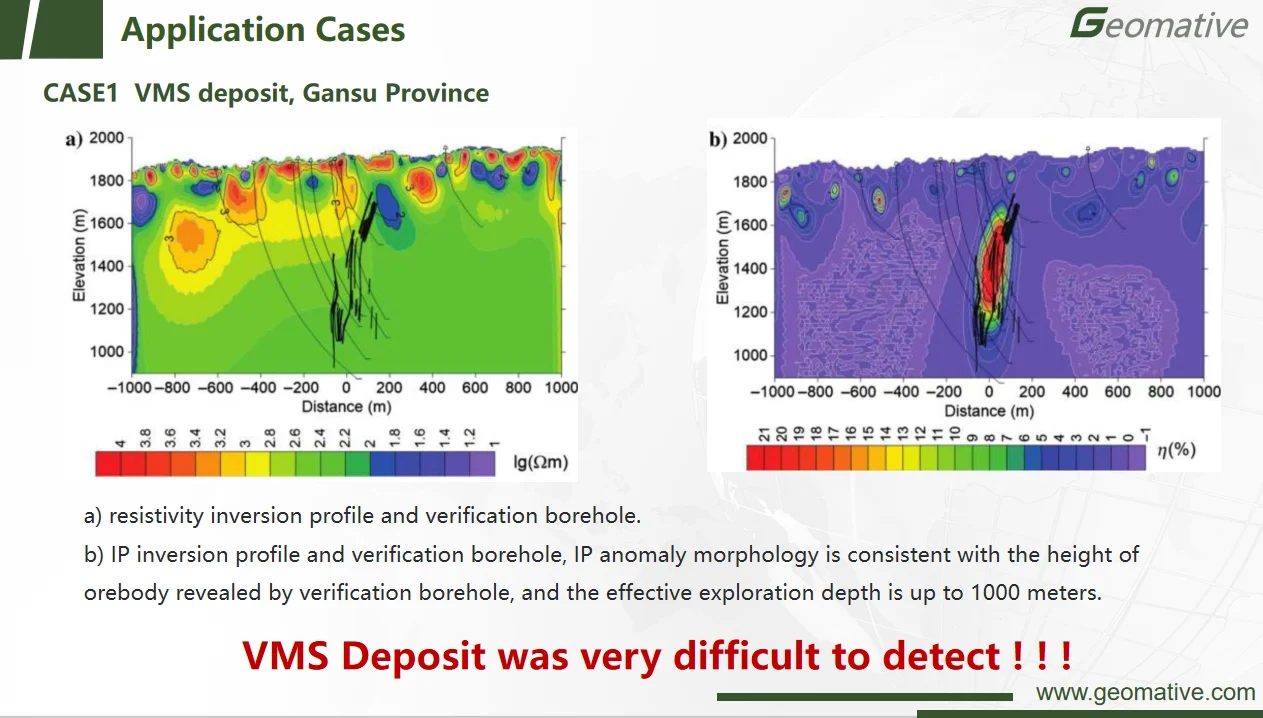

It enables large detection depth (>1000 m), high precision 2D and 3D spectral IP measurements.
On the instrument, with the M sequence pseudo-random spread spectrum signal, which greatly improves the frequency domain resolution and the anti-interference ability of the signal.

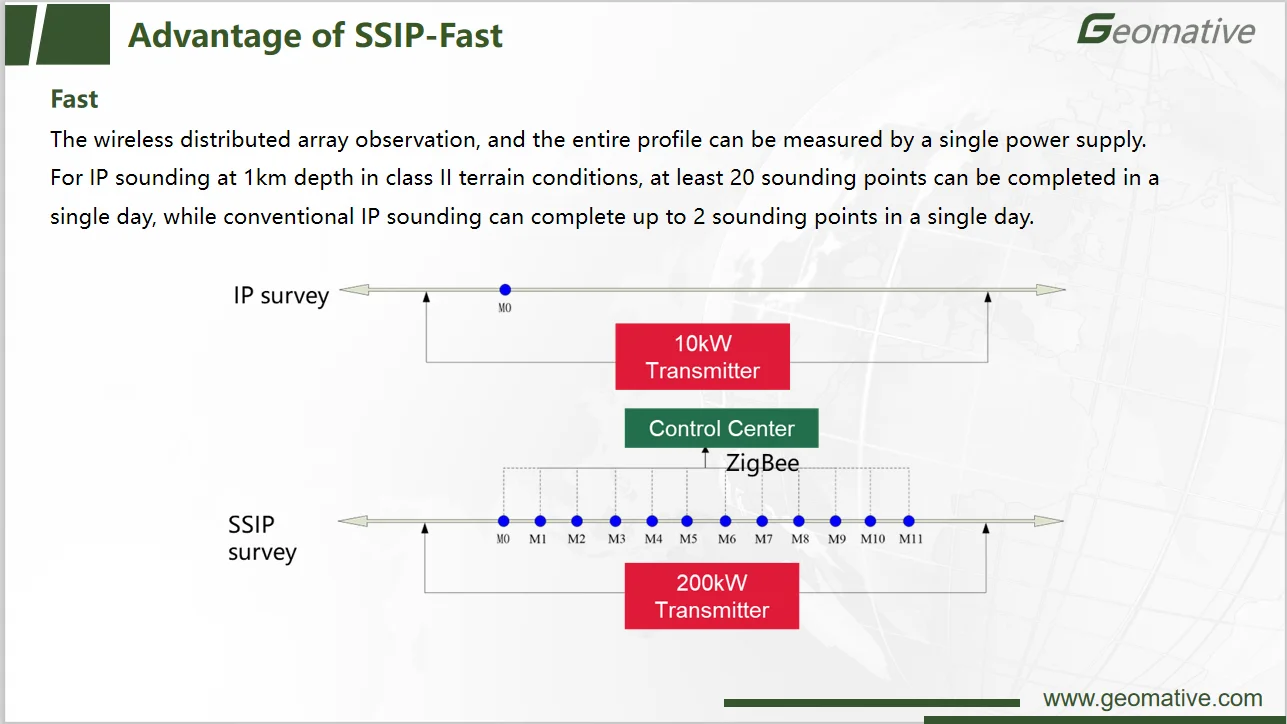

With wireless distributed array receiving system，the spread spectrum IP signal detection achieve large depth, high efficiency and high accuracy.

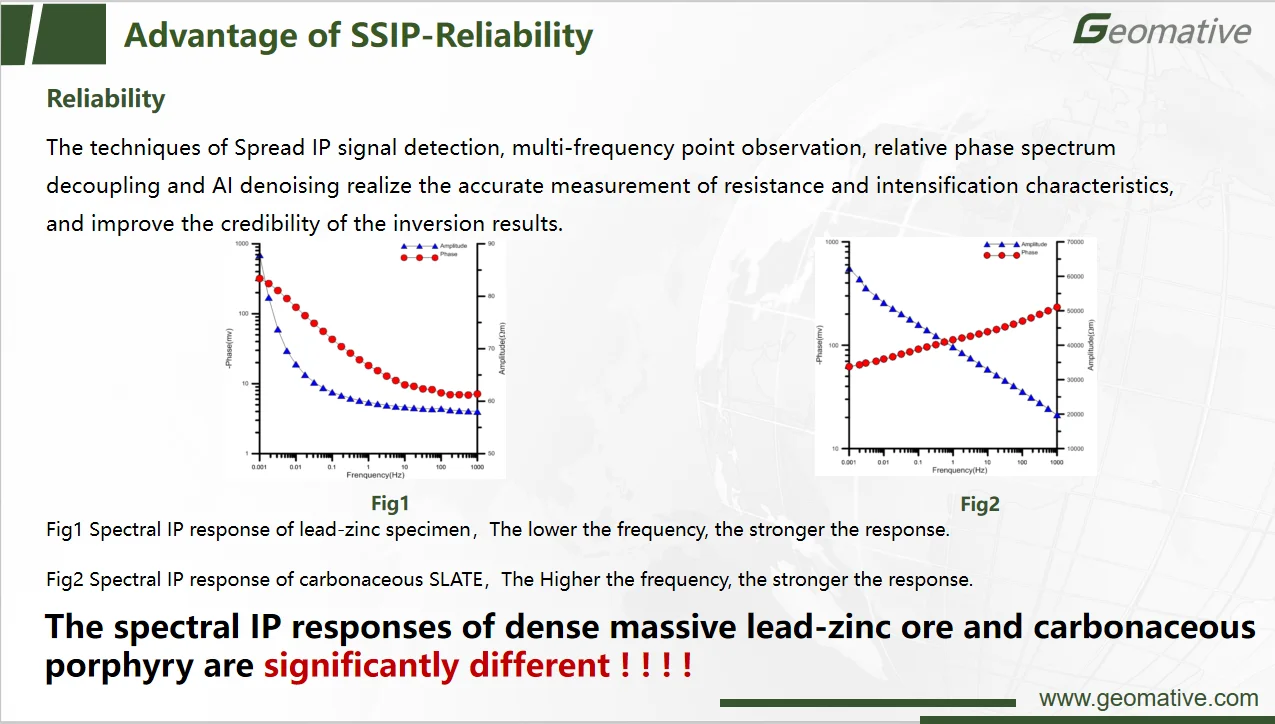

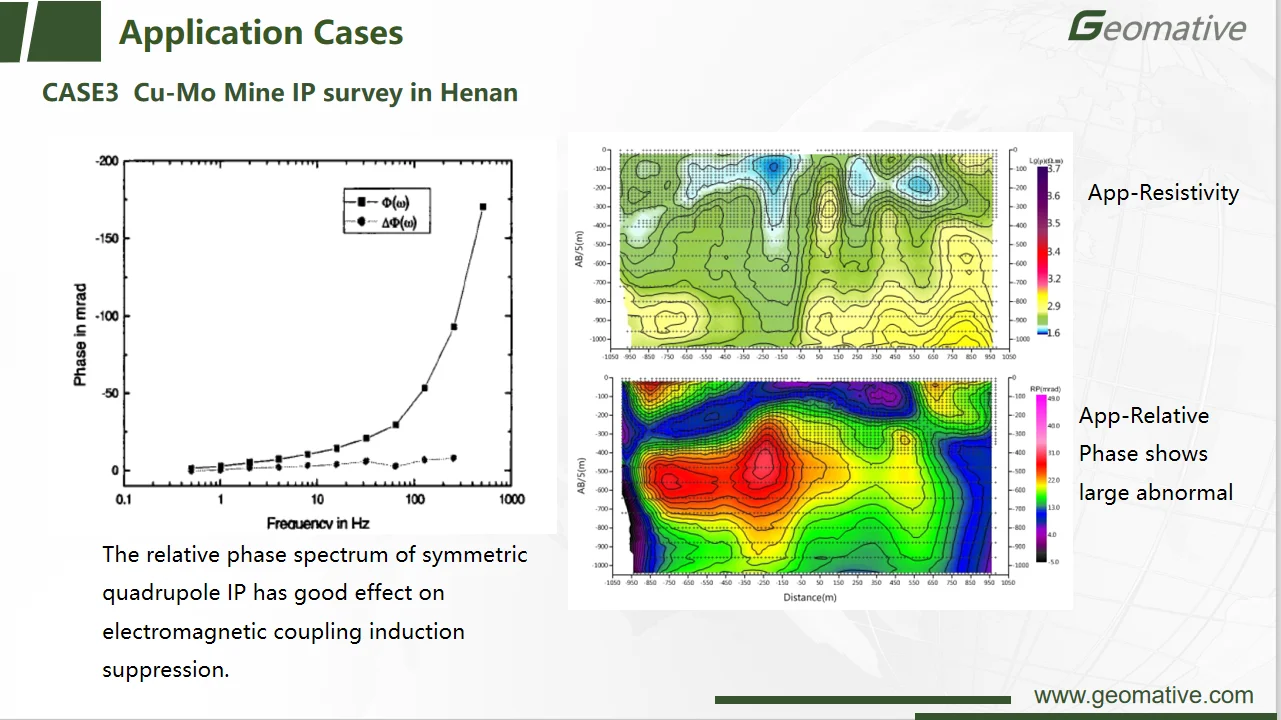

The relative phase spectrum method was used to correct the electromagnetic coupling induction, and the phase response and Cole-Cole model parameters were obtained
The signal to noise ratio (SNR) was enhanced by spreading spectrum signal emission, Robust and related techniques.

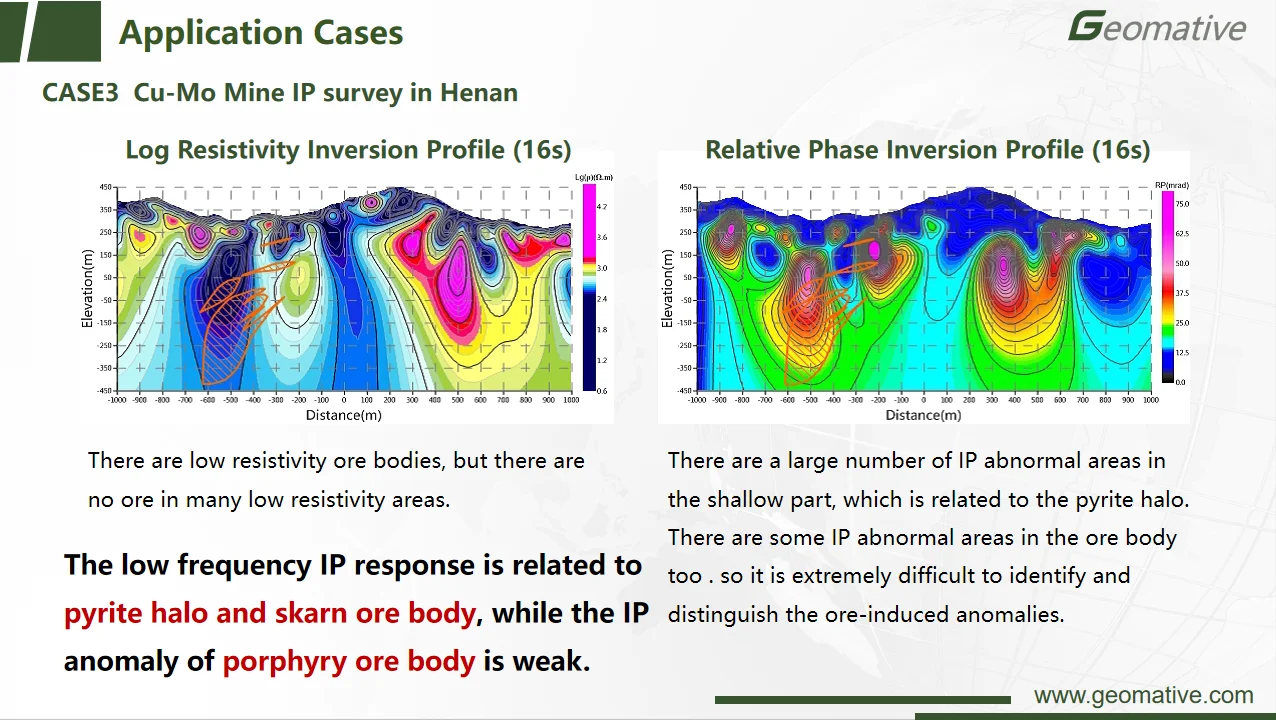

Through the precise inversion of multi-frequency points and multiple devices with terrain, Got the precision imaging of the detection target and rich geoelectric information.
Finally, through the analysis of multi-frequency points and multi-parameter inversion results, we can got the high confidence prediction of metallogenic favorable areas is realized.











Our Advantages










Specification

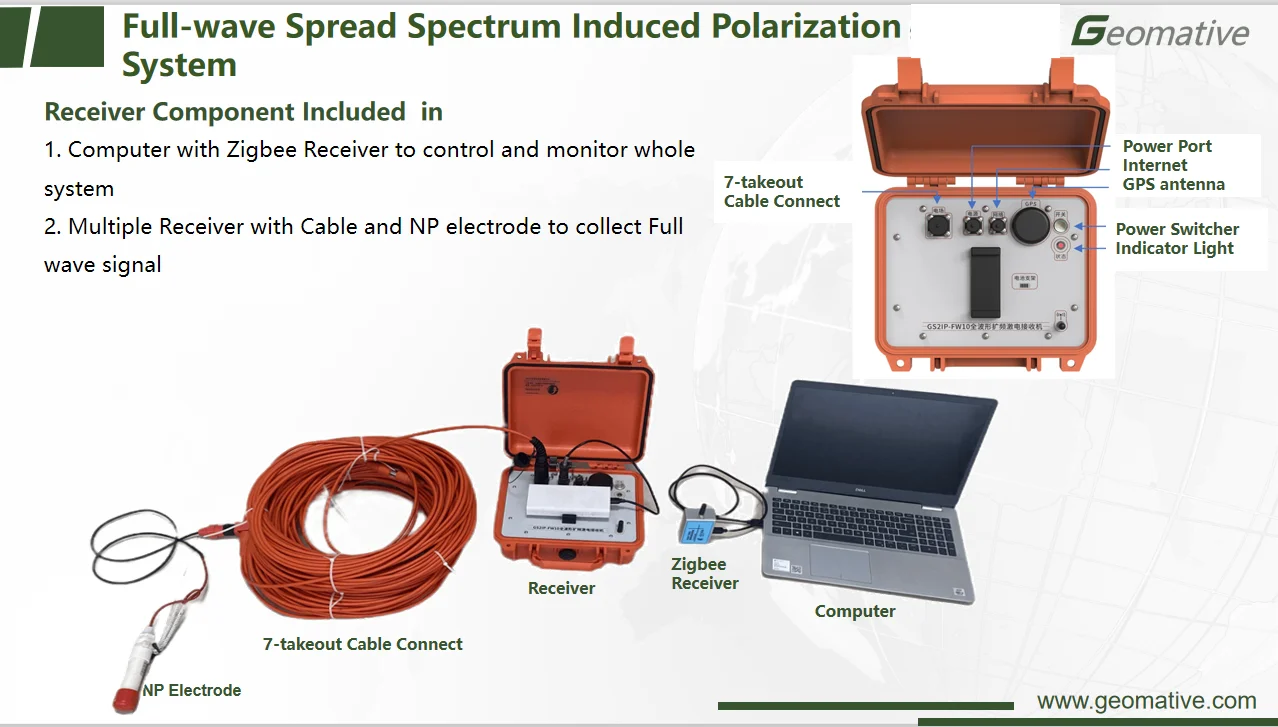

Receiver Specification
Channel
6
Sample rate
max to 24000Hz
background Noise
5nV/sqrt(Hz)
ADC
32 bit
Gain
1~64
GPS Accuracy
30ns
Dynamic Range
160dB
Weight
2.8kg
Dimensions
27cm × 24.6cm × 12.4cm
Power Supply
5V Power Bank
Connect
Wi-Fi, ZigBee(max to 1.6km), Internet
TDP
2.5W
Operating Temperature
-20℃~60℃

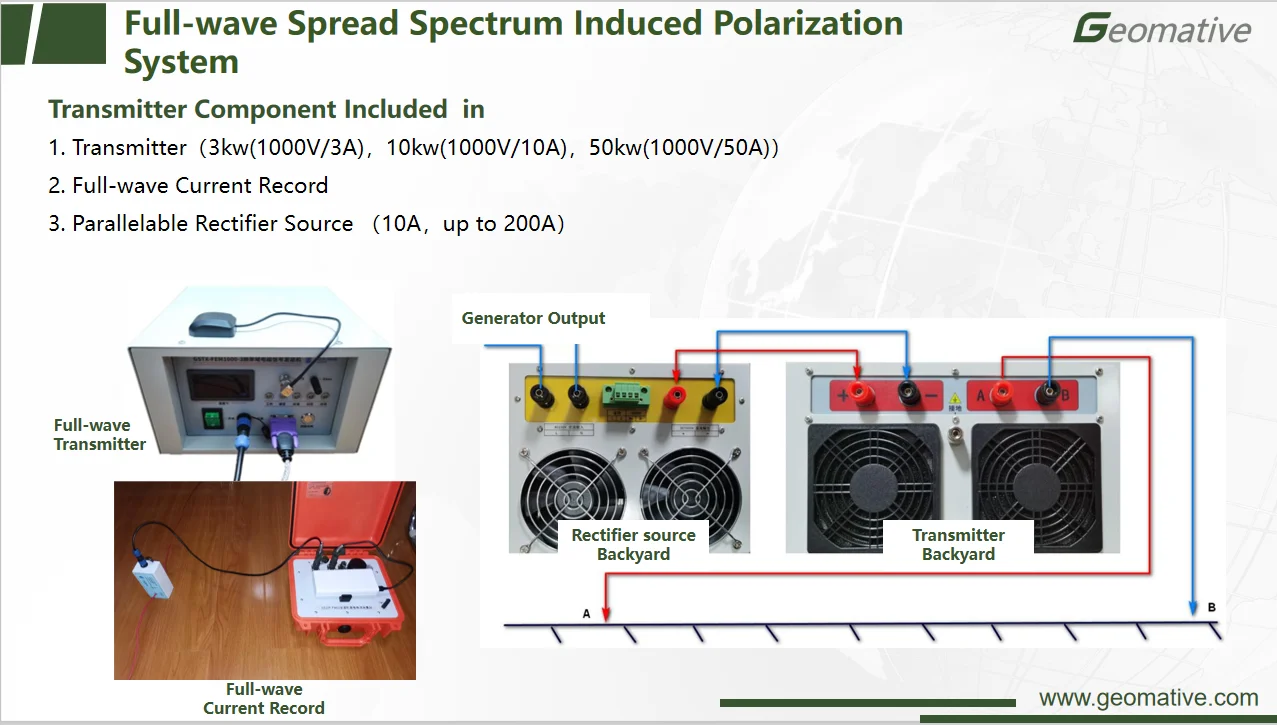

Transmitter Specification
Max Voltage
1000V (2000V,3000V,4000V, Optional need serial connect)
Max Current
10~50A/50~200A(Optional need Parallel connect)
Composite
Support Serial and Parallel
Frequency
1/512~8192Hz
Transmitter Wave
Programmable Support Time Domain and Frequency Domain
GPS Sync Accuracy
30ns
Connect
Wi-Fi, ZigBee(max to 1.6km), Internet
Operating Temperature
-20℃~60℃
