KOSOO Heat shrinkable Molded parts Cable
- Category: >>>
- Supplier: Guangzhou Kaiheng K&S Co. Ltd.
Share on (1600733863192):
Product Overview
Description
Product Description
Specification
Application
Designed for use in general harnessing applications where toughness is required and systems are occasionally exposed to fluids or
heat, the adhesive-lined parts provide excellent sealing and strain relief at connector-cable terminations and transitions.
Features
Mechanical protection
Good resistance to fluids, heat and chemical solvents
Flame retardant
Heat shrinkable, flexible
Hot-melt adhesive can be coated inner wall

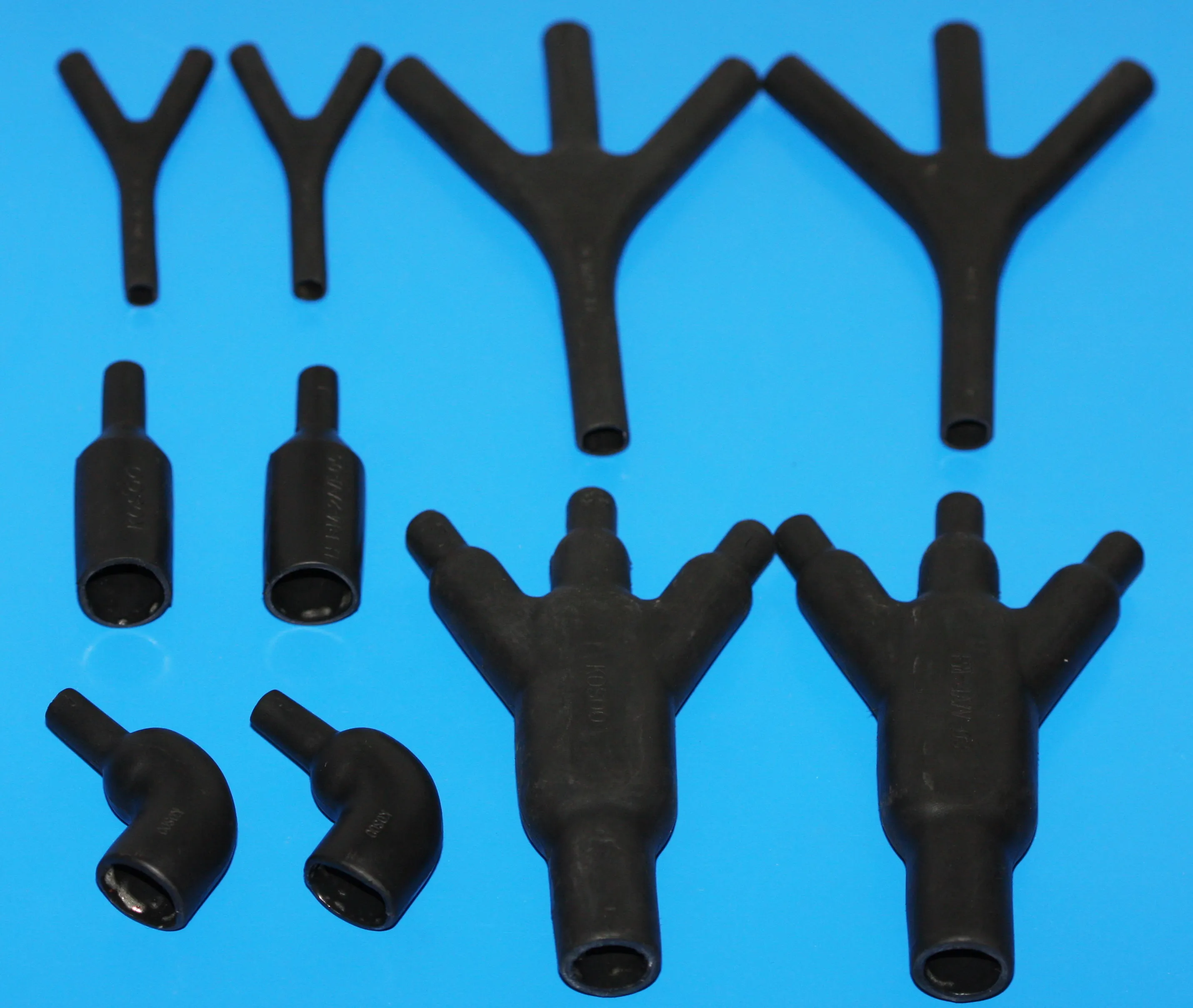

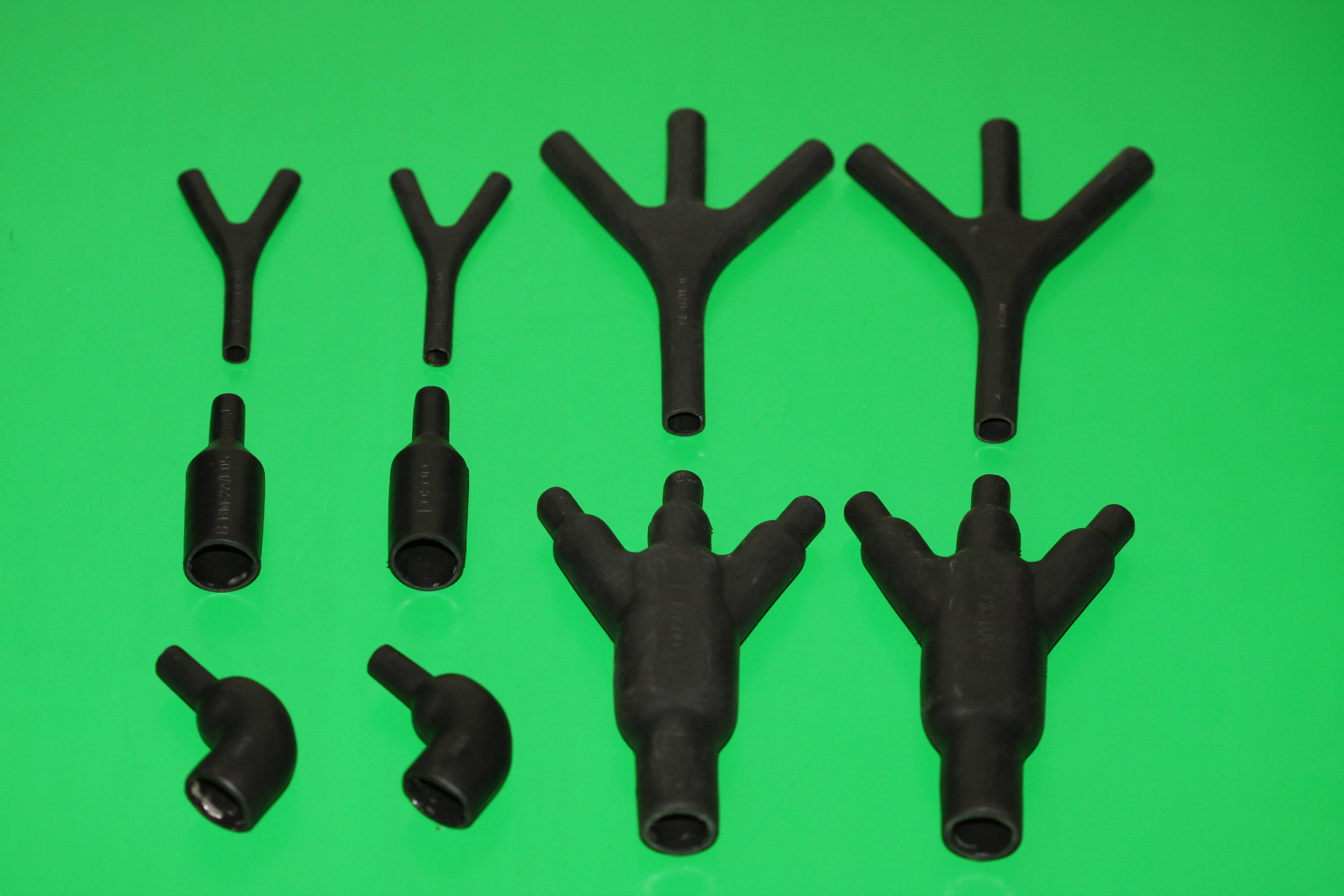

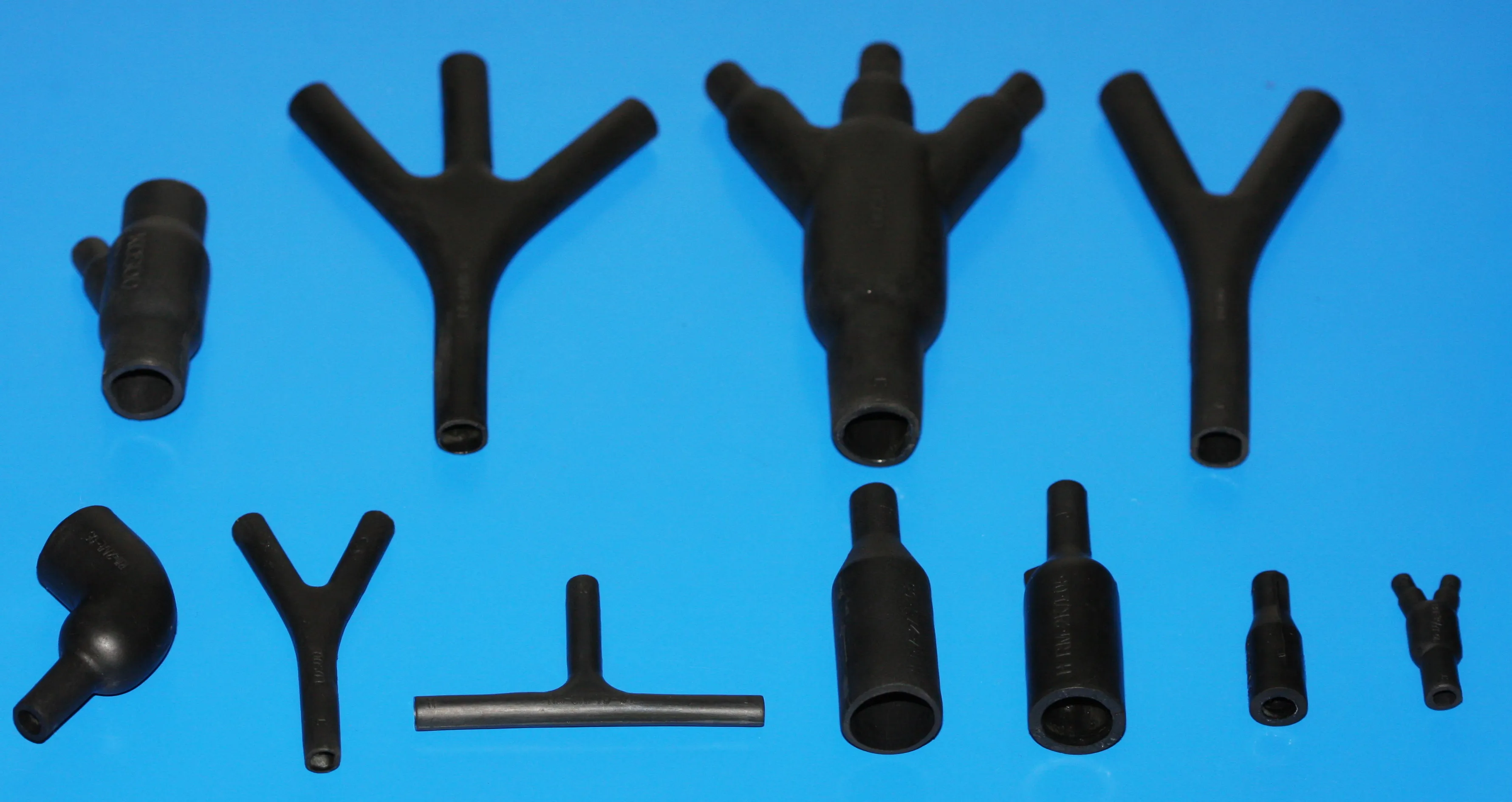

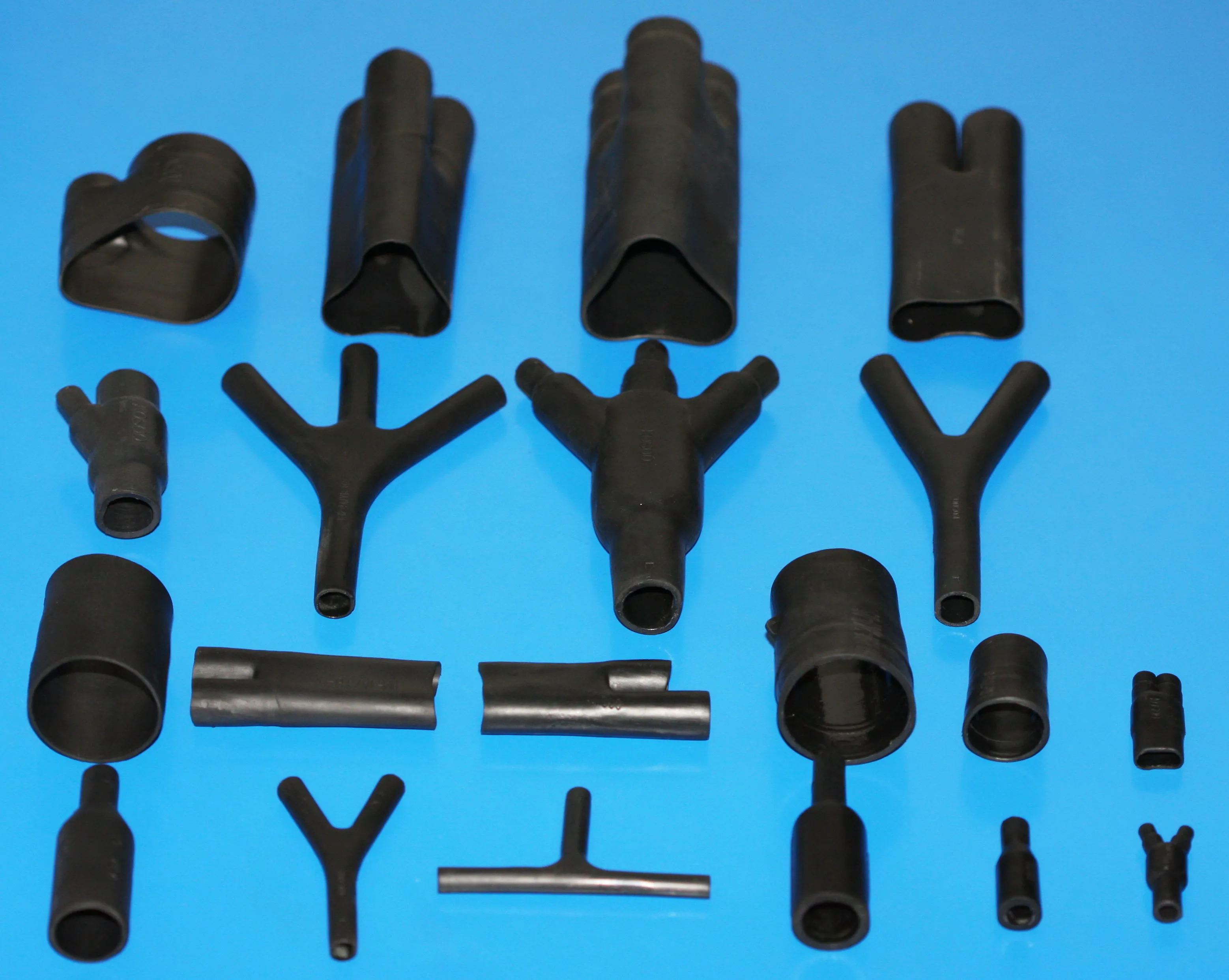

Part Type
Molded Parts include: Type Straight
Type 90°Angle
Type 45°Angle
Type 30°Angle
3:1 shrinking
4:1 shrinking
Special shapes
Complete design, tooling, and production of special molded shapes are available upon request.
Designed for use in general harnessing applications where toughness is required and systems are occasionally exposed to fluids or
heat, the adhesive-lined parts provide excellent sealing and strain relief at connector-cable terminations and transitions.
Features
Mechanical protection
Good resistance to fluids, heat and chemical solvents
Flame retardant
Heat shrinkable, flexible
Hot-melt adhesive can be coated inner wall
Part Type
Molded Parts include: Type Straight
Type 90°Angle
Type 45°Angle
Type 30°Angle
3:1 shrinking
4:1 shrinking
Special shapes
Complete design, tooling, and production of special molded shapes are available upon request.
Feature
Heat shrinkable, flexible, and flame retardant
Good physical and chemical properties
Operating temperature range: - 55℃ to 135℃
Min. full recovery temperature: 110℃
Installation temperature: 150℃
Good physical and chemical properties
Operating temperature range: - 55℃ to 135℃
Min. full recovery temperature: 110℃
Installation temperature: 150℃
Product characteristics
Property | Item | Specification Requirement | |
Physical | Tensile strength | ≥10.4 MPa | |
Ultimate Elongation | ≥300% | ||
Specific gravity | ≤1.4 g/cm3 | ||
Thermal | Heat aging for 168h at 175℃ | Ultimate elongation 200%(min.) | |
Heat shock for 4h at 225℃ | No dripping, flowing, or cracking | ||
Low-temperature flexibility for 4h, at -55℃ | No cracking | ||
Water absorption | ≤0.5 % | ||
Electrical | Dielectric strength | ≥19.7Kv/mm | |
Chemical | Flammability | Average flame time＜60 seconds | |
Fluid resistance | Immerging in JP-4 fuel, aviation gasoline, water for 24 h, at 23℃ | ||
Tensile strength | ≥5.0 MPa | ||
Ultimate elongation | ≥200% | ||
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | KOSOO |
Model Number | RM |
Type | Insulation Sleeving |
Material | PE |
Tensile Strength | 10MPA |
Standard color | Black |
Feature | UV resistance |
Usage | Insulation Protection |
Type | Insulation Sleeving |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in KOSOO standard paper rolls and cartons. If you have special request,we could do the OEM packing
for you.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customer have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ;
B.We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: Generally, we pack our goods in KOSOO standard paper rolls and cartons. If you have special request,we could do the OEM packing
for you.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customer have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ;
B.We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
