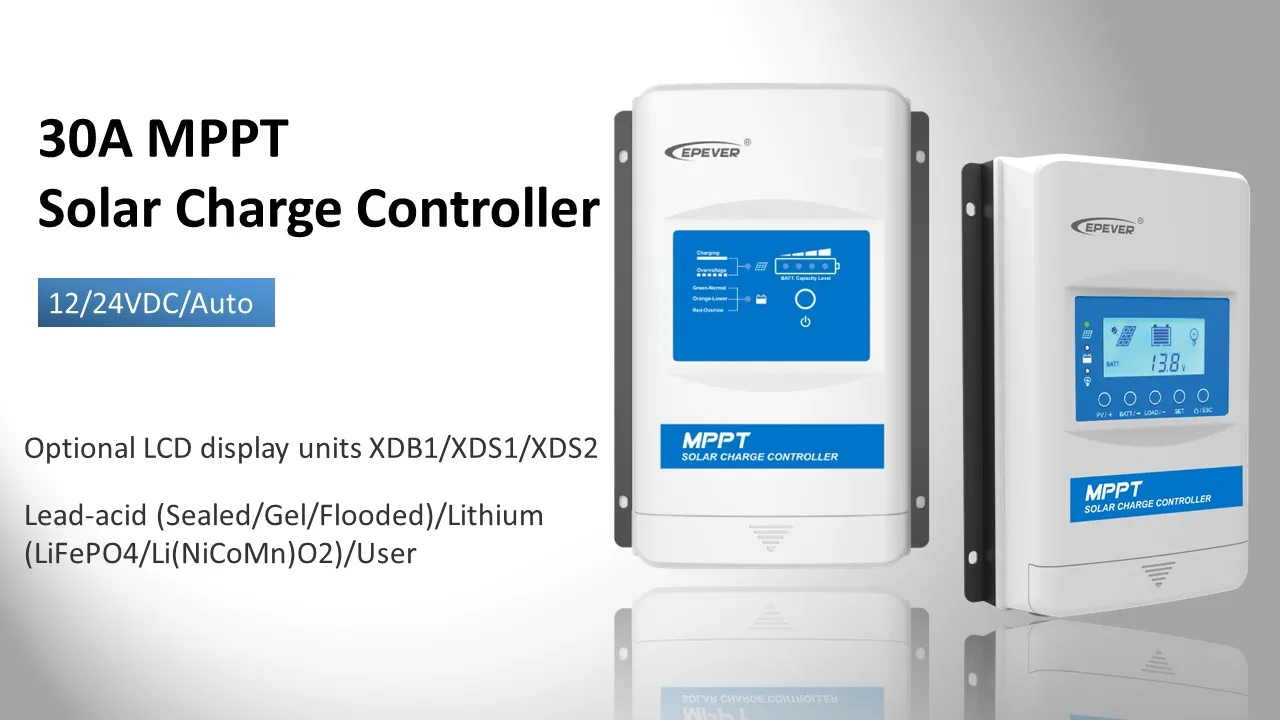

Epever Solar Charge Controller 12V 24V Auto 30A Mppt Solar Charge Controller
- Category: >>>
- Supplier: Huizhou Epever Technology Co. Ltd.Huizhou Ltd.
Share on (1600733886593):
Product Overview
Description
Products Description
Technical Specifications
Model | XTRA 3210N | |
Nominal system voltage | 12/24VDC/ Auto | |

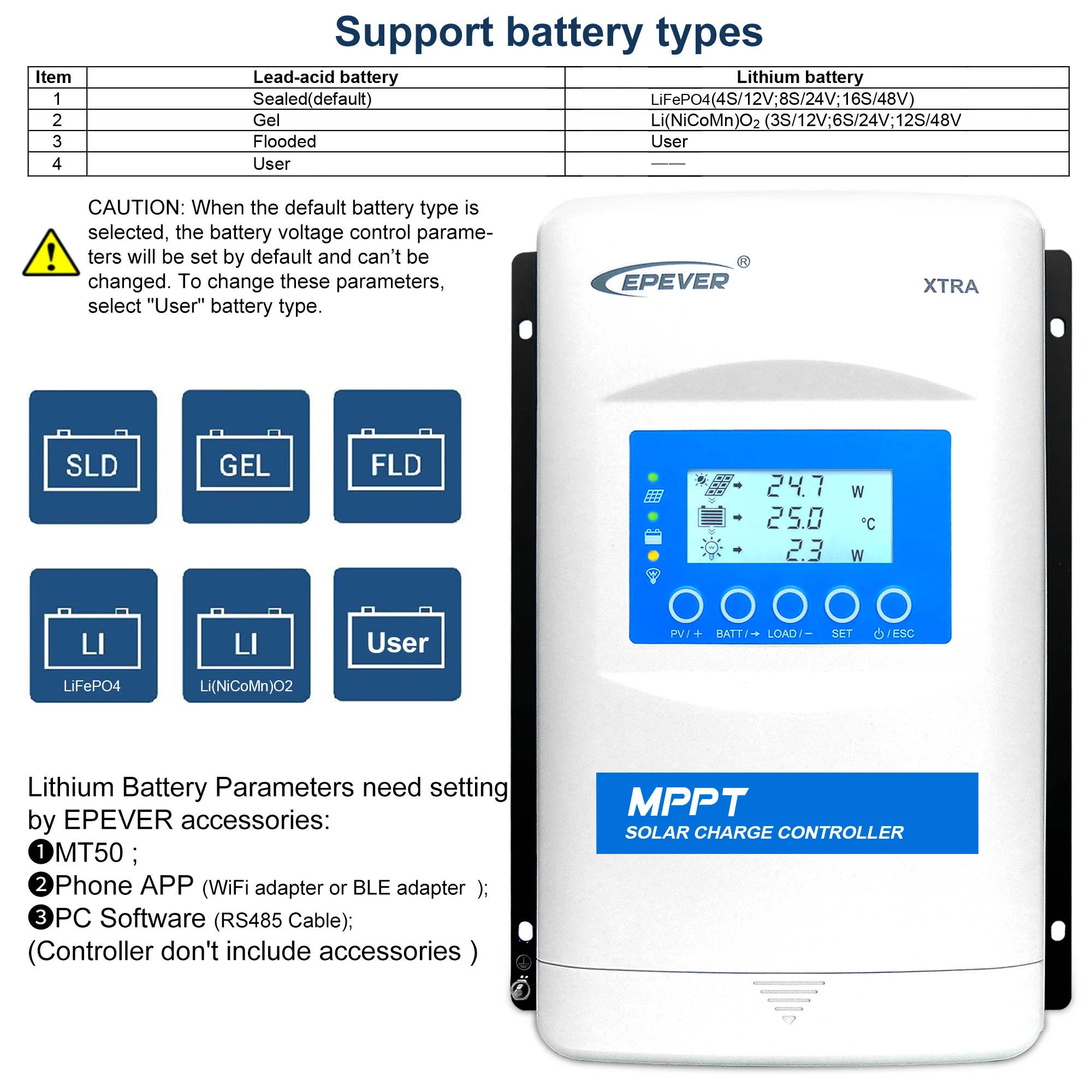

Battery type | Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User | |
Battery input voltage range | 8~32V | |
Rated charge current | 30A | |
Rated discharge current | 30A | |
Rated charge power | 390W/12V 780W/24V | |
Max. conversion efficiency | 98.60% | |
Tracking efficiency | ≥99.5% | |
Max. PV open circuit voltage | 100V (At minimum operating environment temperature) 92V (At 25℃ environment temperature) | |
MPP voltage range | (Battery voltage+2V) ~72V | |
Equalization voltage | Sealed:14.6V,Flooded:14.8V,User-defined:9-17V | |
Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V | |
Float voltage | Gel/Sealed/Flooded:13.8V,User-defined:9-17V | |
Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V,User-defined:9-17V | |
Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V,User-defined:9-17V | |
Self-consumption | ≤30mA(12V) ≤16mA(24V) | |
Temperature compensation (for lead-acid battery) | -3mV/℃/2V (Default) | |
Relative humidity | ≤95%, N.C | |
Enclosure | IP33 | |
Communication interface | RS485(RJ45) | |
Grounding | Common negative | |
Operating temperature range | `-25℃～+50℃(LCD);-30℃～+50℃(No LCD) | |
Dimensions(LxWxH)(mm) | 230×165 ×63 | |
Net weight | 1.31kg | |
1. The controlller can't automatically identify system voltage if lithium batteries were connected. | ||
2. The voltage point is for 12V system, please *2 in 24V system, *3 in 36V system, *4 in 48V system. | ||
SOLAR MARINE SYSTEM
Product packaging
XTRA3210N
12PCS/CARTON
19.3KGS/CARTON
52.5*37.5*27.5CM
