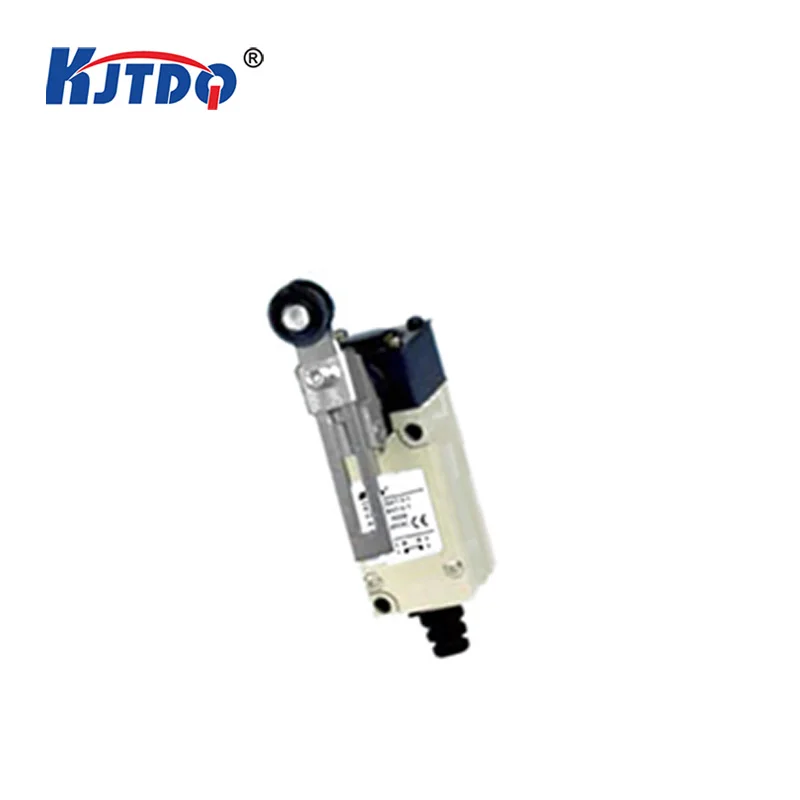

KJT KA 3213 roller straight bar Schmersal Omran IP65 Double Circuit Travel Lever Limit Micro Switch
- Category: >>>
- Supplier: Nanjing KJT Electric Co. Ltd.
Share on (1600733896943):
Product Overview
Description
Products Description
Product Paramenters
Model | KA-3205 KA-3208 KA-3209 | KA-3212 | KA-3213 KA-3214 | KA-3267 KA-3268 | KA-3270 | KA-3289 | KB-5106 KB-5166 KB-5168 KB-5169 | KB-5105 | |||||||
Max OF | 750g | 750g | 900g | 150g | 150g | 550g | 150g | 1200g | |||||||
Min RF | 100g | 200g | 200g | 30g | 30g | 100g | - | - | |||||||
Max PT | 20° | 1.8mm | 1.8mm | 30mm | 30mm | 20° | 28mm | 227g | |||||||
Min OT | 75° | 4mm | 4mm | 22.5° | 22.5° | 75° | - | 55° | |||||||
Max MD | 10° | 1.2mm | 1.2mm | 14° | 14° | 14° | - | 35° | |||||||
OP | - | 30±0.8mm | 40±0.8mm | - | - | - | - | 90±10° | |||||||
operating speed | 10A 250VAC | ||||||||||||||
action frequency | 5mm~50cm/s | ||||||||||||||
contact resistance | Mechanical: 120 times/min | ||||||||||||||
Electrical: 30 times/min | |||||||||||||||
Contact resistance | 25mΩ or less | ||||||||||||||
Insulation resistance | 100Ω or more (under 500VDC) | ||||||||||||||
Withstand voltage | Between discontinuous terminals: 1,000VAC, 50, 60Hz for one minute | ||||||||||||||
Between terminal and ground: 1,500VAC, 50, 60Hz, for one minute | |||||||||||||||
Between terminal and no-carrying current metal: 1,500VAC, 50/60Hz for one minute | |||||||||||||||
Vibration | Action durability: 10~55Hz, 1.5mm double amplitude | ||||||||||||||
impact blow | Mechanical durability: 1000m/s2 or more (about 100G or more) | ||||||||||||||
Malfunction durability: 300m/s2 or more (about 30G or more) | |||||||||||||||
Operating ambient temperature | -25~+65 ℃ | ||||||||||||||
Humidity | Maximum 95%RH | ||||||||||||||
Service life | Mechanical: more than 1-5 million times/Electrical: more than 500,000 times | ||||||||||||||
Protection level | IEC: IP65 | ||||||||||||||
Weight | about 130g to 190g | ||||||||||||||

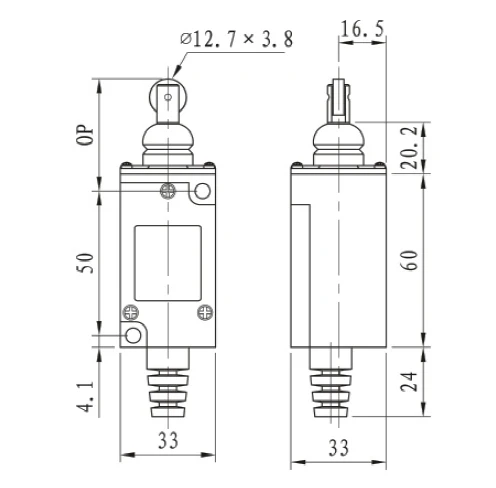

Product Dimensions

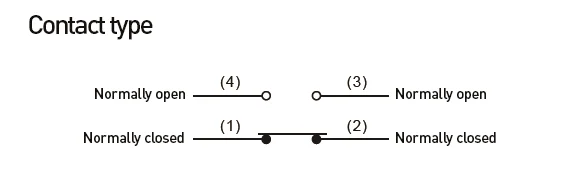

Product Wiring Diagram

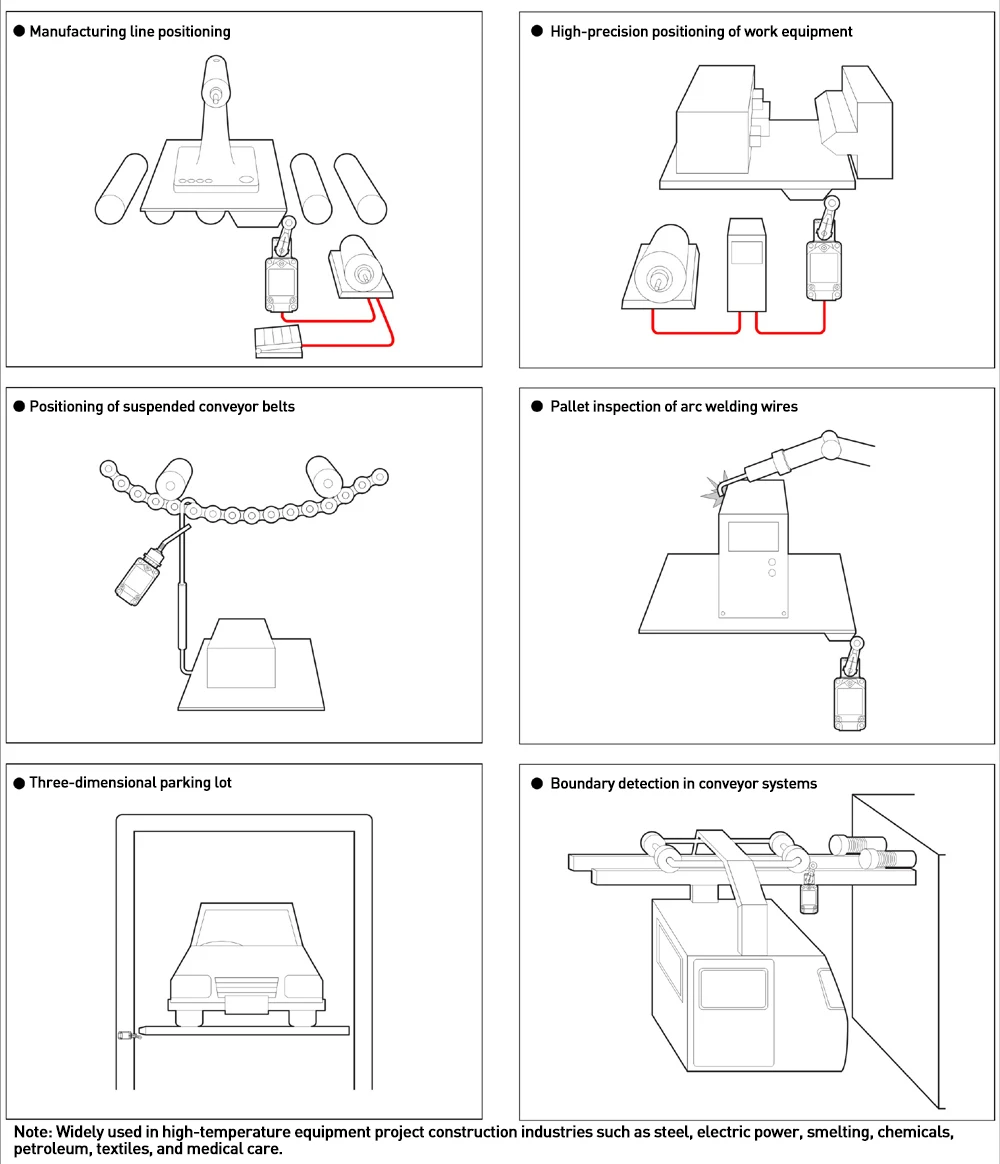

PRODUCT APPLICATION
FAQ
Q1. Are you a trader or a manufacturer?
A: KJT electric is a manufacturing enterprise. We have more than 12 years of experience in R&D and production.
Q2: Can you send a sample for us to test ?
A: For proximity sensors ,it is available to send samples .
Q3: What is the minimum order quantity(MOQ)?
A: Small quantity is also available.MOQ can be negotiated for customized products.
Q4. Does your company accept customization?
A: Yes, we welcome OEM&ODM and label customization according to your requirements.
Q5 : How about the quality guarantee period ?
A : Our warranty period is 18-month since from shipping date.
Q6 : What's your leadtime?
A : 1-3 working days shipping guarantee for stock item , for non-stock items, our delivery date will be determined according to
the quantity you order. If your need is urgent, we will try our best to shorten the delivery time.
Q7 : What's your payment term?
A : We accept T/T, Credit card , Paypal and Western Union.
Q8: What is your shipping way?
A: We support DHL, UPS, FedEx, TNT, EMS express and so on.
