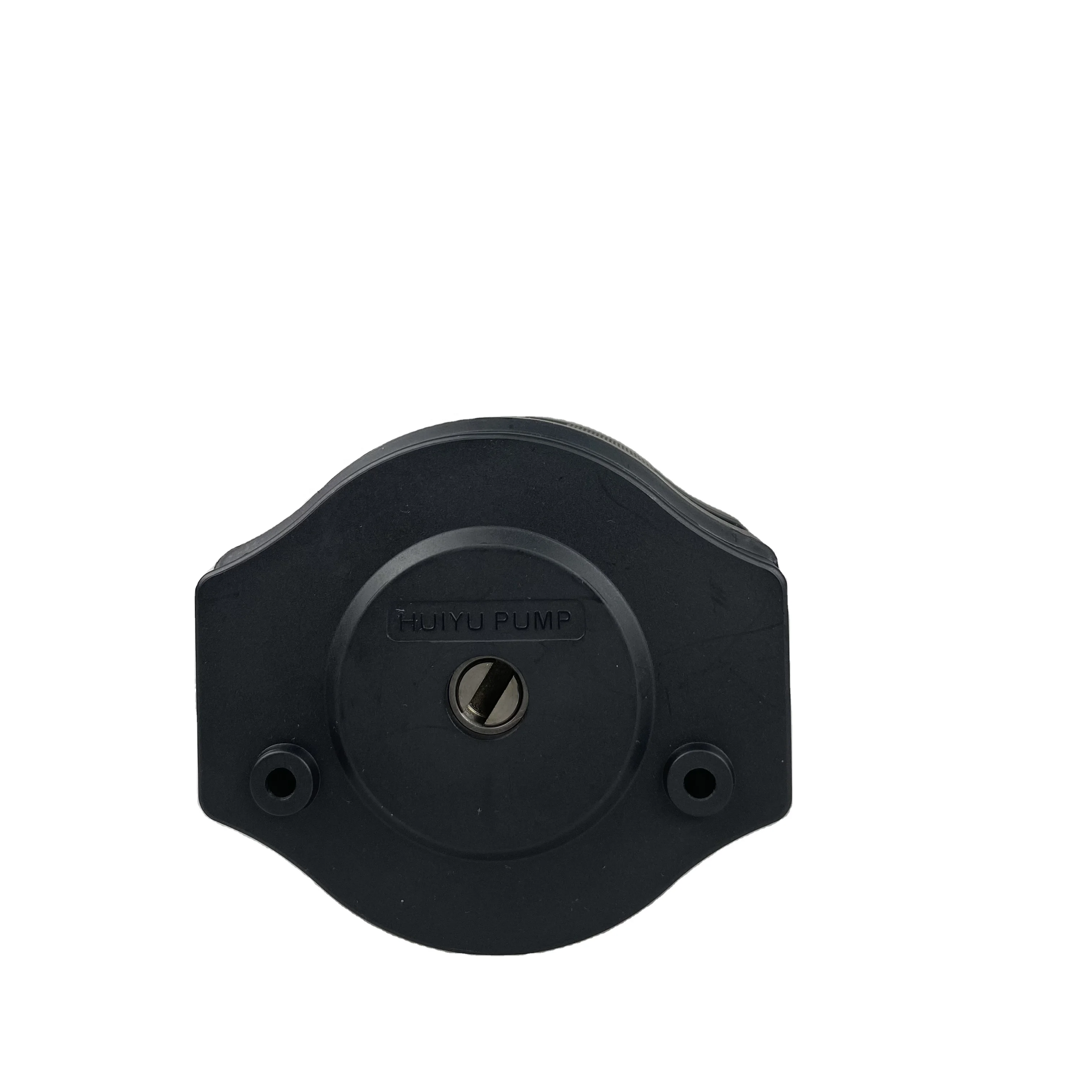

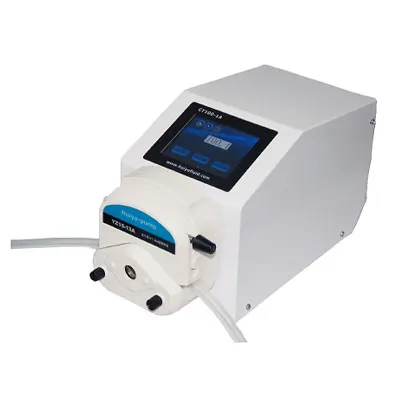

corrosion resistance Intelligent Peristaltic Pump, max flow rate 900ml/min

Product description

Metal shell design, buttons and display adopt ergonomic design, and form an angle of 30° with the horizontal

Acid and alkali resistance, corrosion resistance

Displayed in Chinese and English, the speed is increased to 200rpm, and the touch screen control can realize simple sub-assembly, timing and quantitative, and continuous sub-assembly. Flow test and other functions

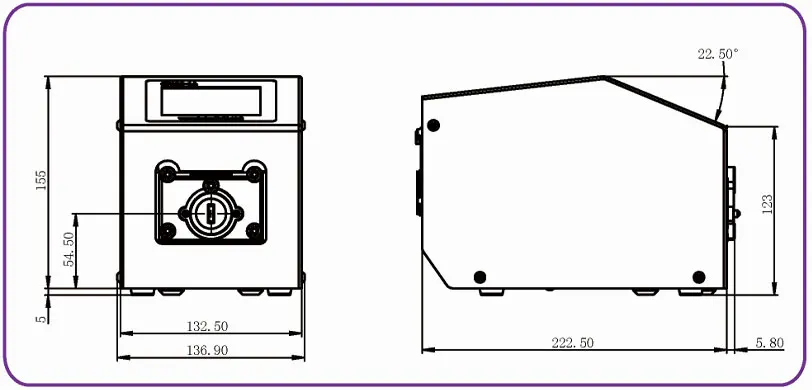

Dimensions

Technical parameter

 Speed range: 0.1-200rpm, resolution 0.1rpm

 Timing running time: 1-999 seconds/minute/hour

 Intermittent time: 1-999 seconds/minute/hour

 Number of cycles: 0-999 times (0 means infinite loop)

 External control function: start-stop control, direction control, speed control (0-5V/0-10V, 4-20mA, 0-10kHz optional)

Communication method: RS485 half duplex

 Applicable power supply: suitable for a wide range of voltages 90-260V AC, 50/60Hz

 Maximum power: 40W

 Working environment: ambient temperature 0-40℃, relative humidity <80%

 Weight: 2. 6kg

 Dimensions: 228 × 133 × 160 (length × width × height) mm

 Degree of protection: IP31

 Special designed carton and foam plastic cushion

 Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

   1 year warranty for all of our pumps
