HITBOT Z EMG 04 Robotic machine high quality manopulator for robot
- Category: >>>
- Supplier: Shanghai Thinkfon Trading Co. Ltd.
Share on (1600733919033):
Product Overview
Description

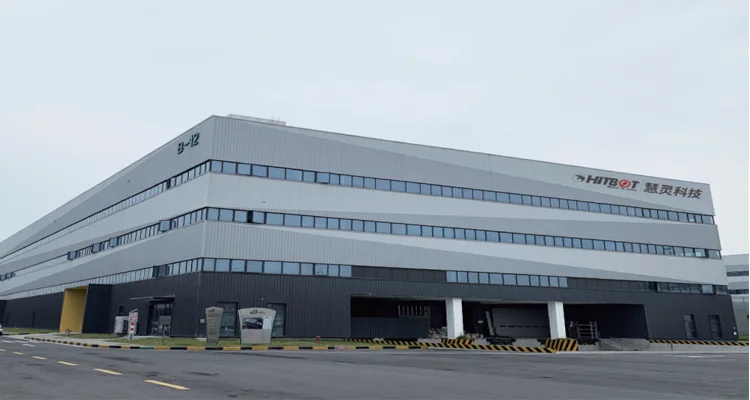

HITBOT, founded in 2015, is a small ecological chain enterprise. It is the leader of electric claw industry and the pioneer of direct drive manipulator. We focus on core technology research and development, adhere to product innovation, in an efficient, low-cost, modular way, to provide the industry customers with the most cost-effective robot products and automation solutions.
Description

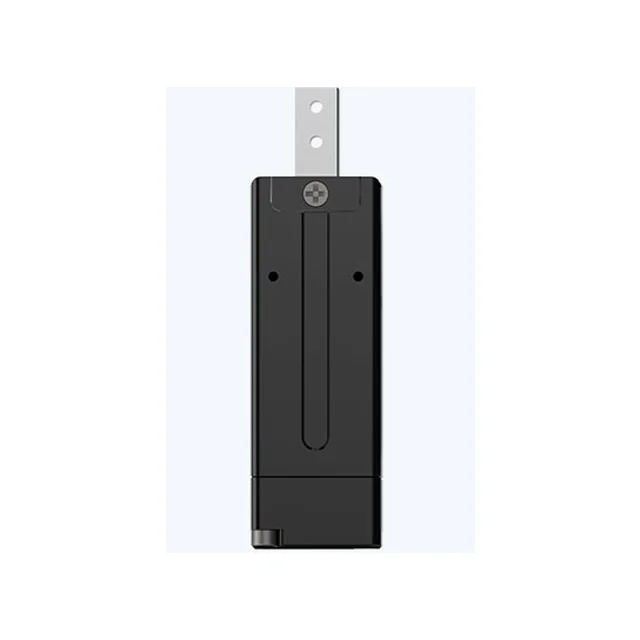

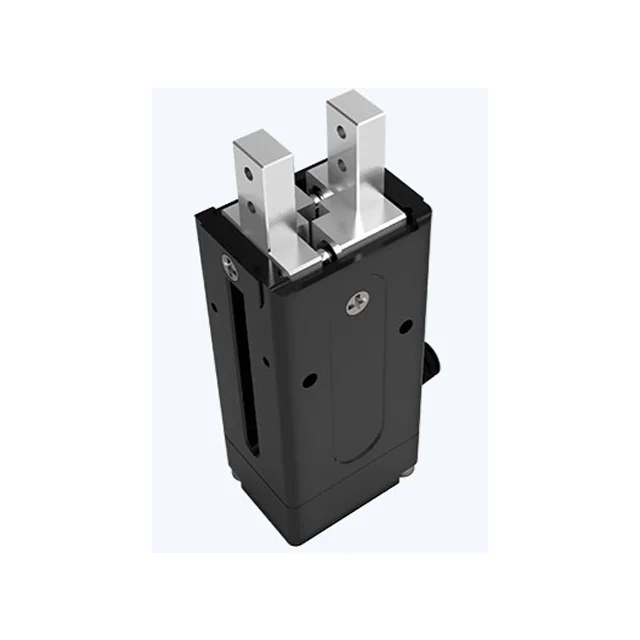

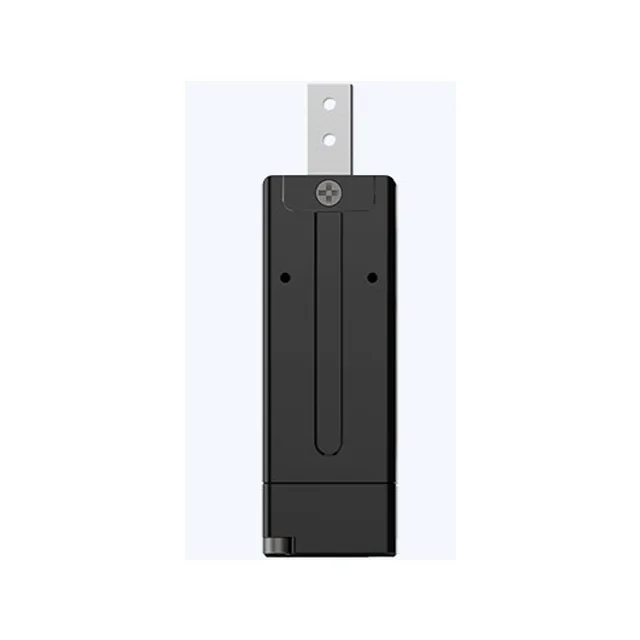

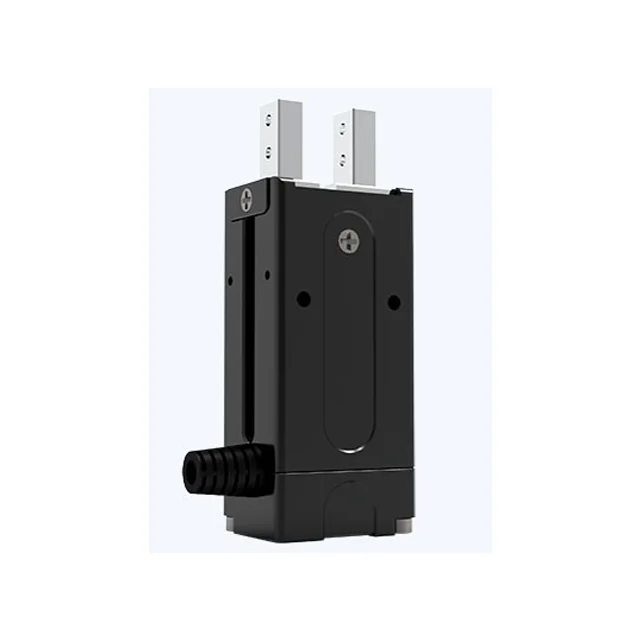

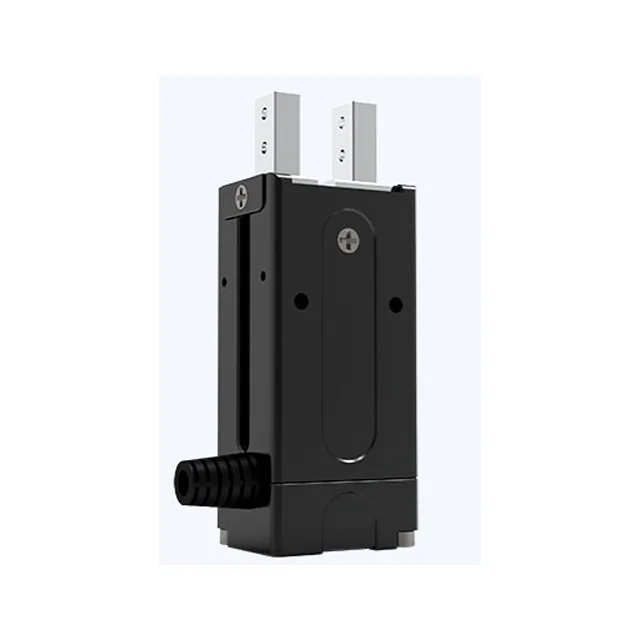

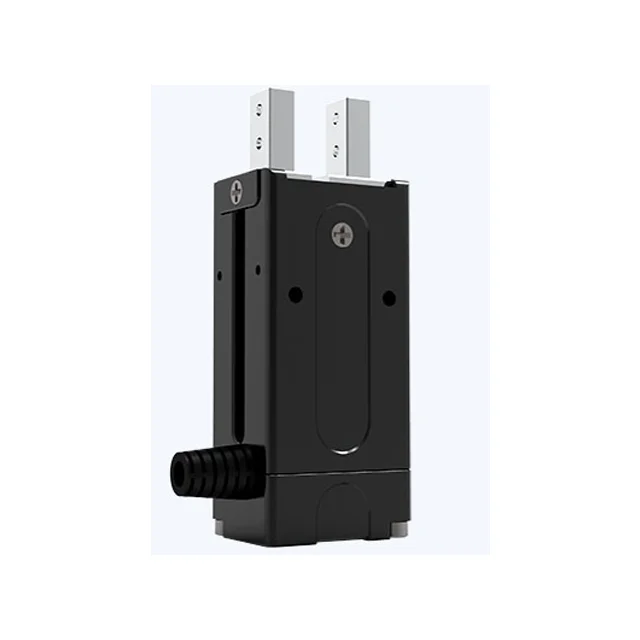

Z-EMG-04 Robotic Gripper can easily grip objects such as bread, egg, tea, electronics, etc. It has many features:
Field of application
Application kit for object recognition and targeted gripping of non position oriented workpieces from one plane.
Advantages
* Small in size.
* Cost-effective.
* Couldgrip objects in a small space.
* It takes only 0.05s to open and close.
* Long lifespan: more than tens of millions of cycles, surpassing air grippers.
* Built-in controller: space saving, easy to integrate.
* Control mode: I/O input and output.
* Cost-effective.
* Couldgrip objects in a small space.
* It takes only 0.05s to open and close.
* Long lifespan: more than tens of millions of cycles, surpassing air grippers.
* Built-in controller: space saving, easy to integrate.
* Control mode: I/O input and output.
Interface Introduction
Promoting a revolution in the replacement of pneumatic grippers by electric grippers First electric gripper with integrated servo system in China
Precautions
Collision force
Trigger force of horizontal joint collision protection: the force of XX32 series is 30N.
Z-axis external force
The external force of Z axis shall not exceed 100N
Product Name: | Robotic Arm |
Item No.: | Z-EMG-4 |
Total Stroke | 4mm |
Clamping Force | 3-5N |
Suggestion Moving Frequency | ≤150（CPM) |
Clamping Device | Compressing Spring + Strap Cam |
Opening Device | Electromagnetic force of electromagnetic coil + Strap Cam |
Recommendation Use Environment | 0-40℃, below 85%RH |
Recommendation Clamping Weight | ≤100g |
Grease Supply for Moving Components | One million/ time or one moving/time |
Weight | 0.230KG |
Product Size | 35*26*92mm |
Backlash | Below 0.5mm in unilateral |
Control Mode | Digital I/O |
Work Voltage | DC24V±10% |
Rated Current | 0.1A |
Peak Current | 3A |
Rated Voltage | 24V |
Power Consumption in Clamping State | 0.1W |
Position of Controller | Built-in |
Protection Grade | IP20 |
Q1. There is a requirement for the concentricity of rotation, so when the two sides of the gripper are
close, does it stop at the middle position each time?
Answer: Yes, there is a symmetry error of <0.1mm, and the repeatability is±0.02mm.
Q2. Does the gripper include the fixture part?
Answer: No. Users need to design their own fixture part according to the actual clamped items. In
addition, Hitbot provides a few fixture libraries, please contact our staff for more details.
Q3. Is it possible to have a single finger movement?
Answer: No, single finger movement grippers are still under development, please contact our staff for
more details.
Q4.: Where is the drive controller and do I need to pay extra money for it?
Answer: It is built-in, no extra charge, the amount of the gripper already includes the cost of control
ler.
Q5. Is the electric gripper waterproof ?
Answer: IP protection class 20.
Answer: IP protection class 20.
Fully automatic sorting of curtain clips | ||
Complete Certificate Huiling-tech has more than 100 patents, including 10 invention patents. Also, the products have been certified for overseas markets, i.e. CE, ROHS, etc. | Cost-Effective Huiling-tech has advanced technology for mass production of lightweight collaborative robotic arms | |
Strong R&D Competence All robot products are self-developed, and the company has a strong R&D team to develop new products and provide technical support for clients. | Customer Orientation The robotic products can be programmed according to clients’ requirements.. | |
