SQZ8RS RBI8 ball joint with the Zinc base alloy thread M8x1.25
- Category: >>>
- Supplier: Shanghai Chenghui Bearing Co. Ltd.
Share on (1600733928871):
Product Overview
Description
Product Description
Dimensions
• Thread: M8x1.25
• Load Ratings: 5.8KN
• Weight: 0.075kg
• Total Length of Housing : 16mm
• Total Length of Stud : 12mm
• Maximum Angular Misalignment: 15 Degree
• Center of Ball to Bottom of Housing : 32mm

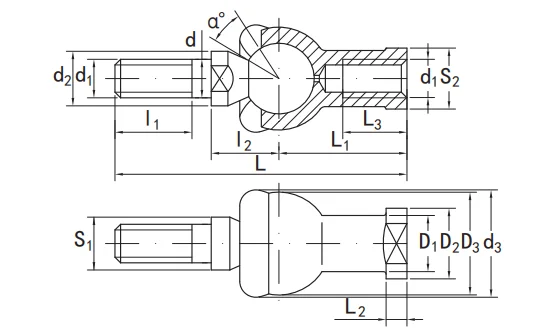

SQZ..RS Series Straight Joint
SQZ..RS series straight joint are made of zinc base alloy and carbon steel was black oxidized.
Features • Sliding contact surface: Alloy/Steel • Housing: zinc base alloy • Stud: carbon steel,black oxidized
|  |
| Part No. | Dimensions mm | Load ratings | Weight | ||||||||||||
| Right hand | Left hand | d | d1 | d2 | d3 | I1 | l2 | S1 | L | L1 | D2 | S2 | a ≈ | KN | kg |
| SQZ 5 RS | SQZL 5 RS | 5 | M5x0.8 | 9 | 20 | 8 | 11 | 7 | 46 | 24 | 11 | 9 | 15 | 2.8 | 0.025 |
| SQZ 6 RS | SQZL 6 RS | 6 | M6x1.0 | 10 | 20 | 11 | 12.2 | 8 | 55.2 | 28 | 13 | 11 | 15 | 3.7 | 0.041 |
| SQZ 8 RS | SQZL 8 RS | 8 | M8x1.25 | 12 | 24 | 12 | 16 | 10 | 65 | 32 | 16 | 14 | 15 | 5.8 | 0.075 |
| SQZ 10 RS | SQZL 10 RS | 10 | M10x1.5 | 14 | 30 | 21 | 19.5 | 11 | 80.5 | 35 | 19 | 17 | 15 | 8.4 | 0.12 |
| SQZ 10-1 RS | SQZL 10-1 RS | 10 | M10x1.25 | 14 | 30 | 15 | 19.5 | 11 | 74.5 | 35 | 19 | 17 | 15 | 8.4 | 0.12 |
| SQZ 12 RS | SQZL 12 RS | 12 | M12x1.75 | 17 | 32 | 24 | 21 | 15 | 91 | 40 | 22 | 19 | 15 | 11 | 0.18 |
| SQZ 12-1 RS | SQZL 12-1 RS | 12 | M12x1.25 | 17 | 32 | 17 | 21 | 15 | 84 | 40 | 22 | 19 | 15 | 11 | 0.18 |
| SQZ 14 RS | SQZL 14 RS | 14 | M14x2.0 | 19 | 38 | 28 | 23.5 | 17 | 109 | 45 | 25 | 22 | 11 | 15 | 0.27 |
| SQZ 14-1 RS | SQZL 14-1 RS | 14 | M14x1.5 | 19 | 38 | 22 | 23.5 | 17 | 103 | 45 | 25 | 22 | 11 | 15 | 0.27 |
| SQZ 16 RS | SQZL 16 RS | 16 | M16x2.0 | 22 | 44 | 29 | 25.5 | 19 | 118 | 50 | 27 | 22 | 11 | 15 | 0.36 |
| SQZ 16-1 RS | SQZL 16-1 RS | 16 | M16x1.5 | 22 | 44 | 23 | 25.5 | 19 | 112 | 50 | 27 | 22 | 11 | 15 | 0.36 |
| SQZ 18 RS | SQZL 18 RS | 18 | M18x1.5 | 23 | 45 | 25 | 31 | 20 | 130.5 | 58 | 31 | 27 | 11 | 19 | 0.54 |
| SQZ 20 RS | SQZL 20 RS | 20 | M20x1.5 | 27 | 50 | 25 | 29 | 24 | 133 | 63 | 34 | 30 | 7.5 | 19 | 0.57 |
| SQZ 22 RS | SQZL 22 RS | 22 | M22x1.5 | 27 | 52 | 26 | 33 | 24 | 145 | 70 | 37 | 32 | 7.5 | 23 | 0.76 |

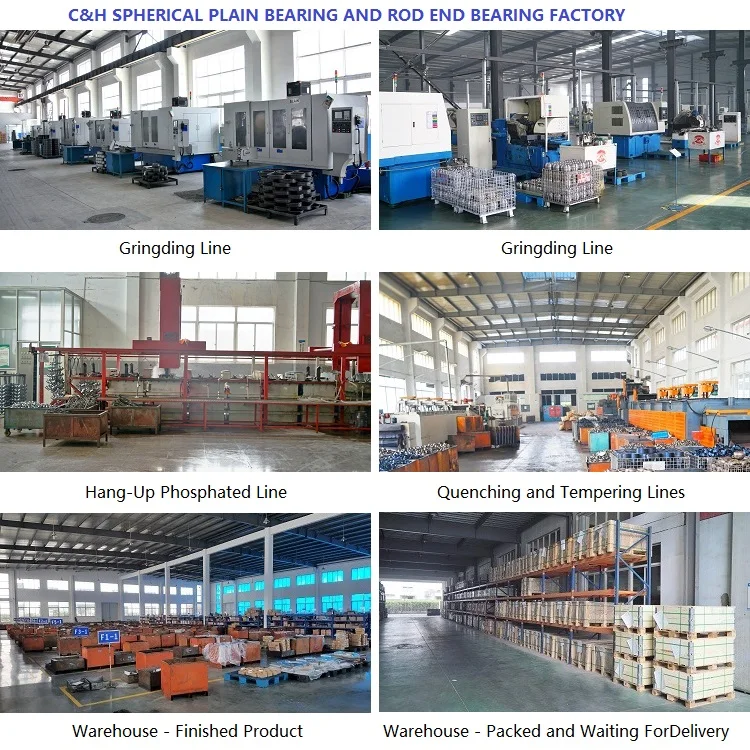

Factory Shows
About C&H
C&H is a hgih quality bearings suppliers. We have skillful and training team. Most of them have over 20 years experience.The quality control covers pre-sales aduit, process control, final product re-inspect and after-sales services. The strict and complete process ability and quality control can guarantee to supply top-class product and service.The skillful engineer team can supply great support in technical and help customers to develop all kinds of new products.
Application
A-frames, dump cylinders, front and rear struts, and steering cylinders for mining trucks
Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls and ripper blades for bulldozers
Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders
Stick and bucket cylinders for hydraulic excavators
Additional applications for space shuttles, heavy movable structures and miscellaneous vehicles
Packing & Delivery
our products will be delivered by a papaer box with a complete and perfect angle as well as surface.
