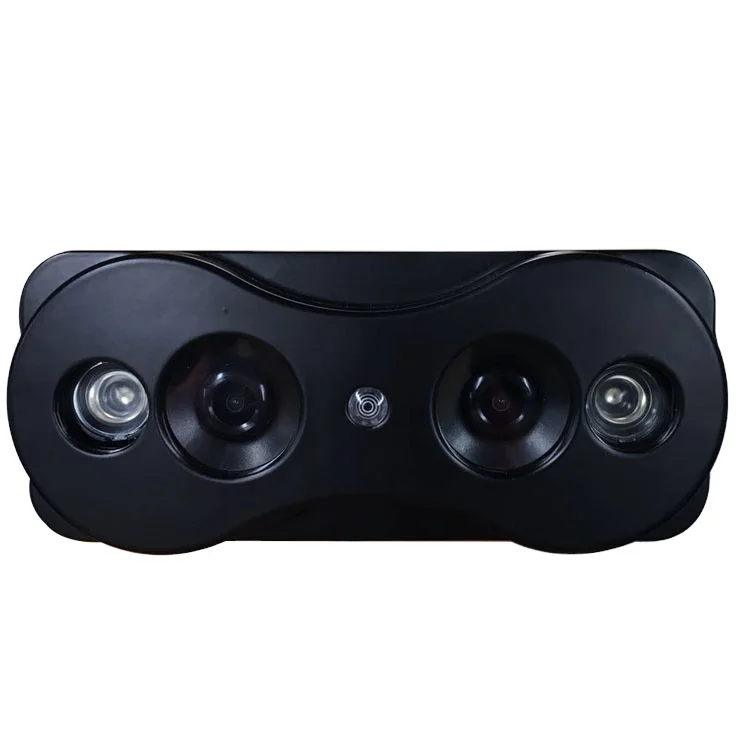

Highlight HPC099 Automatic Vehicle People Counter Gps tracking service car Camera Bus Passenger Counter
- Category: >>>
- Supplier: Highlight Manufacturing Corp. Ltd.
Share on (1600733929008):
Product Overview
Description
Highlight
automatic camera people traffic counter for vehicle HPC099 bus passenger counter
Summary
HPC099 is an automatic bus passenger counting machine with high accuracy (92% -98%), which is developed based on binocular stereo vision technology and intelligent video analysis technology. The binocular camera with artificial human eye engineering design will collect real-time passenger movement information in the door range and rapidly computes the 3D data of the target passengers through the processor. The 3D data includes the height and shoulder width of the target passengers and so on. The target elements which do not conform to human characteristics will be automatically filtered (such as trolleys, personal belongings, etc.). The same high-accuracy detection can be achieved in the sun or in dark environment.
There is one data interfaces for HPC099 sensor: RS485, which makes it very convenient to be interfaced by third-party system and achieve data interaction.

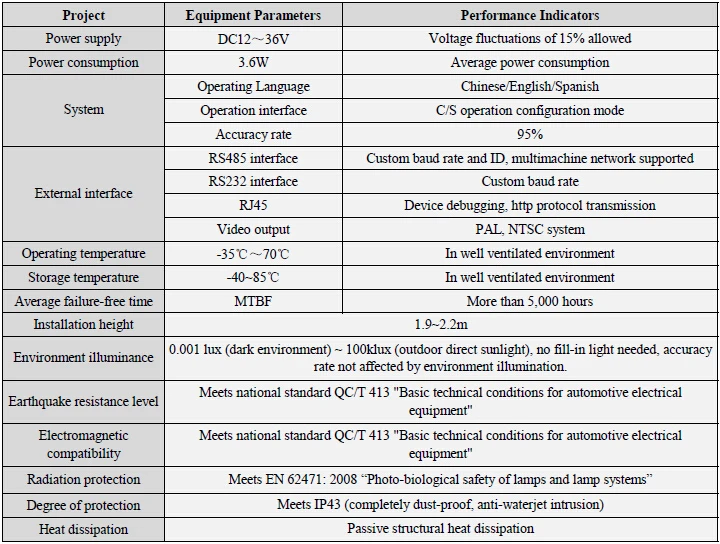

Specification
Product Show

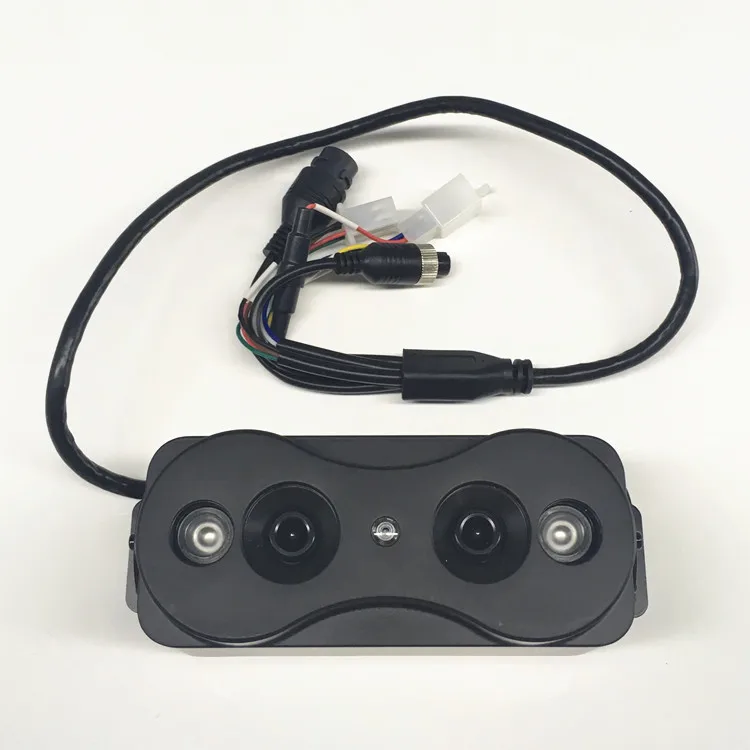

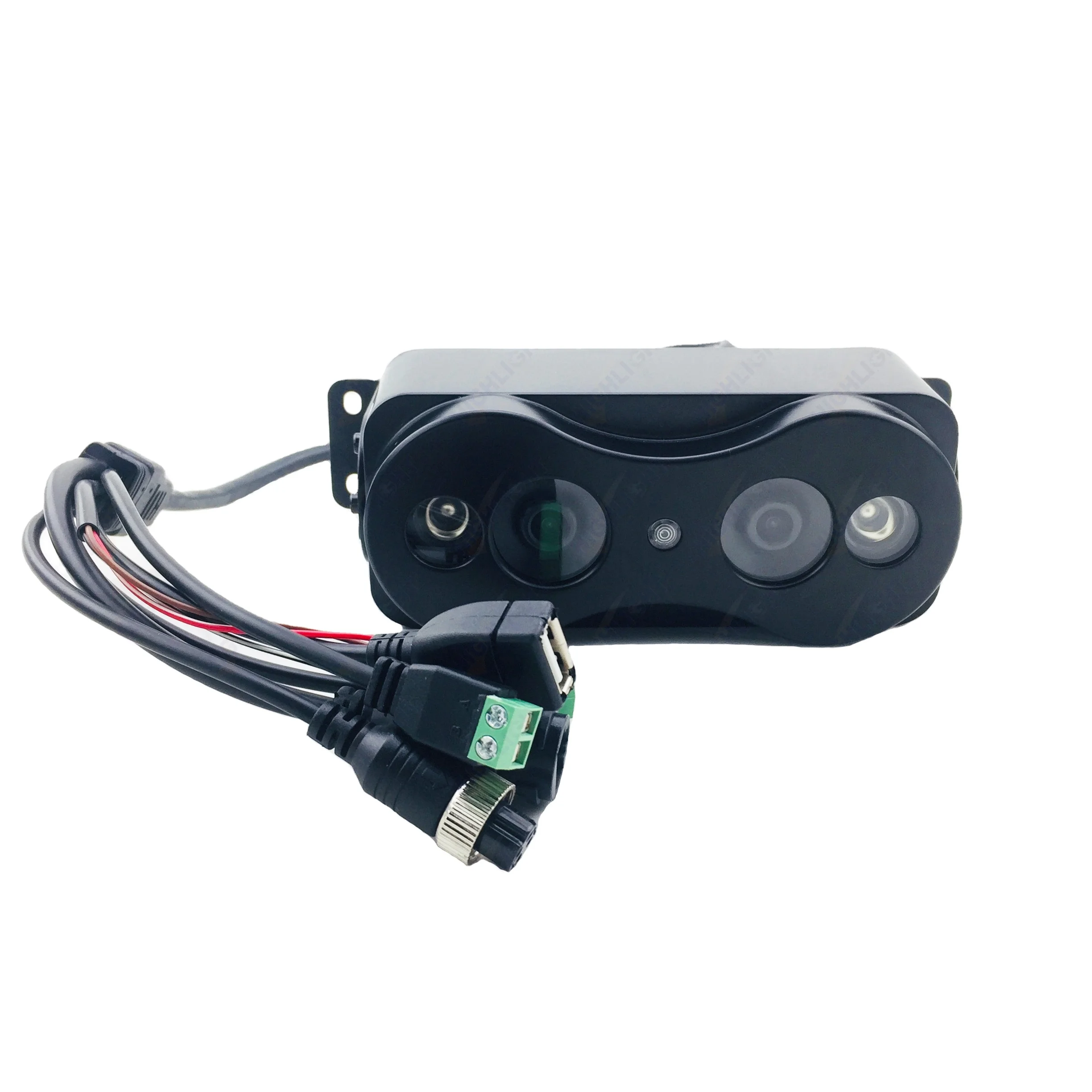

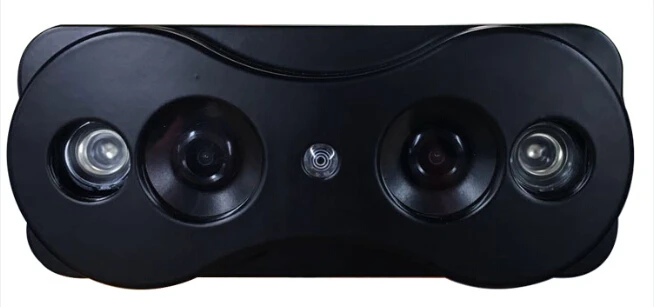

HPC099 Binocular Camera Bus Passenger Counter
Product Introduction
Basic Device

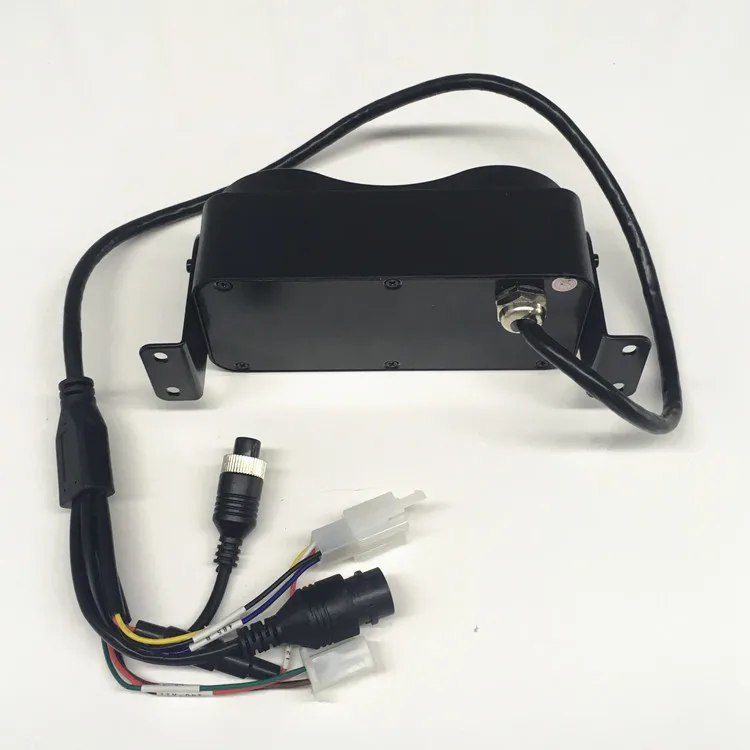

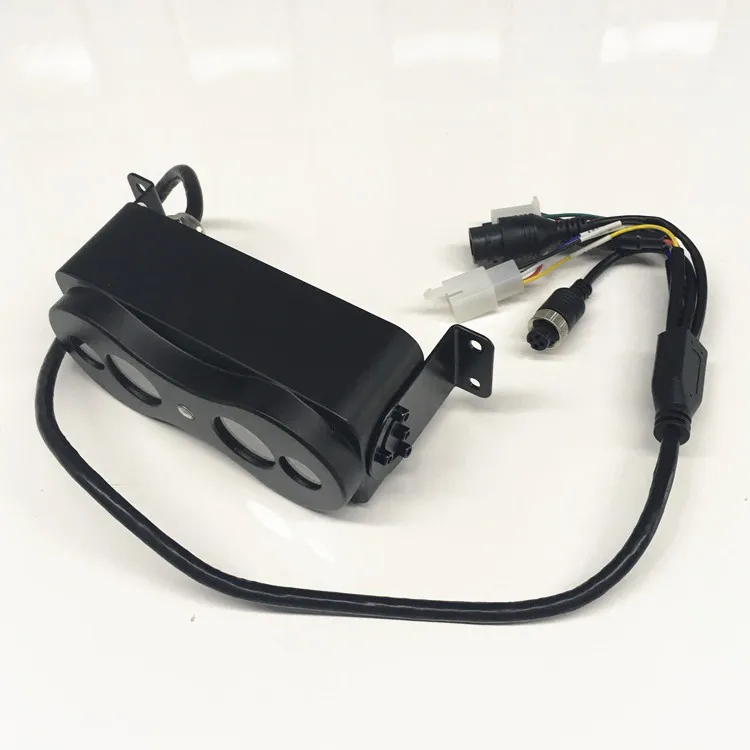

1. Sensor (HPC099)
Processor and camera are integrated all-in-one. Mounted on the ceiling of the door, counts people get in or out of the bus.
1 piece sensor per door, so 1 piece sensor for 1-door bus, 2 pieces sensors for 2-door bus.

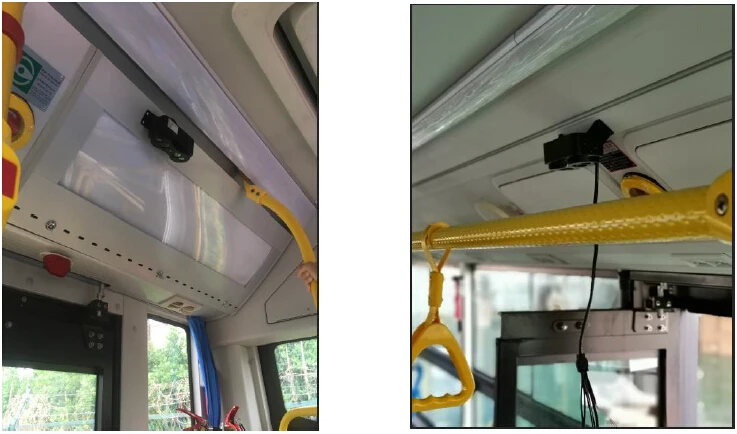

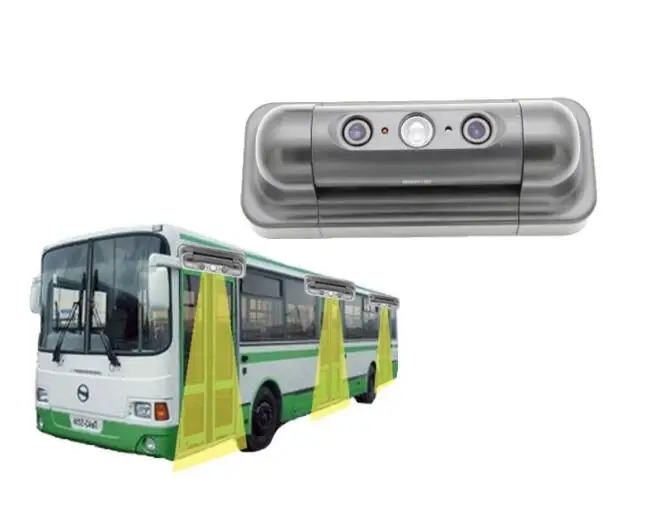

A. Bus Installation Example

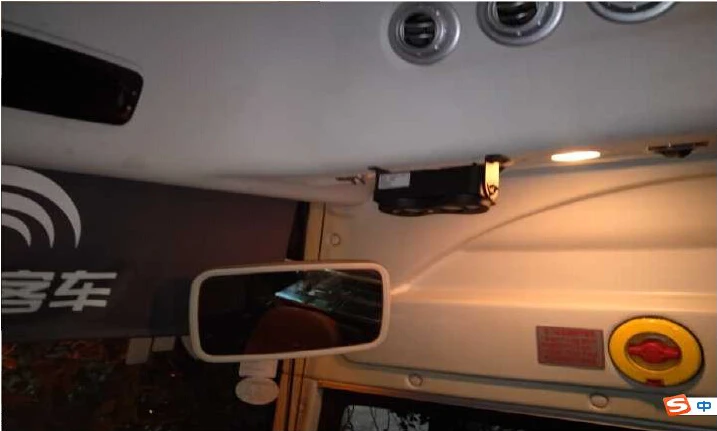

B. Long-distance bus field installation examples:
Optional Solutions

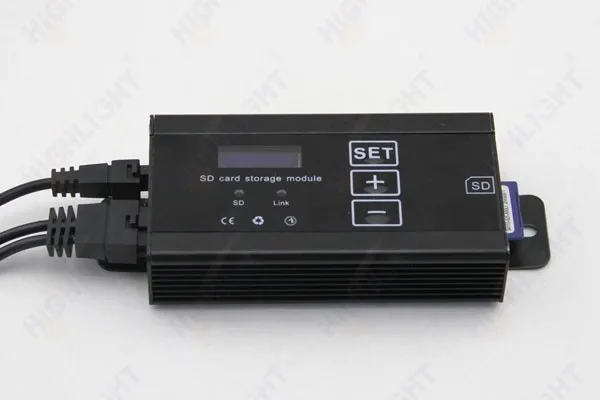

1. SD card storage (HPC099-SD)
1 piece HPC099-SD per bus.
Data is only stored in the SD card, data can be pulled out from SD card to computer for checking directly.
This solution suit for no wifi and no GPRS in the bus.

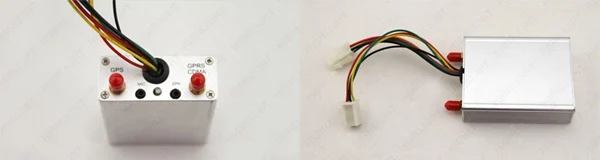

2. GPRS module(HPC099-G)
1 piece HPC099-G per bus.
Data will be transferred to server through the GPRS module in real-time. In this solution, GPRS is needed in the bus, and need GPRS software (HPC099-GS) to check data and track the location of buses in background.
This solution suit for no wifi in the bus or bus station.
3. Network Module (HPC099-N)
1 piece HPC099-N per bus.
Data will be transferred from Network module to the server directly.
Network software (HPC099-NS) is needed in this solution.
This solution suit for wifi available in the bus.
4. Wifi Network Module (HPC099-W & HPC099-N)
This solution suit for wifi only available in the bus station, not available in the bus.
Firstly, a Wi-Fi Module (HPC099-W) need to be installed in every bus, then install the Network Module (HPC099-N) in the bus station.
When bus stopped in station, Wifi Module will connect the Network Module automatically, then data will be transferred to the server directly.
Advantages
Benefits of deploying bus passenger counting system:
• Comparing and verifying fare collection figures with passenger counts
• Validating passenger counts to justify payments due to transportation companies
• Scheduling maintenance and cleaning based on vehicle usage
• Optimizing vehicle load across regions, time periods, or other factors
• Monitoring service quality
Advantages of HPC099 bus passenger counter sensor:
1. Basic Device: Processor and camera are integrated all in one, so one piece sensor per door is enough, no need to install additional equipment.
2. Only one cable is needed for each door, no extra connection cables, so the installation is easier and more convenient.
3. The algorithm is more precise and faster, cause one processor only collect and process data from one camera sensor now.
2. Only one cable is needed for each door, no extra connection cables, so the installation is easier and more convenient.
3. The algorithm is more precise and faster, cause one processor only collect and process data from one camera sensor now.
Related Products
Certification
Quality is our culture. We follow CE/ISO strickly to guarantee the quality.

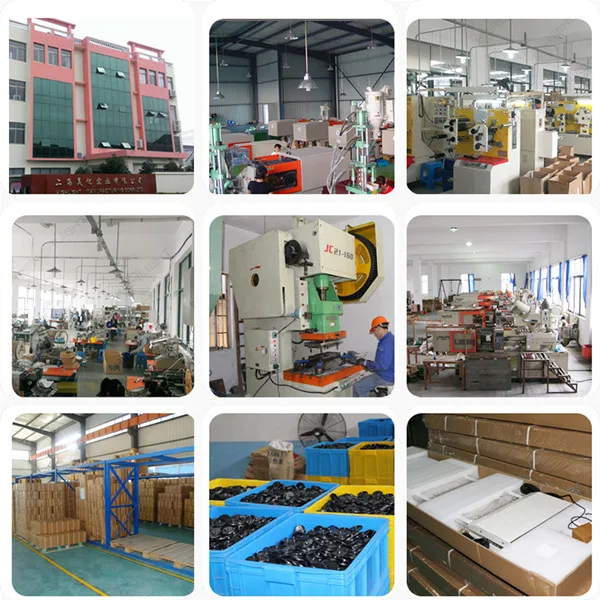

Company Information
ABOUT HIGHLIGHT (www.retail-solution.com)
Highlight is a professional EAS/ ESL/ People Counter manufacturer and exporter with over 15 years experience in China.
There is a full range of EAS products: 40 kinds EAS systems, 107 tags, 18 labels, 44 safers, 25 detachers, 20 pins, 13 deactivators, 9 lanyards, 8 people counters, ESL and so on. You can find whatever you want here.
We develop new products every months and accept the OEM and ODM. ISO factory and CE products.
