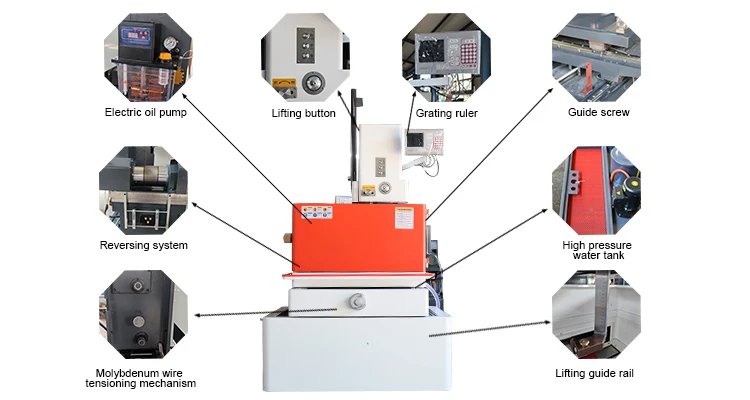

DK7750 Multiple cutting function wedm machine/ cnc edm wire cutting machine/wire edm cut machine for linear guide rail
- Category: >>>
- Supplier: Suzhou Ming Xin Chen Cnc Technology Co. Ltd.
Share on (1600733932002):
Product Overview
Description
Products Description
Suzhou Ming Xin Chen Cnc Technology Co., Ltd. produces whole series of DK77 CNC edm wire cutting machines,which adopts high precisionv-shaped quide rail(Linear guide rail optional) and P3-grade high precison ball screw. The products have high quality complete models, long service life and high precision. Machine specifications can be customized according to customer needs,like non-standard models DK7740(45)EDK7750(55)FDK7763FDK7780FDK77100FDK77120F or ever larger models The comnany also produces +30°+45°swina larae taper machines and CNC hiah-precision middle speed edm wire cutting machines(Precision≤±0.005mmroughness≤1.0um).The following are the main parameters of DK77 series machines
1.Standard maximum cutting taper+6°/80mm;(±15°+30°+45°are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(lf linear quide equipped, the precision can reach 0.01mm
3.Best surface roughness ≤Ra2.5um(single-cut).Ra1.5um(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max.cutting speed>120mm^2/min
6.Voltage:3 phase 380V(single phase 220V3 phase 220V or other voltage can be customized),Power1.5KW;
7.Working fluid:Water-based emulsion.
1.Standard maximum cutting taper+6°/80mm;(±15°+30°+45°are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(lf linear quide equipped, the precision can reach 0.01mm
3.Best surface roughness ≤Ra2.5um(single-cut).Ra1.5um(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max.cutting speed>120mm^2/min
6.Voltage:3 phase 380V(single phase 220V3 phase 220V or other voltage can be customized),Power1.5KW;
7.Working fluid:Water-based emulsion.
ITEM | MXC320 | MXC400 | MXC500 | MXC630 | |||
Worktable size (mm) | 760*520 | 850*600 | 1000*750 | 1160*820 | |||
X, Y axis travel | 400*320 | 500*400 | 630*500 | 800*630 | |||
Machine weight (KG) | 1850 | 2160 | 2730 | 3420 | |||
Z-axis lifting mode | Electrical | ||||||
A-axis travel size (mm) | 280 | ||||||
Electrode wire diameter (mm) | Φ0.12-Φ0.20mm | ||||||
Wire feed rate | 7 levels adjustable | ||||||
Process accuracy(Vertical) | Multi-cut:10×10×30(square)≤0.005mm One-cut≤0.012(Multi-cut)(Octagon)≤0.008mm | ||||||
Cutting speed (mm²/min) | 0-180 | ||||||
Process roughness | Multi-cut:Ra≤1.2μm One-cut:Ra≤2.5μm | ||||||
Maximum cutting thickness (mm) | 240 | 240 | 300 | 300 | |||
Maximum cutting taper (°/mm) | ±3°/80 | ||||||
Power (KVA) | 2.5 | ||||||
Motor drive system | Stepping motor or AC servo motor*(Opition) | ||||||
Maximum workpiece weight | 180 | 260 | 400 | 600 | |||
Machine size | 1560*1100*1680 | 1600*1200*1680 | 1830*1390*1780 | 2060*1650*2050 | |||

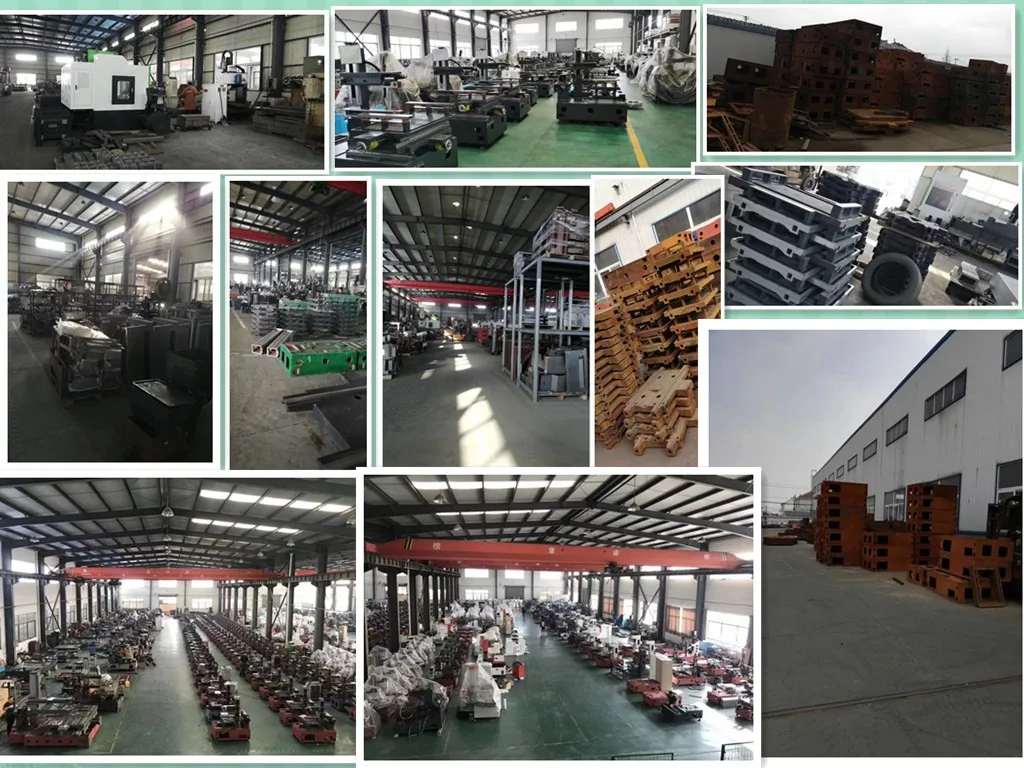

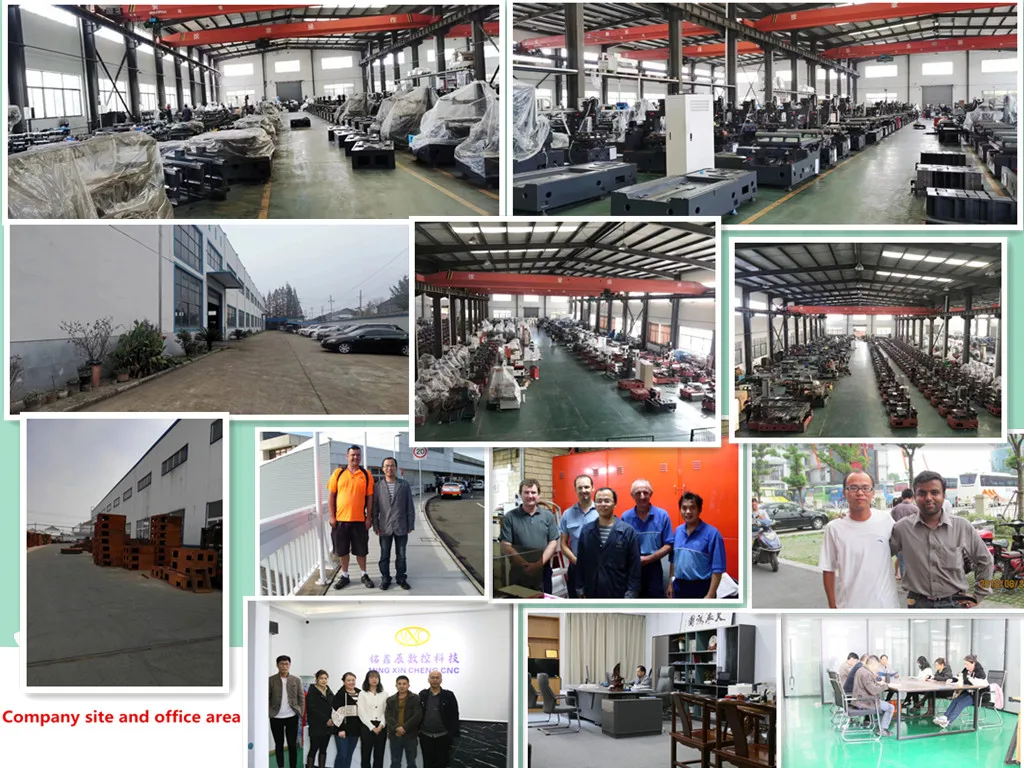

About us
Our Certificate
FAQ
Q1:Could I visit your factory?
A:Of course,yes!Warmly welcome all customer from all over the world to visit our factory.
Q2:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q3:What about the price?
A:We promise the price we offer is lowest if same application,only to enlarge the market share.And given you cost price for
consumable parts.
consumable parts.
Q4:Why choose you?What is the difference between you and other Chinese supplier?
A:We Specializing in the search and development, testing, manufacturing and sales of CNC numerical control system for wire-cutting
electric discharge machine tools, wire-cutting wire cutting machine tools and electrical processing equipment.
electric discharge machine tools, wire-cutting wire cutting machine tools and electrical processing equipment.
Q5:I`m worried about after-sales service!
A:Warranty is one year.
Take a photo or video of the problem and send it to us. After we check and confirm the problem, we will provide you with a
satisfactory solution within 24 hours.
Take a photo or video of the problem and send it to us. After we check and confirm the problem, we will provide you with a
satisfactory solution within 24 hours.
