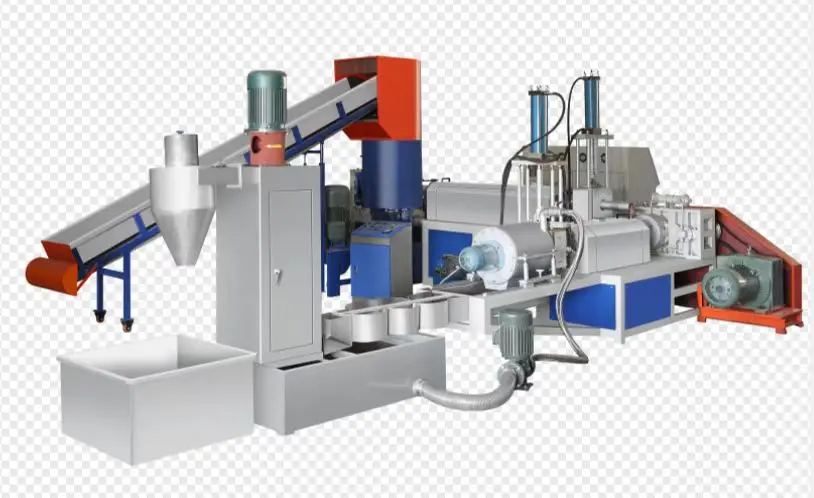

high speed mixing and granulating integrated machine
- Category: >>>
- Supplier: Zhejiang Bangtai Machine Co. Ltd.
Share on (1600733934815):
Product Overview
Description
Product Description
WASTE PLASTIC RECYCLING MACHINE
Specification
Model | SJ-A120 | |
Capacity | 180-250kg/h | |
Automatic feeding machine | width 600, length 4500, motor with turbine deceleration automatic brake | |
High-speed crushing mixer | mixing barrel diameter 800MM | |
Main Motor Power (380V ,3PHASE, 50HZ ) | 45kw | |
1st stage extruder : | 30kg/h | |
Diameter of main screw | 120mm | |
Diameter of barrel | 160MM | |
Major Diameter Ratio of Screw Stem | 25 :1 (main screw length 3000mm) | |
Screw and barrel material | 38CrMoAlA, heat treated, nitrited treated, surface hardness HV800-900, depth 0.6-0.7mm | |
Gear box : | #225 (Hard tooth surface with oil pump gear reducer, the national standard brand: Shuguang origin: Xiaoshan) | |
Main Motor Power (with inverter) | 45kw ( 4-stage constant speed 380V, 3-phase 50Hz) Brand: Vinor Origin: Nanjing. inverter Brand: Delta Origin: Taiwan | |
Extruder barrel heating system : | 4 zone. ceramics heating system, 1 zone is stainless heater. | |
Die head heating system : | 1 zone | |
With exhaust type device | (single exhaust) | |
Net changer unit | hydraulic filter changer ,net size 250 * 250mm (non-stop change filter , up and down non-stop change net | |
2nd stage extruder | ||
Diameter of main screw | 120mm | |
Diameter of barrel | 160mm | |
Major Diameter Ratio of Screw Stem | 10:1 (screw length 1200mm) | |
Screw material | 38CrMoAlA, heat treated, nitrited treated, surface hardness HV800-900, depth 0.6-0.7mm | |
Gear box : | #180 (Hard tooth surface with oil pump gear reducer, the national standard brand: Shuguang origin: Xiaoshan) | |
Main Motor Power (with inverter) | 18.5 kw ( 4-stage constant speed 380V, 3-phase 50Hz)Brand: Vinor Origin: Nanjing. | |
Extruder barrel heating system: | 2zones. stainless steel heater | |
Die head heating system : | 2 zone | |
Net changer unit | hydraulic filter changer ,net size 250 * 250mm (non-stop change filter , up and down non-stop change net | |
Cutting unit | ||
Pellet cutting method | horizontal water ring hot cutting type adopts double-knife rotation | |
Drying unit | ||
Vertical centrifugal stainless steel dehydrator motor power | 5.5KW (level 4 constant speed, brand: Vinor origin: Nanjing) | |
storage barrel | ||
1T stainless steel storage barrel | feeding motor 2.2KW | |
Machine Weight (approx.) | 4.5ton | |
Overail Dimensions(L*W*H) | 14m *4.5M* 2.5m | |
Brand of electrical parts | ||
Main Motor | WEINUO ,NANJING | |
Inverter | Delta ,Taiwan | |
Gearbox | Shuguang， Xiaoshan | |
