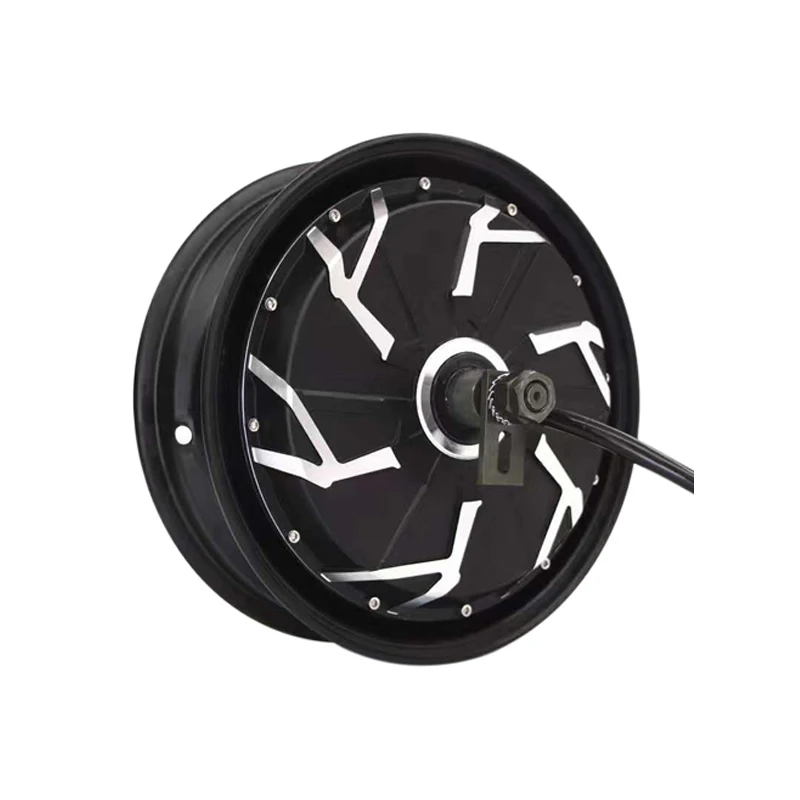

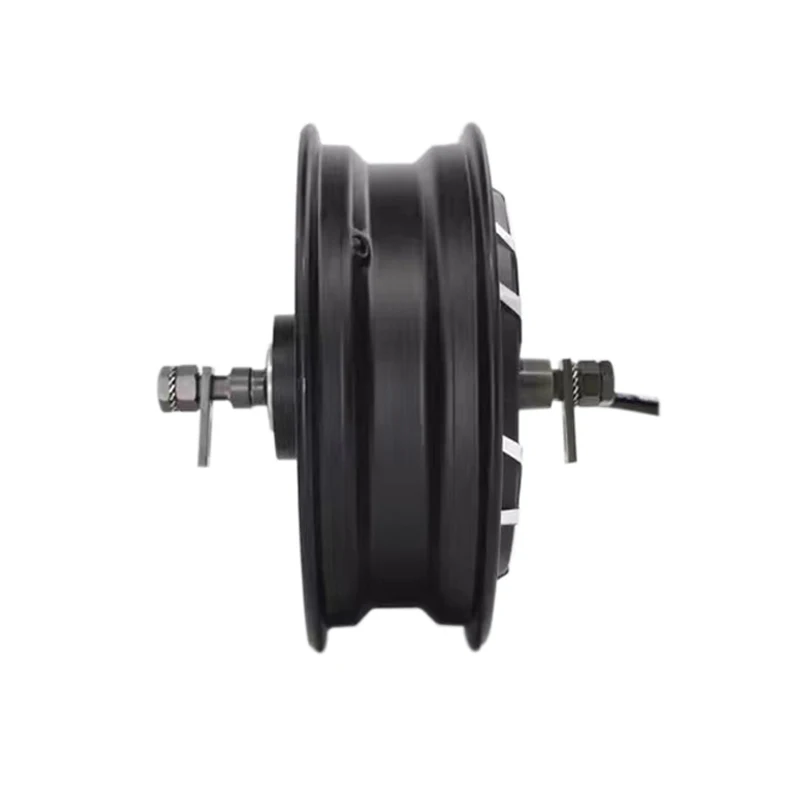

QS Motor 12x3.5 inch 72V 6000W 260 Electric Scooter Hub Motor (50H) V4 Type

Product Overview

Description















12inch 260 E-Scooter Hub Motor(50H) 6000W V4 Type



Motor Specification:



1.      Motor Type: BLDC Hub Motor with Permanent Magnets

2.      Motor design: Double axle out with 12inch rim

3.      Rim size:3.5x12

4.      Matching Tire: 130/70-12

5.      Magnet Height: 45MM

6.      Pole Pairs: 16 pairs

7.      Rated Power: 6000W

8.      Peak Power: 12000W(In short time)

9.      Rated Voltage: 48V,60V,72V

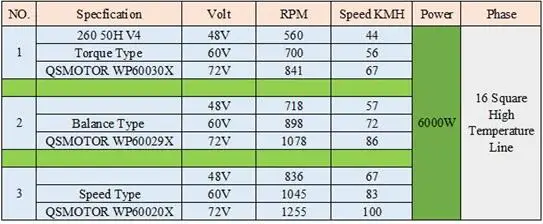

10.  Speed option:

11.  Max Torque: 250N.M

12.  Max Efficiency:90%

13.  Continious current:92A at 72V

14.  Max current:180A at 72V

15.  Brake type: Disc brake

16.  Rear Fork width for installation: 200mm

17.  Winding Holder Material: Aluimium

18.  Cross Section of Phase wire: 16mm2

19.  Hall sensor phasing angle: 120 degree

20.  Temperature Sensor: KTY84-133

21.  Max. Working Temperature: 70 degree, Peak 120 degree

22.  Waterproof Grade: IP66

23.  Color: Black

24.  N.W./ G..W. : 20kgs / 22kgs

25.  Package Size: 44*43*34CM
