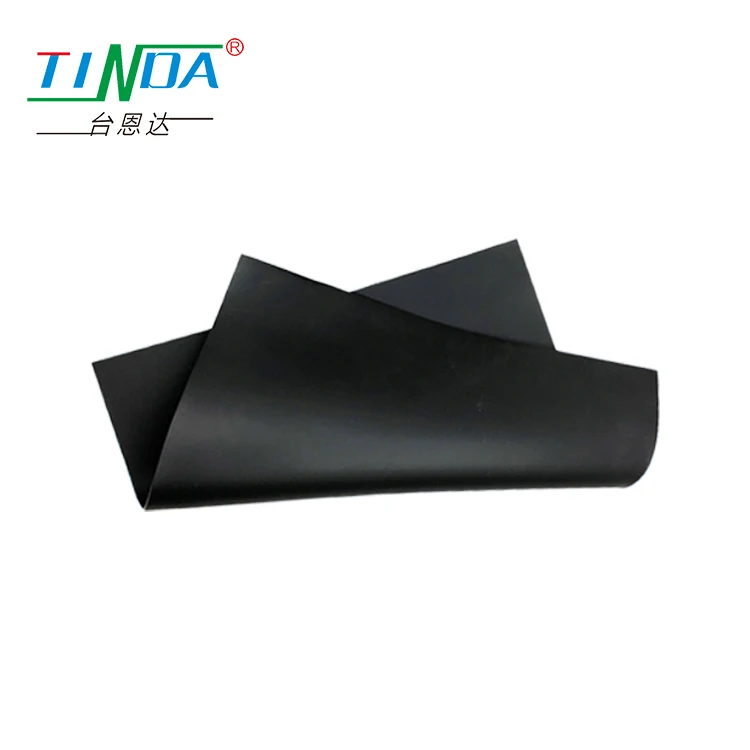

thermoplastic elastomer thin carbon silicone rubber sheet medical grade conductive high tension rubber sheet
- Category: >>>
- Supplier: Shenzhen Tinda Hardware & Plastic Co. Ltd.
Share on (1600733939939):
Product Overview
Description

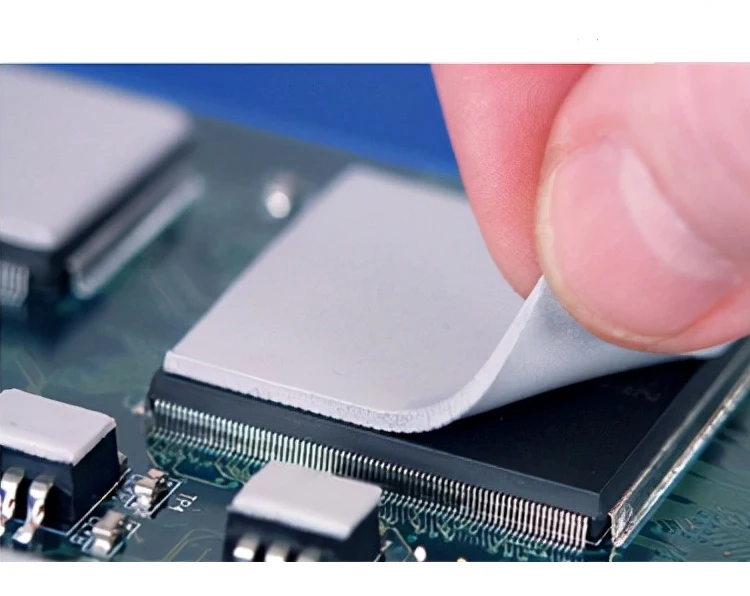

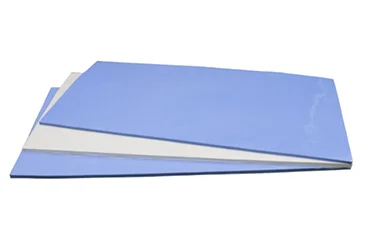

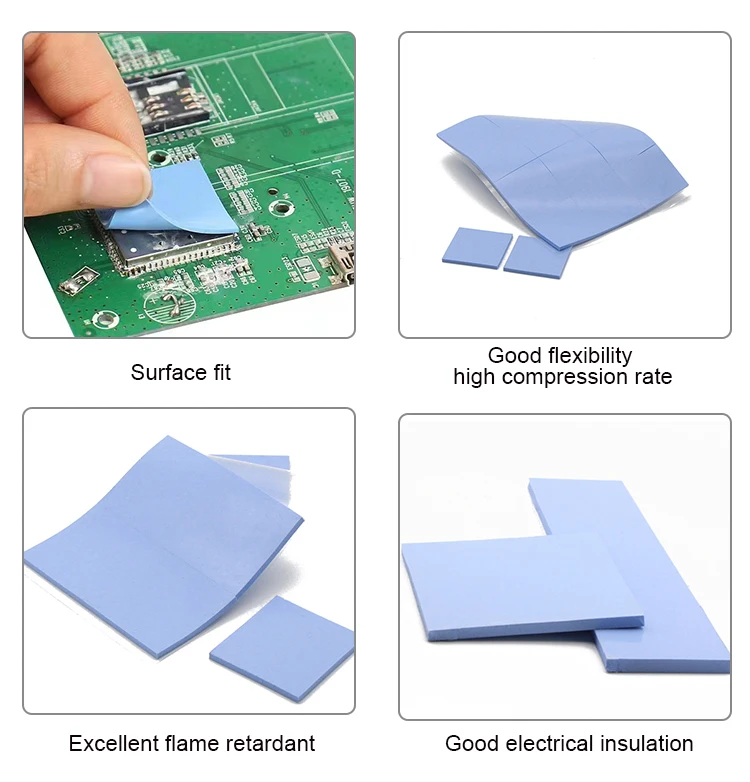

Thermal conductive silicone sheet: Used in LED, switching power supply, medical equipment, industrial computer, automotive electronics
It has sealing and water vapor sealing ability. It has good electromagnetic shielding, and can provide good conductivity under certain pressure. It has high and low temperature resistance and electrolytic corrosion resistance
Test Standard | Unit | 8520 | 8700 | 8710 | 8800 | 8812 | 8813 | 8817 | |
base material | --- | --- | Si | Si | Si | Si | Si | Si | Si |
Conductive fillling material | --- | 2112------ | --- | Ag/Cu | Ag/A1 | Ag/Ni | Ni/C | Ni/C | Ni/C |
Volume resistivity | MIL-DTL-83528C | m0hm | --- | 2 | 8 | 15 | 8 | 8 | 8 |
cm | |||||||||
Density No curing After curing | --- | g/cm3 | 0.9 | 2.5 | 1.7 | 2.6 | 2 | 1.9 | 1.6 |
ISO 2781 | 1.1 | 2.9 | 1.9 | 3.1 | 2.2 | 2.1 | 1.9 | ||
Hardenss | ISO7619 | Shore | 40 | 55 | 65 | 55 | 80 | 73 | 63 |
A | |||||||||
Tensile strength | ISO 37 | Mpa | 5.6 | 2.1 | 2 | 2.9 | 2.8 | 2.5 | 2.6 |
Laegest elongation | ISO 37 | % | 570 | 310 | 140 | 240 | 100 | 170 | 260 |
Tear strength | ISO 34-1C | N/mm | 24 | 12 | 14 | 14 | 13 | 15 | 16 |
The matAfter moldingEffect of shieldingcab | 0.3-9Ghz | db | --- | -- | 70 | 107 | --- | --- | --- |
0.3-20Ghz | 75 | --- | --- | 130 | 130 | 130 |
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Type | Color | Qi electric breakdownPressure(VAC) | Thermal limit @50psi（）℃-in2/w | The volume resistance(ohm-cm) |
Tinda500 | Brown | >6000 | 0.45 | 1022 |
Tinda5000 | Double | >6000 | 0.35 | 1022 |
Tinda100 | White | >6000 | ~ | 1022 |
Tinda300 | Yewllow | >6000 | 0.530.53 | 1022 |
Tinda400 | Gray | >5500 | 0.63 | 1022 |
Tinda3000 | Brown | >6000 | 0.55 | 1022 |
TindaK52-1 | Light amber | 4200 | 0.13 | 4x1014 |
TindaK52-2 | Light amber | 7800 | 0.22 | 4x1014 |
TindaK52-3 | Light amber | 900 | 0.31 | 4x1014 |
