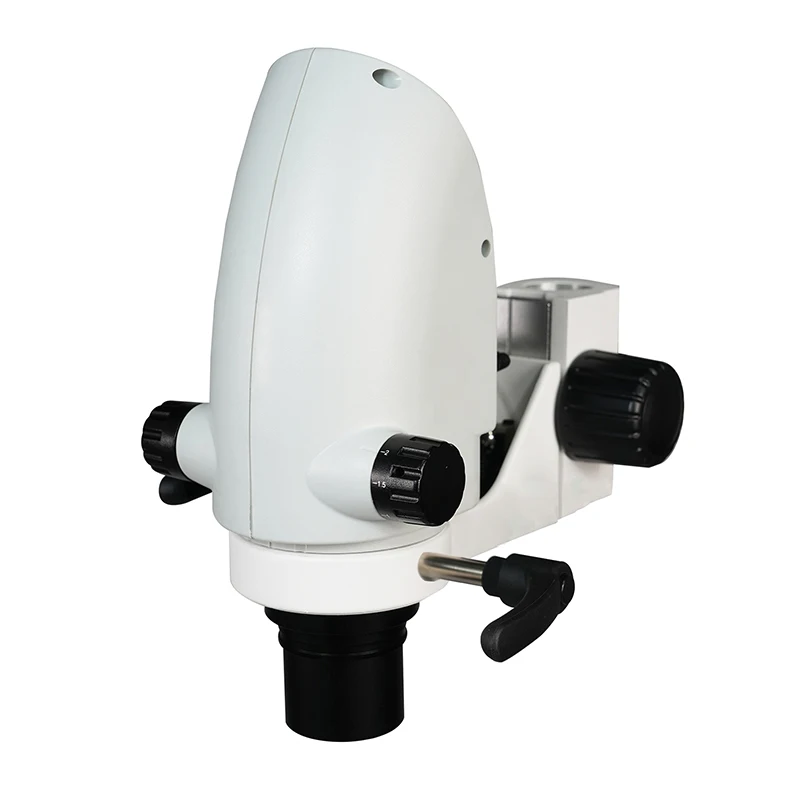

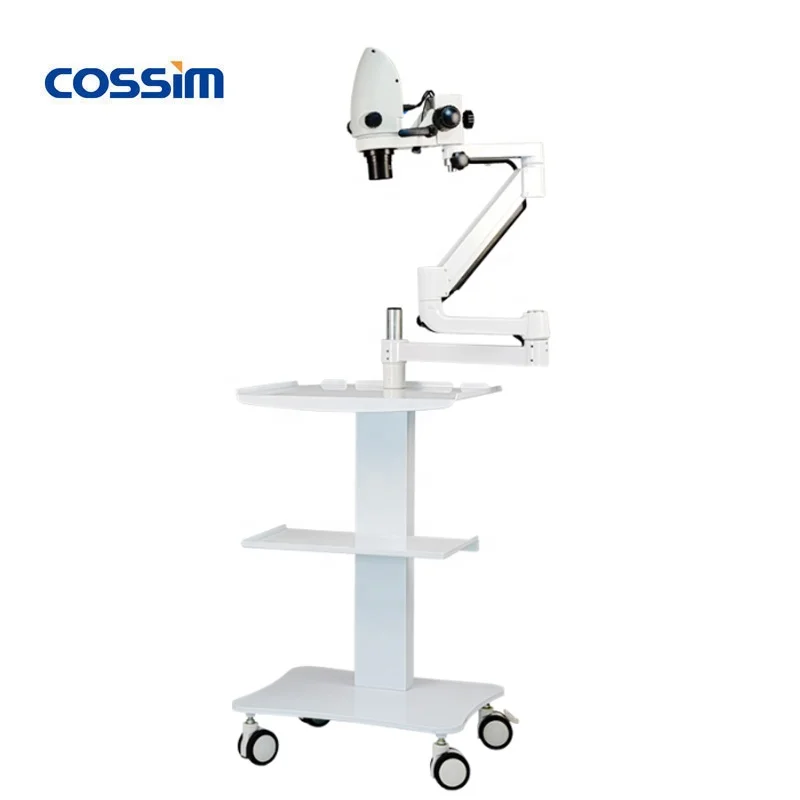

China Popular Portable Operating Dental Microscope Surgical Dental Stereo Microscope Equipment with Built in Digital Camera

Operation

Wireless mouse operation

Big objective lens

F=250mm

Camera pixel

2 MP, HDMI

Magnification ratio

Zoom lens 0.7x-4.5x; built-in camera with HDR image,1/3” COMS

Maximum resolution

1920*1080P@60FPS

View diameter

10mm-100mm

Working distance

About 280mm

Microscope light source

LED spot light

Light color

White and orange ring light source

Illumination

LED light source>45,000LX

Connection

Computer, dental endoscope, monitor, TV, projector, etc, Support for SD Card

Function

Real-time inspection, Video recording and photography, Measurement, Storage, Data output

Displayer

According to customer's preference

Displayer

Size

Standard

0.5x Auxiliary Lens

2.0x Auxiliary Lens

0.3X Auxiliary Lens

W.D. 100mm

W.D. 180mm

W.D. 30mm

W.D. 250mm

Mag.

F.O.V.(mm)

Mag.

F.O.V.(mm)

Mag.

F.O.V.(mm)

11.6”

17.2x-110.5x

18.5*10.5-2.8*1.5

8.6x-55.2x

37.5*21-5.5*3.0

34.4x-221x

9.5*5.5-1.5*0.7

21.5”

31.9x-204.8x

18.5*10.5-2.8*1.5

15.9x-102.4x

37.5*21-5.5*3.0

63.7x-409.6x

9.5*5.5-1.5*0.7

Power

Input 100V-240V, AC50/60Hz; Output DC12V/2A

Features

• Support video and imaging


• Special software system, operating your connected displaying device like a endoscope, support 1/4 pictures display , screen freeze, make pictures comparison, screen color adjustment , data storage as evidence and many other functions
