China wholesale price inverter 3kw 3000w 24v solar hybrid inverter for solar panel
- Category: >>>
- Supplier: Foshan Maxgreen New Energy Technology Ltd.
Share on (1600733953473):
Product Overview
Description
Main Features:
1. High efficiency pure sine wave inverter(PF=1 );Wide PV input range (120V de -500V de) 80A MPPT SCC;lntelligent 3 stage 60A AC battery charger.
2. Surges to 2X continuous power for 5 seconds for motor loads.
3. Intelligent functionality enables utility and
solar input prioritization.
solar input prioritization.
4. Wide ulility input range (90V ac ~280Vac) for unreliable grid even in the most challenging
environments.
environments.
5. Field serviceable with replacement boards and spare parts.

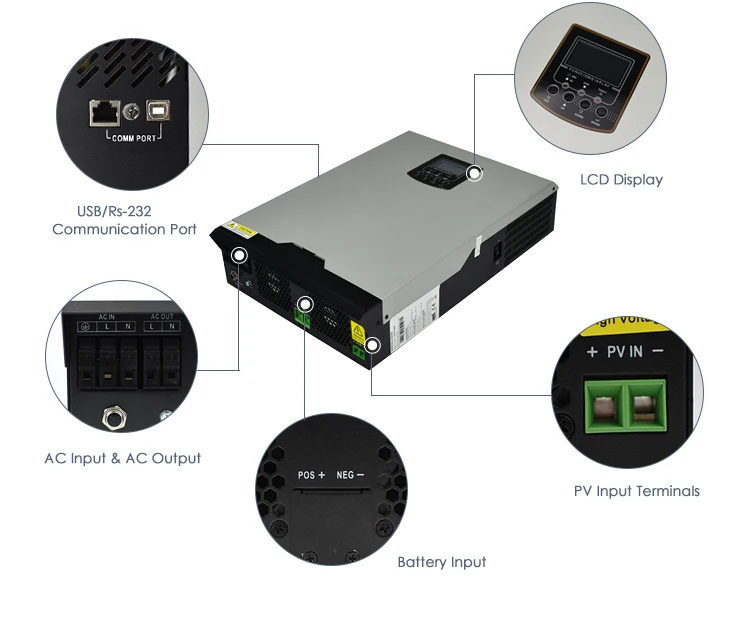

6. Monitor, troubleshoot, or communication with USB/RS 232.

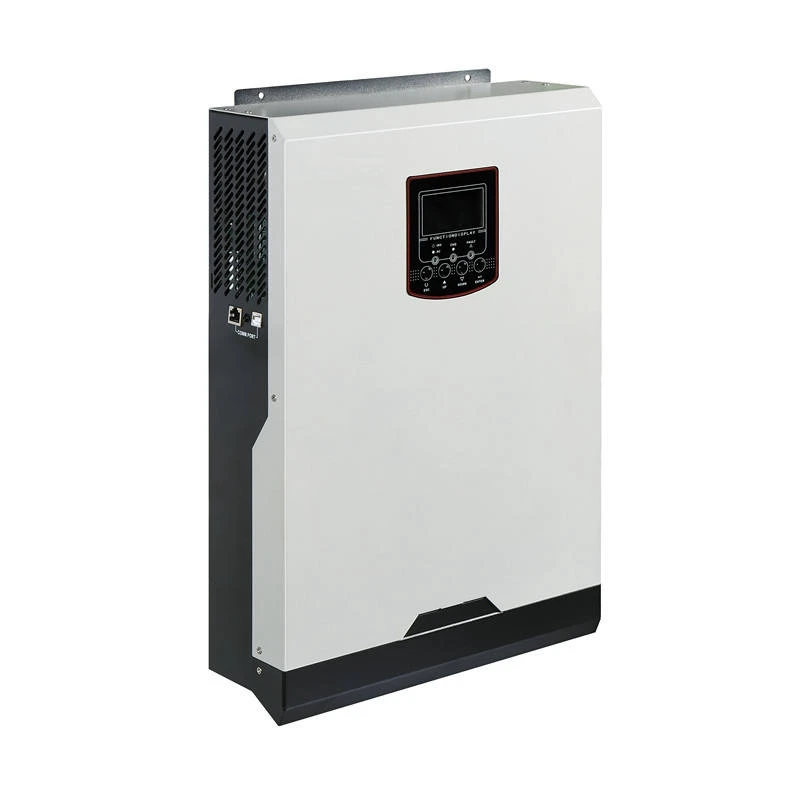

7. System configures quickly into compact, wall-mounted system.
8. This series inverters can work without batteries when there is the sun.
Products Description
Model | HY3222VMII | HY3522VMII | HY5032VMII | HY5532VMII | ||||
RATED POWER | 3200VA/3200W | 3500VA/3500W | 5000VA/5000W | 5500VA/5500W | ||||
INPUT | ||||||||
Voltage | 230 VAC | |||||||
Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) | |||||||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||||||
OUTPUT | ||||||||
AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | |||||||
Surge Power | 6000VA | 7000VA | 10000VA | 11000VA | ||||
Efficiency (Peak) | 90%~93% | |||||||
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |||||||
Waveform | Pure sine wave | |||||||
BATTERY | ||||||||
Battery Voltage | 24VDC | 48 VDC | ||||||
Floating Charge Voltage Overcharge Protection | 27 VDC 33VDC | 54 VDC 63 VDC | ||||||
SOLAR CHARGER & AC CHARGER | ||||||||
Max. PV Array Open Circuit Voltage | 500VDC | 500VDC | ||||||
Max. PV Array Power | 120-450VDC | 120-450VDC | ||||||
MPP Range ©operating Voltage | 4000 W | 5000 W | ||||||
Max. Solar Charge Current | 80 A | 100 A | 80 A | 100 A | ||||
Max. AC Charge Current | 60 A | 60 A | ||||||
Max. Charge Current | 100A | 100 A | ||||||
PHYSICAL | ||||||||
Dimension, D x Wx H (mm) | 115x300x 400 | |||||||
Net Weight (kgs) | 9 | 10 | ||||||
Communication Interface | USB/RS232/RS485/Bluetooth/Dry-contact | |||||||
ENVIRONMENT | ||||||||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||||
Operating Temperature | -10° C to 50° C | |||||||
Storage Temperature | -15° C to 60° C | |||||||
Details Images
Related Products

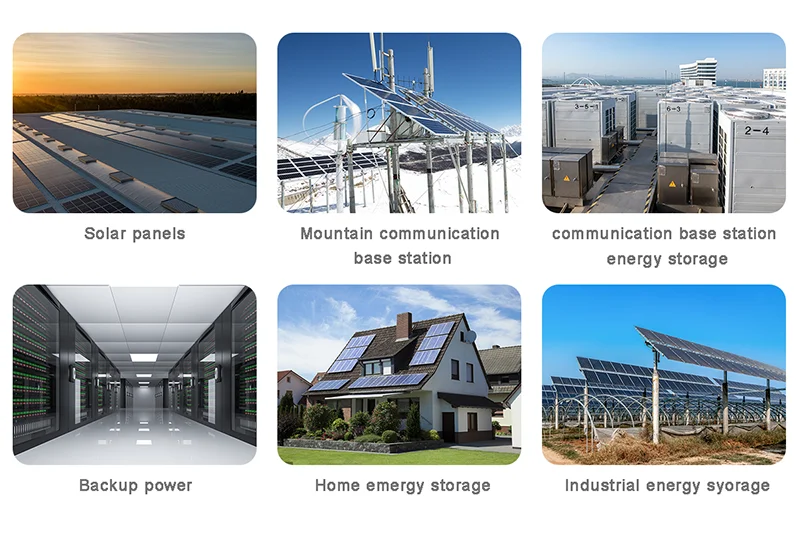

Product Application

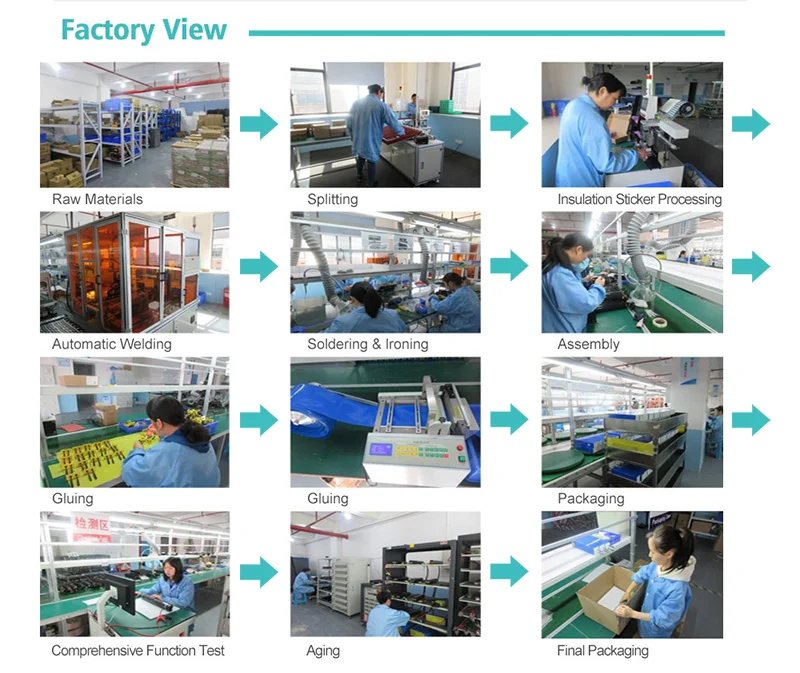

Company Profile

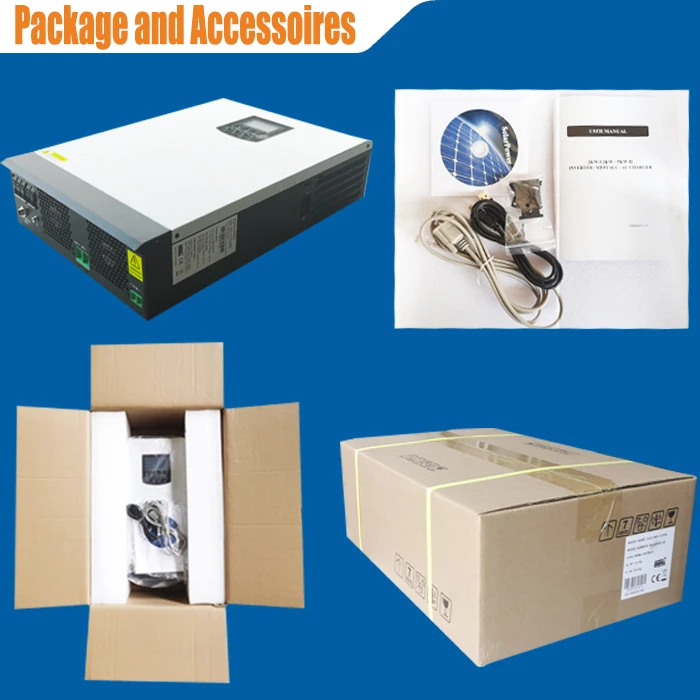

Packing and Shipping
