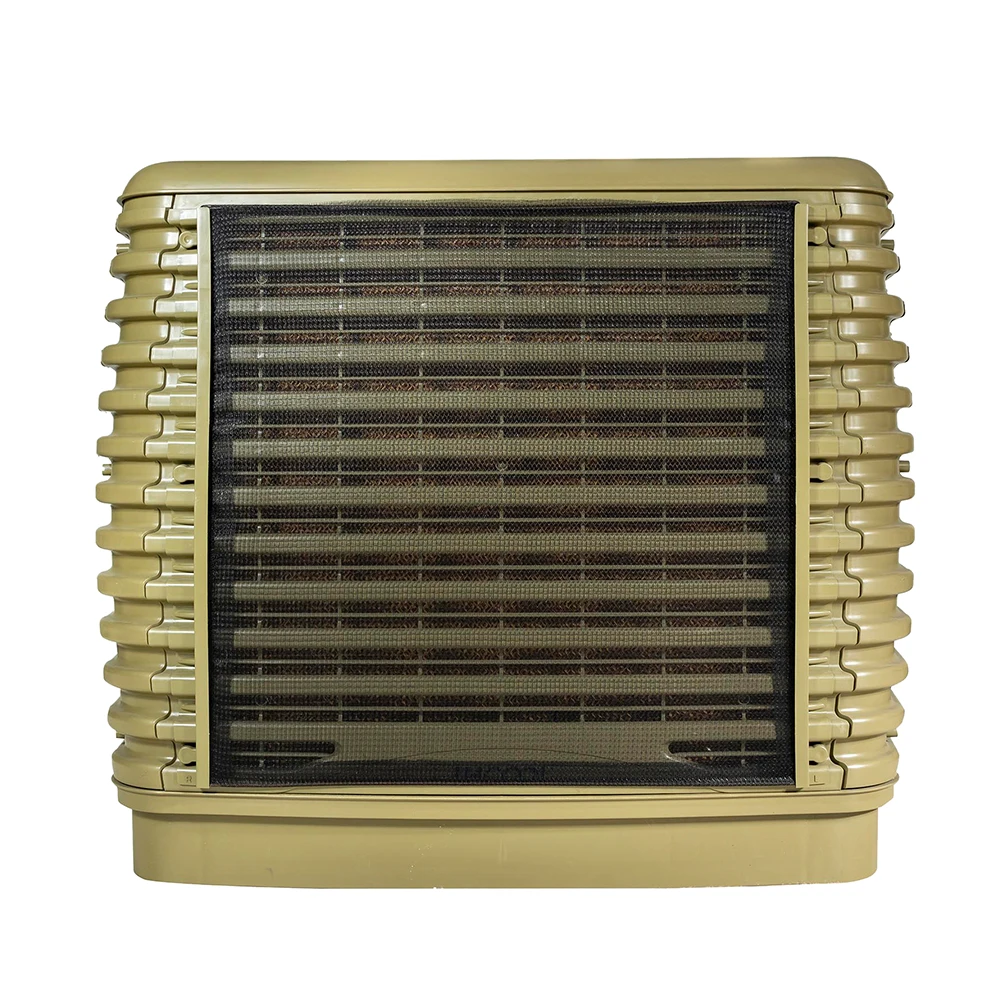

JHCOOL 30000cmh Air Cooler Roof Mounted Evaporative Air Conditioner with Intelligent Clean

Share on (1600733990671):


Price:$897.00 - $946.00

Quantity:


Product Overview

Description


JHCOOL 30000cmh Air Cooler Roof Mounted Evaporative Air Conditioner with Intelligent Clean



Product Description





JHCOOL Air Cooler Working Principle:
Nature's most efficient means of cooling is through the evaporation of water. Evaporative cooling works on the principle of heat absorption by moisture evaporation. It also happens on human skin, the body sweats to cool temperature down.





Product Advantages:


1.120mm thick Cooling pads,Better cooling

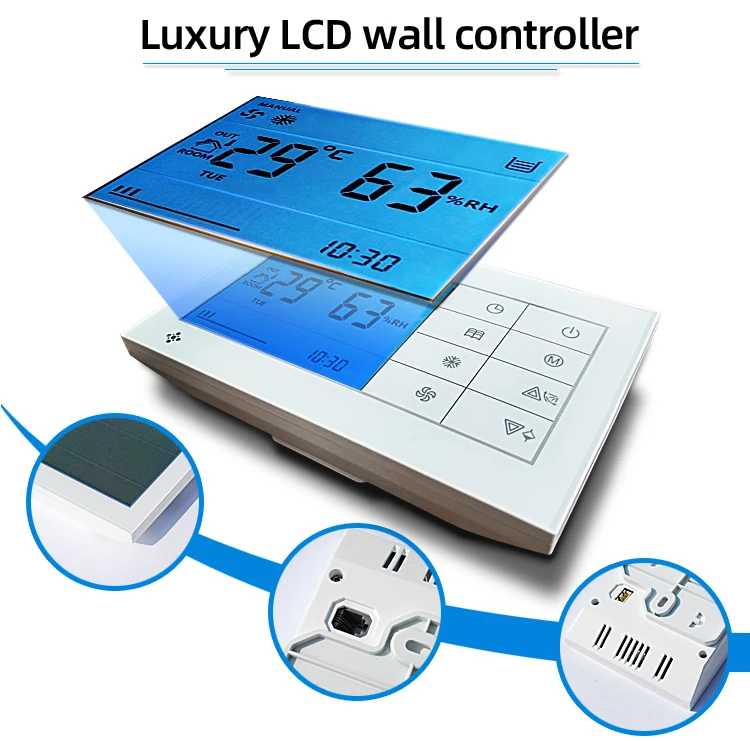

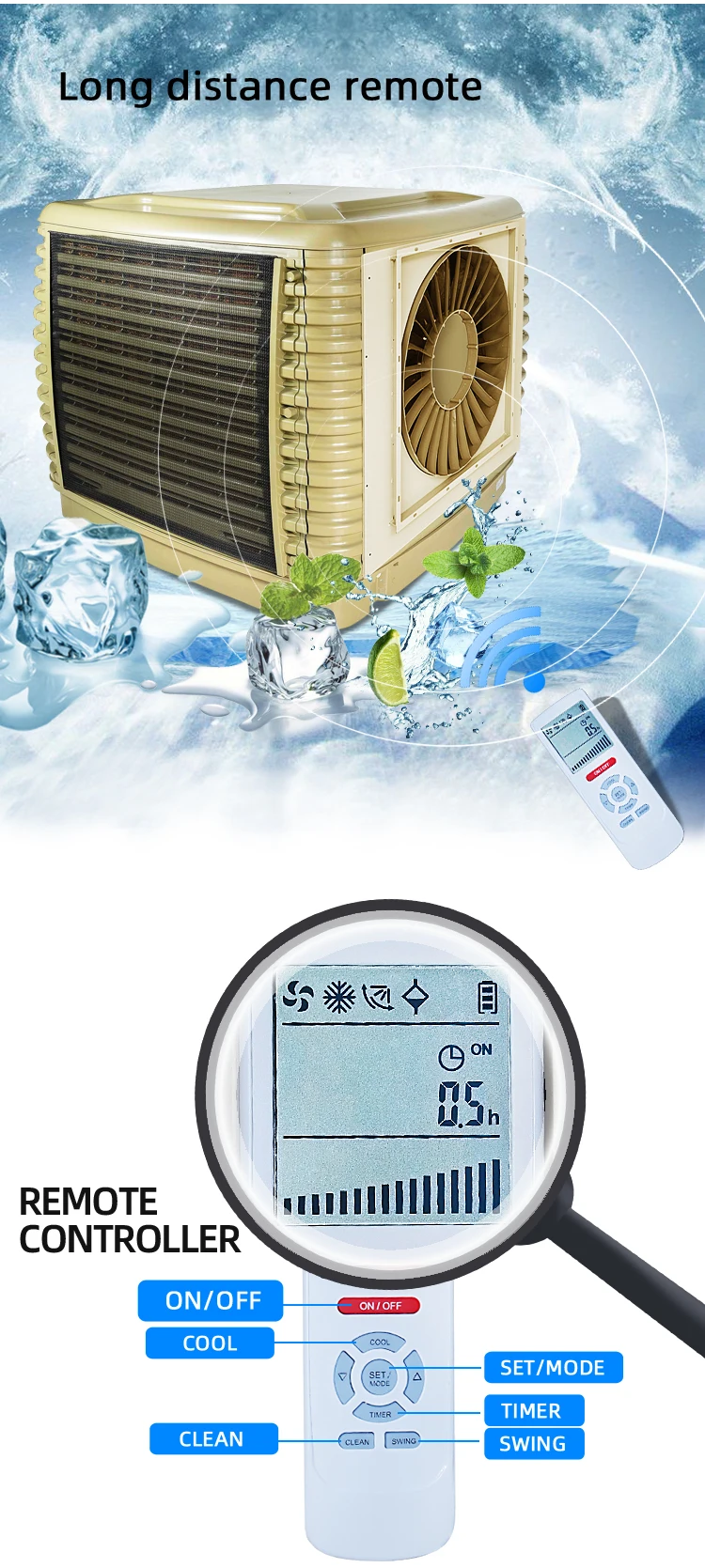

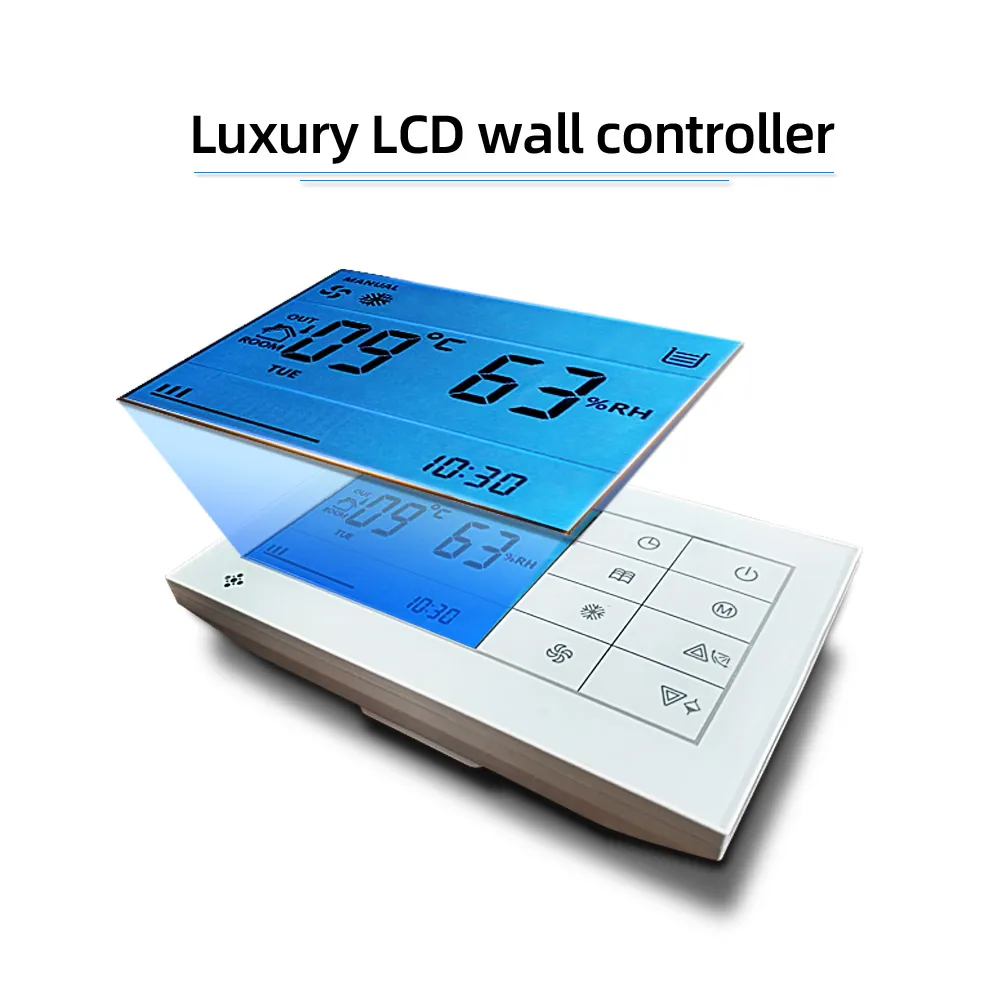

2.Used by intelligent LCD controller, equipped with a fully functional infrared remote control.

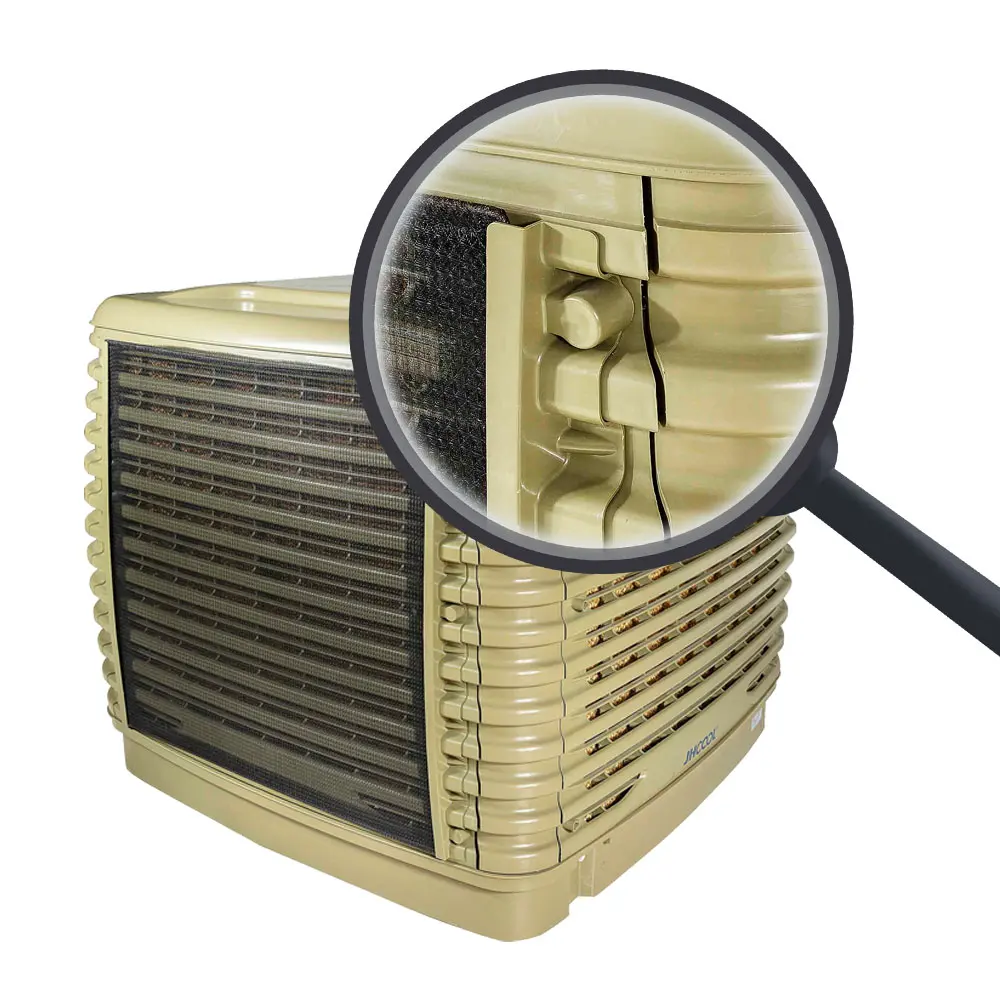

3.Airframe adopt modified copolymerization PP engineering plastics shell, ultraviolet resistance, corrosion resistance, anti-aging, resistance to deformation.

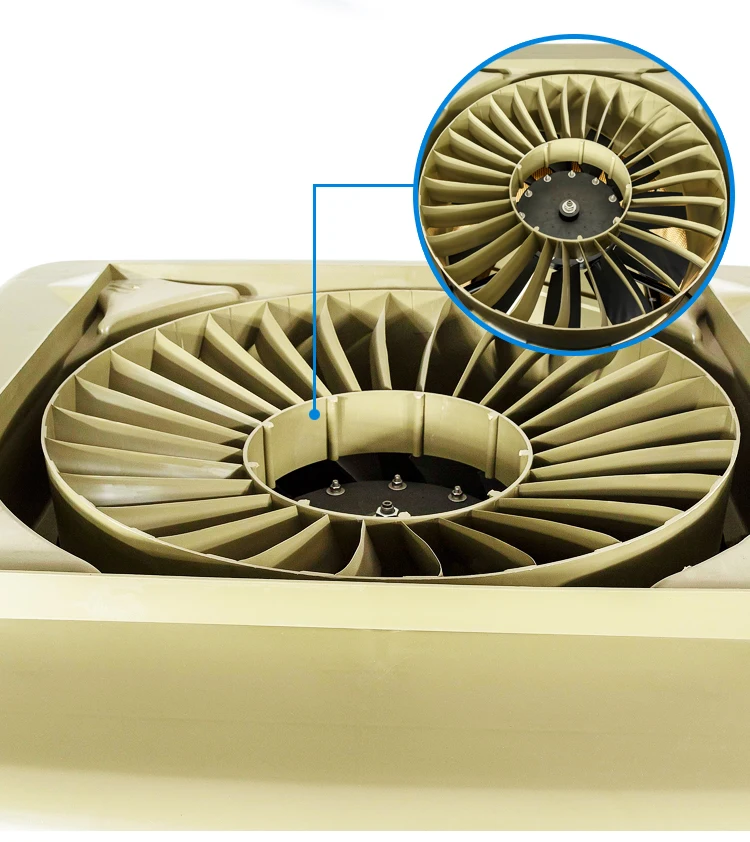

4.Volute and impeller adopts new composite material, light weight, corrosion resistance, anti-aging and good vibration absorbing effect.


5.Smooth operation, low noise, especially suitable for commercial venues.


6.Open type water distributor, uniform flow smoothly and not easy to jam.


7.Using highly efficient wet curtain of evaporative cooling, and obvious cooling effect, easy to clean.


8.Automatic water inlet system active remind water shortage.


9.Automatic cleaning function is adjustable in 48 hours, intelligent maintenance without supervision.


10.The power consumption is just only 1/8 of the traditional air conditioning
11.Keep doors and windows open, always fresh air

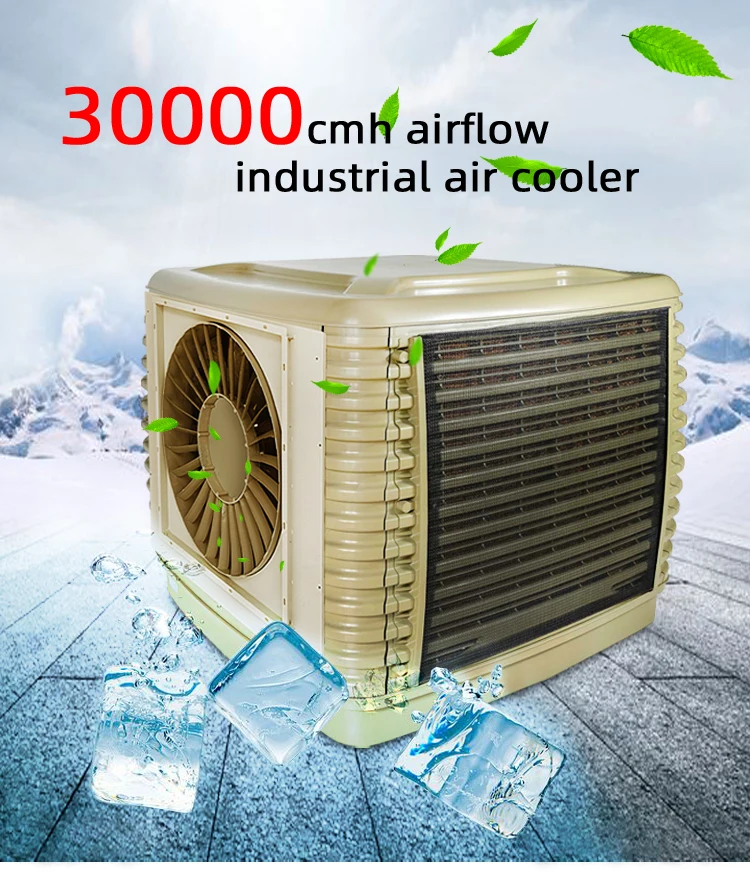

3 (1).jpg

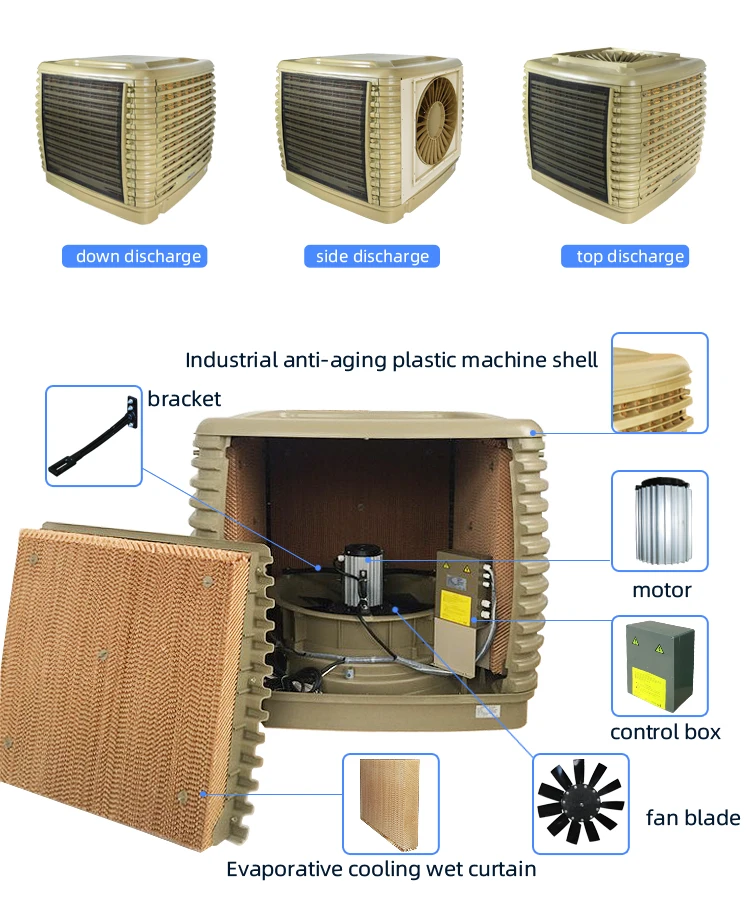

3 (2).jpg

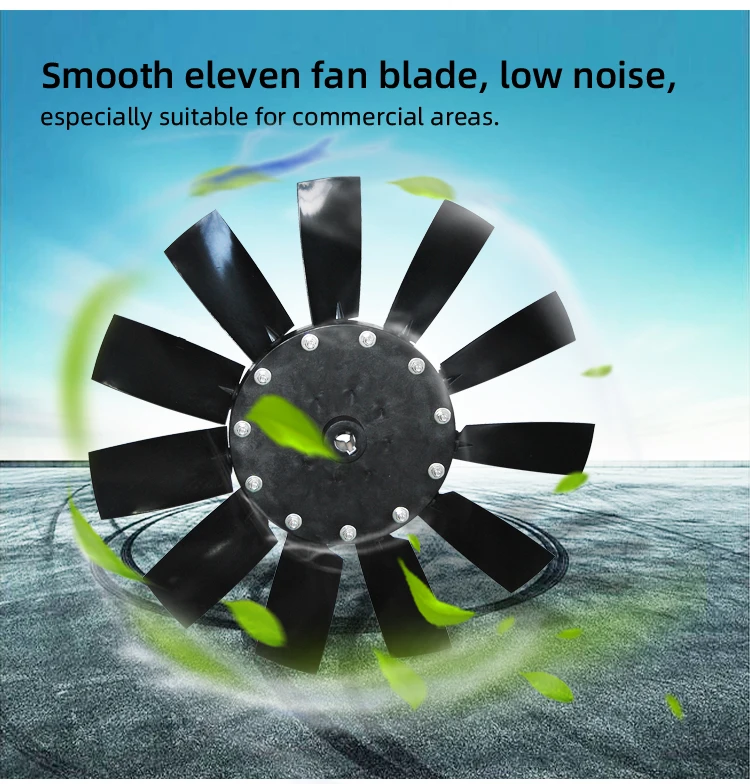

3 (3).jpg





3 (4).jpg





3 (5).jpg

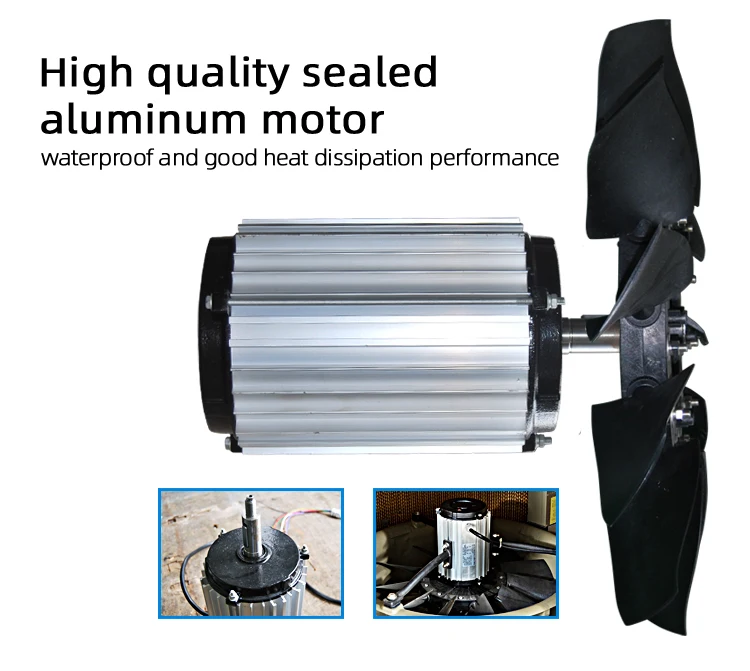

3 (7).jpg





3 (8).jpg











Product Parameters







































































































ModelJH30AP-38D8
ElectricPower(W)3000
Power Resource(V/Hz)3ph,380/50
FanAirflow(m³/h)30000
Pressure(Pa)300
Fan TypeAxial
Fan Speed16
Cover Area(sqm)250-300
Noise(dBA)≤78
WaterWater Tank(L)40
Water Consumption(L/H)25-30
Weight(Kg)Gross Weight(kg)175
SizePad Size(mm)(840+30)*900*120,4pcs
Packed size (mm)1360*1360*1280
Dimension(mm)1340*1340*1130
CabinetDischarge TypeDown
Load Quantity(Full)4/16pcs(20ft/40HQ)
ControlControl TypeLCD + Remote
Water InletAuto
Pre-dust-filterOptional
Pump ProtectionYes
ExhaustYes

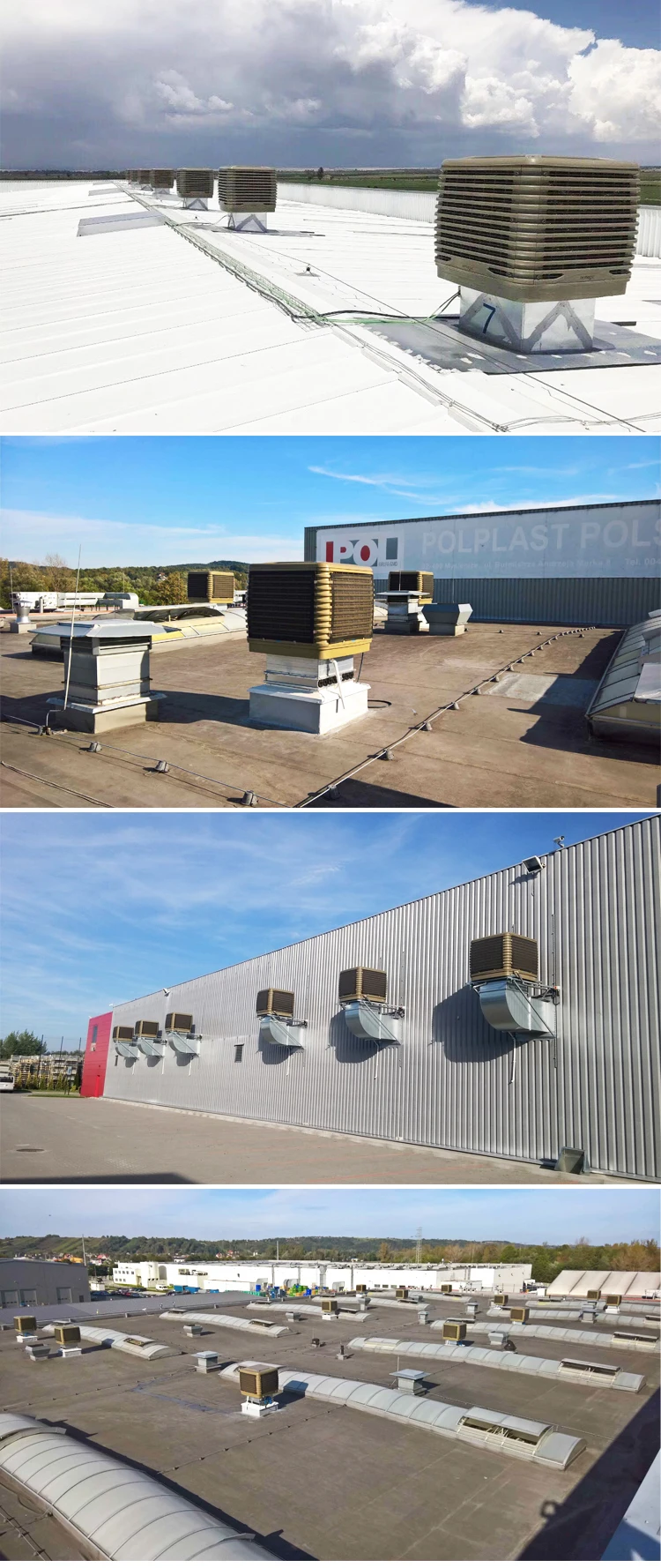

Project Cases


 3 (15).jpg





FAQ (JHCOOL)


Q: Are floor standing air cooler more suitable for specific climates ?


Water air conditioner portable is especially well suited where the air is hot and humidity is low. However,in higher humidity areas there are many proven cost effective uses for evaporative cooling that make it the right choice,like poultry farm, industrial plants, commercial kitchens,laundries,dry cleaners,greenhouses,spot cooling etc.








Q: What advantages does water cooling fan have compared to refrigerated cooling systems ?


Evaporative air conditioner from alibaba china will provide substantial energy saving over refrigerated air units. The simplicity of the design allows low maintenance requirements. The electric water air conditioner, air cooler without water and other evaporative air cooler will provide fresh, filtered air. The outside air that has been cooled will blow the stale inside air out.





Q: How often do I clean my pads ?


Pads should be cleaned at least once a season prior to storing for the winter.In hard water areas,cleaning may be required more frequently. Periodic,visual examination is required. Remove the back or top of the cooler following the instructions in the operating manual. Look at the pads,if they show signs of heavy mineral deposits they will need to be cleaned.





Q: How often should the pads be replaced ?


Pads should be changed when they no longer cool as effectively as they did when new. This generally happens when mineral deposits on the pads become so heavy that the water running over them during operation cannot be absorbed. If a pad is properly cleaned and maintained, its life can be three to five years or more. But, we advise customer replace the pad every 2 or 3 years to keep the best cooling efficiency.
