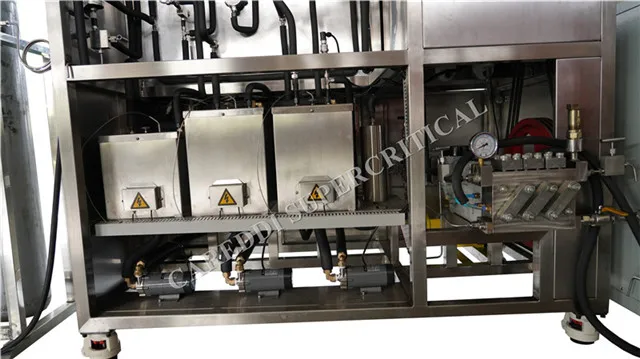

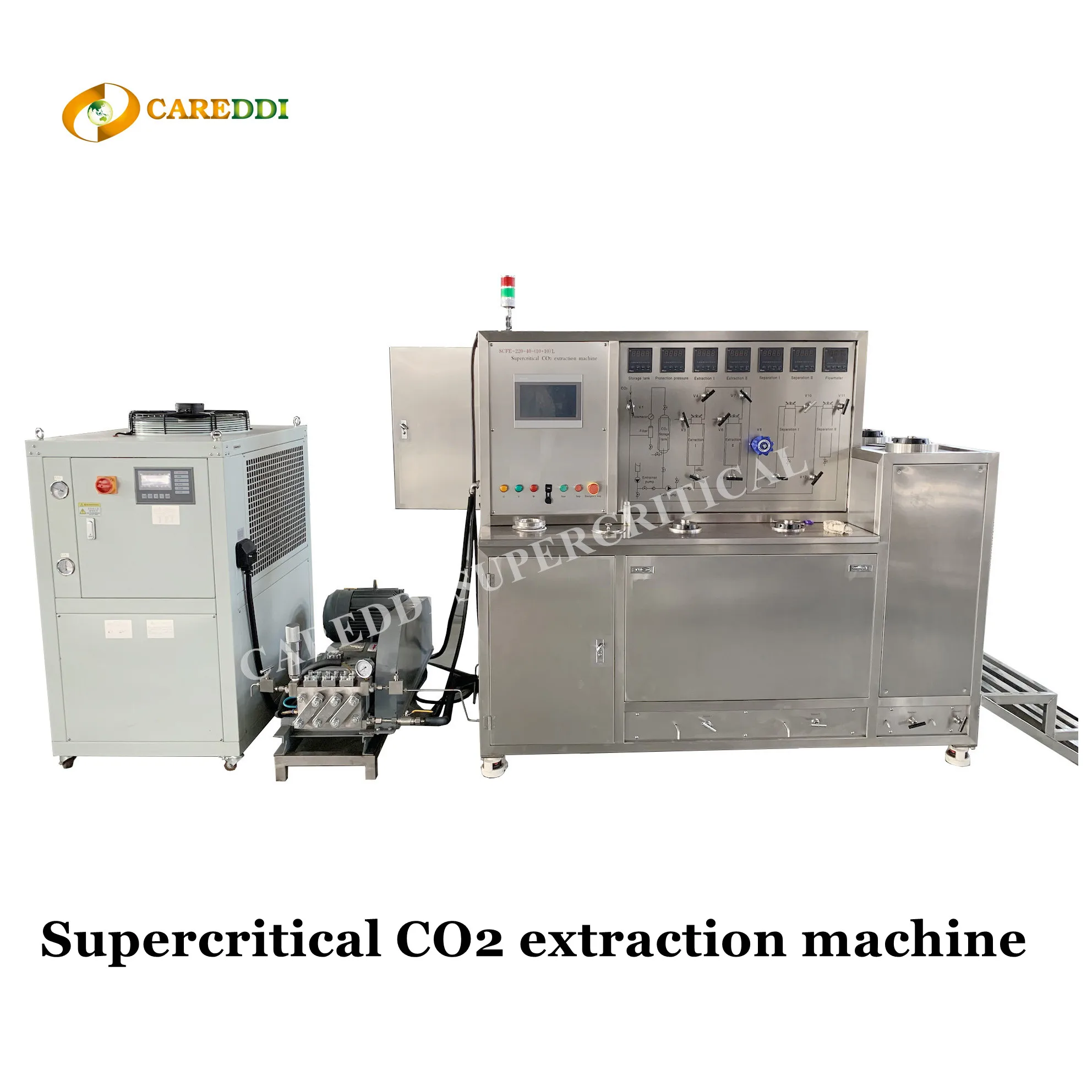

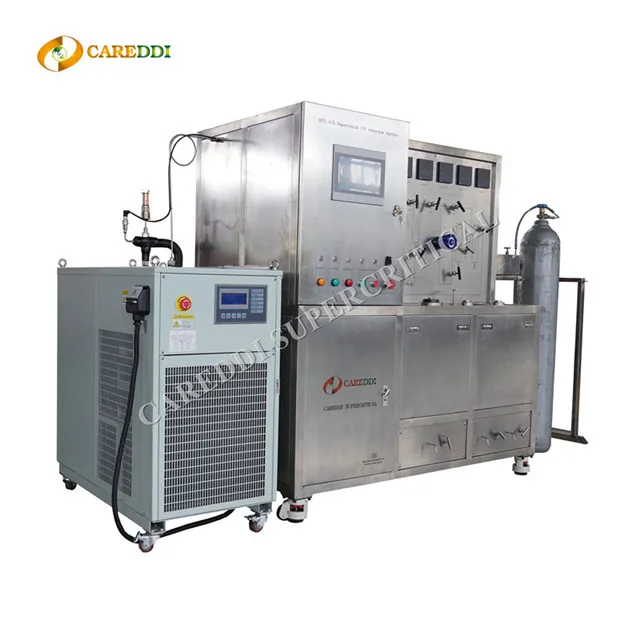

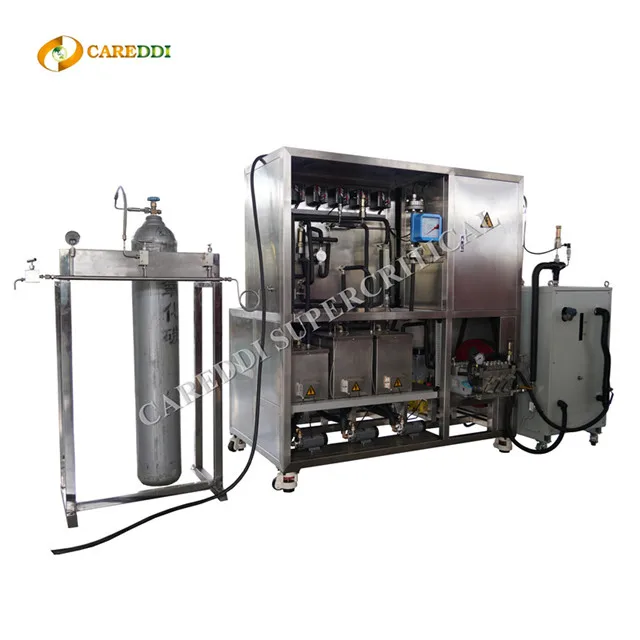

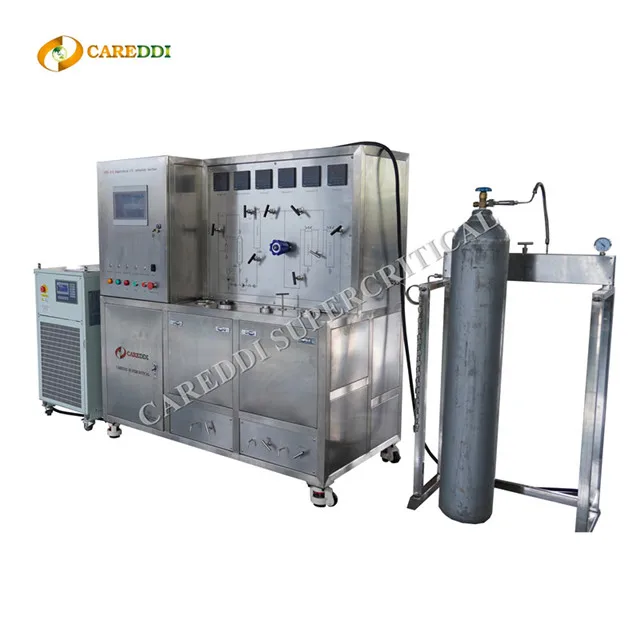

SFE System Supercritical CO2 Extraction machine Oil Extraction machine Pharmaceutical Extractor
- Category: >>>
- Supplier: Careddi Technology Co. Ltd.
Share on (1600733998345):
Product Overview
Description
Product Description
What is supercritical fluid co2 extraction machine?
Supercritical fluid extraction (SFE) is a high-tech emerging in modern chemical separation. SFE combines traditional distillation and organic solvent extraction, and uses the excellent solvent power of supercritical CO2 to effectively separate, extract and purify the matrix and the extract. SFE uses supercritical CO2 to extract materials. CO2 is a safe, non-toxic and cheap liquid.
Supercritical fluid extraction and separation technology utilizes that the dissolving ability of supercritical fluid is closely related to its density, and the density of supercritical fluid can be greatly changed by changing the pressure or temperature. In the supercritical state, the supercritical fluid is contacted with the substance to be separated, so that it selectively extracts the components with different polarity, boiling point and relative molecular mass in sequence.
Specification
1. Main Technical Parameters of supercritical co2 extraction machine 1Liter
Main Technical Parameters of Supercritical Co2 extraction System 1L | ||||||
Sn. | Part Description | QTY | Technical Parameters | |||
1 | Extraction Vessel | 1 | Volume: 1L Designed pressure: 50MPa Maximum work pressure: 48MPa Material: Stainless steel 304 Equipped with jacket water circling heating system, temperature adjustable, equipped with material barrel for both liquid and solid material | |||
2 | Material Cylinder | 1 | Material: Stainless steel 304 | |||
3 | Separation Vessel | 2 | Volume: Separation Vessel 1: 0.5Liter Separation Vessel 2: 0.4 Liter Maximum work pressure: 25MPa Material: Stainless Steel 304 Equipped with jacket water circling heating system, temperature adjustable | |||
4 | CO2 High pressure pump | 1 | Triple plunger pump, flow rate: 50L/H (frequency adjustable) Maximum work pressure: 50MPa, pump head with cooling system | |||
5 | Solvent pump | 1 | Flow rate: 0.25-4L/H (frequency adjustable) Maximum work pressure: 20MPa | |||
6 | Cooling system | 1 | Cooling capacity: 5100Kcal/h (air cooling) Temperature range: -5℃～+5℃ (meet process requirement) | |||
7 | Heat exchange system | 4 | Material: Stainless steel 304 Type: Φ6/50Mpa With circulating water jacket heating system, adjustable temperature | |||
8 | Purification system | 1 | Volume: 1Liter Material: Stainless steel 304 Maximum work pressure: 50MPa | |||
9 | CO2 Storage tank | 1 | Volume: 4Liter Material: Stainless steel 304 Maximum work pressure: 16MPa | |||
10 | Flow rate meter | 1 | Metal tube float flow meter 6.3-63L/H (Digital indication) | |||
11 | Temperature control system | 4 | Temperature range: Room temperature~75℃ adjustable Accuracy: ±1℃ | |||
12 | Safety valves | 5 | Safety valves at extraction vessels, separation vessels, overpressure automatic relief. | |||
13 | Over-pressure gauge | 1 | Pressure gauge at high pressure pump outlet, overpressure protection. | |||
14 | Control panel | 1 | Material: Stainless steel 304 | |||
15 | Main Machine frame & Operation desk | 1 | Material: Stainless steel 304 | |||

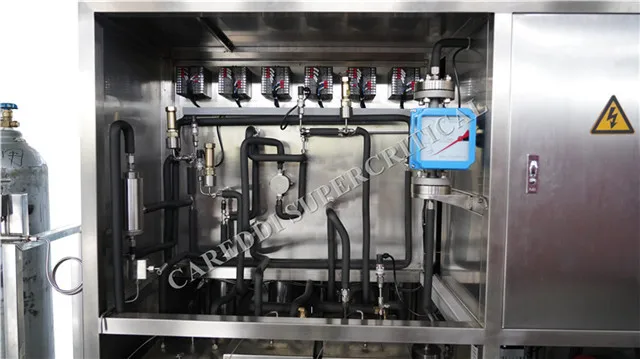

16 | Pipelines | 1 | Valves, fittings: DW6 All parts connected with fluid material are made by 1Cr18Ni9Ti Stainless steel. | |||
2. Major Components of 1L Supercritical co2 Extractor

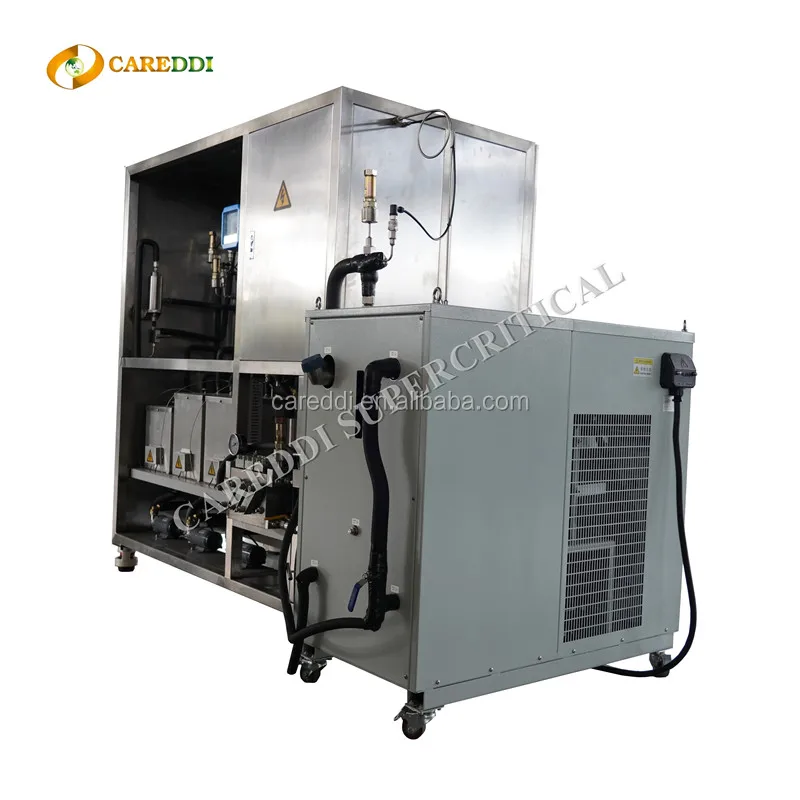

Name: Chiller
Chilling system
Name: CO2 High pressure pump
Three plunger rod pump
Ceramic material, long service life
Silence and no noise
Good wear resistance and easy cooling
Three plunger rod pump
Ceramic material, long service life
Silence and no noise
Good wear resistance and easy cooling
Name: Co-solvent pump
auxiliary pump
Name: Material cylinders
Material cylinders, which is used to put extract materials inside.
Name: heat changing system
Distilled water put inside, which is used for heat exchanging
Name: Pressure regulating valve
316 Stainless Steel
Accuracy: ±1% of central pressure range
Safe and reliable piston-style sensor
3. Customer self-provided
3 Phase electricity power: 11kw
Installation dimension: 2500×1200×1500mm, plus operation space.
CO2 gas: Food grade≥99.5%, single bottle net weight ≥22KGS.
Food grade alcohol ≥99.5%
CO2 gas: Food grade≥99.5%, single bottle net weight ≥22KGS.
Food grade alcohol ≥99.5%

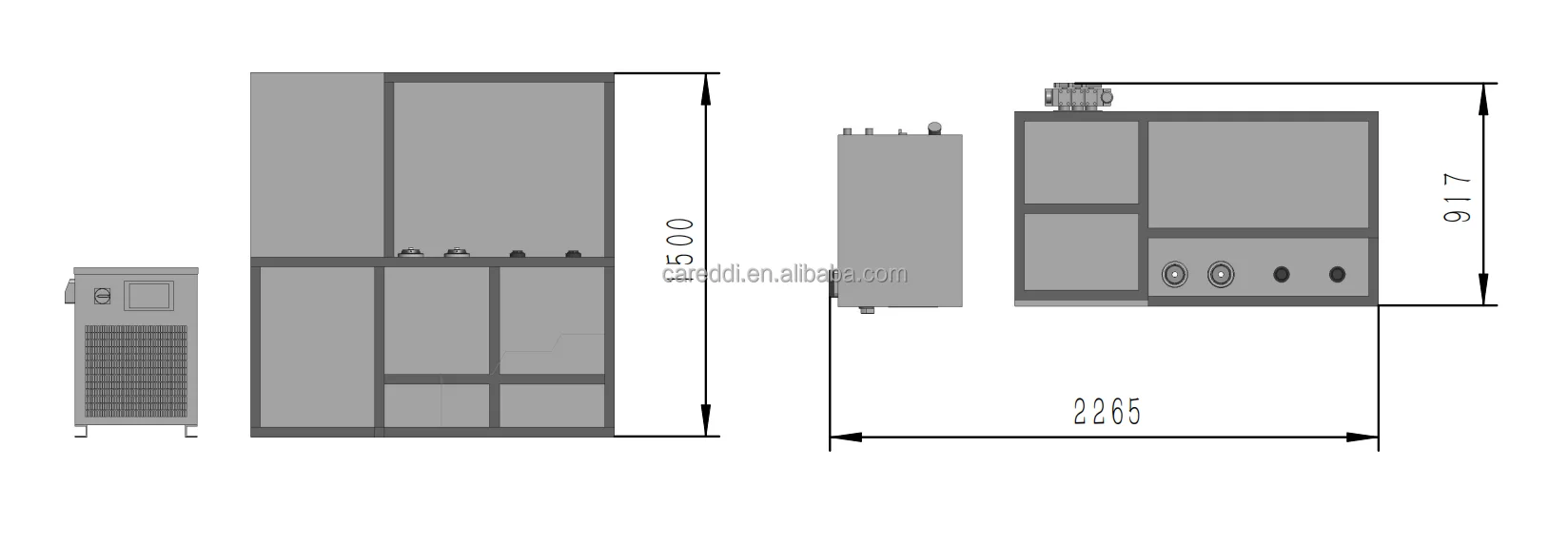

4. Drawing
Different Models
Capacity | Model | Extractors and Separators | |
1 | 0.5L | Model 0.5Lx1/50MPa | 1 Extraction 2 Separation |
2 | 1L | Model 1Lx1/50MPa | 1 Extraction 2 Separation |
3 | 2L | Model 2Lx1/50MPa | 1 Extraction 2 Separation |
4 | 5L | Model 5Lx1/50MPa | 1 Extraction 2 Separation |
5 | 5L+1L | Model 5L+1L/50MPa | 2 Extraction 2 Separation |
6 | 10L | Model 5Lx2/50MPa | 2 Extraction 2 Separation |
7 | 20L | Model 10Lx2/40MPa | 2 Extraction 2 Separation |
8 | 30L | Model 15Lx2/40MPa | 2 Extraction 2 Separation |
9 | 50L | Model 25Lx2/40MPa | 2 Extraction 2 Separation |
10 | 100L-1 | Model 25Lx4/40MPa | 4 Extraction 2 Separation |
11 | 100L-2 | Model 50Lx2/40MPa | 2 Extraction 2 Separation |
12 | 120L | Model 30Lx4/40MPa | 4 Extraction 2 Separation |
13 | 180L | Model 30Lx6/40MPa | 6 Extraction 2 Separation |
14 | 200L | Model 50Lx4/40MPa | 4 Extraction 3 Separation |
15 | 300L-1 | Model 50Lx6/40MPa | 6 Extraction 3 Separation |
16 | 300L-2 | Model 150Lx2/40MPa | 2 Extraction 3 Separation |
17 | 600L | Model 150Lx4/40MPa | 4 Extraction 3 Separation |
18 | 1200L | Model 300Lx4/35MPa | 4 Extraction 3 Separation |
19 | 2000L | Model 1000Lx2/35MPa | 2 Extraction 3 Separation |
20 | 3000L | Model 1500Lx2/35MPa | 2 Extraction 3 Separation |
21 | 4000L | Model 2000Lx2/35MPa | 2 Extraction 3 Separation |
22 | 6000L | Model 3000Lx2/35MPa | 2 Extraction 3 Separation |
23 | 150Lx3 | Model 150Lx3/35MPa | 3 Extraction 3 Separation |
24 | 300Lx3 | Model 300Lx3/35MPa | 3 Extraction 3 Separation |
25 | 500Lx3 | Model 500Lx3/35MPa | 3 Extraction 3 Separation |
26 | 600Lx3 | Model 600Lx3/35MPa | 3 Extraction 3 Separation |
27 | 1000Lx3 | Model 1000Lx3/35MPa | 3 Extraction 3 Separation |
28 | 1500Lx3 | Model 1500Lx3/35MPa | 3 Extraction 3 Separation |
29 | 2000Lx3 | Model 2000Lx3/35MPa | 3 Extraction 3 Separation |
30 | 3000Lx3 | Model 3000Lx3/35MPa | 3 Extraction 3 Separation |
Customized models are available for different pressures, temperatures and volumes.
We can make higher pressure according to your request, even to 100MPa (1000bar, 14503 psi)
Applications
Careddi supercritical co2 machines are widely used to extract industrial hemp to CBD oil for the pharmaceutical industry. It is also widely used: Botanicals, Terpenes, Flavonoids, Bioactives, broad-spectrum oils, hop extracts, nut & seed oils, oleoresins, coffee oil, coffee decaffeination, algae oil, biofuel oils, press cake residuals, upcycling food waste, supercritical drying, aerogel production, remediation of oil-contaminated soils, etc.
Lavender Hops Rosemary Thyme
Ginger Turmeric Nutmeg Black pepper
Frankincense Myrrh Coffee beans Cinnamon
Agarwood Sandalwood Seabuckthorn Vanilla bean
Our Advantages
CAREDDI supercritical co2 extraction machine advantages
1. Temperatures and pressures easily adjusted and precisely controlled.
2. High-efficiency CO2 pump, can pressurize quickly.
3. CO2 can be recovered and reused.
4. Easy operation of the equipment.
5. Best after sales service, including: installation, commissioning, and training on site.
6. Higher temperature and pressures can be achieved.
7. Abundant experience with cases more than 50 countries.
8. Available models from Lab scale to industrial scale(100ml to 3000L)
9. Short lead time within 30 days.
2. High-efficiency CO2 pump, can pressurize quickly.
3. CO2 can be recovered and reused.
4. Easy operation of the equipment.
5. Best after sales service, including: installation, commissioning, and training on site.
6. Higher temperature and pressures can be achieved.
7. Abundant experience with cases more than 50 countries.
8. Available models from Lab scale to industrial scale(100ml to 3000L)
9. Short lead time within 30 days.
10. Best aftersales services: installation, commissioning, training, online technology service.

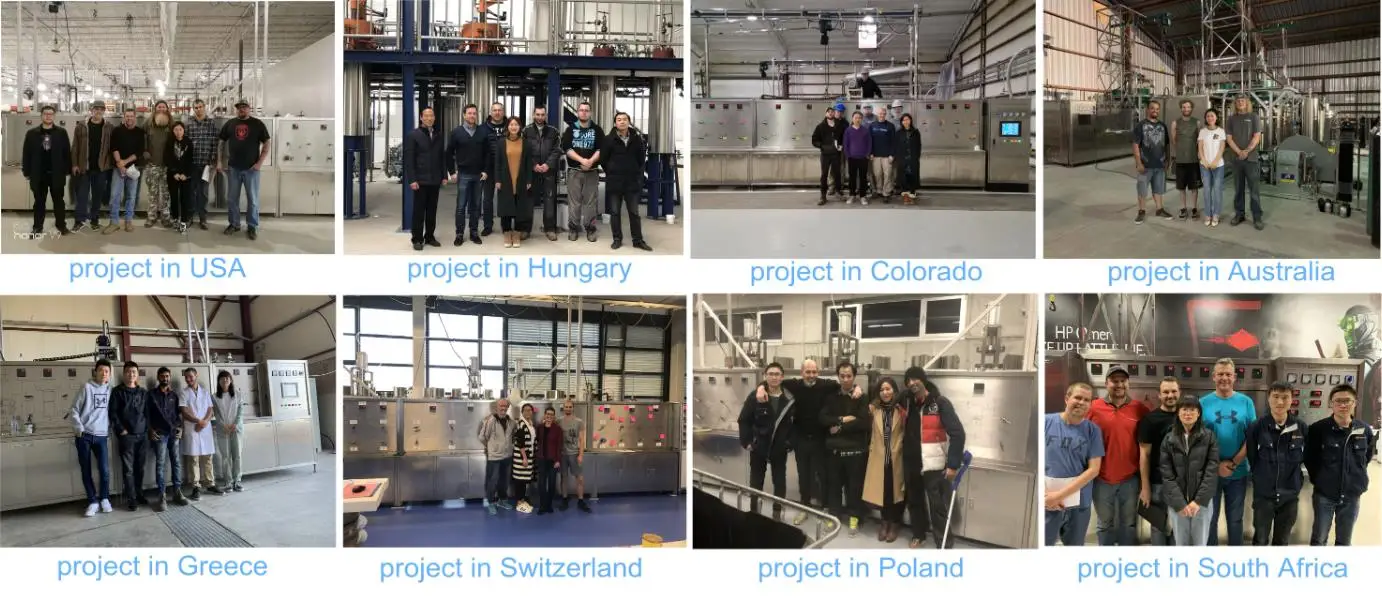

CAREDDI supercritical co2 extraction machine successful cases around the world
Packing & Delivery
Our packing:
Export Plywood case packing, fixed well, seaworthy packing.

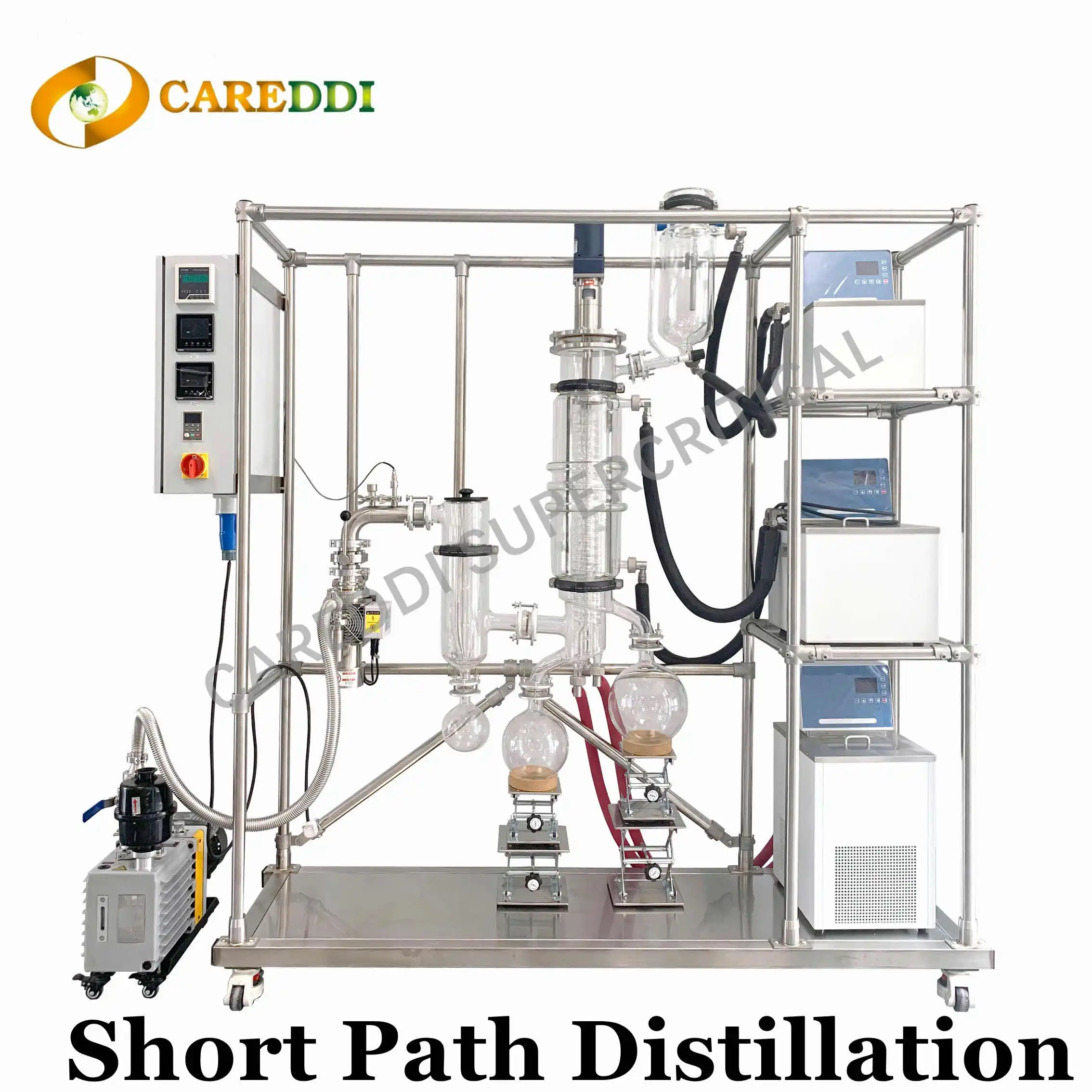

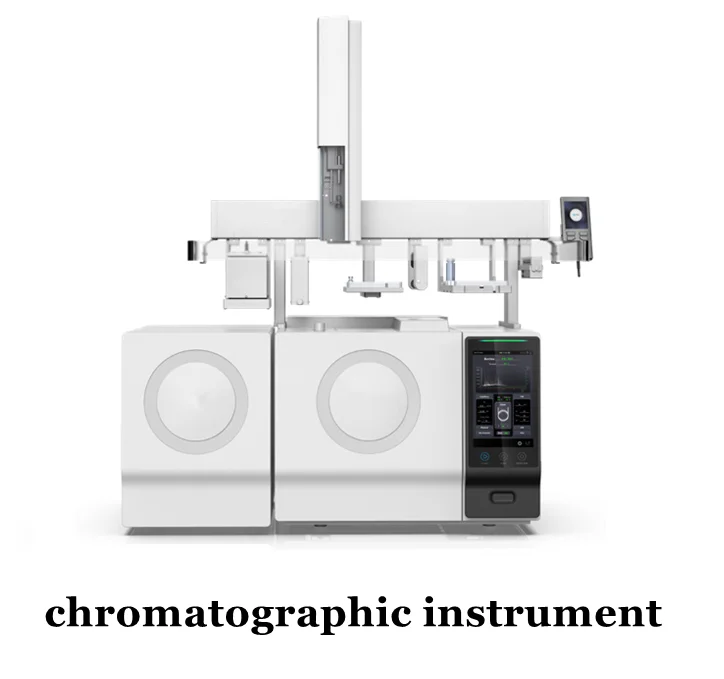

Related products
Company Profile
Careddi Supercritical, specialized in study and production of sci-tech equipment and instruments, is a leading manufacturer and provider for supercritical co2 extraction machine, supplying the clients worldwide with high reputation supercritical co2 extraction machine of latest technology, as well as competitive price for various kinds of material oil extraction, especially for hemp CBD oil extraction.
Working with the experts and scholars from famous universities and institutes in China for more than 30 years, now Careddi Supercritical has achieved great progress in supercritical co2 extractor field, able to make series supercritical co2 extraction products, from small scale for lab testing, to large industrial scale for biomass production.
Till Now, we have sold supercritical co2 extraction machines mainly to USA, Canada, Spain, Greece, Hungary, Netherlands, Slovenia, Albania, Swiss, Sweden, Poland, Lithuania , Latvia, Belgium, France, Italy, Bulgaria, Hungary, Romania, Serbia, Ukraine, Argentina, South Africa, Lebanon, Turkey, Uganda, Conga, Malawi, Madagascar, Jamaica, Columbia, Zimbabwe, Colombia, Malaysia, India, Thailand, Australia, Pakistan, Morocco, Israel, Chile, Sri Lanka, Britain, Indonesia, Tunisia, Russia, etc.
USA and European countries are our main markets, and almost of the machines sold there are for hemp CBD oil extraction. Thus, we have rich experience in hemp oil making by supercritical co2 extraction machine, as well as post-extraction procedures.
With machine qualified by certificates, as CE, ASME, ISO9001, characterized by strong technology force, advanced technology and assembly equipment as well as prefect after-sales service, Careddi Supercritical will be your best choice for plant extraction solution.
