5.12KWh 10.24KWh CATL LiFePO4 Battery ESS On Grid Hybrid Solar Inverter Energy Storage System
- Category: >>>
- Supplier: Beijing Shan Hu International Technology Co. Ltd.Beijing Ltd.
Share on (1600733999029):
Product Overview
Description
Products Description
10,000 Cycles Battery, 5 Years Product Warranty, 10 Years Performance Warranty.

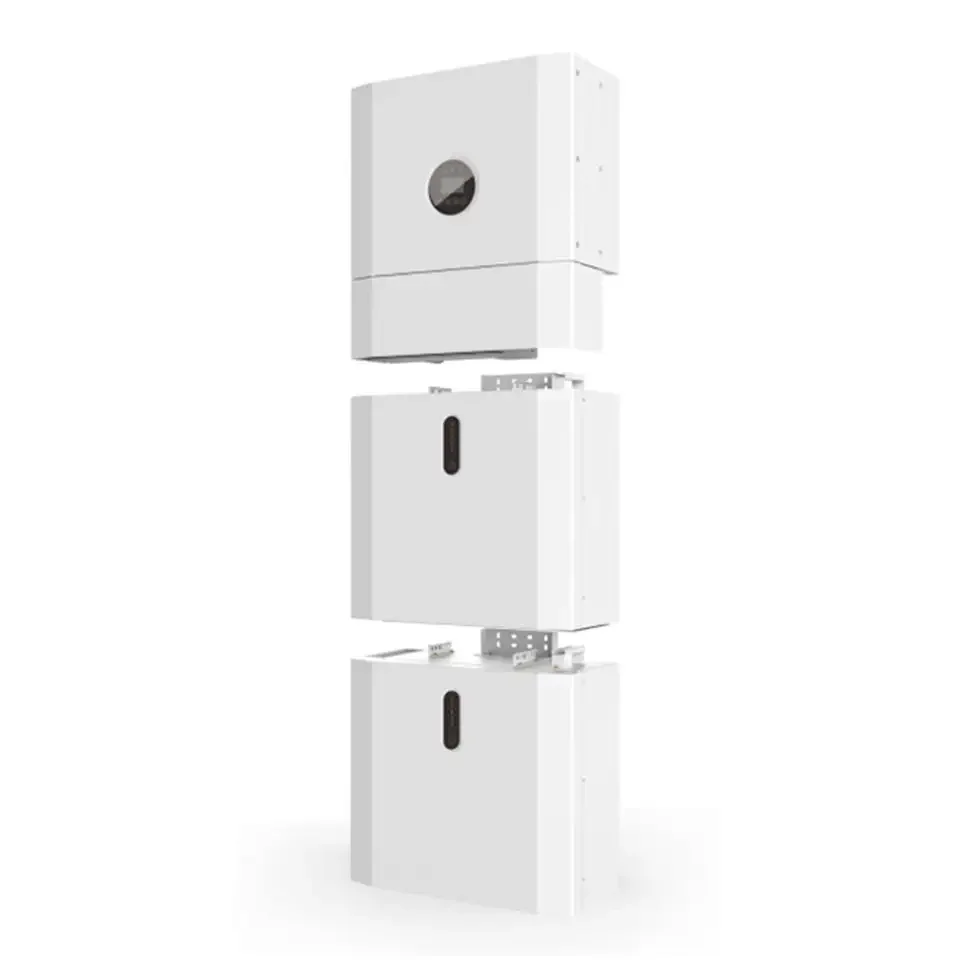

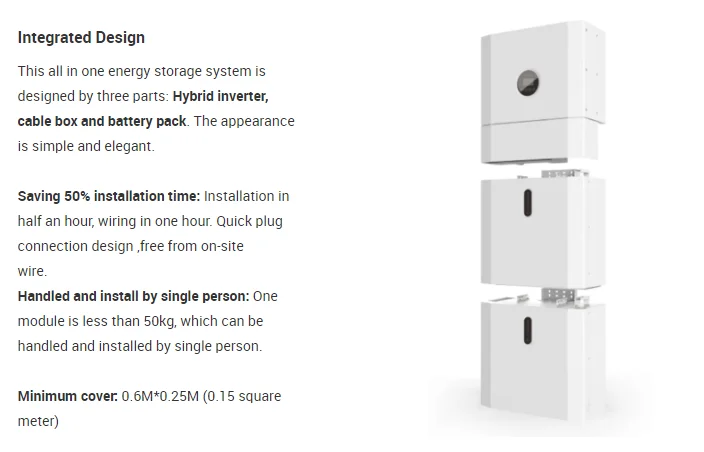

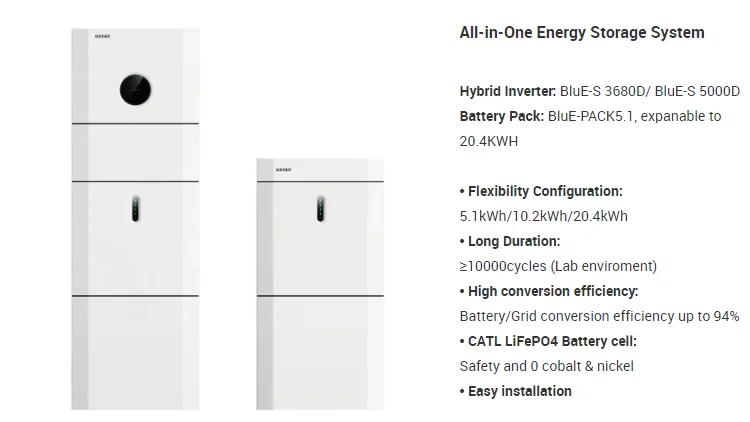

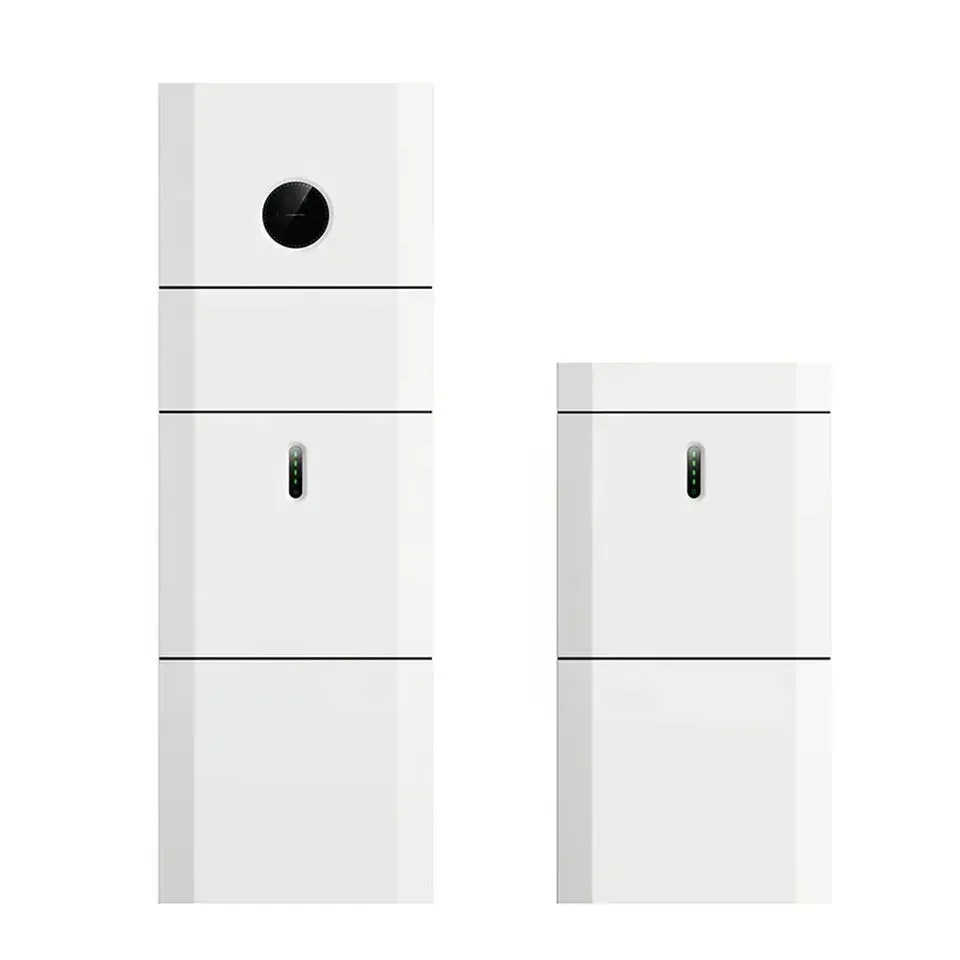

KSTAR energy storage solution BluE Series is the optimal choice for hybrid systems,which is designed with CATL Battery Solution +
KSTAR Inverter Solution. The all-In-one single phase storage solution is safe, reliable and higher yields. The energy storage
system is produced by the joint venture CATL-KSTAR.
KSTAR Inverter Solution. The all-In-one single phase storage solution is safe, reliable and higher yields. The energy storage
system is produced by the joint venture CATL-KSTAR.
Products Specification

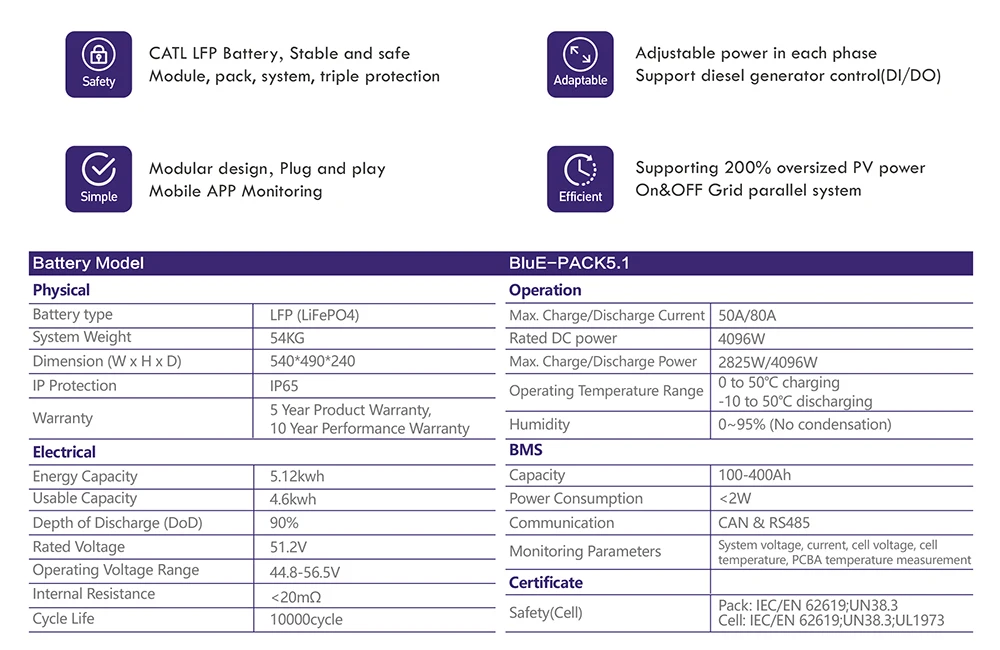

Battery Specififications | PACK5.1 | PACK10.2 | PACK20.4 | |||
Electrical | ||||||
Energy Capacity | 5.12kWh | 10.24kWh | 20.48kWh | |||
Battery type | LFP (LiFePO4) | |||||
Depth of Discharge (DoD) | 90% | |||||
Rated voltage | 51.2V | |||||
Operating Voltage Range | 44.8~56.5Vdc | |||||
Operation | ||||||
Maximum Charging Current | 50A (0.5C) | 100A (0.5C) | 100A（0.5C） | |||
Maximum Discharging Current | 80A (0.8C | 100A (0.5C) | 100A（0.5C） | |||
Operating temperature range | -10℃ ~+50℃ | |||||
Storage temperature range | -20℃ ~+50℃ | |||||
Humidity | 0% ~ 90% | |||||
BMS | ||||||
Modules Connection | Max.4 batteries in parallel | |||||
Monitoring Parameters | System voltage, current, cell voltage,cell temperature, PCBA temperature measurement | |||||
Communication | CAN and RS-485 compatible | |||||
Ventilation type | Passive and Active Cooling | |||||
Physical | ||||||
Weight (Kg) | 58 | 116 | 232 | |||
Dimension (W×H×D)mm | 540×530×240 | 540×1020×240 | 2×（540×1020×240） | |||
IP Protection | IP65 | |||||
Warranty | 5 Year Product Warranty, 10 Year Performance Warranty | |||||
Certificate | ||||||
Safety(Cell) | IEC 62619、UL 1973、UN 38.3 | |||||

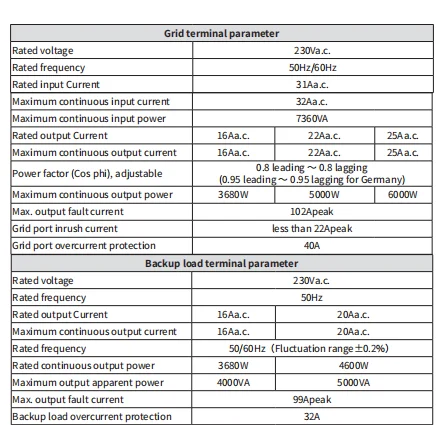

Model | 3680D | 5000D | 6000D | |||
PV terminal | ||||||
Vmax. PV | 580Vd.c. | |||||
Rated Voltage | 400Vd.c. | |||||
MPPT Voltage Range | 80~550Vd.c. | |||||
MPPT Range (full load) | 165~520Vd.c. | 210~520Vd.c. | 250~520Vd.c. | |||
MPPT Tracker / Strings | 2 | |||||
Max. continuous PV input current | 15Ad.c.×2 | |||||
Isc PV | 18Ad.c. ×2 | |||||
Max. back feed current | 0Ad.c. | |||||
Max. continuous PV input power | 4800W | 6500W | 7500W | |||
