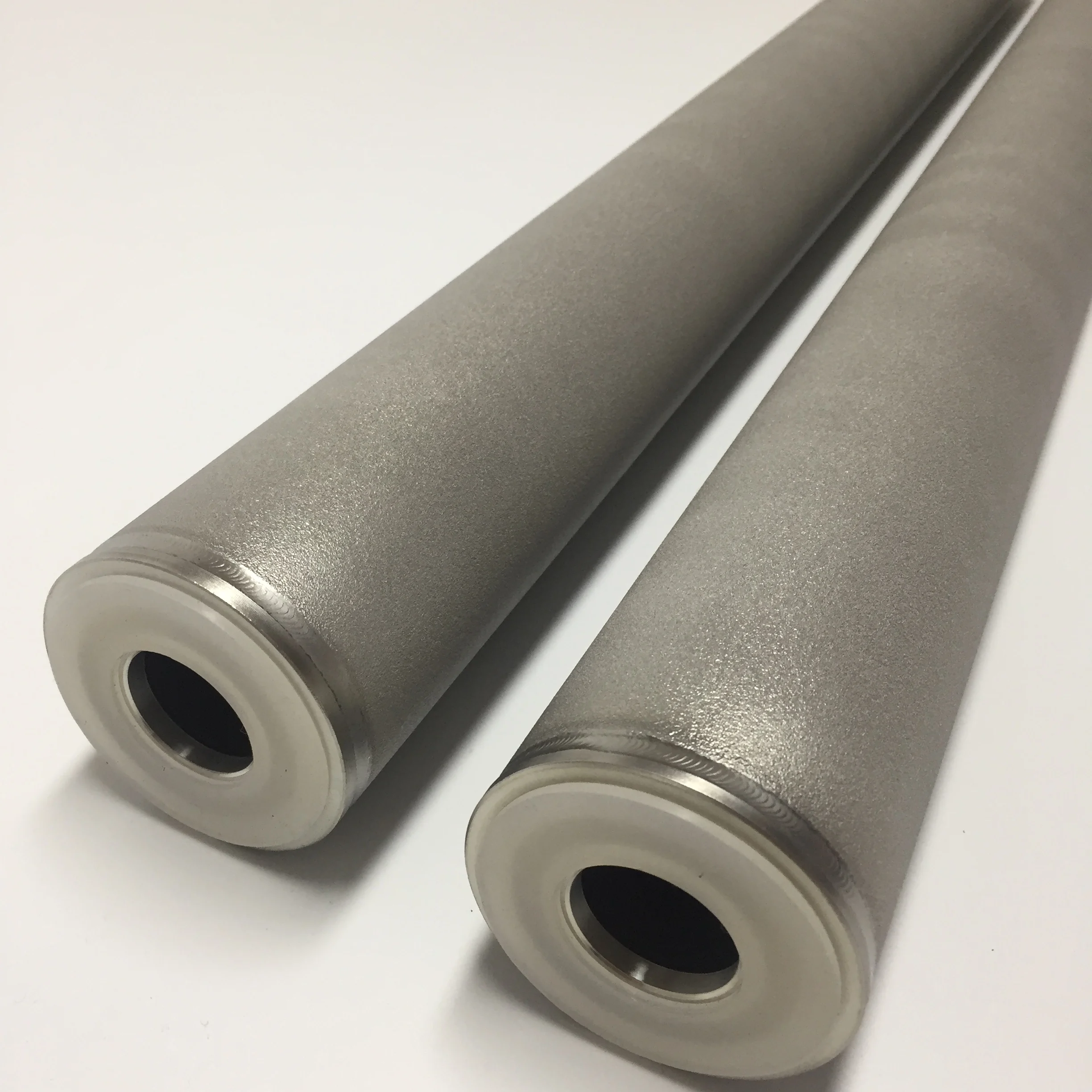

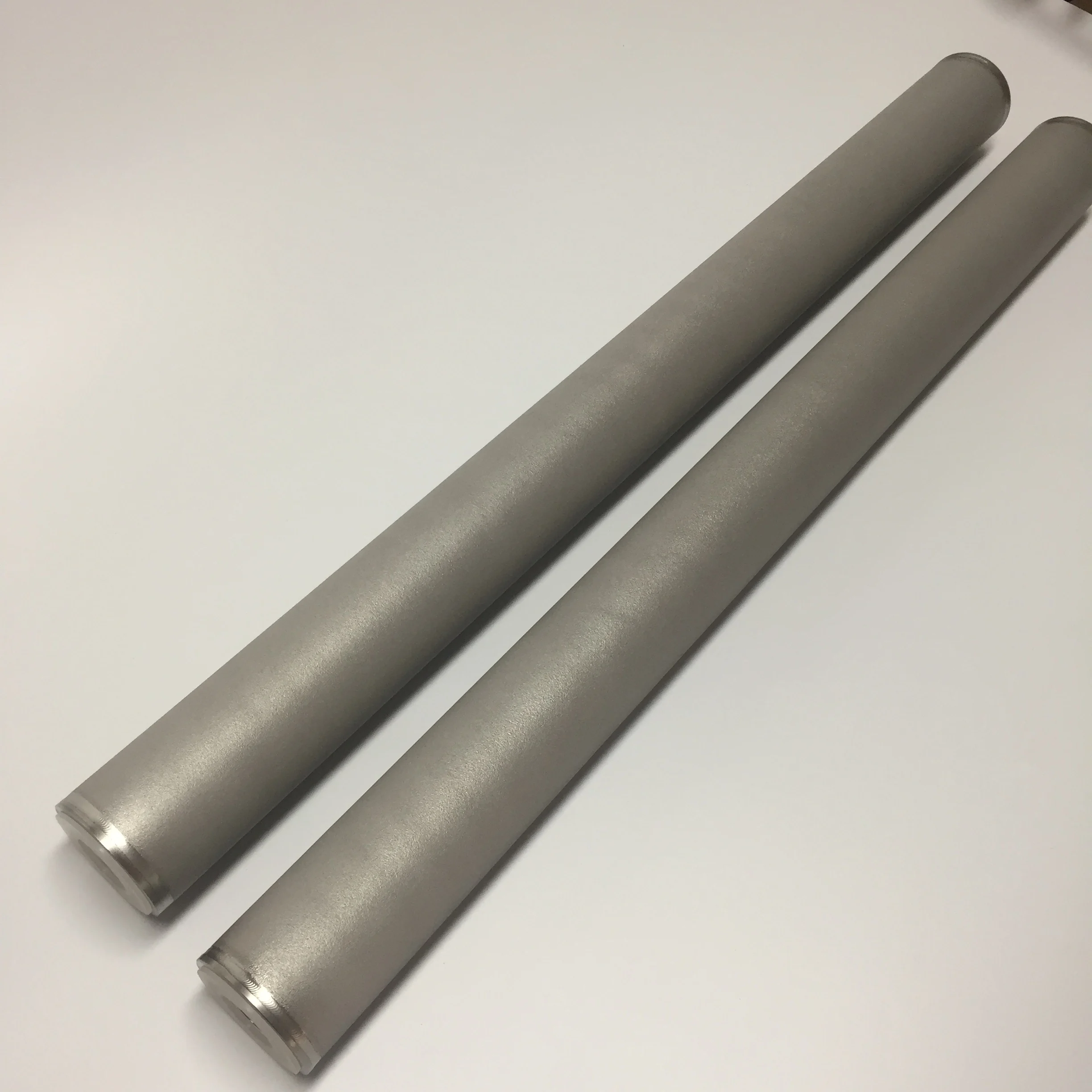

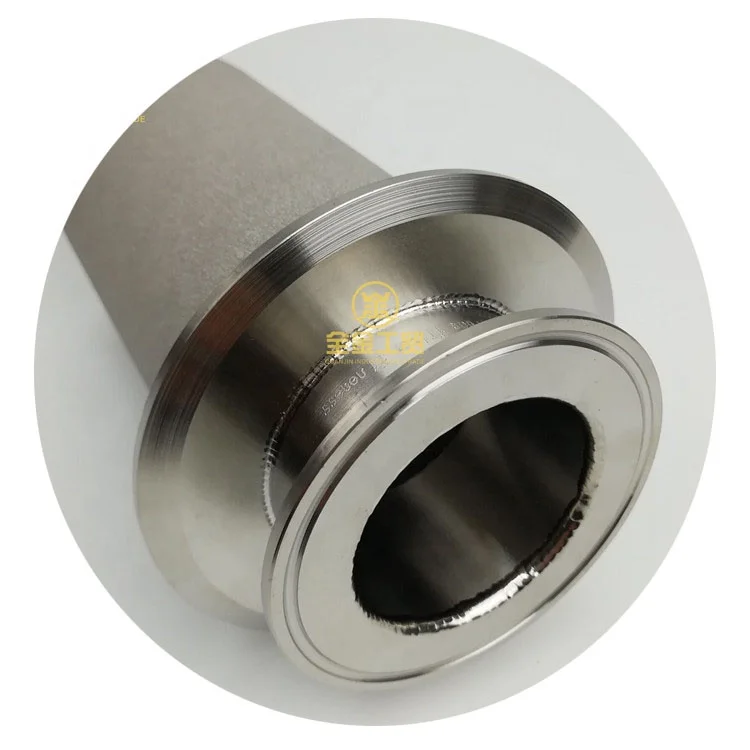

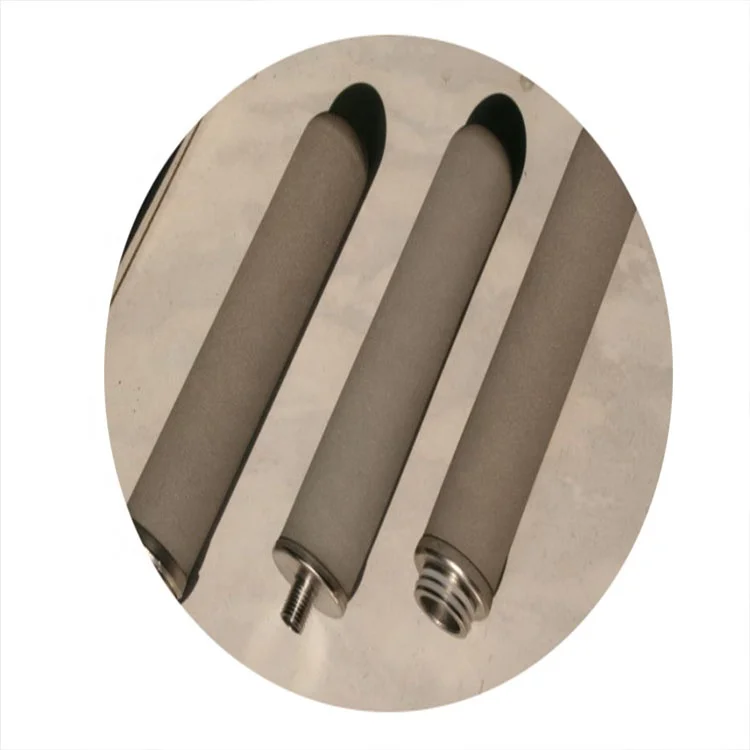

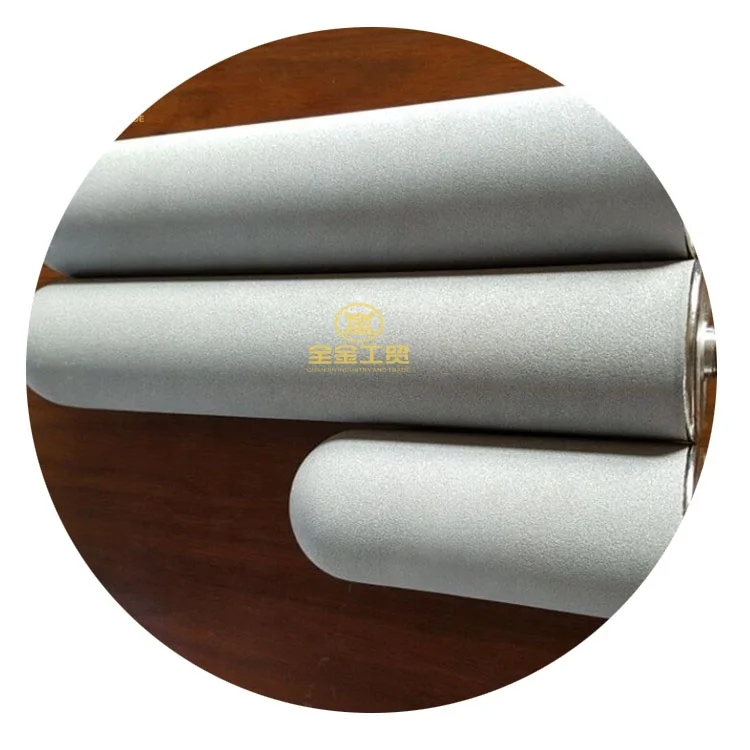

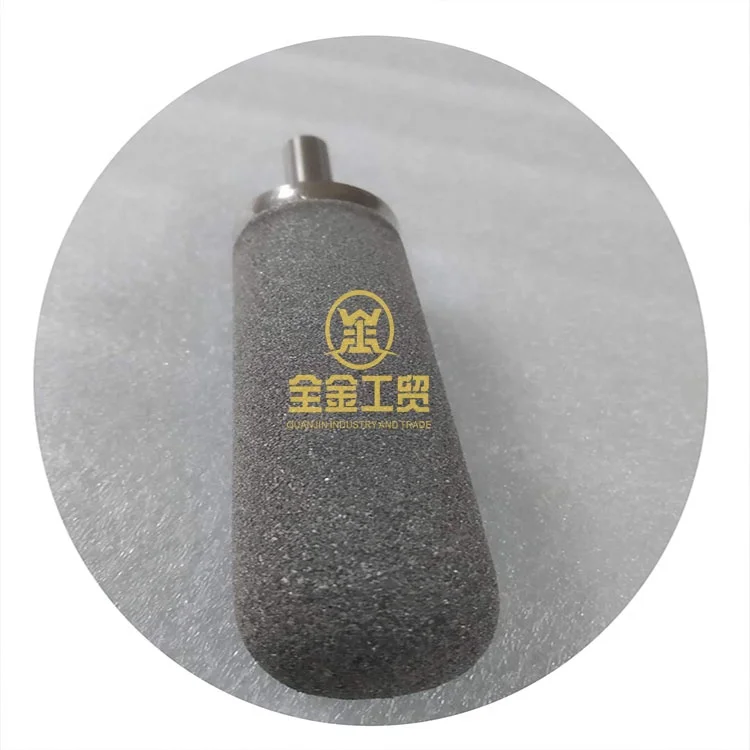

sintered porous metal filter tubes for silencers
Product Description
Item Name | sintered porous metal filter tubes for silencers |
Porosity | 30%-50% |
Aperture | 4μ-160μ |
Filtration precision | 0.2μm-100μm |
Filtration Efficiency | 98% filtration accuracy under:0.1 - 80um |
Shape | Disc,squareness,tubular,rodlike |
Work environment | Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, hydrogen, nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen, gas, carbon dioxide gas environment |
Technical parameters( Allow ≤250°C the conditions of using)
Filtering level | Filtering precision (μm) | Maximum Aperture (μm) | Permeability(m3/h.m2.kpa) | Thickness(mm) | Compressive strength(Mpa/cm2) |
T9 | 0.2 | 2.5 | 1.5 | 3 | 3 |
T8 | 0.5 | 4 | 3 | 3 | 3 |
T7 | 1 | 6 | 5 | 3 | 3 |
T6 | 2 | 10 | 15 | 3 | 3 |
T5 | 5 | 15 | 40 | 3 | 2.5 |
T4 | 10 | 30 | 120 | 3 | 2.5 |
T3 | 20 | 60 | 250 | 3 | 2.5 |
T2 | 30 | 100 | 500 | 3 | 2.5 |
T1 | 50 | 160 | 800 | 3 | 2.5 |
Applications
1. Pharmaceutical Industry
Active pharmaceutical ingredients, such as solvent solution, decarburization filtration of material filtering.Pharmaceutical industry infusion, injection, oral liquid concentration with link of the decarburization filtration and security filtration for the dilute with terminal filter.
2. Chemical Industry
Removing the impurities in the materials, and the catalytic gas purification, etc.
3. Electronic Industry
Electronic, Microelectronics, semiconductor industrial water filter, etc.
4. Water Treatment Industry
It can used in the security filter SS housing as the pre-treatment for UF, RO, EDI system, the filtration after the ozone sterilization and the ozone after aeration.
5. Sewage Treatment
The micropore pure titanium aerator compared with the normal aerator, the energy consumption of the micropore pure titanium aerator is lower 40% than the normal aerator, the sewage treatment is nearly doubled.
6. Food Industry
The beverage, wine, beer, vegetable oil, soy sauce, vinegar clarification filtration.
7. Oil Refining Industry
The oiled field water filter,and the security filter SS housing before the reverse osmosis in desalination field.
