FP301 Olive Heat shrink protective tube malaysia
- Category: >>>
- Supplier: Guangzhou Kehong Electric Co. Ltd.
Share on (1600734037474):
Product Overview
Description

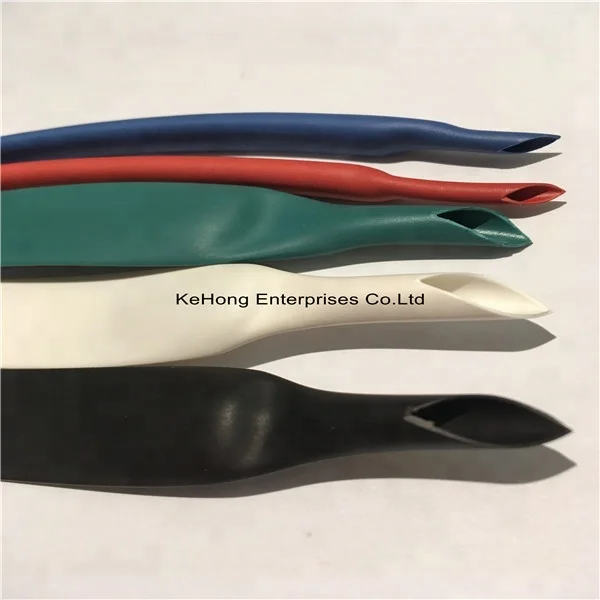

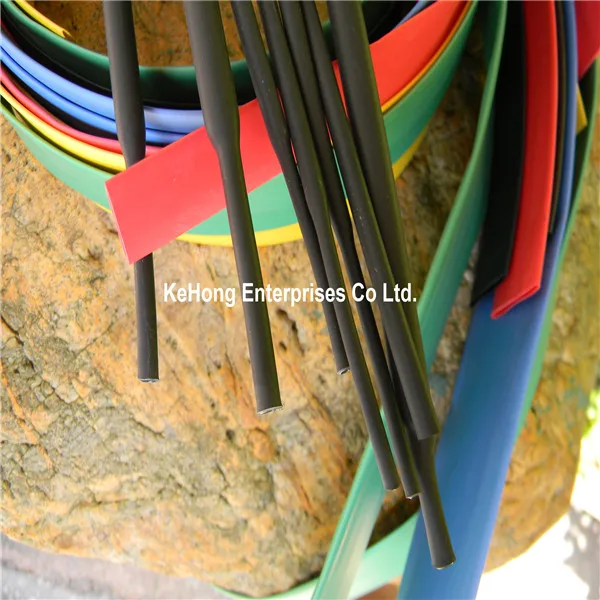

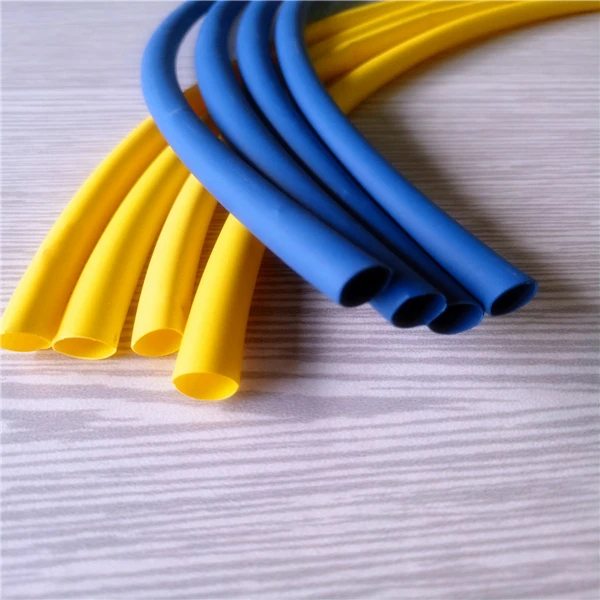

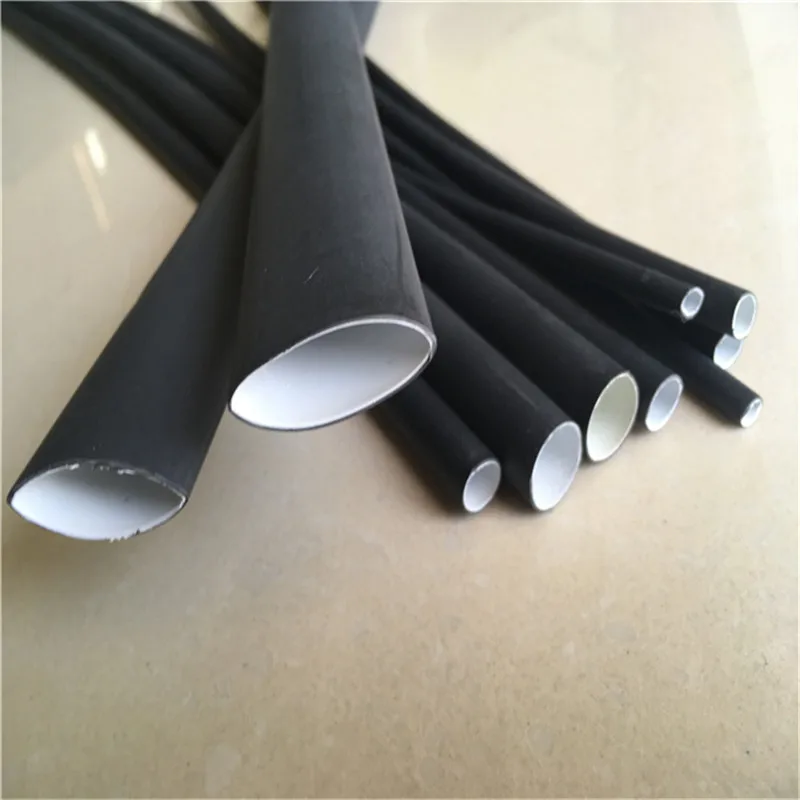

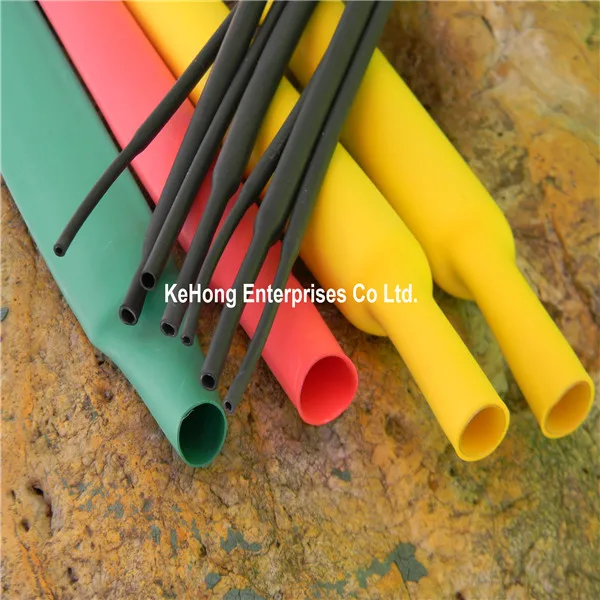

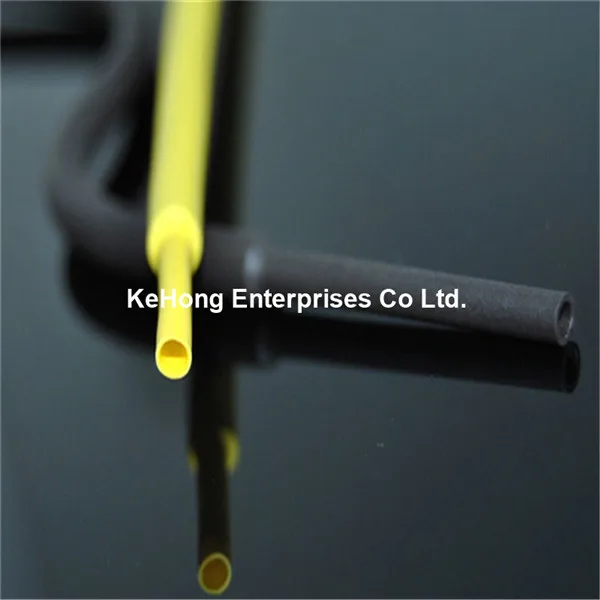

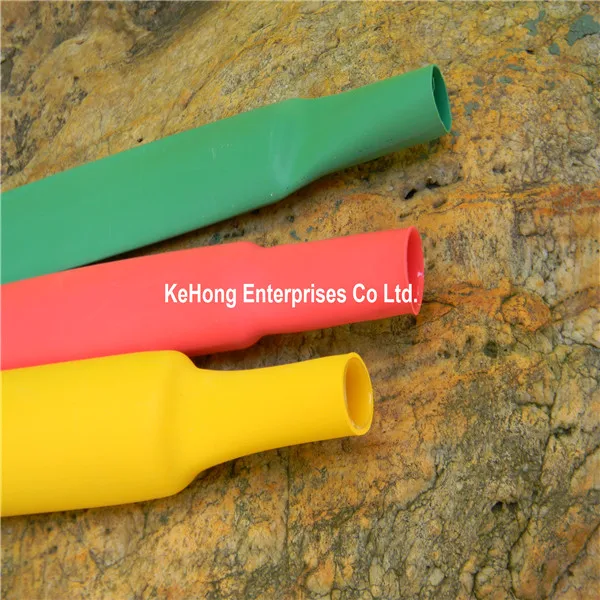

Olive Heat shrink protective tube malaysia
Product Description
Zero halogen, flexible Heat shrink tubing
Model: A-2(NH)
Features
1. Flexible
2. Zero halogen, polyolefin cross linking
3. Flame retardant for black
4. Low smoke generation if burning
5. Continuous Operating Temperature:-45℃ to 125℃
6. Shrink Temperature:120℃
7. RoHS and Sony compliant
Product Size:
| Size | As supplied | After Recovery(mm) | Standard Package | ||
| Inch | mm | Internal diameter(mm) | Internal diameter Max(mm) | Wall thickness Nom(mm) | Spool Length |
| m/spool | |||||
| 3/64 | 0.8 | 1.1±0.2 | 0.5 | 0.22 | 200 |
| 1/16 | 1 | 1.5±0.2 | 0.65 | 0.28 | 200 |
| 1.5 | 2.0±0.2 | 0.85 | 0.32 | 200 | |
| 3/32 | 2 | 2.5±0.2 | 1 | 0.35 | 200 |
| 2.5 | 3.0±0.2 | 1.3 | 0.38 | 200 | |
| 1/8. | 3 | 3.5±0.2 | 1.5 | 0.4 | 200 |
| 3.5 | 4.0±0.2 | 1.8 | 0.42 | 200 | |
| 4 | 4.5±0.2 | 2 | 0.45 | 200 | |
| 3/16. | 4.5 | 5.0±0.2 | 2.3 | 0.5 | 200 |
| 5 | 5.5±0.2 | 2.5 | 0.55 | 100 | |
| 1/4 | 6 | 6.5±0.2 | 3 | 0.55 | 100 |
| 5/16 | 7 | 7.5±0.3 | 3.5 | 0.55 | 100 |
| 8 | 8.5±0.3 | 4 | 0.6 | 100 | |
| 3/8 | 9 | 9.5±0.3 | 4.5 | 0.6 | 100 |
| 10 | 10.5±0.3 | 5 | 0.6 | 100 | |
| 11 | 11.5±0.3 | 5.5 | 0.6 | 100 | |
| 1/2 | 12 | 12.5±0.3 | 6 | 0.6 | 100 |
| 13 | 13.5±0.3 | 6.5 | 0.65 | 100 | |
| 14 | 14.5±0.3 | 7 | 0.65 | 100 | |
| 5/8 | 15 | 15.5±0.4 | 7.5 | 0.7 | 100 |
| 16 | 16.5±0.4 | 8 | 0.7 | 100 | |
| 17 | 17.5±0.4 | 8.5 | 0.7 | 100 | |
| 3/4 | 18 | 19.0±0.5 | 9 | 0.8 | 100 |
| 20 | 21.0±0.5 | 10 | 0.8 | 100 | |
| 22 | 23.0±0.5 | 11 | 0.8 | 100 | |
| 1/1 | 25 | 26.0±0.5 | 12.5 | 0.9 | 50 |
| 28 | 29.0±0.5 | 14 | 0.9 | 50 | |
| 1/4 | 30 | 31.5±1.0 | 15 | 0.95 | 50 |
| 35 | 36.5±1.0 | 17.5 | 1 | 50 | |
| 40 | 41.5±1.0 | 20 | 1 | 50 | |
| 45 | 46.5±1.0 | 22.5 | 1 | 25 | |
| 2 | 50 | ≥50 | 25 | 1 | 25 |
| 60 | ≥60 | 31 | 1.3 | 25 | |
| 70 | ≥70 | 36 | 1.3 | 25 | |
| 3 | 80 | ≥80 | 41 | 1.46 | 25 |
| 90 | ≥90 | 46 | 1.46 | 25 | |
| 4 | 100 | ≥100 | 51 | 1.46 | 25 |
| 5 | 120 | ≥120 | 61 | 1.56 | 25 |
| 6 | 150 | ≥150 | 76 | 1.56 | 25 |
| 7 | 180 | ≥180 | 91 | 1.56 | 25 |
Technical data
| Property | Test Method | Typical Performance |
| Tensile Strength(Mpa) | ASTM D2671 | 10.4MPa |
| Elongation(%) | ASTM D2671 | 200% |
| Tensile Strength after Heat aging | UL224 158℃ X168hrs | ≥7.3 |
| Elongation after aging(%) | UL224 158ºC X168hrs | ≥100 |
| Heat shock | UL224 225ºC X4hrs | No dripping |
| No cracking | ||
| Electrical | ||
| Property | Test Method | Typical Performance |
| Dielectric Strength | IEC 243 | ≥15kv/mm |
| Volume Resistivity | IEC 93 | ≥1×1014Ω cm |
| Chemical | ||
| Property | Test Method | Typical Performance |
| Corrosion Action | UL224 158℃ | PASS |
| X168hrs | ||
| Copper Compatibility | UL224 158℃ | PASS |
| X168hrs | ||
CLICK HERE FOR FREE SAMPLES !!
Buyer Feedback
Hot products
Hot products
Company Information
KeHong Enterprises Co Ltd is specializes in heat shrinkable technology and manufacture, Headquarter in Hong kong, with factory in GuangZhou and Shenzhen City.
Our factories have obtained the certification of ISO 9001, and main insulation material tubes have UL certification of ISO 9001, and main insulation material tubes have UL cetification, SGS approval, and meet ROHS standard.
KEHONG is one of electrical insulation suppliers, which is able to provide consistent professional, experienced and efficient product service. If you are unable to find a proper tubing or sleeve from our existing products to meet your equirement, please do not hesitate to provide us with your further more detail requirements. Our technical team will do the best to satisfy your requirements with our products.
Further more, we also provide OEM and ODM services for our customers. If needed, please do contact us for detail diacussion.
The highest quality and satisfying service are our company policy. For further details regarding our products and please contact us directly.
