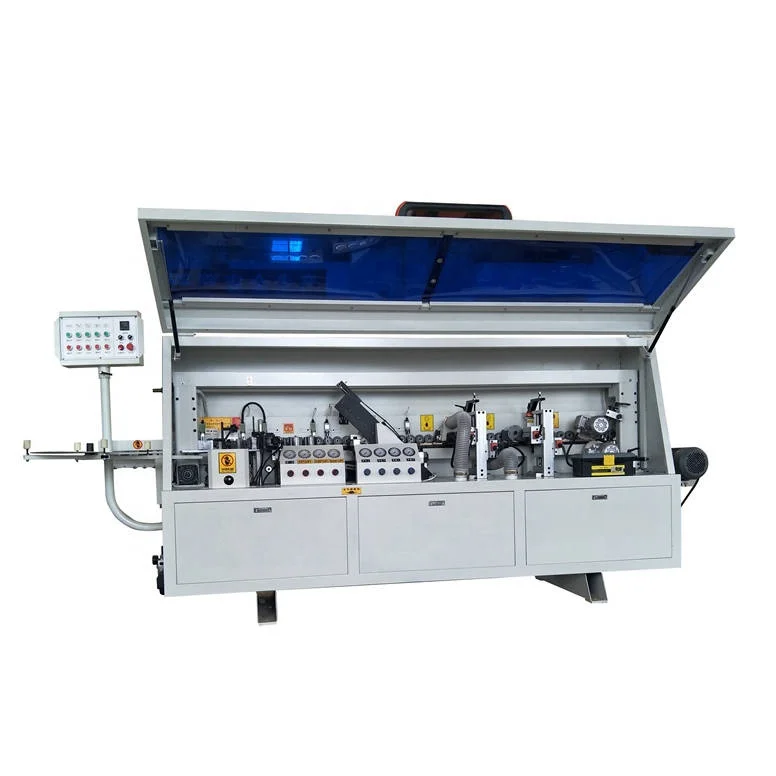

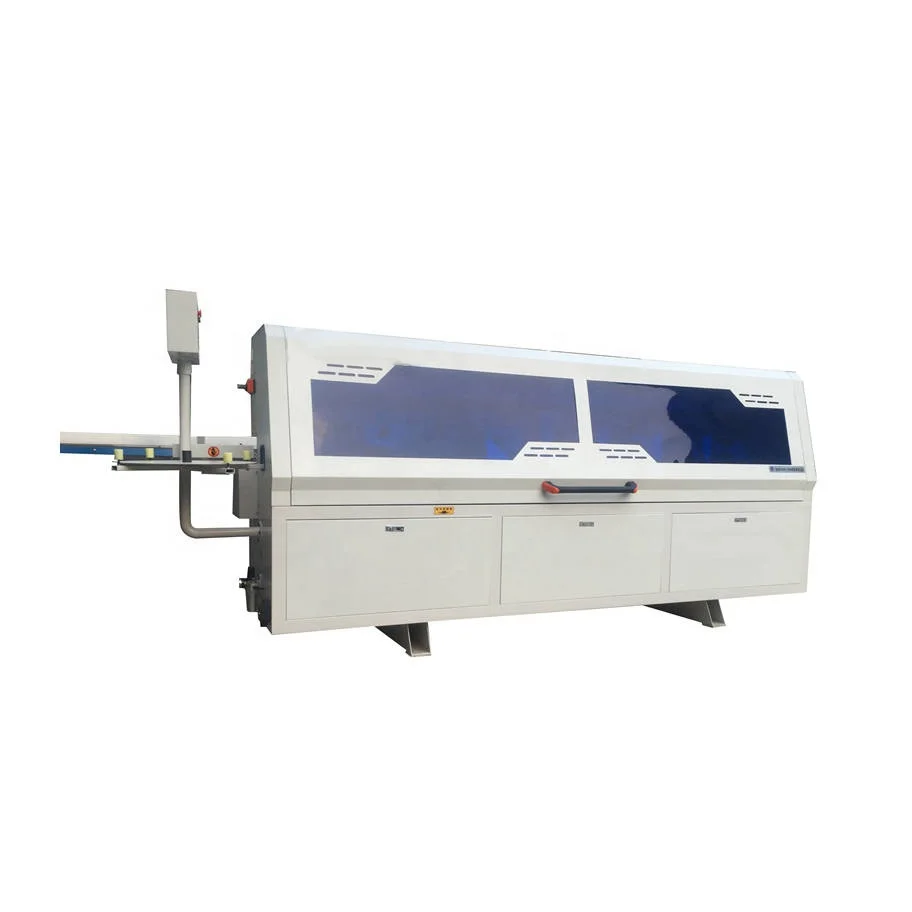

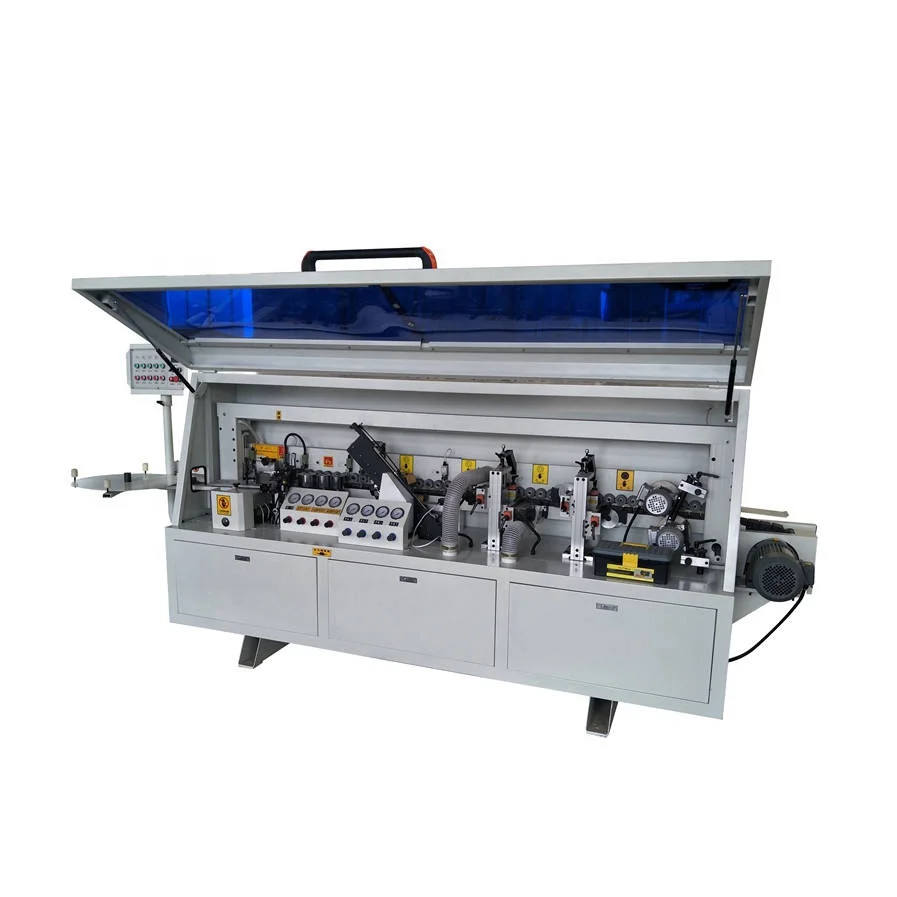

HAILIJU brand High Efficiency Automatic Edge Banding Machine For Mdf Board
- Category: >>>
- Supplier: Qingdao Hailiju Trade Co. Ltd.
Share on (1600734068261):
Product Overview
Description
Products Information
Model | 3S | 4S | 4A | 5A |
Panel thickness | 8-60MM | 8-60MM | 8-60MM | 8-60MM |
Min working width | ≥45mm | ≥45mm | ≥45mm | ≥45mm |
Min working length | ≥70mm | ≥70mm | ≥70mm | ≥70mm |
Working air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Edge bander thickness | 0.3-3mm | 0.3-3mm | 0.3-3mm | 0.3-3mm |
Voltage | 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz |
Feeder speed | 8-15m | 8-15m | 8-15m | 8-15m |
Total power | 6kw | 7kw | 8.5kw | 10kw |
Weight | 500 | 600 | 600 | 700 |
Machine size | 1800*800*1350 | 2250*800*1350 | 2250*800*1350 | 2500*800*1350 |
How many sets ship in 40 HG | 36 | 32 | 32 | 26 |
Gluing | yes | yes | yes | yes |
Automatic edge cutting | - | - | yes | yes |
Fine trimming | yes | yes | yes | yes |
Scarping | - | - | - | yes |
Buffing | yes | yes | yes | yes |
Manual motor edge cutting | - | yes | - | - |
01.Panel control
Adopt switch button, make it use easily, hard, simple processing, easy to understand.
02.Gluing roller
Apply glue by heating the glue pot and applying glue with imported scientific and technological structure,so that the glue plate and edge banding strip can be evenly applied,and the edge banding belt and plate can be pressed tightly through the pressing wheel to bond firmly.

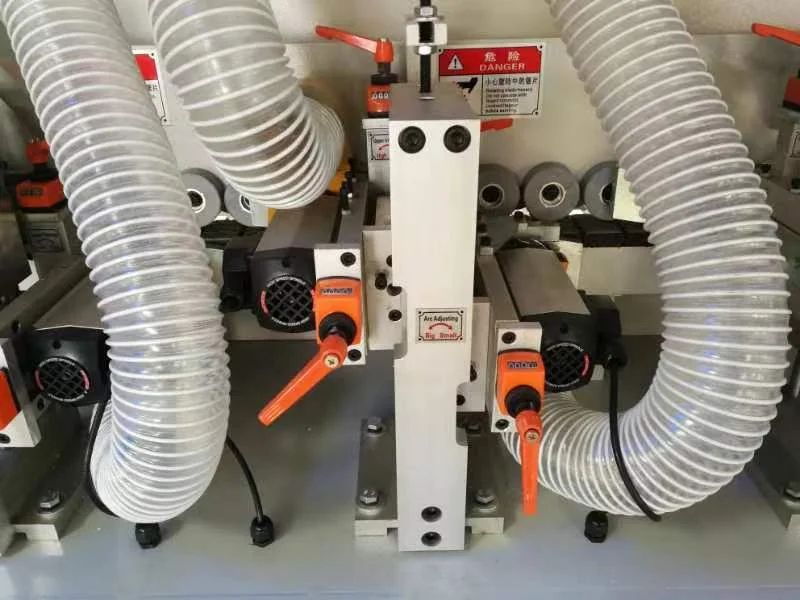

03.Front and rear flush
Through professional linear guide rail movement,the profiling automatic following and high-frequency high-speed motor fast cutting structure are adopted to ensure that the cutting section is flat and smooth.

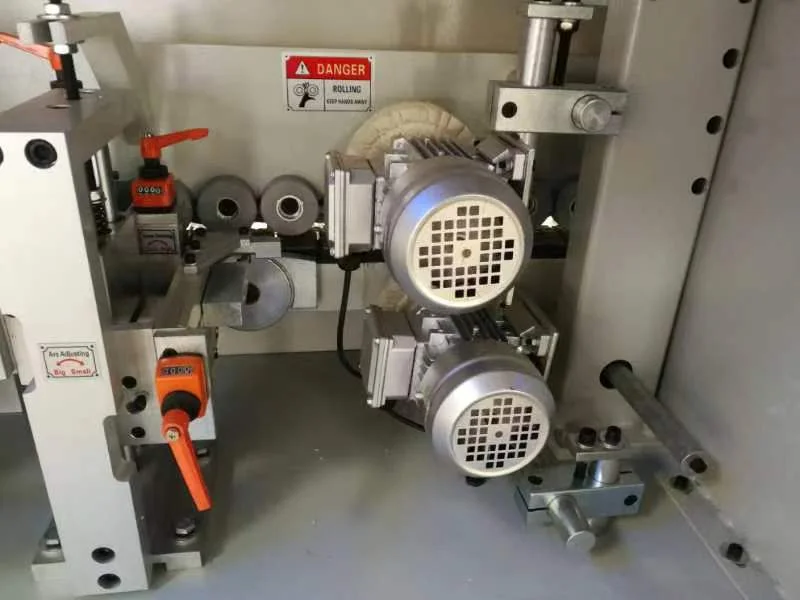

04.Finishing device
Repair the upper and lower redundant parts of the edge banding belt of the processed plate,and adopt the structure of automatic follow-up of the profiling and high-frequency high-speed motor to ensure that the upper and lower parts of the edge trimming plate are flat and smooth.
05.Edge scraping device
It is used to remove the ripple marks caused by trimming non-linear motion cutting process,so as to make the upper and lower parts of the plate more smooth and tidy.
06.Cotton polishing machine
The advanced cotton polishing wheel is used to polish,polish and trim the plate to remove excess glue stains and burrs,so as to make the edge sealing effect of plate more natural,and the edge sealing strip is integrate with the plate.

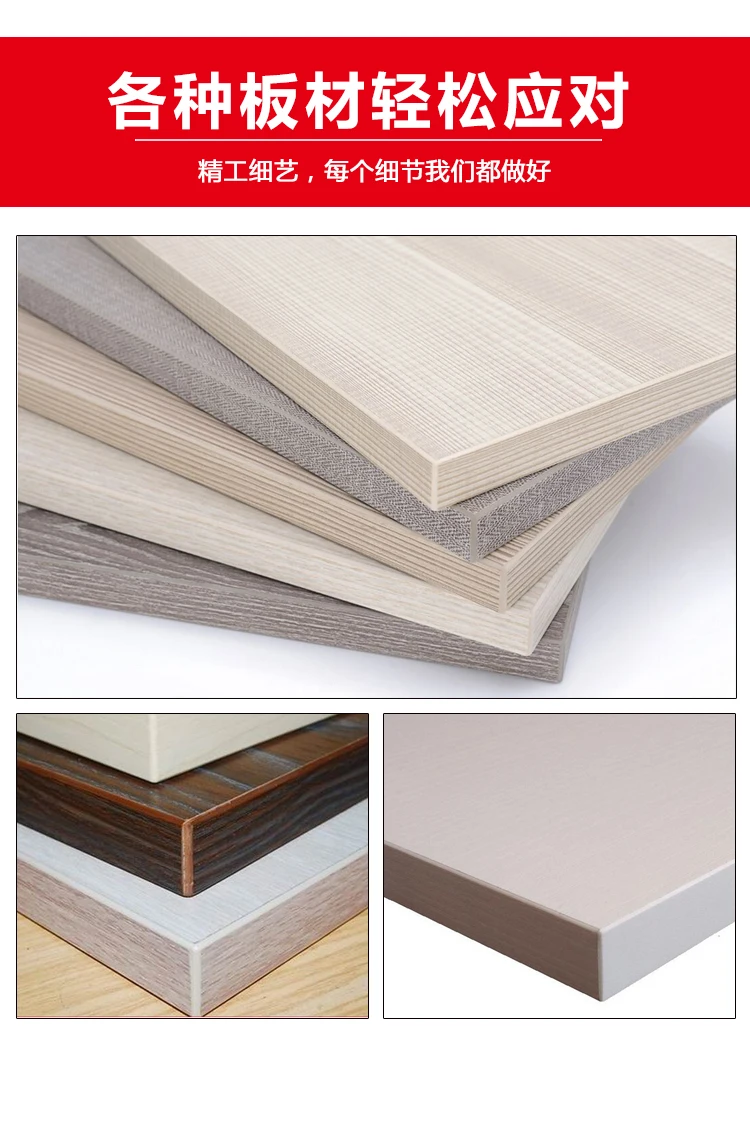

Suitable for all kinds of plates
Related Products
FAQ
1. Are you a factory or trading company?
We are a woodworking machine factory and trader in QingDao, near Qingdao Port.
2. Can you do OEM?
Yes, OEM is available! Low quantity for customized service!!
3. How can I get some samples?
We are glad to offer you samples. New clients are expected to pay for the delivery cost, this charge can be deducted from the
payment of formal order.
4. What is your payment term?
Commonly 30% deposit by T/T, the balance payment before shippment by T/T. We accept Alibaba trade insurrance.
5. What’s the delivery time?
Within 15 days for a 40HQ. Many kinds of machine we have cargo now.
6. How is your quality?
100% new materials are guaranteed. Have passed ISO Certificates and CE.
6 .HOW TO CONTACT YOU FOR BUYING?
Sally Whatsapp +86-178 6567 7953
We are a woodworking machine factory and trader in QingDao, near Qingdao Port.
2. Can you do OEM?
Yes, OEM is available! Low quantity for customized service!!
3. How can I get some samples?
We are glad to offer you samples. New clients are expected to pay for the delivery cost, this charge can be deducted from the
payment of formal order.
4. What is your payment term?
Commonly 30% deposit by T/T, the balance payment before shippment by T/T. We accept Alibaba trade insurrance.
5. What’s the delivery time?
Within 15 days for a 40HQ. Many kinds of machine we have cargo now.
6. How is your quality?
100% new materials are guaranteed. Have passed ISO Certificates and CE.
6 .HOW TO CONTACT YOU FOR BUYING?
Sally Whatsapp +86-178 6567 7953
