Anern 3hp 5hp 10hp 20hp 24 volt dc solar water pump system for irrigation
- Category: >>>
- Supplier: Shenzhen Anern Optoelectronics Co. Ltd
Share on (1600734100173):
Product Overview
Description
Product Description
Features:
As a professional manufacturer of complete solar power system and solar water pump system ,Anern offer practical, professional and
affrodable AC and DC solar powered water pumping system to residential and commercial application.

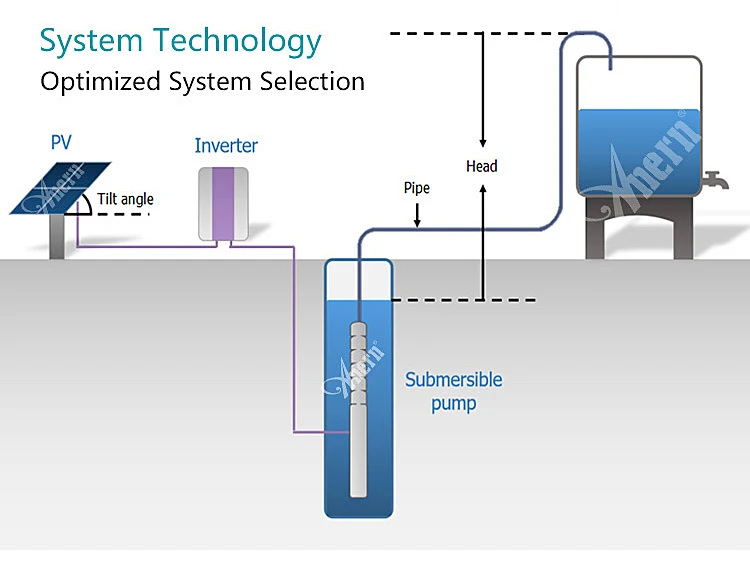

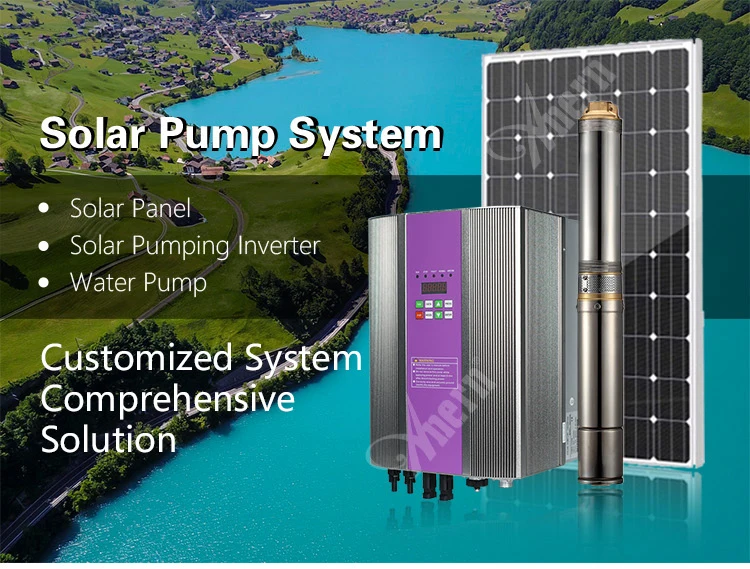

Anern solar pumping system mainly consists of solar panels, the specialized pump inverter and water pump.
As a professional manufacturer of complete solar power system and solar water pump system ,Anern offer practical, professional and
affrodable AC and DC solar powered water pumping system to residential and commercial application.
Anern solar pumping system mainly consists of solar panels, the specialized pump inverter and water pump.
Specification
Ref No. | AN400HS | AN600HS | AN600C | AN41200C033 | ||
Solar Panel | 330W/36V | 270W/30V | 270W/30V | 330W/36V | ||
Power | 330W | 810W | 810W | 1320W | ||
Water Head | 40-1m | 80-18m | 18-4m | 43-22m | ||
Daily Water Supply | 6-22m³ | 2-18m³ | 18-25m³ | 18-33m³ | ||
Outlet Dia. | 1" | 1" | 1"1/4 | 1"1/2 | ||
Recommended MPP Voltage | >=20VDC | 60-120VDC | 60-120VDC | 120-160VDC | ||
Ref No. | AN41800C076 | AN42K2040 | AN43K0020 | AN45K5070 | ||
Solar Panel | 270W/30V | 330W/36V | 200W/35V | 330W/36V | ||
Power | 2160W | 4950W | 6300W | 9900W | ||
Water Head | 34-16m | 123-82m | 235-149m | 175-117m | ||
Daily Water Supply | 34-76m³ | 23-40m³ | 13-23m³ | 40-70m³ | ||
Outlet Dia. | 2" | 1"1 / 2 | 1"1/4 | 2" | ||
Recommended MPP Voltage | 120-160VDC | 500-600VDC | 500-700VDC | 500-700VDC | ||
Ref No. | AN65K5160 | AN47K5070 | AN69K2260 | AN615K260 | ||
Solar Panel | 330W/36V | 330W/36V | 330W/36V | 330W/36V | ||
Power | 9900W | 15840W | 19800W | 29700W | ||
Water Head | 79-43m | 217-143m | 84-53m | 134-85m | ||
Daily Water Supply | 80-160m³ | 40-70m³ | 160-260m³ | 160-260m³ | ||
Outlet Dia. | 2"1/2 | 2" | 3" | 3" | ||
Recommended MPP Voltage | 500-600VDC | 500-600VDC | 500-600VDC | 500-600VDC | ||
Ref No. | AN626K180 | AN837K700 | ||||
Solar Panel | 330W/36V | 330W/36V | ||||
Power | 49500W | 69300W | ||||
Water Head | 362-204m | 139-89m | ||||
Daily Water Supply | 100-180m³ | 450-700m³ | ||||
Outlet Dia. | 3" | 5" | ||||
Recommended MPP Voltage | 500-600VDC | 500-600VDC | ||||
Product Details
Advantage of Solar Water Pump:
1. MPPT solar pump inverter, the highest solar utilization rate
2. Alloy mechanical seal, long life and reliable operation
3. Waterproof and sealed: double sealing effect
4. Digital display of power, voltage, current, speed and other working conditions
5. High/low voltage protection, overcurrent/overload protection
1. MPPT solar pump inverter, the highest solar utilization rate
2. Alloy mechanical seal, long life and reliable operation
3. Waterproof and sealed: double sealing effect
4. Digital display of power, voltage, current, speed and other working conditions
5. High/low voltage protection, overcurrent/overload protection

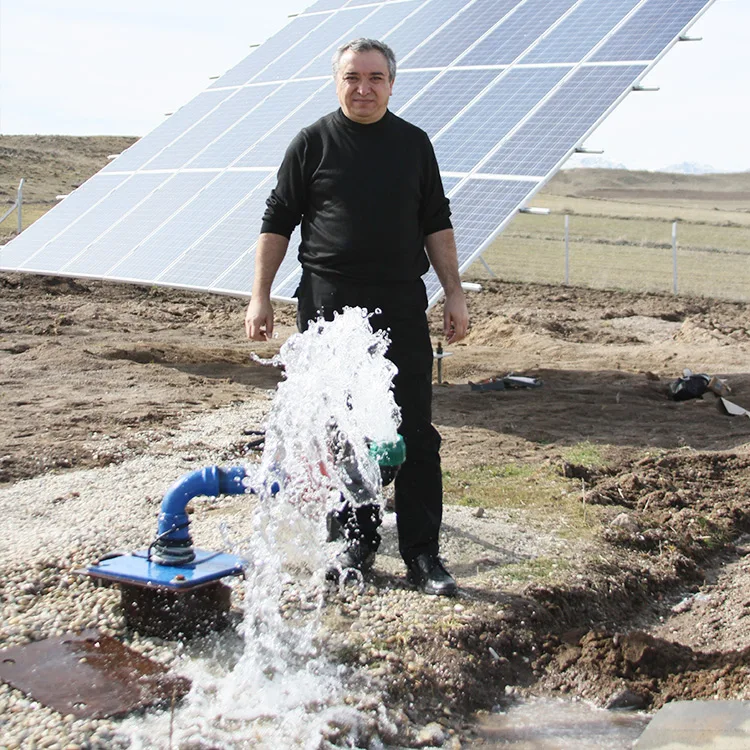

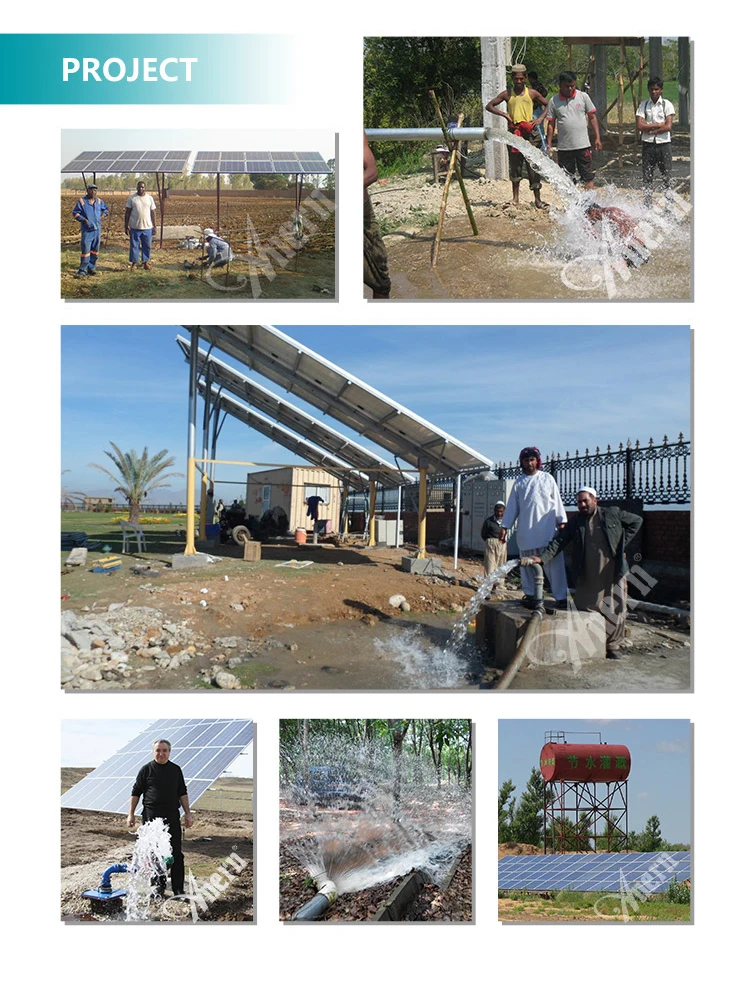

Project
Solar water conservancy can not only provide a comprehensive solution for agriculture, forestry and animal husbandry production, ecological environment improvement and desert governance, but also have of great significance in promoting the healthy development
of photovoltaic industry.
of photovoltaic industry.
Through the organic integration of solar pumping technology, hydraulic engineering and water-saving irrigation technology, based on the industrial technology and market demand of matching and requirements, to solve the ecological restoration, food production, animal husbandry,grassland restoration problem.
Application

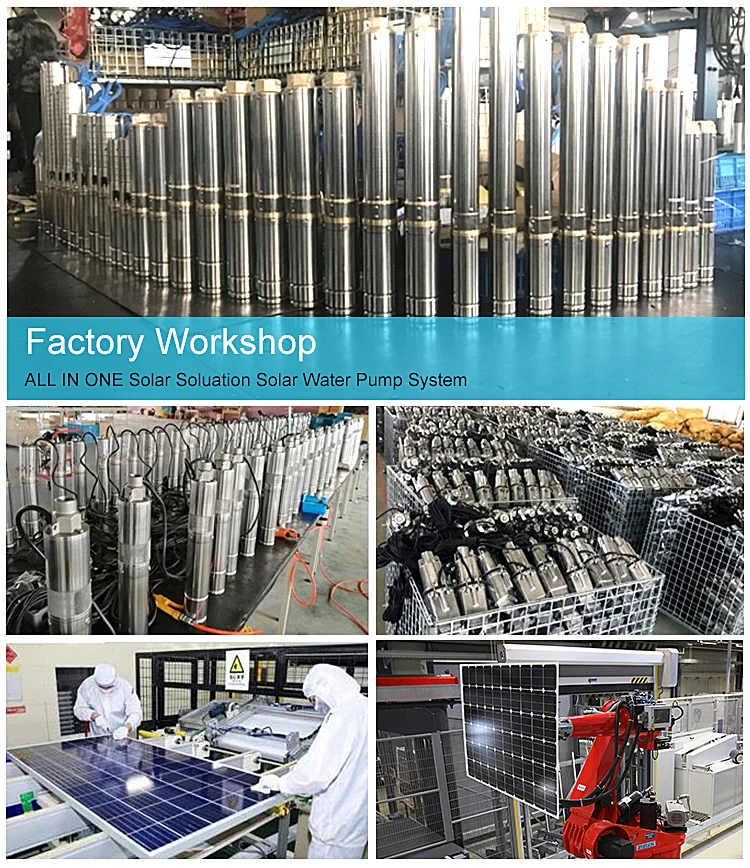

Anern Factory
Anern owns professional factory, introducing advanced production equipment, specialized production line, talented R&D team and adopting worldwide leading technology, through international standard management and strict quality control to ensure the stable-performance and high-quality products. Anern can offer OEM services as per your specific requirements, customize the solar system and Solar lighting solutions in the practical application.
Certifications
Company Information
Anern is headquartered in Guangzhou, which is one of most important Chinese Central Cities, with occupying area of 5,000 sqm,among which a modern showroom with area of 7,000 sqm. Each year there are over 1,000 personnel from various countries clients and governemnt institutions come to visit us.
