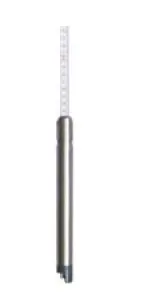

Portable oil/water interface sensor UBX type

UBX type portable interface detector can detect the position of oil/water in the same tank conveniently, as well as the medium temperature at the same time. The product accords with CB\\T4182-2011 <Technical Requirements for Marine Oil/ Water Interface Detector> and MEPC.5 (XIII) <Technical Requirements for Oil/ Water Interface Detector>. The product is applicable for oil/water interface and temperature measurement of ballast tanks, liquid tanks, slop tanks, oil tanks etc. in oil tanker, oil & chemical ship, petroleum, chemical and other industrial place.

Main Technical Specification

1. Interface detection accuracy: ±20mm

2. Tape length: 15 m, 30m
3. Tape system: metric/ British
4. Tape resolution: 1mm
5. Tape accuracy: ±3mm (30m)
6. Min. detection level: 4mm
7. Display mode: LED text and sound
8. Temperature accuracy: ±0.5%F.S.
9. Temperature resolution: 1℃
10. Power voltage: DC 9V (battery)
11. Ambient temperature: -25~55℃
12. Probe temperature: -25~110℃
13. Ex. mark: Ex ia Ⅱ BT4Ga
14. Protection class: IP44 (sensor IPX8)
15. Certificate approval: EC and CCS
16. Connection size: 2'' deck valve 1'' quick connector
17. Applicable medium: oil, water and chemical

Features

1. 100% repeatability
2. Readable continuous temperature;
3. High accuracy and stability;
4. Easy changing battery;
5. No need to recalculate after changing probe;
6. Light weight, easy to carry;
7. Longtime steady temperature, no easy to aging;
8. Multi-adaptor can be connected with different deck valve;
9. Tape cleaning device, window wiper and tape protector;
10. Modular design, easy to maintenance.

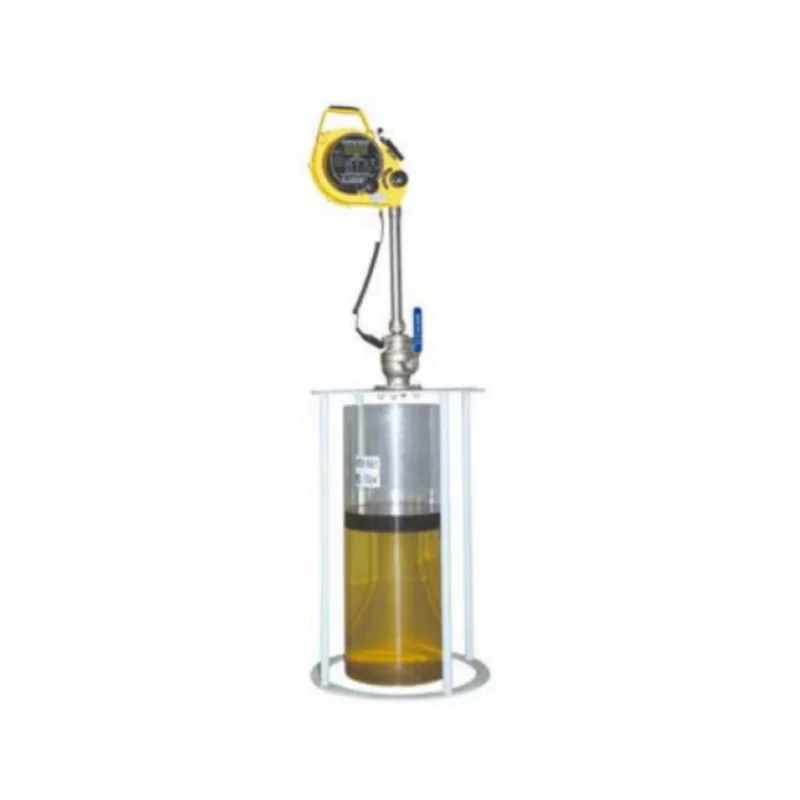

Sketch and Installaiton

Packing: carton or wooden case

Shipping: by air, sea, or courier as Fedex, DHL, UPS, EMS

Class certificate (Type approval): BV(EC type), CCS

EX-proof certificate: NEPSI
