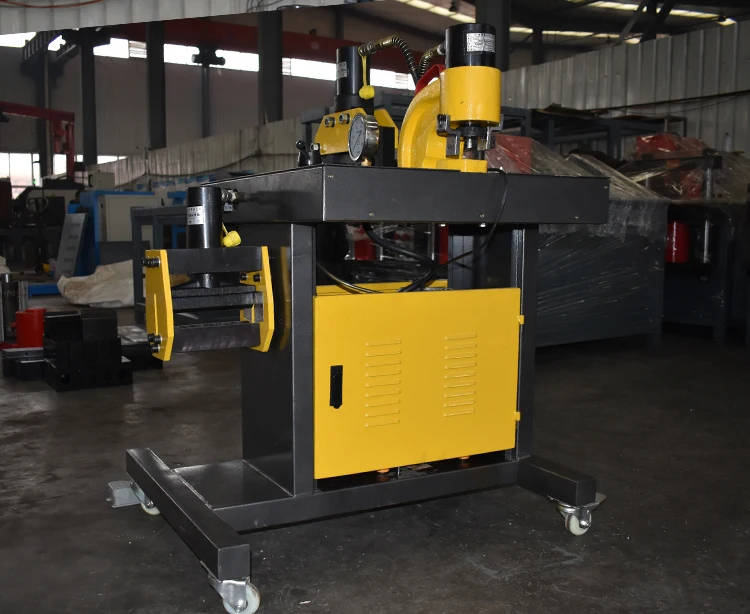

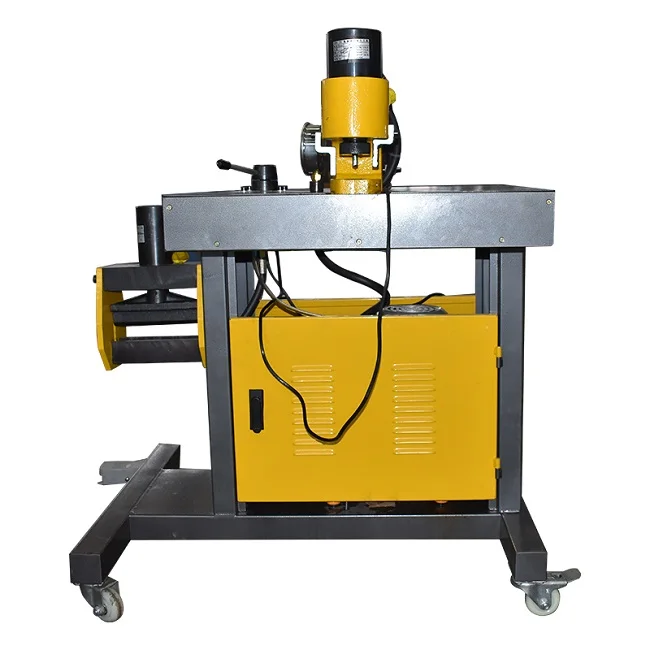

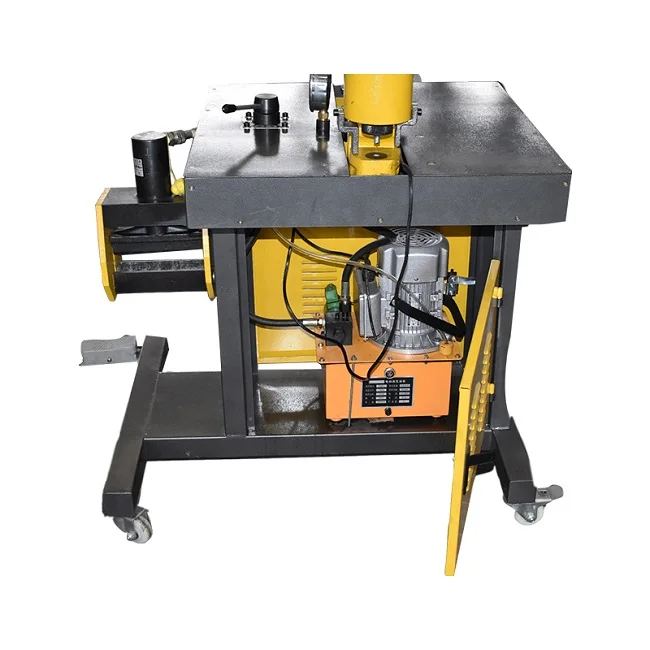

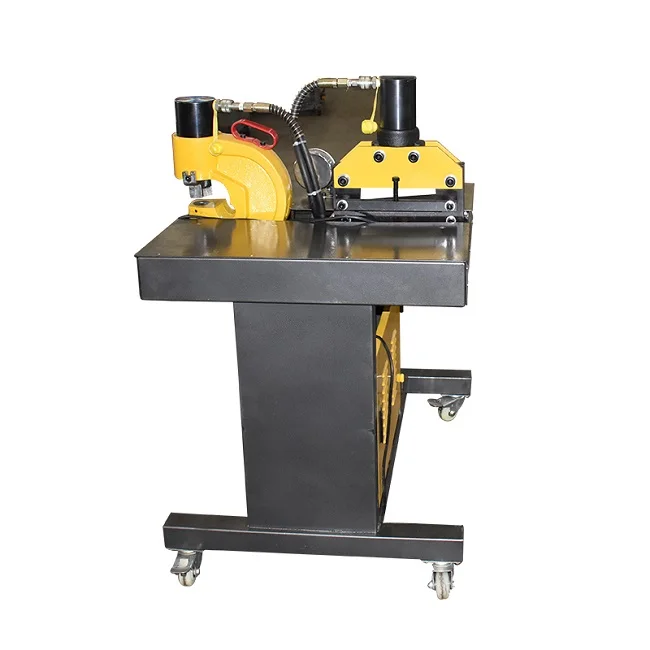

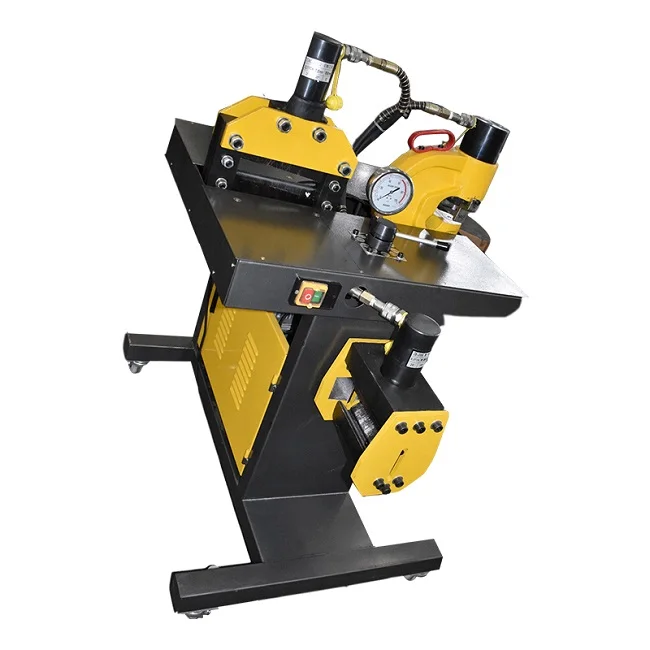

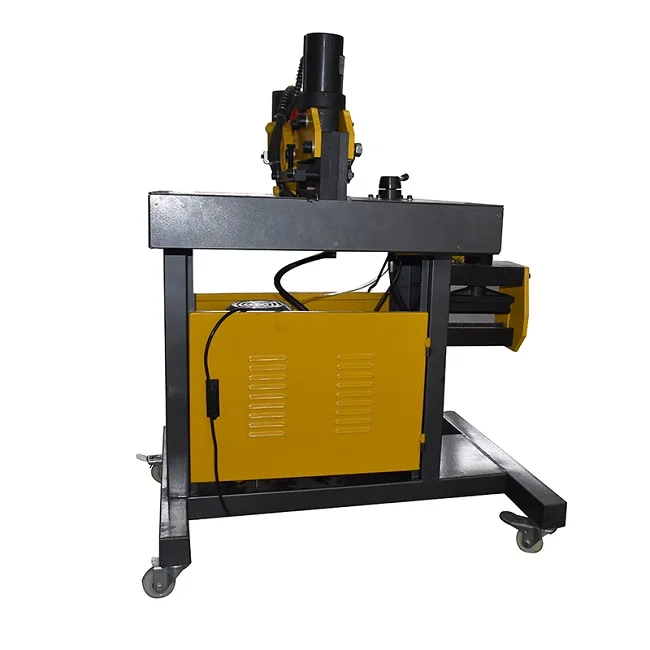

Hailaitaide Three In One 3 in 1 Busbar Processing Machine Copper Bus bar Bending Cutting Punching Machine
- Category: >>>
- Supplier: Shandong Hailaitaide Machinery Co. Ltd.
Share on (1600734185324):
Product Overview
Description
Product Description
Product Description
Based on the most advanced foreign products and Chinese reality, it is designed to improve working efficiency and save some time. It is for PTD( power transmission and distribution) and workshop field operation and electric equipment manufacturing, such as power distribution cabinet and switch cabinet .The machine have some functions, such as shearing, punching, horizontal punching ,etc.
Specification
Input voltage | Single phase 50Hz,220v |
The amount of work pressure | 6.3Mpa |
Cutting capacity | Copper bar / aluminum bar 150mmx12mm |
Punching capacity | Copper bar / aluminum bar 150mmx12mm |
Horizontal bending | Copper bar / aluminum bar 150mmx12mm |
vertical bending | Copper bar / aluminum bar 125mmx12mm |
Flow table size | 700mm(L)x700mm(W)1000(H) |
Standard punching mold | Φ10.5 Φ13.8 Φ17 Φ20.5 |
Machine weight | 170kg |
FOB qingdao price | $1900 |
Feature of Machinery

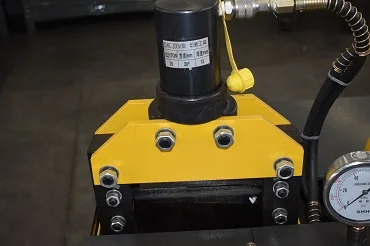

The shearing unit uses sharp shearing, the incision interface is flat, no droop and burrs and waste, beautiful shape.

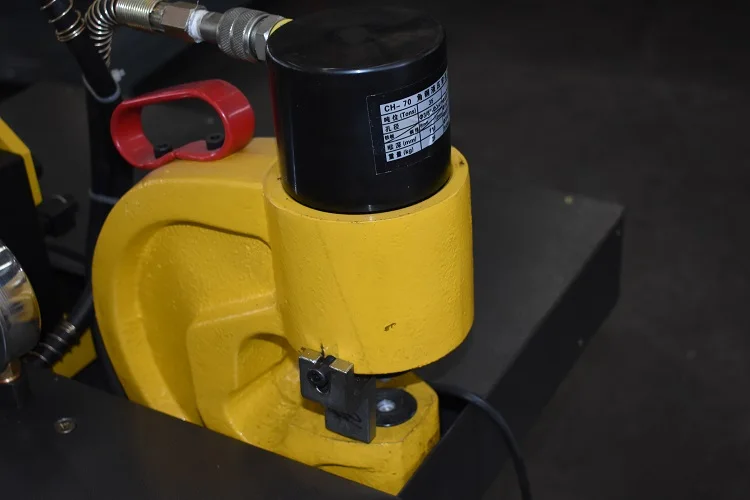

The punching unit uses an united six-mode template in tooth shape to make sure the upper mold and the lower mold are absolutely in the center, improve the mold concentricity and longten the working life. The turnplate is in tooth shape with good view and high strength. No need to frequently change molds, labor intensity is highly reduced. It is easy and quick to use. Producing efficiency is obviously higher than a traditional one.
The bending unit uses an single-decker working table, which can make sure that three working Positions can do their operations at same time without bothering the others.By changing different mold it can do flat bending,and vertical bending.

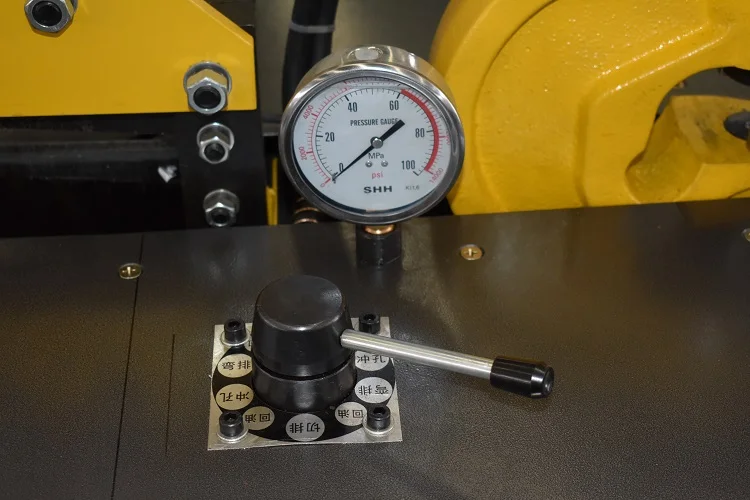

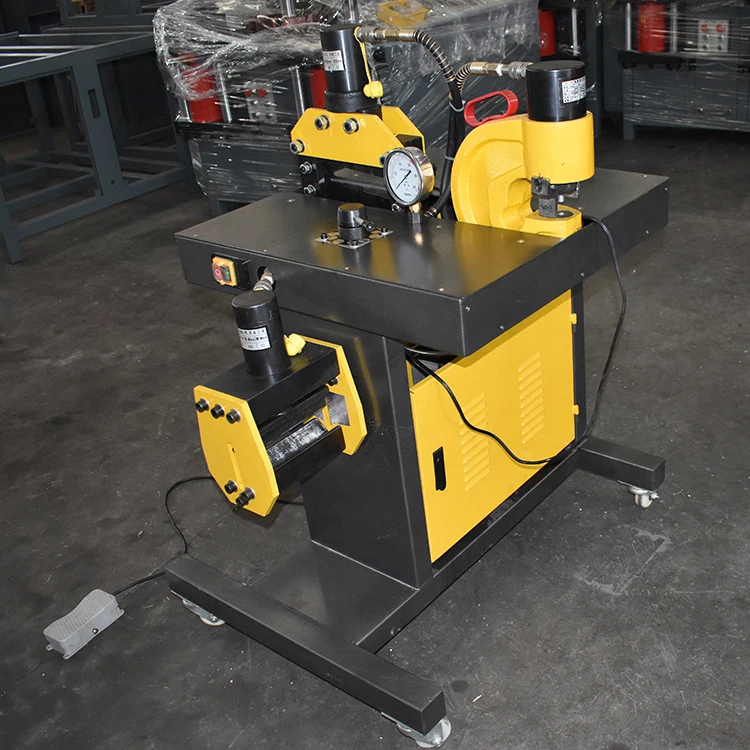

The machine has four casters so it is easily to be moved everywhere there are two operating modes, manual button and foot switch, which is easily for worker to operate and use. Based on user's requirement, it can do all kinds of special shape processing with different molds or equipping parts.
Application
Title goes here.
It is special machine for cutting,bending and punching on aluminum and copper bus bars.Various samples; cut angle sample; twisting bend copper bar; press cable joint sample; embossing sample; cutting sample; punching sample
