Automatic Servo Control steel sheet Intelligent Flexible Bending steel panel bending machine Sheet Metal Panel Bender
- Category: >>>
- Supplier: Qingdao Aiotek Intelligent Equipment Co. Ltd.
Share on (1600734185407):
Product Overview
Description
Product Overview

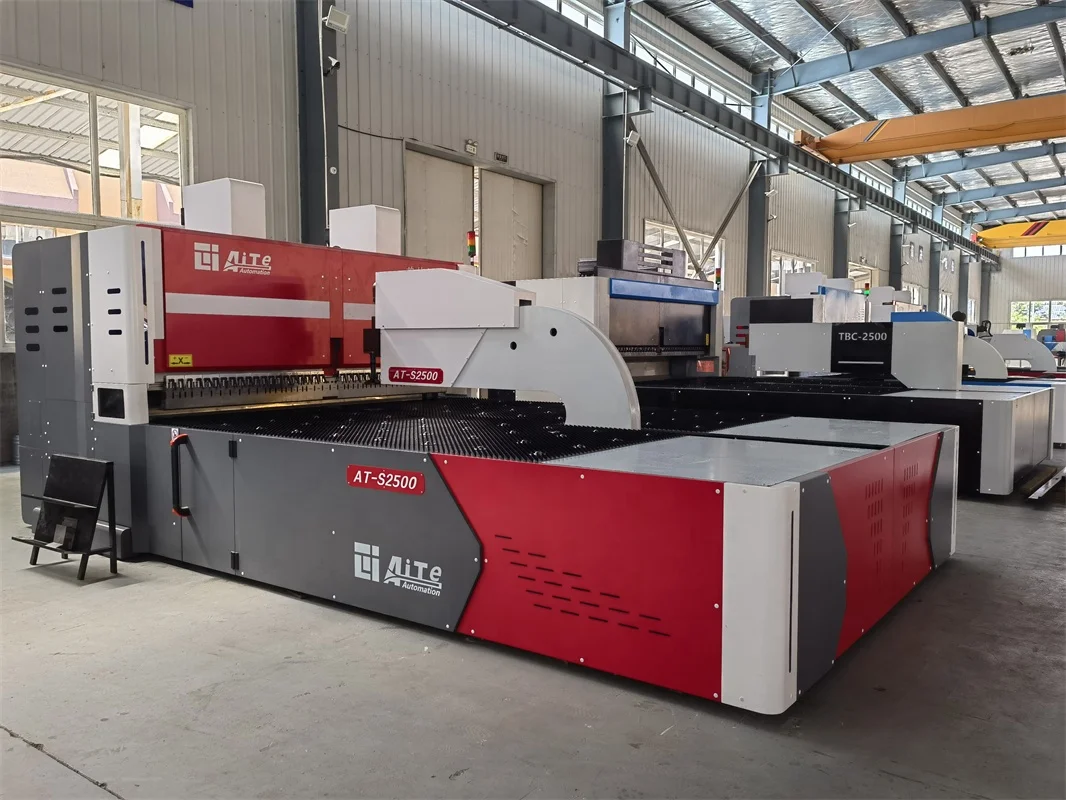

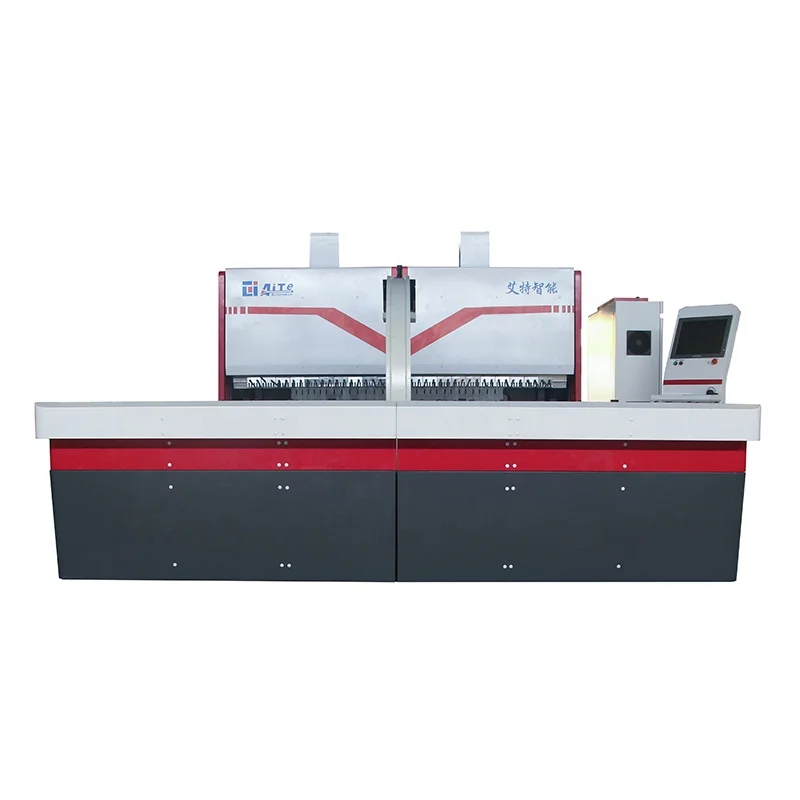

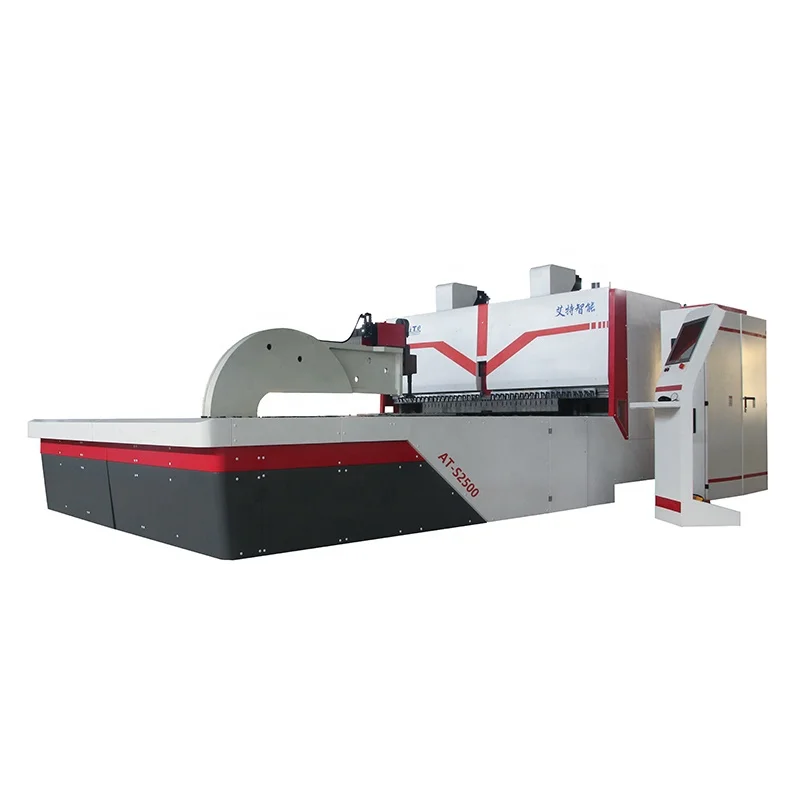

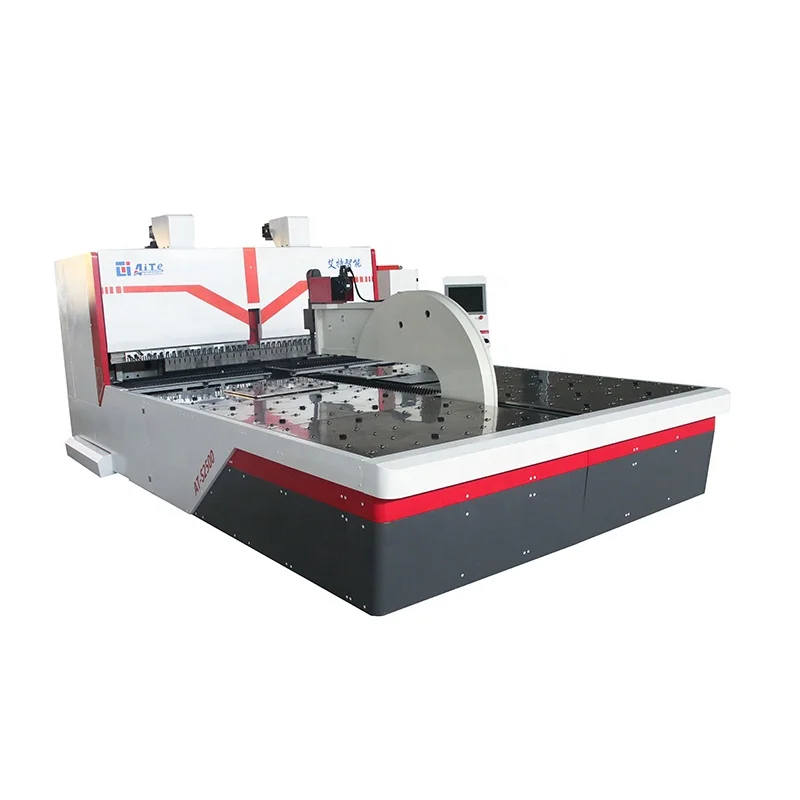

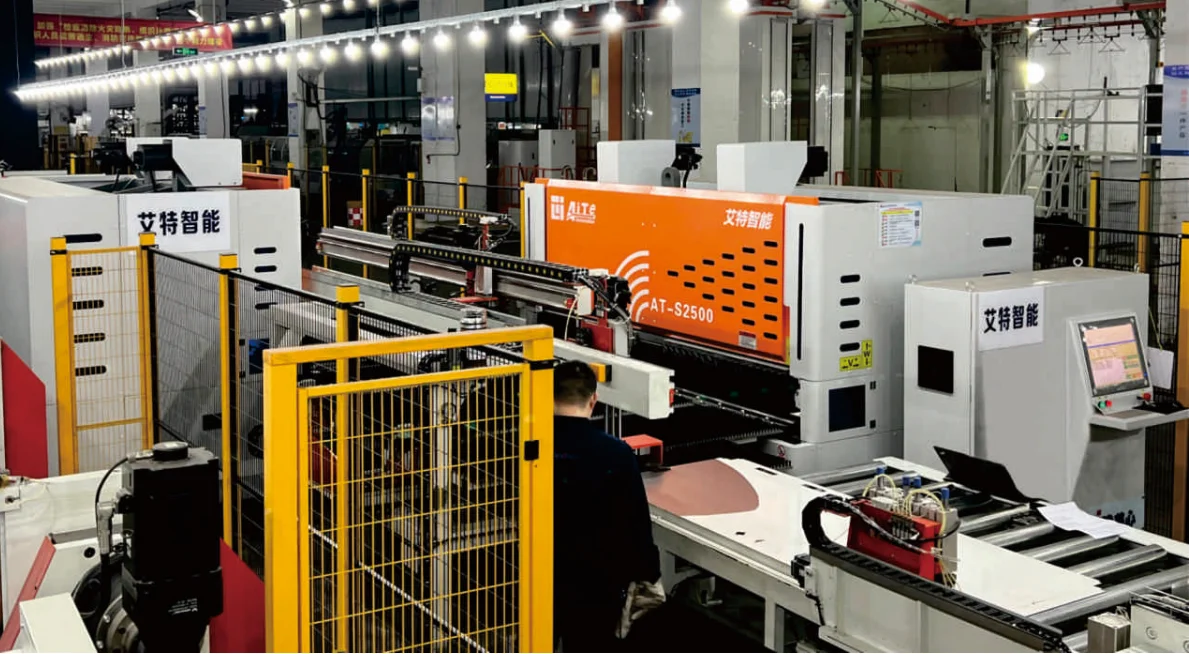

AT-S2500 Flexible Bending Center
The bending speed is only 0.2 seconds per knife
The equipment can be automatically folded up and down according to the bending process, to achieve a combination of arc, pressing edges, and various angles, and achieve a variety of bending requirements without changing the tools.
The equipment can be automatically folded up and down according to the bending process, to achieve a combination of arc, pressing edges, and various angles, and achieve a variety of bending requirements without changing the tools.
Model AT-S2500 | Item | Data | Bending range of common plate standard machine | Bending range of sheet standard machine | ||
1 | feeding structure | Pressure Arm Type | Material | thickness | ||
2 | bending length( Max) | 2500 mm | stainless steel | 0.3-1.0 | ||
3 | bending height(Max/Min) | 170/4mm | 0.3-2.5 | |||
4 | minimum forming size of four sides | 110*140mm(customized) | Aluminum | 0.3-2.5 | ||
5 | minimum forming size of single side | 110mm | ||||
6 | arc radium (Min) | 1.2mm | carbon steel | 0.3-1.2 | ||
7 | continuous bending speed(Min) | 0.2s | ||||
8 | bending angle | 0-180 degree | Bending Range of thick plate standard machine | |||
9 | number of controlling axles | 13（standard)/15(customized) | stainless steel | 0.8-1.5 | ||
10 | feeding speed(Max) | 120m/min | ||||
11 | Power(Max) | 32KW | Aluminum | 2.0-3.5 | ||
12 | average power | 4.5KW | ||||
13 | structure of workbench | brush | carbon steel | 1.0-2.0 | ||
14 | Equipment SIze | 6100*3800*2320mm | carbon steel | |||
1) Bending Process Introduction and Demonstration
1) Servo flexible bending center body:
adopts high-strength steel plate for overall welding. with stable structure and long
service life
service life
2) heat treatment:
remove internal stress, has strong rigidity and heavy ton; ensures the long-term of accuracy, reliability of the machine
3)Anneal Process：
the frame is strictly accordance with the welding process of SAVANINI in Italy and PUMABO in German. After welding, the whole body
is simmered according to the requirements of heat treatment to eliminate the internal stress of fuselage, which prolong the
service life of equipment
remove internal stress, has strong rigidity and heavy ton; ensures the long-term of accuracy, reliability of the machine
3)Anneal Process：
the frame is strictly accordance with the welding process of SAVANINI in Italy and PUMABO in German. After welding, the whole body
is simmered according to the requirements of heat treatment to eliminate the internal stress of fuselage, which prolong the
service life of equipment
Servo flexible bending center body
Bending Up
Bending Down

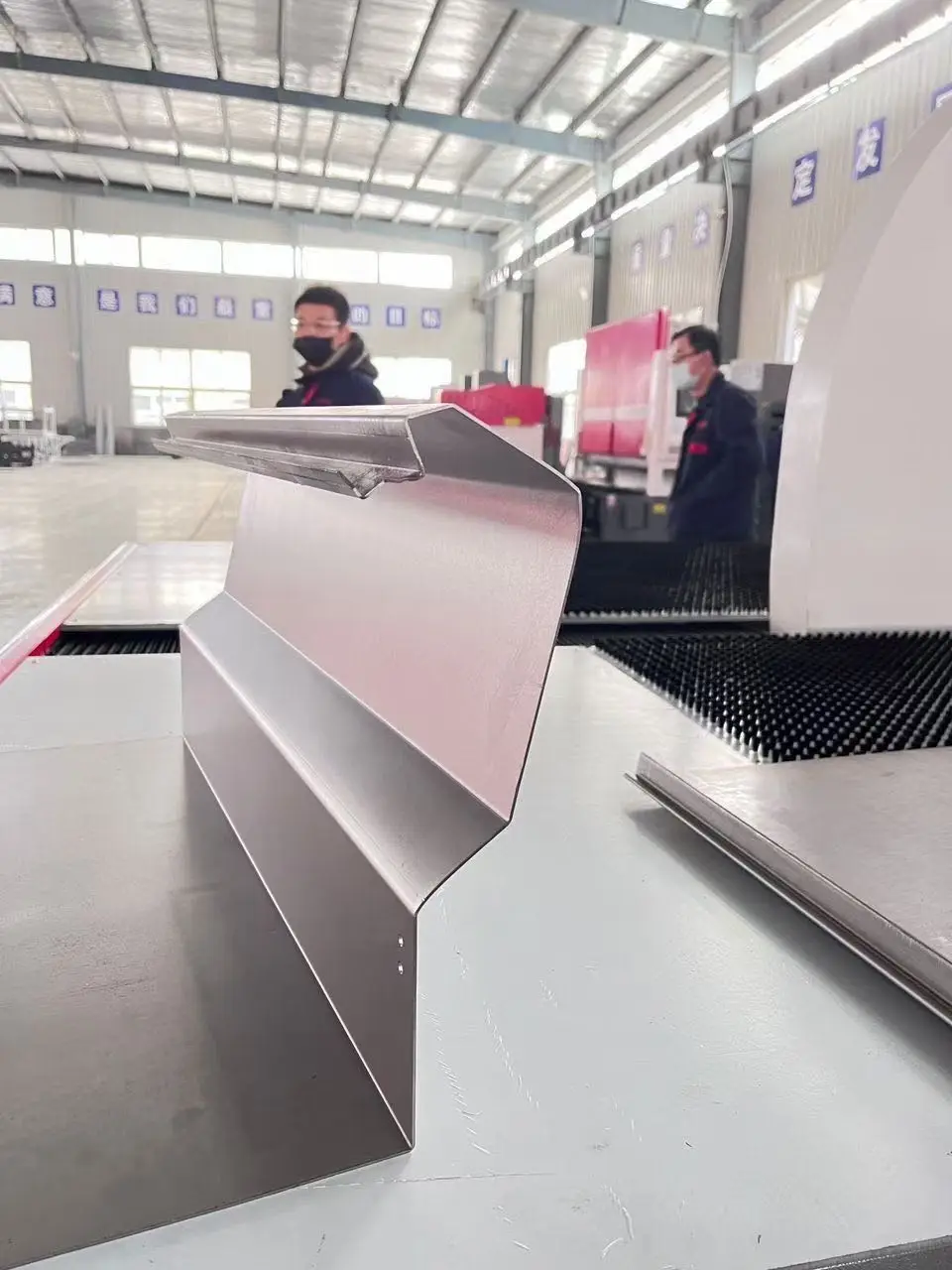

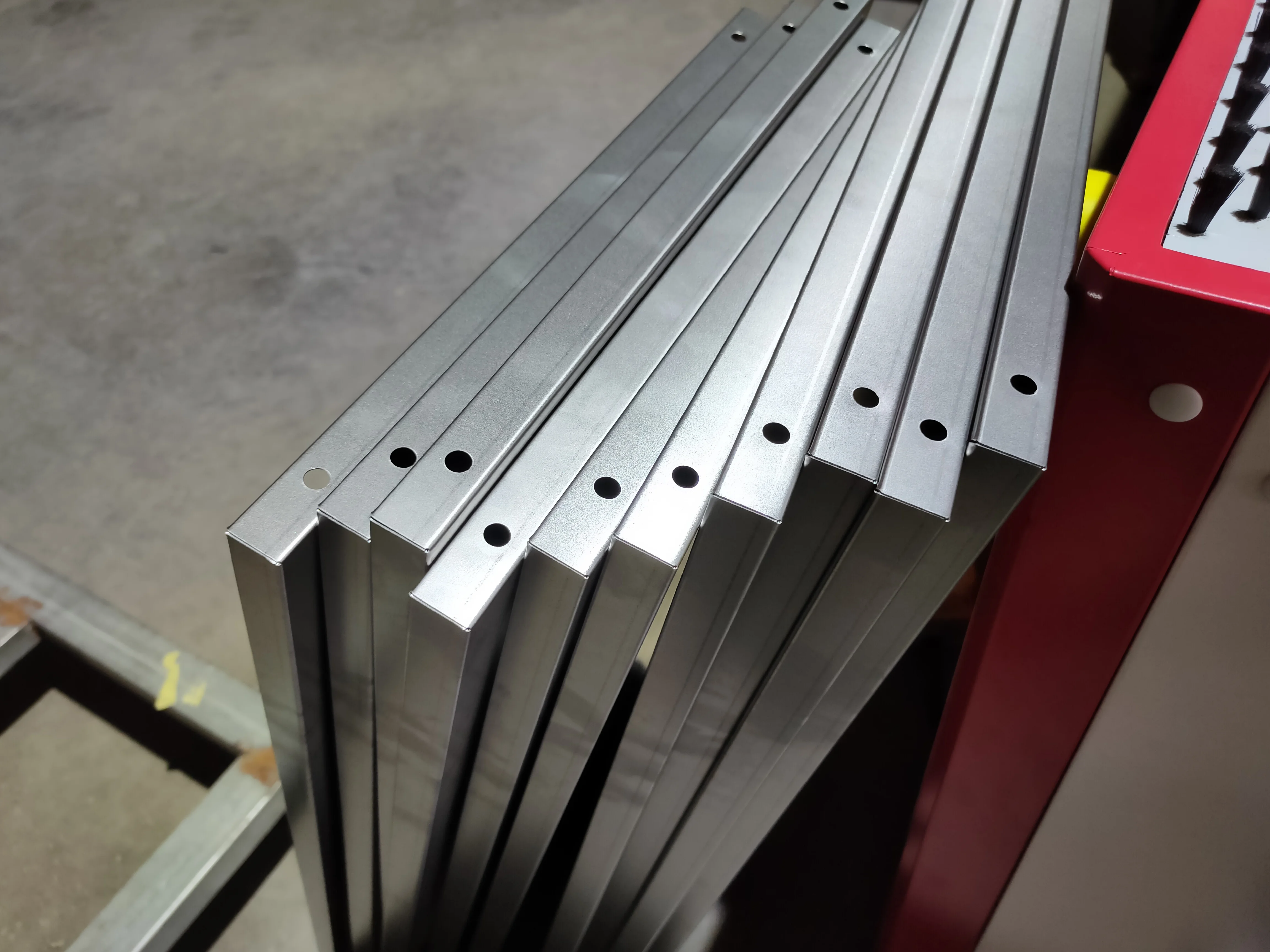

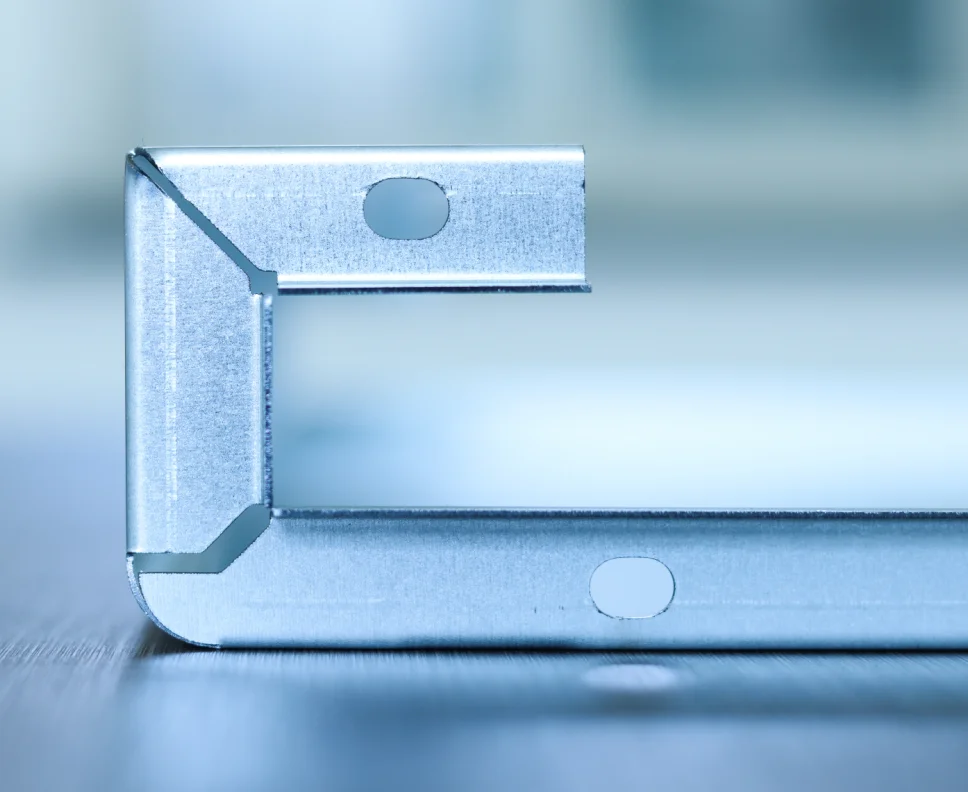

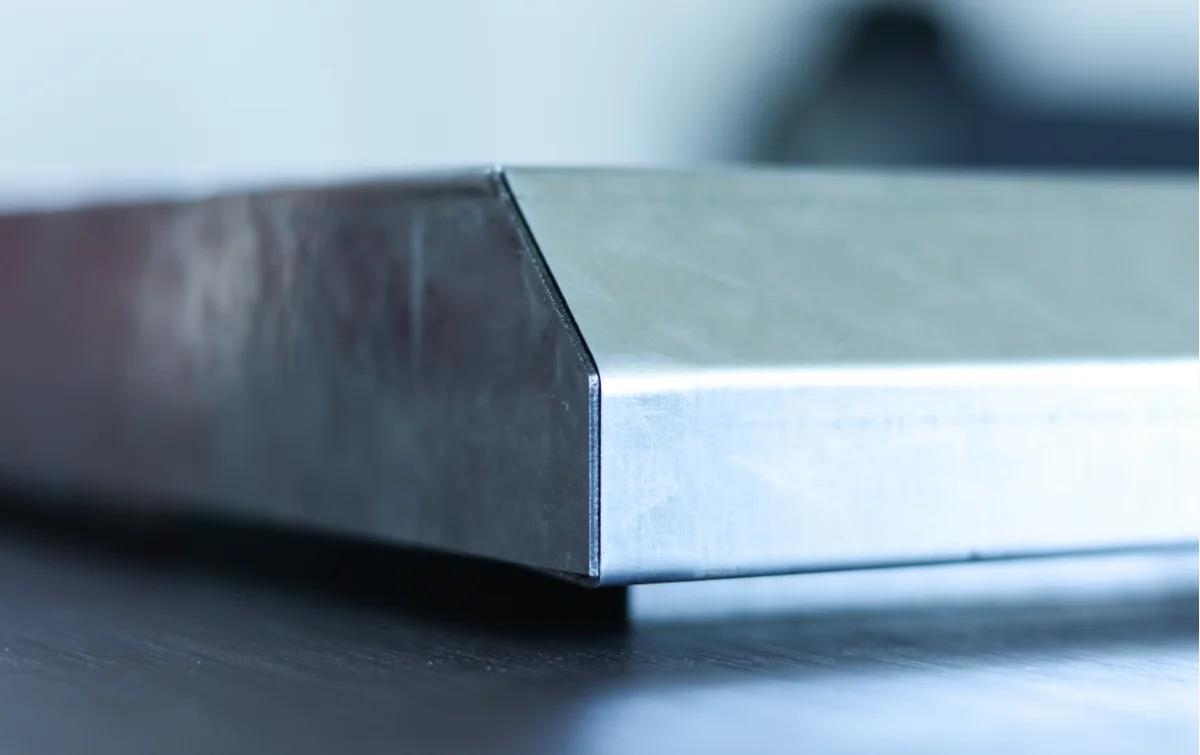

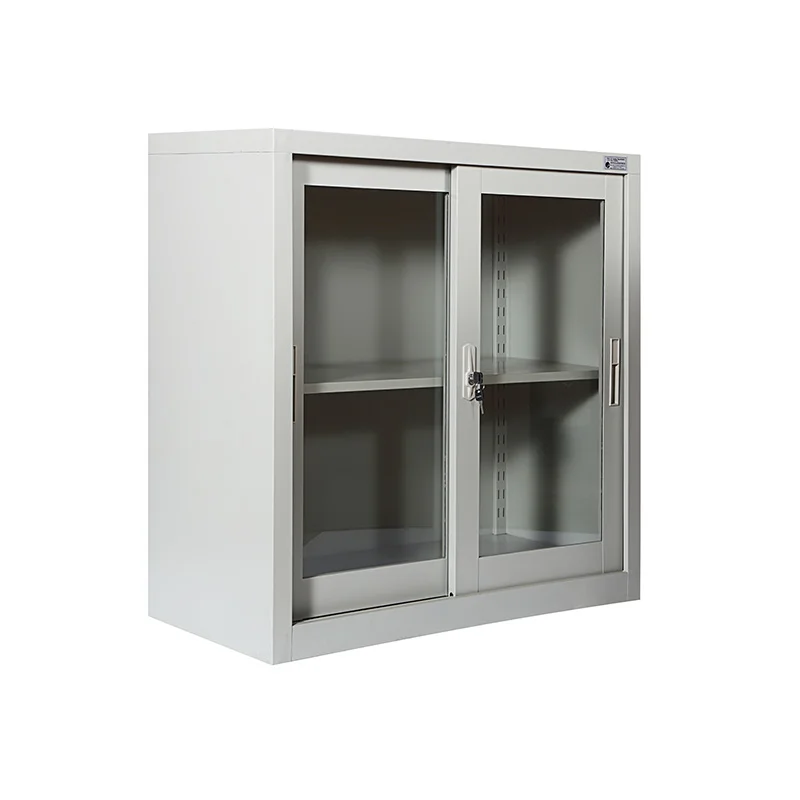

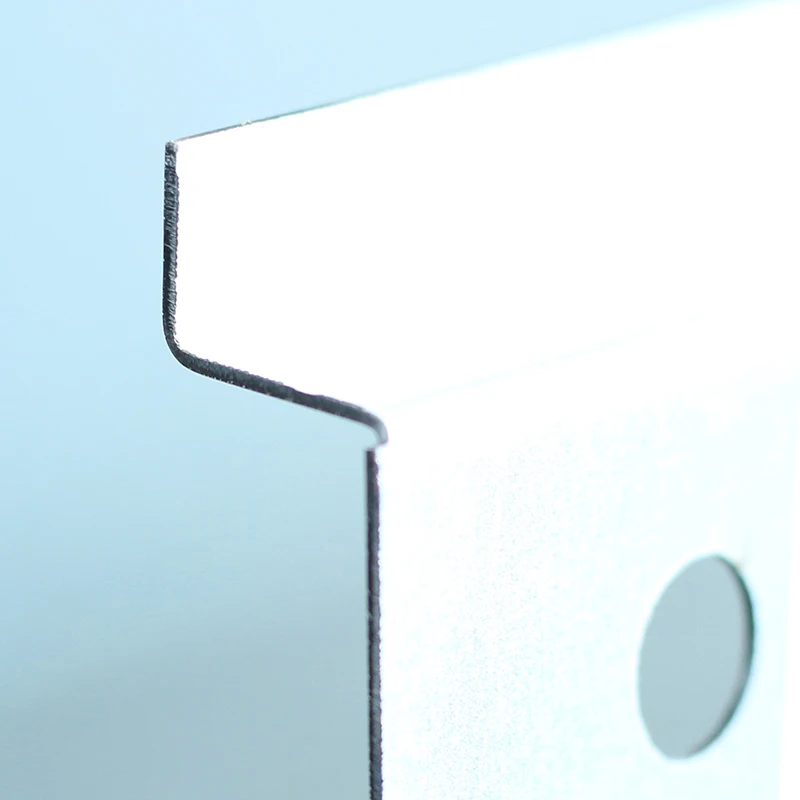

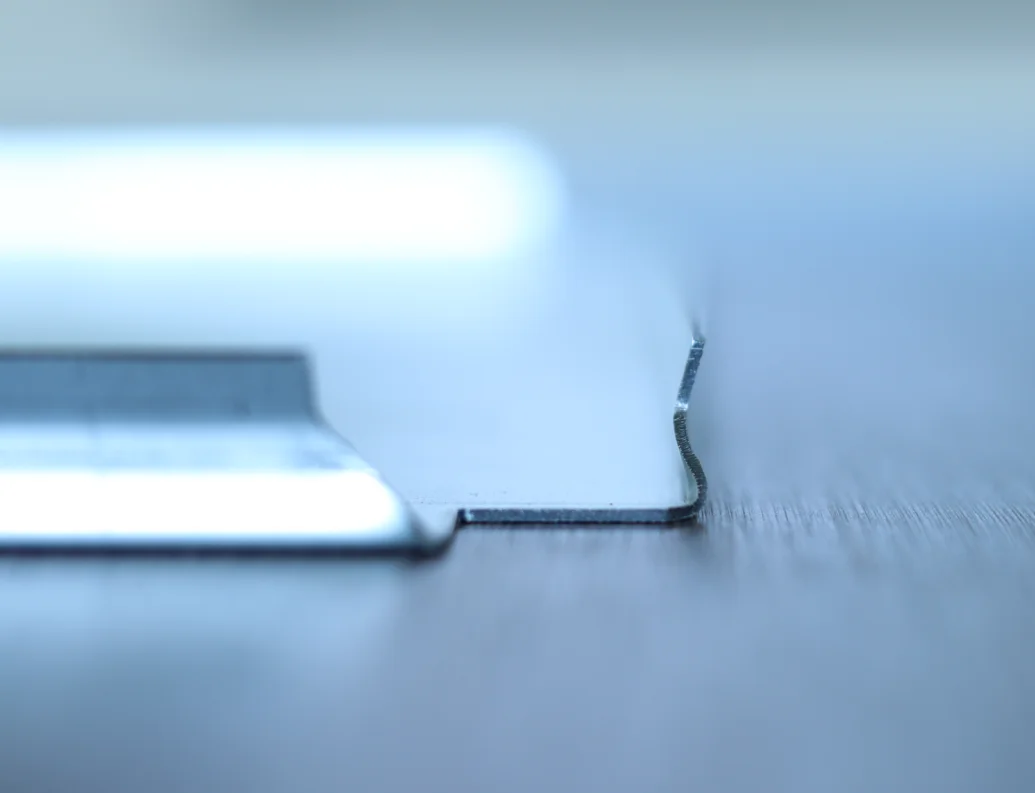

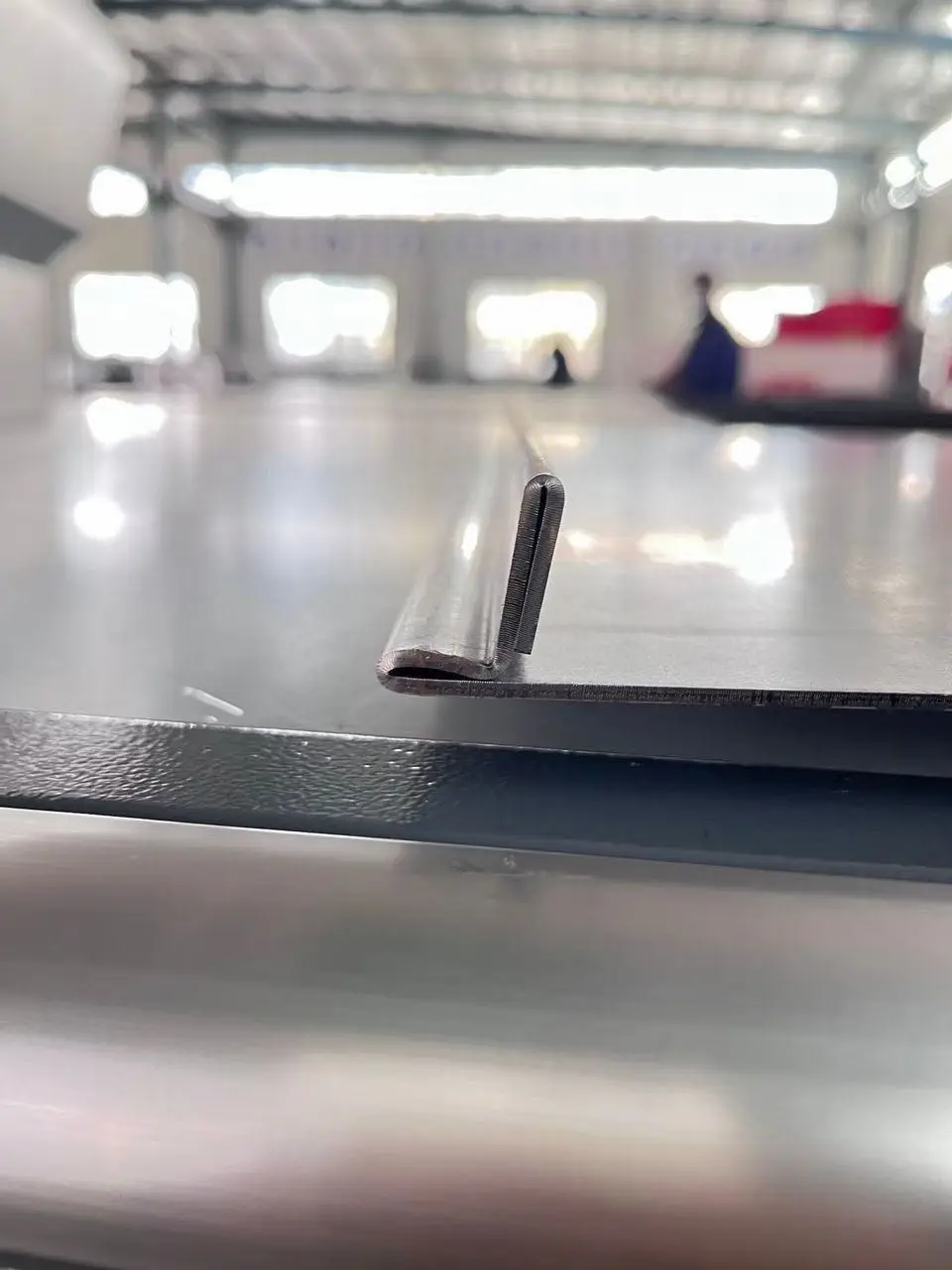

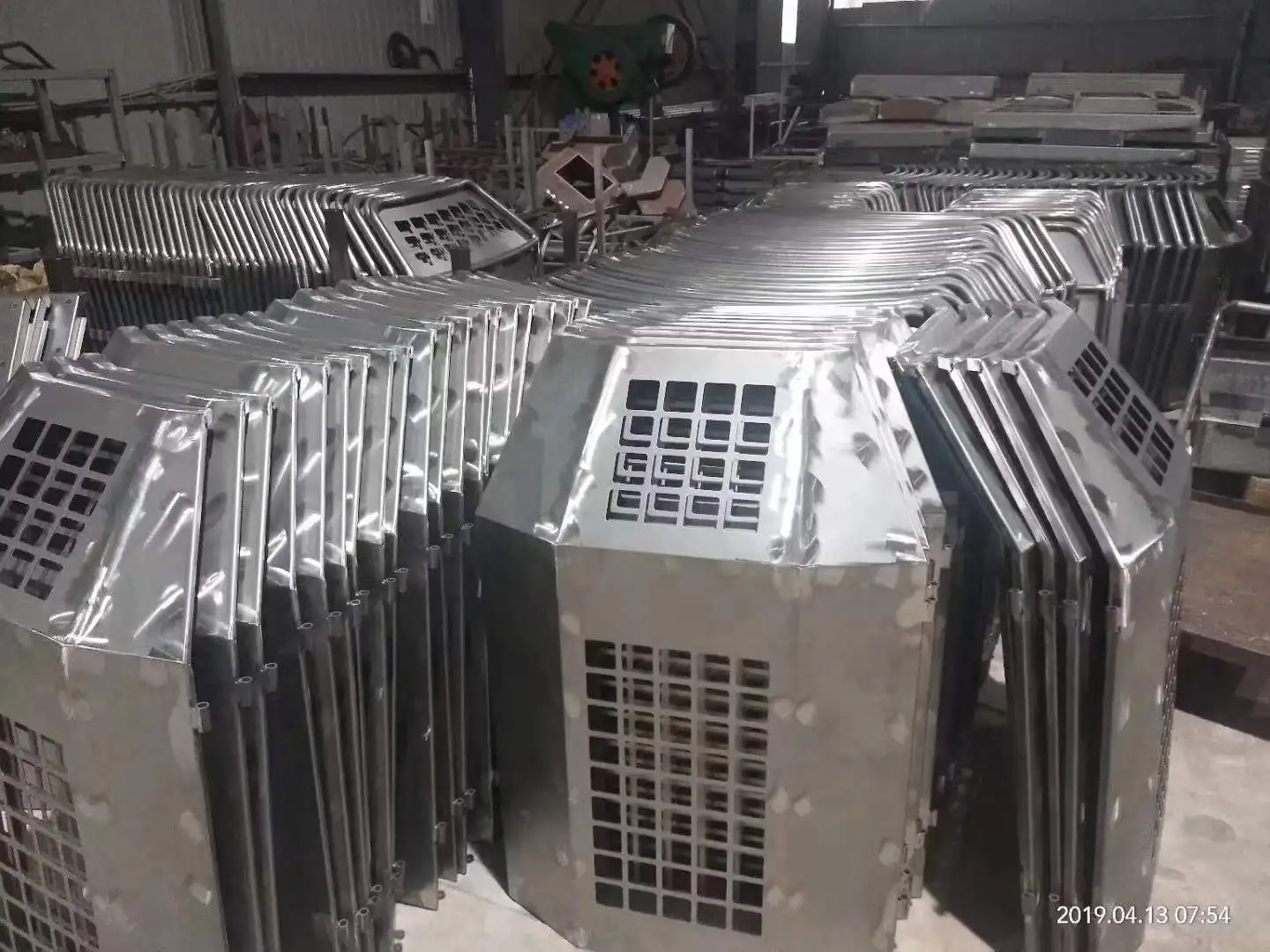

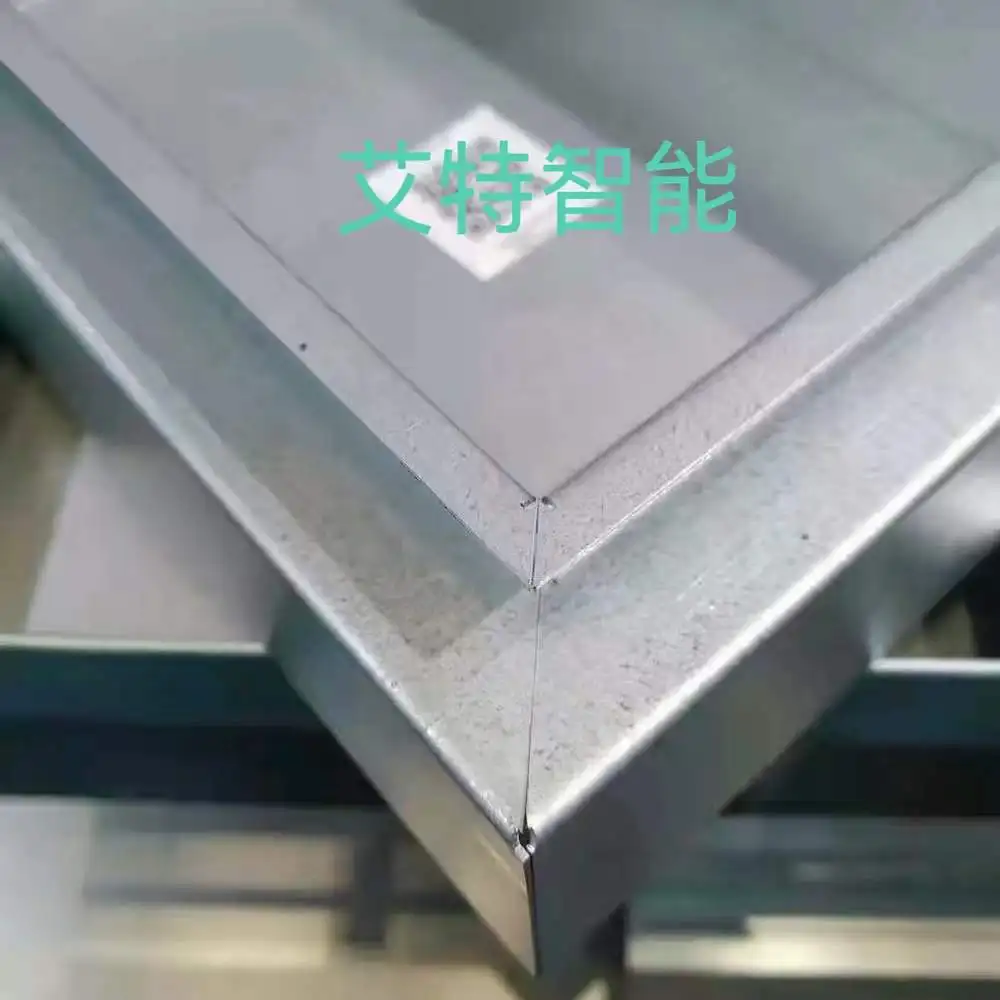

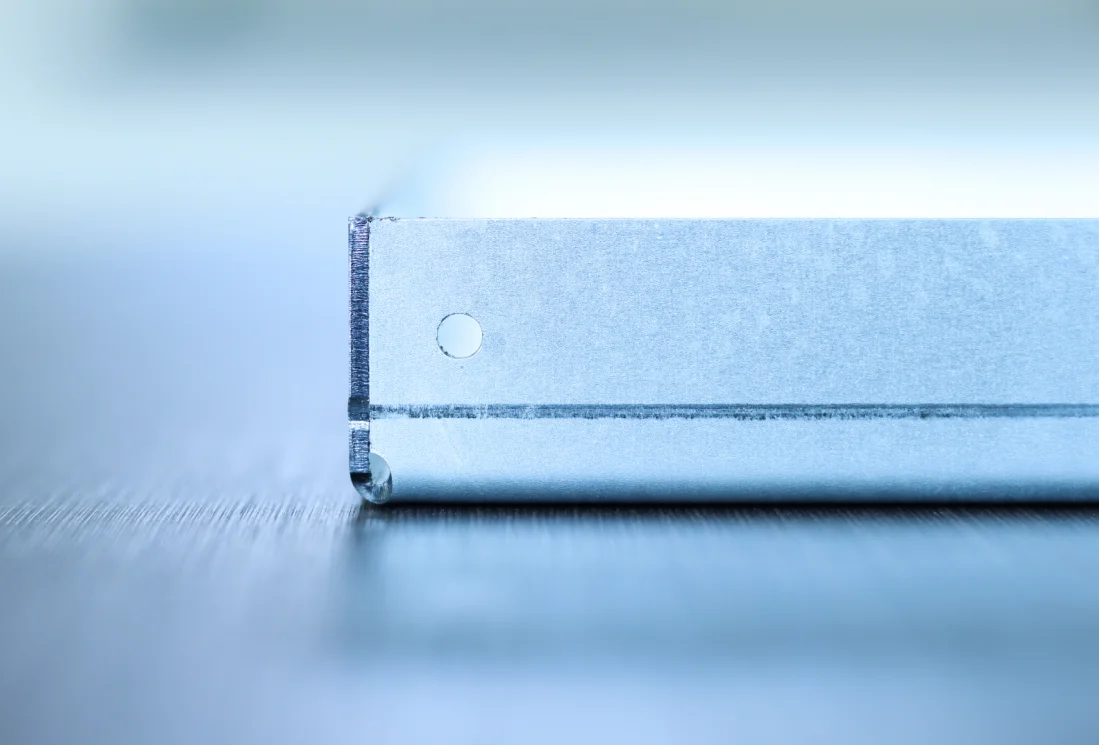

2) The Showing of The Manufacturing Products
3) Application Field

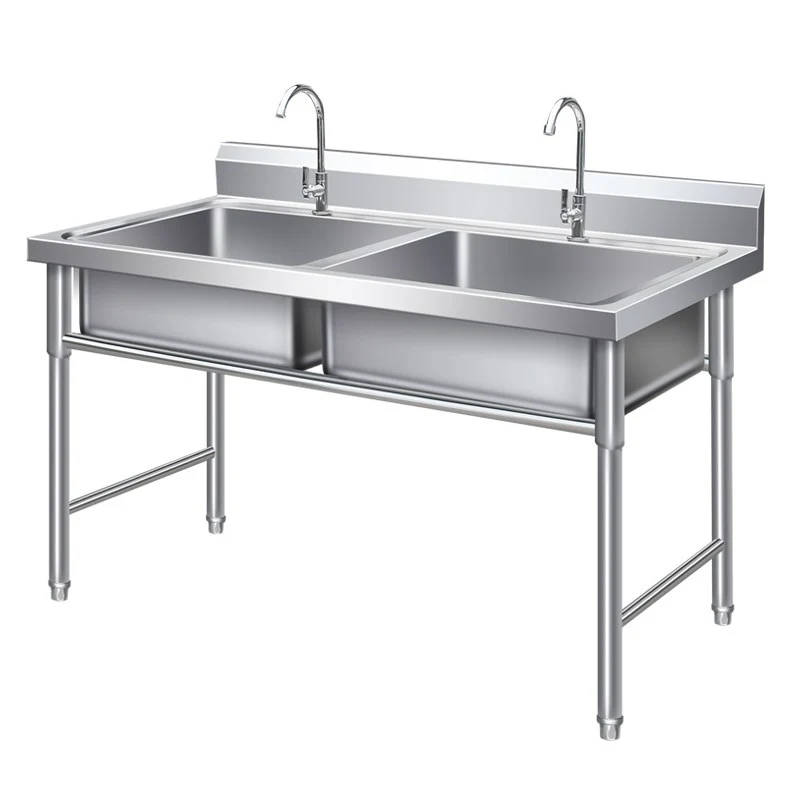

1)Stainless Steel kitchen industry 2) Elevator industry

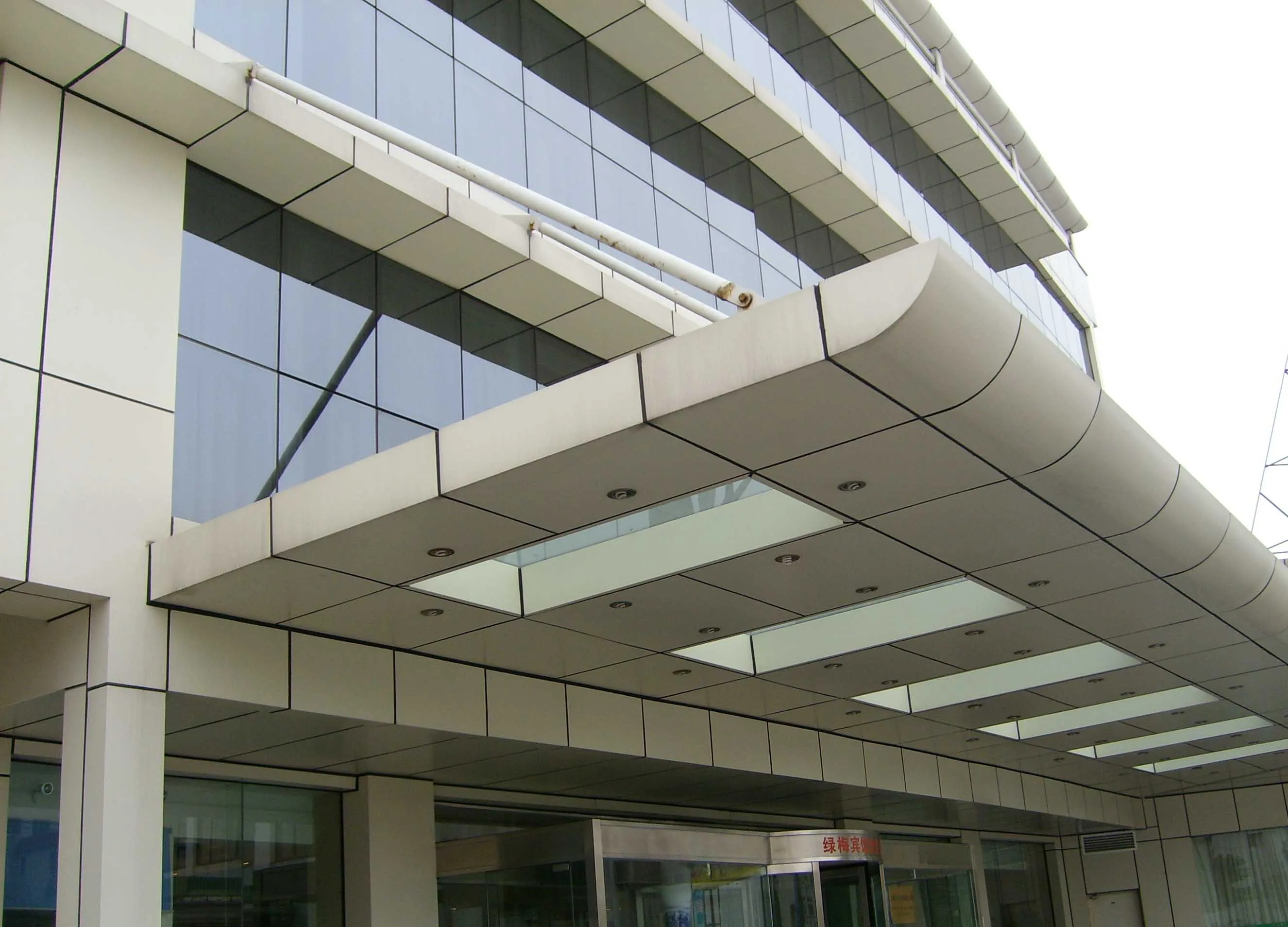

3)chassis cabinet industry 4) aluminium veneer curtain wall industry
6) solar water heaters 6)auto bicycle accessories
7)audio equipments 8)household appliances,etc
4) Products Configuration
Hydraulic system | Germany BOSCH-REXROTH |
Pipe joint | German EMB |

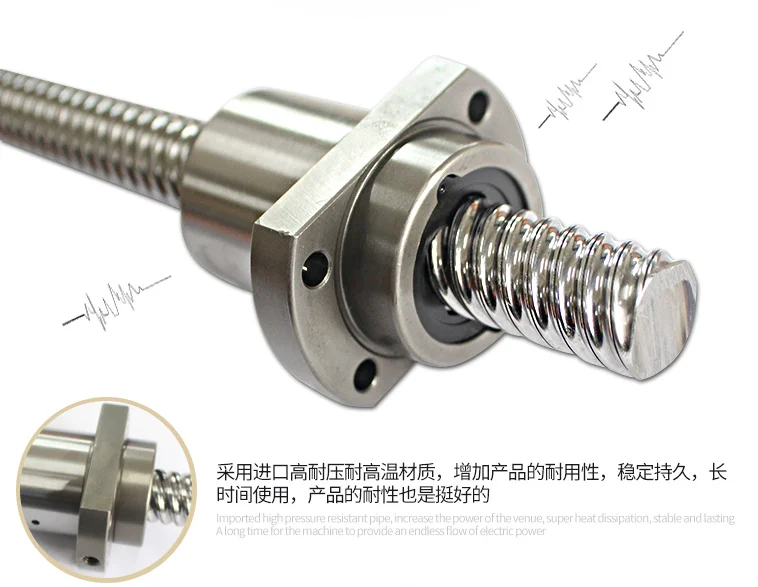

Ball screw rod Direct guide | Taiwai TBI |

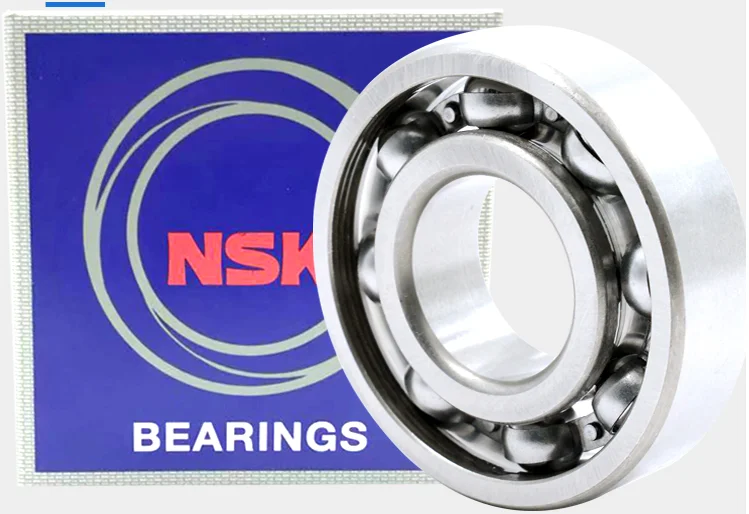

Bearing | Japan NSK |
Reducer | German ROST |
Pneumatic element | Taiwan Adeke |
Main electrical components | Japan IDEC |

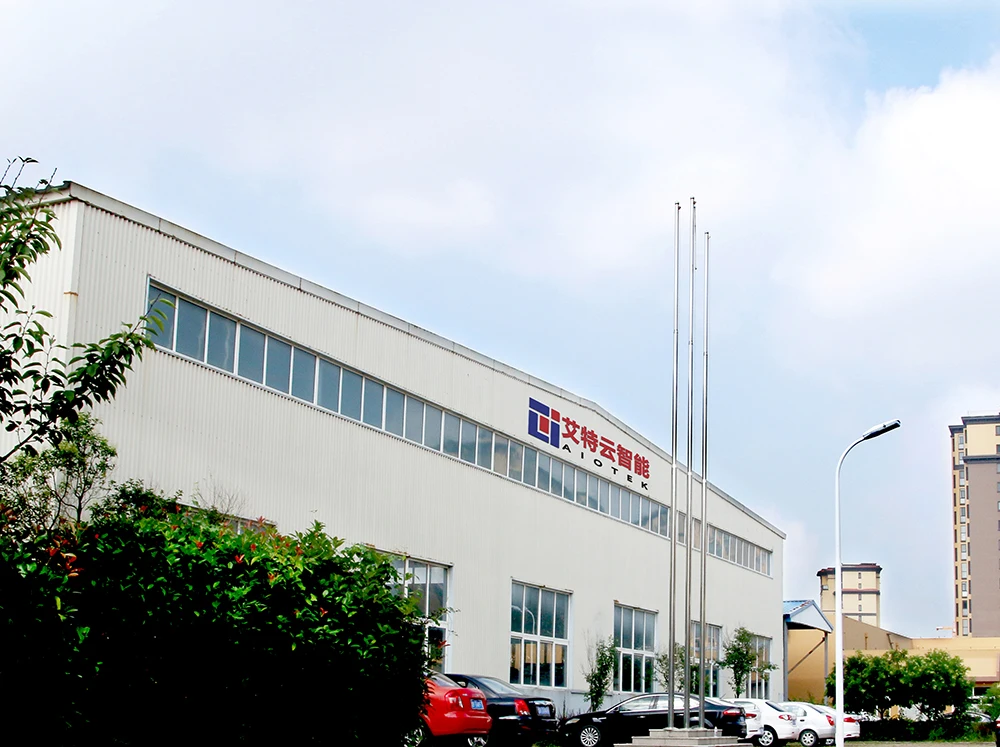

Company Profile
Qingdao Aite Intellient Equipment Co.,Ltd
Qingdao Aite Intellient Equipment Co.,Ltd
began to develop and produce CNC turret punch in 2006
it is a manufacturer specializing in sheet metal automatic production equipment
We have a very experienced professional Team
In the field of R & D
In the field of R & D
6 senior engineers+10 intermediate engineers
adopt EU industrial concept
provide high-tech, high-quality and cost-effective products

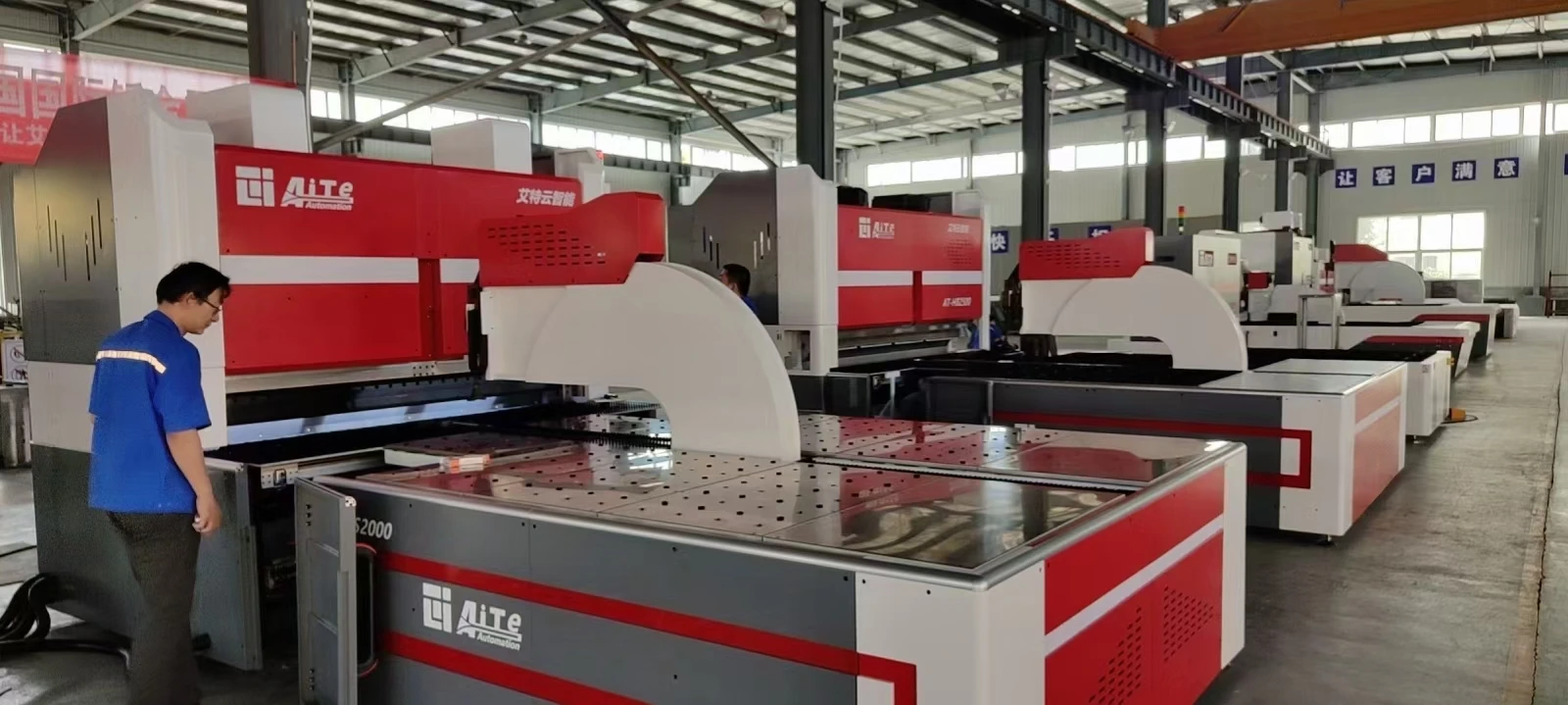

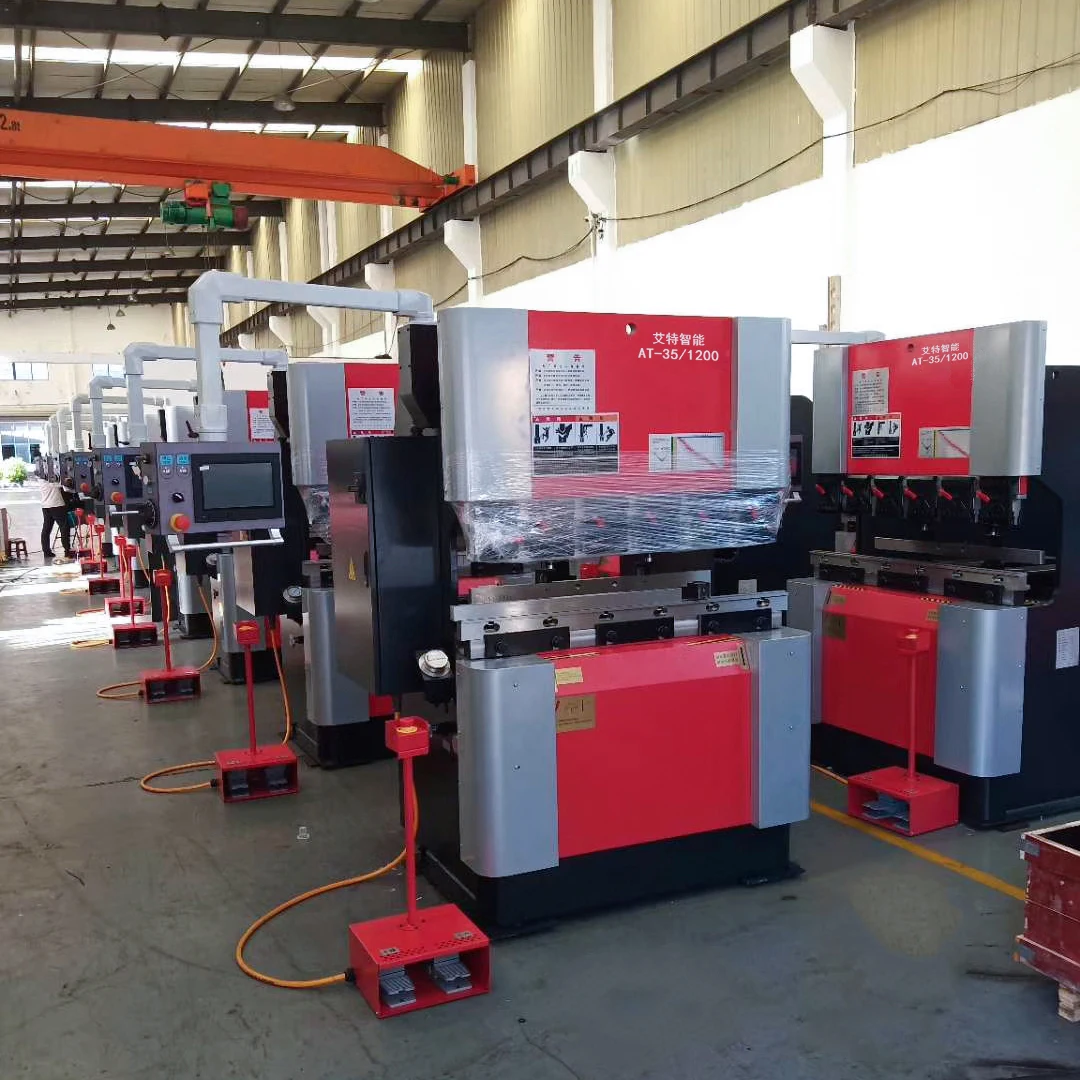

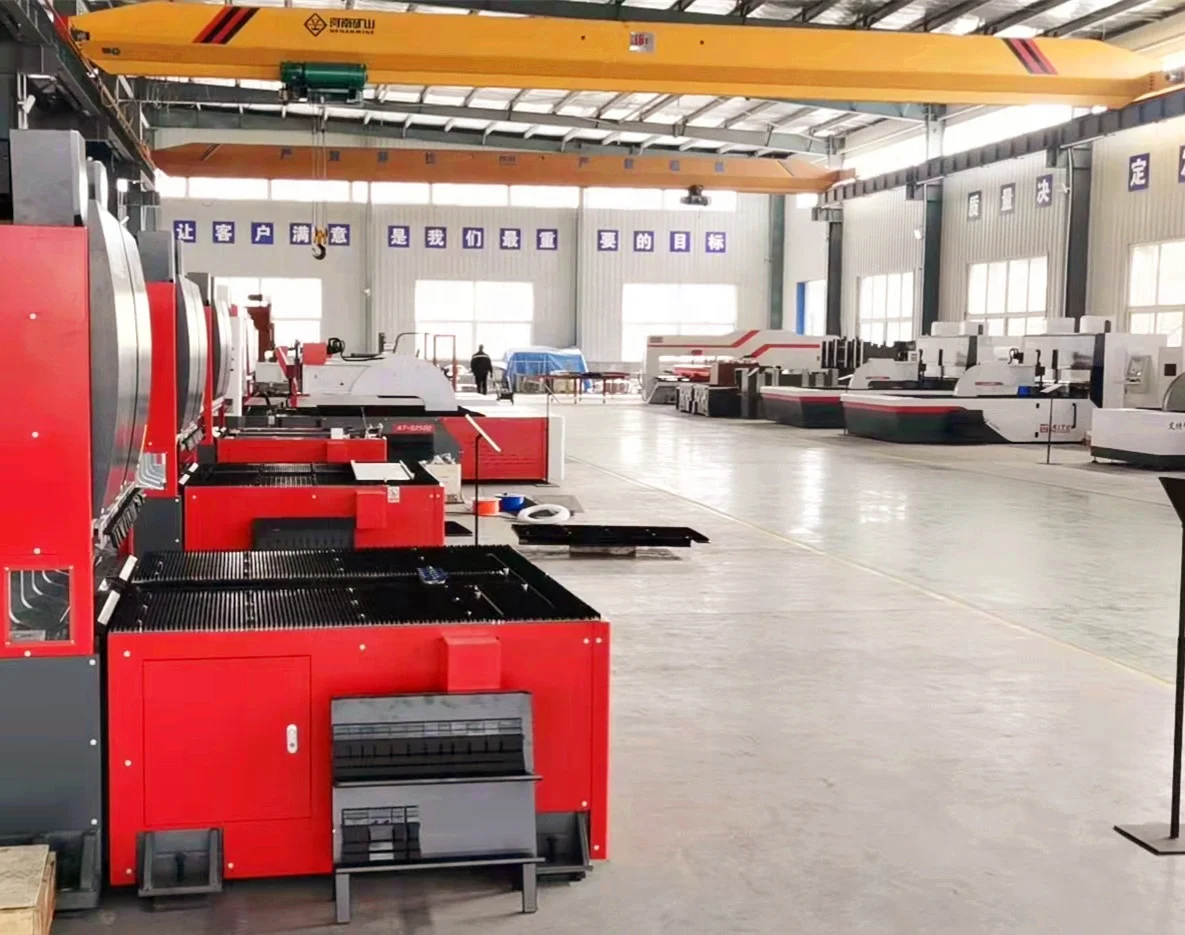

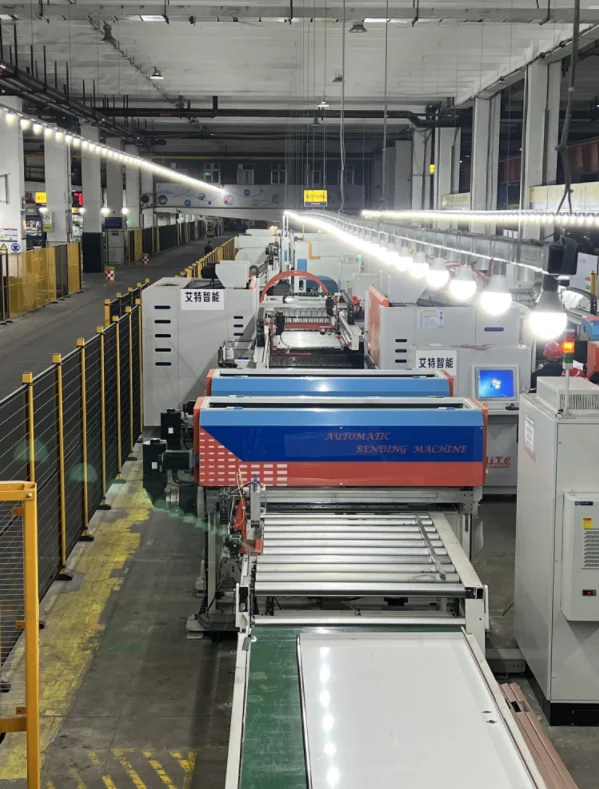

Our Workshop
Our Exhibitions

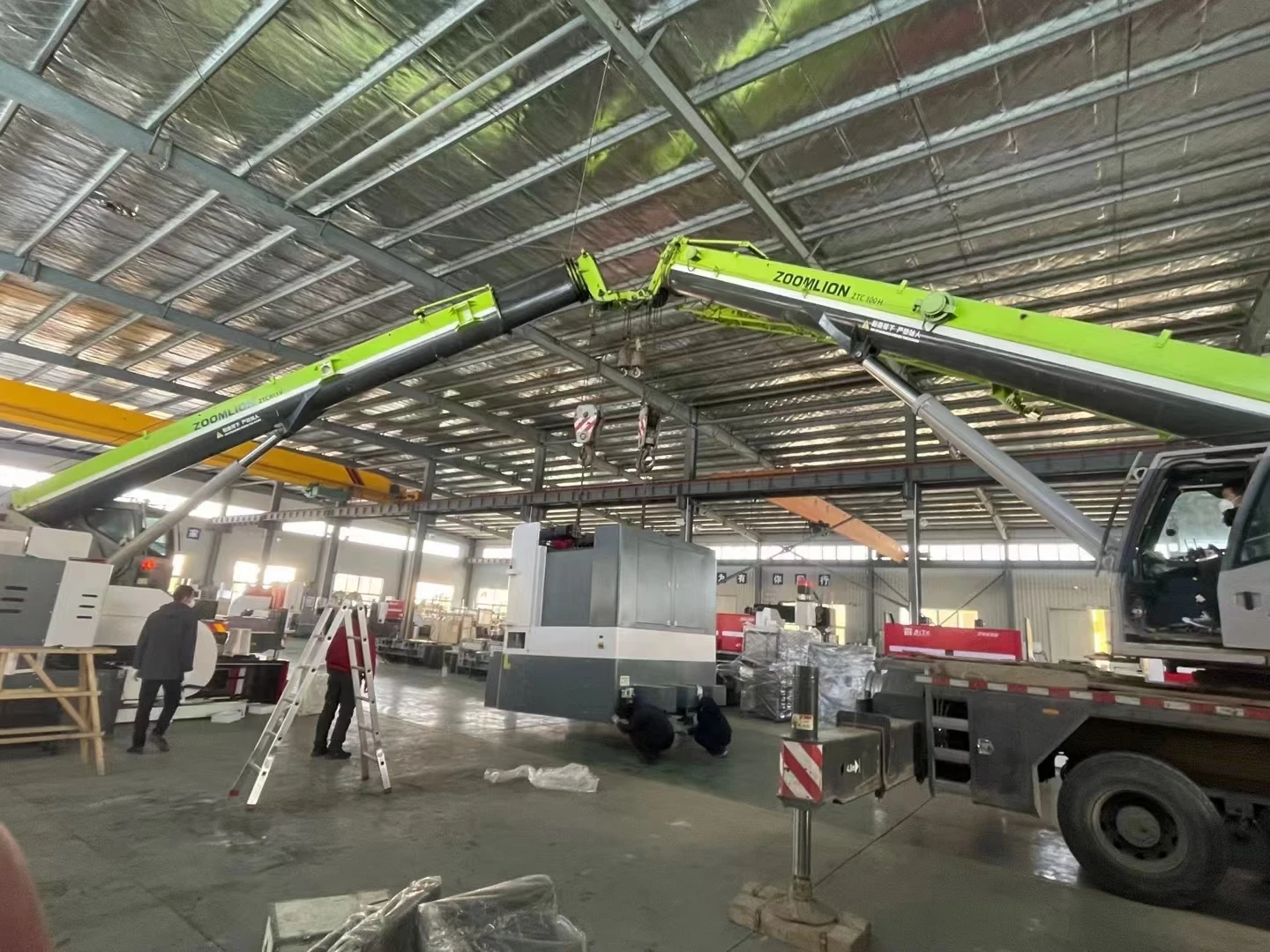

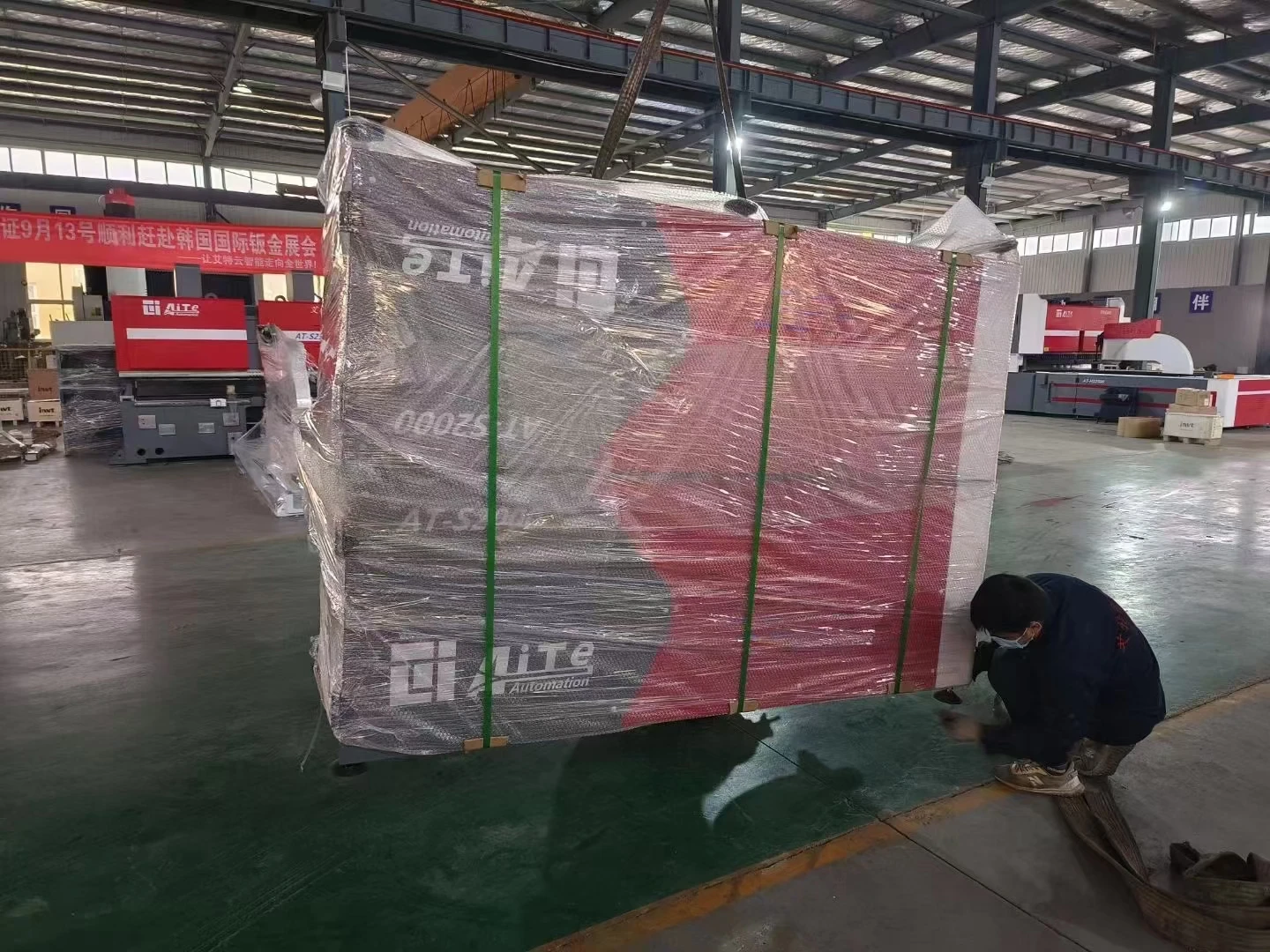

Our Package and Loading
SALES AND SERVICE NETWORK
1)we have established long-term cooperation relations with customers all over the world as Korea, Thailand, Vietnam, Brazil, France,NZ, Japan,Greece, India, Bengal, USA, Turkey, et
2)Our domestic partners as as below
FAQ
Q1：What kind of products do you need to make?
Q2: What is the length,width and thickness of your sheet?
Q3:What is the bending height you need

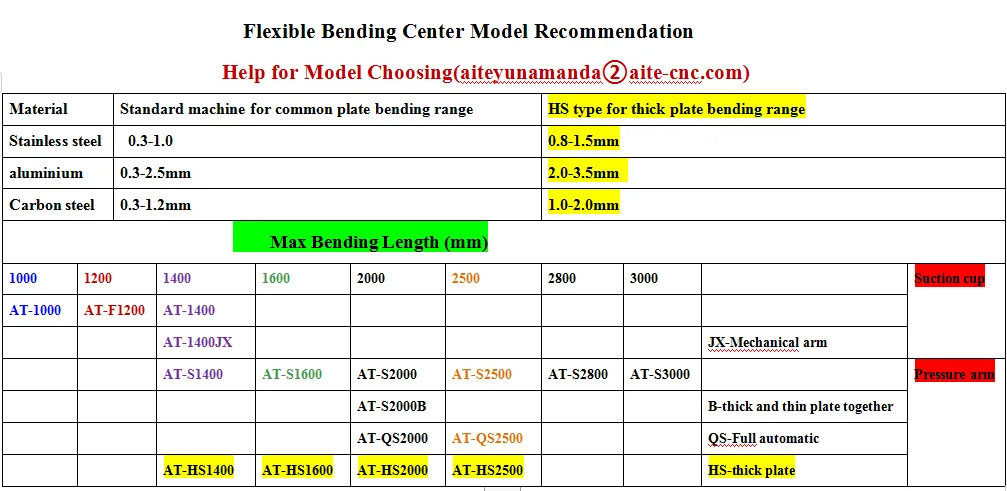

Basis on these questions, we can quickly recommend you the most suitable models
