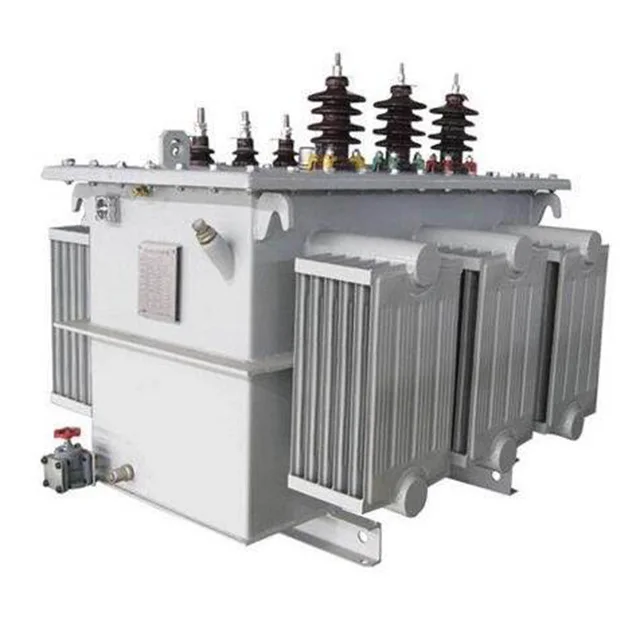

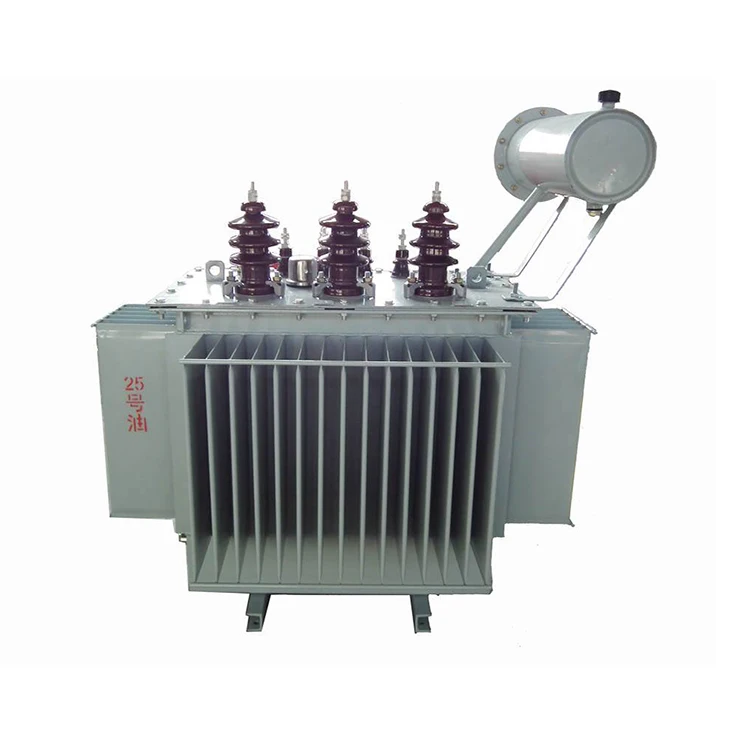

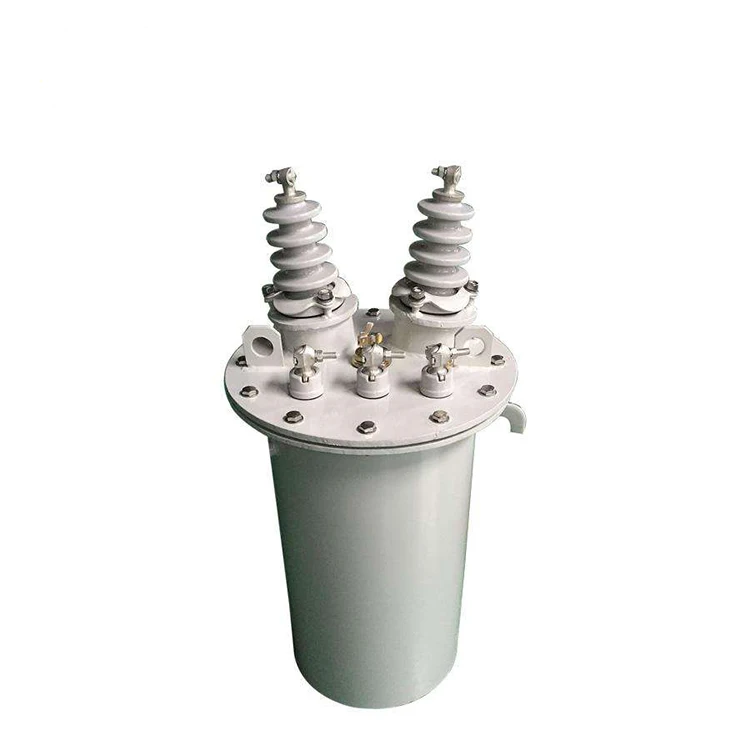

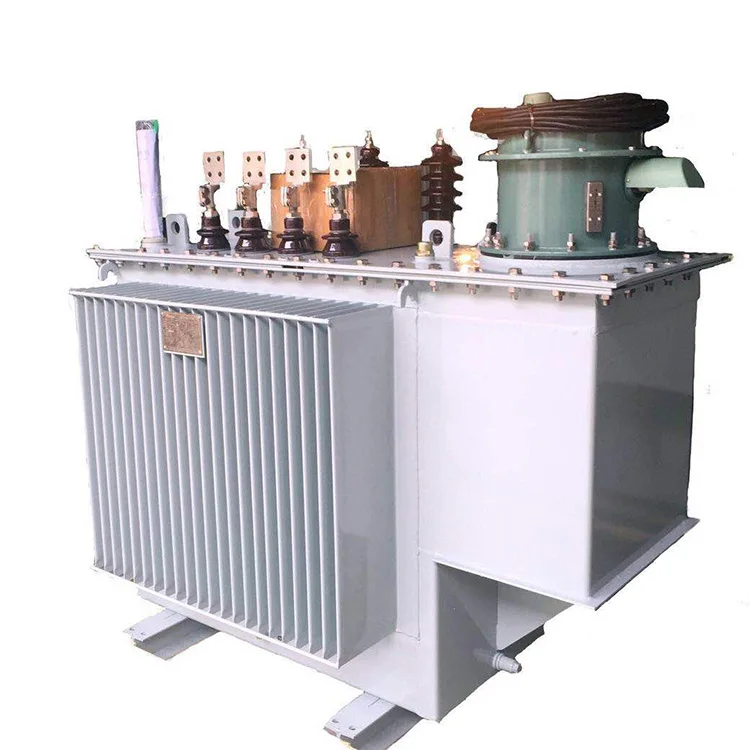

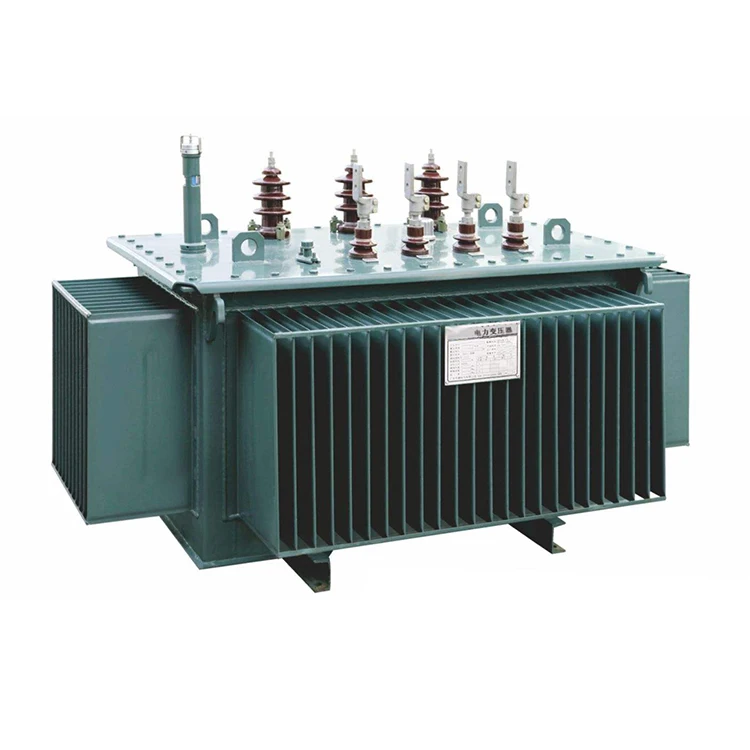

3phase step down 400kva 20/0.4 kv 15kv/0.4 100kva, 1250 kva oil immersed transformer 11kb 11kv/1000v
- Category: >>>
- Supplier: Conso Electrical Science And Technology Co. Ltd.
Share on (1600734325599):
Product Overview
Description
Technical Parameter
3phase step down 400kva 20/0.4 kv 15kv/0.4 100kva, 1250 kva oil immersed transformer 11kb 11kv/1000v
Capacity (KVA) | S9 | S11 | S13 | SH15 | ||||||||
| NILL | LL | No-loading Current | NILL | LL | No-loading Current | NILL | LL | No-loading Current | NILL | LL | No-loading Current | |
| 30 | 130 | 600 | 2.1 | 100 | 600 | 2.1 | 65 | 600 | 0.63 | 33 | 600 | 1.7 |
| 50 | 170 | 870 | 2.0 | 150 | 870 | 2.0 | 85 | 870 | 0.60 | 43 | 870 | 1.3 |
| 63 | 200 | 1040 | 1.9 | 180 | 1040 | 1.9 | 100 | 1040 | 0.57 | 50 | 1040 | 1.2 |
| 80 | 250 | 1250 | 1.8 | 200 | 1250 | 1.8 | 125 | 1250 | 0.54 | 60 | 1250 | 1.1 |
| 100 | 290 | 1500 | 1.7 | 230 | 1500 | 1.7 | 145 | 1500 | 0.48 | 75 | 1500 | 1.0 |
| 125 | 340 | 1800 | 1.6 | 270 | 1800 | 1.6 | 170 | 1800 | 0.45 | 85 | 1800 | 0.9 |
| 160 | 400 | 2200 | 1.5 | 310 | 2200 | 1.5 | 200 | 2200 | 0.42 | 100 | 2200 | 0.7 |
| 200 | 480 | 2600 | 1.4 | 380 | 2600 | 1.4 | 240 | 2600 | 0.39 | 120 | 2600 | 0.7 |
| 250 | 560 | 3050 | 1.3 | 460 | 3050 | 1.3 | 280 | 3050 | 0.36 | 140 | 3050 | 0.7 |
| 315 | 670 | 3650 | 1.2 | 540 | 3650 | 1.2 | 335 | 3650 | 0.38 | 170 | 3650 | 0.5 |
| 400 | 800 | 4300 | 1.1 | 650 | 4300 | 1.1 | 400 | 4300 | 0.30 | 200 | 4300 | 0.5 |
| 500 | 960 | 5150 | 1.0 | 780 | 5150 | 1.0 | 480 | 5150 | 0.30 | 240 | 5150 | 0.5 |
| 630 | 1200 | 6200 | 0.9 | 920 | 6200 | 0.9 | 600 | 6200 | 0.27 | 320 | 6200 | 0.3 |
| 800 | 1400 | 7500 | 0.8 | 1120 | 7500 | 0.8 | 700 | 7500 | 0.24 | 380 | 7500 | 0.3 |
| 1000 | 1700 | 10300 | 0.7 | 1320 | 10300 | 0.7 | 850 | 10300 | 0.21 | 450 | 10300 | 0.3 |
| 1250 | 1950 | 12000 | 0.6 | 1560 | 12000 | 0.6 | 975 | 12000 | 0.18 | 530 | 12000 | 0.2 |
| 1600 | 2400 | 14500 | 0.6 | 1880 | 14500 | 0.6 | 1200 | 14500 | 0.18 | 630 | 14500 | 0.2 |
| 2000 | 2830 | 20000 | 0.6 | 2280 | 19800 | 0.5 | 750 | 17400 | 0.2 | |||
| 2500 | 3350 | 24000 | 0.6 | 2630 | 23000 | 0.5 | 900 | 20020 | 0.2 | |||
Factory Image
Detial Image ________________________
Winding in Process _____________________
Manufacturing Equipments _______________
Test Center __________________________
Finished Products _____________________
Company Information
Company Introduction
1. The Conso Electric is handquartered in Yueqing, China;
2. It has OEM status of Heag Group and XJ group;
3. The main product is 10kv to 35kv Transformer, Substation and VCB.
Human Resource
Office Building
Certifications
Reliable in Quality and Competitive in Price
Our product meets the standard of IEC and GB. The product runs comprehensive type tests according to
the lastest IEC and GB standard. The ISO sends specialists to inspect annually in Conso Electric of China.
