roll to roll label cutter die cut sticker machine label plotter cutter with automatic contour cutting function
- Category: >>>
- Supplier: Suzhou,Shanggong,Blade,Co.,Ltd.
Share on:
Product Overview
Description
Production process

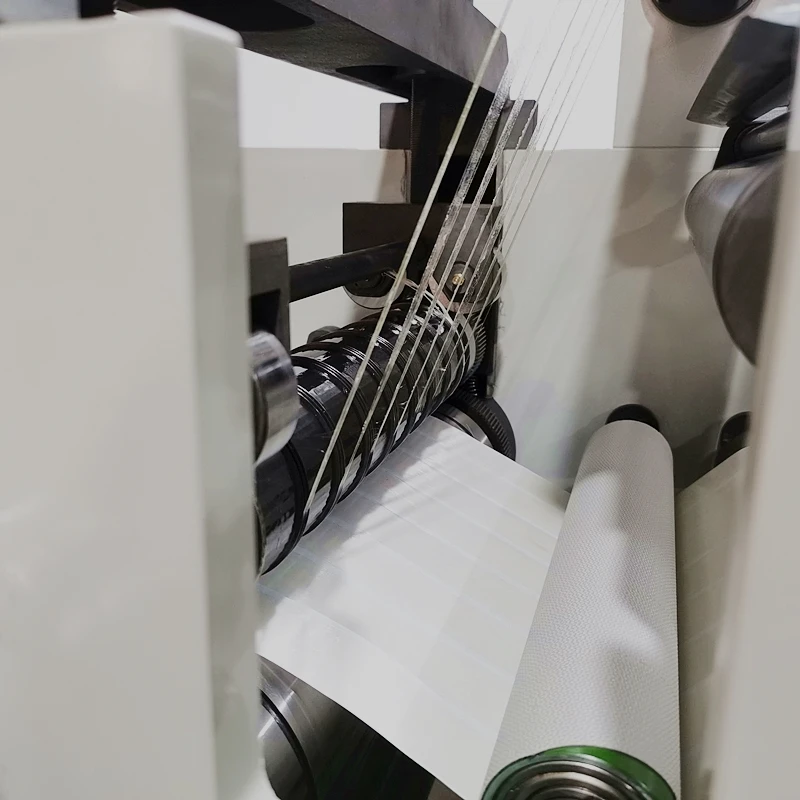

slitting machine with rotary die-cutting function and turret rewind is a new product, it equipped with high accurate rotary
die-cutting system. This machine is suitable for blank adhesive labels. Die-cutting, slitting can be finished in one process. It has the function of automatic meter counting, automatic stopping, web guiding by photoelectric eye. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.Features:
©EPC control system: photo cell
©Magnetic cylinder die cutting station
©Slitting station,min. slitting width 15mm
©Length counting function, automatic stop function when it reaches the set length.
©Piece counting function
©Waste discharge blower
©Magnetic brake & clutch
©Materials linking-up platform
©Optional functions can be added accordingly, such as constant tension control system, magnetic cylinder, flexible dies.machine
features
1. Max web width: 320mm;
2. The tolerance: +/-0.2mm, precision: 0.1mm;
3. Material thickness range: 0.05-3mm;
4. This label cutting machine is a new product;
5. This label cutting machine is equipped with high accurate rotary die-cutting system;
6. This label cutting machine is suitable for blank adhesive labels;
7. Die-cutting, slitting can be finished in one process;
8. This label cutting machine has the function of automatic meter counting, automatic stopping, web guiding with a edge correction device;
9. Compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc;
10. Manufacture experience: 10 years;
11. Export experience: 5 years.
Standard Configuration:
1. One slitting station
2.1 pc 3 inch unwinding air shaft, 2 pcs 3 inch rewinding air shafts
3. A meter/number counter
4. A set of edge correction device
5. 8 pairs slitting knife
6. One magnetic brake
7. Two magnetic clutches
Options:

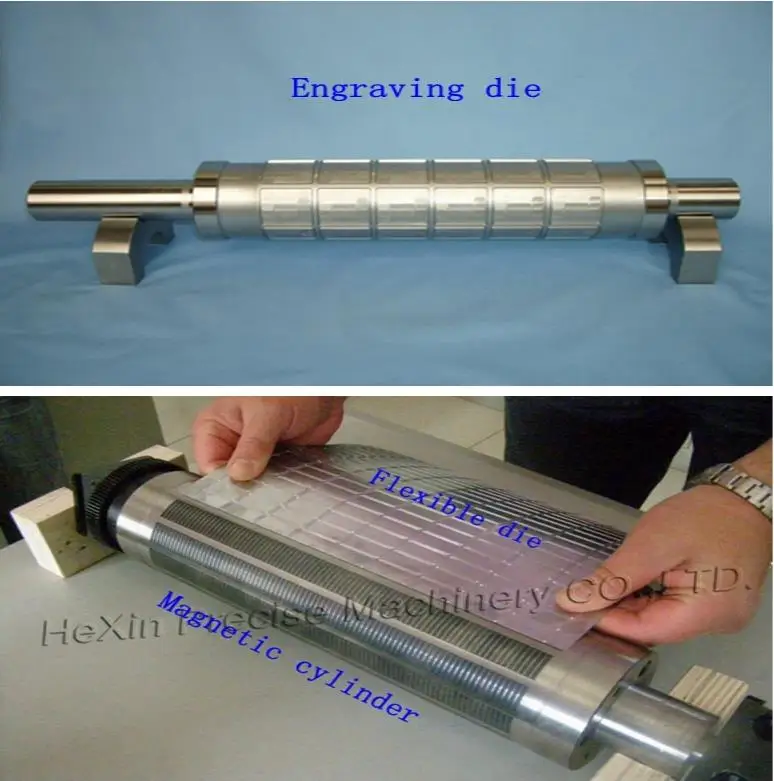

1. Engraving die or magnetic cylinder+flexible die
2. Laminating system
3. 1 inch, 2 inch unwinding and rewinding shafts
4. Additional slitting knives
die-cutting system. This machine is suitable for blank adhesive labels. Die-cutting, slitting can be finished in one process. It has the function of automatic meter counting, automatic stopping, web guiding by photoelectric eye. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.Features:
©EPC control system: photo cell
©Magnetic cylinder die cutting station
©Slitting station,min. slitting width 15mm
©Length counting function, automatic stop function when it reaches the set length.
©Piece counting function
©Waste discharge blower
©Magnetic brake & clutch
©Materials linking-up platform
©Optional functions can be added accordingly, such as constant tension control system, magnetic cylinder, flexible dies.machine
features
1. Max web width: 320mm;
2. The tolerance: +/-0.2mm, precision: 0.1mm;
3. Material thickness range: 0.05-3mm;
4. This label cutting machine is a new product;
5. This label cutting machine is equipped with high accurate rotary die-cutting system;
6. This label cutting machine is suitable for blank adhesive labels;
7. Die-cutting, slitting can be finished in one process;
8. This label cutting machine has the function of automatic meter counting, automatic stopping, web guiding with a edge correction device;
9. Compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc;
10. Manufacture experience: 10 years;
11. Export experience: 5 years.
Standard Configuration:
1. One slitting station
2.1 pc 3 inch unwinding air shaft, 2 pcs 3 inch rewinding air shafts
3. A meter/number counter
4. A set of edge correction device
5. 8 pairs slitting knife
6. One magnetic brake
7. Two magnetic clutches
Options:
1. Engraving die or magnetic cylinder+flexible die
2. Laminating system
3. 1 inch, 2 inch unwinding and rewinding shafts
4. Additional slitting knives
Product Overview
PRODUCT SPECIFICATIONS
Model | SG-320C |
Slitting Speed | 75m/min |
Die Cutting Speed | 70m/min |
Max Web Width | 320mm |
Max Unwinding Diameter | 500mm |
Max Rewinding Diameter | 480mm |
Die Cutting Length | 178mm-470mm |
Overall Diameter | 1.32mx1.02mx1.5m |
Machine Weight | 1200kg |
Applicable scope
Product packaging
Company Profile
Suzhou Shanggong Blade Co., Ltd is located in No. 66, Kaigui Road, Yushan Town, Kunshan. Our company covers around
6,600 square meters. We have around 120 employees and nearly 130 sets high-precision grinding equipment and testing
equipment which are used in processes from raw material to finished products.
We have been specialized in manufacturing all kinds of precise mechanical tools and carbide tools since 16 years ago.
Our Products have been exported to more than 40 countries in the world. Products are used in many industries such as
electronic film, food processing, metal, rubber tires, textile chemical fiber, printing, package and so on.
6,600 square meters. We have around 120 employees and nearly 130 sets high-precision grinding equipment and testing
equipment which are used in processes from raw material to finished products.
We have been specialized in manufacturing all kinds of precise mechanical tools and carbide tools since 16 years ago.
Our Products have been exported to more than 40 countries in the world. Products are used in many industries such as
electronic film, food processing, metal, rubber tires, textile chemical fiber, printing, package and so on.
