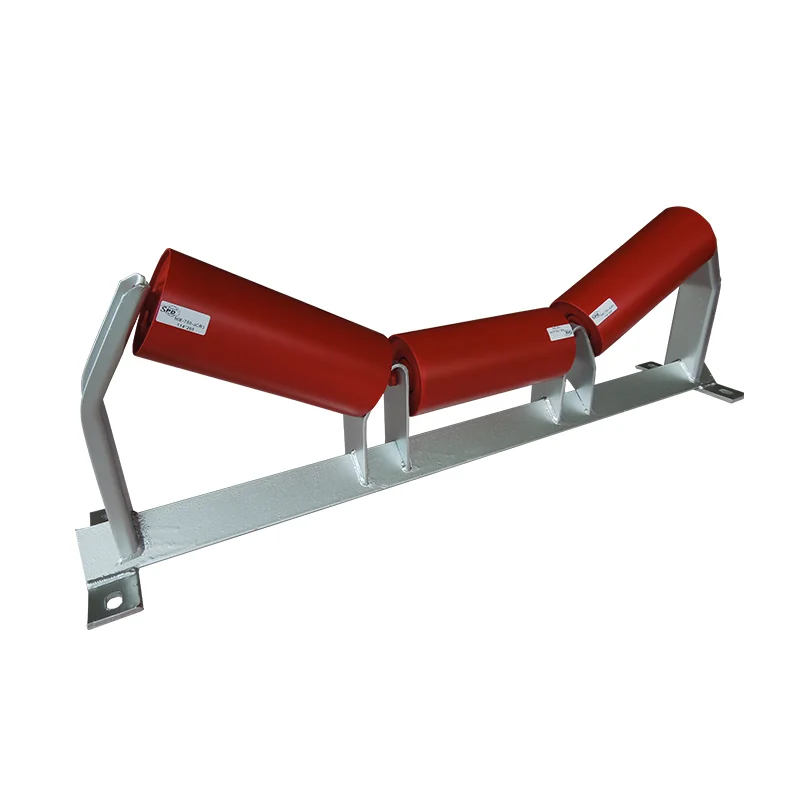

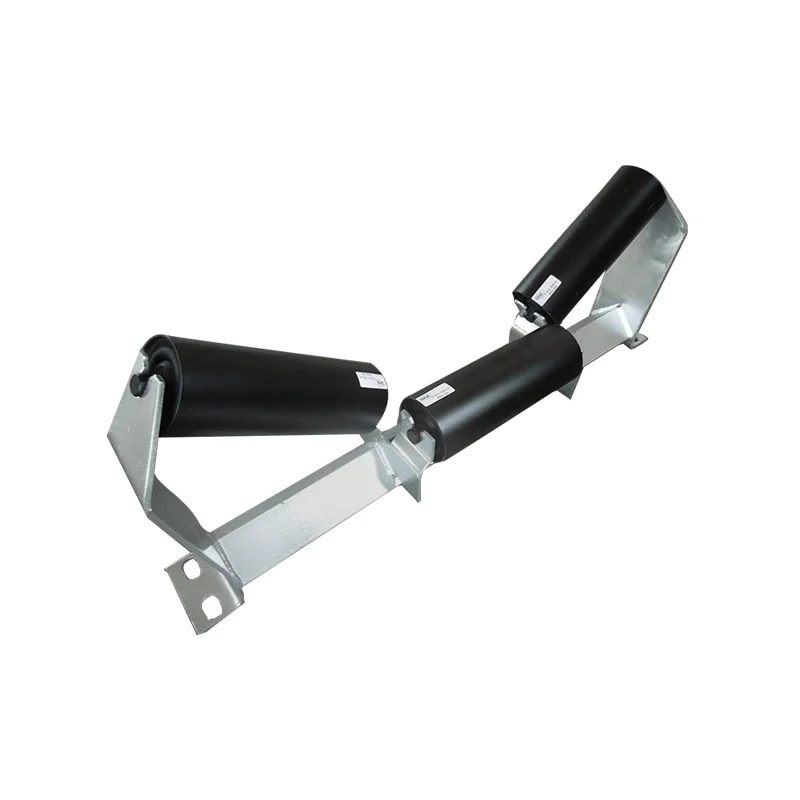

Conveyor Roller Idler
- Category: >>>
- Supplier: Rizhao Port Machine Engineering Co. Ltd
Share on (1600734490781):
Product Overview
Description
belt conveyor roller
Products Description
Brand | SPD |
Lift time | 30000-50000hours |
Production Capacity | as usual 600pieces/day |
Roller Diameter | 76-219mm |
Roller Length | 190mm to 3500mm |
Roller Tube | Q235 carbon steel,high-precision ERW, welded with DIN2394 Standard |
Shaft | Q235 Carbon steel in accordance with DIN17100 and other equivalent standard, ISO h6 precision. |
Bearing | Deep groove ball bearing with C3 clearance |
Bearing Brand | SKF,FAG,NSK,LYC etc, or design according to your requirements. |
Seals | Grease retaining inner seal with multi-stage labyrinth and retention cap with outboard rubbing flinger seal. |
Color | According to your requirement |
Finish | Ordinary painting/Rubber/Steel screw/Galvanized. |
Welding | Mixed gas shielded arc welding end |
Standard | ISO/Australia/CEMA/JI |
Technology Specification | ||||||||
Standard Diameter | Length scope ( mm) | Bearings Type (Min~Max) | Idler's Shell Wall Thickness | |||||
mm | Inch | |||||||
63.5 | 2 1/2 | 150~3500 | 204 | 3.0mm~3.75mm | ||||
76 | 3 | 150~3500 | 204 205 | 3.0mm~4.0mm | ||||
89 | 3 1/3 | 150~3500 | 204 205 | 3.0mm~4.0mm | ||||
102 | 4 | 150~3500 | 204 205 305 | 3.5mm~4.0mm | ||||
108 | 4 1/4 | 150~3500 | 204 205 305 306 | 3.5mm~4.0mm | ||||
114 | 4 1/2 | 150~3500 | 205 206 305 306 | 3.5mm~4.5mm | ||||
127 | 5 | 150~3500 | 204 205 305 306 | 3.5mm~4.5mm | ||||
133 | 5 1/4 | 150~3500 | 205 206 207 305 306 | 3.5mm~4.5mm | ||||
140 | 5 1/2 | 150~3500 | 205 206 207 305 306 | 3.5mm~4.5mm | ||||
152 | 6 | 150~3500 | 205 206 207 305 306 307 308 | 4.0mm~4.5mm | ||||
159 | 6 1/4 | 150~3500 | 205 206 207 305 306 307 308 | 4.0mm~4.5mm | ||||
165 | 6 1/2 | 150~3500 | 207 305 306 307 308 | 4.5mm~6.0mm | ||||
177.8 | 7 | 150~3500 | 207 306 307 308 309 | 4.5mm~6.0mm | ||||
190.7 | 7 1/2 | 150~3500 | 207 306 307 308 309 | 4.5mm~6.0mm | ||||
194 | 7 5/8 | 150~3500 | 207 307 308 309 310 | 4.5mm~6.0mm | ||||
219 | 8 5/8 | 150~3500 | 308 309 310 | 4.5mm~6.0mm | ||||

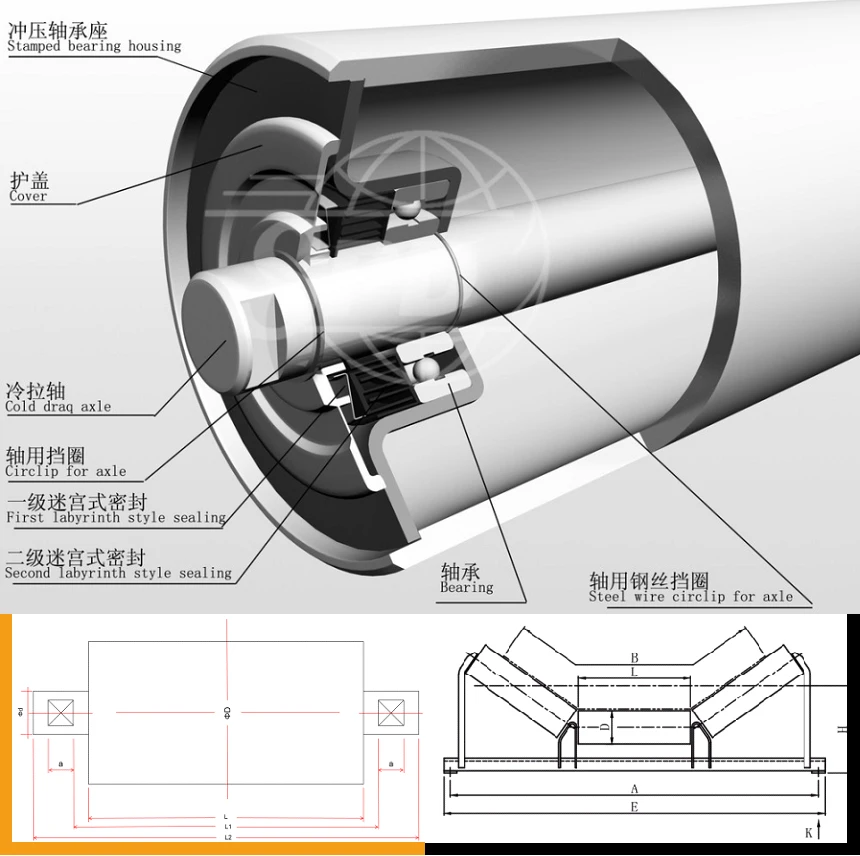

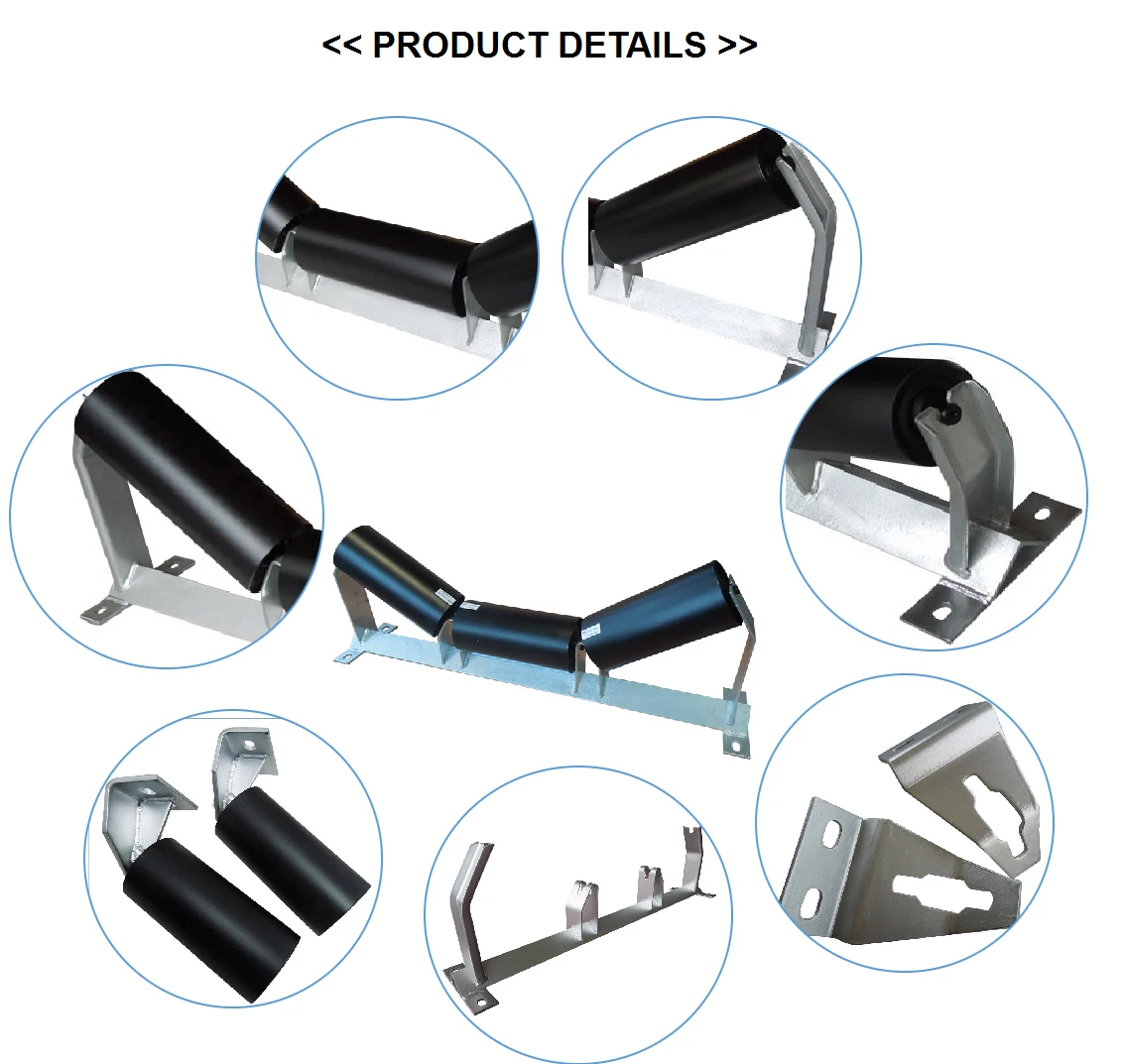

Details Images
Recommend Products

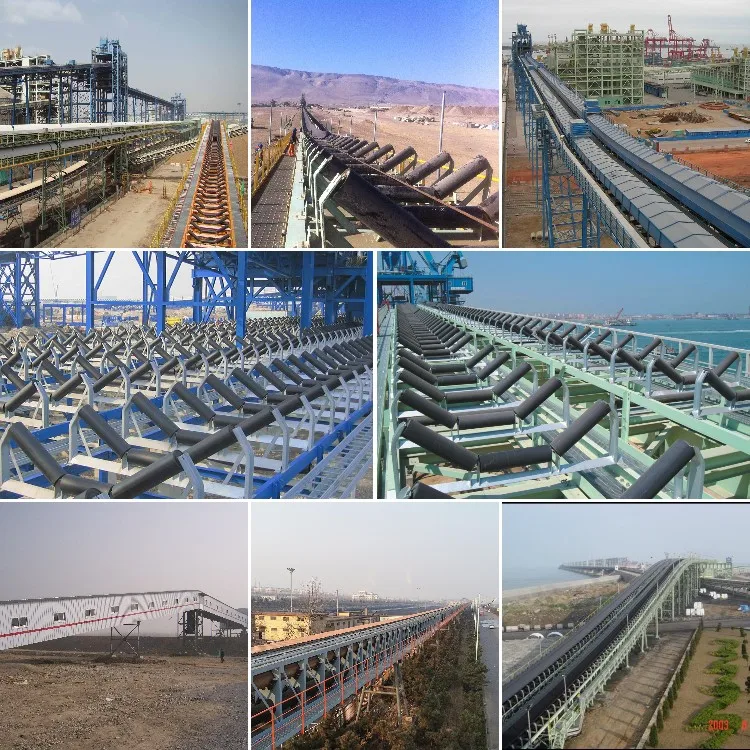

Successful Cases
Our Advantages
<< OUR ADVANTAGE >>
Definitely water/dust proof
Excellent dynamic balance
Reduce vibration
Low noise emission
Heavy-duty carrying capacity
Eco-friendly powder coating
Precision deep-groove ball bearing
Delivery&Payment
Company Profile
Certifications
Customer Photos &Exhibition
FAQ
Q: Are you a factory or trading company?
A: We are a factory and have export license. Besides, our factory has a number of product lines to provide products with stable
production capacity for customers in delivery time.
Q: What information do I need to provide in order to confirm the conveyor rollers order?
A: We work with technical drawings for any non-standard products. If the order is for standard parts, you only have to provide us
with the part number so we may define the parts of the order.
Q: Do you have the products in stock?
A: No. All the products are produced according to your order.
Q: Can you produce the hose with my own brand?
A: Yes, we have been offering OEM services to famous manufacturer for several years. Please send email to talk about details.
Q: How long is your delivery time?
A: Generally it is 7-30 days, details depend on your order quantity.
Q: How does your factory do regarding to quality control?
A: Quality is priority. We always attach great importance to quality control from beginning to the end of the production. Every
batch conveyor rollers will be carefully inspected before it's packed for shipment.
Q: Can I order a sample?
A: Of course. We can offer regular model roller sample for free, but the freight cost shall be borne by your side. If you want
customized model sample, we'd like you to bear the charge for sample and freight.
A: We are a factory and have export license. Besides, our factory has a number of product lines to provide products with stable
production capacity for customers in delivery time.
Q: What information do I need to provide in order to confirm the conveyor rollers order?
A: We work with technical drawings for any non-standard products. If the order is for standard parts, you only have to provide us
with the part number so we may define the parts of the order.
Q: Do you have the products in stock?
A: No. All the products are produced according to your order.
Q: Can you produce the hose with my own brand?
A: Yes, we have been offering OEM services to famous manufacturer for several years. Please send email to talk about details.
Q: How long is your delivery time?
A: Generally it is 7-30 days, details depend on your order quantity.
Q: How does your factory do regarding to quality control?
A: Quality is priority. We always attach great importance to quality control from beginning to the end of the production. Every
batch conveyor rollers will be carefully inspected before it's packed for shipment.
Q: Can I order a sample?
A: Of course. We can offer regular model roller sample for free, but the freight cost shall be borne by your side. If you want
customized model sample, we'd like you to bear the charge for sample and freight.
