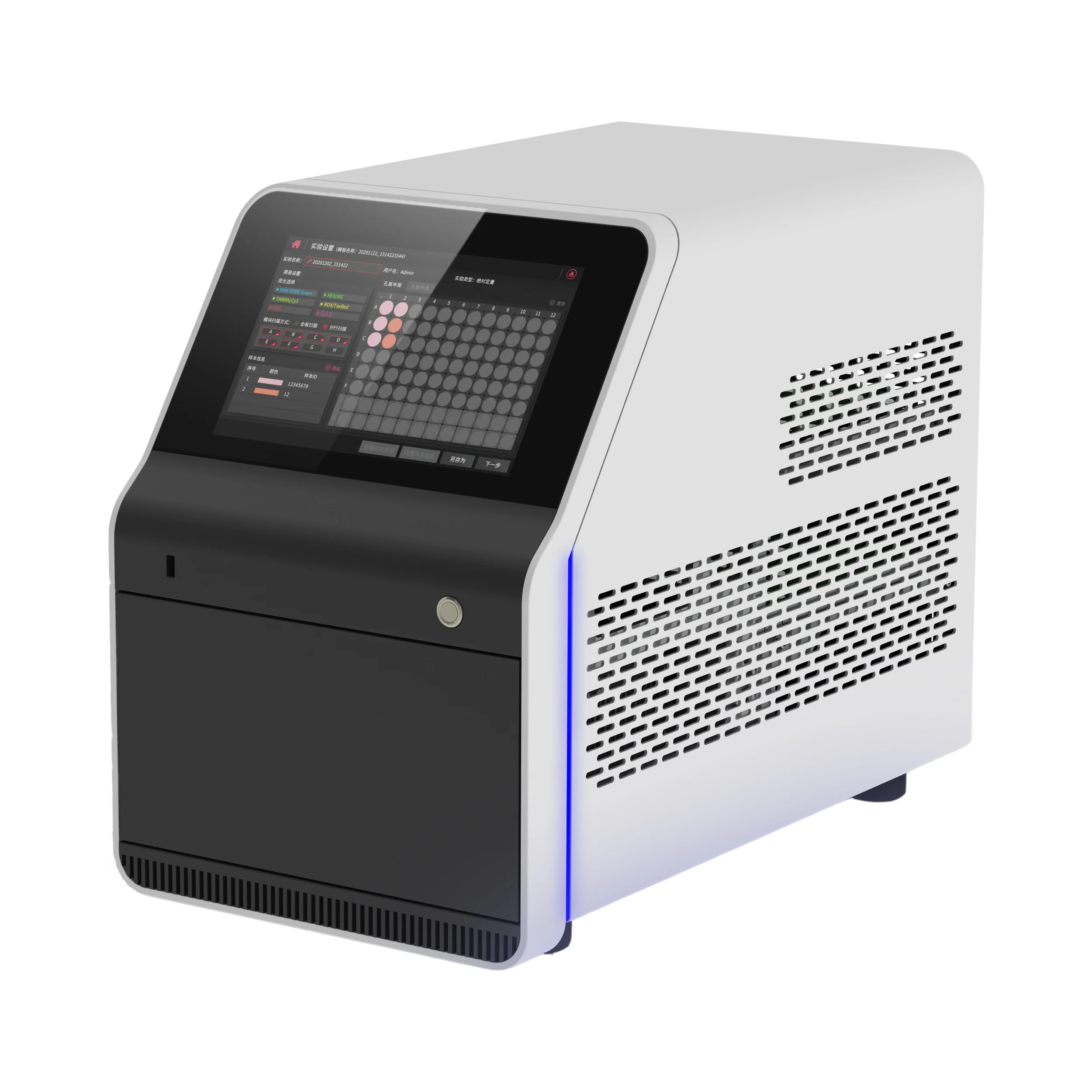

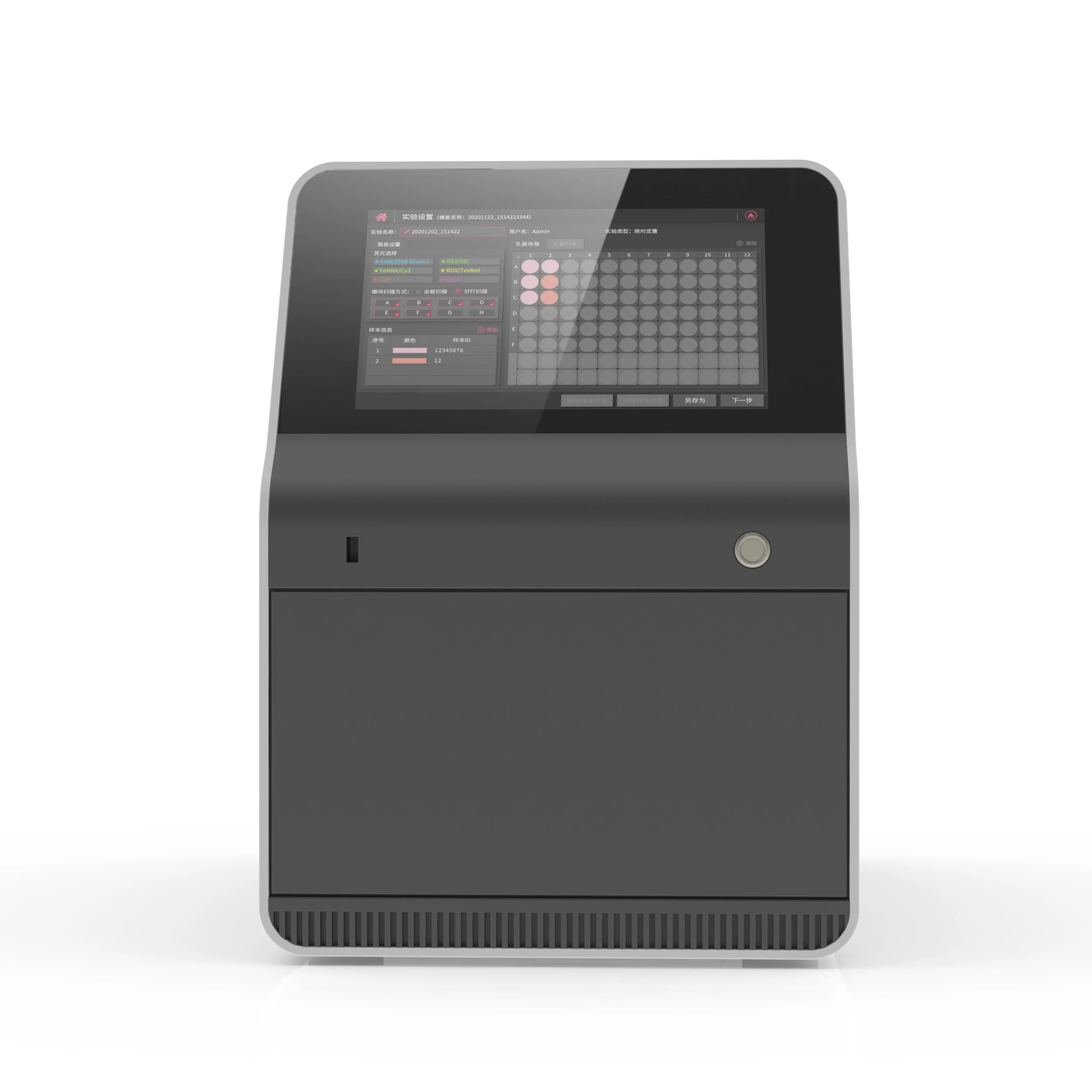

item | 6 Channels 96-well Real-Time qPCR machine Fluorescent Quantitative PCR machine |
Warranty | 1 year |
Classification | Other |
Customized support | OEM, ODM |
Brand Name | FOUR E'S |
Model Number | 960406 |
Place of Origin | China |
Guangdong | |
Throughput | 96 (12 * 8) |
Fluorescence Channels | 6 |
Applicable consumables | PCR single tube or strip, 96well*0.2ml half skirted/ no skirted plate |
Dynamic range | 1-10 copies |
Detection location | Top detection |
Excitation light wavelength | 400-800nm |
Detection wavelength | 500-800nm |
Fluorescence channels | 6 channels |
Excitation light source | full-spectrum LED |
Detector | PMT |
Block temp. range | 4~105℃ |
Block temp. accuracy | ≤±0.1℃ |
Block temp. precision | ≤±0.1℃ |
Block temp. uniformity | ≤±0.1℃ |
Max heating & cooling rate of block | ≥6℃/s |
Gradient temp. difference | 1-40℃ |
Block temp. control mode | Block mode, Tube mode |
Sample volume range | 5-100μL |
Heated lid temp. range | 30℃-110℃ (default 105℃) |
Fluorescence intensity | CV≤3% |
Touch screen | Yes, 10.1-inch touch screen |
Scan mode | Full plate scan or specified line scan |

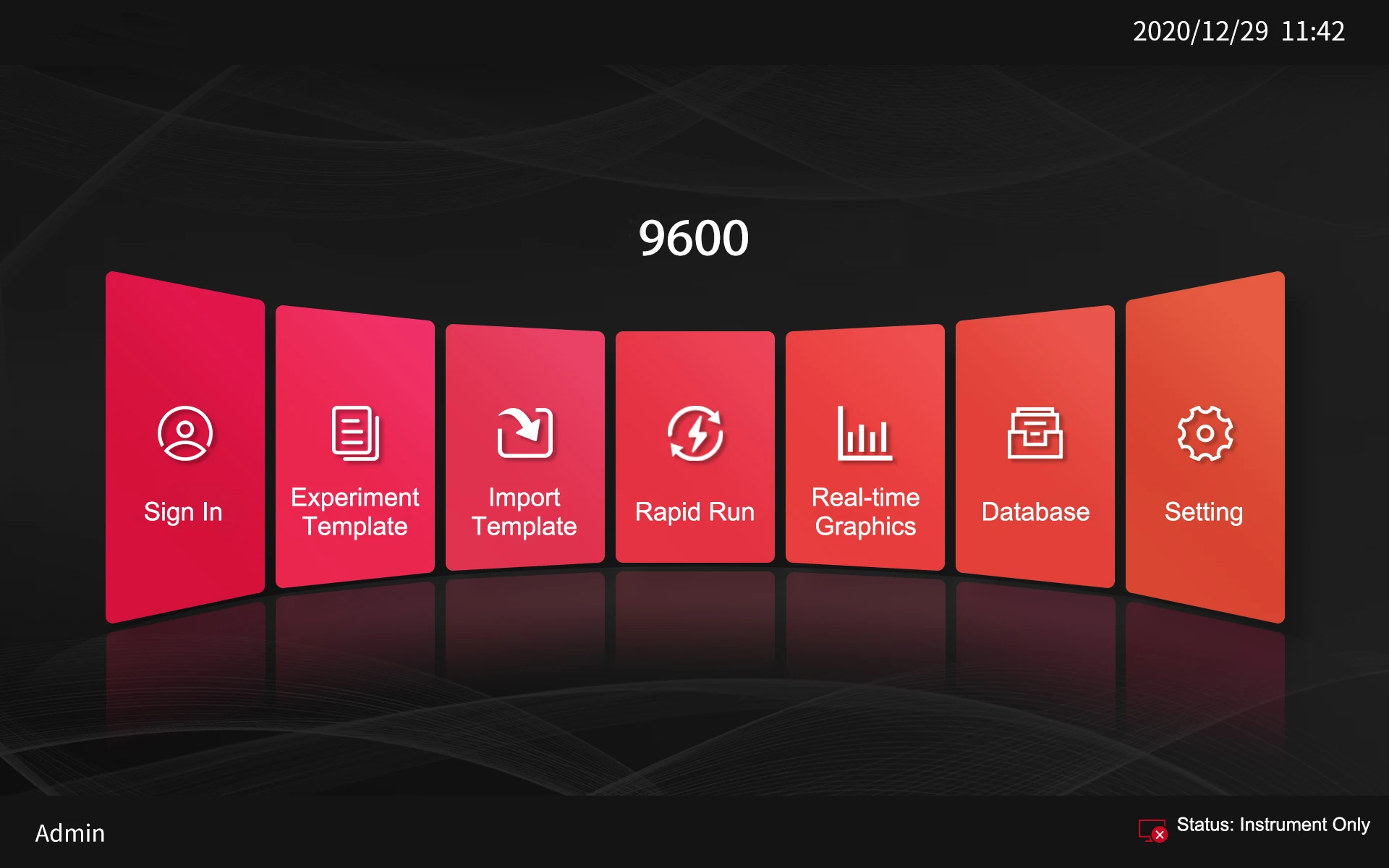

Software functions | Absolute quantification, Relative quantification, Melting curve, SNP genotyping, HRM, Quick run, etc. |
Operating system | PC software (Windows 8 or higher), Built-in software |
Ports | USB Type-A port × 2, USB Type-B port, RJ45 port |
Power-off protection function | YES, data can be restored after power-on |
Sample tray control mode | Automatic in/out, dual software detection, preset interface, automatic workstation can be connected. |
Dimension | 320(W)mm×525(L)mm×420(H)mm |
Net weight | 27 Kg |
