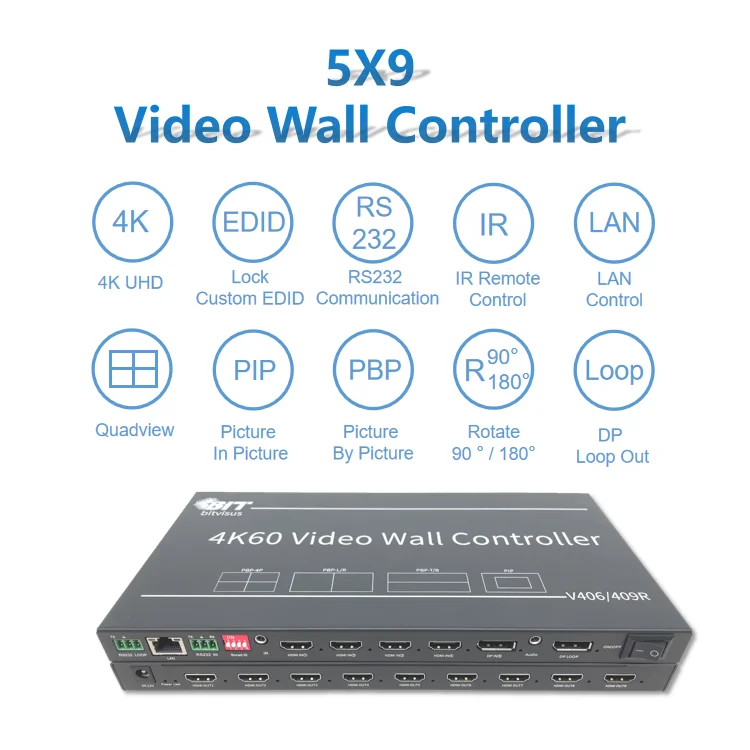

4K HDMI video wall controller switcher features

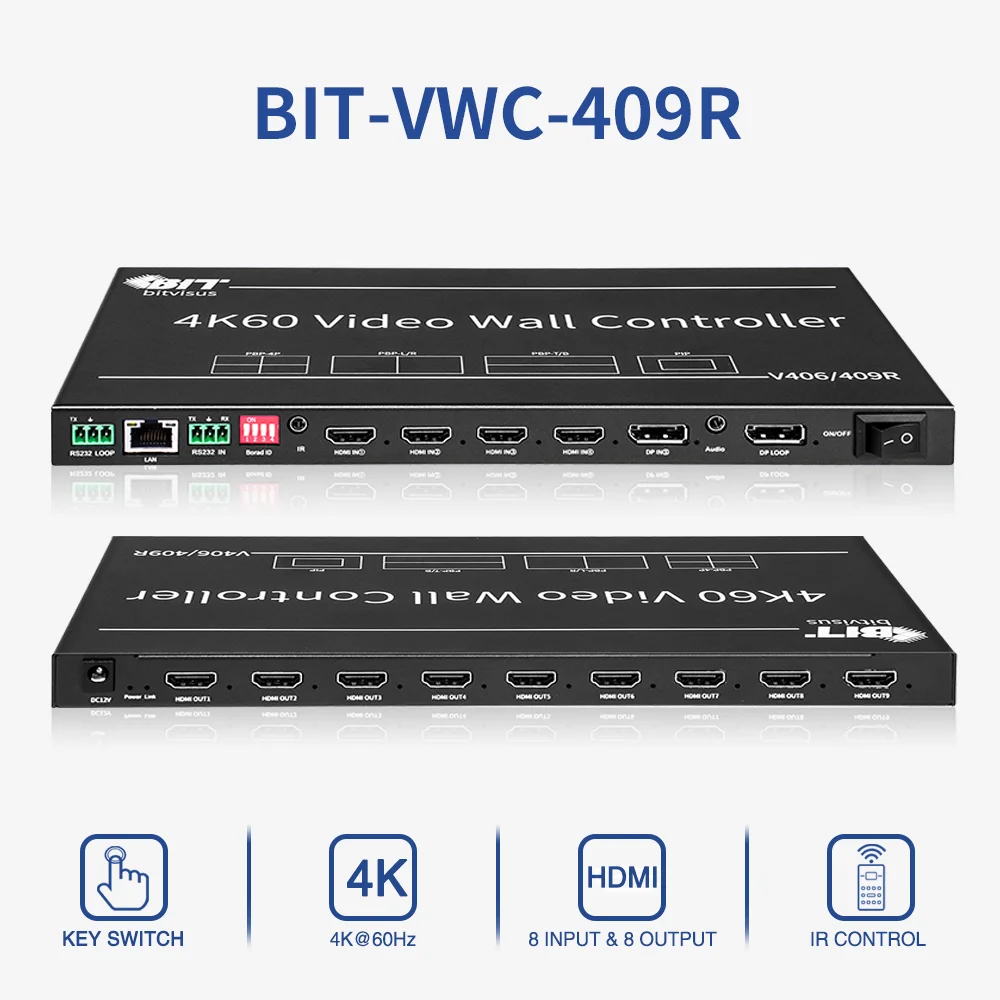

BIT-VWC-409R is an ultra HD Rotary Splicer by Shenzhen Bitvisus Technology Limited. Support 4 channels HDMI input (1 channel 4K@60Hz,3 channels 4K@30Hz), 1 channel DP input (4K@60Hz), 9 channels output HDMI (1080p@60Hz), 1 channel DP loop out.

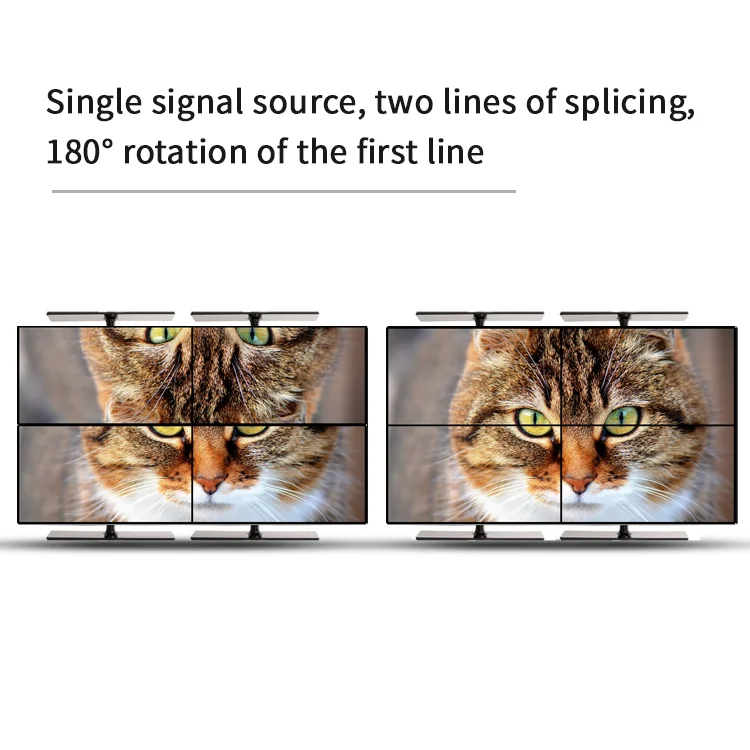

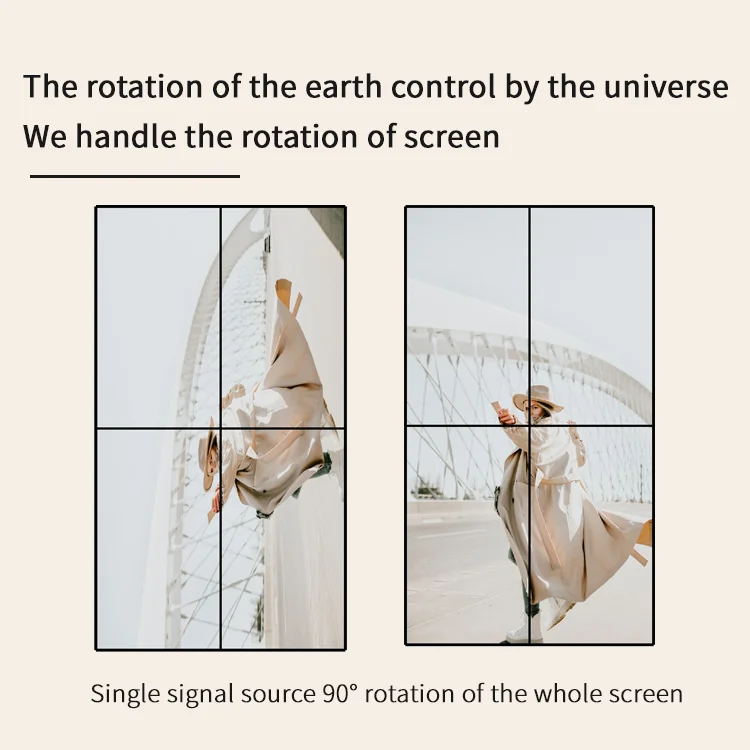

● The input supports full screen rotation of 90 °(only supported in single-picture mode), and the output supports 180 ° rotation of the first line (only supported when the stitching mode is two lines).
● Support single display mode (1x1).
● Support infrared remote control, serial RS232 control.
● Low power consumption, energy saving and environmental protection. Conductive heat dissipation is used internally.
● without any external heat dissipation measures, and the reliability is extremely high.

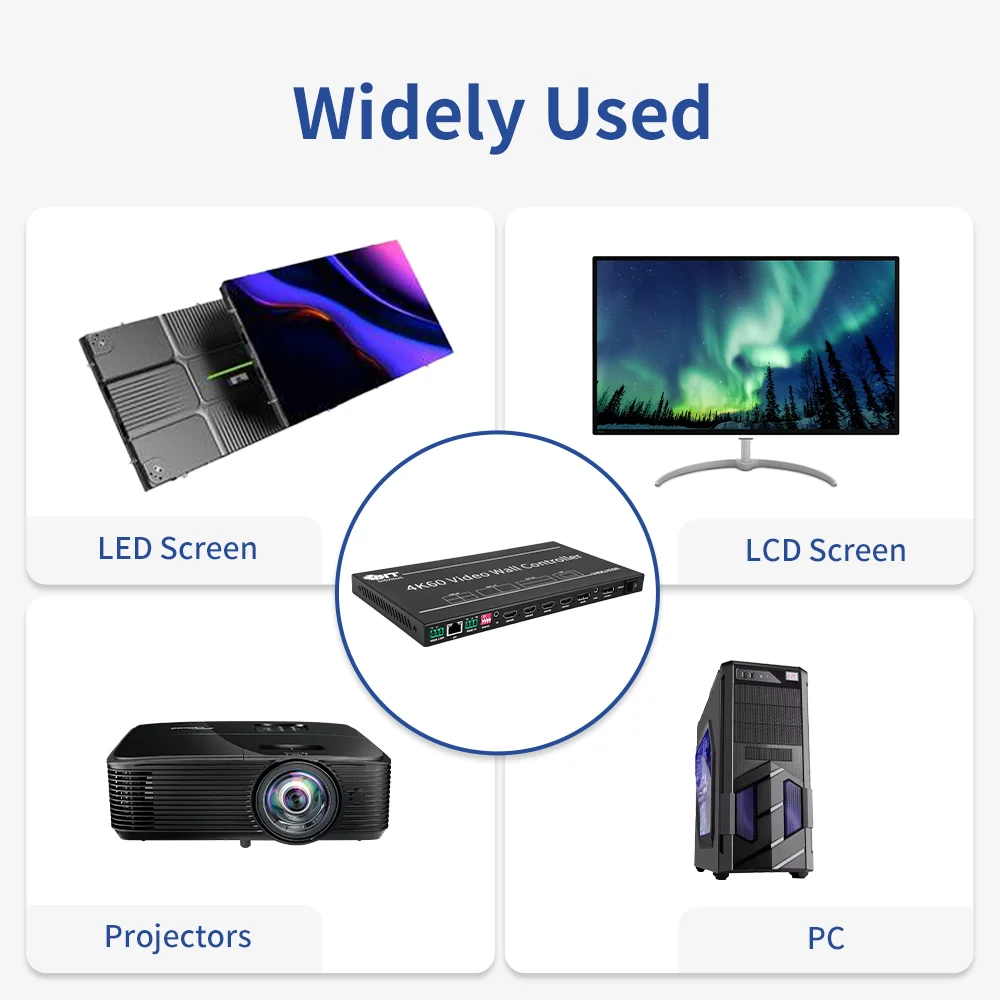

● Support Computers, Android boxs, game consoles and other devices as input source.
● Supports DHCP function, which automatically obtains IP address for assignment when multiple devices are connected, without the need to set IP address manually.
Specification
Product Name | BIT-VWC-409R |
Input interface maximum video pixel frequency | 600MHz |
Output interface maximum video pixel frequency | 165MHz |
Maximum input resolution | 3840*2160@60Hz |
Maximum output resolution | 1920*1080@60HZ |
HDMI input interface | CE,FCC,ROHS |

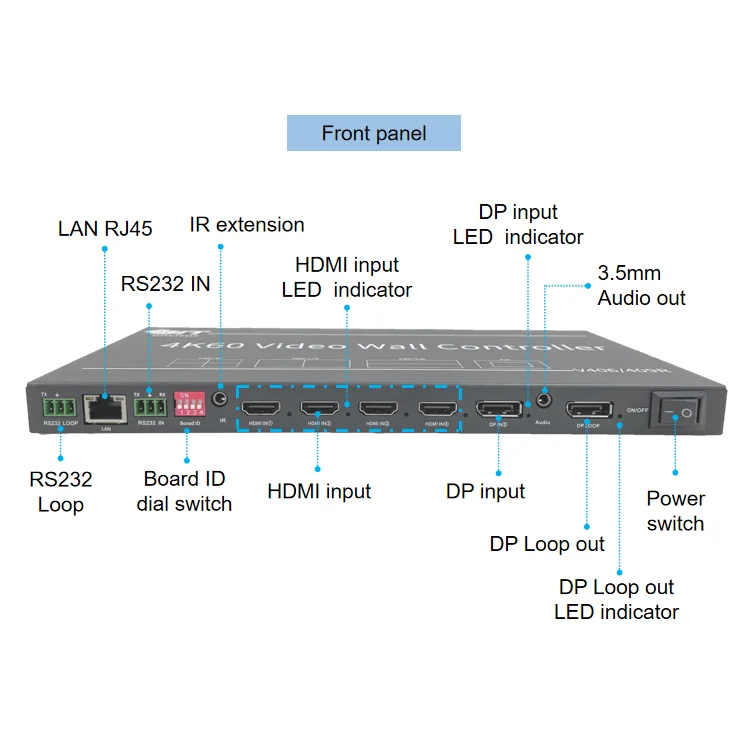

DP input interface | 1xDisplay prot1.2 |
HDMI input interface | 1xHDMI2.0, 3xHDMI1.4 |

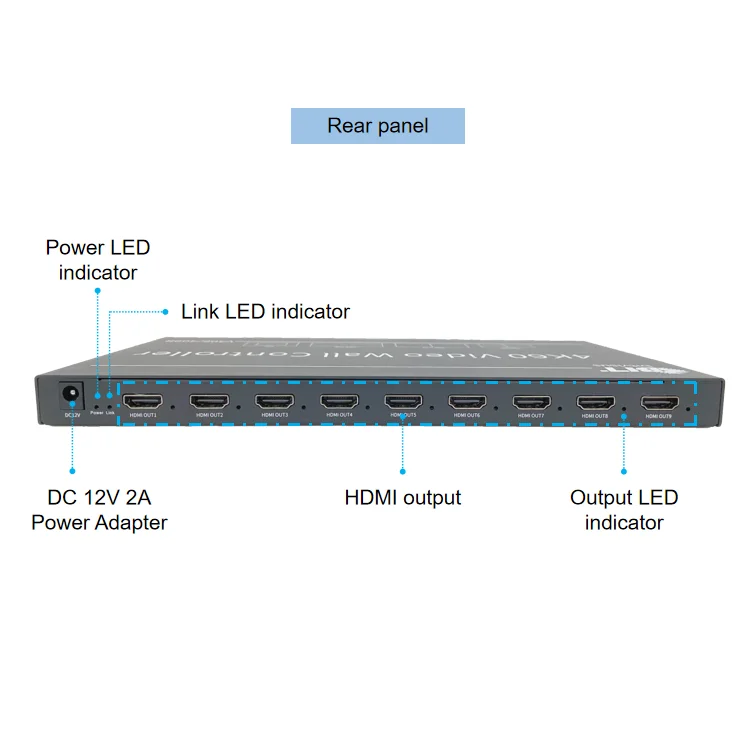

HDMI output interface | 9xHDMI1.3 |
Factory default resolution | HDMI:3840*2160@30Hz DP:3840*2160@60Hz |
Metode kontrol | Remote control, PC host computer (RS232 serial port) |
Voltage | 12V@2A AC-DC power supply |
Power consumption | 12W |
Size | Length, Width, Height (270mm*143.5mm*20.5mm) |
Product Details

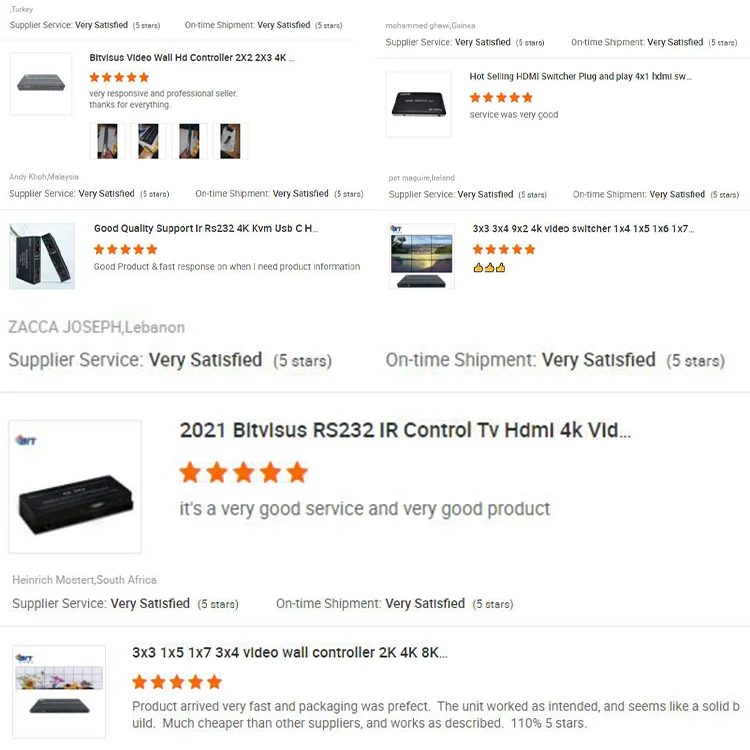

Real Reviews
FAQ
BIT-VWC-409R FAQ
Q1. Does it support RS232 control?
A: support.
A: support.
Q2. What power supply specifications that can be offered?
A: American, British, European, South African and Chinese specifications, etc.
A: American, British, European, South African and Chinese specifications, etc.
Q3. Both input and output support 4K?
A: The 4th HDMI input port and 5th DP input port support 4K@60, output single port support 1080P@60H, the output supports the whole screen 4K60Hz.
Q4. How far does the wiring distance support?
A: The input supports HDMI up to 3 meters, and the output supports HDMI up to 10 meters.

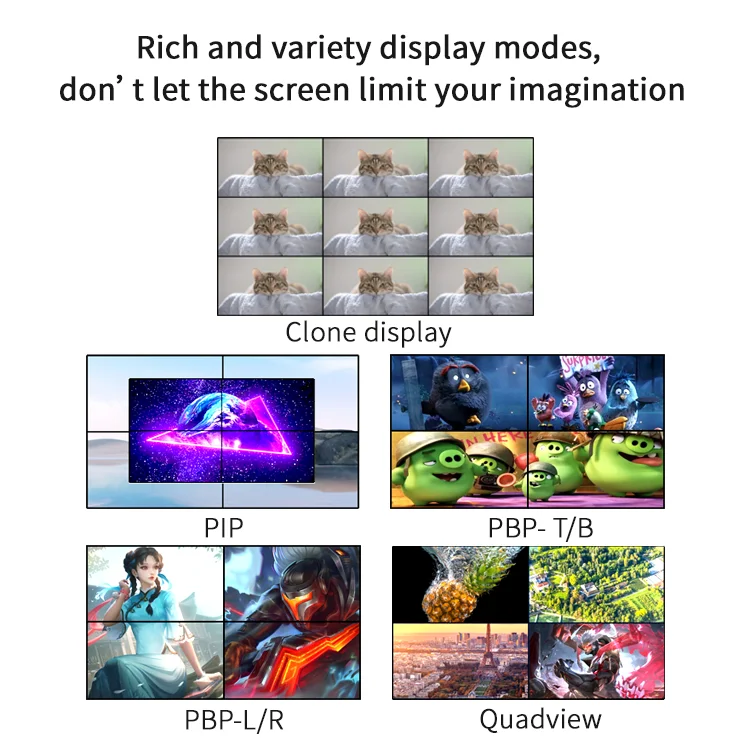

Q5. How many input sources can be supported display at the same time?
A: It can support 4 input sources display on the video wall at the same time.
A: The 4th HDMI input port and 5th DP input port support 4K@60, output single port support 1080P@60H, the output supports the whole screen 4K60Hz.
Q4. How far does the wiring distance support?
A: The input supports HDMI up to 3 meters, and the output supports HDMI up to 10 meters.
Q5. How many input sources can be supported display at the same time?
A: It can support 4 input sources display on the video wall at the same time.
