Product Overview
Description
Product Description
Toothpick standard Diameter: 2.0*65mm (Other diameter can be custom-made)
Capacity: 600,000sticks/8hrs.
Quantity of Machines : 10 sets
Different types: 1.It's flat at one end and pointed at the other； 2. Both ends are pointed.
Capacity: 600,000sticks/8hrs.
Quantity of Machines : 10 sets
Different types: 1.It's flat at one end and pointed at the other； 2. Both ends are pointed.
Introduction 1:

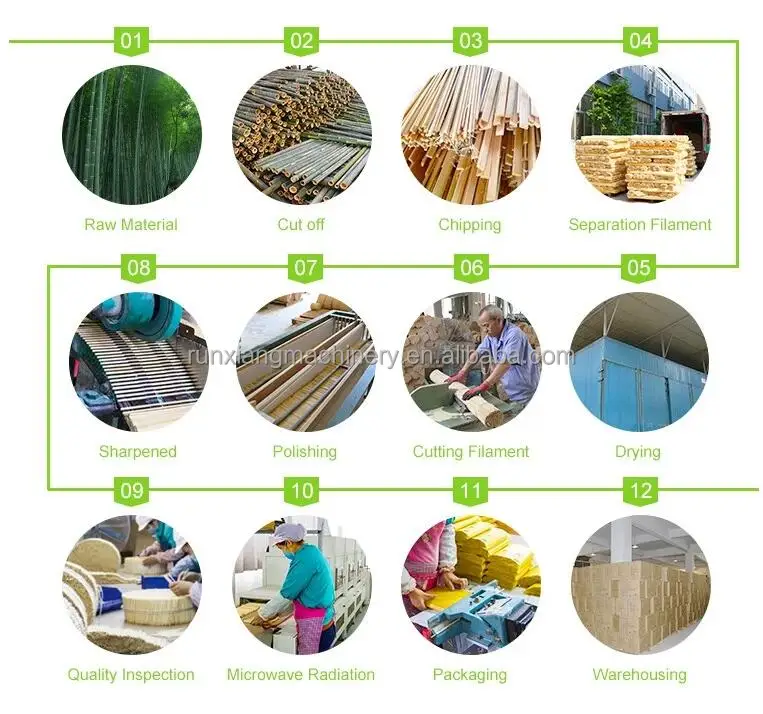

♥ the above products with original bamboo - sawing - cutting bamboo stick - section open piece of fixed width into silk,
bleaching, drying, cutting off - length - polishing - neat - remove the defect to sign - nib - remove the defect sign, packaging,
warehousing (factory).
♥ the above 10 sets, production head pointed toothpicks, 8 hours production in 600000, about 80 kilograms.Need machinery operators 5 ~ 7, men and women there is no limit.Industrial electric power with 380 v, the normal production of the actual power consumption per hour around 12 degree.
♥ every 100 kilograms of fresh bamboo (wet), usually can produce diameter 2.0 * 130000 65 mm specifications of toothpick, about dry finished toothpicks 13-16 kg.
♥ the above products with original bamboo - sawing - cutting bamboo stick - section open piece of fixed width into silk,
bleaching, drying, cutting off - length - polishing - neat - remove the defect to sign - nib - remove the defect sign, packaging,
warehousing (factory).
♥ the above 10 sets, production head pointed toothpicks, 8 hours production in 600000, about 80 kilograms.Need machinery operators 5 ~ 7, men and women there is no limit.Industrial electric power with 380 v, the normal production of the actual power consumption per hour around 12 degree.
♥ every 100 kilograms of fresh bamboo (wet), usually can produce diameter 2.0 * 130000 65 mm specifications of toothpick, about dry finished toothpicks 13-16 kg.
Size Information

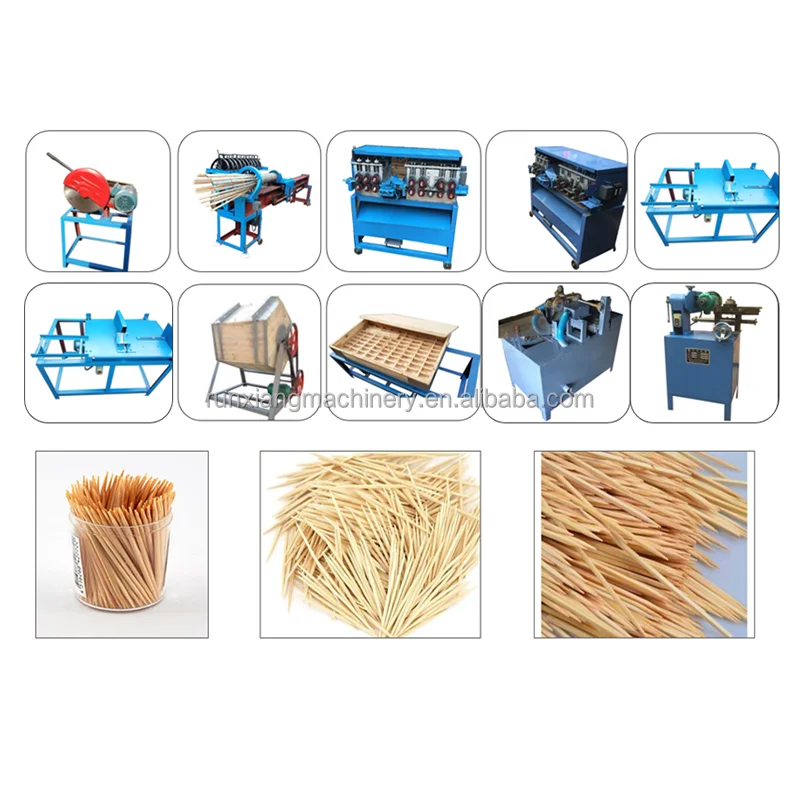

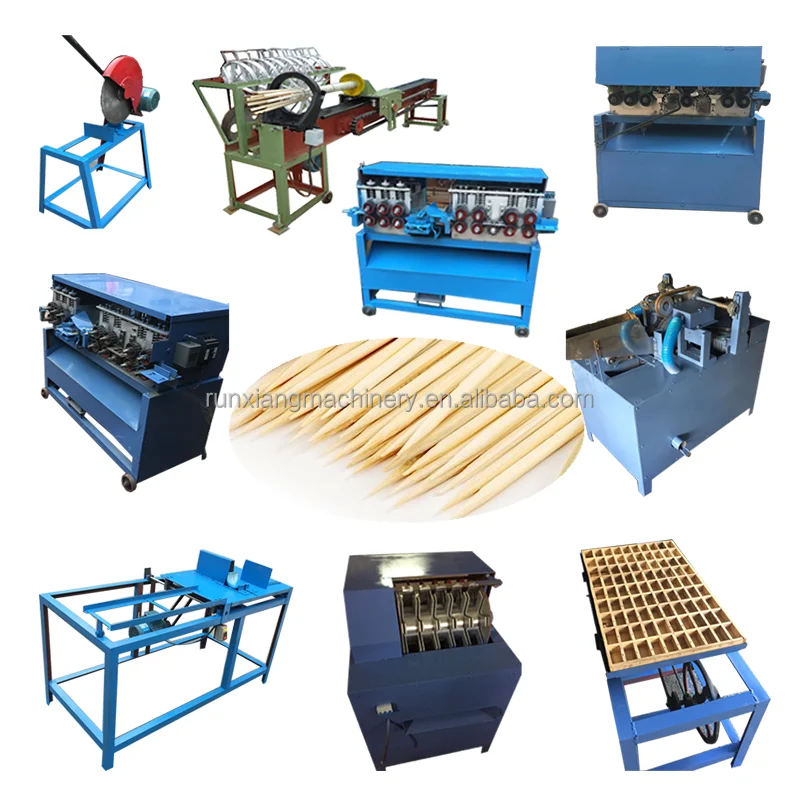

10 sets machines,which is a whole production lines.
Name | Model | Power kw | Weight KG | Size cm | |
1 | Sawing machine | ZJ-791 | 1.5 | 58 | 120*50*105 |
2 | Bamboo dissection machine | ZJ-388 | 4 | 650 | 310*70*125 |
3 | Flakers | ZJ-275 | 3.3 | 310 | 130*65*103 |
4 | Bmaboo filament shaping machine | ZJ-144 | 7.1 | 400 | 100*65*108 |
5 | Filament set-size machine | ZJ-741 | 0.75 | 80 | 140*66*88 |
6 | Toothpick set-size machine | ZJ-746 | 3.37 | 125 | 85*65*90 |
7 | Polishing machine | ZJ-516 | 1.5 | 130 | 130*110*130 |
8 | Toothpick sorting machine | TJ-948 | 0.55 | 80 | 100*100*75 |
9 | Toothpick sharpening machine | ZJ-642 | 1.99 | 210 | 105*65*95 |
10 | Multi-sharpen machine | TJ-803 | 0.37 | 65 | 75*50*95 |
Total | 24.43 | 2108KG | 9.95m3 |

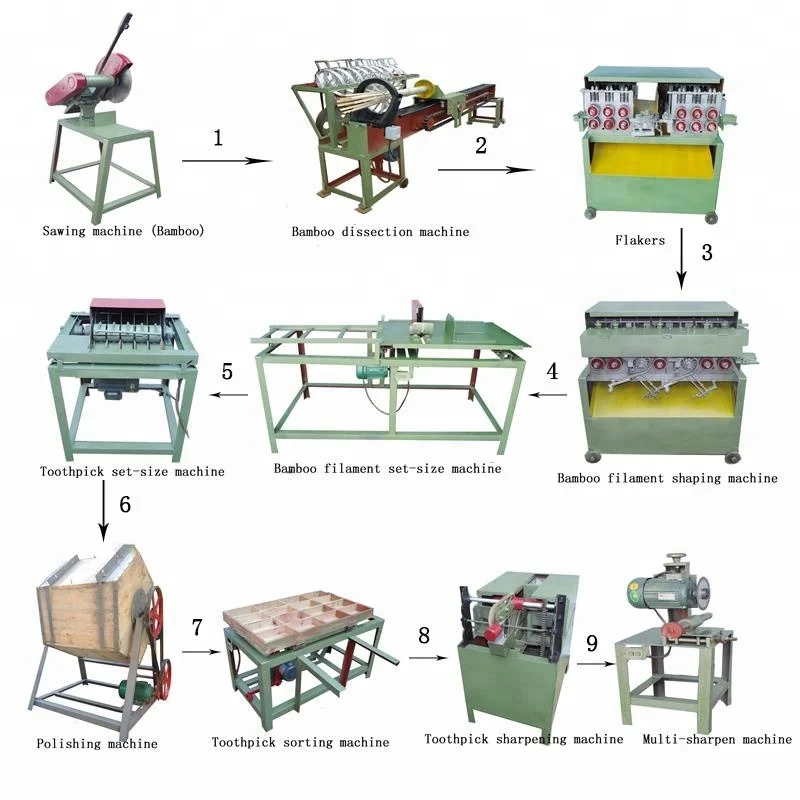

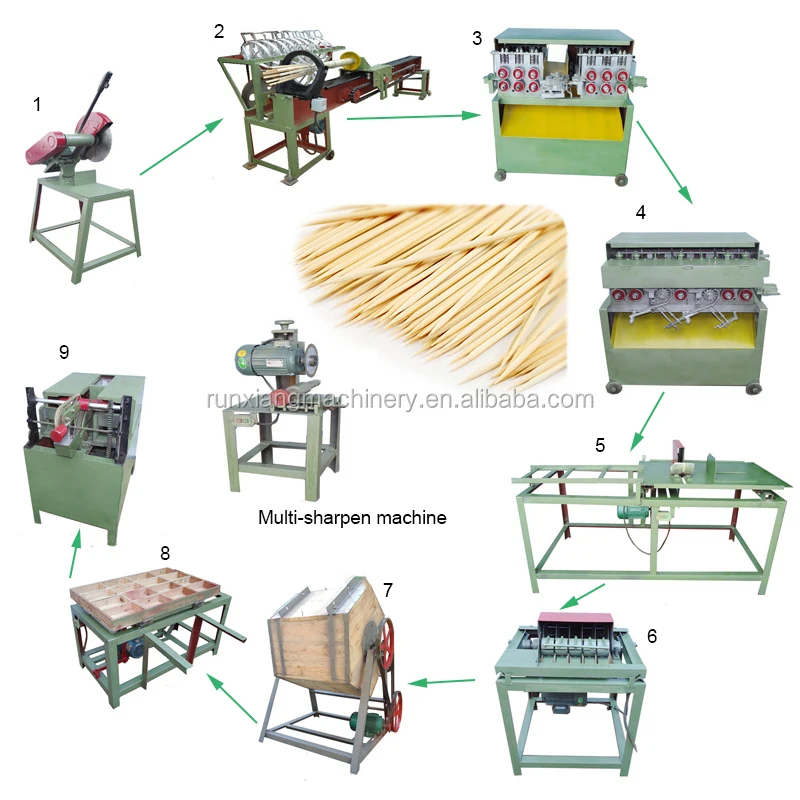

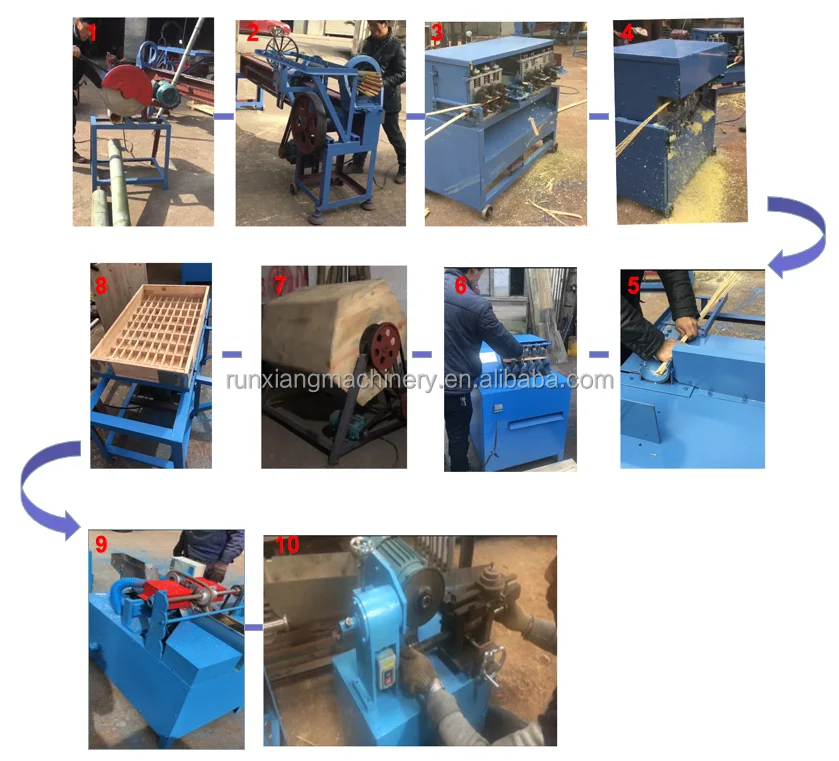

Working Process
1. Fresh bamboo sawing machine: Cut the fresh bamboo into certain size.
2. Bamboo splitting machine/dissection machine: Split the bamboo into chips.
3. Bamboo flaker: Fixing the width of bamboo pieces and flattening the bamboo pieces.
4. Bamboo filament machine
5. Bamboo filament set-size machine: Cut the pieces into certain sticks.
6. Bamboo toothpick scale machine: Cut the sticks into 65mm toothpick.
7. Bamboo polishing machine: Polish the toothpick and making the surface smooth.
8. Bamboo toothpick sorting machine: Put the toothpick in order.
9. Bamboo toothpick sharpening machine: Sharpen the head of toothpicks.
10.Bamboo multi-functional sharpener: sharpen the blades or knifes.
2. Bamboo splitting machine/dissection machine: Split the bamboo into chips.
3. Bamboo flaker: Fixing the width of bamboo pieces and flattening the bamboo pieces.
4. Bamboo filament machine
5. Bamboo filament set-size machine: Cut the pieces into certain sticks.
6. Bamboo toothpick scale machine: Cut the sticks into 65mm toothpick.
7. Bamboo polishing machine: Polish the toothpick and making the surface smooth.
8. Bamboo toothpick sorting machine: Put the toothpick in order.
9. Bamboo toothpick sharpening machine: Sharpen the head of toothpicks.
10.Bamboo multi-functional sharpener: sharpen the blades or knifes.
Detailed Images

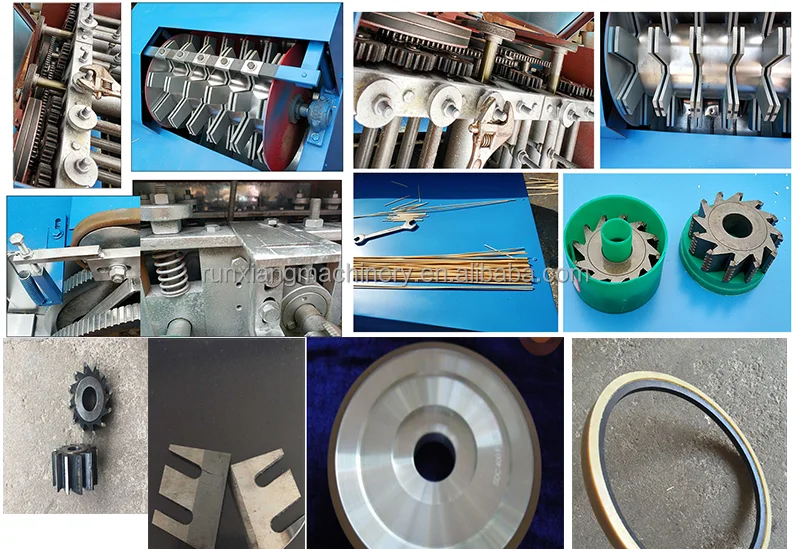

Each parts used the good quality material and strong blades!
Will send some parts to customer free!
Packing and delivery and about us

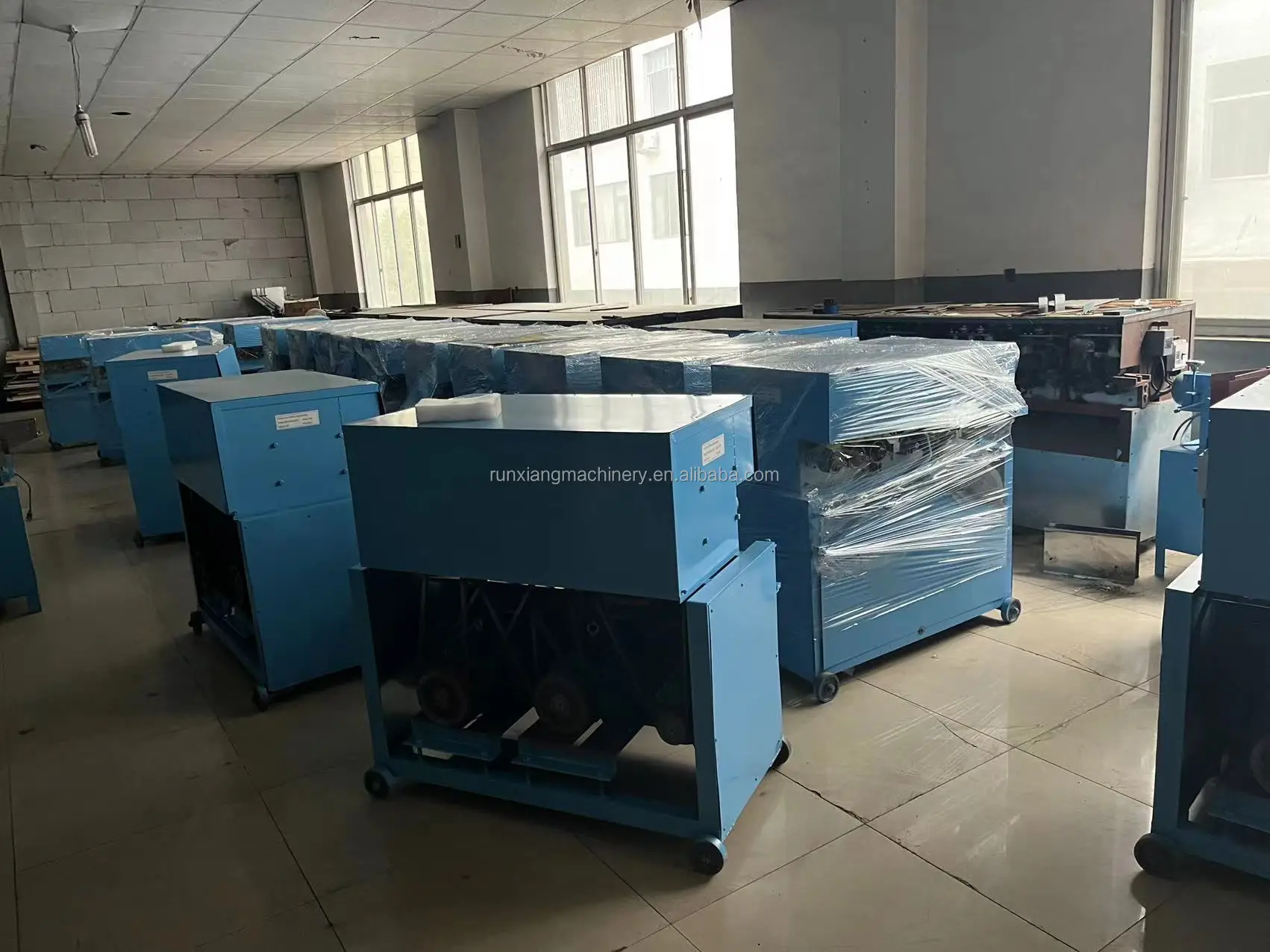

Big Order in customers!Welcome your inquiry!

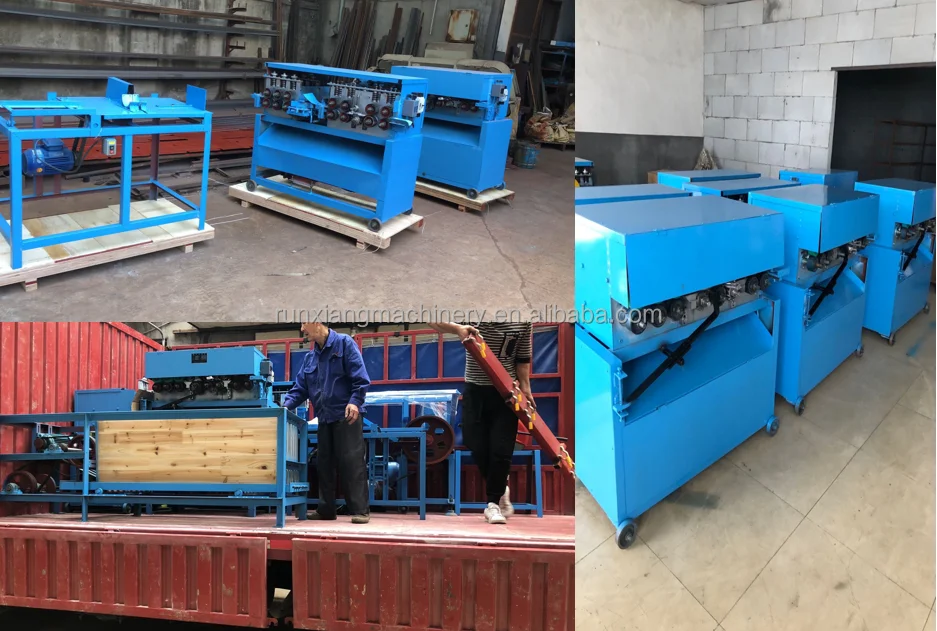

Wooden case packing,to confirm machines safe during shipping.
