Product Overview
Description
Product Description
We can supply full set of solar power system, include PV(suggest buy from local agent), Inverter, storage battery. We are lifepo4 battery manufacturer, but can supply compatible inverters on communication protocol with our battery, if you need we supply together. The Battery we can supply have 3kwh, 5kwh, 10kwh, 15kwh, 20kwh with CE MSDS certificate. on grid/ hybrid inverter have full series certificate for different countries. such as: germany VDE, italy CEI, USA UL, CE-IEC, NTS..., can supply Megarevo and Growatt inverter. and supply technical support

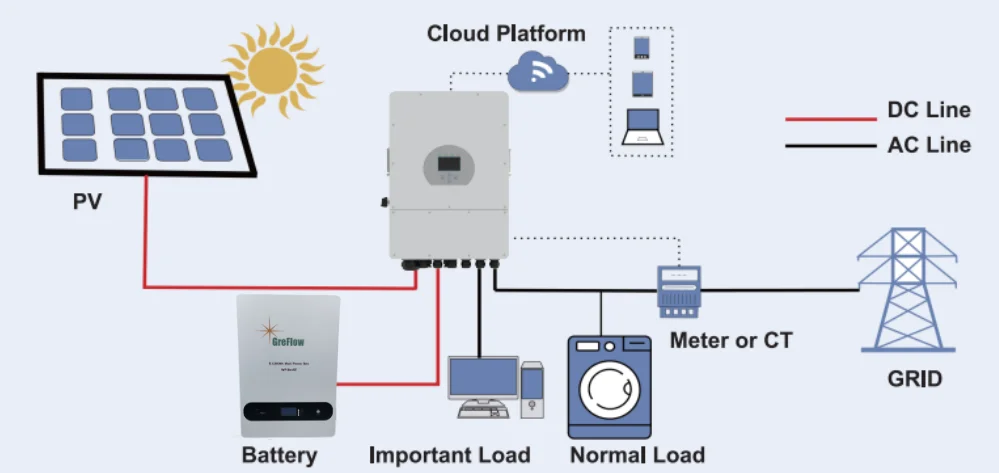

There are three parts for solar energy system：
LiFePo4 Energy Storage Battery
Compatible Inverter

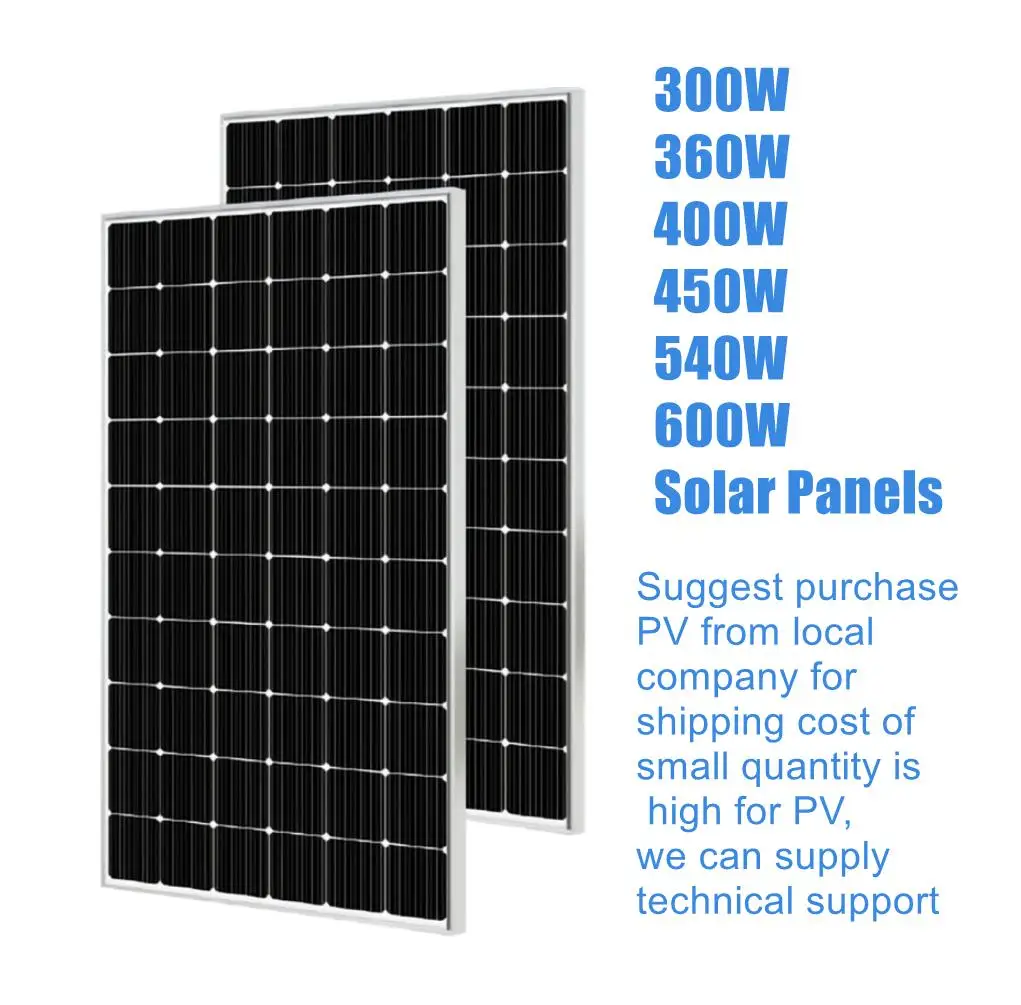

Solar Panels and installation accessories
There are three parts for solar energy system：
LiFePo4 Energy Storage Battery
Compatible Inverter
Solar Panels and installation accessories

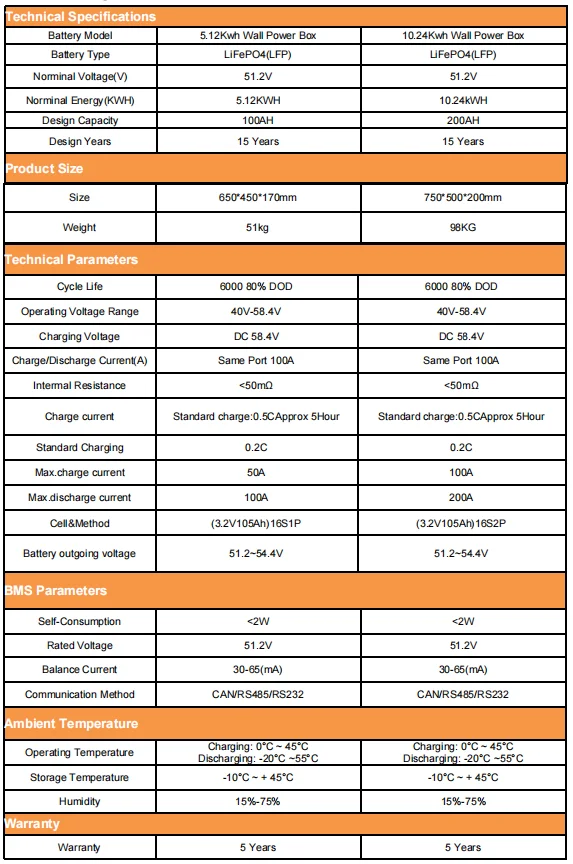

Specification
Specifications of hybrid inverter with lifepo4 energy storage battery 10kw 5kw solar
Nominal Voltage | 51.2V |
Nominal capacity | 200AH |
Nominal energy | 10KWH |
Dimension(L*W*H, MM) | 500*200*750 |
Weight | 89KG |
Case | Metal |
Material | LiFePO4 |
End of charge voltage(cell) | 58.4V |
End of discharge voltage(cell) | 42V |
Continuous charge current | 100A |
Continuous discharge current | 200A |
Operating temperature(charge) | 0°C ~ 55°C |
Operating temperature(discharge) | -30°C ~ 55°C |
Storage temperature | -20°C ~ 60°C |
Cycle life | 6000 times (25°C@ 80%DOD,0.2C) |

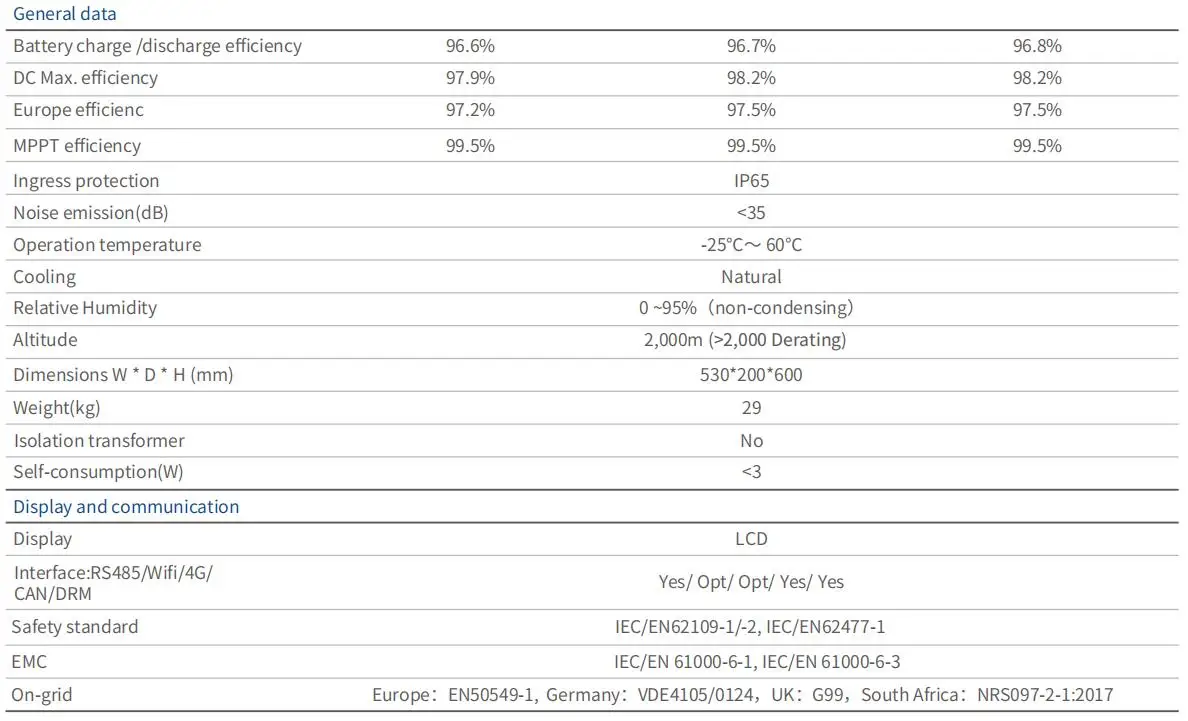

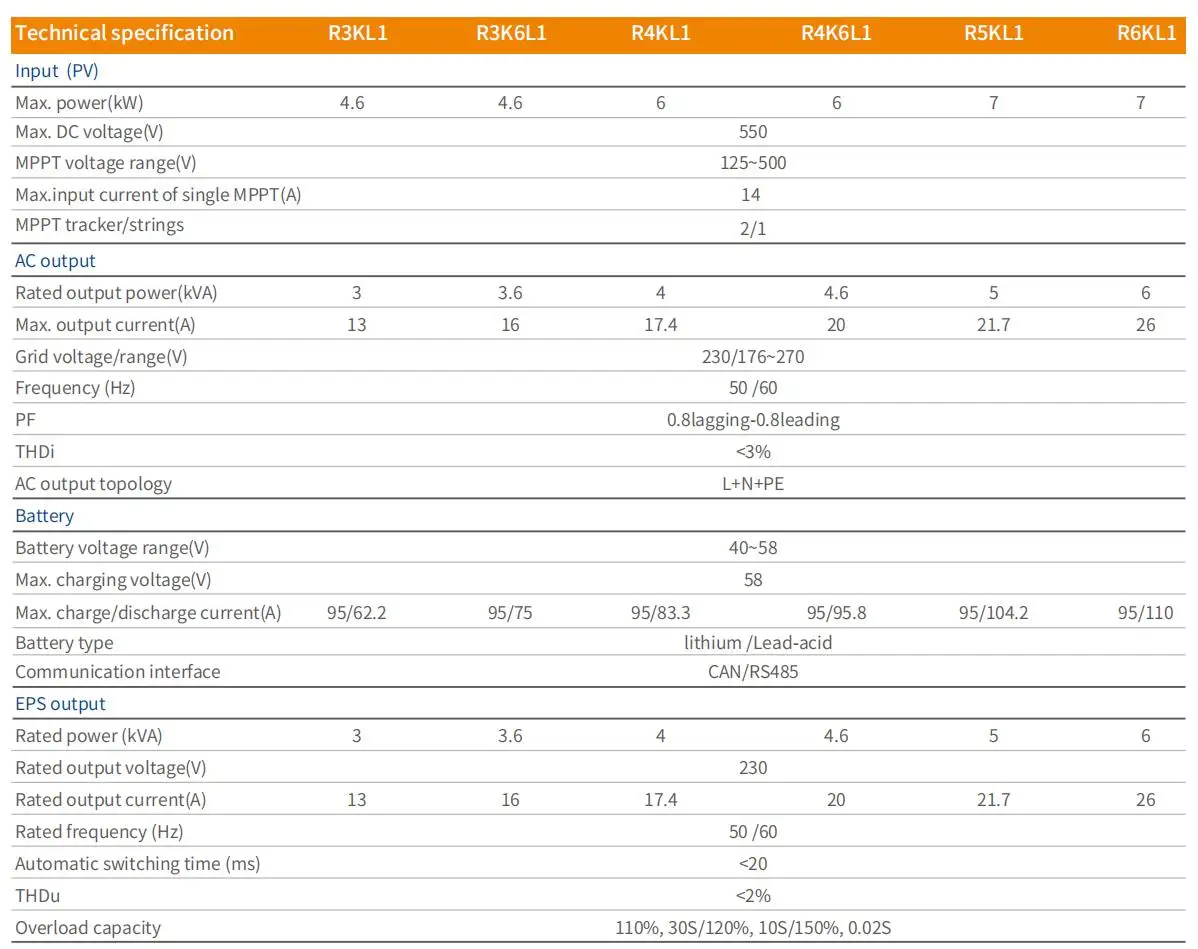

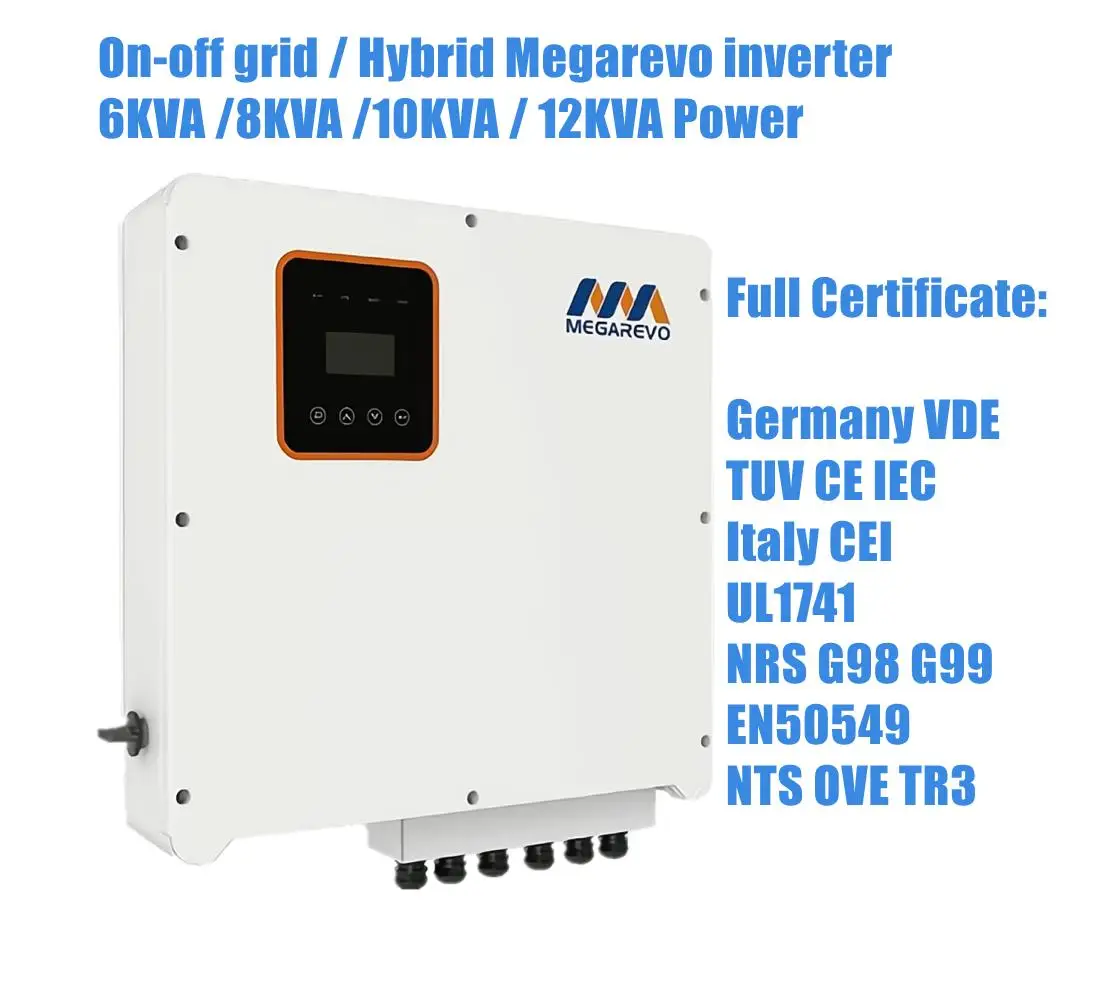

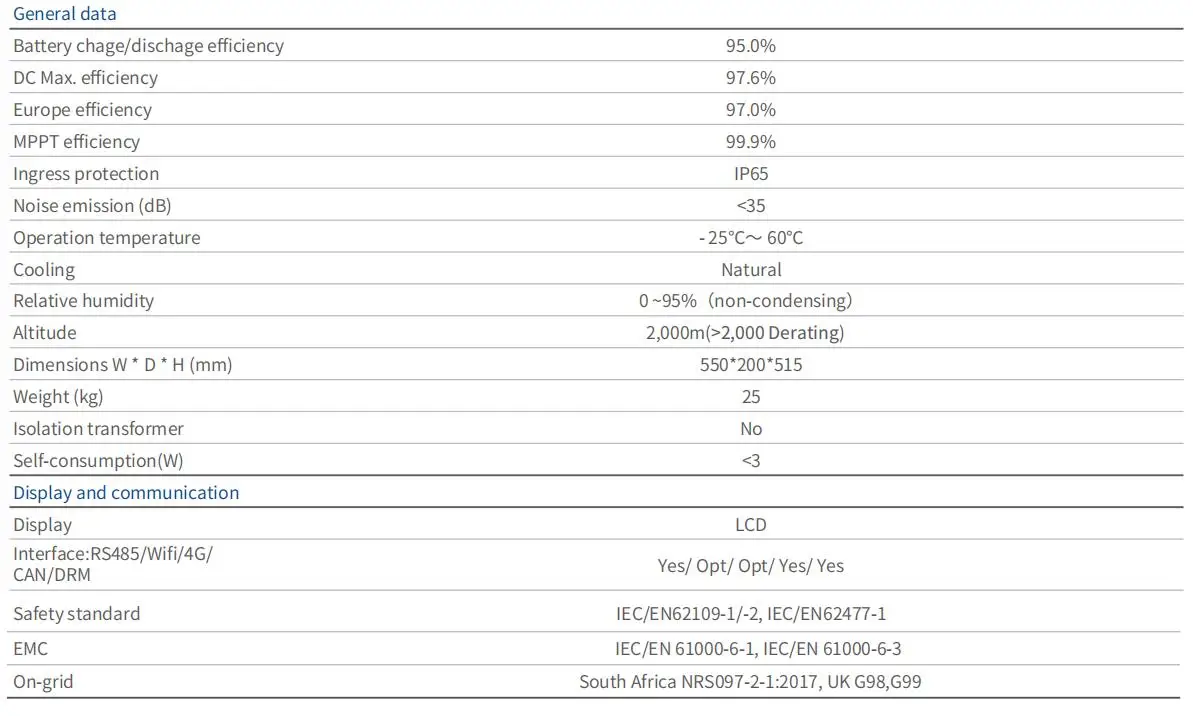

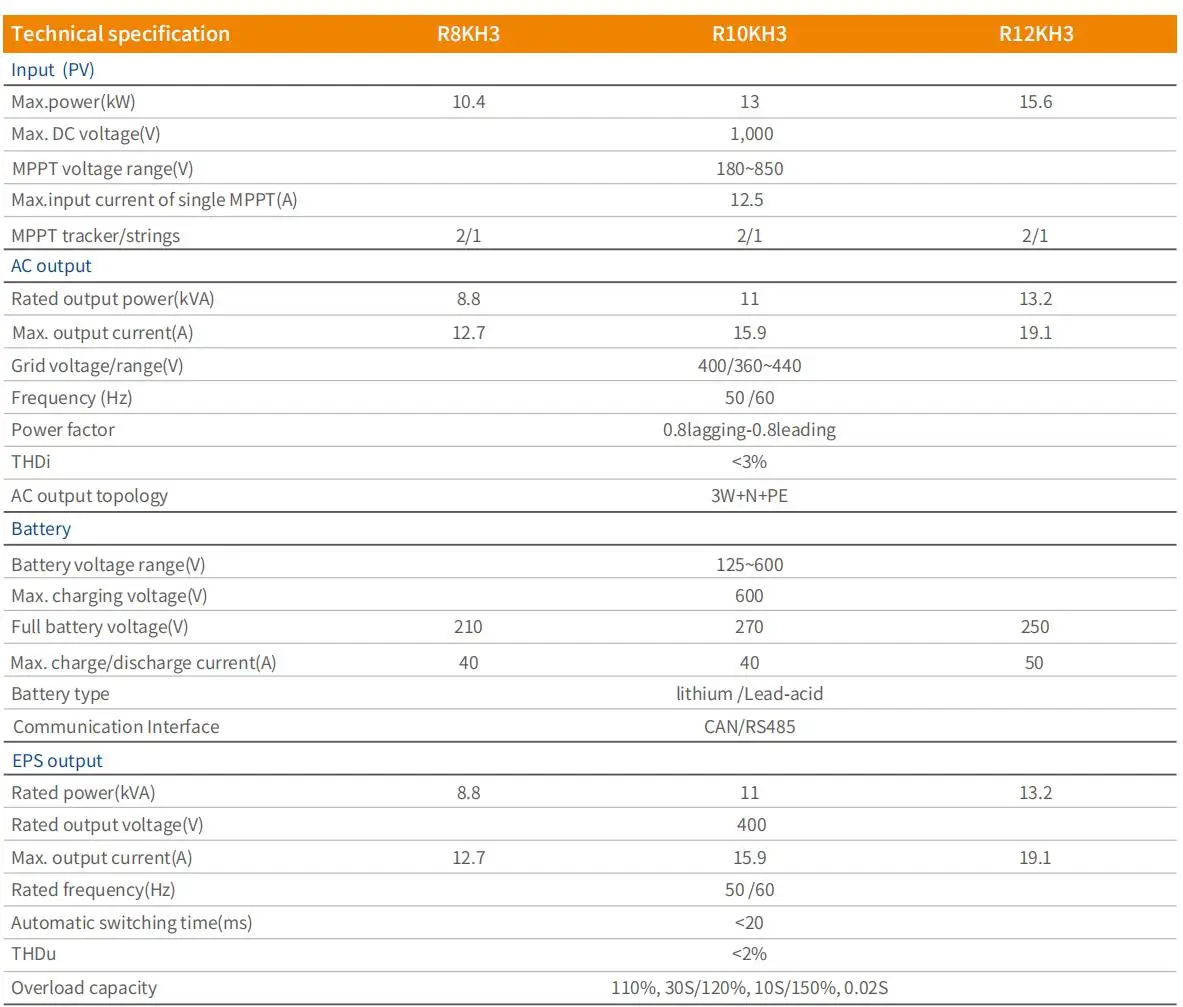

Specification of Megarevo Inverter three phase and single phase models
We can supply compatible Growatt /Megarevo brand hybrid / off grid inverter.
Product Display
Product Details For hybrid inverter with lifepo4 energy storage battery 10kw 5kw solar
Product Display of lifepo4 battery 5kw 10kw manufacturer solar power system solar energy

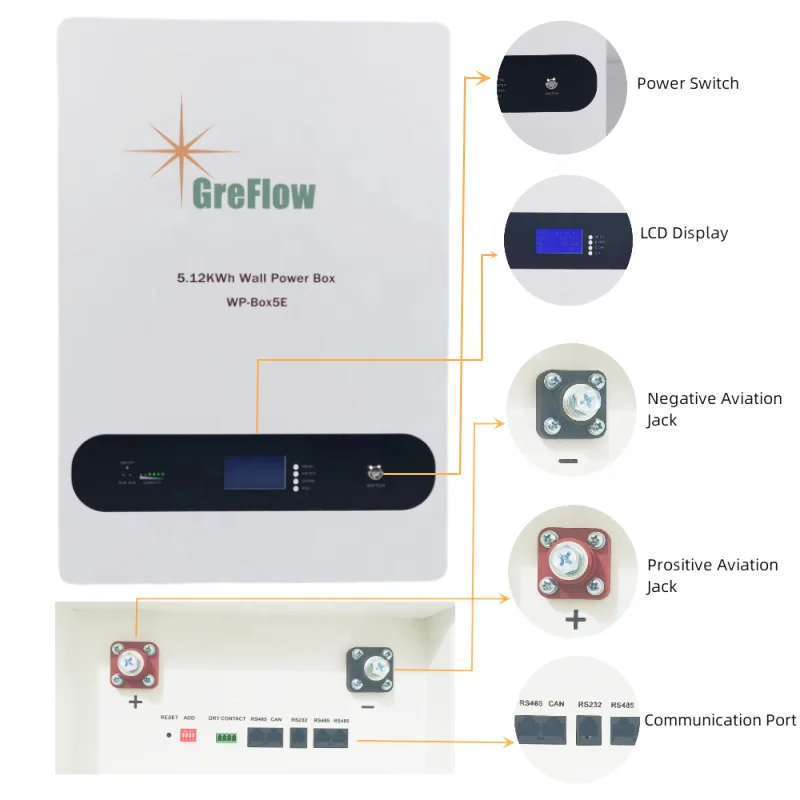

● Power switch,LCD Display,Negative,Positive Aviation,Communication Port.
● Supported samrt communication function RS485/ RS232/ CANBUS and meet most of Hybrid and off grid inverters / MPPT controllers.
● Supported samrt communication function RS485/ RS232/ CANBUS and meet most of Hybrid and off grid inverters / MPPT controllers.
● Built in LCD display, ON/OFF Switch, Handles, Bracket.
5kwh LCD Screen Show Status of Battery
SOC: 62% means the Capacity remaining percent
FCC: 106.7Ah Full Capacity Max Contain capacity
RM: 66.2Ah The remaining capacity

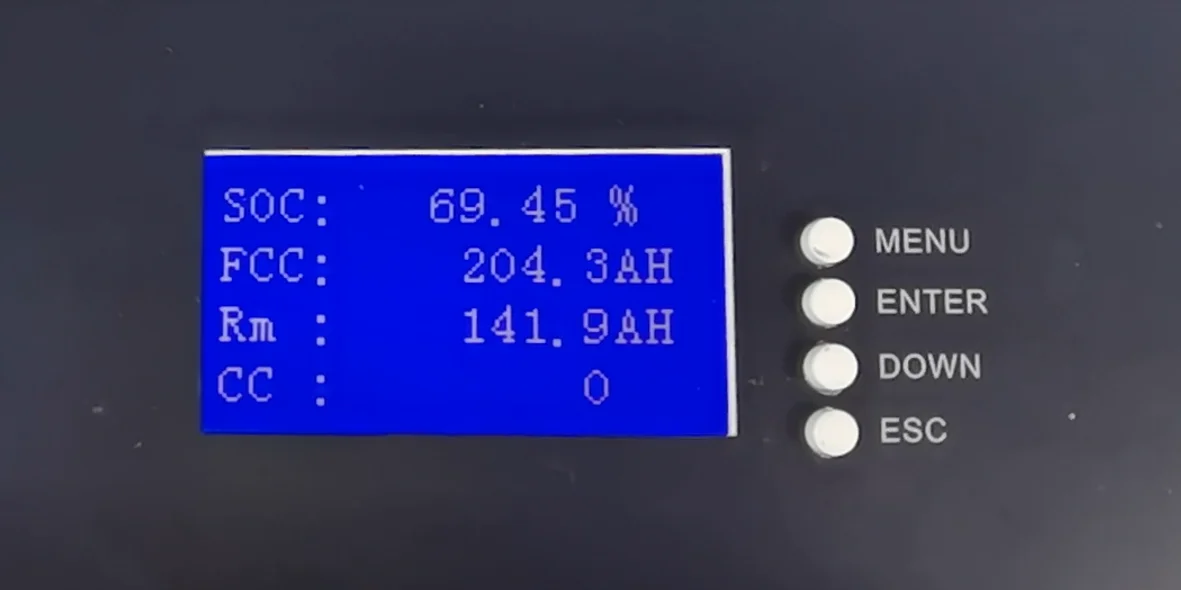

10Kwh Powerwall LCD Screen Show Status
SOC: 69.45% means the Capacity remaining percent
FCC: 204.3Ah Ultra-capacity Max Contain capacity
RM: 141.9Ah The remaining capacity
RM: 141.9Ah The remaining capacity

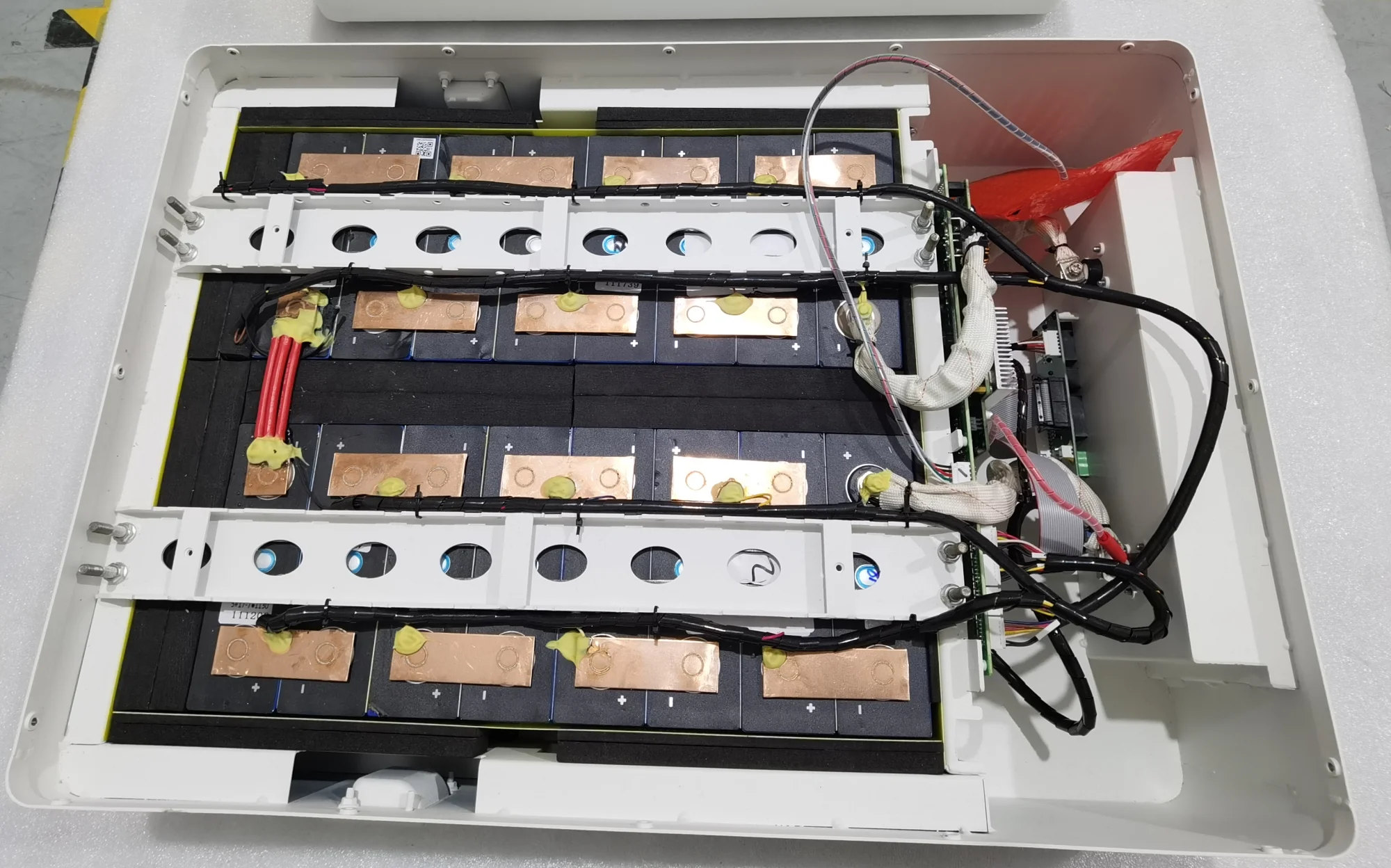

Built in structure with rigorous structure
● Our LiFePO4 battery Power-Wall was specially developed for home solar energy storage system. The battery used the lightest cell and can be mounted on the home wall.Grade A Certificated Prismatic LiFePO4 Cell(as EVE CATL)
● Fixed iron box frame to make the battery cell stronger,Not easy to move.
● Grade A DALY and Bestway BMS with Bluetooth monitor on your phone,Software version, same port charging and
discharge,equalization function, RS485 CAN communication
● Grade A DALY and Bestway BMS with Bluetooth monitor on your phone,Software version, same port charging and
discharge,equalization function, RS485 CAN communication

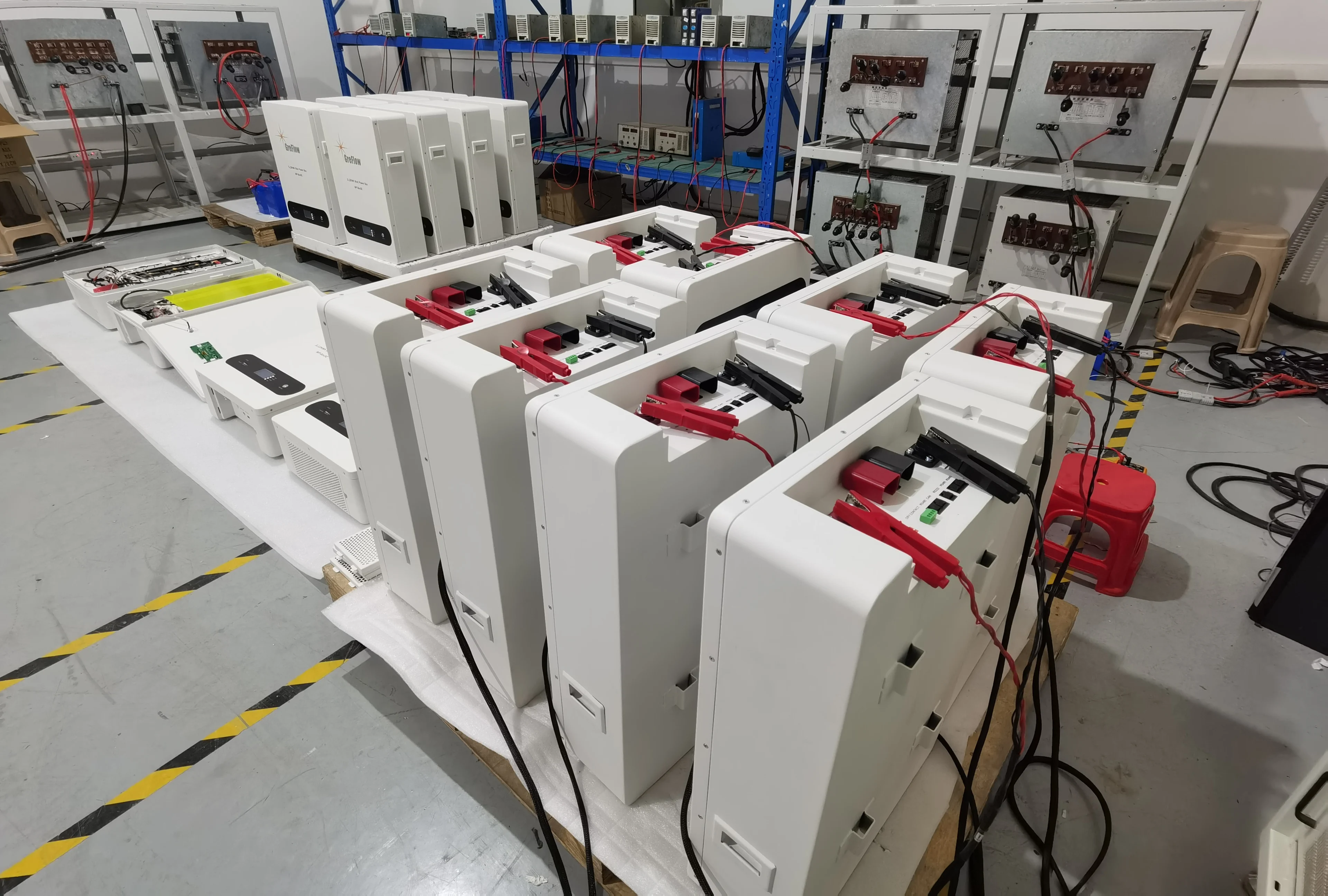

Aging Test (charge and discharge procedure)
● Makes the cycle life longer
● Make the performance more stable
● Maintenance-free after shipment
● Maintenance-free after shipment

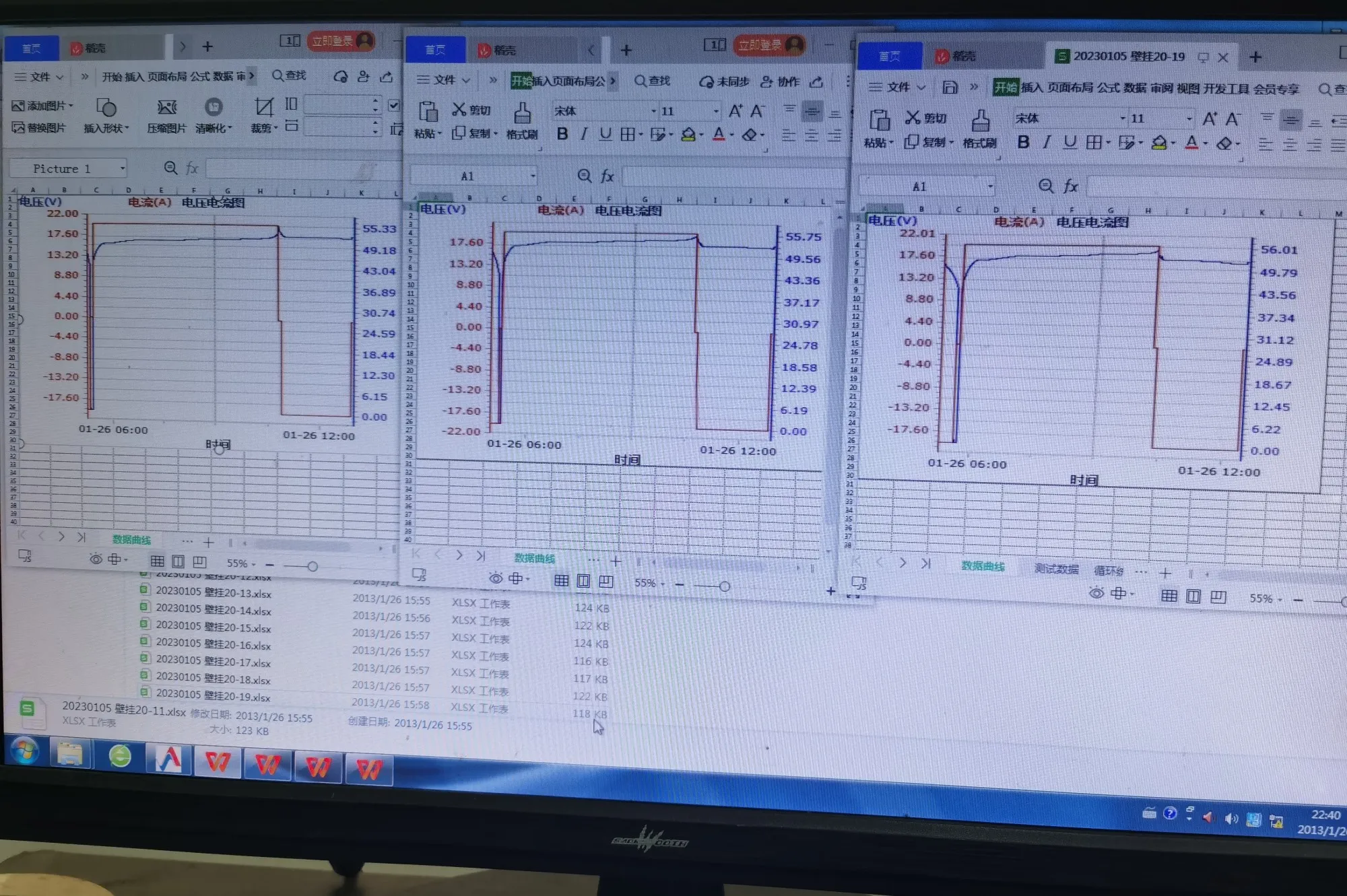

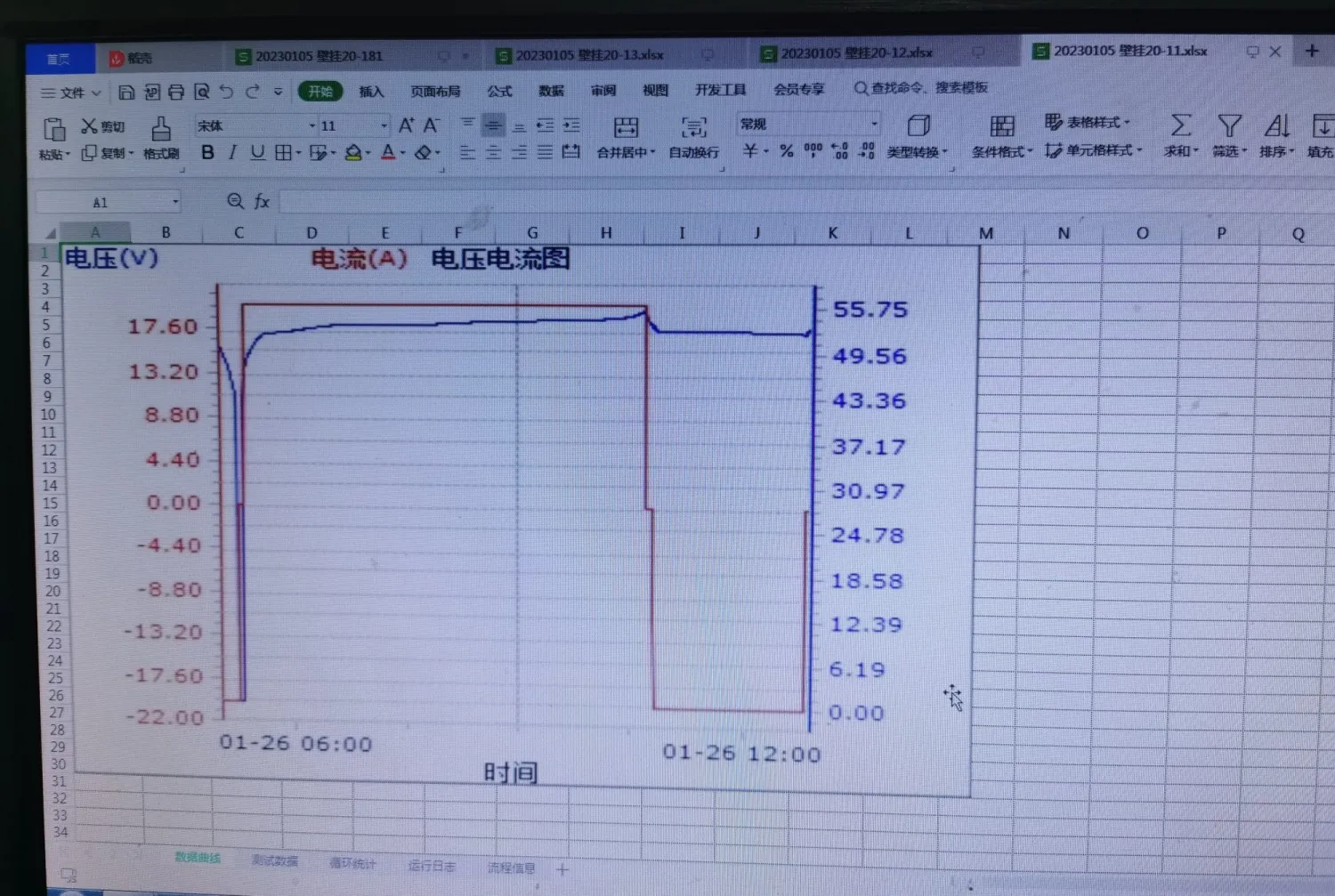

Aging test voltage and Current curve of Multiple units
Aging test charge and discharge voltage and Current curve
Easy operation

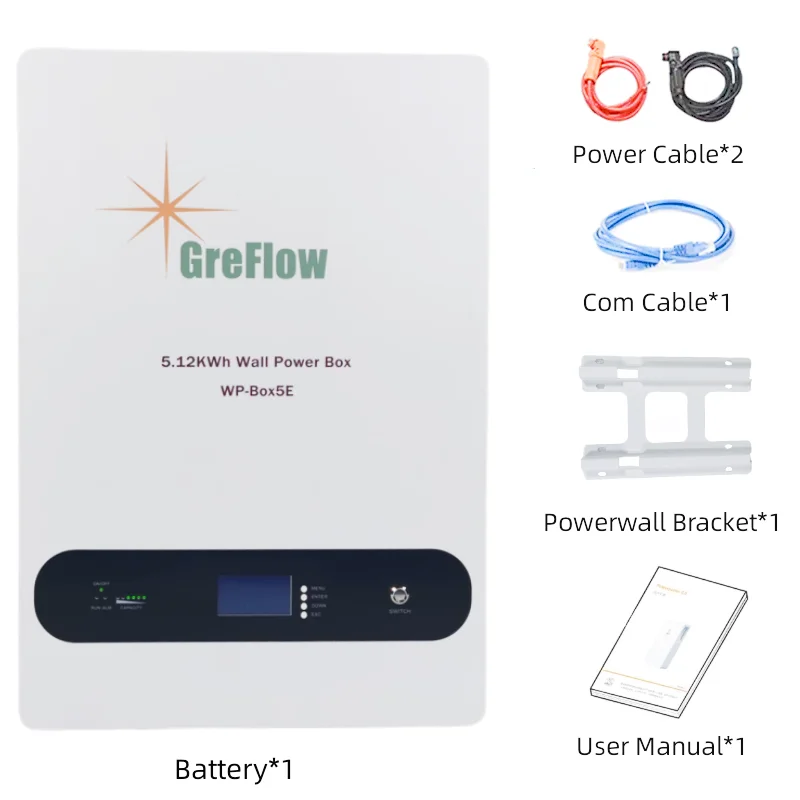

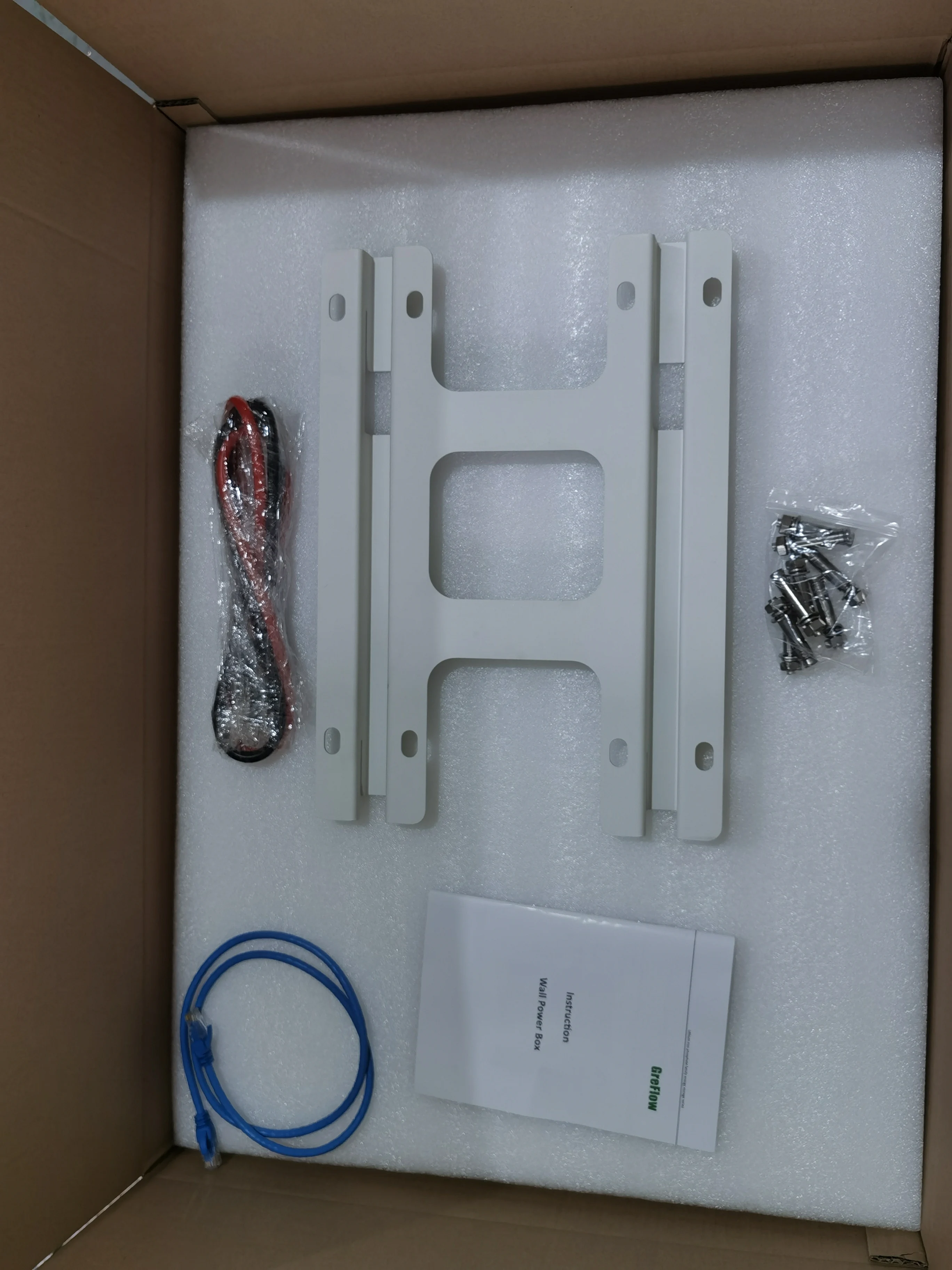

● Red and Black Power cables,Communication Cables,bracket and user manual provided.
● Connection (Can be in Parallel and in series to increase capacity or Voltage,max 16 pcs)
● For the bracket, we customized the high quality unique metal bracket which is more stable, safely and very firm to hold the power-wall lifepo4 battery install on the wall and ground.
● Free Maintenance

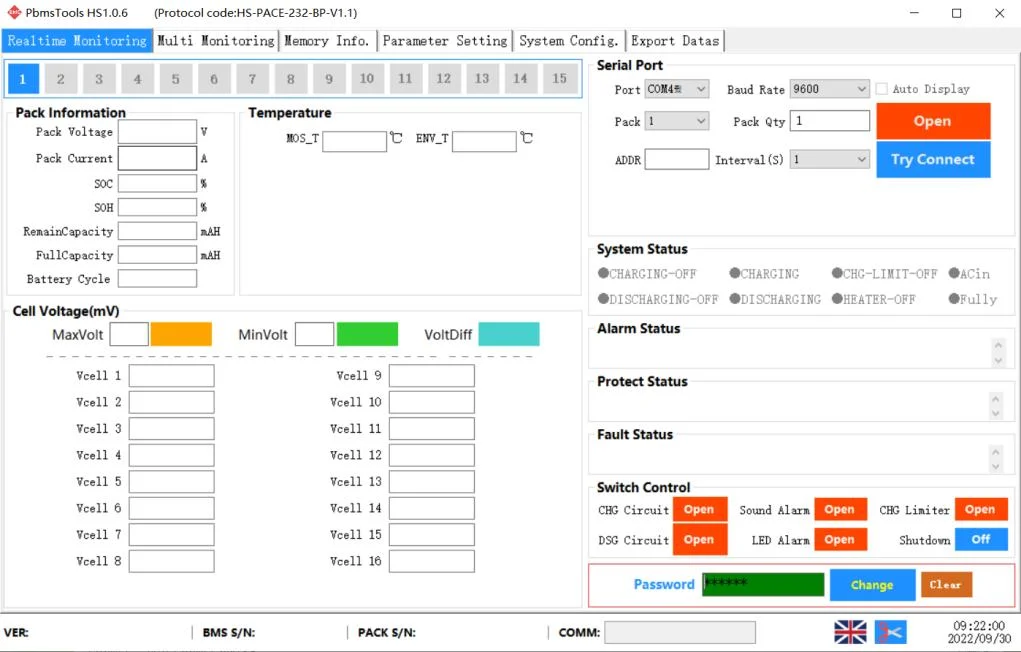

BMS monitoring system of lithium battery pack
● Obtain energy consumption data and alarm status record of lithium battery pack.
● Real time current,voltage and capacity usage
● Modify the functional parameters of lithium battery pack.
● Real time current,voltage and capacity usage
● Modify the functional parameters of lithium battery pack.

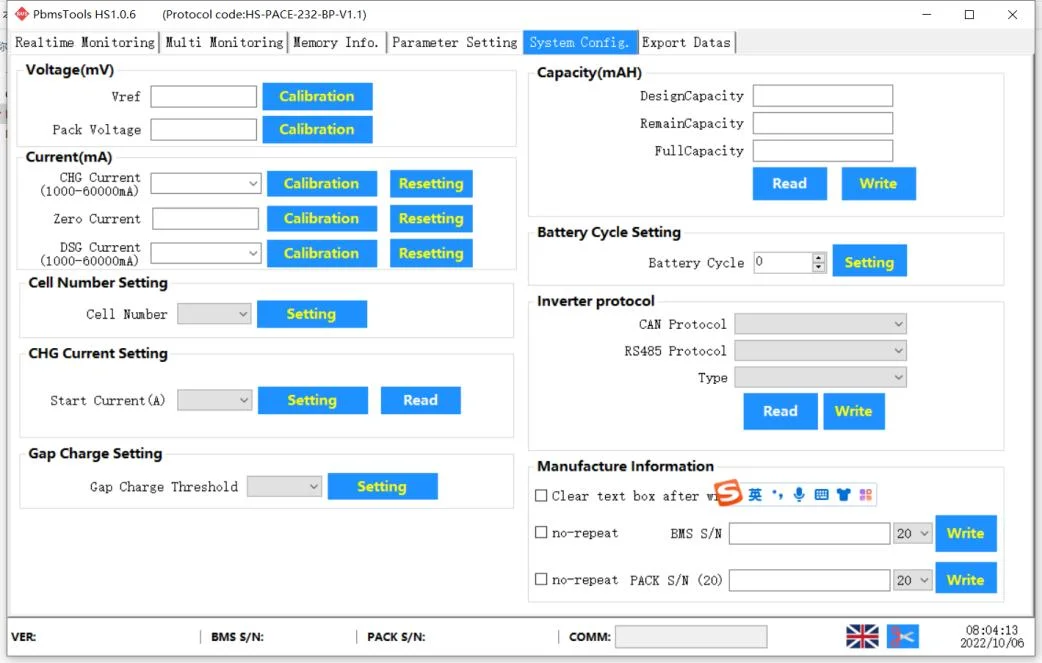

Support all in one smart communication function
● Our BMS is a complete set of communication functions, supporting RS485, RS232 and CAN-BUS communication protocols. We can also customize the communication content according to the omformation which customers provide.
● Customers can through the host computer software to monitor the batteries, and check the working status of each cells and set specific parameters on the computer.
● Customers can through the host computer software to monitor the batteries, and check the working status of each cells and set specific parameters on the computer.

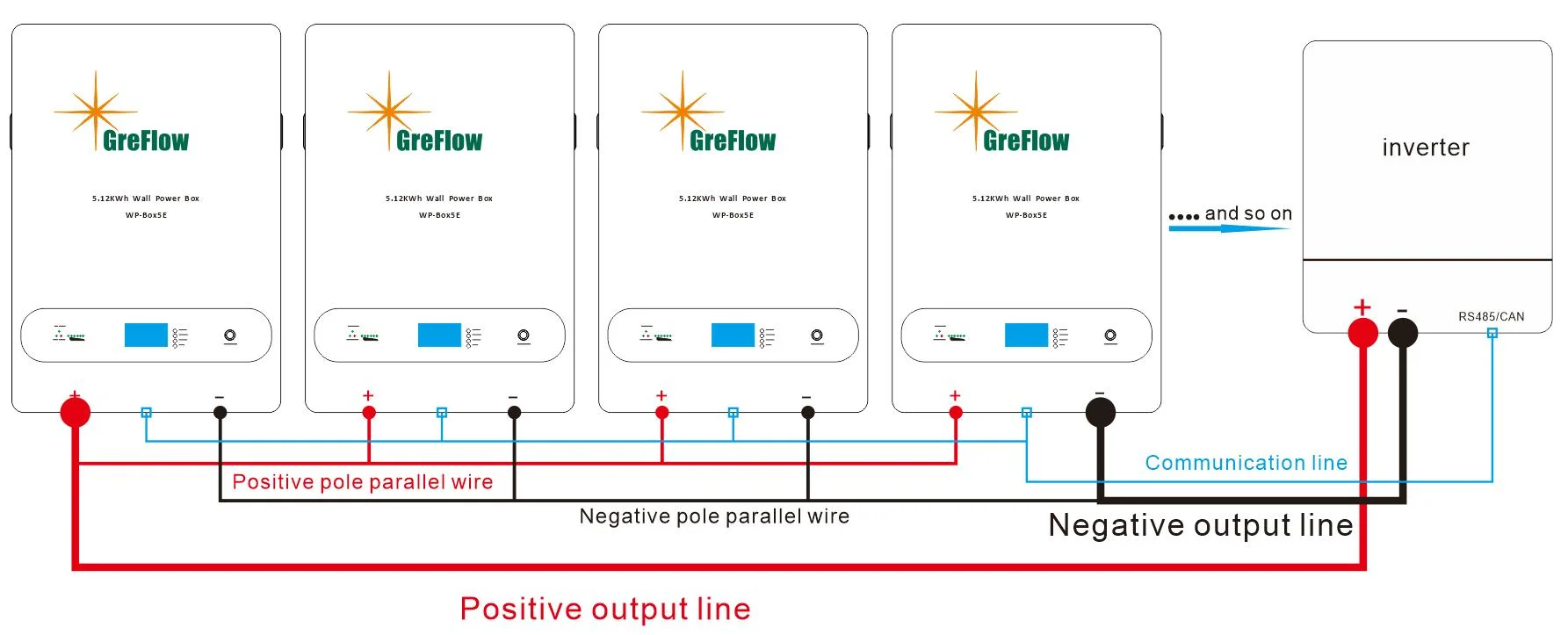

Drawing Of Parallel Connection
Supprt Max. 15 units in Parallels to get 150kwh.

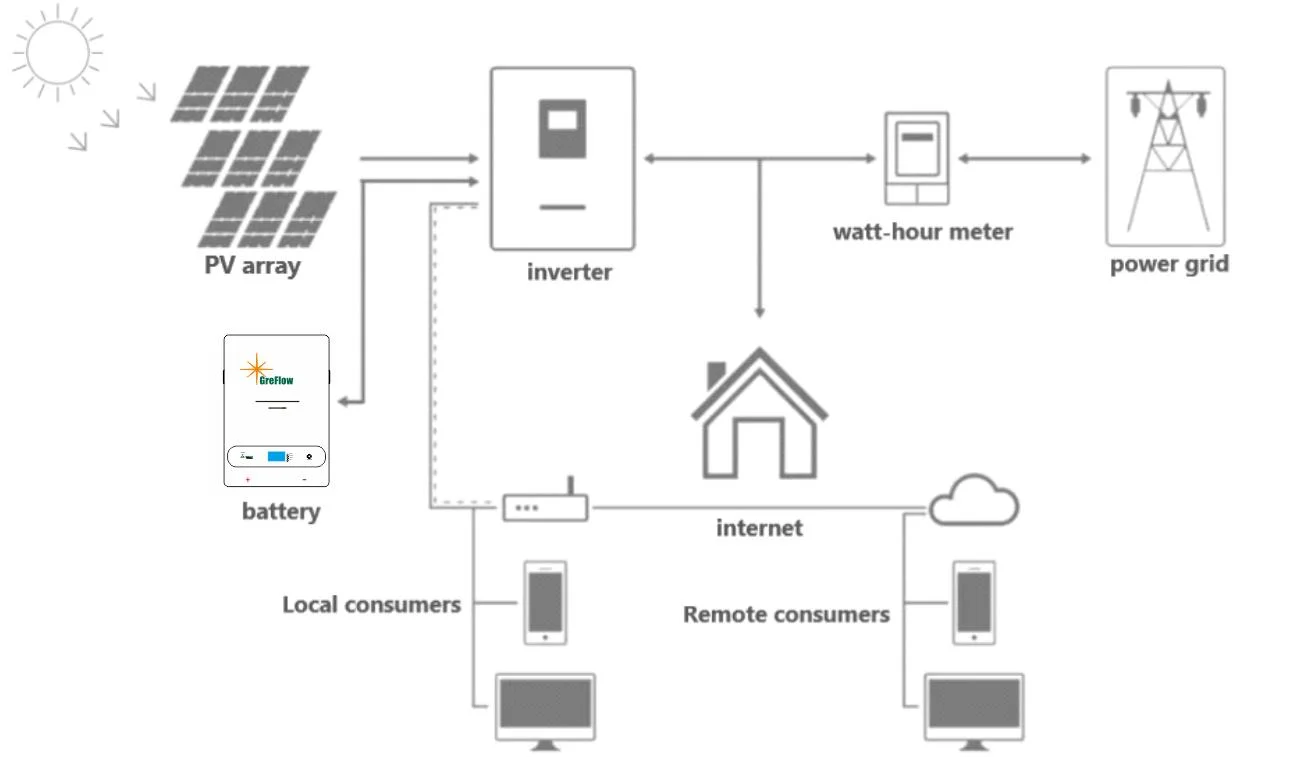

Solar PV System

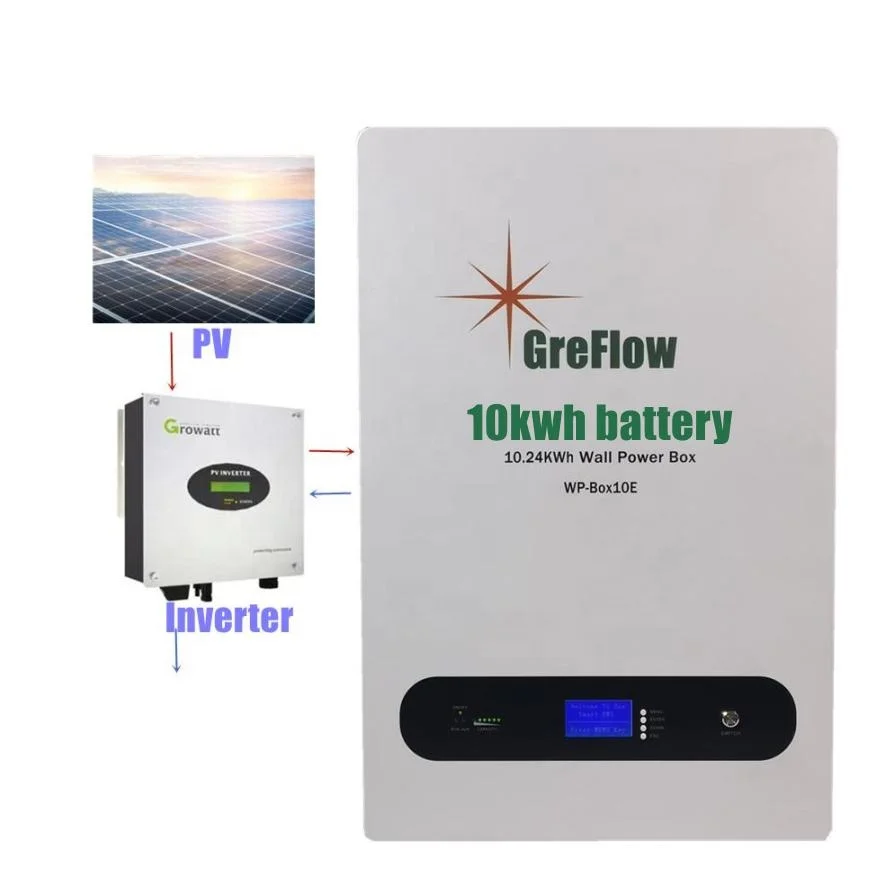

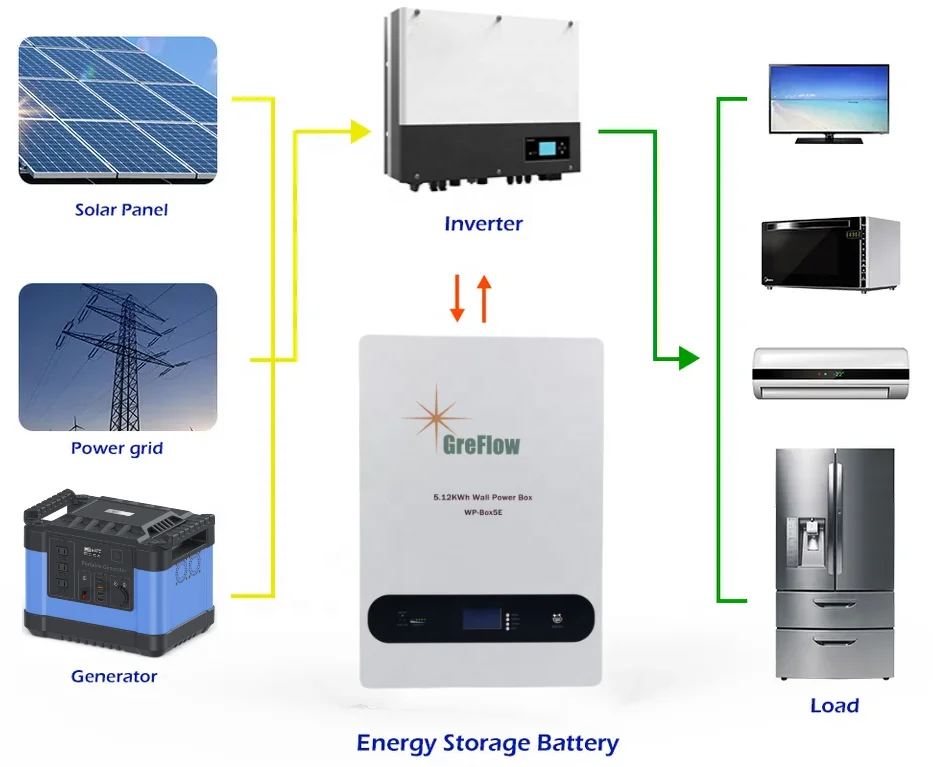

This product is mainly combined with inverter,photovoltaic(PV) and related accessories to build residential energy storage system.
Packing & Delivery

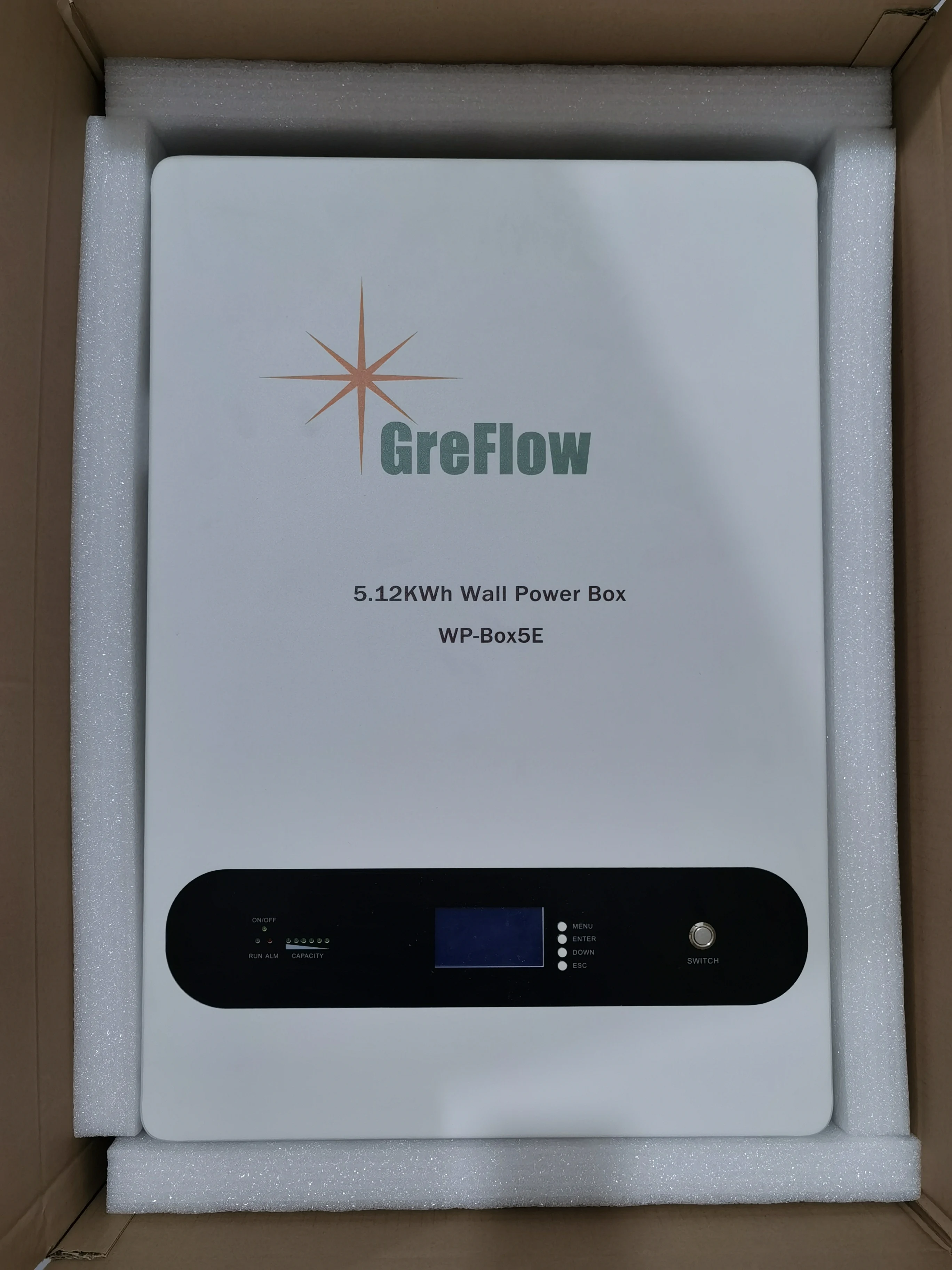

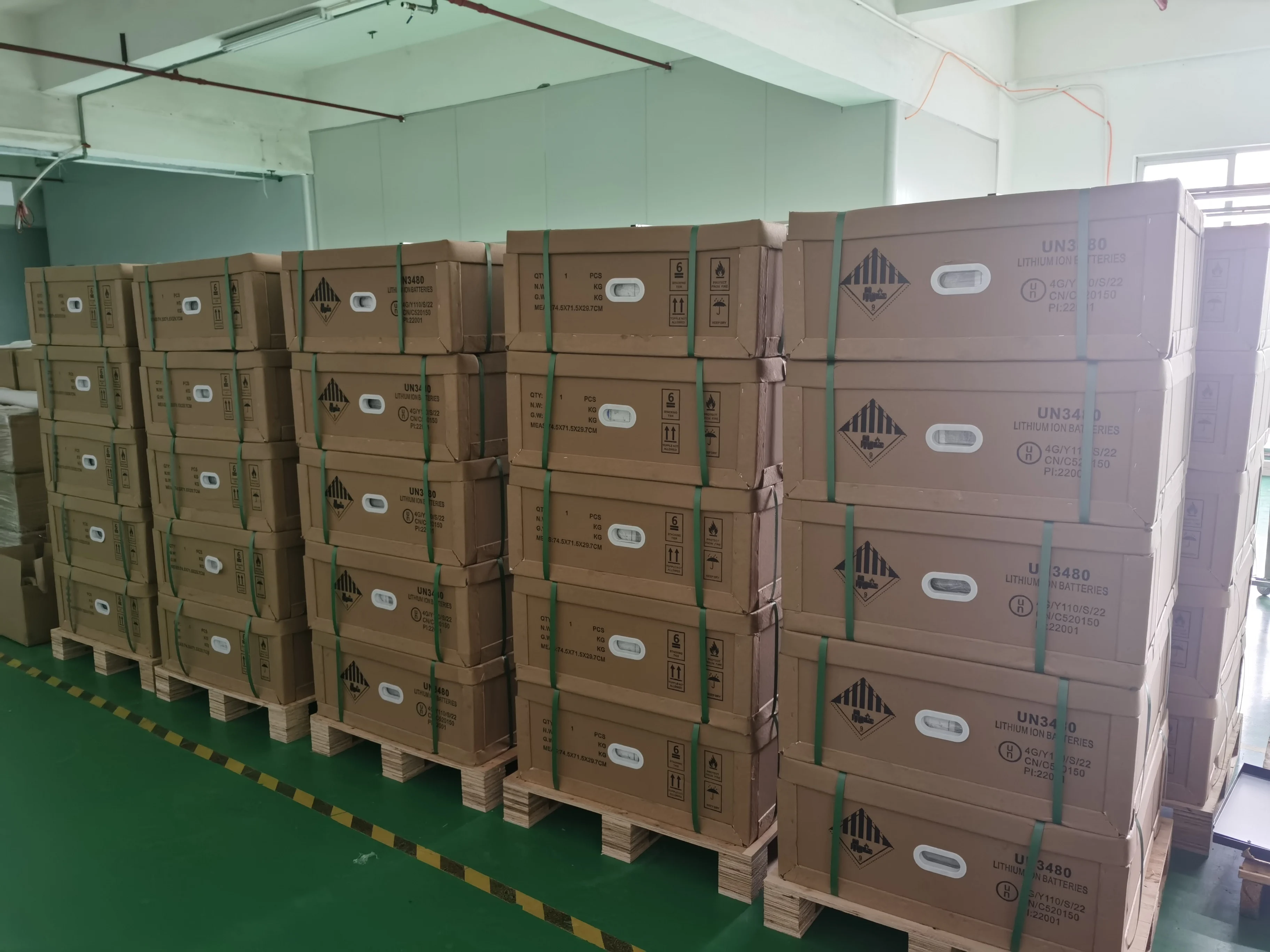

Packages for 10kw battery lifepo4 energy storage solar batterie
* Use UN3480 stanard export high hardness custom sponge to strengthen the battery* We will match the inverter well and aging test each battery pack before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
We can delivery DDP DAP CIF FOB terms by air ,Exress or Sea.
We also have EU and US stock for fast delivery to your hands directly.
We also have EU and US stock for fast delivery to your hands directly.
Features
Features For 10kw battery lifepo4 energy storage solar batterie
1. Smart. Each module is equipped with an independent BMS.
2. Easy installation. design simple bracket, just plug & play.
3. Safe. Apply for Lithium iron phosphate battery cell, no possibility to get fire.
4. Certifications. MSDS and UN38.3, CE in applying.
5. Modular. Modular expansion, support max 15pcs connection in paralles.
6. Longer lifetime. 6000 cycles, 15 years design life.
1. Smart. Each module is equipped with an independent BMS.
2. Easy installation. design simple bracket, just plug & play.
3. Safe. Apply for Lithium iron phosphate battery cell, no possibility to get fire.
4. Certifications. MSDS and UN38.3, CE in applying.
5. Modular. Modular expansion, support max 15pcs connection in paralles.
6. Longer lifetime. 6000 cycles, 15 years design life.
Company Profile
WE START MANUFACTURE AND EXPORT LITHIUM BATTERIES SINCE 2010
Shenzhen GreFlow Energy Co., Ltd. formerly known as Shenzhen GreFlow Energy Co., Limited., was established in 2010, which engages in the R&D, manufacturing, and services of green energy industry - LiFePo4 and Lithium ion battery. which stands first and foremost for high-quality products and outstanding customer service with over 10 years lithium battery manufacture and export experiences.
PRODUCTS RANGE AND APPLICATIONS
We research and development Lithium ion and LiFePo4 Batteries for solar energy storage system, and have product lines: wall mount 5Kwh/10Kwh storage battery, rack 10kwh/20Kwh/ 50Kwh/ 80Kwh storage battery cabinet, 500W, 1000W, 2000W, 3000W portable Power station, and deep cycle lithium battery replace lead acid battery. And we can OEM ODM produce lithium battery pack for electric vehicles, golf cart, RV, Boat, Truck according to customer’s requirement. And design solutions with customize BMS. At the same time, for we have good cooperation with the battery cell manufactures in China, we can supply CATL, CALB, EVE, LiSheng, REPT LiFePo4 prismatic cell, and BAK, EVE, DLG lithium cylindrical cell for customers who assembly battery pack.
BACKED BY WELL-TRAINED AND SKILLFUL TEAM
We have R&D department,Production department, Market department, Over 1/3 R&D engineer and sales person of Amazing Energy have over 5 years experience in Lithium battery industry. We are able to supply professional solution and suggestion for different applications. Make sure battery safety, high efficiency and utility for your programs. So far, We have established good cooperative relations with customers from more than 50 countries, Looking forward to building and possessing a wonderful future with you!
FAQ
Q：Can you guarantee Grade A new battery?
A： Of course, we will provide you with the latest Grade A battery, and we will have the original certificate and test data for
you.More detail just contact with me.
Q：How about the battery warranty？
A：Five Years & 6000 times（According to the operation manual）
Q：Can you accept OEM & ODM?
A： Yes, our team has been engaged in lithium battery work since 2010. We can provide pack consulting and customization work.
Q： Can I have a sample order?
A：Yes, we welcome sample order to test and check quality.
Q: How do you ship batteries?
A: We have EU and US stock for fast delivery as specific quantity.Also,if have big demand,we can ship by train/sea from China. It usually takes 20-25 days to arrive. Airline and sea shipping according to your needs.
A： Of course, we will provide you with the latest Grade A battery, and we will have the original certificate and test data for
you.More detail just contact with me.
Q：How about the battery warranty？
A：Five Years & 6000 times（According to the operation manual）
Q：Can you accept OEM & ODM?
A： Yes, our team has been engaged in lithium battery work since 2010. We can provide pack consulting and customization work.
Q： Can I have a sample order?
A：Yes, we welcome sample order to test and check quality.
Q: How do you ship batteries?
A: We have EU and US stock for fast delivery as specific quantity.Also,if have big demand,we can ship by train/sea from China. It usually takes 20-25 days to arrive. Airline and sea shipping according to your needs.
