Aluminum Window and Facade Automatic Corner Connector Cutting Saw Window and Door Making Machine
Aluminum Window and Facade Automatic Corner Connector Cutting Saw Window and Door Making Machine
Aluminum Window and Facade Automatic Corner Connector Cutting Saw Window and Door Making Machine
Aluminum Window and Facade Automatic Corner Connector Cutting Saw Window and Door Making Machine
Aluminum Window and Facade Automatic Corner Connector Cutting Saw Window and Door Making Machine
Aluminum Window and Facade Automatic Corner Connector Cutting Saw Window and Door Making Machine
Aluminum Window and Facade Automatic Corner Connector Cutting Saw Window and Door Making Machine

Aluminum Window and Facade Automatic Corner Connector Cutting Saw Window and Door Making Machine

Share on (1600734659378):


Price:$4,500.00 - $6,000.00

Quantity:


Product Overview

Description



Product Description

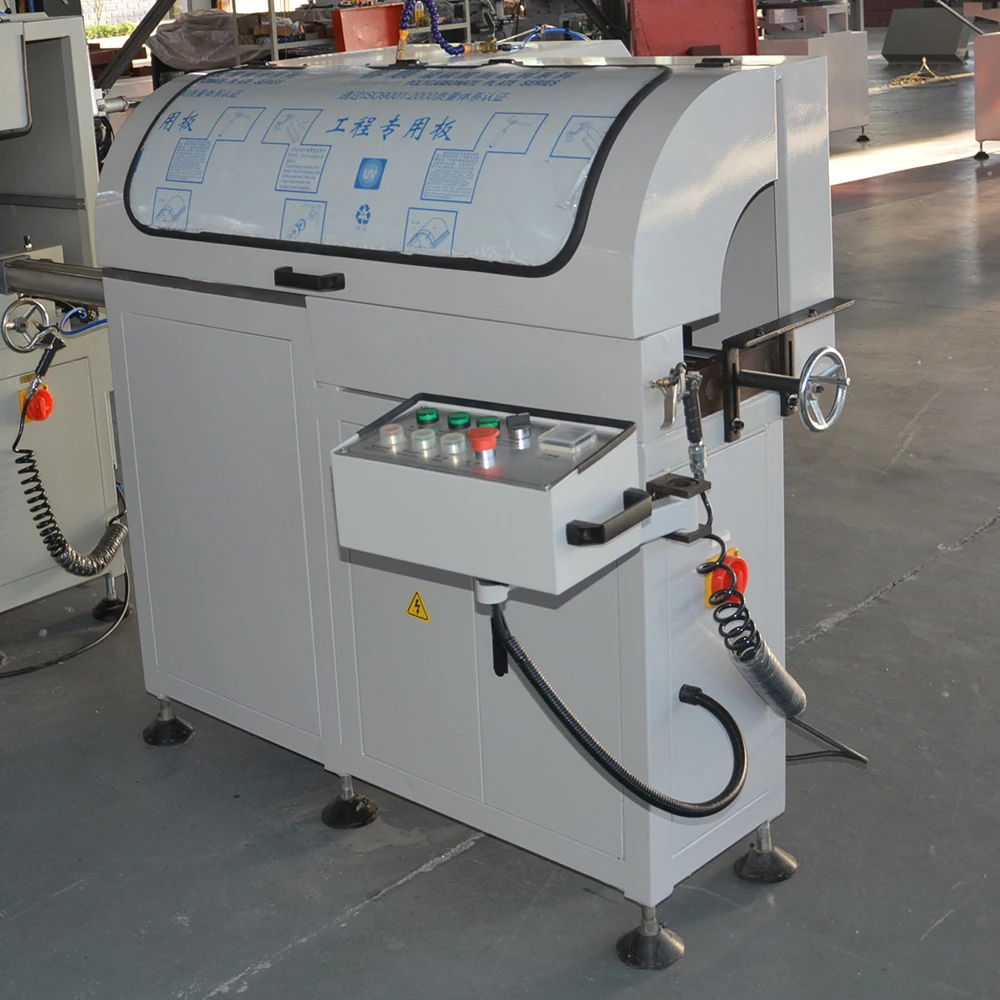

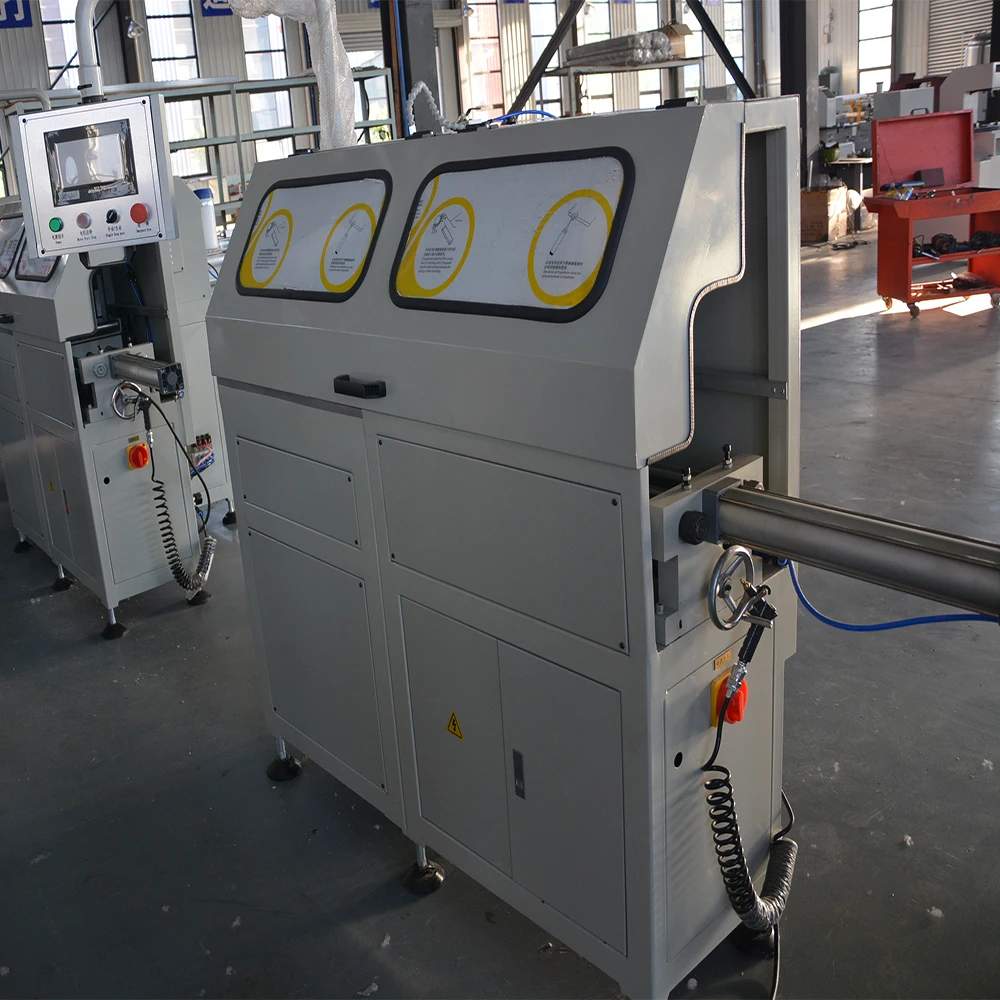

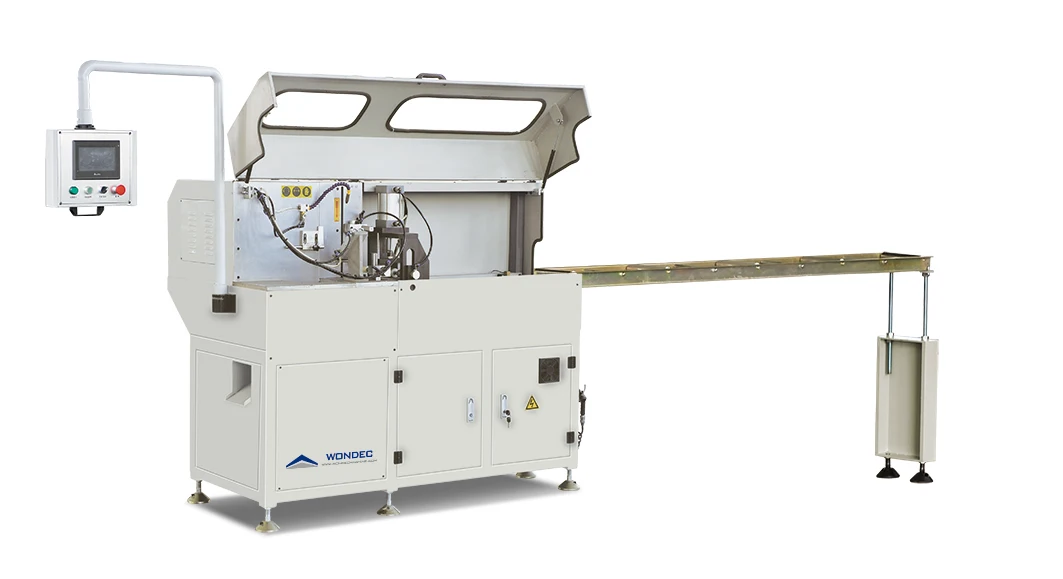

Aluminum Window and Facade CNC Corner Connector Saw

1.Be used to cut aluminium profiles and other aluminum material.
2.Price include a high quality profile supporting rack, length is 4m.
3.Print in the cutting size and cutting quantity, it work and stop automatically.
4.Automatic feeding.

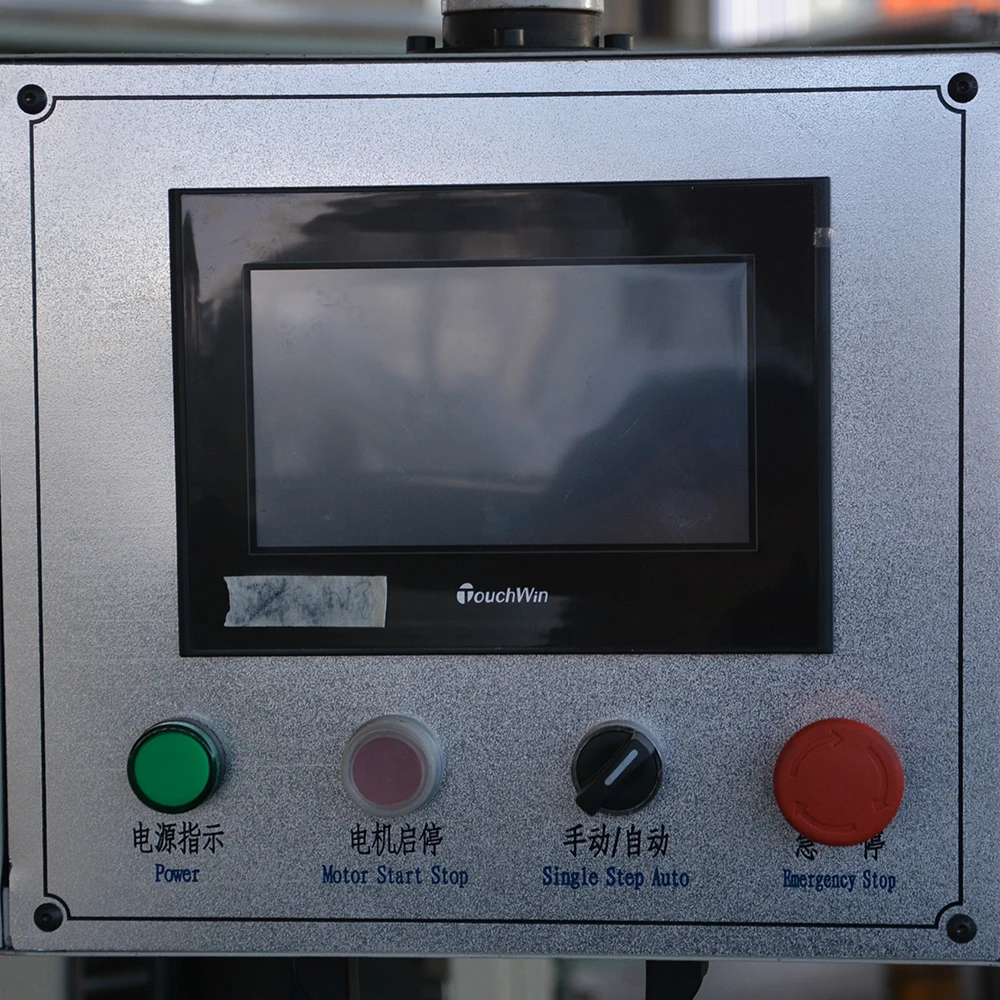

5.Imported control system.
6.Imported carbide saw blade.
7.Servo motor drive ball screw for automatic feeding system.
8.Imported linear guide pair be adopted.
9.Very suitable for mass production.





Specification






Main performance parameters
Input Power
kw
3.75
Power Supply
V/Hz
Customized
Air Pressure
Mpa
0.5~0.8
Motor Rotary Speed
r/min
2840
Saw Blade Specification
mm
φ 500x30x4.4
Cutter Height
mm
140
Cutting Width
mm
140
Feeding Speed
m/Min
0-3
          Auto Feeding Length
mm
                   3-580
Overall Diameter
mm
5470*1470*1840




Certifications




Packing & Delivery


Packaging
Size
2840 (L) * 1070 (W) * 1670 (D)
Weight
900 kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


Related Products






Why Choose Us






FAQ






Coopeartion partner


We insist on adopting international first-line brand accessories, and carry out strict quality inspection and screening on each accessory to fundamentally ensure product quality and users interests.




Packaging & Shipping


Packaging:
WONDEC always spray protective oil firstly, then plastic covering and stretch film package inside, to avoid rusting and dusting in long time sea voyage, and steel/wooden pallet or whole wooden box package outside.




Shipping:
Container loading in our factory, machines be fixed well in the container by our own workers, ensure machines be safe in each link.
Delivery time is about 15 days after down payment be received, and all details be confirmed well by both sides.
