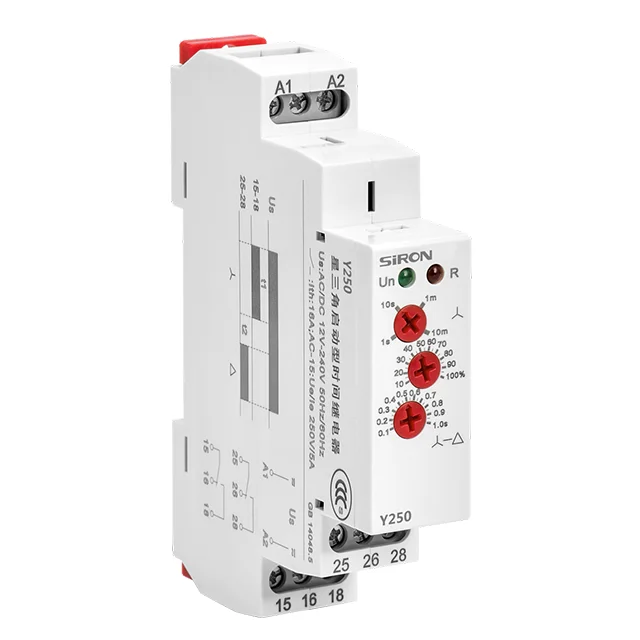

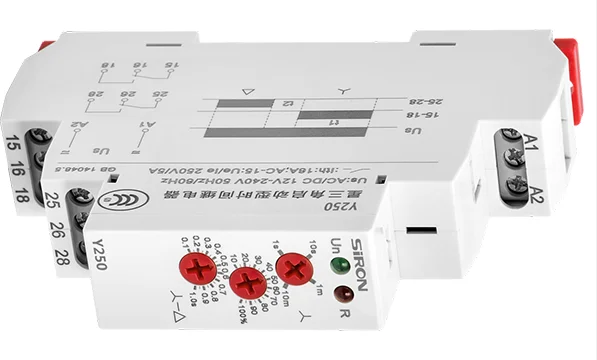

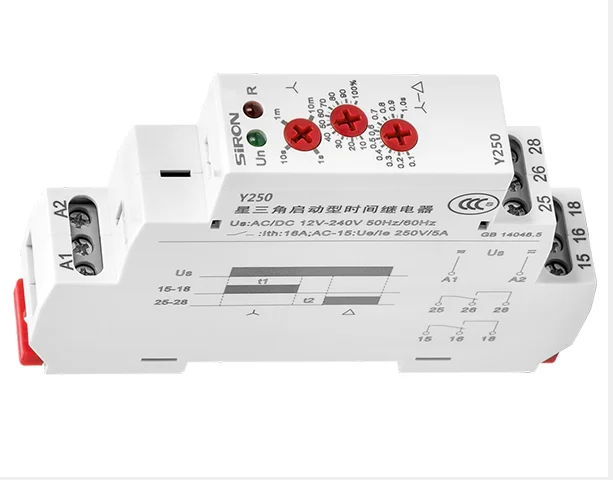

SiRON Y25 Delay On Motor Star Delta Starter Timer Relay
- Category: >>>
- Supplier: Shenzhen Siron Electrical Co. Ltd.
Share on (1600734682686):
Product Overview
Description
Our company's product categories are very rich
Features
* AC220, AC/DC12V-240V ultra wide operating voltage Specifications optional.
* Specially used for motor star triangle start control, can greatly simplify the electricityGas line,
convenient connection, reduce the cost.
* Specially used for motor star triangle start control, can greatly simplify the electricityGas line,
convenient connection, reduce the cost.
Product Parameters

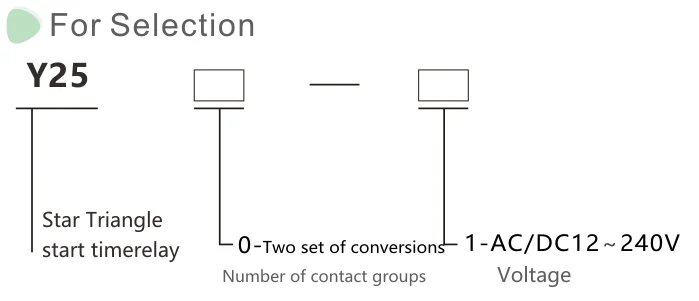

Model | Y250 | Y250-1 | |

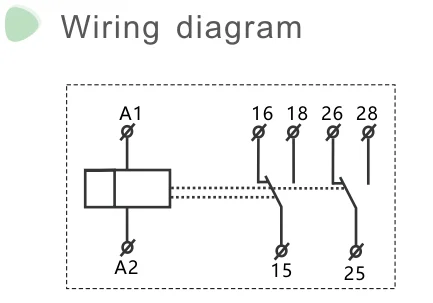

Output number of contact groups | Two sets of changeover contacts | ||
Output contact current | 2×16A(AC1) | ||
Output contact voltage | 250VAC/24VDC | ||
Rated control supply voltage | AC 220V(50-60Hz) | AC/DC 12-240V(50-60Hz) | |
Consumed power | ACmax.6VA/1.3W | AC 0.3-2VA/DC 0.1-1.2W | |
Power supply allowable fluctuation range | -15%；+10% | ||
Power indicator light | Green LED | ||

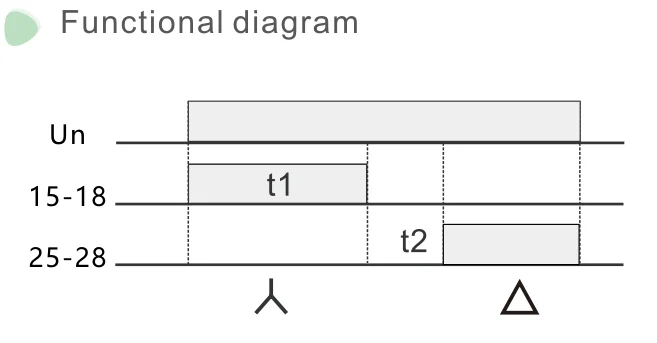

Delay range | Start-up delay: 0.1 second-10 minutes, conversion delay: 0.1 second-1 second | ||
Set way | Knob | ||
Setting precision | 10% | ||
Repeat accuracy | 0.2% | ||
Temperature fluctuation error | 0.05%/℃，at=20℃(0.05%℉,at=68℉) | ||
Minimum switching power | 500mW | ||
Output relay indication | Red LED | ||
Mechanical life | 1×107 | ||
Electrical life (resistive load) | 1×105 | ||
Reset the time | Max 200ms | ||
Operating environment temperature | -20℃～+55℃ | ||
Store and transport ambient temperatures | -35℃～+75℃ | ||
installation | 35mm rail installation | ||
Protection grade | IP20 | ||
Installation position | Arbitrary | ||
Installation altitude | ≤2000m | ||
Pollution levels | 2 | ||
Wiring ability | 1×2.5mm2or2×1.5mm2 0.4N.m | ||

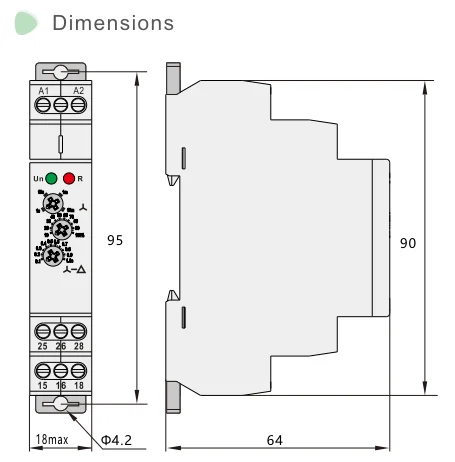

Overall dimensions | 90mm×18mm×64mm | ||
Conform to the standard | GB14048.5,IEC60947-5-1,EN61812-1 | ||
