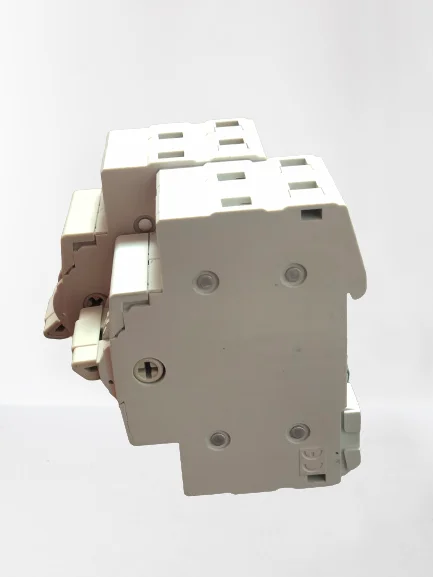

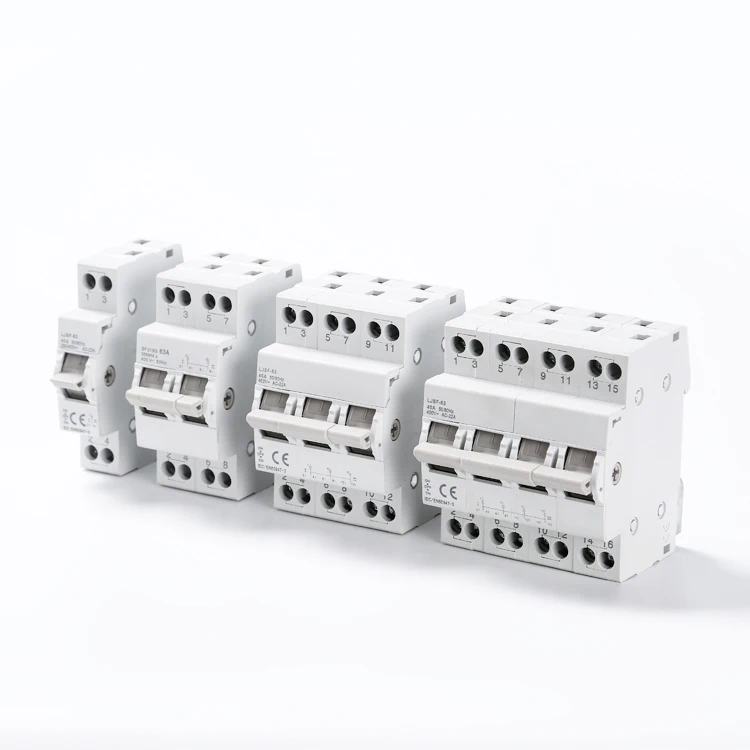

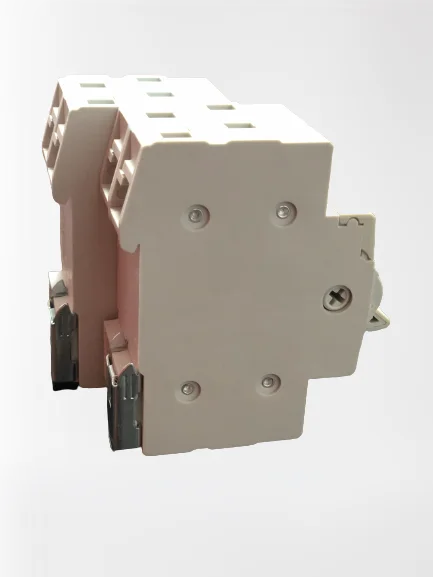

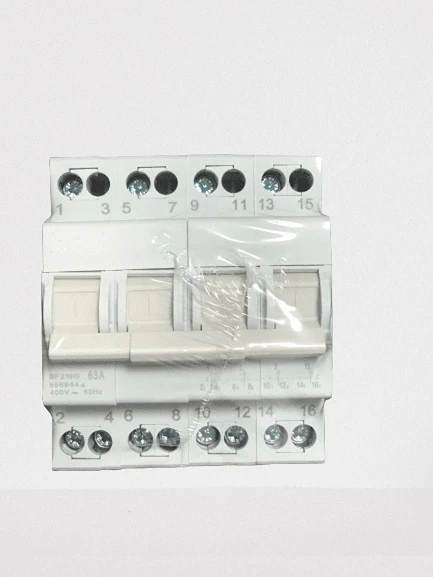

SF219G 2P 40A Din Rail Mounted Dual Power Conversion Isolation Switch MTS Manual Transfer Switch Changeover Switch 63A 80A
- Category: >>>
- Supplier: Wenzhou Ginri Power Automation Co. Ltd.
Share on (1600734703185):
Product Overview
Description
Product Description
Product Description
Handle with 3 stage:I-O-II
Changeover switch with zero position in middle
Modularized and Din Rail mounting
Function and Feature:
Rated Current(In): 6,10,16,20,25,32,40A,63A,80A
Rated Voltage(Un):230V/400V
Shell -grand Rated Current(In): 40A/63A/80A
Short-term Tolerance Rated Current:800A
Electrical endurance:10000 cycles
Mechanical endurance:20000 cycles
Numbers of Poles:1P,2P.3P.4P
Type of Terminal: Lug Type
Terminal Capacity: Cable up to 25m㎡
Width: 17.6mm/module
Life: Operating cycle number 10000, which contained 1,500 (operating frequency
for the 120 / h)
Use Category:AC-22
Protection Degree:IP20
Standards: IEC60947-3
Changeover switch with zero position in middle
Modularized and Din Rail mounting
Function and Feature:
Rated Current(In): 6,10,16,20,25,32,40A,63A,80A
Rated Voltage(Un):230V/400V
Shell -grand Rated Current(In): 40A/63A/80A
Short-term Tolerance Rated Current:800A
Electrical endurance:10000 cycles
Mechanical endurance:20000 cycles
Numbers of Poles:1P,2P.3P.4P
Type of Terminal: Lug Type
Terminal Capacity: Cable up to 25m㎡
Width: 17.6mm/module
Life: Operating cycle number 10000, which contained 1,500 (operating frequency
for the 120 / h)
Use Category:AC-22
Protection Degree:IP20
Standards: IEC60947-3
1P:: 12pcs/middle box; 240pcs/CTN.
2P: 6pcs/middle box;120pcs/CTN.
3P: 4pcs/middle box;80pcs/CTN.
4P: 3pcs/middle box;60pcs/CTN.
Base quotation is Neutral package. OEM design is acceptable.
3P: 4pcs/middle box;80pcs/CTN.
4P: 3pcs/middle box;60pcs/CTN.
Base quotation is Neutral package. OEM design is acceptable.
