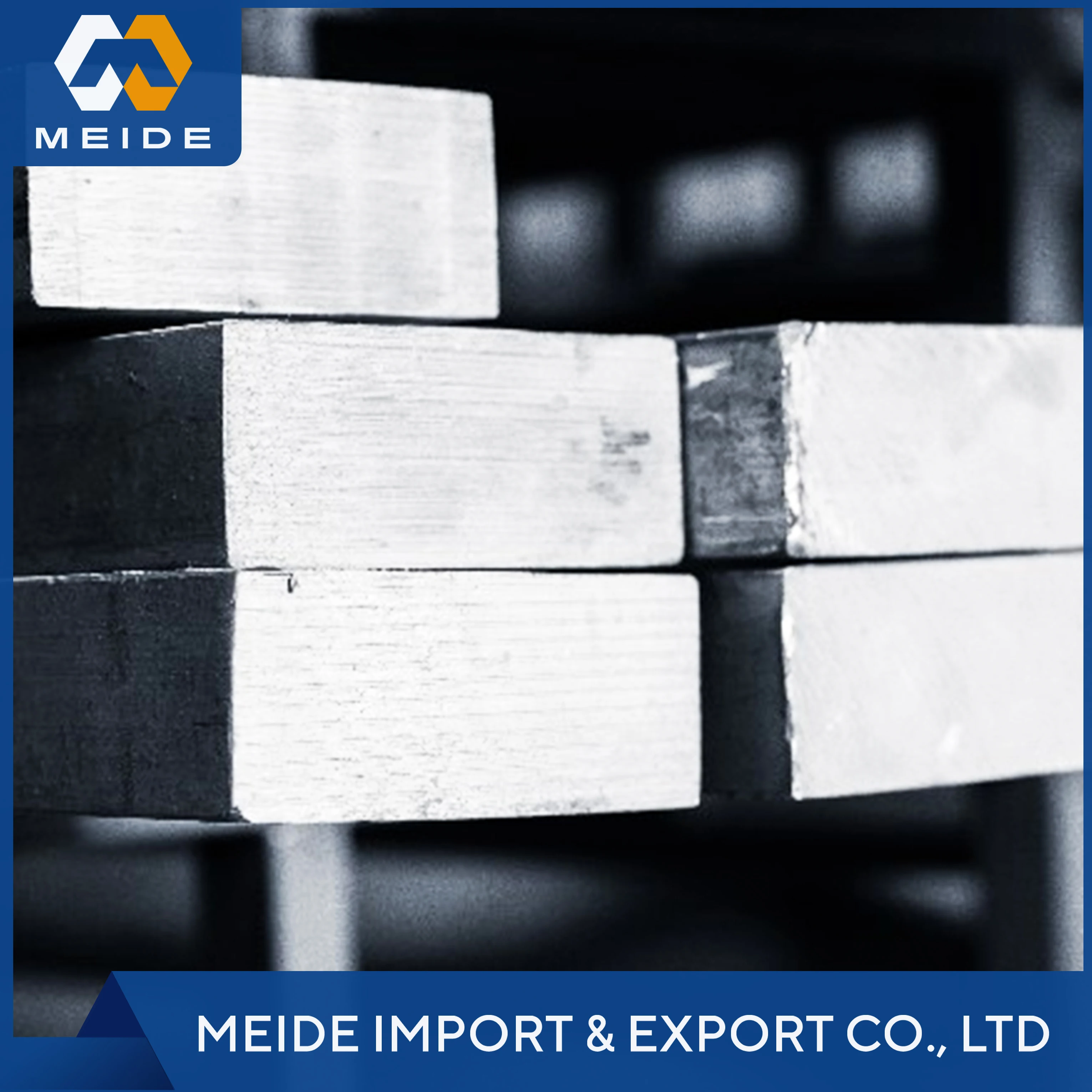

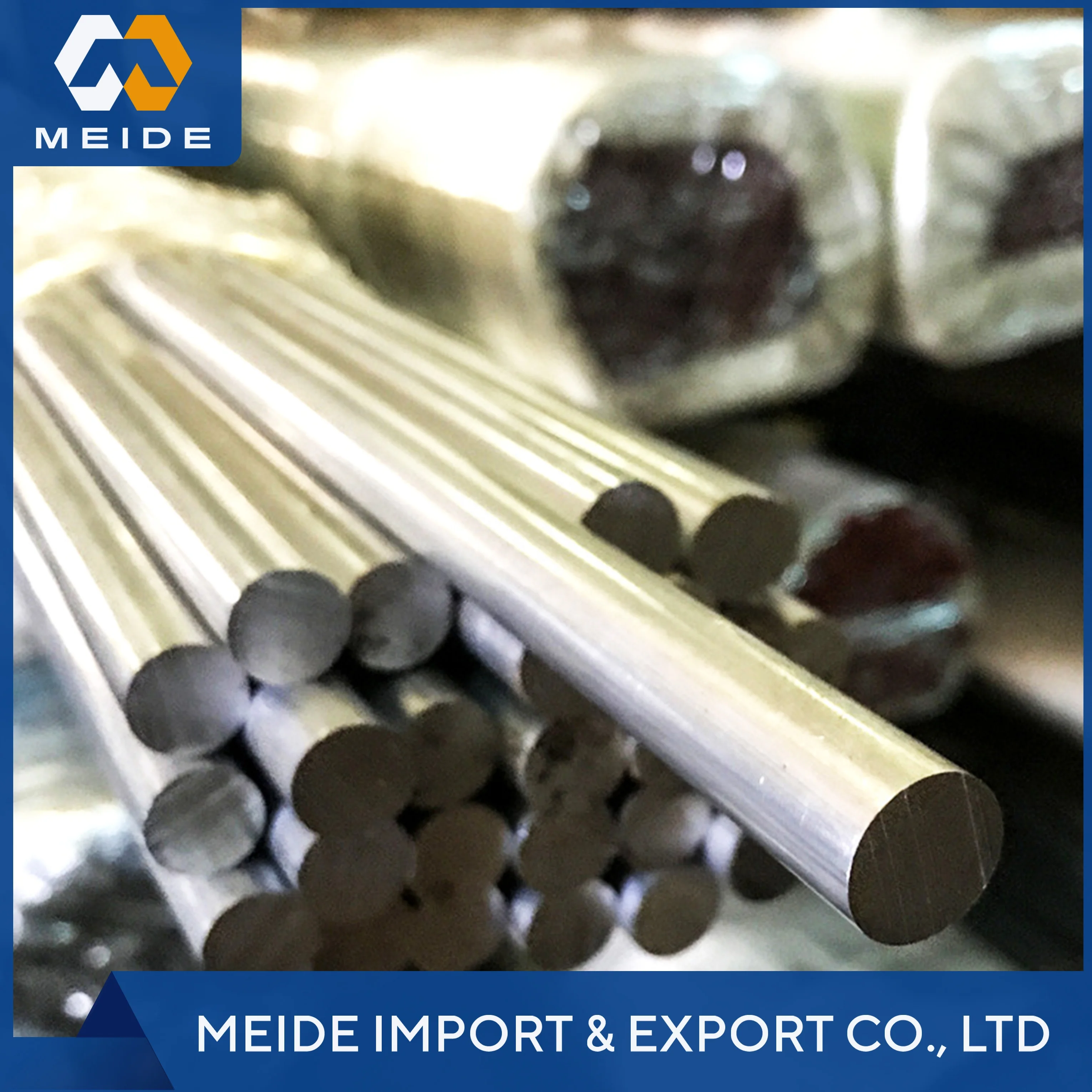

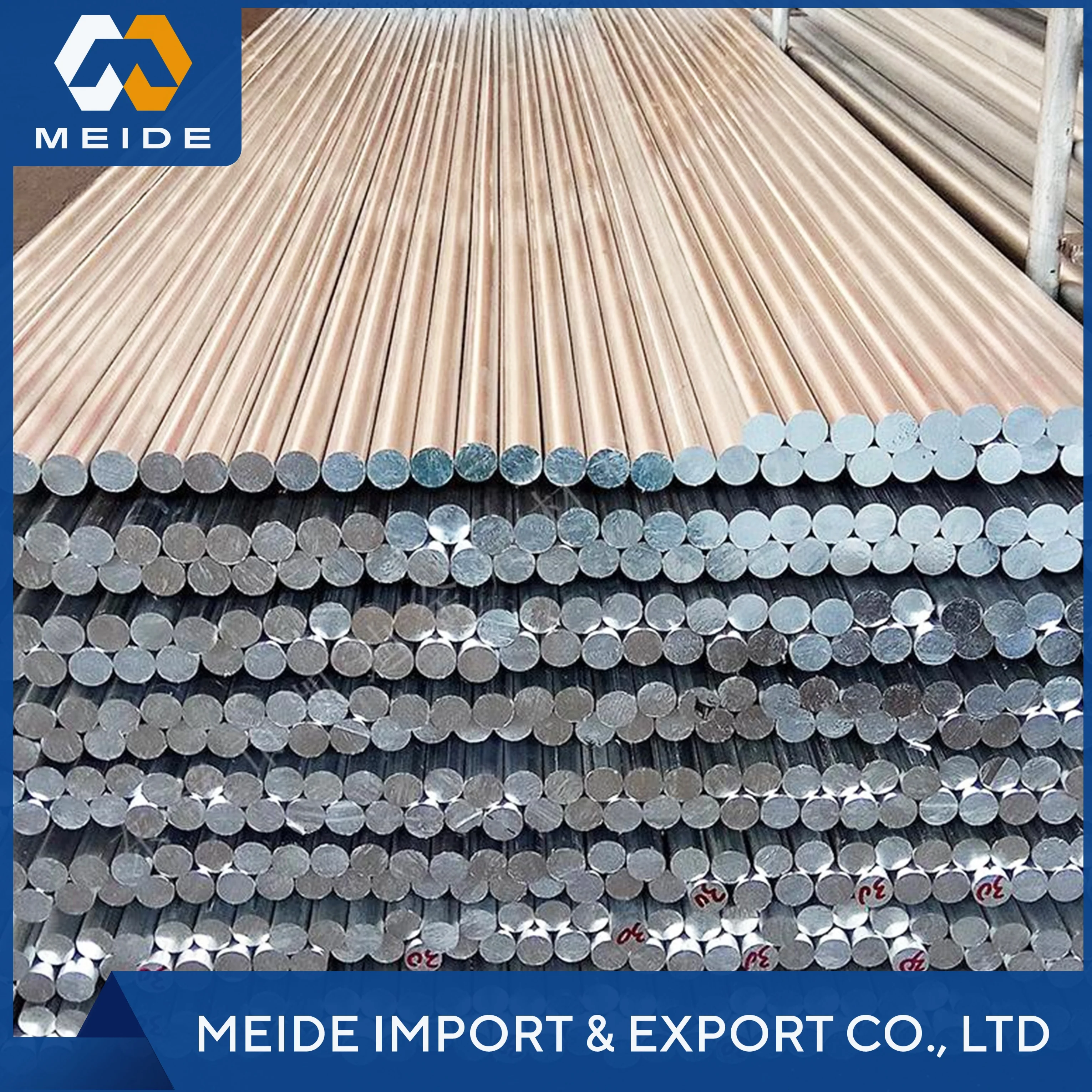

Алюминиевый стержень на заказ 5056 6082 7072 7075 с рельефной поверхностью 20 мм, алюминиевый стержень/стержень для отделки автомобиля
- Category: Aluminum Bars >>>
- Supplier: Shandong Meide Import And Export Co. Ltd.
Share on (1600734720294):
Product Overview
Description
Introduce

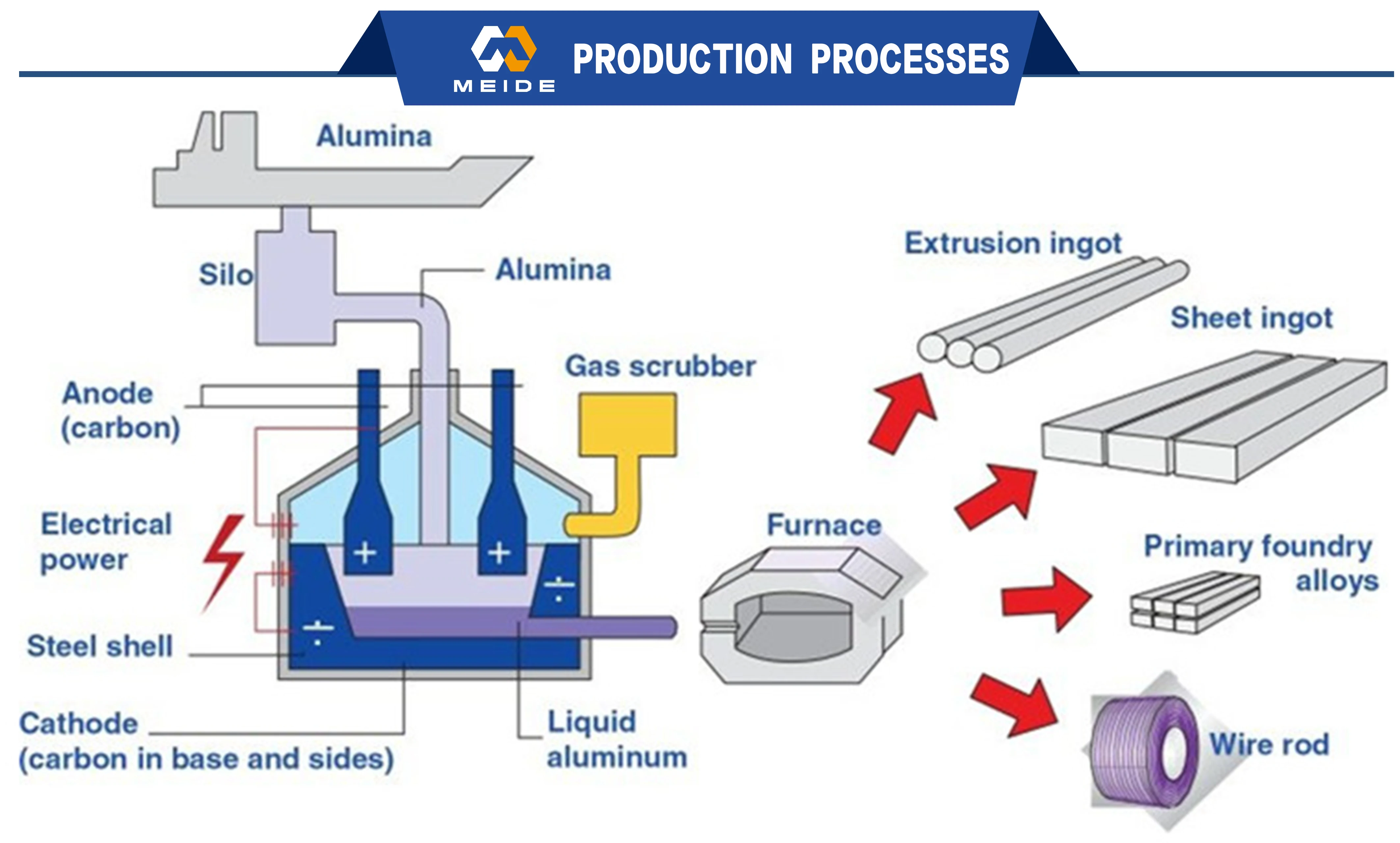

Aluminum rod/bar is a kind of aluminum products, aluminum rod casting includes melting, purification, impurity removal, degassing,slag removal and casting process.
Products Description
Item | Aluminum bar,aluminum round rod.Aluminum alloy rod ,Aluminum billet |
Standard | ASTM,JIS,SUS,DIN,GB,EN,etc. |
Material | 5056 6082 7072 7075,etc. |
Size | Diameter:3mm-800mm Length:1m-12m or as required. |

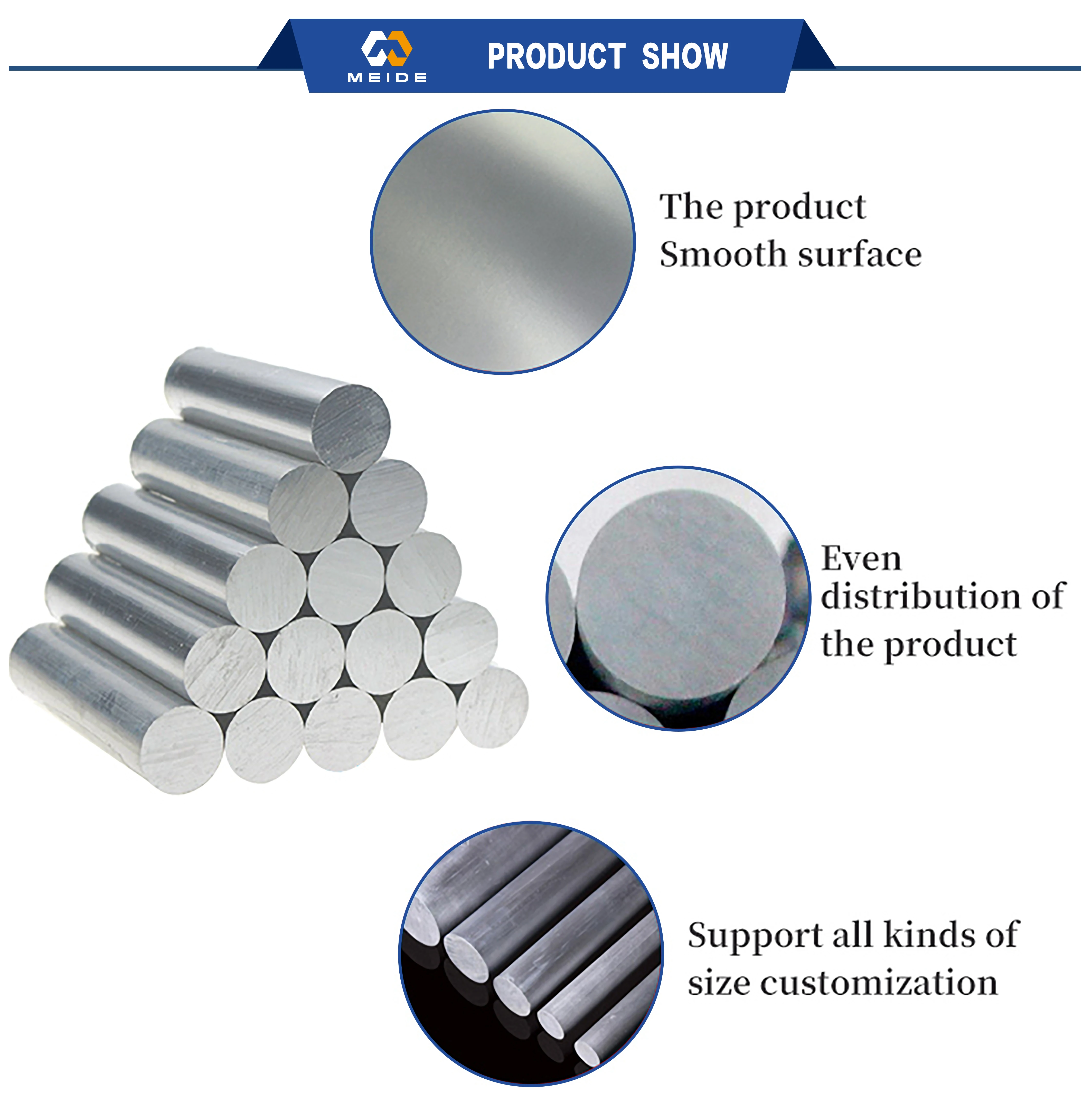

Surface | Anodizing,brush,sand blast,powder coating,polished, mill,polished,etc. |
Export to | America,Australia,Brazil,Canada,Peru,IranIndia,France, Spain,Thailand,Korea,Arab,United Kingdom,etc. |

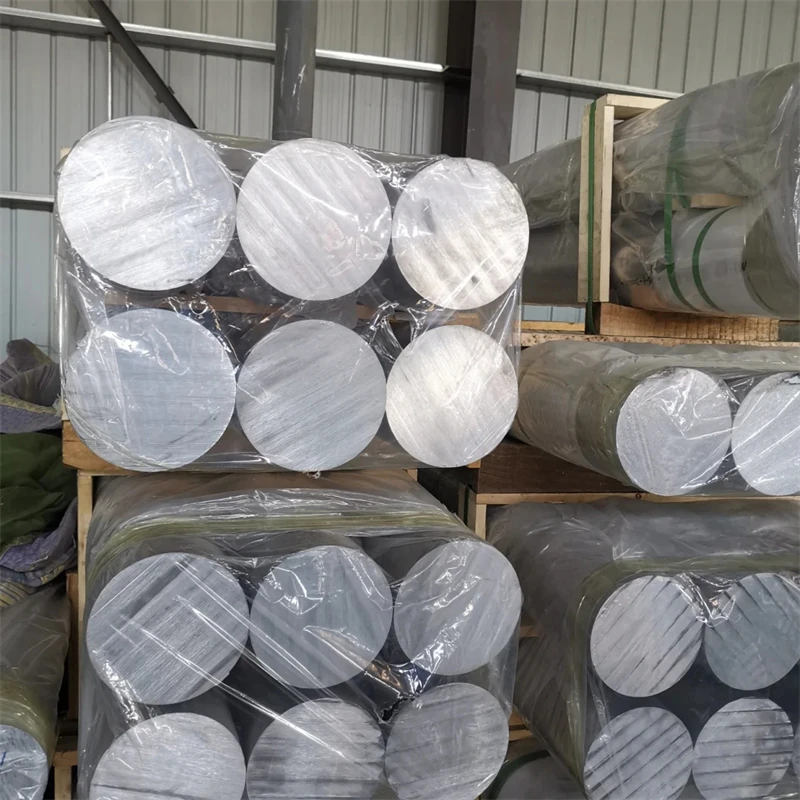

Package | Standard export package,suit for all kinds of transportation, or as customer's requirement. |
Container size | 20ft GP:5898mm(Length)*2352mm(Width)*2393mm(High) 40ft GP:12032mm(Length)*2352mm(Width)*2393mm(High) 40ft HC:12032mm(Length)*2352mm(Width)*2393mm(High) |
Contact | If you have any question,please feel free to contact me We promise your inquiry or requirements will get prompt attention. |
Chemical composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 99.5 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | — | 0.05 | 0.03 | 99.6 |
1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | — | 0.04 | 0.03 | 99.7 |
1235 | ≤0.55 | ≤0.55 | 0.05 | 0.05 | — | 0.05 | 0.1 | 0.06 | Rem. |
3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | Rem. |
3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | — | 0.25 | — | Rem. |
3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.20-0.6 | 0.1 | 0.25 | 0.1 | Rem. |
5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | Rem. |
5083 | ≤0.40 | 0-0.4 | ≤0.10 | 0.40～1.0 | 4.0～4.9 | 0.05-0.25 | ≤0.25 | ≤0.15 | Rem. |
5056 | ≤0.30 | 0.0-0.4 | ≤0.10 | 0.05-0.20 | 4.5-5.6 | 0.05-0.20 | ≤0.10 | — | Rem. |
6082 | 0.7-1.3 | 0.5 | 0.10 | 0.4-1.0 | 0.6-1.2 | 0.25 | 0.25 | 0.25 | Rem. |
7072 | 0.40 | 0.50 | 1.2-2.0 | 0.30 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.20 | Rem. |
7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | Rem. |
Mechanical properties
Alloy | Temper | Tensile Strength | Yield Strength | Elongation (%) | Tensile Strength | Yield Strength | ||
(ksi) | (ksi) | 0.01-0.05 in | 0.051-0.125 in | (MPa) | (MPa) | |||
1100 | H12 | 16 | 15 | 4 | 12 | 110.3 | 103.4 | |
H14 | 18 | 17 | 3 | 10 | 124.1 | 117.2 | ||
3003 | H12 | 19 | 18 | 9 | 11 | 131 | 124.1 | |
H14 | 22 | 21 | 3 | 7 | 151.7 | 144.8 | ||
3004 | H32 | 31 | 25 | 6 | 15 | 213.7 | 172.4 | |
H34 | 35 | 29 | 5 | 10 | 241.3 | 199.9 | ||
3005 | H12 | 26 | 24 | 5 | 13 | 179.3 | 165.5 | |
H14 | 29 | 28 | 4 | 9 | 199.9 | 193.1 | ||
5005 | H12 | 20 | 19 | 5 | 9 | 137.9 | 131 | |
H14 | 23 | 22 | 4 | 7 | 158.6 | 151.7 | ||
5052 | H32 | 33 | 28 | 7 | 10 | 227.5 | 193.1 | |
H34 | 38 | 31 | 6 | 8 | 262 | 213.7 | ||
5056 | O | 42 | 22 | 23 | 24 | 289.6 | 151.7 | |
H38 | 60 | 50 | 6 | 13 | 413.7 | 344.7 | ||
6061 | T4 | 35 | 21 | 22 | 24 | 241.3 | 144.8 | |
T6 | 45 | 40 | 12 | 17 | 310.3 | 275.8 | ||
7075 | O | 33 | 15 | 16 | 18 | 227.5 | 103.4 | |
T6 | 83 | 73 | 11 | 12 | 572.3 | 503.3 | ||
Aluminum bar/rod can be widely used as aircraft structure, rivers,missile components,truck wheel,screw elements or other various structures.
FAQ
Q: Do you provide free samples?
A: Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.
Q:Do you accept small orders?
A:You don't need to worry about this problem, just consult
A: Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.
Q:Do you accept small orders?
A:You don't need to worry about this problem, just consult
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
Q:What are the advantages of your company?
A: Yes absolutely we accept.
Q:What are the advantages of your company?
(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
Q:How can we get your price ?
A. We need below information to quote for you:
1. Product Name
2. Standard
3. Material Grade (Chemical Composition)
4. Dimension
5. Quantity
6. The Drawing for Special Parts
A. We need below information to quote for you:
1. Product Name
2. Standard
3. Material Grade (Chemical Composition)
4. Dimension
5. Quantity
6. The Drawing for Special Parts
