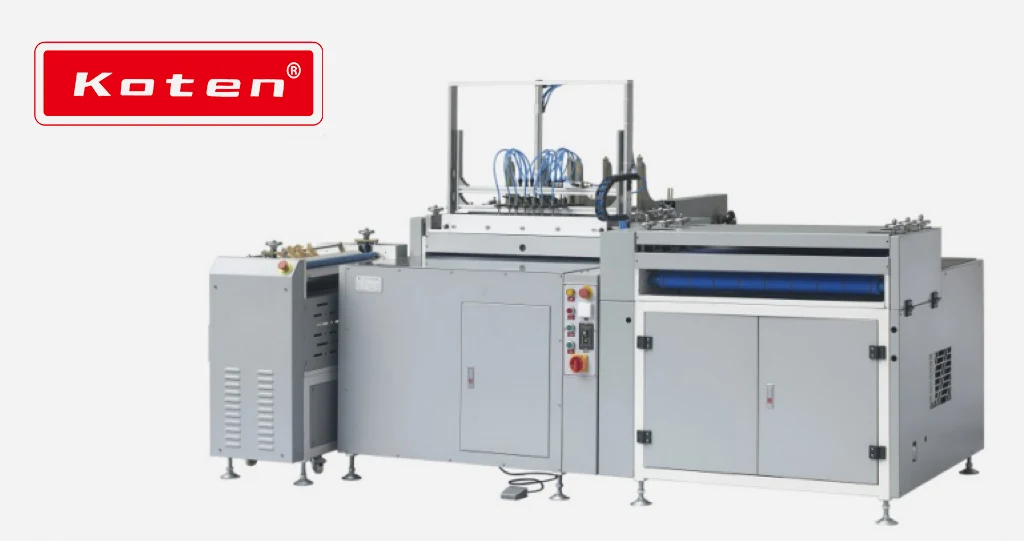

Automatic Hard Cover Book Making Machine
- Category: >>>
- Supplier: Ruian Koten Machinery Co. Ltd.
Share on (1600734735186):
Product Overview
Description
Product Description
This machine is appiled in covering and pressing various notebooks, photo books(photo album), folders, certificates, hardcoverbooks.
This process is finished easily at twice on both sides at the same time by one operator. It is the good partner of
post-press,especially the digital post-press.
This process is finished easily at twice on both sides at the same time by one operator. It is the good partner of
post-press,especially the digital post-press.
Features
1.Adopting PLC operating system.
2.Use hot glue (animal glue / Jelly glue), cold glue.
3.Replace products, fast adjustment speed, control the thickness of the cardboard automatically.
4.Adjust the size by rotating the handle wheel.
Parameters
Model | 800-SA | 900-SA |
Power Supply | 380V/50HZ | 380V/50HZ |
Mainframe Power | 7.5KW | 7.5KW |
WorkSpeed | 5-10PCS/minute | 5-10PCS/minute |
Case Size(max) | 750 x450mm | 850 x450mm |
CaseSize(min) | 140 x 140mm | 140 x 140mm |
Machine Dimension (L*W*H) | 3000 x 1620 x 1600mm | 3200 x 1620 x 1600mm |
PaperThickness | 80-175g | 80-175g |
Machine Weight | 1000kg | 1200kg |
Application
