  • MiWi S 400 24 factory direct price 220V 230V AC to DC 24V 400w power supply
MiWi S 400 24 factory direct price 220V 230V AC to DC 24V 400w power supply
MiWi S-400-24 factory direct price 220V 230V AC to DC 24V 400w power supply
MiWi S-400-24 factory direct price 220V 230V AC to DC 24V 400w power supply
MiWi S-400-24 factory direct price 220V 230V AC to DC 24V 400w power supply
MiWi S-400-24 factory direct price 220V 230V AC to DC 24V 400w power supply

MiWi S 400 24 factory direct price 220V 230V AC to DC 24V 400w power supply

Share on (1600734773249):


Price:$12.80 - $13.00

Quantity:


Product Overview

Description


You are here:Home>>Single Output Series>>S Series


-mini size.png



Product Description

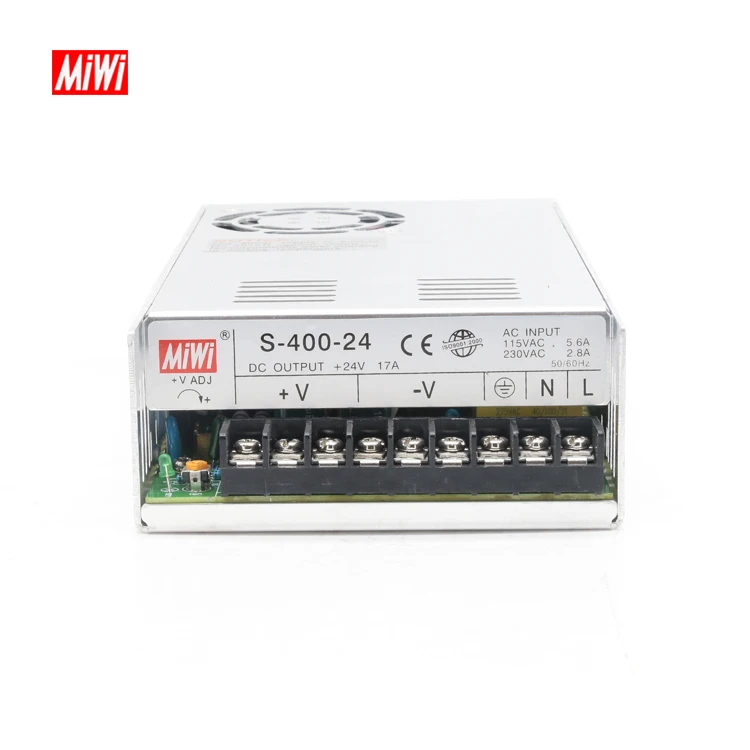

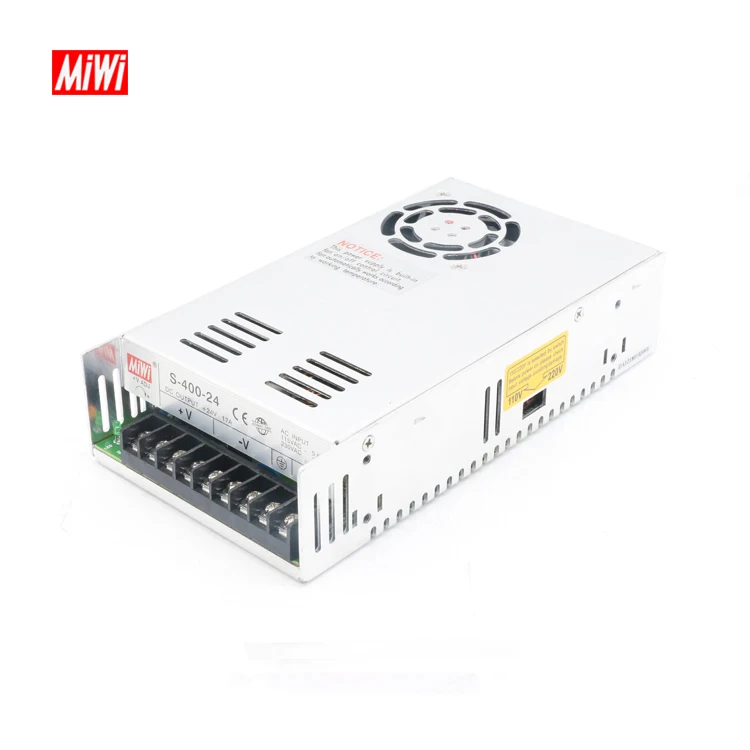

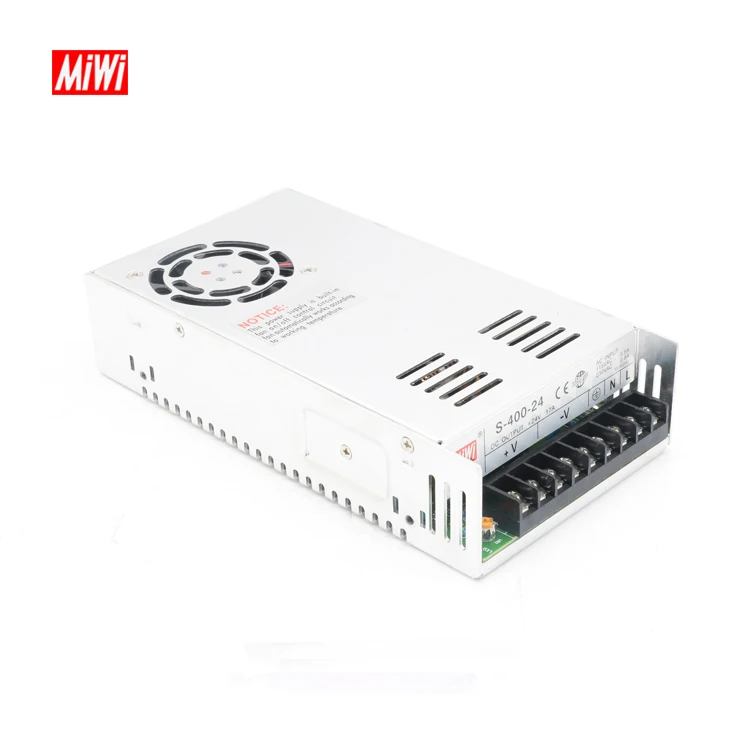

 MiWi S-400-24 factory direct price 220V 230V AC to DC 24V 400w power supply



  • AC input voltage range selected by switch

  • Built-in cooling DC fan

  • Small volume, low weight, high efficiency

  • Cooling fan ON-OFF auto control

  • 100% full load burn-in test

  • LED indicator for power on

  • 1 Year warranty

  • Protections: short circuit/over load/over voltage/over temp





























































































































































































ModelS-400-5S-400-12S-400-13.5S-400-15S-400-24S-400-36S-400-48
OutputDC voltage5V12V13.5V15V24V36V48V

Voltage


tolerance


±2%±1%±1%±1%±1%±1%±1%
Rated current60A33A28A27A16.5A11A8.3A
Current range0~60A0~33A0-28A0~27A0~16.5A0~11A0~8.3A
Rated power300W396W348.3W405W396W396W398.4W
Ripple&noise100mvp-p150mvp-p150mvp-p150mvp-p150mvp-p180mvp-p200mvp-p

DCvoltage


ADJ.range


-9%~+10%±10%-12%,+11%±10%±10%±10%±10%
InputVoltage range90~132VAC/180~264VAC(selected by switch), 255~373VDC
Frequency47~63Hz
AC current7.5A/115VAC, 4.5A/230VAC
Efficiency78%80%79%80%82%82%83%
Inrush currentcold start current 30A/115VAC, 60A/230VAC
Leakage current< 3.5mA/240VAC
ProtectionOverloadabove 105%~135% rated power
protection type: rated current limit, auto-recovery after fault condition is removed
Over voltage6.8~8.2V15.6~17.8V15.5~18.2V18.6~20.8V30.6~33.2V42.6~44.2V54.8~56.6V
protection type: hiccup mode, auto-recovery after fault condition is removed
Over temperature≥55°Cfan on, ≤50°Cfan off, ≥85°C shutdoff O/P
protection mode: cutoff output, auto-recovery after temperature goed down
Environment

Working


temp,humidity


-10°C~+60°C, 20%~90%RH

Storagetemp,


humidity


-20°C~+85°C, 10%~95%RH non-condensing

Withstand


vibration


10~500Hz, 2G 10min/1cycle, period for 60 minutes, each axes
Safety

Withstand


voltage


I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

Isolated


resistance


I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC
FitstandardSafety standardCE
EMC standardmeet EN55022, CLASS A
OthersDimension215*115*50mm (L*W*H)
Weight/packing1.0kg/24pcs/25kg/0.049 m³/1.72CUFT
Note

1. All parameters NOT specially mentioned are measured at 230VAC input,


rated load and 25°C of ambient temperature.


2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.


3. Tolerance: includes set up tolerance, line regulation and load regulation.



  >>>Click to get the latest price & catalogue<<<







Application







Main Product





















Trade Assurance







About Us


Company Profile






  • YUEQING MINGWEI LELECTRIC CO., LTD is specialized in design, development, production and sales as one of the company. Established in 2002, the existing workshop area 4000 YuPing meters, with professional and technical personnel, senior engineer.

  • The company has regular products. Series: botton siwtch,Sudden stop lamp,switch power supply, water supply, rainproof, three-phasepower supply slideway,medical equipment for power supply, etc.

  • The company has passed ISO9001 certification system. Series of products designed
    to meet us UL1012, Germany TUVEN60950, EMCLVD ec UL1950,IEC950,international
    standards. Part of the product certification, and obtain ec ROMS authentication. Products with high quality imported components, advanced production technology, perfect testing equipment, casts out mingwell quality products.

  • Company product best-selling domestic cities, and exported to southeast Asia, Europe and other countries.


9.png10 (2).png12.png





Packaging & Shipping


Packaging Details: Standard corrugated carton or customized as you requested.
Delivery Detail: 1~25 days depend on your quantity.







FAQ





Yueqing Mingwei Electric Co., Ltd.


 We sincerely welcome more friends to cooperate with us.








Q1:Are you a factory or trading company ?
 A1:We are the real manufacturer which focus on power supply & push button switch since 2002,but   not  the trading factory for different kind of product.


Q2: What's your Lead time?


A2:The delivery time is 1~25 days which depend on detail item and quantity.


Q3: What kind of payment term do you accpet?


A3:T/T,L/C,Paypal,Western Union,MoneyGram,Escrow,O/A.


Q4: What’s your warranty terms?


A4: We offer 2 years warranty time .


Q5: Do you accept OEM?


A5: Yes.


Q6: Can we be your distributor?


A6: Yes,if your annuals sales much more than our other customers in your market that you can be our distributor.
