Factory price Couscous pepper powder chili pepper powder packing machine for haldi powder
- Category: >>>
- Supplier: Guangzhou Xinlongtai Machinery Co. Ltd
Share on (1600734795018):
Product Overview
Description
Specification
Working capacity | 3-5CBM/H (flour) |
Product hopper | 180L or 330L |
Power | 3P 380V |
Main power | 2.2-4KW |
Hopper size | 1100X850x850mm (180L) 1100×1500×1500mm (300L) |
Product discharge height | 2400mm（this height can do according to your need） |
Detail description:
Suit for milk, white sugar, flour and other small granule products.
Use 2 motors, one for sending the products up, one for vibrating the products from the material hopper, each separated controlled. The material hopper vibrating can adjustable, and it is easy to assemble and disassemble.
To easy clean the product waste, the auger screw can reversal screw out the waste, and there is strobe at the end of the screw bar to discharge the product, the whole screw can take off.
The auger conveyor and screw feeder is suitable for multiple powdery products, working together with kinds of packing machine.
The product feeding of the conveyor is controlled to retain the product level in the product cabinet.
And the machine can be used independently.
All parts are made of stainless steel except the electric-motor, bearing and support frame.
Use 2 motors, one for sending the products up, one for vibrating the products from the material hopper, each separated controlled. The material hopper vibrating can adjustable, and it is easy to assemble and disassemble.
To easy clean the product waste, the auger screw can reversal screw out the waste, and there is strobe at the end of the screw bar to discharge the product, the whole screw can take off.
The auger conveyor and screw feeder is suitable for multiple powdery products, working together with kinds of packing machine.
The product feeding of the conveyor is controlled to retain the product level in the product cabinet.
And the machine can be used independently.
All parts are made of stainless steel except the electric-motor, bearing and support frame.

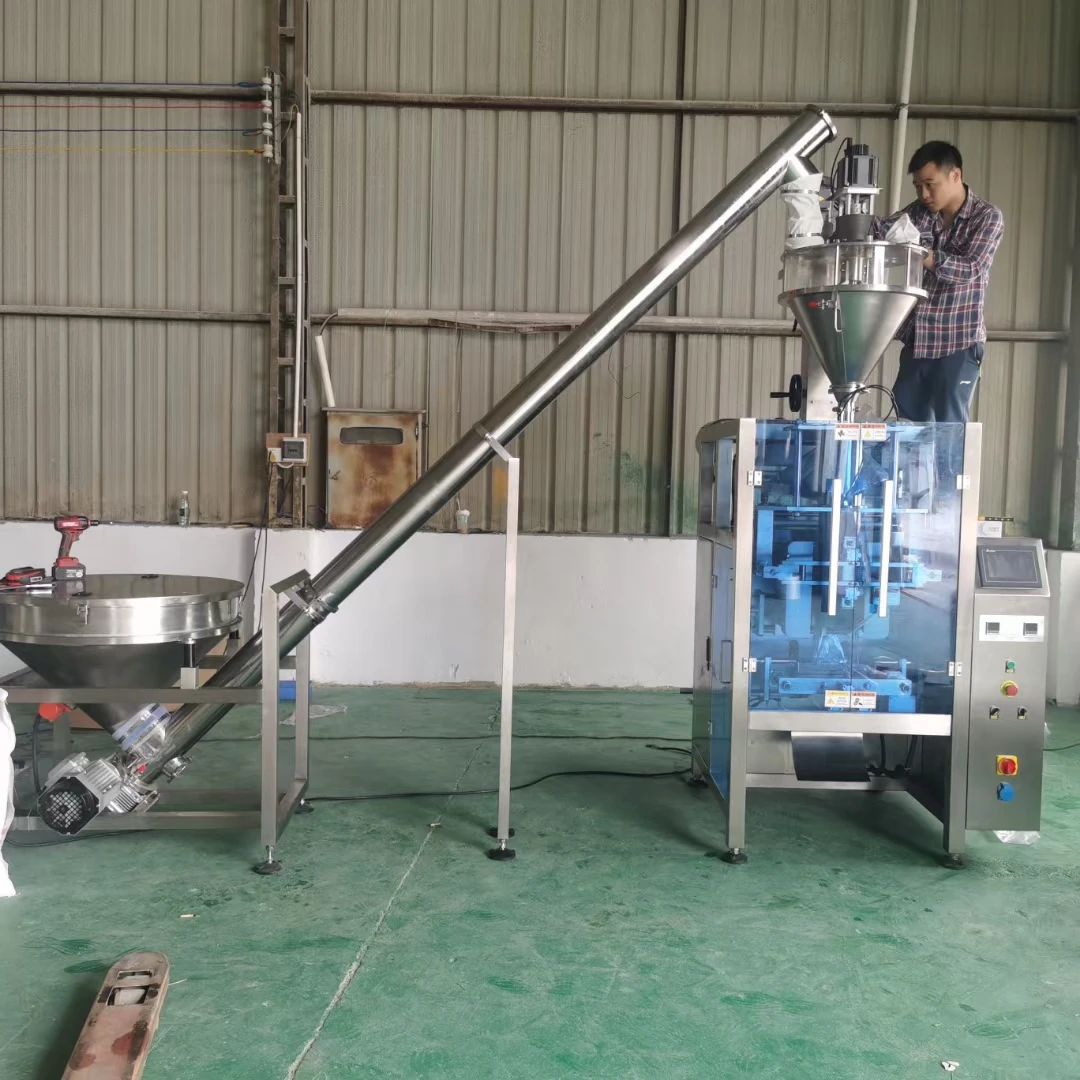

Inclined screw auger conveyor:
1. Using double motors: feeding motor and vibration motor, separately controlled.
2. Product funnel is design to be adjustable vibration which lead to avoid product blocking and improve the adaptation of different products.
3. Product funnel can separate from the tube for easy assembly.
4. Special anti-dust design to protect bearing from dust.
5. In order to convenience machine cleaning, following functions are added in: Auger can reverse from emptying the tube, product discharge gate in mounted in the bottom of the funnel, auger can be disassembled for washing.
Auger filler head:
This type can do measuring and filling work. Due to the special professional design, it is suitable for the fluidic or
low-fluidity materials, like milk powder, Albumen powder, rice powder, coffee powder, solid drink, condiment, white sugar, dextrose, food additive, fodder, pharmaceuticals, agriculture pesticide, and so on.
Main features:
The hopper could be washed easily without tools.
Servo motor drive screw.
Stainless steel structure
Include hand wheel of adjustable height.
Replacing the auger parts, it is suitable for material from super thin powder to granule.
low-fluidity materials, like milk powder, Albumen powder, rice powder, coffee powder, solid drink, condiment, white sugar, dextrose, food additive, fodder, pharmaceuticals, agriculture pesticide, and so on.
Main features:
The hopper could be washed easily without tools.
Servo motor drive screw.
Stainless steel structure
Include hand wheel of adjustable height.
Replacing the auger parts, it is suitable for material from super thin powder to granule.
Auger filler head:
Model: XLT-A
Hopper: Quick disconnecting 50L
Packing weight: 10 ~ 2000g
Packing Accuracy: <100g, <±2%;100 ~ 500g, <±1%;＞500g, <±0.5%
Hopper: Quick disconnecting 50L
Packing weight: 10 ~ 2000g
Packing Accuracy: <100g, <±2%;100 ~ 500g, <±1%;＞500g, <±0.5%
Filling speed: 10 ~ 30 times per min
Power supply: 3P AC208V ~ 415V 50/60Hz
Total power: 1.5Kw
Total Weight: 200kg
Overall Dimension: 1060×600×1100mm
Power supply: 3P AC208V ~ 415V 50/60Hz
Total power: 1.5Kw
Total Weight: 200kg
Overall Dimension: 1060×600×1100mm
Product Description

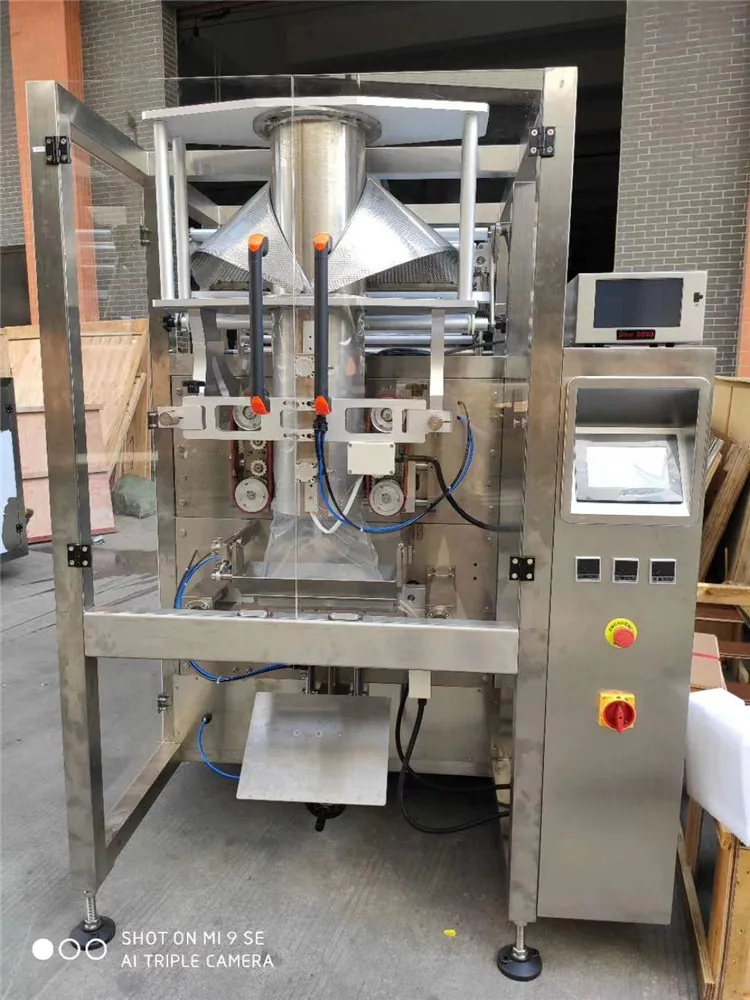

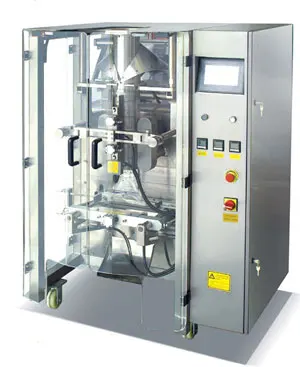

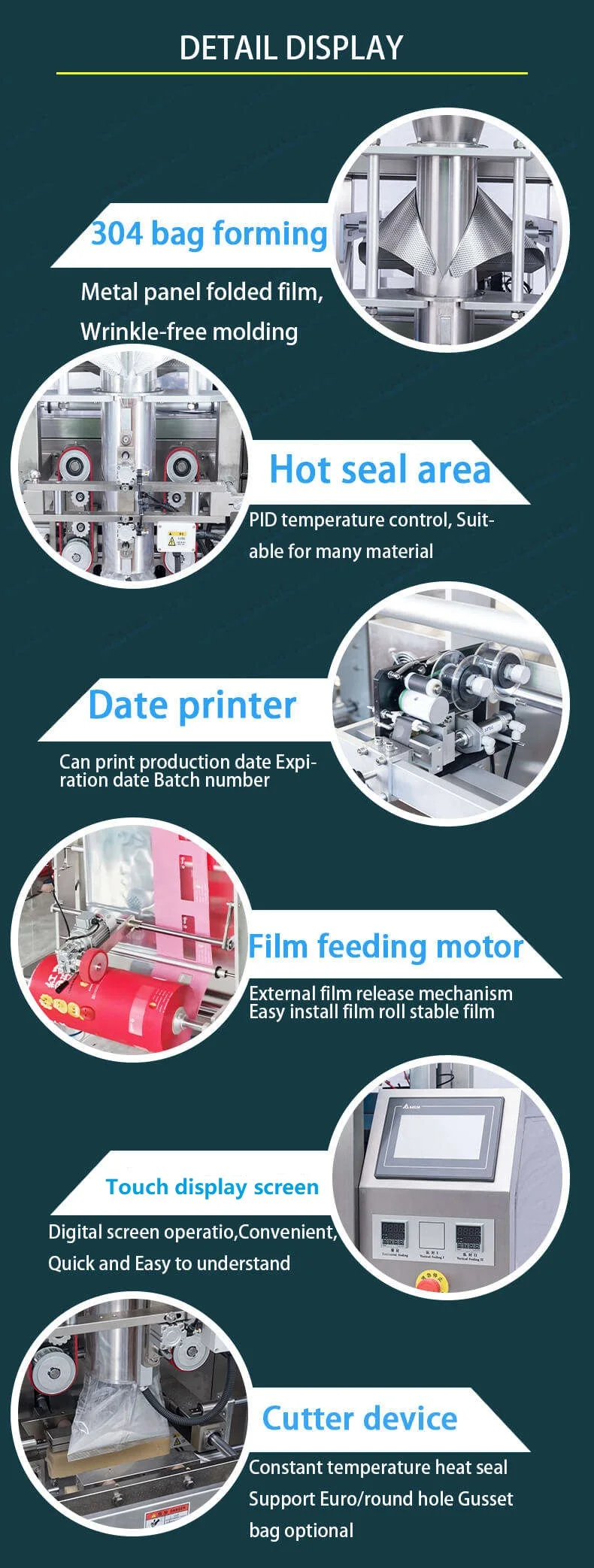

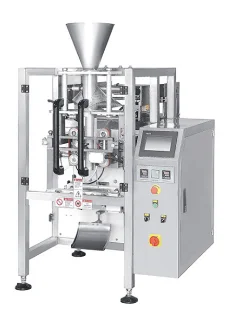

Vertical packing machines you can choose:
We have different model packing machines, they can make different size range of bags, please choose according to your max bag width.
Model | XLT-420 | XLT-520 | XLT-720 | ||
Machine Material | 304SUS | 304SUS | 304SUS | ||
Voltage | 110V/220V,50HZ/60HZ | 110V/220V,50HZ/60HZ | 110V/220V,50HZ/60HZ | ||
Power | 3KW | 4KW | 6KW | ||
Packing Speed | 30-80bags/min | 30-80bags/min | 5-60bags/min | ||
Bag Width | 100-200mm | 100-250mm | 100-350mm | ||
Bag Length | 100-280mm | 100-340mm | 100-480mm | ||
Film Material | OPP/CPP OPP/CE PET/PE NILO/PE PE | ||||
Film Tickness | 0.04-0.12mm | ||||
Dimension | 1457X1130X1350MM | 1630X1430X1230MM | 1780X1350X1950MM | ||
Machine Weight | 450KG | 550KG | 800KG | ||

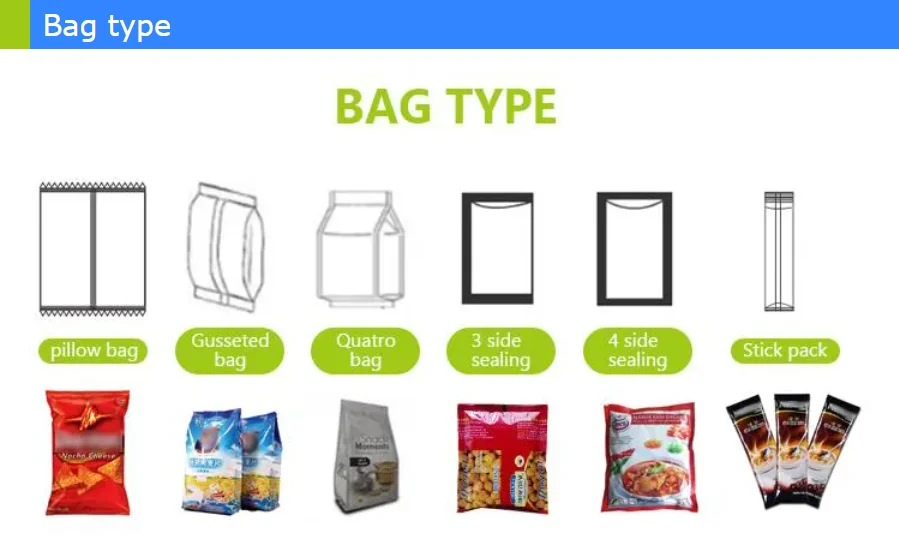

Optional Device | Date Coder/Air Exhaust Device/ Nitrogen Device/Inflatable Device/Punching Device/Tear Notch Device/Gusset bag device/Linking Bag Device | ||||
Company Profile
GuangZhou XinLongTai Machinery Co., Ltd is located in Pearl River Triangle. It is the most energetic and developing economic area in China.
Our company is a high-tech enterprise specializing in the design, manufacture, sale and service of food packaging machines and conveyors, both factories are in Foshan City.
During this period, we have gained rich experience in packaging machinery industry and have developed full-flown technic of several ranges. So far, we have developed scores of type of packing machinery series products and mature technology. These products are applicable for food, medication, chemistry, feed, toy, ironware and other industries. Our products sell well in domestic and exported Southeast Asia, South America, East Europe and the Middle East.
We are not only offer the product with good quality but flexible packaging solution. Meanwhile, We have ability to produce kind various standard packaging machine as OEM manufacturer and provide professional services.
Warmly welcome friends from all around the world to visit, inspect, and join for our bright future.
Our company is a high-tech enterprise specializing in the design, manufacture, sale and service of food packaging machines and conveyors, both factories are in Foshan City.
During this period, we have gained rich experience in packaging machinery industry and have developed full-flown technic of several ranges. So far, we have developed scores of type of packing machinery series products and mature technology. These products are applicable for food, medication, chemistry, feed, toy, ironware and other industries. Our products sell well in domestic and exported Southeast Asia, South America, East Europe and the Middle East.
We are not only offer the product with good quality but flexible packaging solution. Meanwhile, We have ability to produce kind various standard packaging machine as OEM manufacturer and provide professional services.
Warmly welcome friends from all around the world to visit, inspect, and join for our bright future.
Why choose us:
1. We have good team, the sales, the designer, the technical people, the after sales people.
2. Our electric technical people know the machines very well, have been in the area over 10 years.
3. Our sales people have over 18 years foreign sales, so the export experience is well, can help you do the
import in good and happy way.
4. Our size drawing people also work in this area over 8 years. We can help you do the size drawing when you
buy the machines.
5. Most of our workers can do quick response for your questions.
2. Our electric technical people know the machines very well, have been in the area over 10 years.
3. Our sales people have over 18 years foreign sales, so the export experience is well, can help you do the
import in good and happy way.
4. Our size drawing people also work in this area over 8 years. We can help you do the size drawing when you
buy the machines.
5. Most of our workers can do quick response for your questions.
FAQ
1. What’s the payment terms:
Normally 100% by T/T in advance; for big order can be 30% prepayment and balance before shipment. Sometimes we accept L/C. You can place order on Alibaba and pay here or contact us for our bank account.
2.What’s the delivery time:
That depends, if we have them in stock, normally after receiving payment we will arrange the earliest shipment for you, within 7 days. If production is busy and no stock, that will depends on order quantity. Better to chat with us on Alibaba before you pay.
3. Warrantee:
All the machines we warrantee them for 12 months.
4.After sales service:
We have experienced people who can help you on line by wechat or email.
5.Packing:
All our machines are packed by new and strong wood similar cases, suitable for long sea transportation.
Normally 100% by T/T in advance; for big order can be 30% prepayment and balance before shipment. Sometimes we accept L/C. You can place order on Alibaba and pay here or contact us for our bank account.
2.What’s the delivery time:
That depends, if we have them in stock, normally after receiving payment we will arrange the earliest shipment for you, within 7 days. If production is busy and no stock, that will depends on order quantity. Better to chat with us on Alibaba before you pay.
3. Warrantee:
All the machines we warrantee them for 12 months.
4.After sales service:
We have experienced people who can help you on line by wechat or email.
5.Packing:
All our machines are packed by new and strong wood similar cases, suitable for long sea transportation.
