HUA WEI ZTE Original NEW XGPON OLT C620 GPON/ XGSPON XG PON OLT
- Category: >>>
- Supplier: Hangzhou Softel Optic Co. Ltd.
Share on (1600734808043):
Product Overview
Description
Products Description
OLT-G8
XGSPON-08P OLT is a highly integrated, large-capacity XG(S)-PON OLT for operators, ISPs, enterprises, and campus applications. The product follows the ITU-T G.987/G.988 technical standard and can be compatible with three modes of G/XG/XGS at the same time. The product has good openness, strong compatibility, high reliability, and complete software functions. It can be widely used in operators' FTTH access, VPN, government and enterprise park access, campus network access, etc.
XGSPON-08P is only 1U in height, is easy to install and maintain, and saves space. Supports mixed networking of different types of ONUs, which can save a lot of costs for operators.
XGSPON-08P is only 1U in height, is easy to install and maintain, and saves space. Supports mixed networking of different types of ONUs, which can save a lot of costs for operators.
Features
-Rich Layer 2/3 switching features and Flexible management methods
-Support multiple link redundancy protocols such as FlexLink/STP/RSTP/MSTP/ERPS/LACP
-Support RIP, OSPF, BGP, ISIS, and IPV6
-Safe DDOS and virus attack protection
-The PON port supports GPON/XGPON/XGSPON three modes
-Support Power redundancy backup， Modular power supply， Modular fans supply
-Support power failure alarm
-Support multiple link redundancy protocols such as FlexLink/STP/RSTP/MSTP/ERPS/LACP
-Support RIP, OSPF, BGP, ISIS, and IPV6
-Safe DDOS and virus attack protection
-The PON port supports GPON/XGPON/XGSPON three modes
-Support Power redundancy backup， Modular power supply， Modular fans supply
-Support power failure alarm
Product Parameters
Attributes | XG(S)-PON Combo OLT |
Exchange Capacity | 104 Gbps |
Packet Forward Rate | 77.376 Mpps |
Memory and Storage | Memory: 2GB; Storage: 8GB |
Management Port | Console |

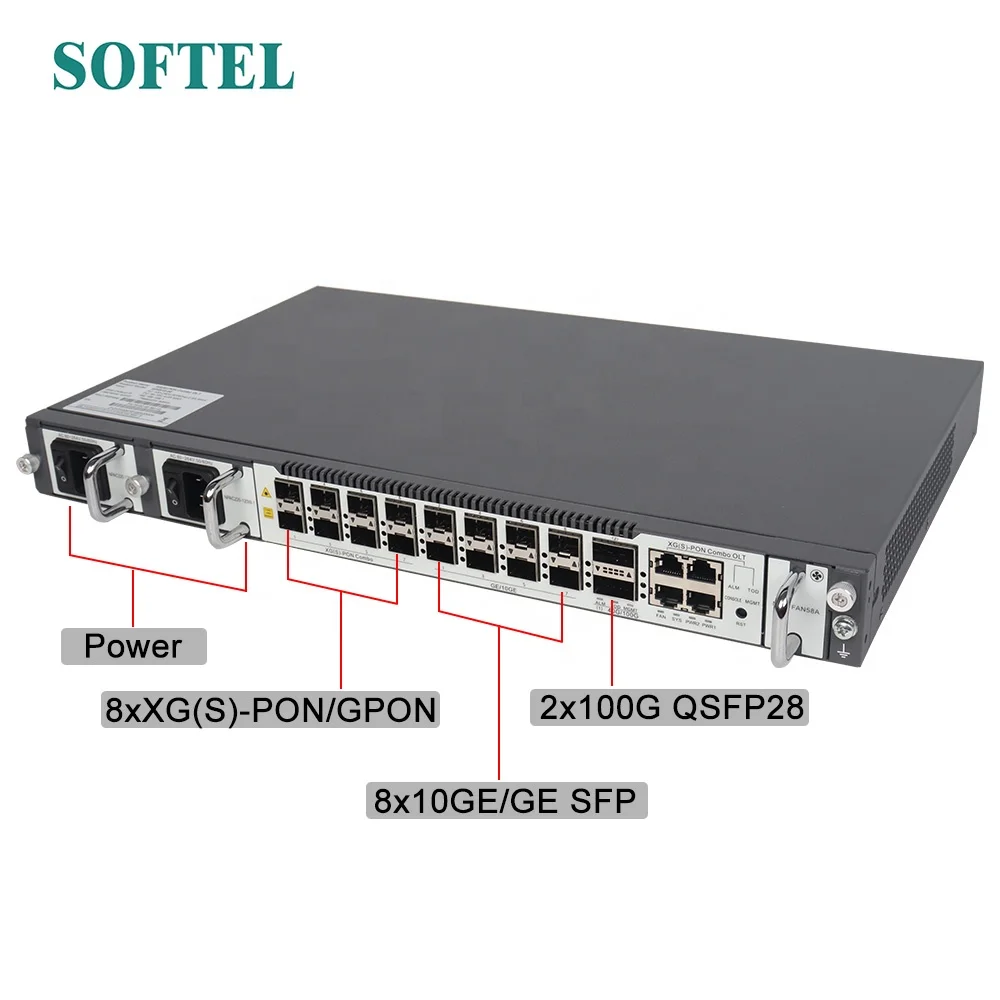

Ports | 8*XG(S)-PON/GPON ports, 8*10GE/GE SFP + 2*100G QSFP28 |
PON Features | Comply with ITU-T G.987/G.988 standard 100KM transmission distance 1:256 Max splitting ratio Standard OMCI management function Open to any brand of ONT ONU batch software upgrade |
VLAN | Support 4K VLAN Support VLan based on port, MAC and protocol Support dual Tag VLAN, port-based static QinQ and flexible QinQ |
MAC | 128K Mac Address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit |
Ring Network Protocol | Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loop-back detection |
Port Control | Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding |
Port Aggregation | Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports |
Mirroring | Support port mirroring Support stream mirroring |
ACL | Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc. |
QoS | Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR |
Safety | Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius&TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection |
Layer 3 | Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP |
System Management | CLI, Telnet, WEB, SNMP V1/V2/V3, SSH2.0 Support FTP,TFTP file upload and download Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute |
Environment Temperature | Working Temperature: -10℃～55℃ Storage temperature: -40℃～70℃ |
Environment Humidity | Operating humidity: 10%～95% (non-condensing) Storage humidity: 10%～95% (non-condensing) |
Environment friendly | China RoHs, EEE |
Weight | 6.5KG |
Fans | Modular fans supply(3PCS) |
Power | AC: 100～240V 47/63Hz； DC: 36V～75V； |
Power consumption | 90W |
Dimensions (WxHxD) | 440*270*44mm |
Product Packaging
FAQ
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty.While the warranty is not responsible for those broken by violence or updated with other brands.
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty.While the warranty is not responsible for those broken by violence or updated with other brands.
