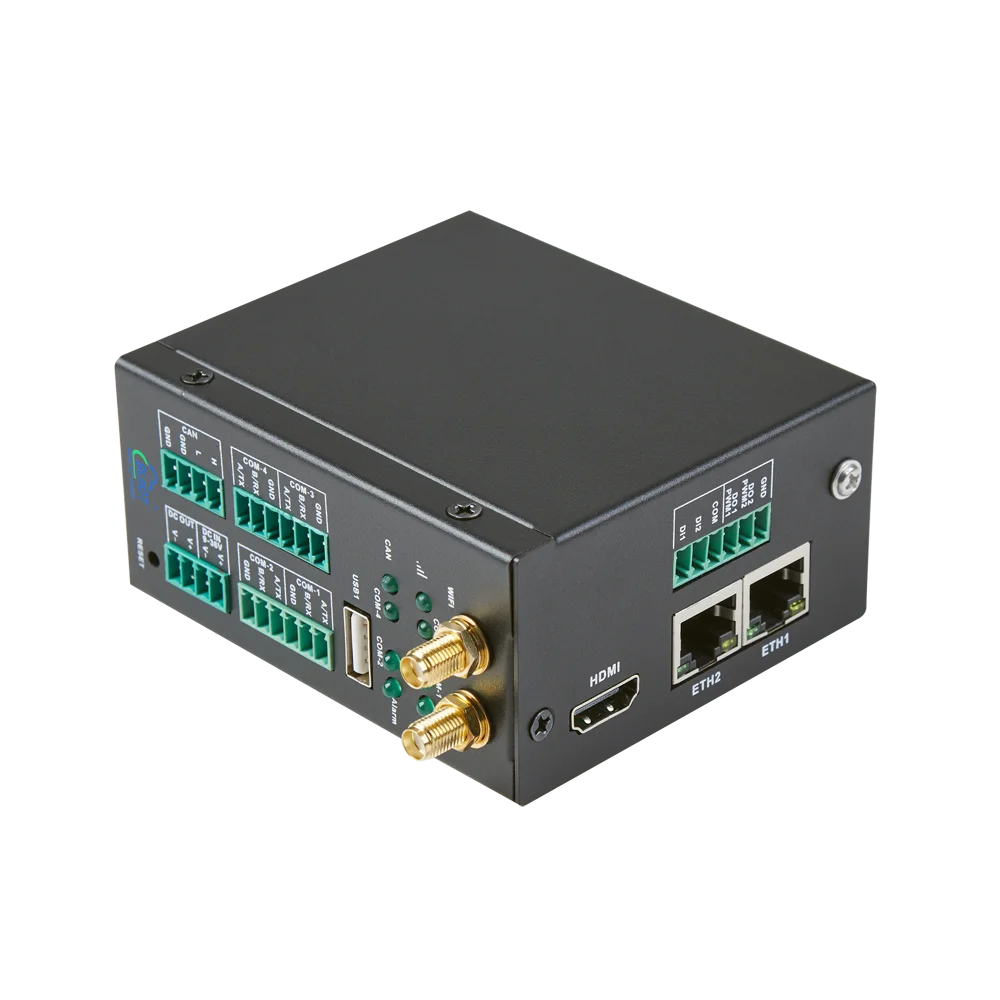

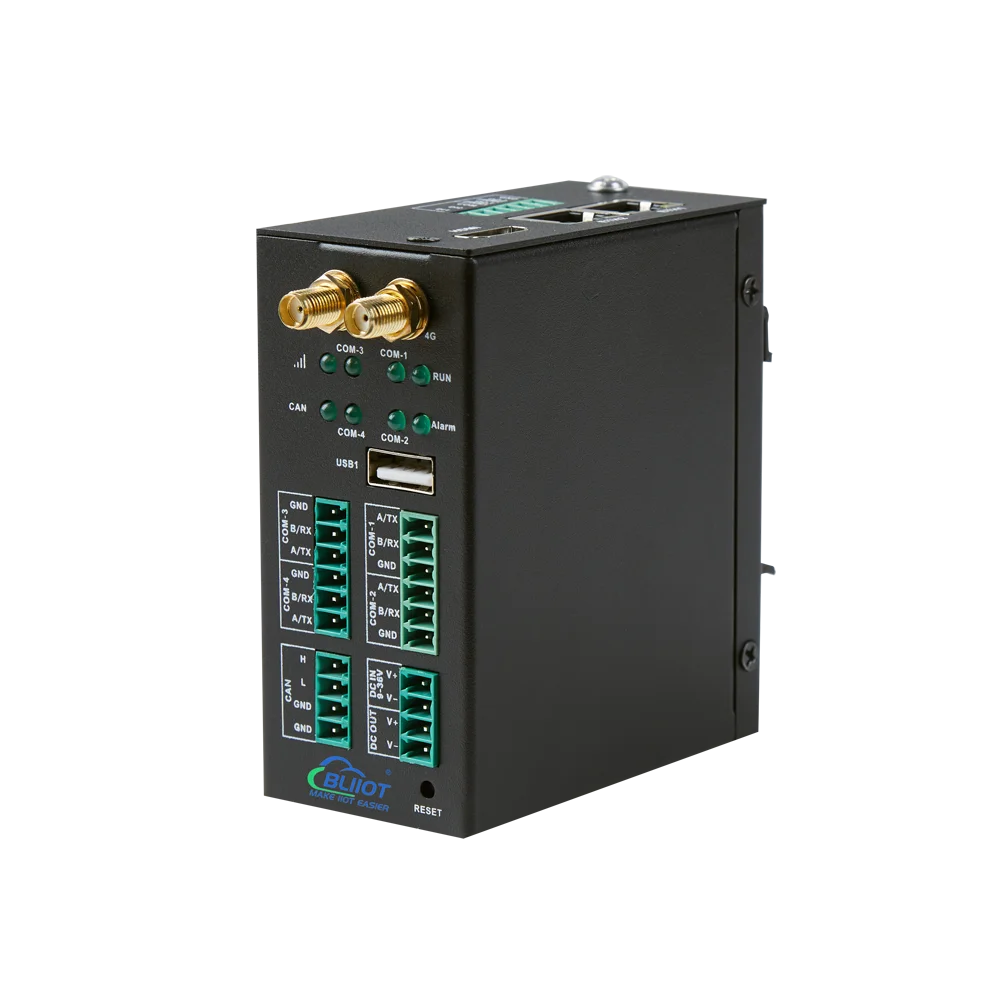

Industrial 4G/WiFi Modbus to MQTT Embedded ARM Edge Computing Gateway
- Category: >>>
- Supplier: Shenzhen Beilai Technology Co. Ltd.
Share on (1600734816839):
Product Overview
Description
Details Images
Product Description
Model List
industrial-grade microprocessor with a main frequency of up to 800Mhz, provides 512MB RAM and 8G ROM, pre-installed Linux and Ubantu operating systems.
The EdgeCom BL302 series provides a server-grade computing capability that is ideally suited for the customer requirements in intelligent surveillance applications including Factory industrial Automation Control , and AIoT/Industry 4.0 applications.
The EdgeCom BL302 series edge computing gateway is a rugged and economical edge computer and an industrial IoT gateway.

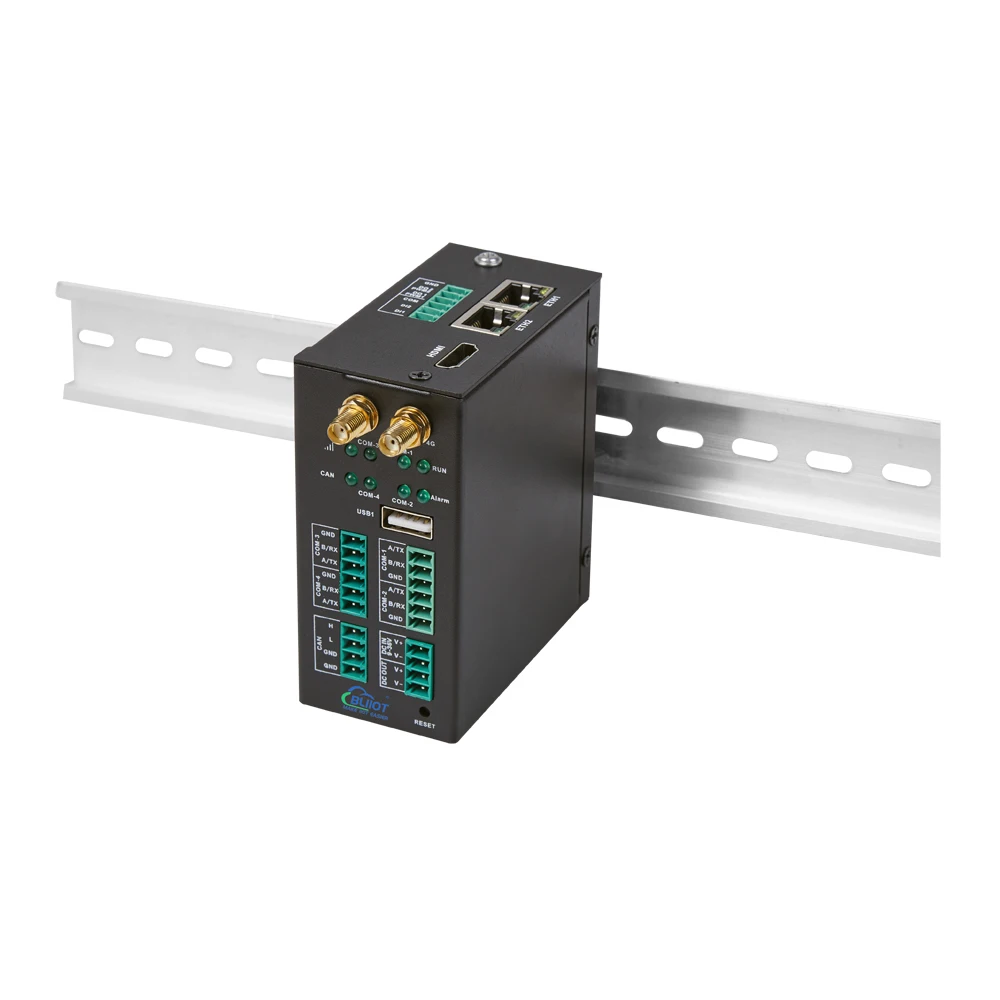

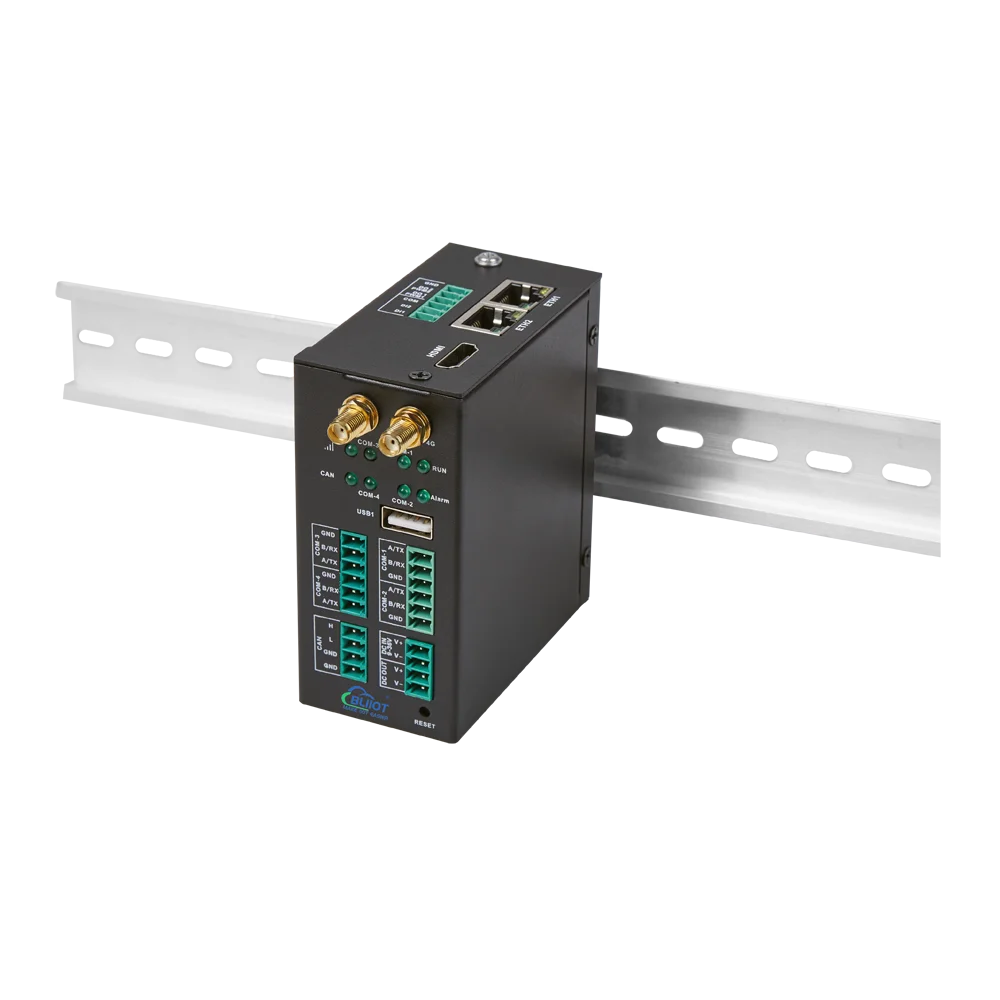

The metal shell ensures its EMC and EMI performance. It is small in size and supports DIN35 rail and wall installation. It is
suitable for industrial IoT and industrial Automation Control applications.
The EdgeCom BL302 series edge computing IIoT gateway provides a wealth of I/O interfaces, providing 1 isolated WAN port, 1 LAN port, 4 RS485, 1 CAN, 1 USB, 1 HDMI interface, 2 DI, 2 DO.
BL302 Embedded ARM Edge Computer EdgeCom
The EdgeCom BL302 series edge computing gateway is designed according to the harsh industrial environment. It adopts
industrial-grade microprocessor with a main frequency of up to 800Mhz, provides 512MB RAM and 8G ROM, pre-installed Linux and Ubantu operating systems.
The EdgeCom BL302 series provides a server-grade computing capability that is ideally suited for the customer requirements in intelligent surveillance applications including Factory industrial Automation Control , and AIoT/Industry 4.0 applications.
The EdgeCom BL302 series edge computing gateway is a rugged and economical edge computer and an industrial IoT gateway.
The metal shell ensures its EMC and EMI performance. It is small in size and supports DIN35 rail and wall installation. It is
suitable for industrial IoT and industrial Automation Control applications.
The EdgeCom BL302 series edge computing IIoT gateway provides a wealth of I/O interfaces, providing 1 isolated WAN port, 1 LAN port, 4 RS485, 1 CAN, 1 USB, 1 HDMI interface, 2 DI, 2 DO.
Model | BL301 | BL301T | BL302 | BL302T | ||
Feature | Not Support DI DO MINIPCIE | Support DI DO MINIPCIE | ||||
Core | i.MX6ULL | i.MX6ULL | i.MX6ULL | i.MX6ULL | ||
CPU | 800MHz | 800MHz | 800MHz | 800MHz | ||
RAM | 512MB | 256MB | 512MB | 256MB | ||
Flash | 8G eMMC | 256MB | 8G eMMC | 256MB | ||
ETH | 2 x 100M | 2x 100M | 2 x 100M | 2x 100M | ||
USB | 1 | 1 | 1 | 1 | ||
RS232/RS485 | 2 | 2 | 4 | 4 | ||
CAN | x | x | 1 | 1 | ||
SD slot | 1 | 1 | 1 | 1 | ||
MINI-PCIe | x | x | 1 | 1 | ||
4G(GPS)/WIFI(BLE) | x | x | √ | √ | ||
SIM slot | x | x | 2 | 2 | ||
HDMI | 1 | 1 | 1 | 1 | ||
Audio | x | x | x | x | ||
DI | x | x | 2 | 2 | ||
DO | x | x | 2 | 2 | ||
House | Metal | Metal | Metal | Metal | ||
Operating Temp（°C） | -25～85 | -40～85 | -25～85 | -40～85 | ||
Company Profile
Shenzhen Beilai Technology Co., Ltd. specialized in Industrial Ethernet I/O Modules, IoT Gateways, 4G RTU, 4G Industrial VPN Routers, Industrial Computer. OEM ODM services offered.
Real manufacturer
√Since 2005, rich experience in IoT and automation industry
√Strong R&D team and reliable quality management system
√Strict customer information confidentiality system, OEM / ODM service offered
√Guarantee fast delivery
Real manufacturer
√Since 2005, rich experience in IoT and automation industry
√Strong R&D team and reliable quality management system
√Strict customer information confidentiality system, OEM / ODM service offered
√Guarantee fast delivery
