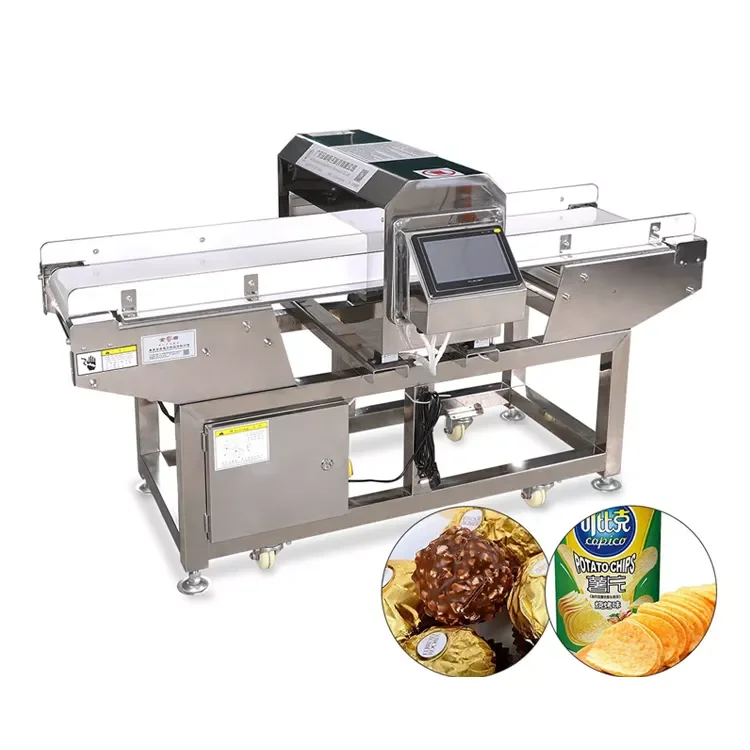

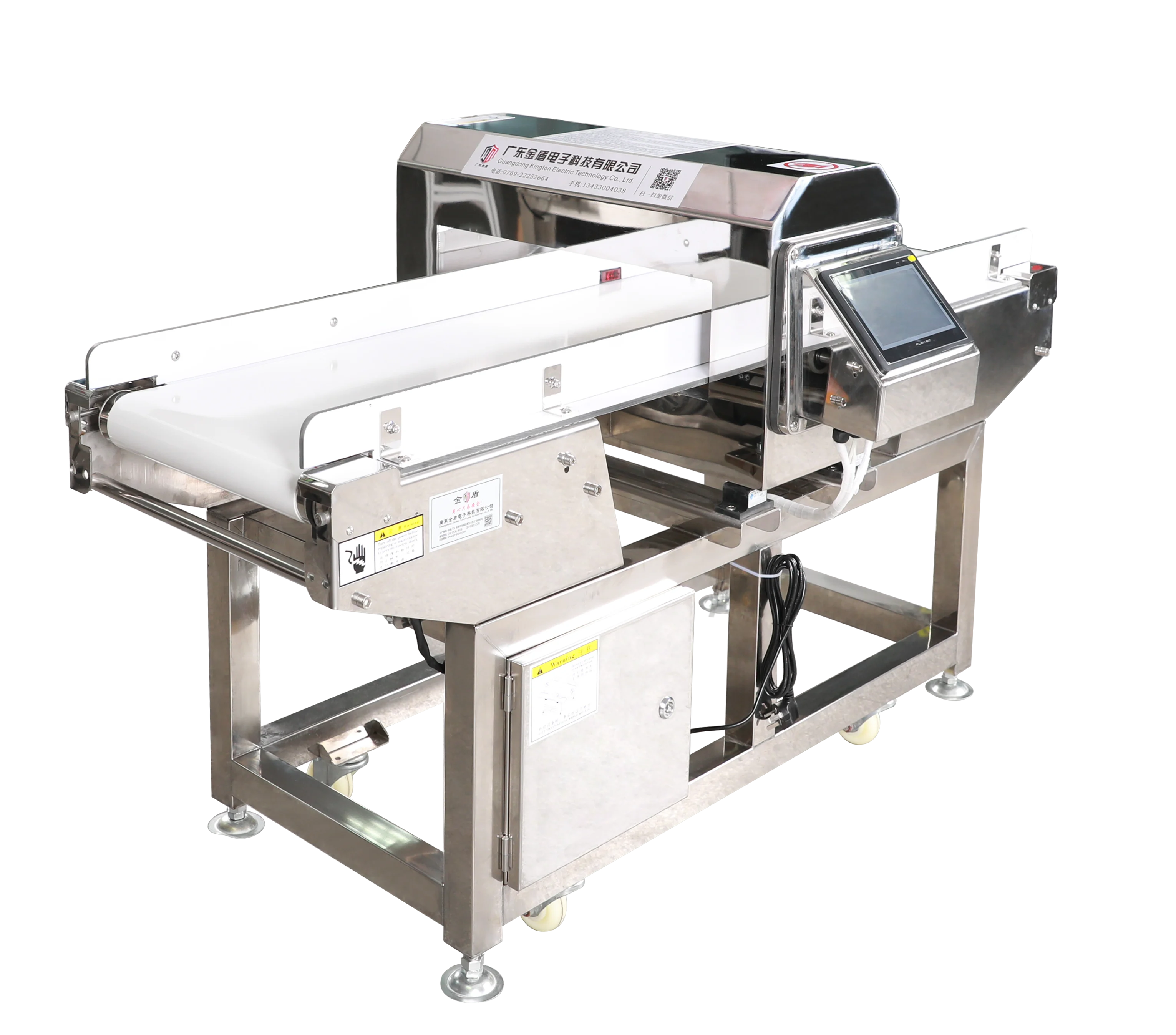

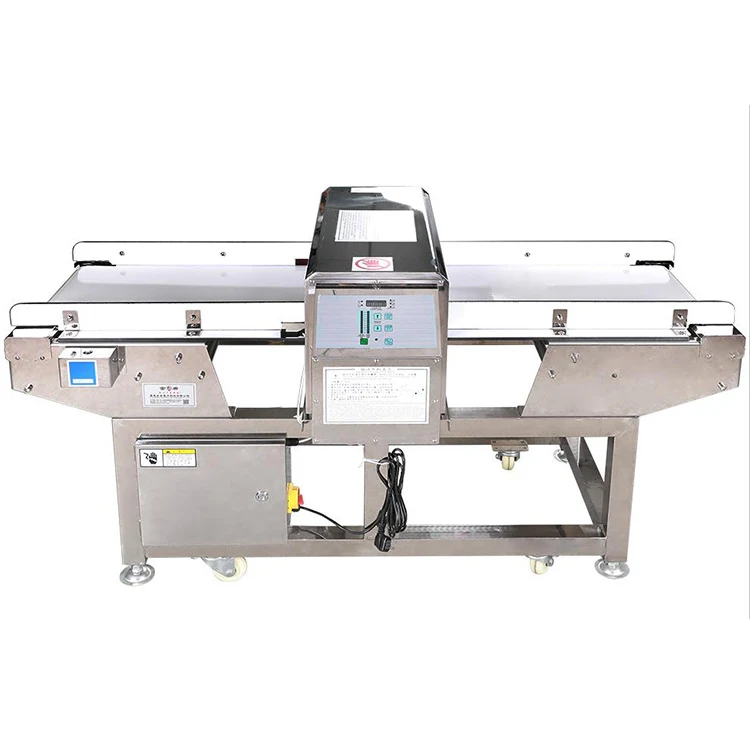

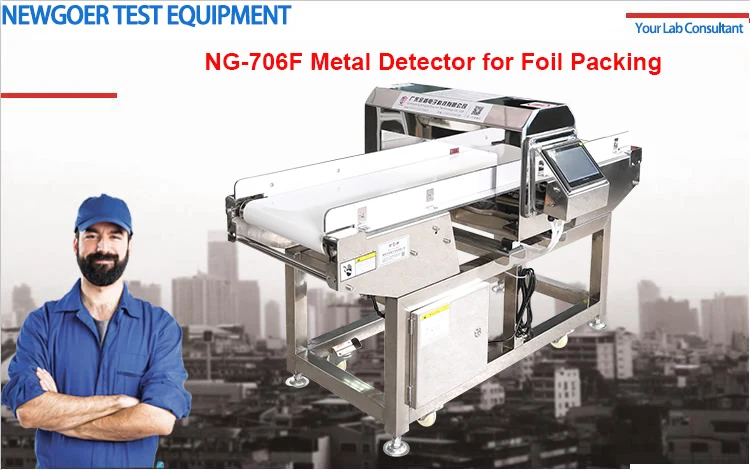

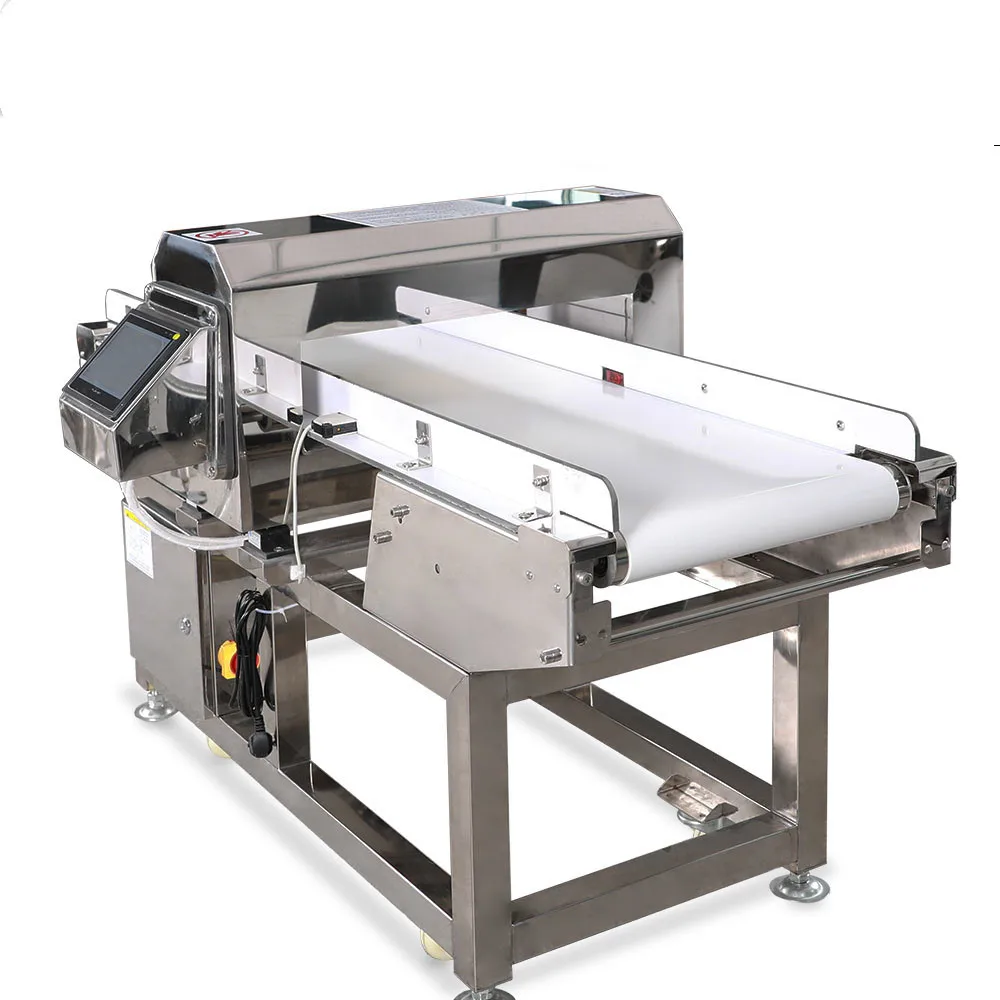

Food Production Line Aluminum Foil Metal Detector For Food Industry
- Category: >>>
- Supplier: Guangdong Newgoer Instrument Co. Ltd.
Share on (1600734835273):
Product Overview
Description
Product Description
Food Production Line Aliuminum Foil Metal Detector For Food Industry
Summary:
Food Security Metal Detector is mainly used for detecting the metal chips inside the nuts, rice, tea and wood processing industry, etc. Besides it can also be used for the detection of metallic impurities in chemicals, rubber, plastics, textiles, leather, chemical fiber, toys as well as for the detection of metallic impurities in pharmaceuticals, health products, biological products, cosmetics, gifts, packaging, papers, and so on.
We’re using Intelligent unique sensors to detect the rest-magnetism presents in the ferrous or stainless steel contamination, a breakthrough for metal detector to aluminium packaged products, Even through thick aluminium trays, such as ready meals soups and sauces in flat bags and dairy Products with aluminium packaged.
These systems operate on a totally different detection principle. They work by incorporating a tunnel or passage which is subjected to a strong magnetic field and as a result, any magnetic material (such as a metal fragment with a ferrous content) is magnetized as it passes through. Incorporated in the tunnel are a series of coils. When the magnetized particle passes under them, a current is generated which is then amplified by the electronics of the detection system and this is used to trigger the detection signal output.
Speficiations:
Machine Grade | Food Grade |
Detecting width | 400, 500 mm (can be customized) |
Detecting height | 80, 100, 120, 150, 200, 250, 300 mm (or custom-made) |
Detecting sensitivity | Fe 0.8mm-3.0mm |
Display Screen | 4.3inch, 7inch (optional) |
Sensitivity adjustment | 100 level adjustment |
Detecting adjustment | Intelligent adjustable |
Belt Speed | 20m /min (or specified) |
Alarm mode | The buzzer alarm, the motor automatically stop |
Power | AC22V,50Hz (Or Customized) |
High sensitivity detection:
1. Using the detection circuit with specially high-performance design and with advanced digital signal processing
algorithms. The actual detection proved that it reached the most advanced international level.
2. Against the variety of detector products , with the learning functions of automatic identification. Overcome the effect of
products material efficiently.
3. Detection probe is designed specially and improved the detection sensitivity further. Improve the detection sensitivity.
algorithms. The actual detection proved that it reached the most advanced international level.
2. Against the variety of detector products , with the learning functions of automatic identification. Overcome the effect of
products material efficiently.
3. Detection probe is designed specially and improved the detection sensitivity further. Improve the detection sensitivity.
Features:
1. Dual-loop circuit design, it can detect ferrous and non-ferrous and other metal objects, the sensitivity can be adjusted separately, with memory function can be stored 10 kinds of test material.
2. Detector with audible and visual alarm, and automatically exclude, stop, rewind functions, user-friendly menu, easy to operate touch screen. Machine made of stainless steel,anti-corrosion, no rust, easy to clean up.
3. Conveyor and pallet assembly used in the U.S. standards of white non-toxic materials.
4. Detection accuracy over the corresponding provisions of HACCP system Detect indicators.
5. Can use with production line.
2. Detector with audible and visual alarm, and automatically exclude, stop, rewind functions, user-friendly menu, easy to operate touch screen. Machine made of stainless steel,anti-corrosion, no rust, easy to clean up.
3. Conveyor and pallet assembly used in the U.S. standards of white non-toxic materials.
4. Detection accuracy over the corresponding provisions of HACCP system Detect indicators.
5. Can use with production line.
