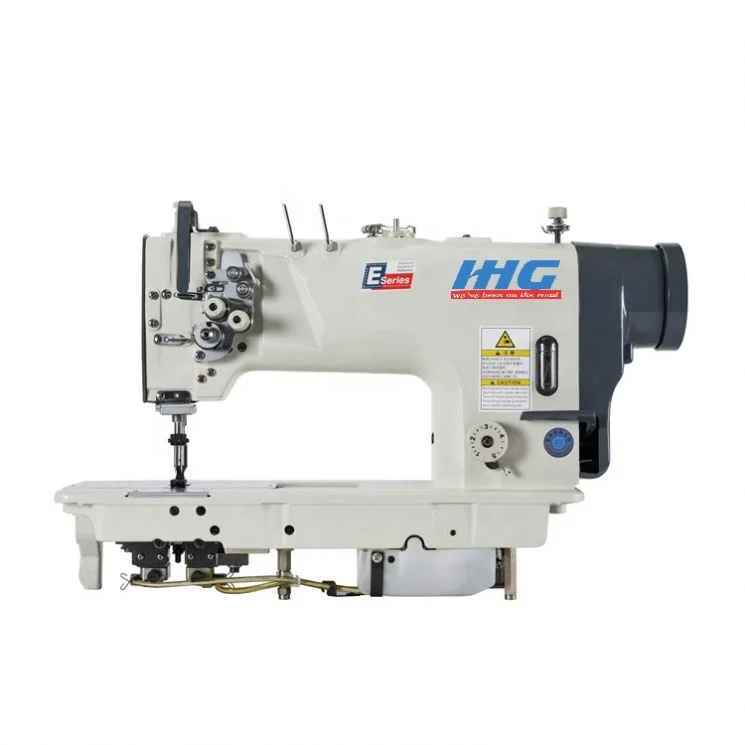

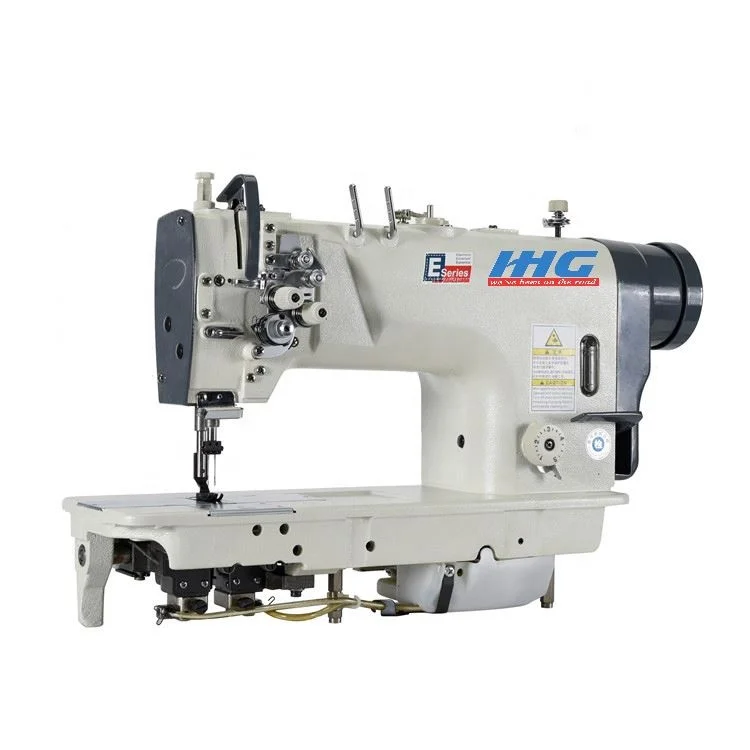

Hot Sell 2 Needle Industrial Sewing Machine
- Category: Sewing Machines >>>
- Supplier: Guangdong Kaisheng Technology Co. Ltd.
Share on (1600734867245):
Product Overview
Description
Product Description

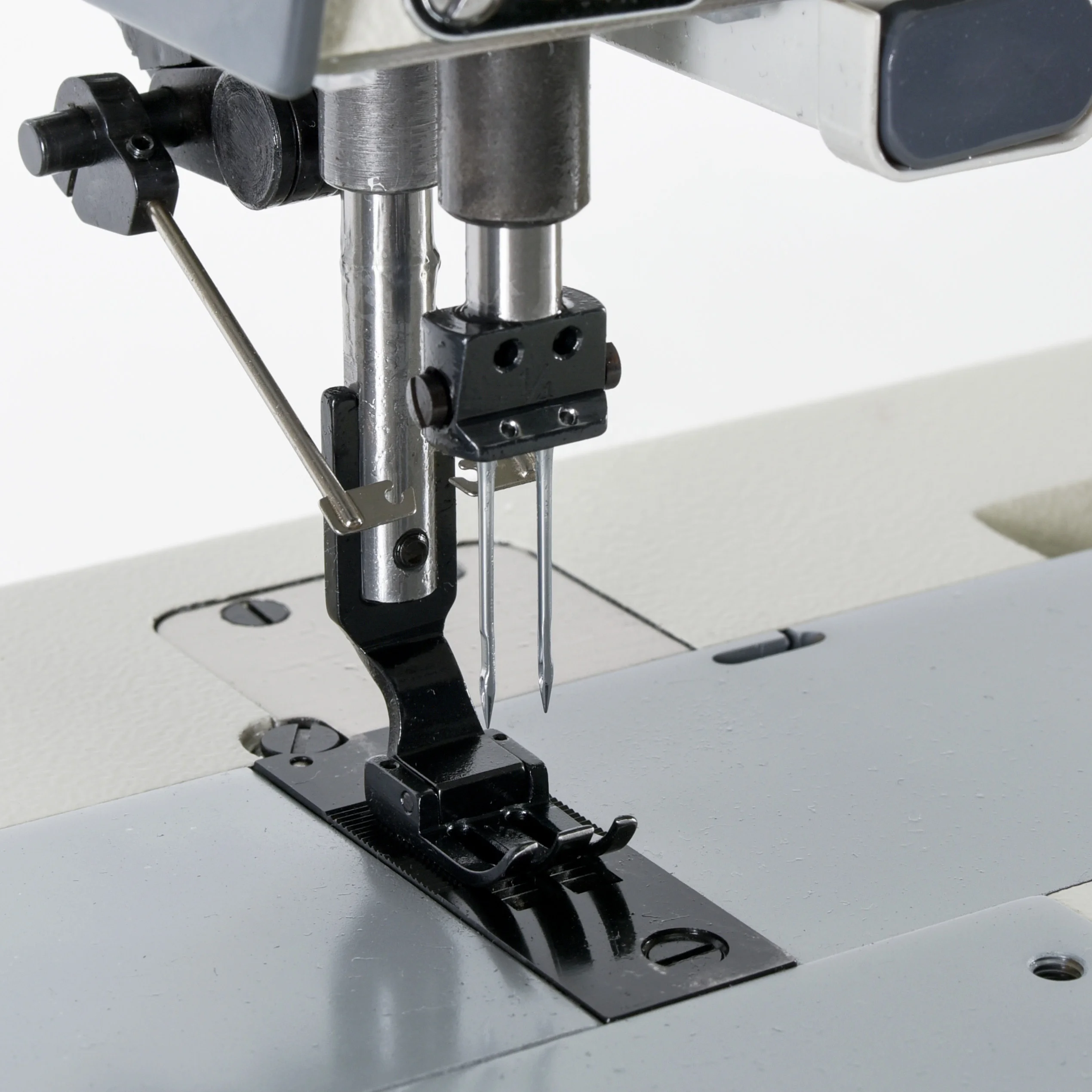

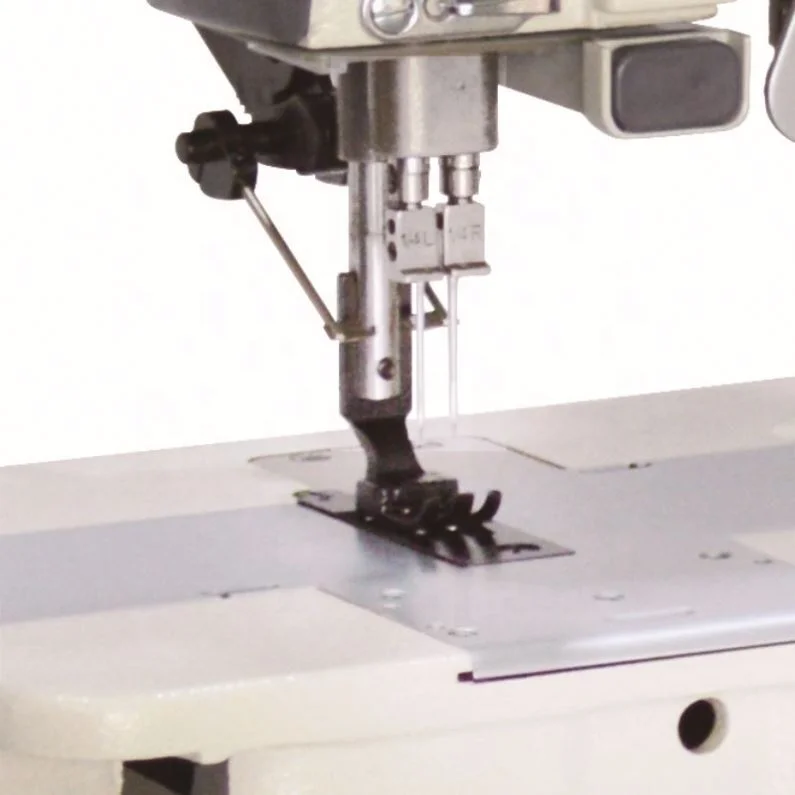

Double needle sewing direct drive with fixed needle bar.
Double needle sewing machine, sometimes referred to as a twin needle, is a kind of common sewing machine with two needles in top and bottom feed(feed dog and needle to make material move, item NO. 8422/8722), tri synchronous feed(heavy duty type application usually for woven fabric, plus a not uviersal presser foot to make material move against top and bottom feed type, as known as item NO. 4420) or needle split bar (needle can turn corner, as known as item NO. 8452/8472 type).
The effect is that the two needles are parallel to each other. However, it is indispensable. Although single needle flat bed can sometimes replace double needles, considering efficiency, factory workers use double needle to do parellel seaming work in mass production. The efficiency of double needles is high, and the double parallel lines are neat and beautiful.

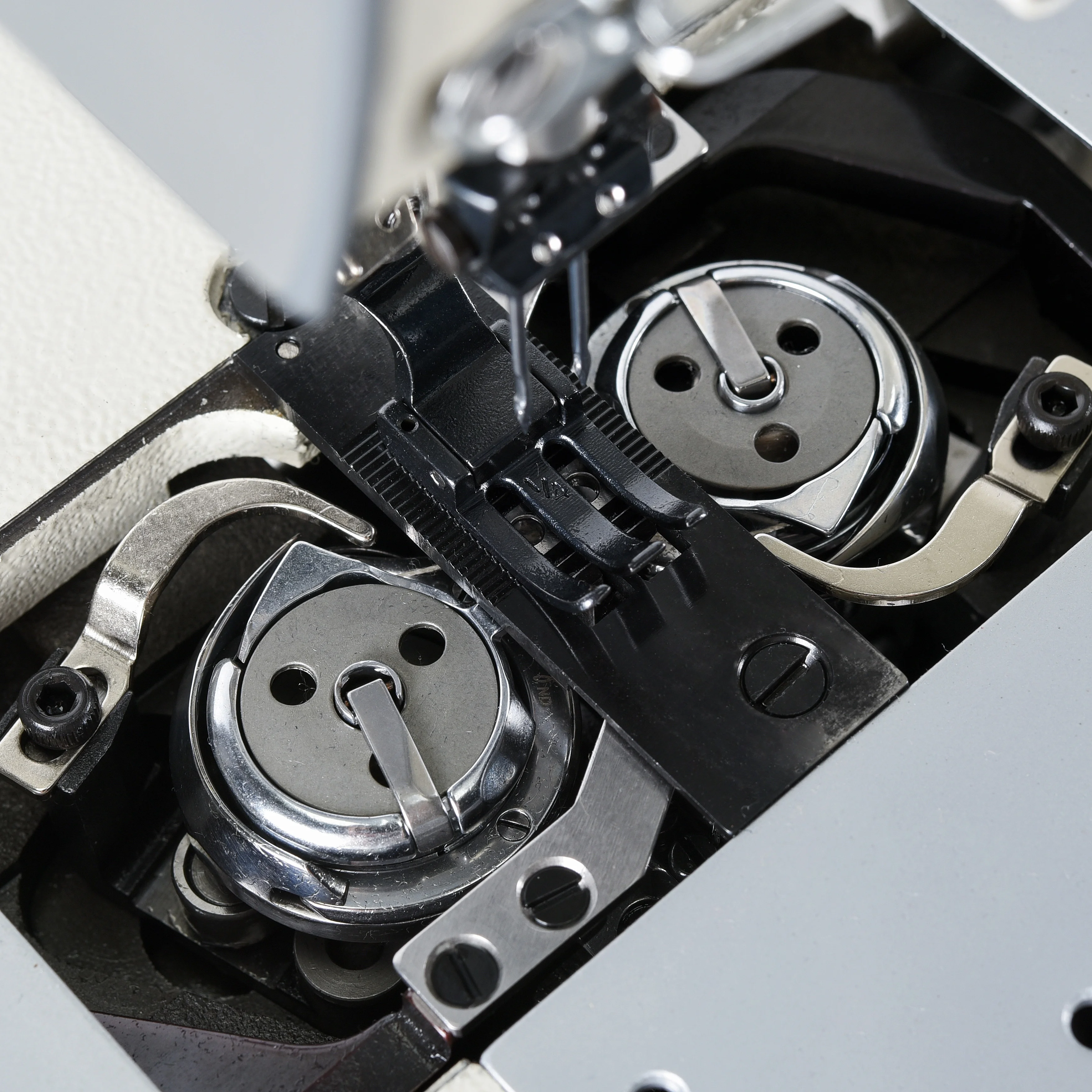

1. We have small rotary hook (8422) and large rotary hook (8722) solutions as your choices;
2. Additional functions: backstitch device and thread-wiper device;
3. Different solutions for sewing factories options:
3.1 Small rotary hook 1.5 times(8422) or big rotary hook 2 times(8722);
3.2 Both can be apply to thick type(403) or thick type(405);
3.3 Major difference from 8422 and 8722 will be in max needle gauge: 3/5mm for 8422 and 7mm for 8722;
1. We have small rotary hook (8422) and large rotary hook (8722) solutions as your choices;
2. Additional functions: backstitch device and thread-wiper device;
3. Different solutions for sewing factories options:
3.1 Small rotary hook 1.5 times(8422) or big rotary hook 2 times(8722);
3.2 Both can be apply to thick type(403) or thick type(405);
3.3 Major difference from 8422 and 8722 will be in max needle gauge: 3/5mm for 8422 and 7mm for 8722;
Specification
Item | IH-8422D | IH-8722D | ||||
Application | Knitting, thin, medium and heavy(针织,薄料,中厚料) -403 | Heavy duty (厚料) -405 | Knitting, thin, medium and heavy(针织,薄料,中厚料) -403 | Heavy duty (厚料) -405 | ||
Needle | DP×5(#11-18) | DP×5(#18-22) | DP×5(#11-18) | DP×5(#18-22) | ||
Max Needle Gauge | 4mm | 5mm | 7mm | 7mm | ||
Max sewing speed | 3000rpm | 2800rpm | 3000rpm | 2800rpm | ||
Presser foot lifting | Manual lifting 6mm / automatic lifting 10mm |
Cutting structure | straight knife cutting (same as JUKIS') |
Bottom thread winding device | built-in type |
Stitch length step motor | adjusting parameter of change S.P.I, provide condense stitch |
Driving motor | AC direct drive motor 550W/750W |
Forward reinforcement contineous backstitch speed | 250-1500 sti/min |
Rear backstitch speed | 1000 sti/min |
Packing & Delivery
Full set pakcing: wooden box (exporting standard).
Other: machine head or spare parts will be packed in carton box.
All of our double needle sewing machine full set will be packed as required after testing and approval of our QC engineer. We are able to work with you for all detailed requirement, such as logo or trademark attaching.
Company Profile
We are very specialized in sewing machine production and R&D for 20+ years.
It is a pleasure for us to provide excellent quality machines to our customers. We'd love to talk business for OEM/ODM orders. And you are always welcome to visit us for checking our production line and on-site machine test. Also we'll visit our customers and friends around the world when we go out for exhition or business trip.
Exhibition
2018 Turkey Exhibition for Sewing Machines and Garment Equipment
We were glad to meet many friends in Turkey exhition 2018. To show and test our sewing machines on-site, we are able to work with our customers closed.
FAQ
1. Q: Do you accept low MOQ orders?
A: Yes, for most of our machine, 1 set is ok for us. We always have stock and in busy season we are able to do fast delviery.
2. Q: do you provide after-sales service?
A: yes. We are always supporting our customers by online live chat, video or specific documents to solve your machine problems.
3. Q: do you trade with guarantee?
A: Yes, we are able to do Trade Assurance Order for order under 5,000 USD/order.
