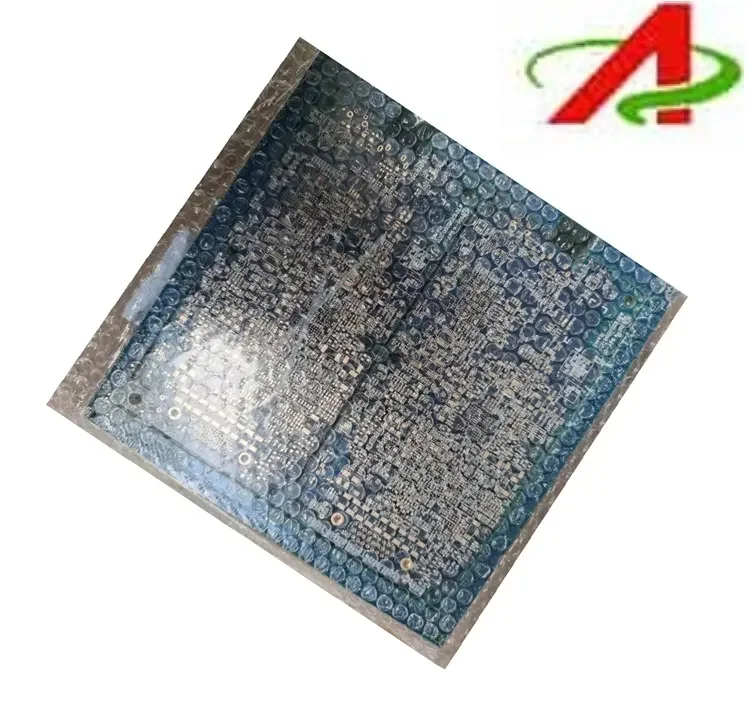

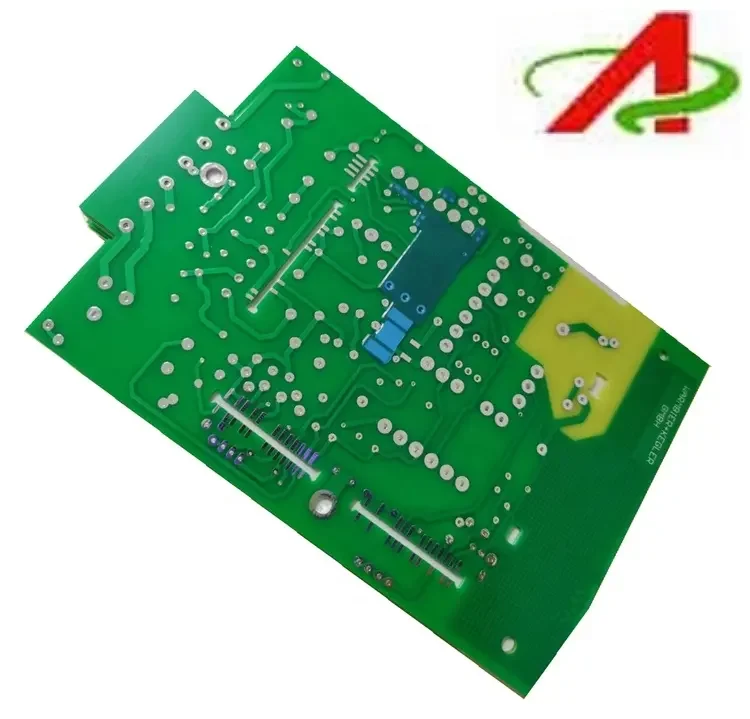

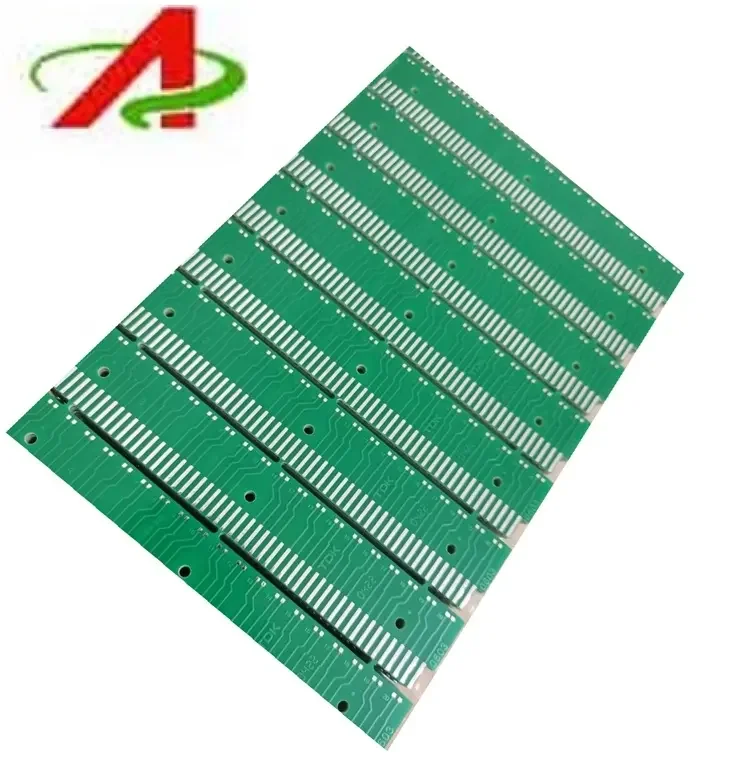

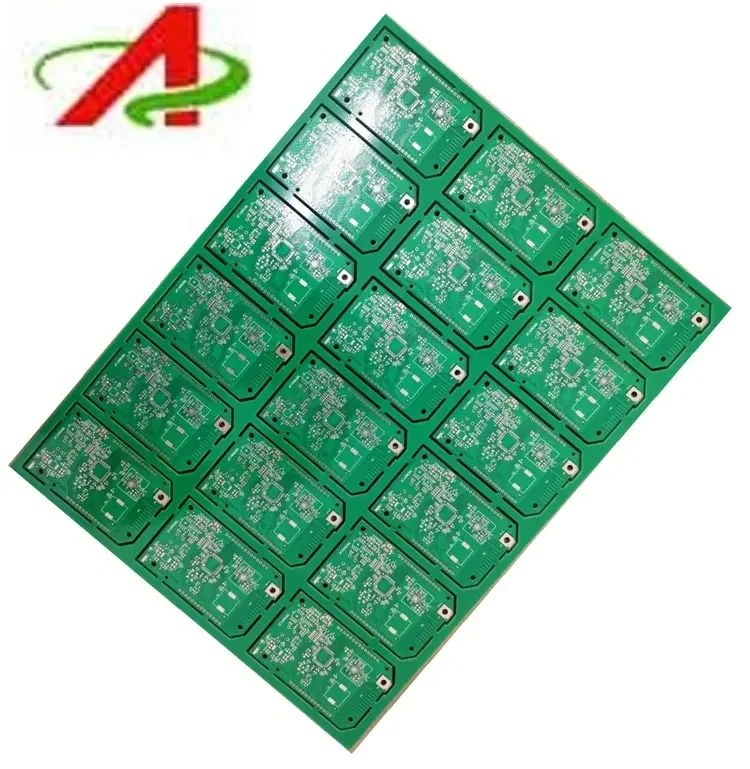

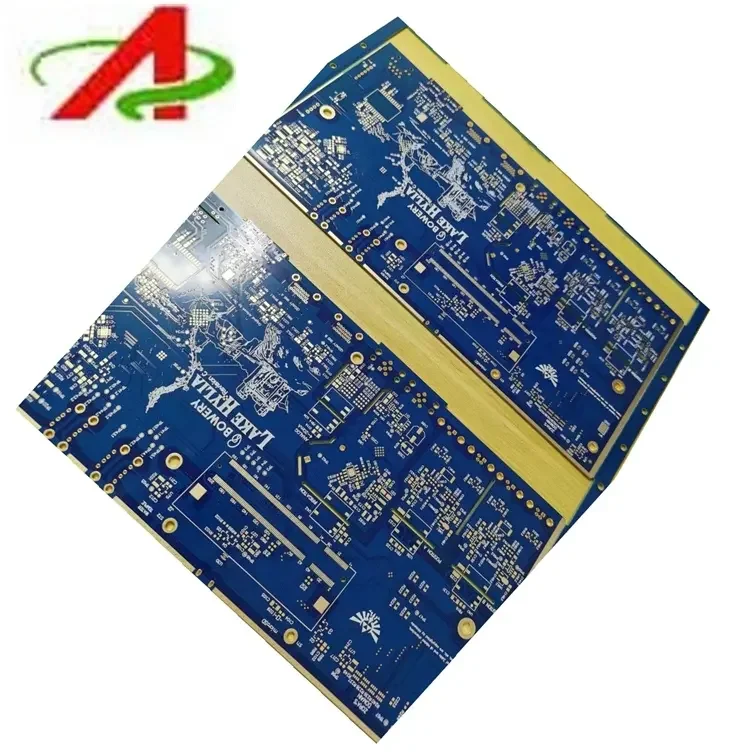

94V 0 solar inverter PCB 4G LTE Modem pcb circuit board manufacture
- Category: >>>
- Supplier: Shenzhen Akeson Circuit Co. Ltd.
Share on (1600734896100):
Product Overview
Description
94V-0 solar inverter PCB 4G LTE Modem pcb circuit board manufactuer
Item | Multilayers PCB High Density Circuit Board |
Layer count | 1-30 layers |
Material | FR4(High TG, Halogen Free, high frequency), CEM1, CEM3,BT,Al base mateiral,and so on. Supplier: SY,KB,ITEQ,Isola,Nelco,Rogers,Grance,Mitsui |
Maxpanel size | 32±20(800mm±508mm) |
Min width/space(min) | 4mil/4mil |
Max copper weight | 140um(4oz) for inner layer 175um(5oz) for outer layer |
Min machine drill size | 0.2mm(8mil) |
Via hole tpye | Blind/Burried/plugged |
Thickness of finished board | 0.20-6.0mm |
Tolerance | Registration of innerlayer to of innerlayer:±3mil Accuracy of hole position:±2mil Tolerance of dilled slot:±3mil Tolerance of PTH diameter:±3mil Tolerance of NPTH diameter:±2mil PTH hole copper thichness: 0.4-2mil Image to image tolerance:±3mil Tolerance of etching:±1mil Solder mask registration tolerance: ±2mil Finished board : Thickness<=1.0mm: +/-0.1mm Thickness>0.1mm:+/-10% Outline router: +/-0.1mm Outline Score: +/-0.2mm |
Color of solder mask | Green, Black, Blue,Red, White and so on |
Surface freatment | HASL,HASL Lead Free,OSP ,Immersion Gold, Immersion Ti, Immersion Sliver, Flash gold, Selective Gold plating(gold thicness up to 120u),Gold figers ,Carbon print, Peelabe Mask |
Hardness of solder solder | >=6H |
Outline finished | CNC, V-CUT, Punching |
Peel strength of line | ≥61B/in |
Warp and twist | ≤0.7% |
Our Services
Deliverables
1/Quotes in 24 hours or less
We support OEM orders, No MOQ for any order, sample order also welcomed.
2/Standard production leadtime of 12 working days (2 weeks)
3/Prototype leadtime of 5 to 10 working days (1-2 weeks)
4/Stack-ups and impedance simulation in 36 hours
5/Initial response to technical questions or quality concerns in 36 hours
6/DFM and EQ's prior to PO placement upon request
7/We have 10 SMT lines and 3 DIP lines, more than 400 workers.
8/Our main production has IoT&Gateway, Medical, Security, Consumer, LED, industrial control,
we are able to make all of PCBA which you can provide Gerber file and BOM.
Quality system
1/Akeson has mature and stringent Q
2/100% AOI, 100% ET, 100% FQC + FQA
3/SPC and Cpk programs
4/Lean Manufacturing and 6S programs
5/Advanced inspection and lab equipment
6/Standard QA report with every shipment
7/RoHS and REACH Compliance
8/Conflict Minerals Compliance
