raspberry pi camera module HQ high quality night vision CS M12 Mount V2 V2.1 8MP 12MP lens raspberry pi 4 zero 2 W kit Camera
HQ Cam Product Description

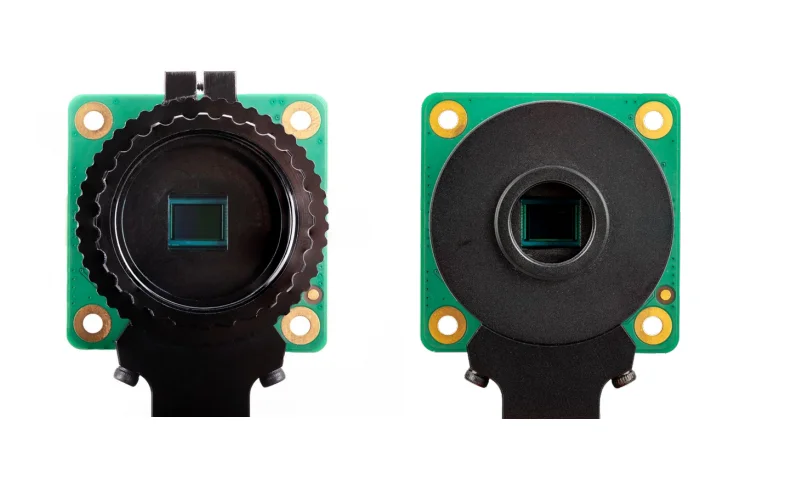

Raspberry Pi HQ Cam

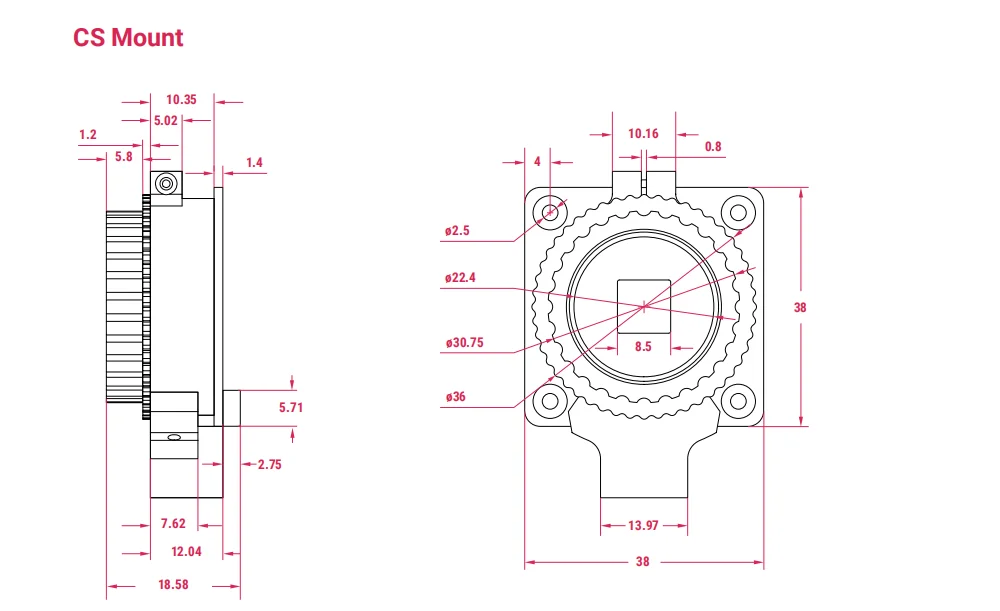

CS Mount

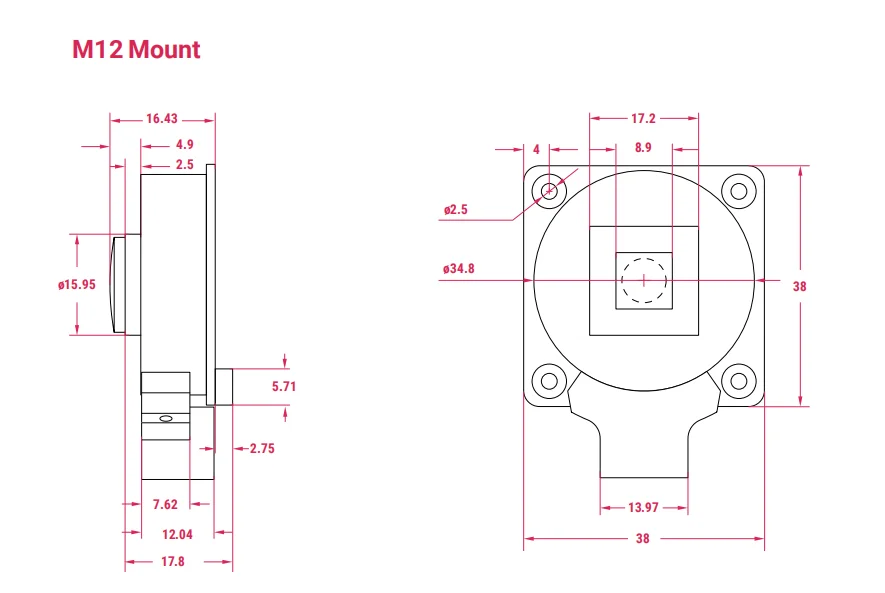

M12 Mount

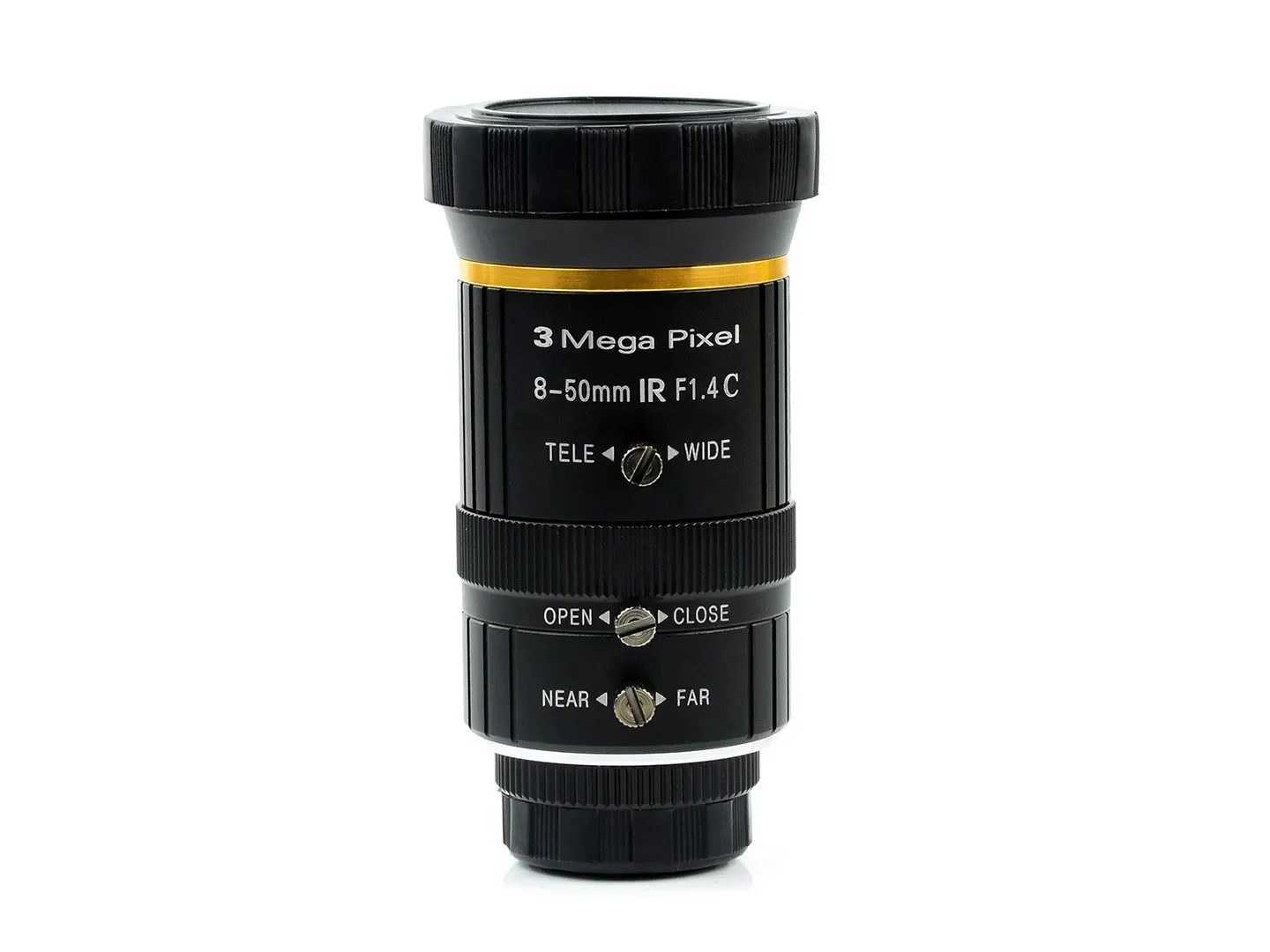

The Raspberry Pi High Quality Camera is an affordable high-quality camera from Raspberry Pi. It offers 12-megapixel resolution and a 7.9mm-diagonal sensor for impressive low-light performance. The M12 Mount variant is designed to work with most interchangeable M12 lenses, and the CS Mount variant is designed to work with interchangeable lenses in both CS- and C-mount form factors (C-mount lenses require the use of the C-CS adapter included with this variant). Other lens form factors can be accommodated using third-party lens adapters.

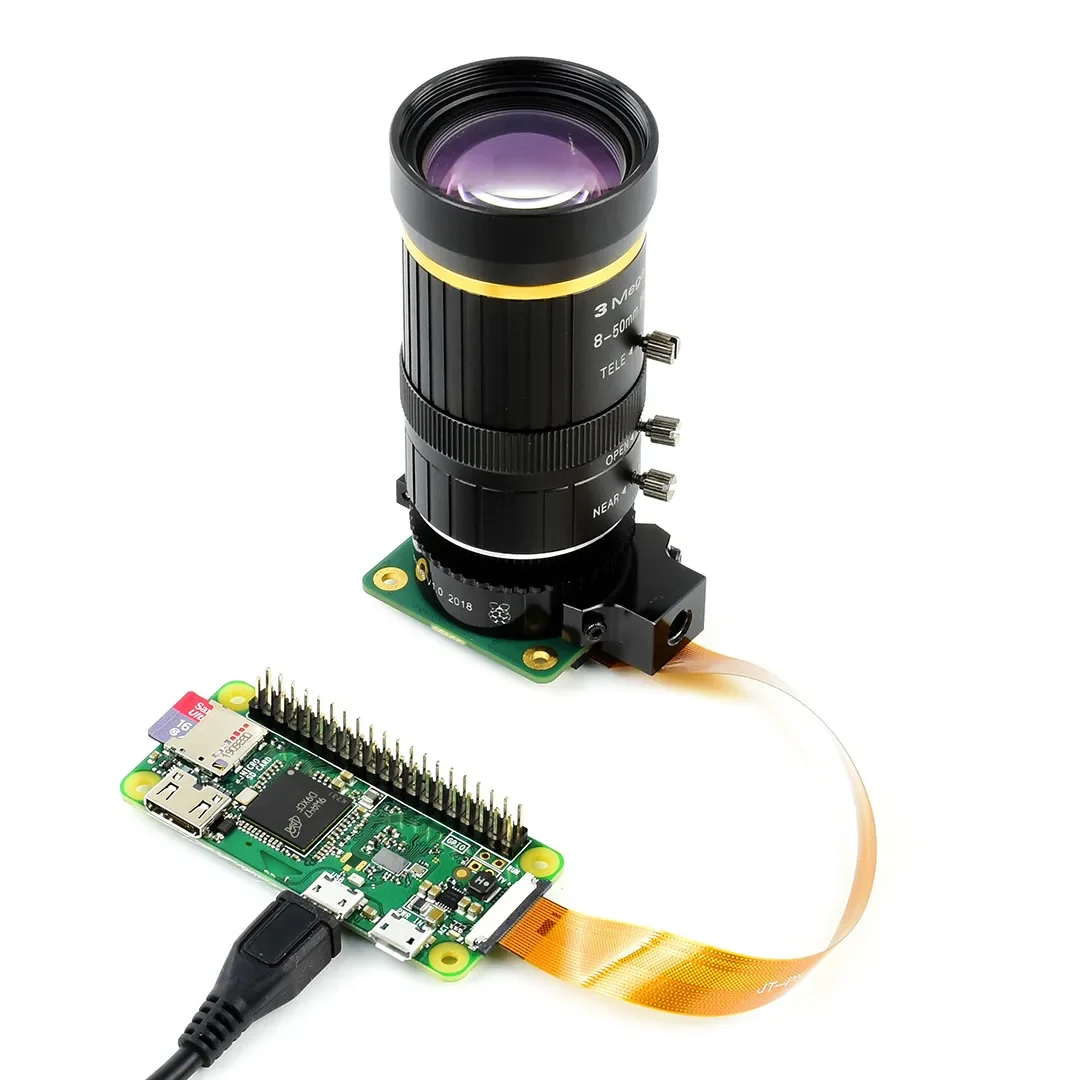

The High Quality Camera is well suited to industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/ or integration with specialist optics. It is compatible with all models of Raspberry Pi computer from Raspberry Pi 1 Model B onwards, using the latest software release from raspberry pi.

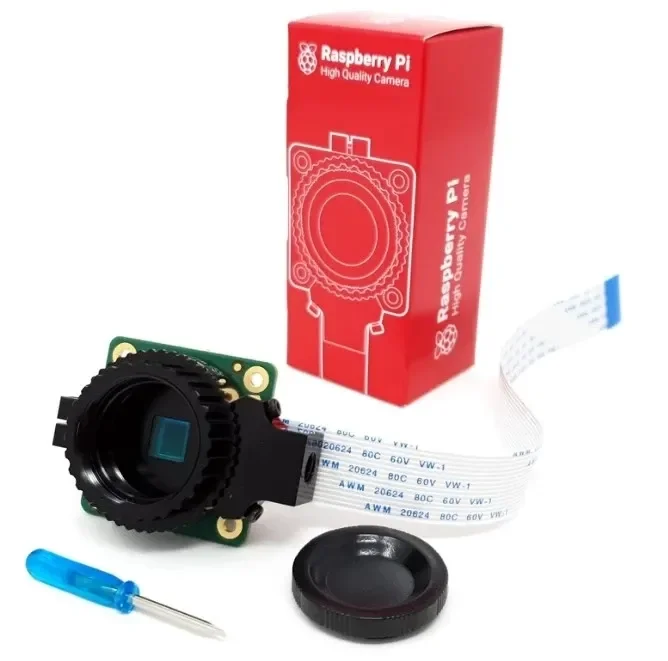

The package comprises a circuit board carrying a So-ny IMX477 sensor, an FPC cable for connection to a Raspberry Pi computer, and a milled aluminium lens mount with integrated tripod mount. The CS Mount variant lens mount features a focus adjustment ring, and this variant ships with a C- to CS-mount adapter; the M12 Mount variant ships
with three lens locking rings (one required plus two spare).
with three lens locking rings (one required plus two spare).
Sensor: | So-ny IMX477R stacked, back-illuminated sensor |
Resolution: | 12.3 megapixels |
Pixel size: | 1.55μm × 1.55μm |
Sensor size: | 7.9mm sensor diagonal |
Output: | RAW12/10/8, COMP8 |
Back focus length of lens: | 2.6mm–11.8mm (M12 Mount variant) 12.5mm–22.4mm (CS Mount variant) |
Lens sensor format: | 1/2.3” (7.9mm) or larger |
IR cut filter: | Integrated2 |
Ribbon cable length: | 200mm |
Tripod mount: | 1/4”-20 |
Compliance: | FCC 47 CFR Part 15, Subpart B, Class B Digital Device Electromagnetic Compatibility Directive (EMC) 2014/30/EU Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU |
Production lifetime: | The Raspberry Pi High Quality Camera will remain in production until at least January 2030 |

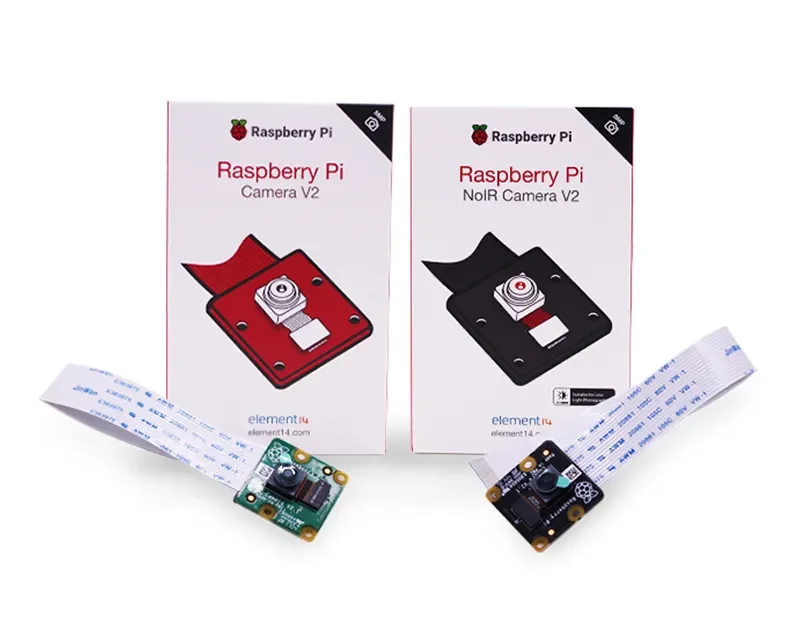

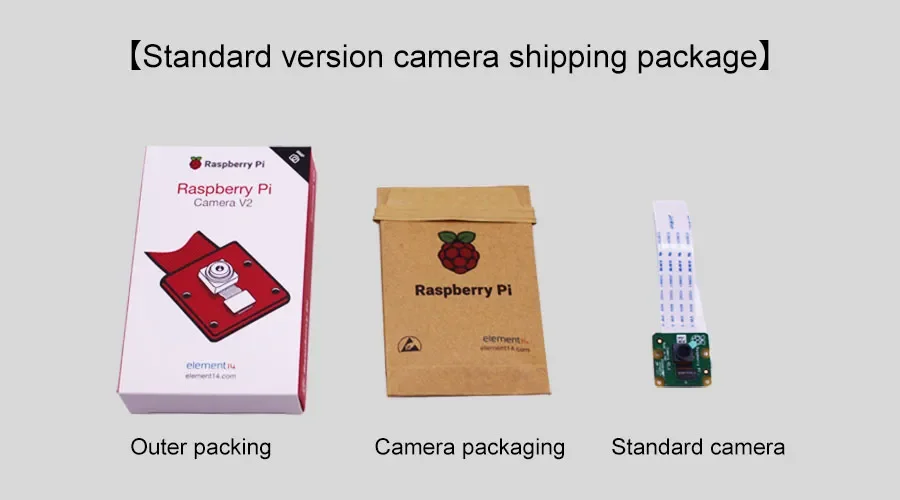

V2 Cam Production Description

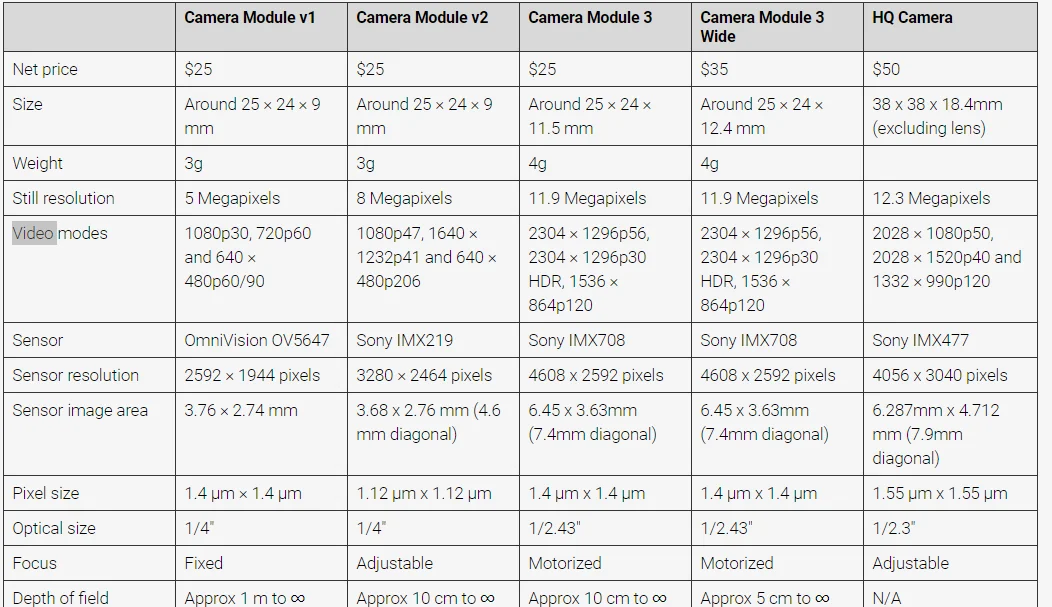

All Raspberry PI Cam Spec
Specification
