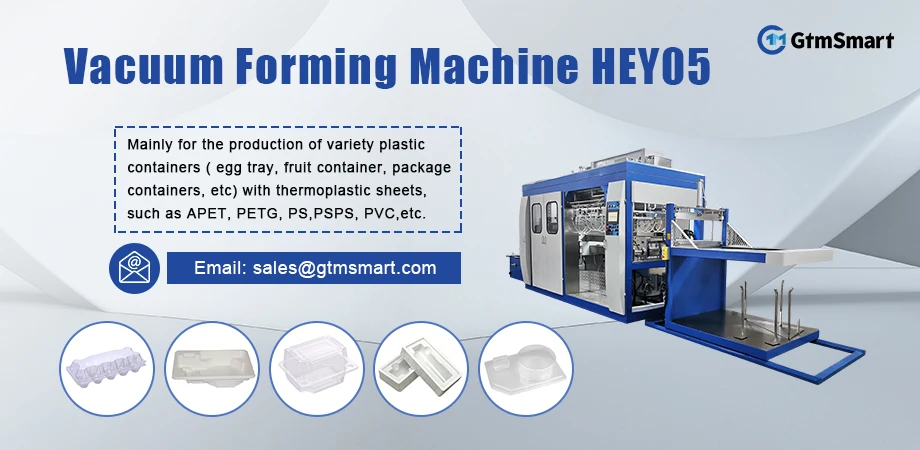

Hot Plastic Vacuum forming machine Thermoforming Vacuum Forming Machine
- Category: >>>
- Supplier: Quanzhou GESTER Instruments Co. Ltd.
Share on (1600735103897):
Product Overview
Description
Product Description
| A. Product Application |
The vacuum forming machine mainly for the production of variety plastic containers ( egg tray, fruit container, package containers, etc) with thermoplastic sheets, such as APET, PETG, PS, PSPS, PVC,etc.
| B. Product Features |
1. Utilizes PLC control system, servo drives upper and lower mould plates, and servo feeding, which would be
more stable and precision.
2. Human-computer interface with high definition contact-screen, which can monitor the operation situation
of all parameter setting.
3. Applied self-diagnosis function, which can real-time display breakdown information, easy to operate and
maintenance.
4. Several products’ parameter can be stored in device, which would be quickly test and adjustment of
machine when producing different products.
| C. Product Parameter |
Model | HEY05A | HEY05B |
Control | Air Cylinder | Servo |
Forming Area(L*W) | 1350*760 mm | |
Option Customized Forming Area(L*W) | 1220*760/900mm, 1350*900mm, 1500*760/900mm | |
Whole Machine Power | Max. 50kw | |
Heating Power | Max. 40kw | |
Average Power Consumption | About 25kw | |
Heating Method | Infrared-radiation Heating | |
Work Frequency | 4-24 times/min | |
Forming Height | Max. 240mm (Male Mould), Max. 200(Female Mould) | |
Sheet Thickness | 0.1-2.5 mm | |
Sheet Width | 450-800mm | |
Air Compressor | 0.6-0.7 Mpa | |
Air Supply Quantity | 1.5-2 m3/min | |
Vacuum Flow Rate | 200 m3/hour | |
Power | 3kw | |
Ultimate Vacuum | 5mbar | |
Water Supply | 350kg/h | |
Power Supply | Three Phase Four Lines 380V 50/60HZ | |
Machine Dimensions | 8900*1800*2500mm | |
Whole Machine Weight | Around 4500 kg | |

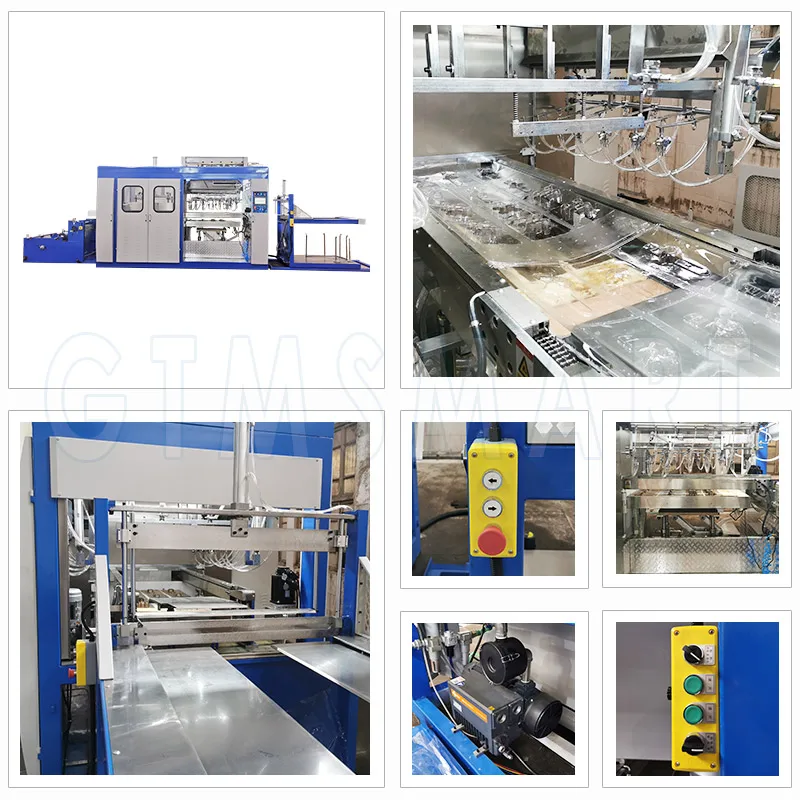

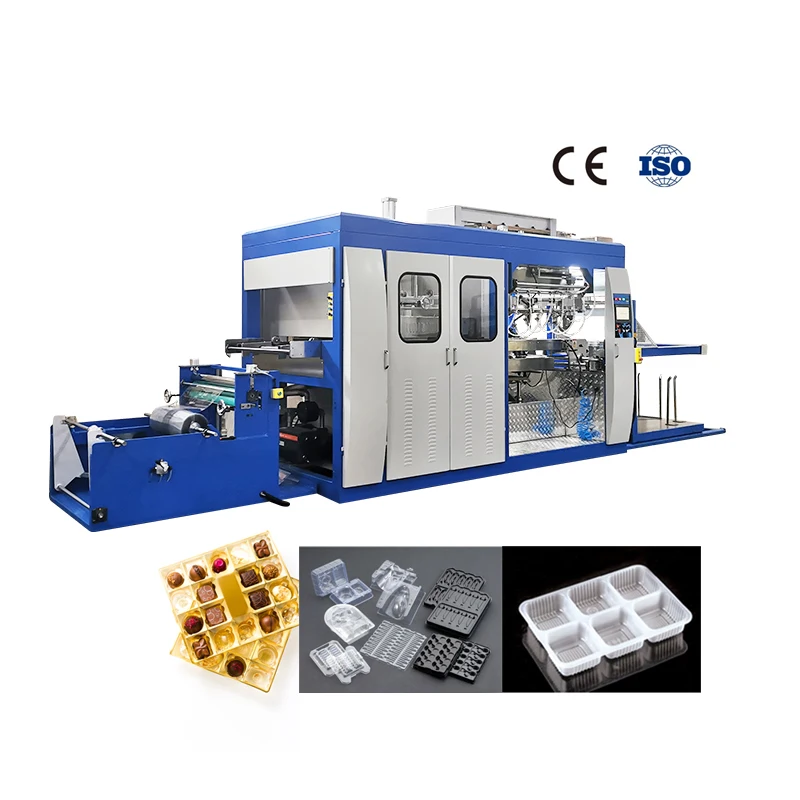

| D. Product Display |
