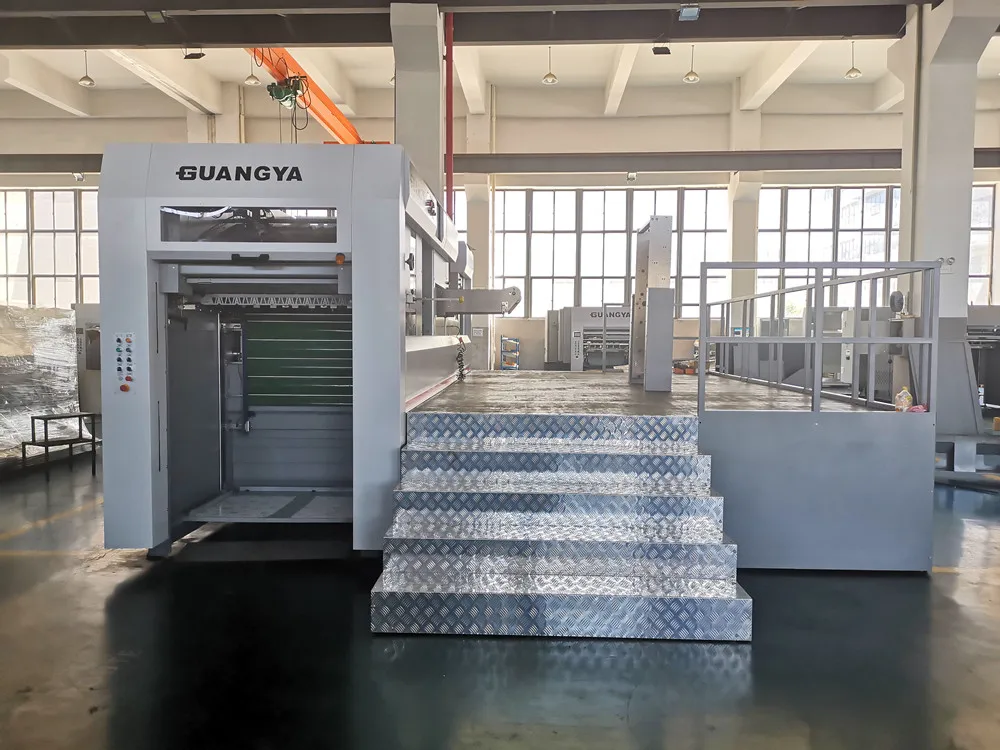

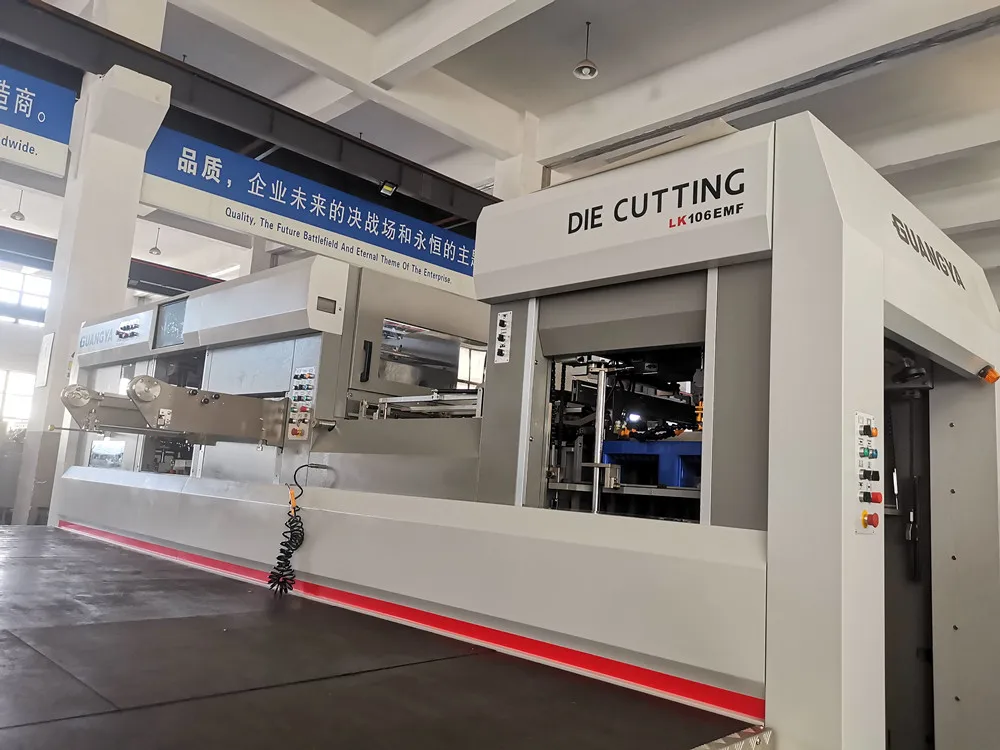

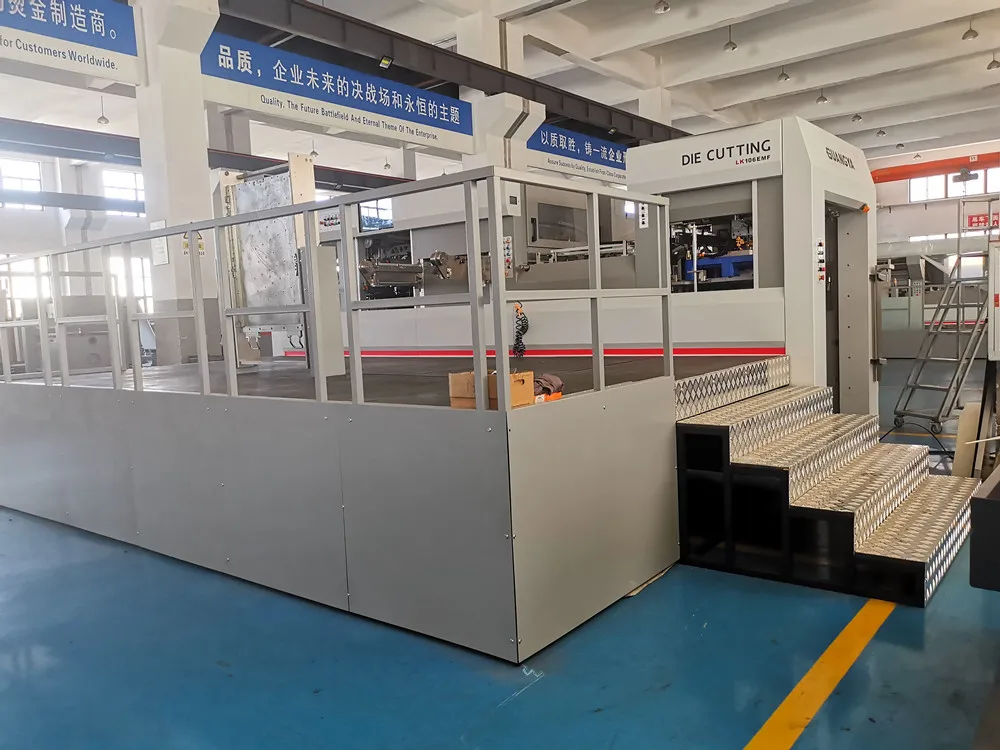

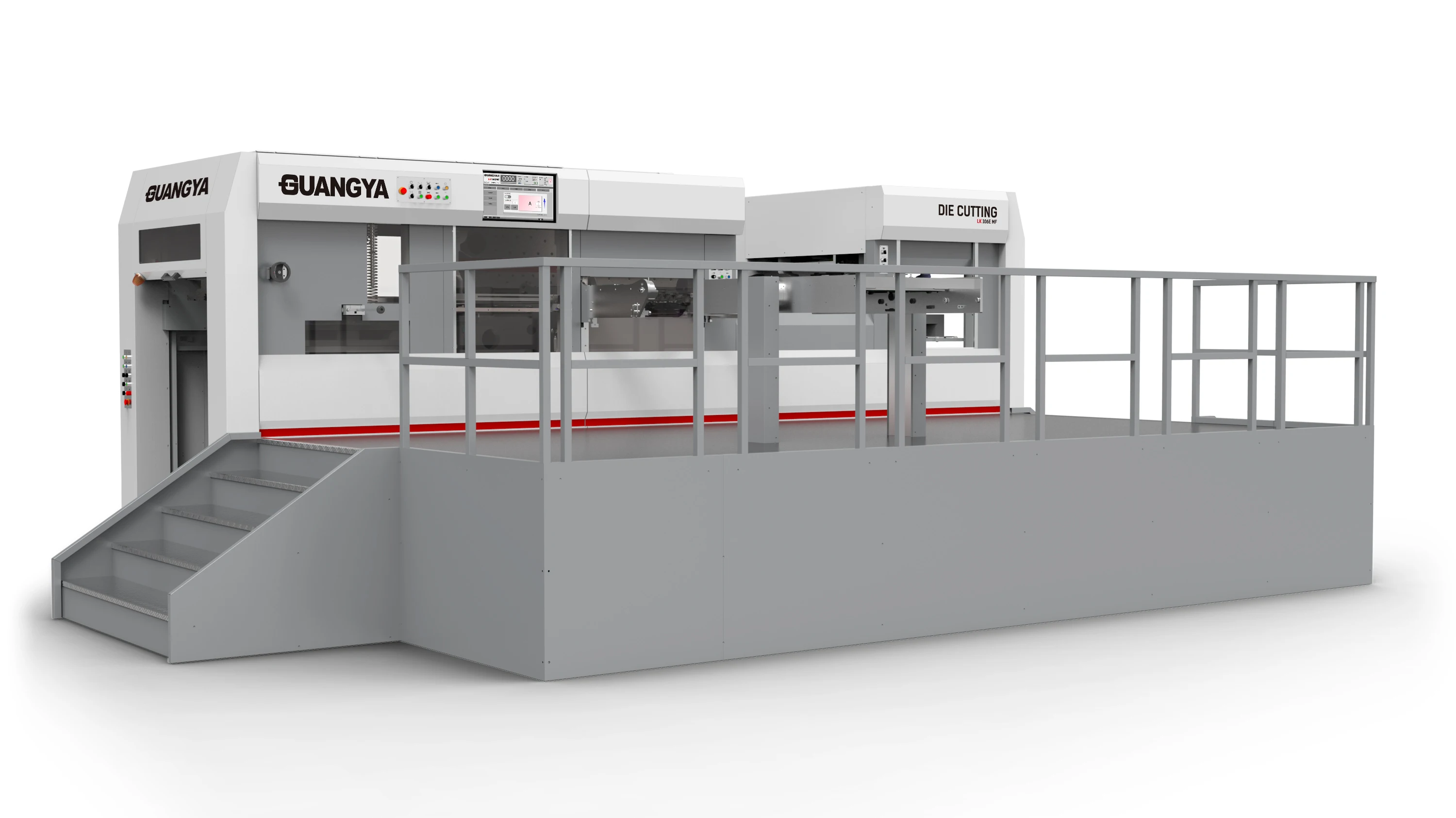

LK106EMF Automatic Die Cutting and Stripping Machine in One Step to Make Bags, Cartons
- Category: >>>
- Supplier: Wenzhou Guangya Machinery Co. Ltd.
Share on (1600735229369):
Product Overview
Description
VR
Products Description
Max. sheet size | 1060×760mm |
Min. sheet size | 400×340mm |
Max.die cutting size | 1060×746mm |
Gripper margin | 9-17mm |
Paper range | 80-2000g/m2(cardboard) 0.1-2mm(cardboard)≤4mm(corrugated) |
Maximum cutting force | 2.6MN |
Max. mechanical speed | 8000s/h |
Max. delivery pile height | 1400 (1800) MM |
Max. feeding pile height | 1100 (1500) MM |
Main motor power | 15kw |
Power rating | 20kw |
Machine weight | 24800kg |
Air supply | 0.6Mpa, ＞0.37m3/min |
Overall machine dimensions | 7500X4300X2320MM with foot pedal |
Details Images

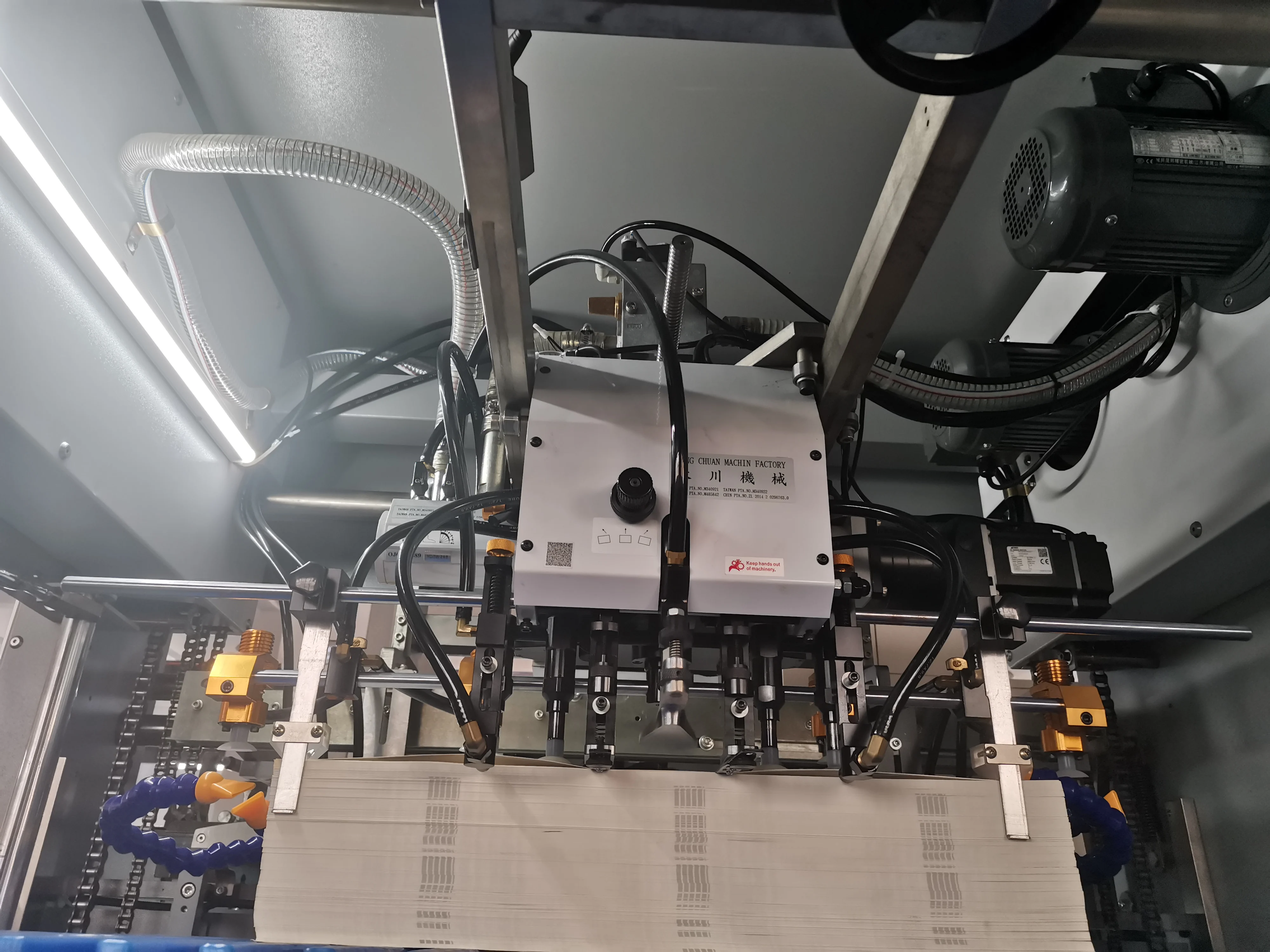

Feeder
1.Paper feeding part can be moved to left and right.
2.Paper feeding blowing function which could make paper feeding stably.
3.Protection of feeder head.
4.One-key intelligent completion of pressure, feeder, and delivery.
1. Brush and wheel can be adjusted
3. Ultrasonic double sheet detection function.
2. automatically( one key press)
Automatic belt tensioning function
Automatic belt tensioning function
3. Ultrasonic double sheet detection function.
It can detect different thickness paper double sheets automatically (Special Paper can be adjusted)
4. Side lay
Can be push and pull
Accurate positioning and flexible switching according to different types of paper
Can be push and pull
Accurate positioning and flexible switching according to different types of paper

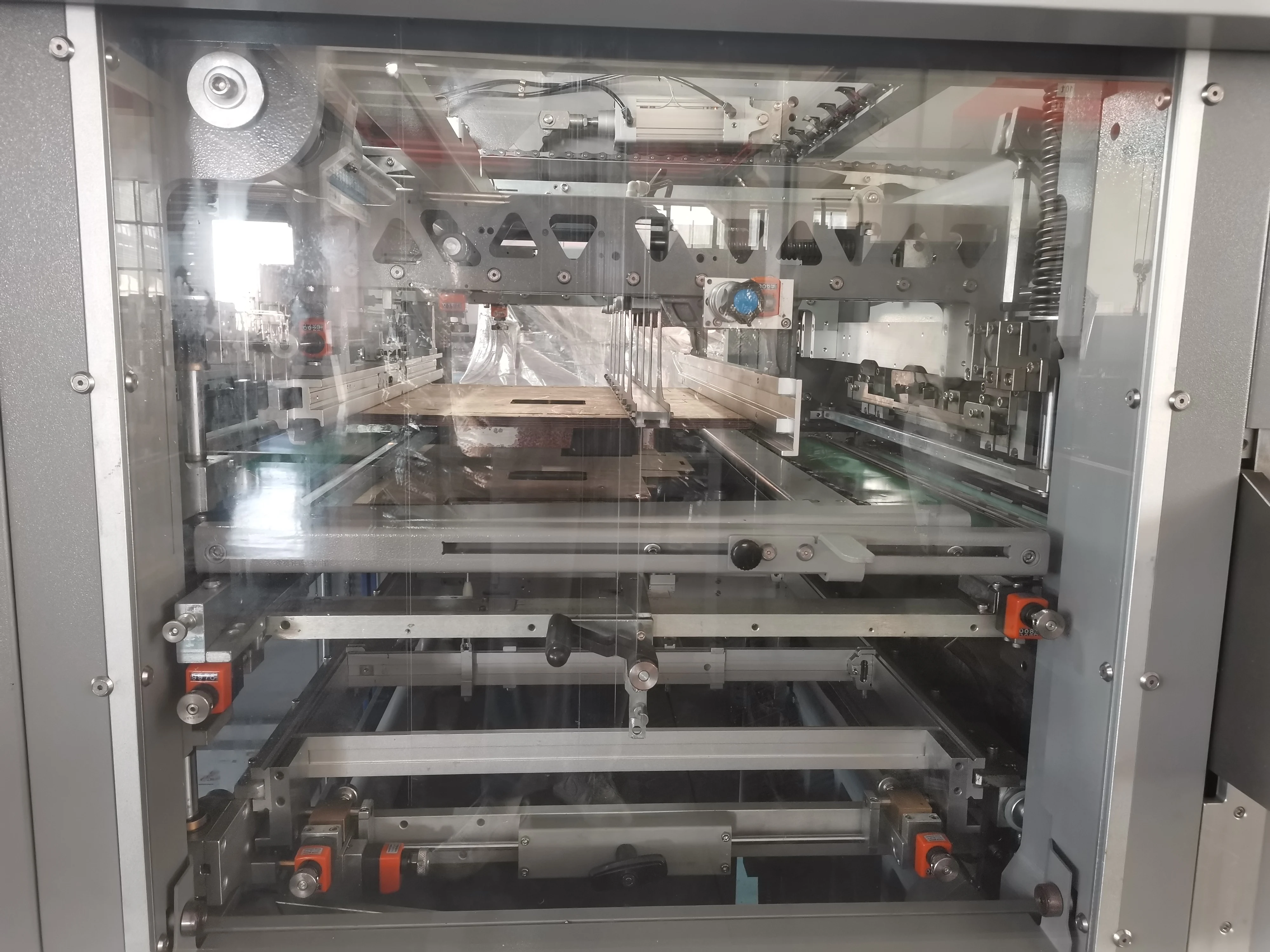

Stripping function in three-frames linkage mechanism, user-friendly design, fast and convenient to install and remove stripping mold.

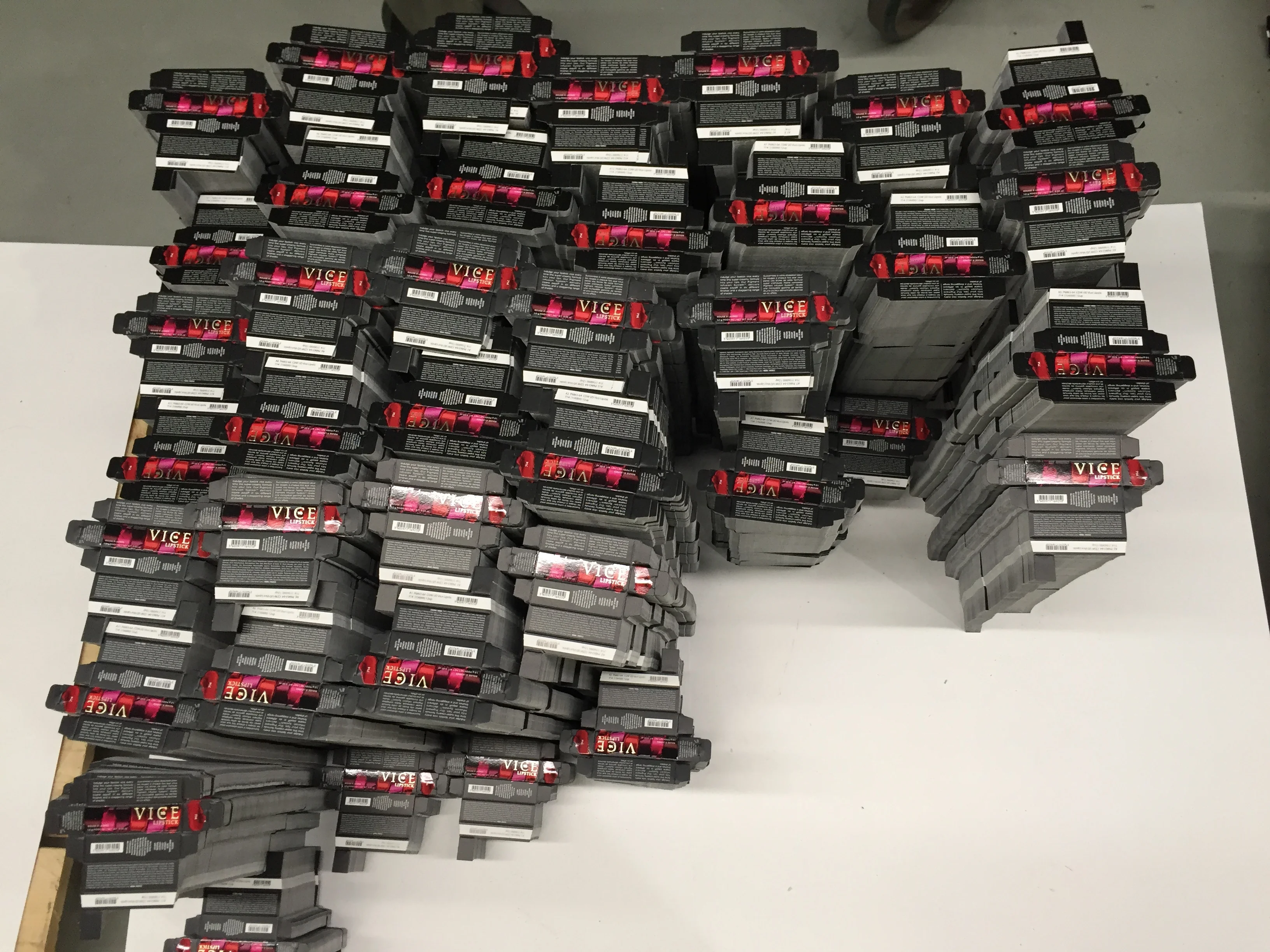

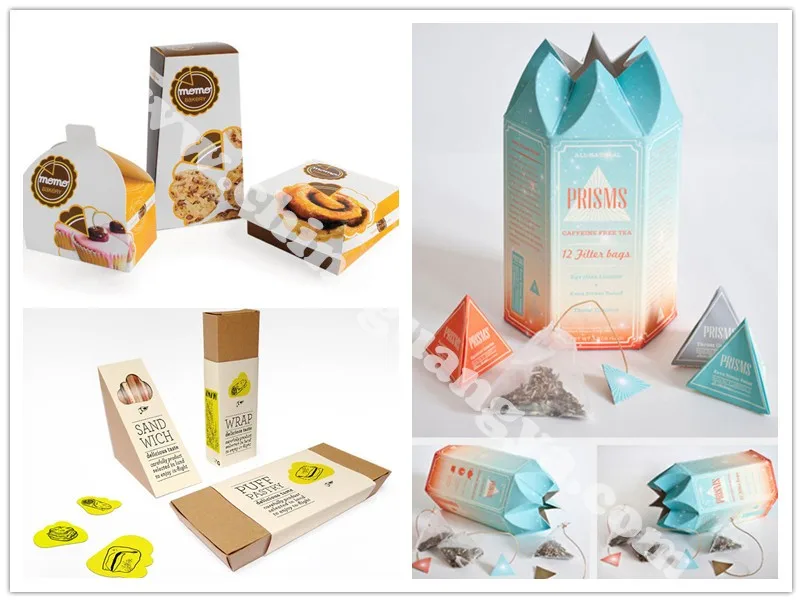

Sample

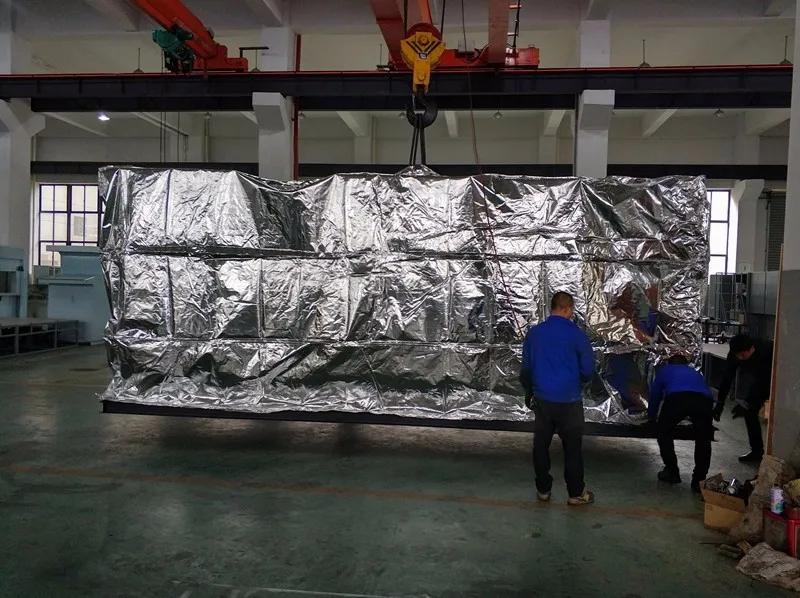

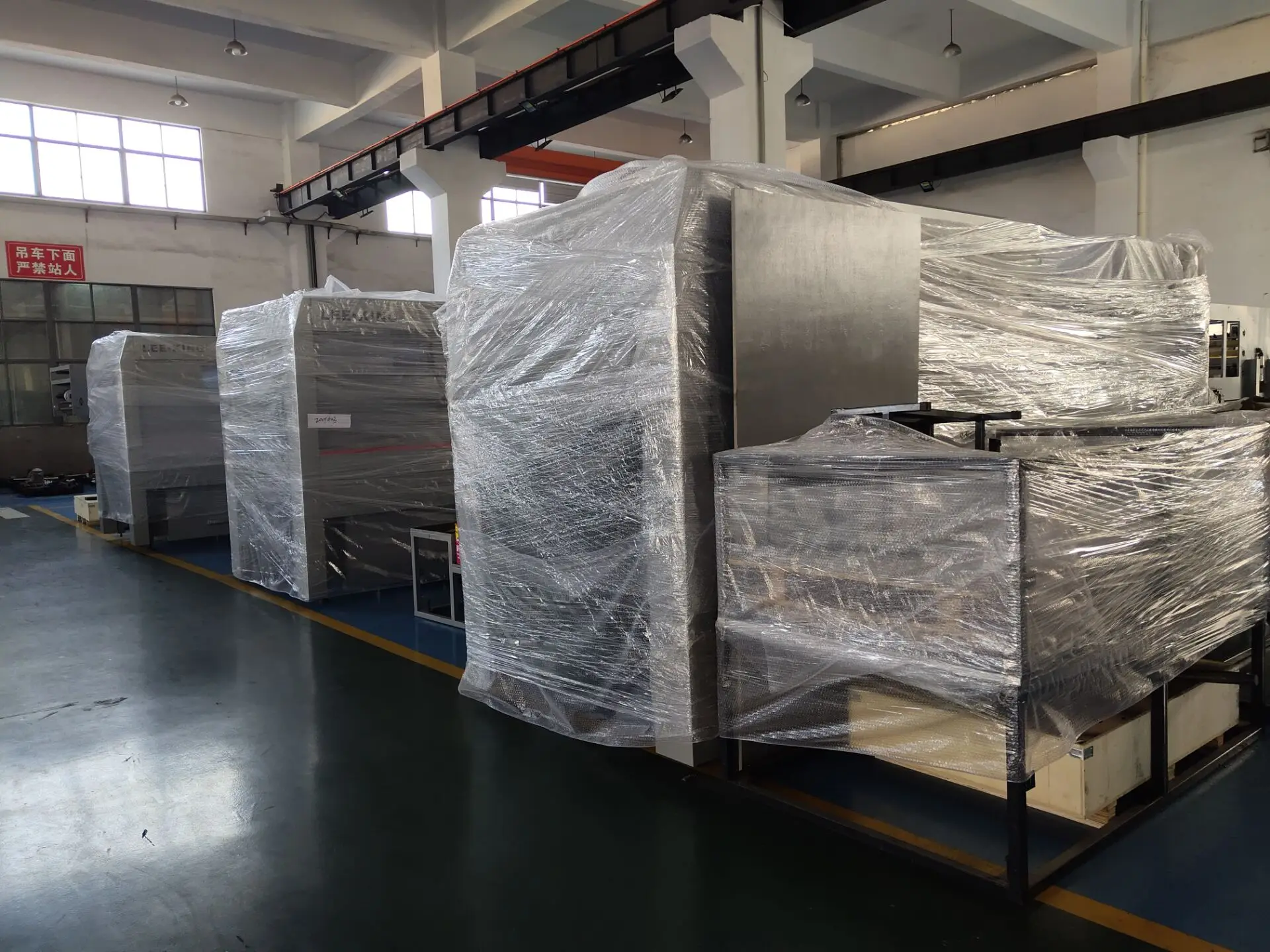

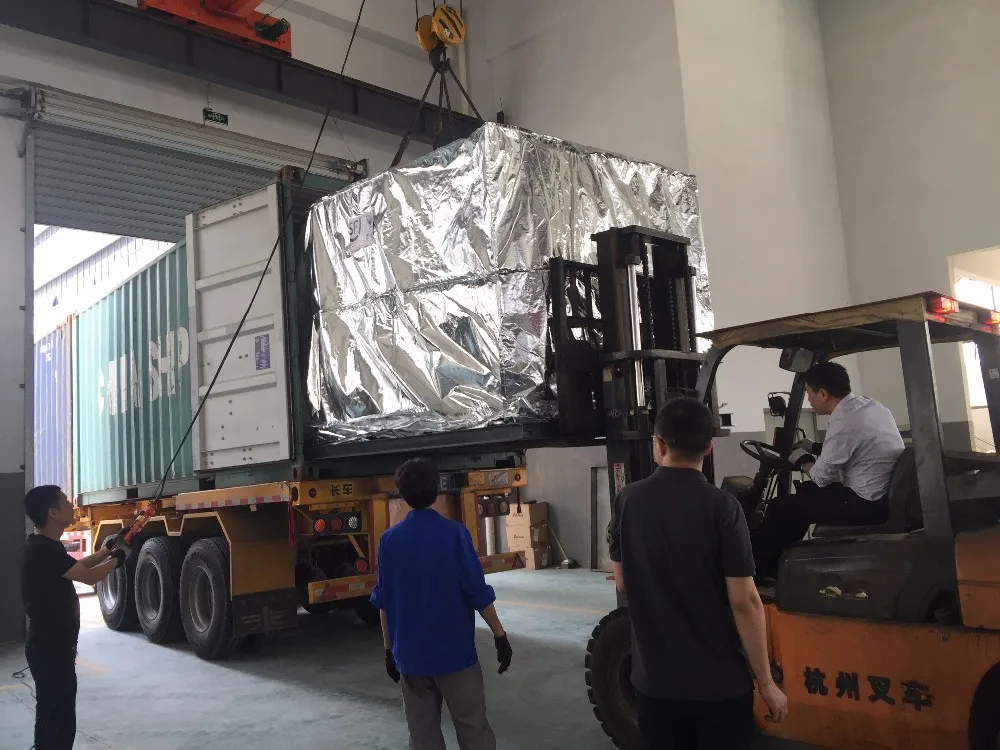

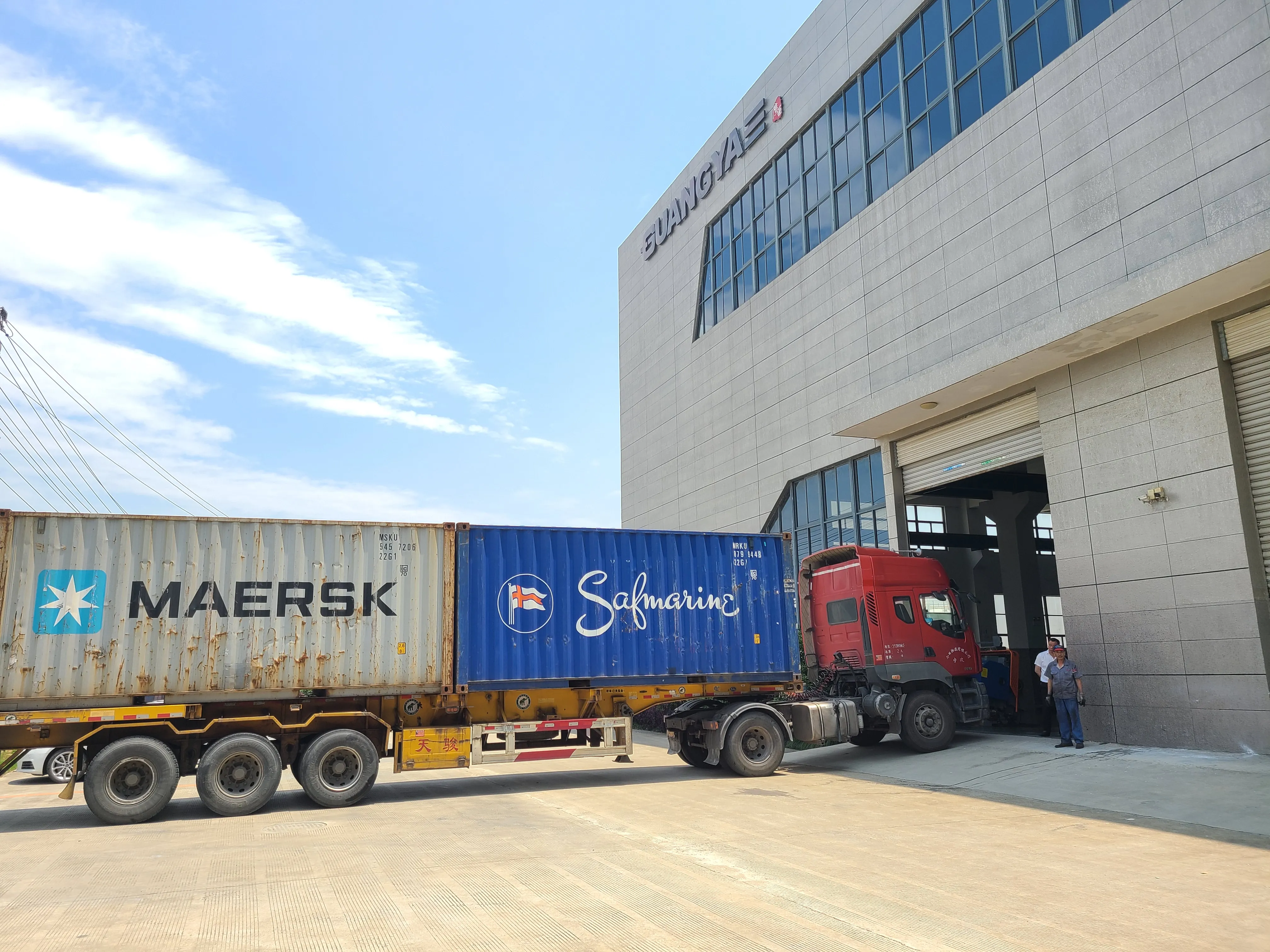

Packing & Delivery

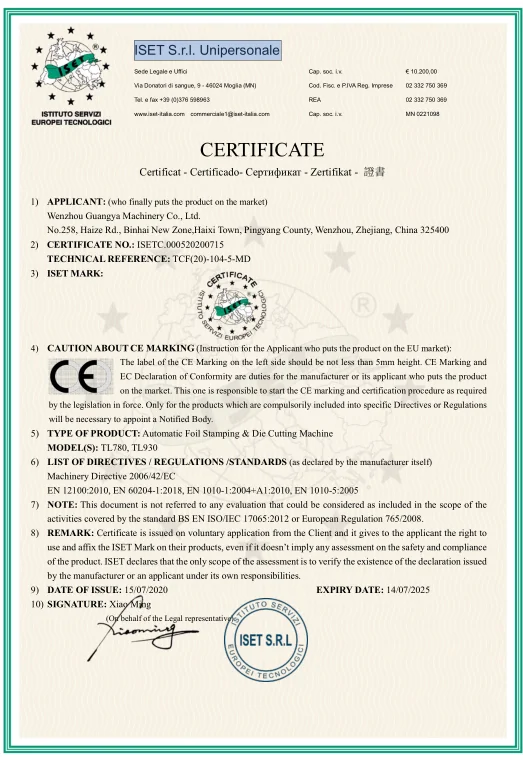

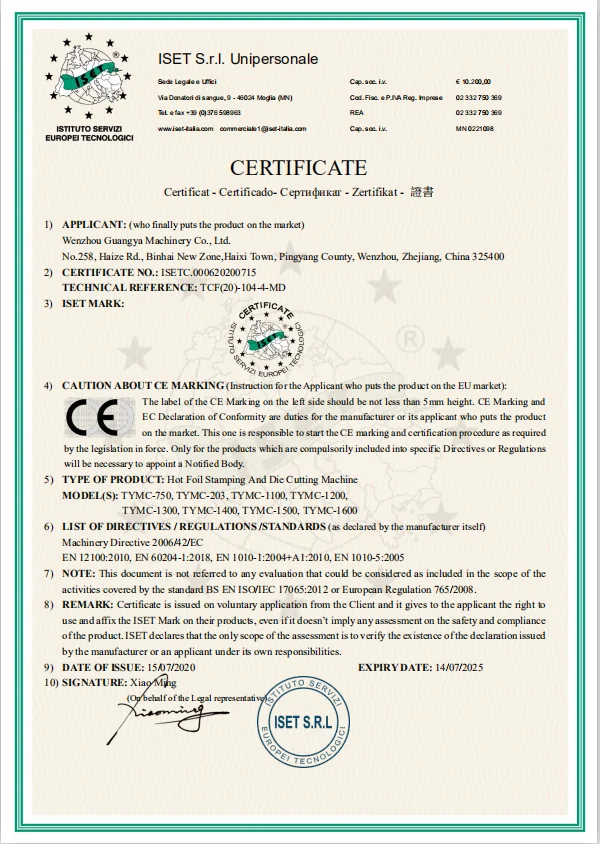

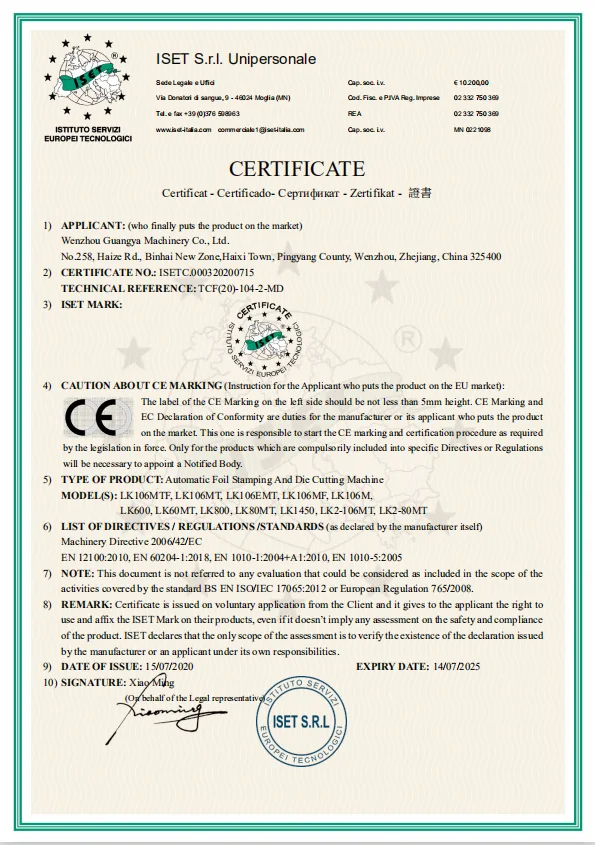

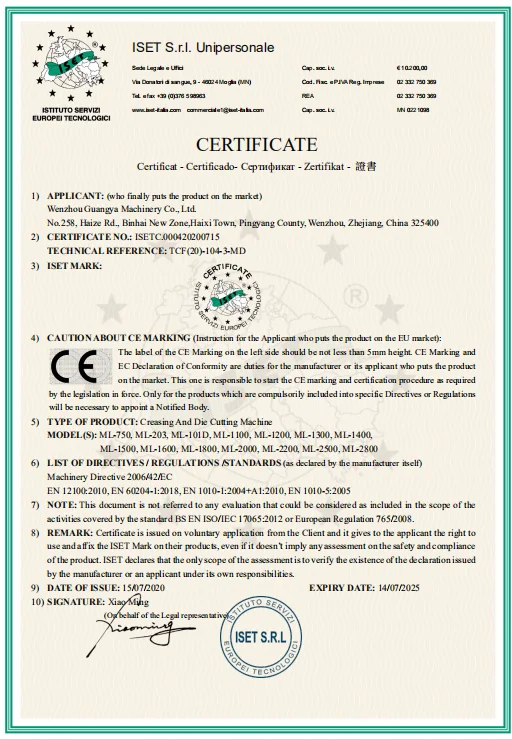

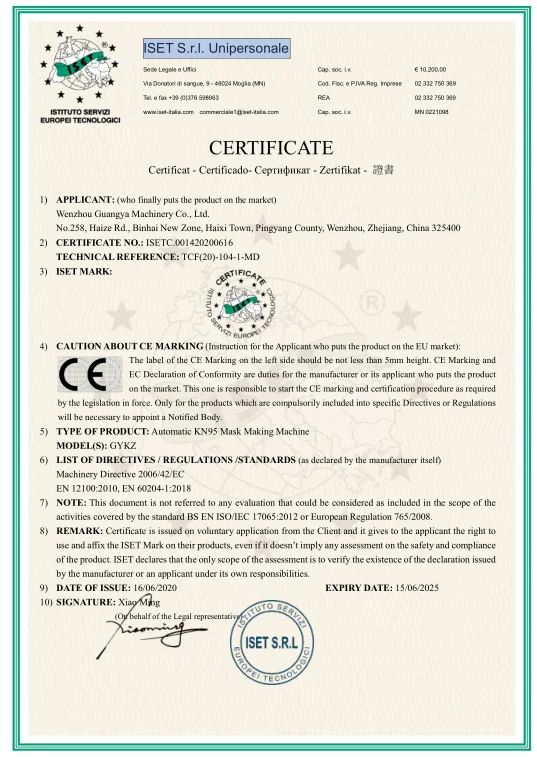

Certifications
Recommend Products
Exhibition
Since 1996, our company has participated in many well-known exhibitions and our customers come from all over the world, according to statistics our machines have been sold to more than 70 countries worldwide
Company Profile
Zhejiang Guangya Machinery Co.,Ltd is a professional manufacturers of hot foil stamping and die cutting machine with long history.Since its establish we have always insisting on the policy of Achieved success by quality,Integrity is base,also pay attention to new product development and continual improvement.On designing machine, we adopt high and new technology from home and abroad.Our products is very popular in domestic market and already exported to over 70 countries or region such as Europe,North America,Middle East and so on.
Reception Center
Work Shop 1
Work Shop 2
Company Office

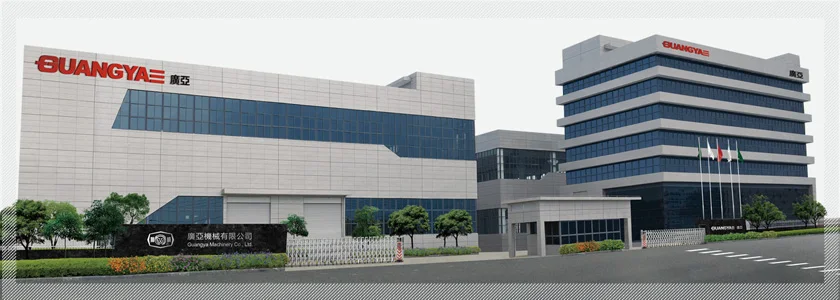

Company Outside
Pictures Gallery
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory,manufacturer.
2. Q: What certificate do you have?
A: We have ISO9001 and CE certificate.
3. Q: How long is the warranty period?
A: All of our products have one year warranty.
4. Q: What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.
5.Q: Where is your factory located? How can we visit there?
A: Our factory located in Baihai New Zone,Pingyang County,Zhejiang province,China. You can by air to Wenzhou Airport and by High-speed rain to Ruian Station. We will arrange to pick up you.
VR Link of company: https://www.chinaguangya.com/vr/-144406/data/
