PET one stage injection stretch blow molding machine
Our ISB120 equipment has excellent performance. Its structure is very similar to Japan ASB equipment. It can be used for automatic forming of PET, PETG, PP, PPSU, PC, etc. The bottle has high transparency, no color difference, uniform wall thickness and low investment cost. It can be used Japan ASB mould in our machine well. It is an ideal investment choice for customers at china and abroad to change equipment, expand production, and invest in new products.
Product advantages
1. our engineers come from Japan ASB previous shanghai factory ) Excellent molds Design and Manufacture, High Quality Processing and Material Selection, to ensure that your products are perfect!
2. High cost-effective Performer Tail-cutting mechanism, suitable for the perfect treatment of small bottle injection tail!

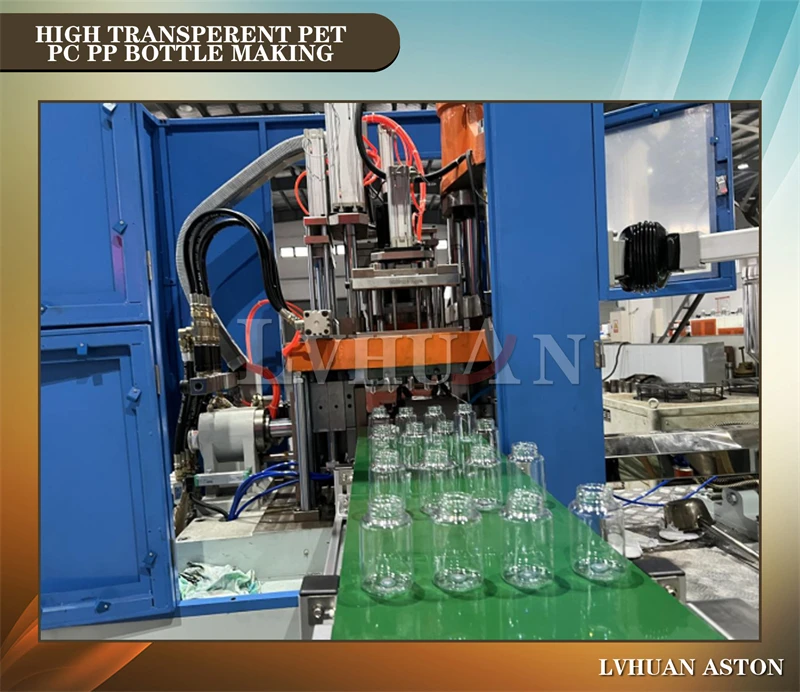

3. Very transparent ordinary PP bottles, low cost materials, high quality transparent bottles!
Product introduction

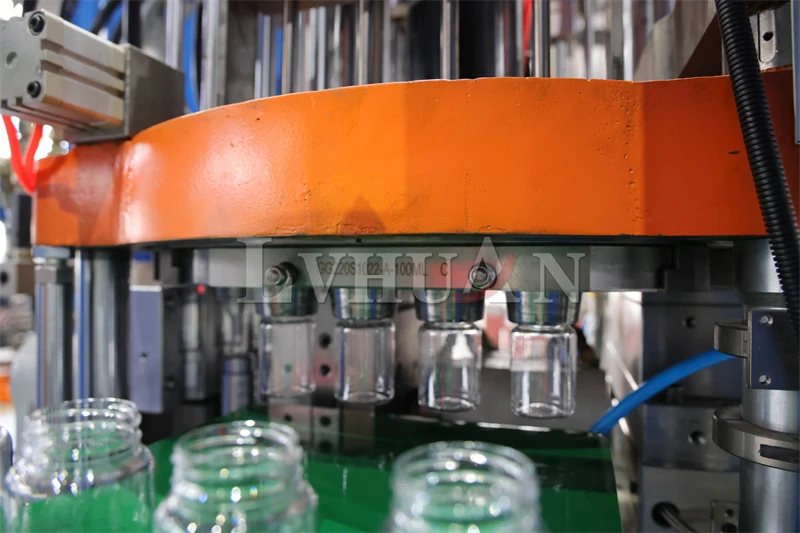

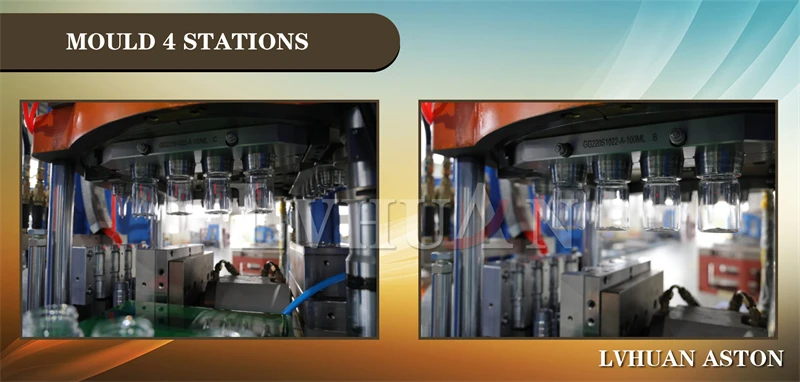

More than a mold cavity, fast The molding.No burrs and waste,Fully automatic production line.
Precision of the threaded neck collar,Excellent machine performance,Tight suture,The qualification
rate of close to perfect.Pharmaceutical packaging food packaging containers The best partner!
| Brand:LVHUAN | Model:ISB120 | Material:Stainless steel | Place of Origin:Zhangjiagang |
| Name: injection stretch blow molding machine |

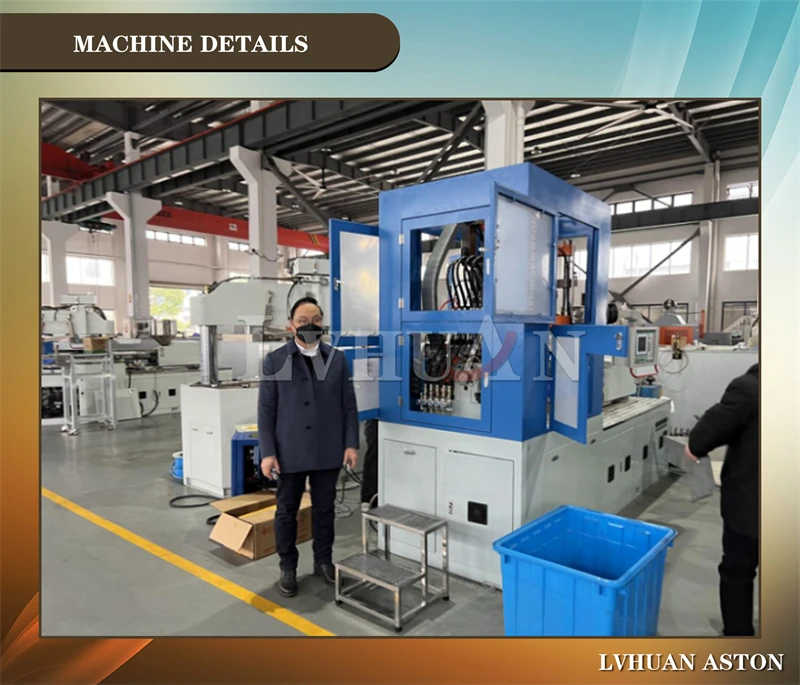

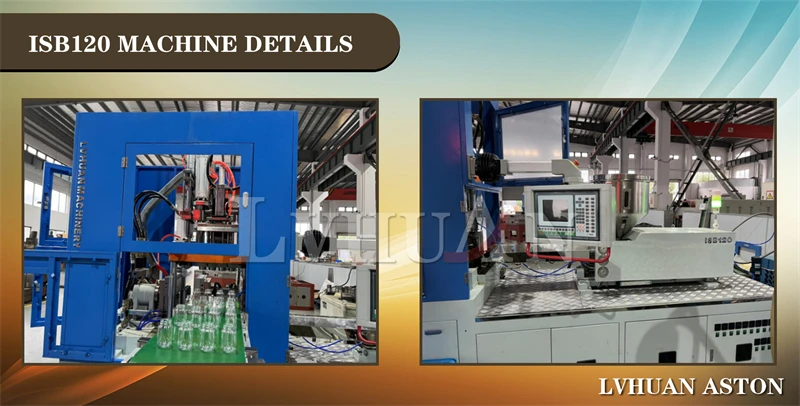

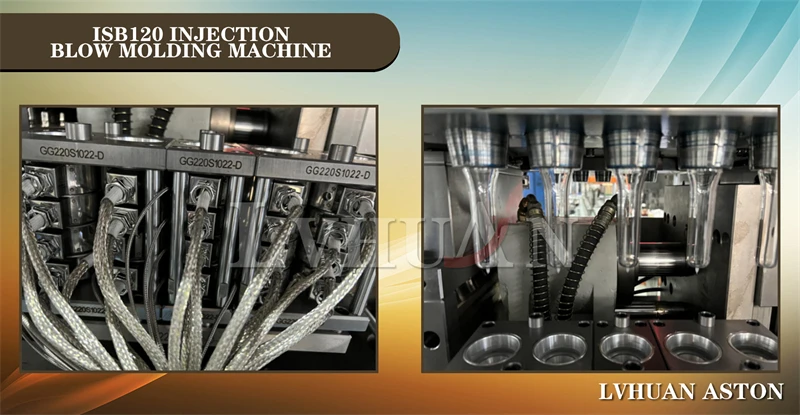

ISB120 injection blow molding machine:
Product characteristics
1). It produces more finished bottles per cycle per hour without deflashing and trimming.
2). It has been designed to make plastic bottle containers with exacting weight,size,volume tolerance and quality.
3). The weight of the product can be pre-set. Excellent mechanical strength, impact –resisting and non-cracking.
4). There is no joint seam at the bottom, and the bottle strength is improved accordingly.
5). The joint seam on the bottle body is smooth.
Product parameters
| No. | Item | Data |
| 1 | Screw diameter (φ) | 40mm
|
| 2 | Theoretical injection capacity | 200 cm3 |
| 3 | Locking force of injection mold | 135 KN |
| 4 | Locking force of blow mold | 100 KN |
| 5 | Drive power (rated) | 15+11 kw |
| 6 | Total heater power | 18 kw |
| 7 | Tank capacity | 220 L |
| 8 | Machine size (long × wide × High) | 3650*1100*2600 MM |
| 9 | Machine weigh | 4.0t |
illustrate in detail
Operation platform
1. Fully automatic operation save time and effort
Electric cabinet
2. Excellent electrical system which guarantees the reliable operation of the equipment
High-Speed tie bar patent
3. Leading high speed rod structure Faster production cycle

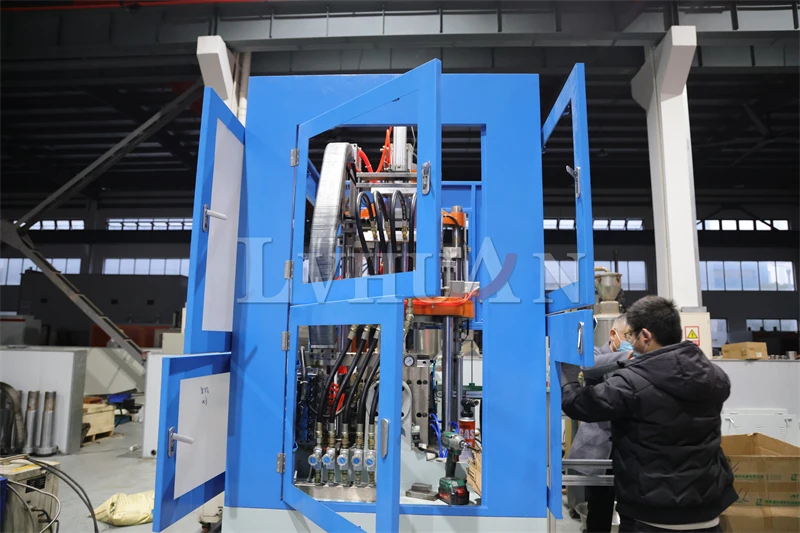

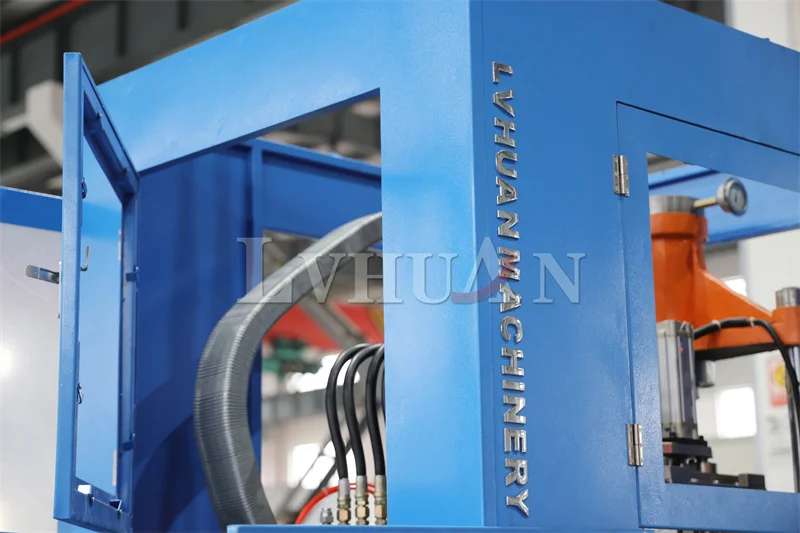

The fuselage
4. Up to the standard of medical stainless steel exquisite cover design

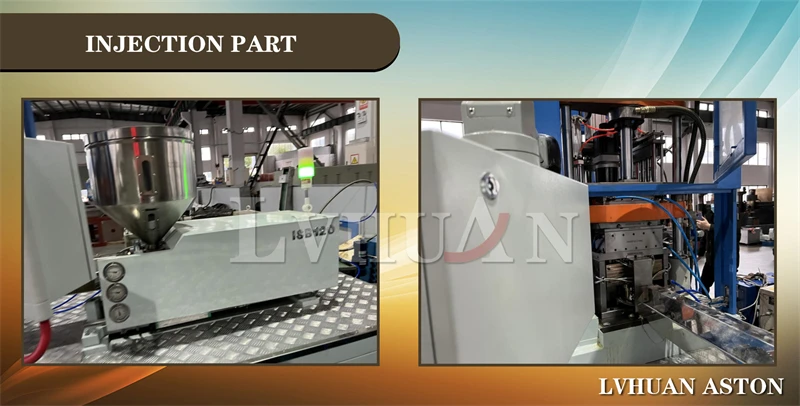

5. Excellent injection molding system and temperature protection
