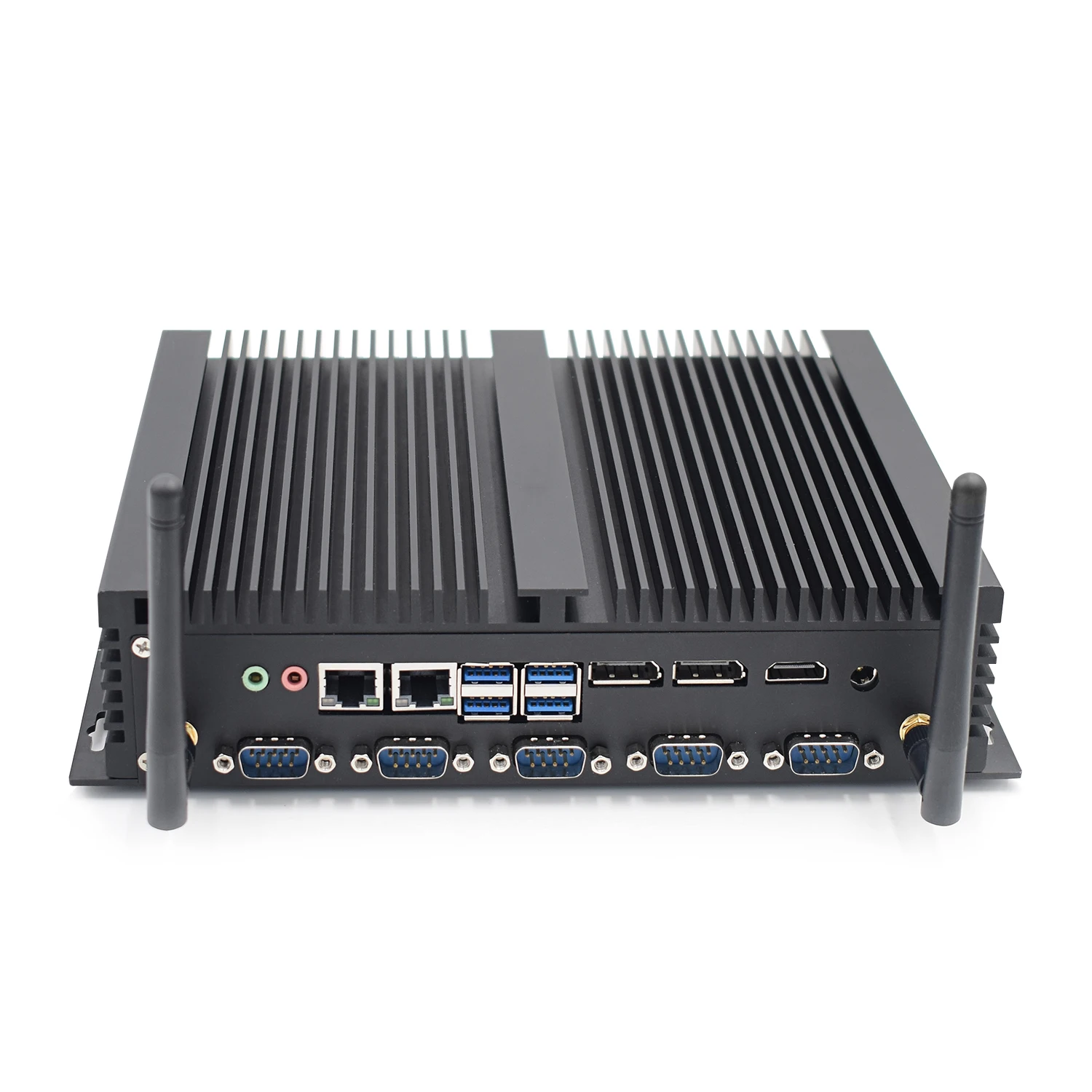

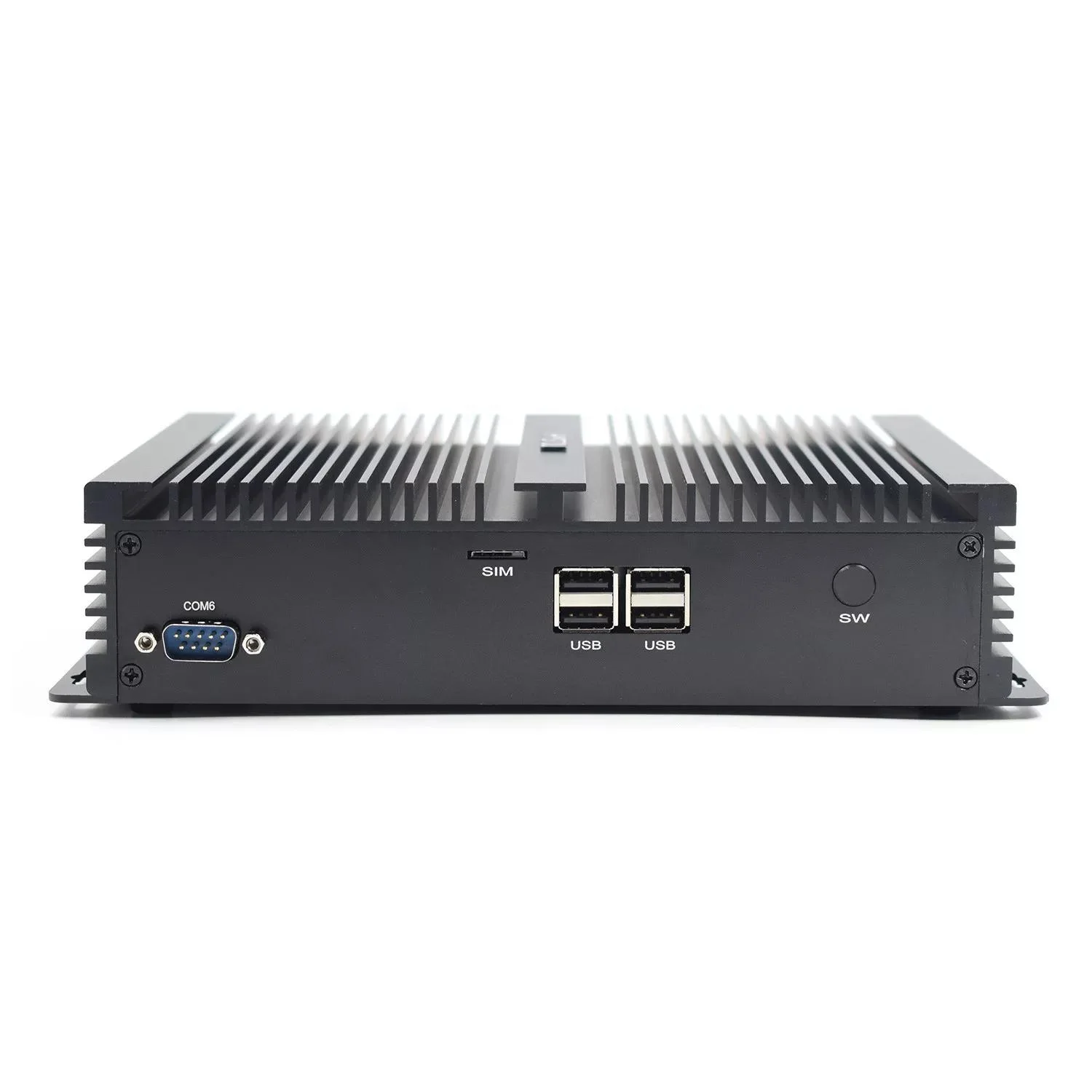

Computer Desktop Multimedia totems Intel Core I7 Windows 10 Industrial Mini Pc with 4G RAM For 2.5 Inch HDD/SSD Vending machine
- Category: >>>
- Supplier: Xuzhou Venoen Technology Co. Ltd.
Share on (1600735247229):
Product Overview
Description
Product Description
1. Support Windows 10 IOT/11.
2. Support SIM card and 3G/4G module.

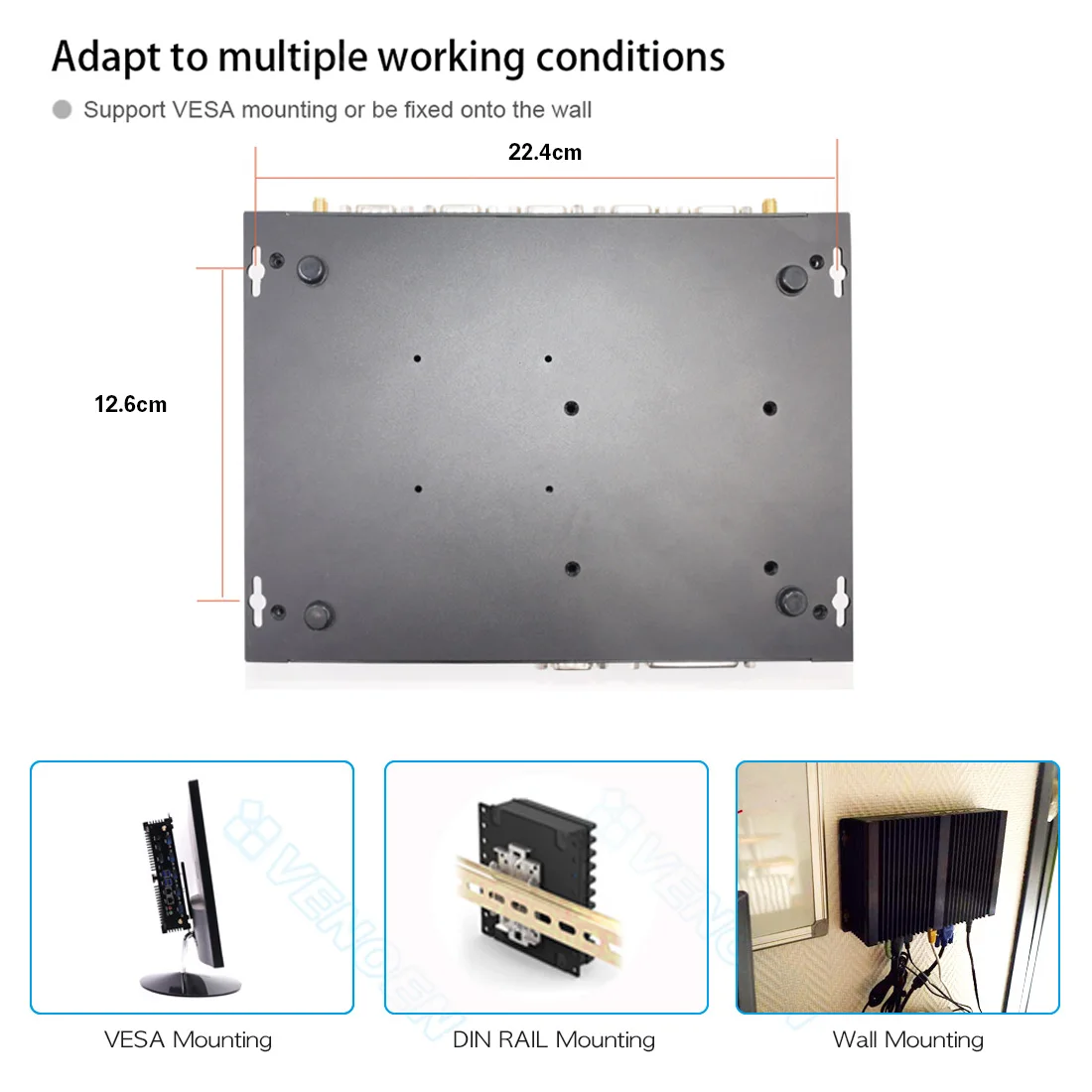

3. Support VESA mount and DIN RAIL.
Processor | ||||||||
CPU | Intel® Core™ i5-8250U Processor (6M Cache, up to 3.4 GHz); Intel® Core™ i7-8550U Processor (8M Cache, up to 4.0 GHz); | |||||||
TDP | 15W | |||||||
CPU Lithography | 14 nm | |||||||
Memory Specifications | ||||||||
Max Memory Size | 64GB | |||||||
Memory Types | 260 pin DDR4 SO-DIMMs | |||||||
Memory Channels | Dual Channels | |||||||
ECC Memory | Don’t support | |||||||

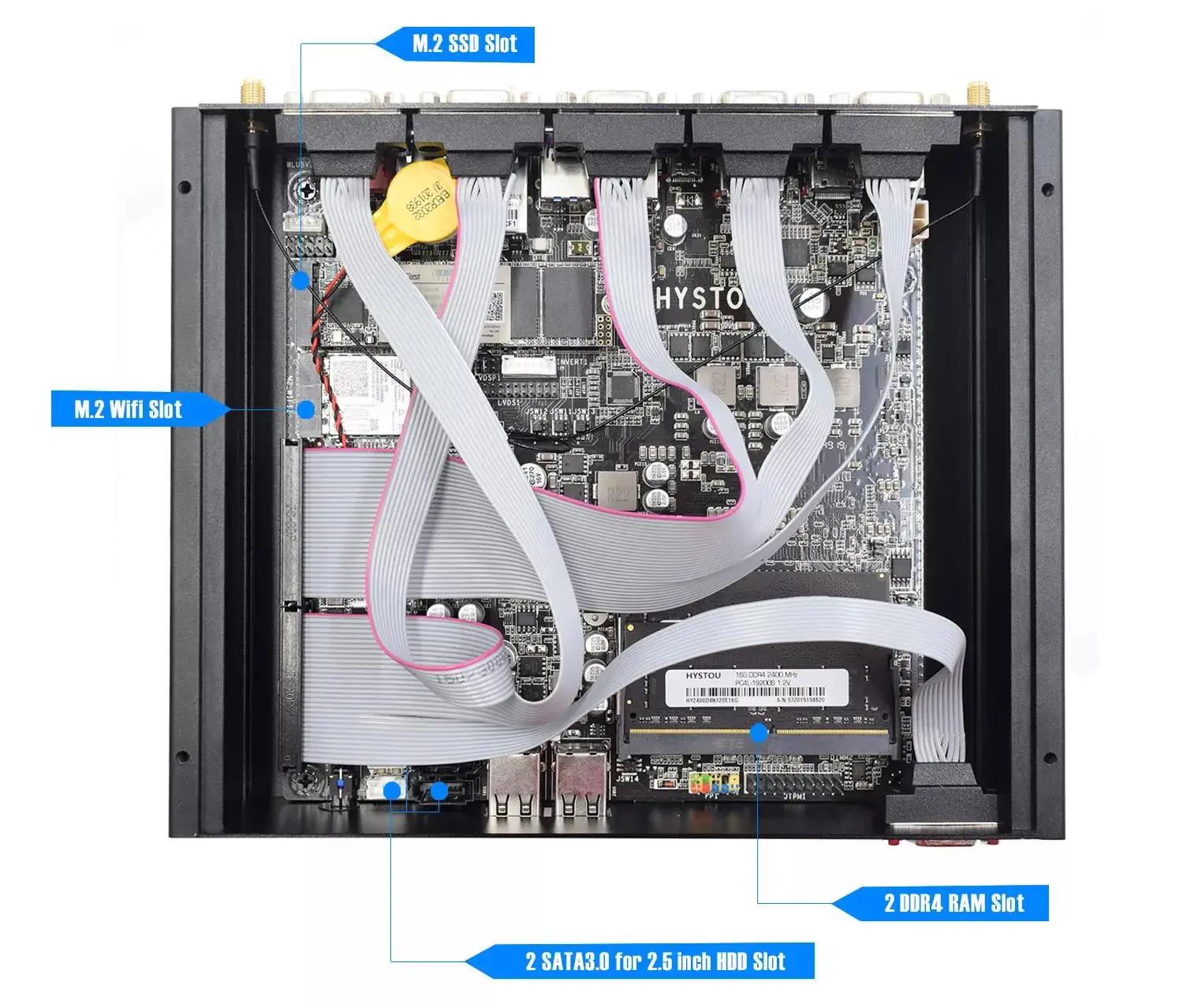

Storage Specification | ||||||||
m.2 SSD | 1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME) | |||||||
SATA | 2 x SATA3.0 for 2.5 inch HDD/SSD | |||||||
mSATA | Support mSATA slot | |||||||
SIM | Support SIM card and 3G/4G module | |||||||
Graphics | ||||||||
Processor Graphics | Intel® UHD Graphics | |||||||
HDMI | 1 x HDMI 2.0 (4K) | |||||||
DP Port | 1 x DP | |||||||
Power Adapter | 12V Power Input, supply 12V 5A power adapter within the package | |||||||
Auto Power On | Support Auto Power On Function | |||||||

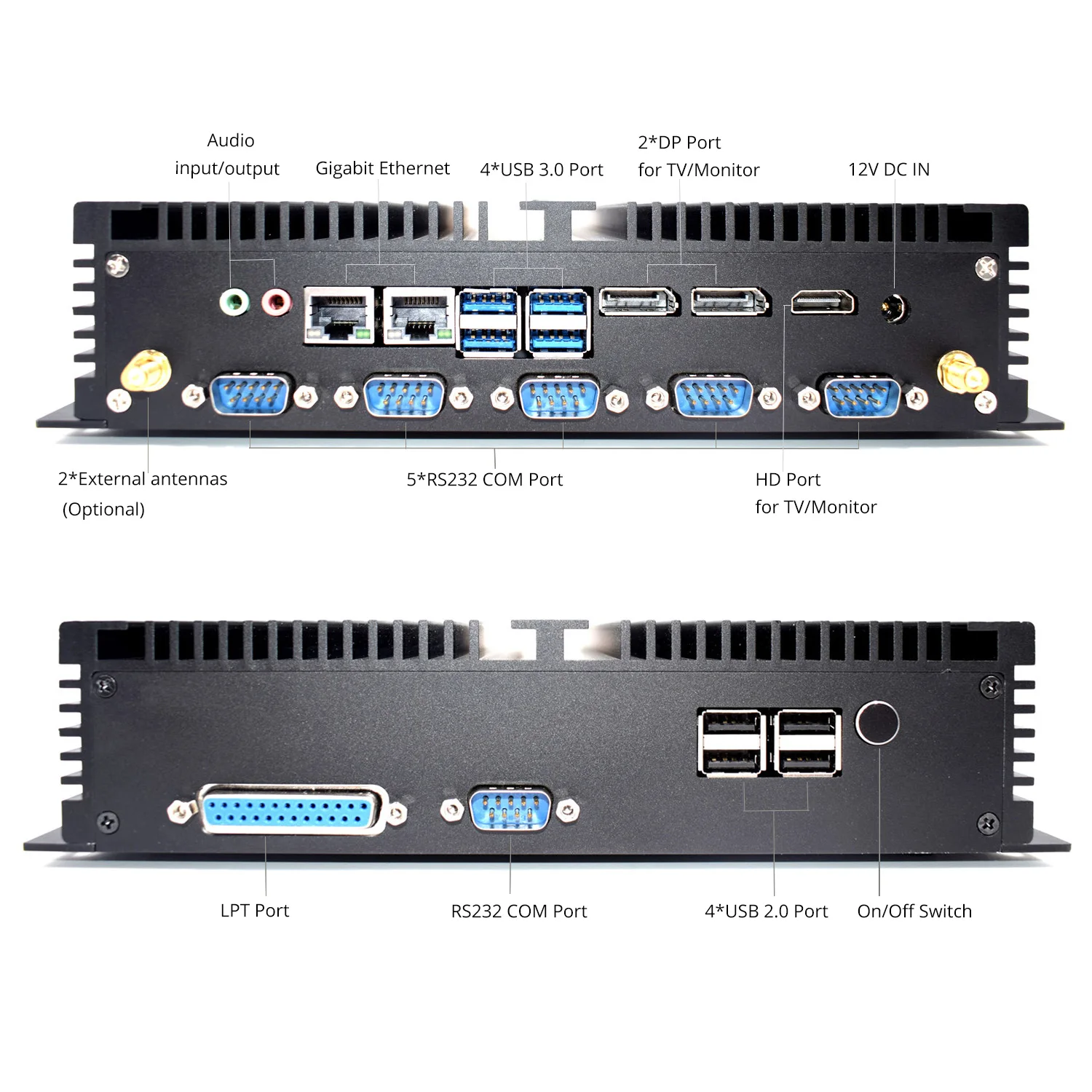

In & Out interfaces | ||||||||
USB Port | 4 x USB 3.1 port, 4 x USB 2.0 port+1 x Type C 3.1 | |||||||
Audio | 3.5mm 1 Jack, MIC in/ Line out | |||||||

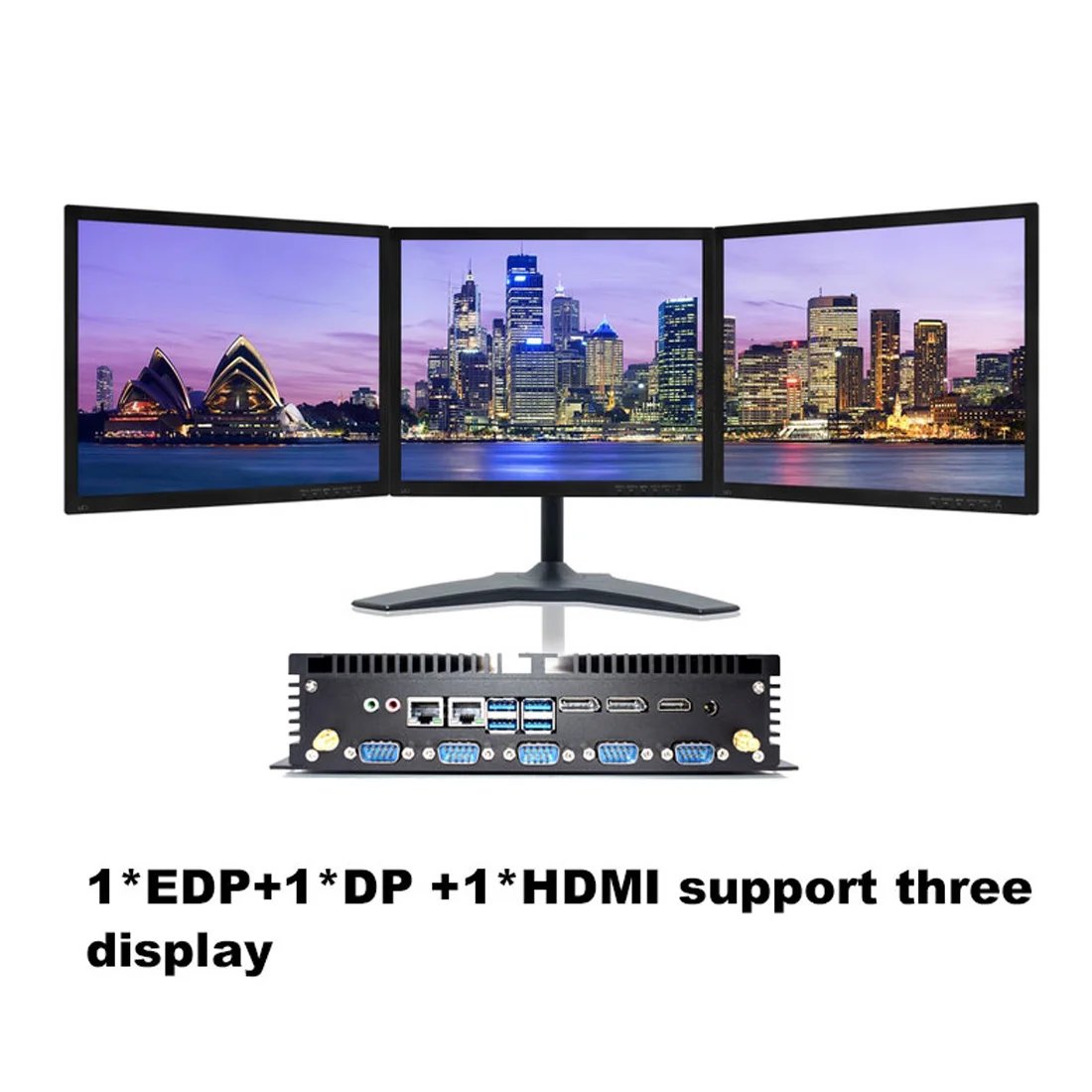

Video | HDMI+EDP+DP, support 3 Synchronized displays | |||||||
Power Input | 5.5mm 12V In | |||||||
Lan Port | 2 x Intel-I210/I211 Gigabit RJ45 Lan | |||||||
Com Port | 4 x RS232 Com port, 2 x RS485 Com port | |||||||
Others | ||||||||
System | Support Windows 7/10/IOT/11, Linux | |||||||
Case Material | Aluminium Alloy | |||||||

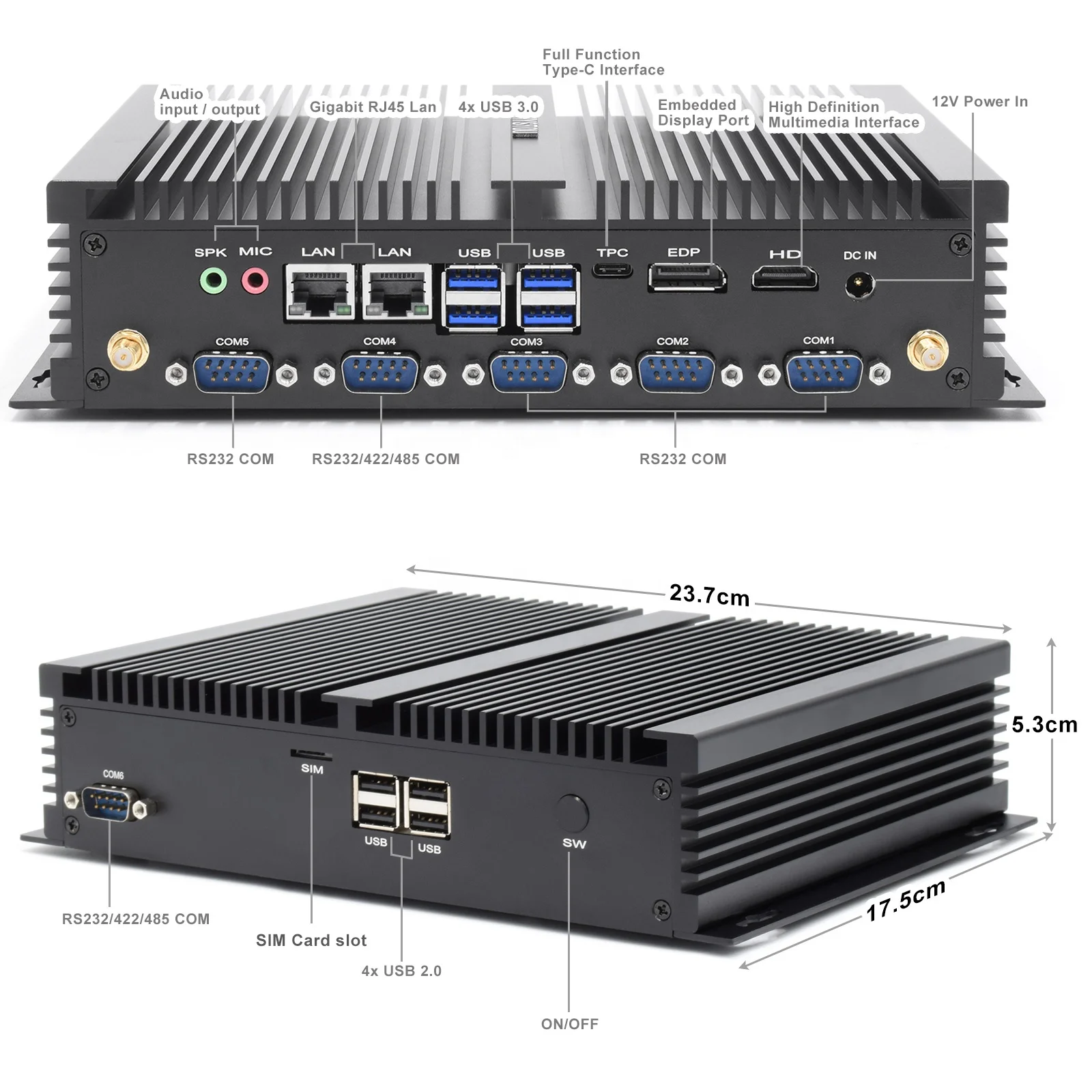

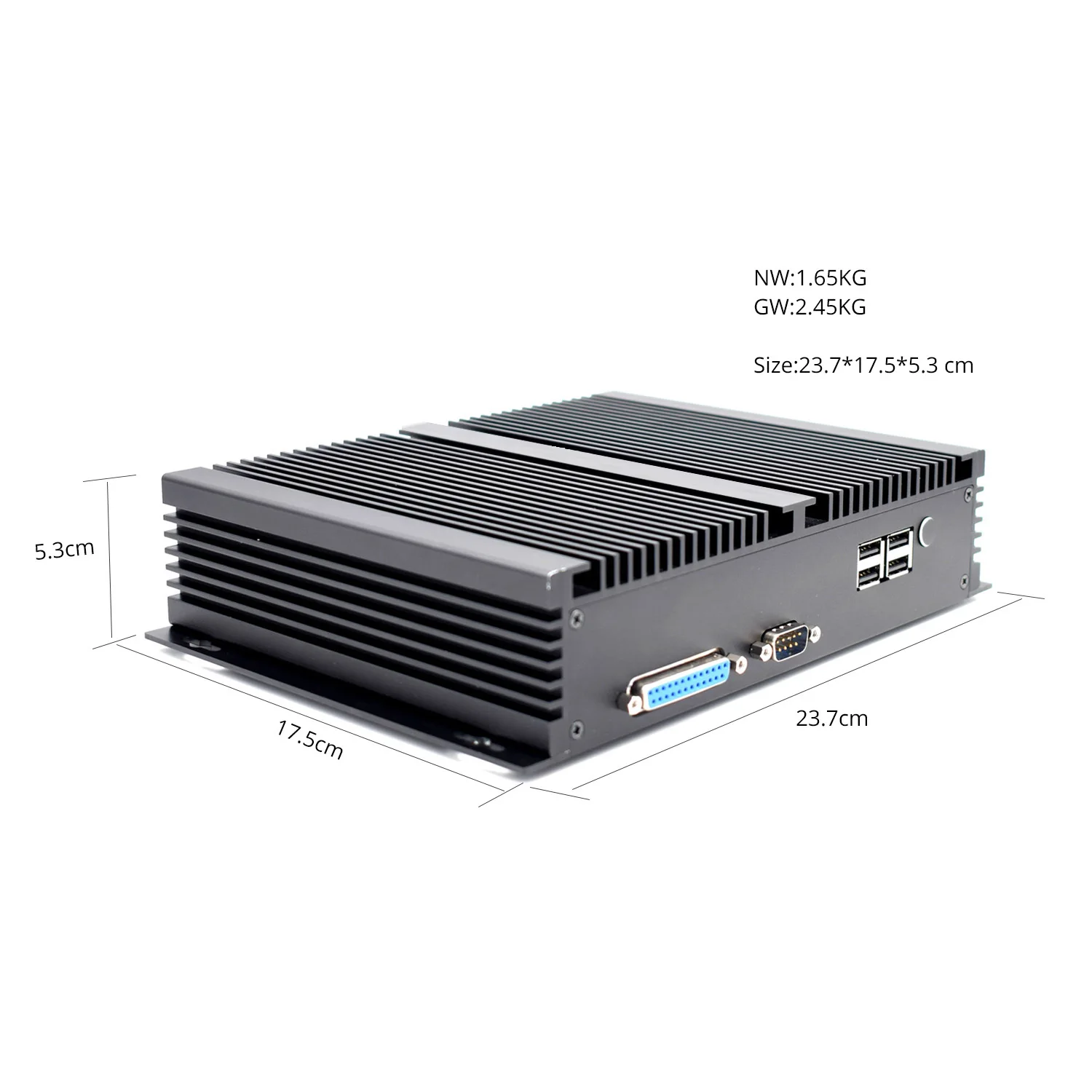

Dimension | Mini PC size 237 x 175 x 53mm Package size 320 x 260 x 80mm | |||||||
Weight | Gross weight 2.8 kg | |||||||

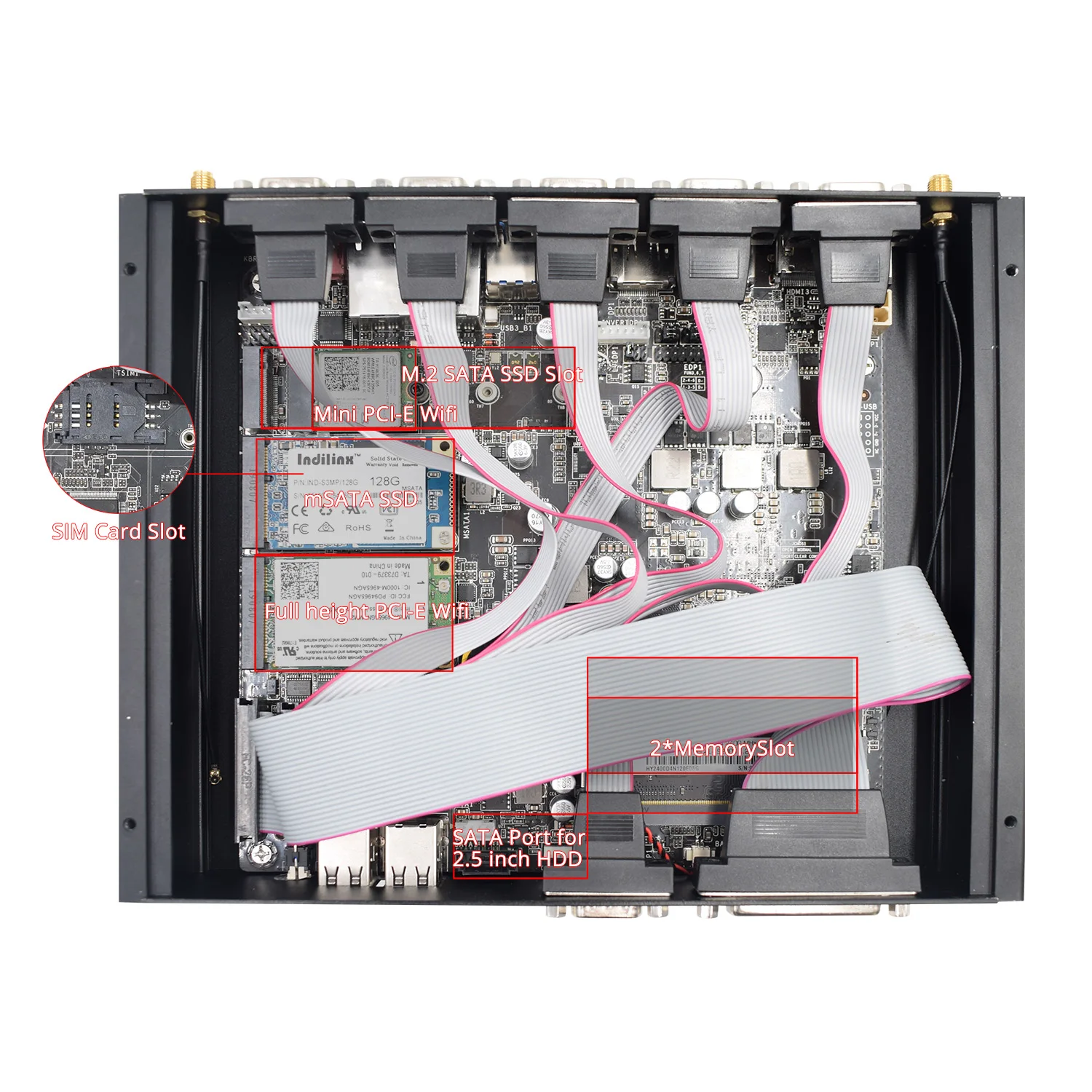

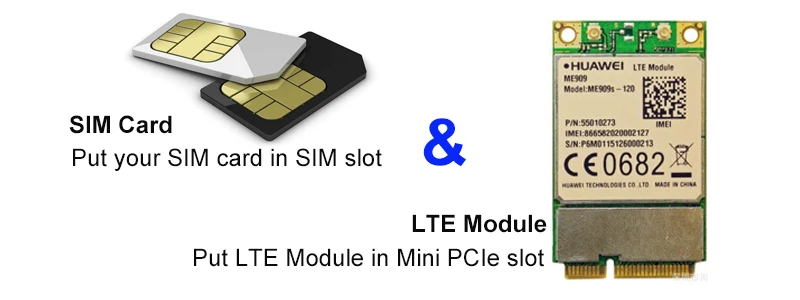

SIM & 3G/ 4G Module
* Venoen PC supports it but do not supply any SIM card and LTE module. You should buy them locally and test by yourself. LTE module is necessary, don't forget it.
* Mini PCIE slot support Wi-Fi module (Half Mini PCIE) by default. If you wanna install LTE module, please leave message that we will move the screw to make a full mini pcie slot for it.
* When you buy LTE module, please get details like drivers from the supplier.
* Venoen PC supports it but do not supply any SIM card and LTE module. You should buy them locally and test by yourself. LTE module is necessary, don't forget it.
* Mini PCIE slot support Wi-Fi module (Half Mini PCIE) by default. If you wanna install LTE module, please leave message that we will move the screw to make a full mini pcie slot for it.
* When you buy LTE module, please get details like drivers from the supplier.
* Below HUAWEI LET Module (ME909s-120) is for reference. All orders come without it.
Product Use
Packing&Shipping
Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Related Products
OEM&ODM Service
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
Company Introduction
VENOEN Technology Co., Limited was founded in 2013 in XuZhou as a mini computer developer and wholesaler, our factory is located in Shenzhen, producing and supplying thin client and mini PC since 2006. There are 10 professional international sales person in VENOEN overseas sales offices, most of them has 3 to 8 years international sales experience; 5 technical support team has 10 years computer support experience and also support technical guidance in our factory since 2006.
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
