Product Overview
Description
Product Description
The rotary kiln mainly consists of kiln body, loading device, burning device, unloading device, electronic appliance, dust collector, etc.
Rotary kiln is a pyroprocessing device used to raise materials to a high temperature (calcination) in a continuous process.
Materials produced using rotary kilns include: Cement, Lime, Refractories, Metakaolin, Titanium dioxide, Alumina, Vermiculite, Iron ore pellets.
Specification(m) | Φ2.8/2.5 * 44 | Φ3 * 48 | Φ3.2 * 50 | Φ3.3 * 50 | Φ3.5 * 54 | Φ4 * 60 | ||||
Capacity(ton/day) | 300 | 600-700 | 1000 | 1200 | 1500-1800 | 2500 | ||||
Slope of the kiln shell(%) | 3.5 | 3.5 | 3.5 | 4 | 4 | 4 | ||||
No. of supports | 3 | 3 | 3 | 3 | 3 | 3 | ||||
Type of thrust roller | Mechanical | Mechanical &Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | ||||
Rotating Speed of Kiln | Main driving (r/min) | 0.445-2.22 | 0.676-3.38 | 0.36-3.57 | 0.36-3.57 | 0.39-3.9 | 0.41-4.07 | |||
Auxiliary driving (r/min) | 4.75 | 9.36 | 6.5 | 5.61 | 7.66 | 8.2 | ||||
Main driving | Reducer | Model | ZSN4-225-21 | Z2-101 | ZSN4-280-091B | ZSN4-280-091B | ZSN4-315-092 | ZSN4-355-092 | ||
Rated power (kw) | 55 | 100 | 160 | 160 | 220 | 315 | ||||
Speed regulation range (r/min) | ~1000 | ~1500 | 1500 | 1500 | 1000 | 1000 | ||||
Rated voltage (V) | 440 | 220 | 440 | 440 | 440 | 440 | ||||
Reducer | Model | ZS145-1-1 | ZS145-1-1 | ZSY-450-40-V | ZSY450-40 | NZS995-28VIBL | YNS1110-22.4VBR | |||
Total ratio | 49-63 | 50 | 40 | 40 | 28 | 22.4 | ||||
Auxiliary driving | Electrical Motor | Model | Y122M-4 | Y160M-6 | Y160M-4B | Y160M-4 | Y200L1-6 | Y180L-4 | ||
Rated power (kw) | 4 | 7.5 | 15 | 11 | 18.5 | 22 | ||||
Speed regulation range(r/min) | 1440 | 970 | 1460 | 1460 | 970 | 1470 | ||||
Rated voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | ||||
Reducer | Model | ZL35-16 | ZL35-7-I | ZSY160-31.5-II | ZSY355-31.5 | ZSY355 | YNS440-45 II R | |||
Total ratio | 40.44 | 14 | 31.5 | 31.5 | 45 | 45 | ||||
(ton)Total weight | 177 | 207 | 256.5 | 281 | 341 | 434 | ||||
(ton)Weight of discharging kiln hood | 20 | 22 | 25 | 27 | 28 | 35 | ||||
Specification (m) | Φ4.3 * 64 | Φ4.8 * 74 | Φ5.0 * 74 | Φ5.6 * 87 | Φ6.0 * 95 | ||||
Capacity (ton/day) | 3500 | 5000 | 6000 | 8000 | 10000 | ||||
Slope of the kiln shell （%） | 4 | 4 | 4 | 4 | 4 | ||||
No. of supports | 3 | 3 | 3 | 3 | 3 | ||||
Type of thrust roller | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | ||||
Rotating Speed of Kiln | Main driving (r/min) | 0.4-4.0 | 0.35-4 | 0.35-4 | Max 4.23 | Max 5 | |||
Auxiliary driving (r/min) | 7.93 | 8.52 | 7.58 | 8.7 | 9.2 | ||||
Main driving | Reducer | Model | ZSN4-355-12 | ZSN4-400-092 | ZSN4-450-092 | ZSN4-450-12 | ZNS4-500-092 | ||
Rated power (kw) | 400 | 630 | 710 | 800 | 950 * 2 | ||||
Speed regulation range (r/min) | 100~1000 | 1500 | 87.5~1000 | 100~1000 | 100~1000 | ||||
Rated voltage (V) | 440 | 660 | 660 | 660 | 660 | ||||
Reducer | Model | YNS1400-31.5VIBL | JH710C-SW305-40 | JH800C-28 | JH900C-SW305-25 | JS900C-SW305-28 | |||
Total ratio | 31.5 | 42.226 | 26.812 | 23.901 | 26.646 | ||||
Auxiliary driving | Electrical Motor | Model | Y200L-4 | Y250M-4 | Y250M-4 | Y280M-4 | Y315M1-4 | ||
Rated power (kw) | 30 | 55 | 55 | 90 | 132 | ||||
Speed regulation range (r/min) | 1470 | 1480 | 1480 | 1480 | 1490 | ||||
Rated voltage (V) | 380 | 380 | 380 | 380 | 380 | ||||
Reducer | Model | YNS497-45ZC | JH220C-SW302-28 | JS280C-45 | ZSY400-35.5-I | ZSY450-35.5-I | |||
Total ratio | 45 | 28 | 45 | 35.795 | 35.795 | ||||
(ton)Total weight | 550.5 | 854 | 894 | 1201 | 1580 | ||||
(ton)Weight of discharging kiln hood | 36 | 45 | 48 | ||||||
Cement rotary kiln
Dry rotary kiln
Lime rotary kiln
Metallurgical Industry rotary kiln
Lithium carbonate rotary kiln
Magnesium metal rotary kiln
Coal chemical refining kiln
Lateriate-nickel ore rotary kiln

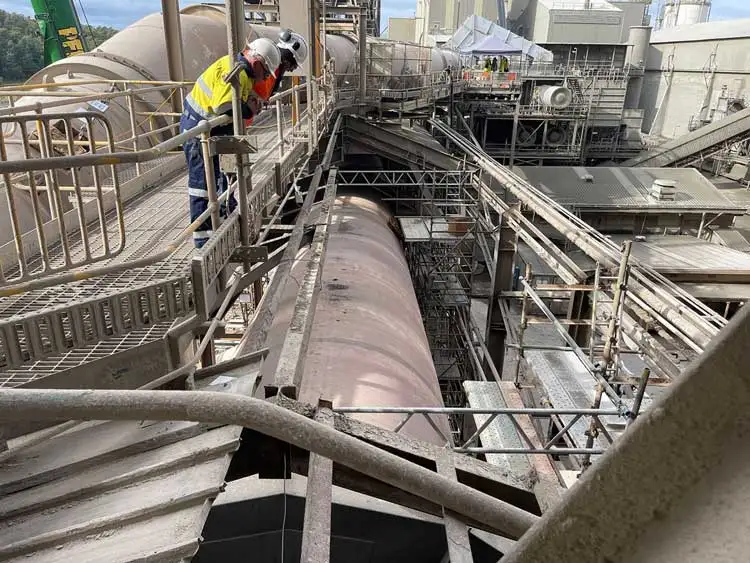

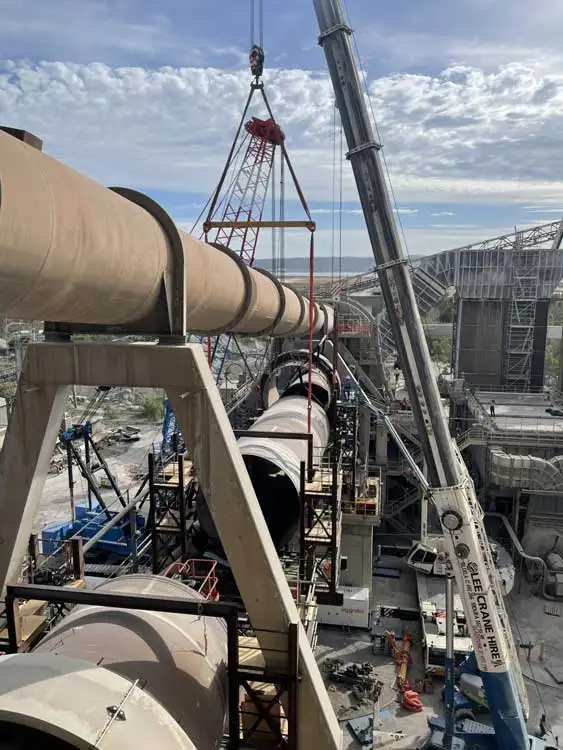

Construction
Products Category

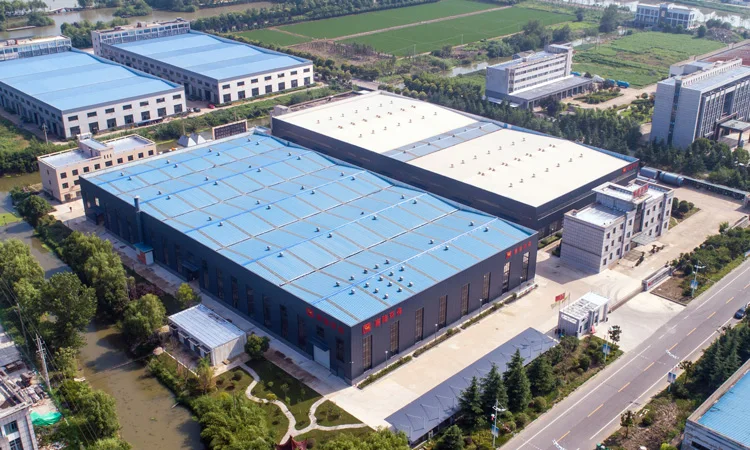

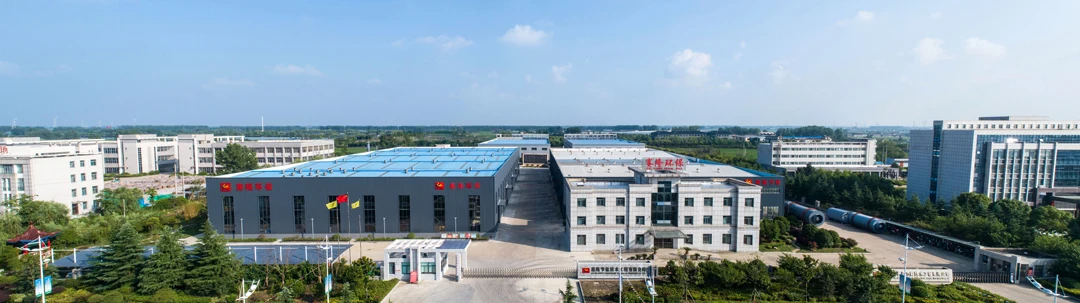

Company Profile
Jiangsu Sailong Energy Saving Technology Engineering Co., Ltd. established in 2007,
is located in Yancheng High tech industrial zone.The enterprise covers an area of 30683m2,
with a registered capital of 81.8 million yuan and a total investment of 120 million yuan.
The company integrates scientific research, manufacturing, sales and installation services.
Involved in building materials, chemical industry, metallurgy, electric power, steel, mining, casting, etc. Exported to Australia, Indonesia, India, Russia, Mexico, Sri Lanka, Kenya, Kazakhstan, Tajikistan, etc.

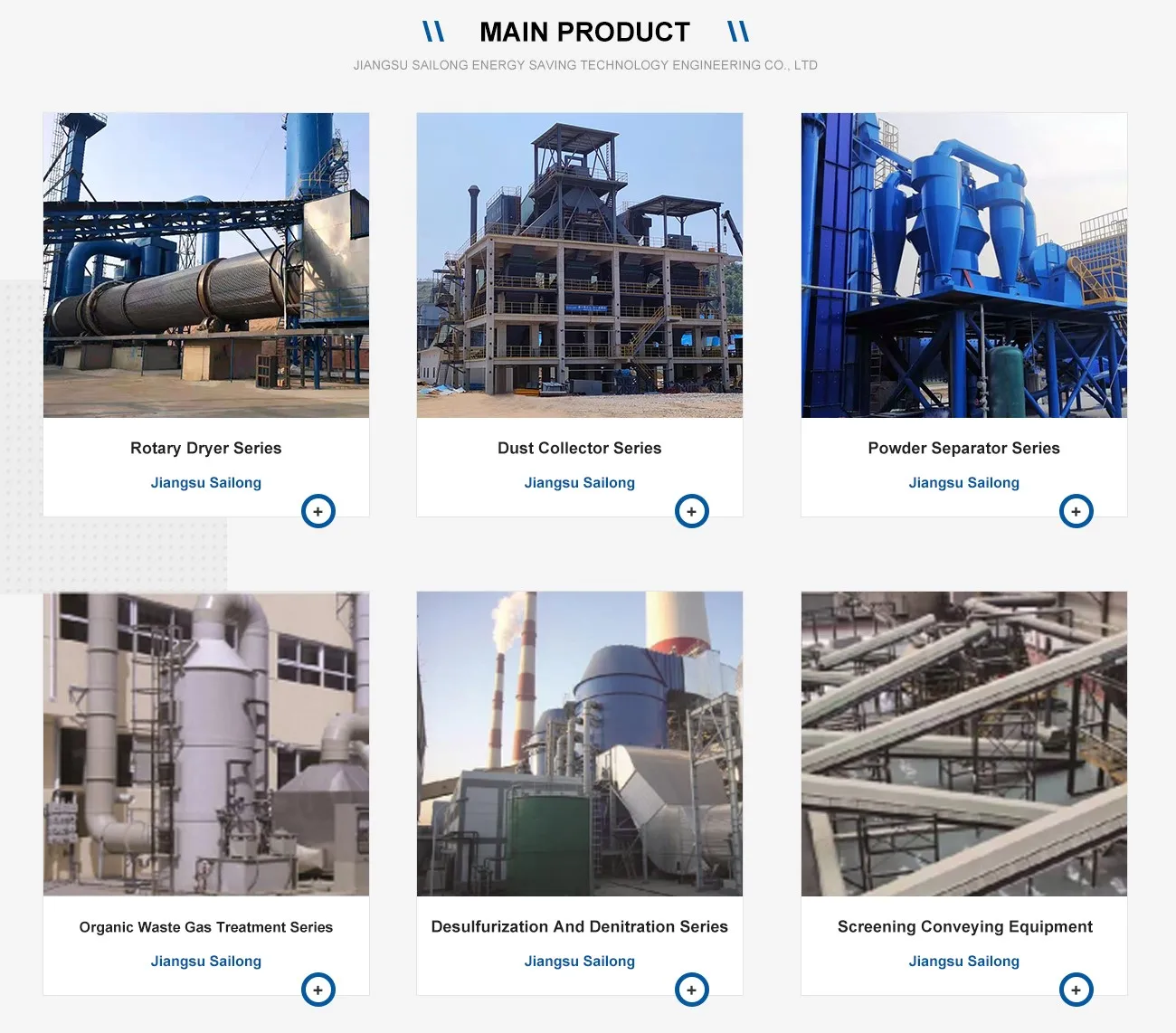

Main products are: rotary kiln, dust collector, powder separator, compound fertilizer machinery series and dry powder mortar production line; Fly ash deep processing, conveying equipment, high-temperature flue gas fluidized bed furnace, desulfurization and denitration equipment, etc.
Adhering to the business philosophy of serving the society and being honest and responsible, and following the enterprise tenet of "Normative, Pragmatic, Honest and Efficient", the company has established and improved its corporate governance system, business management system, innovative development system, and risk control system. Let's make our homeland bluer, greener, and cleaner!

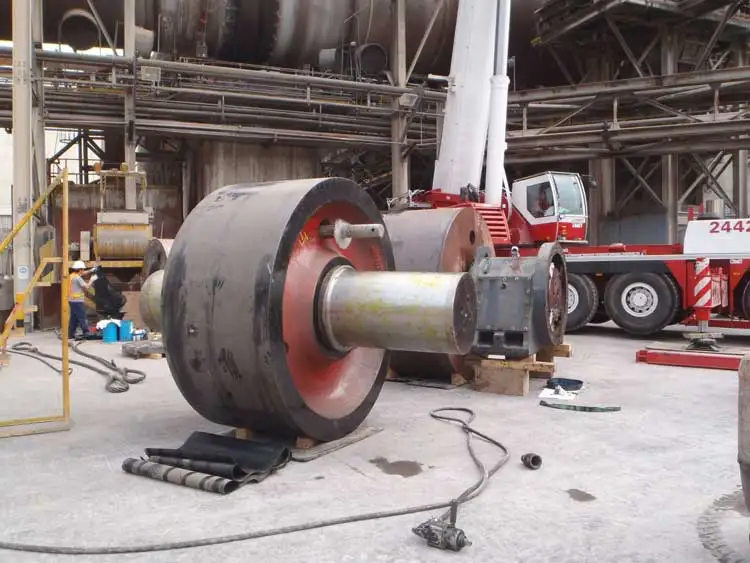

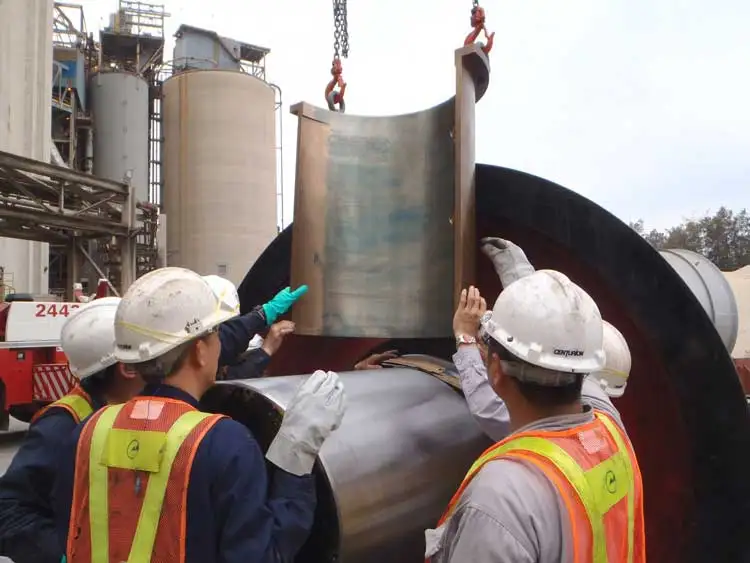

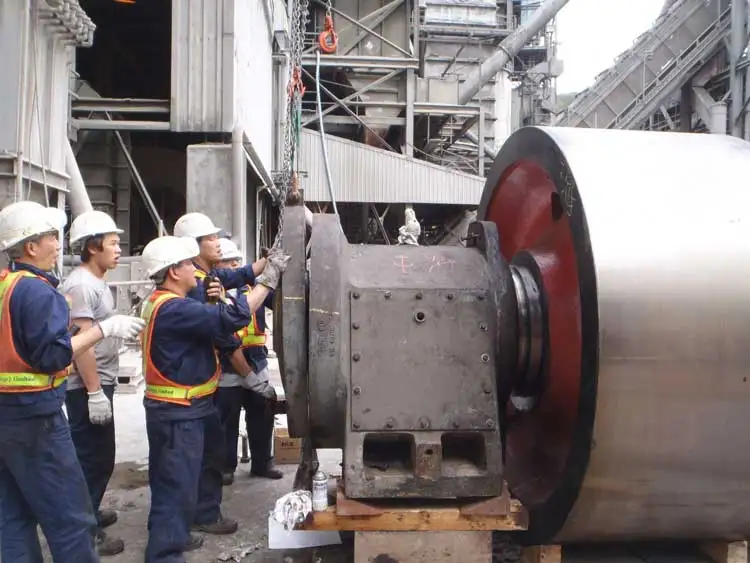

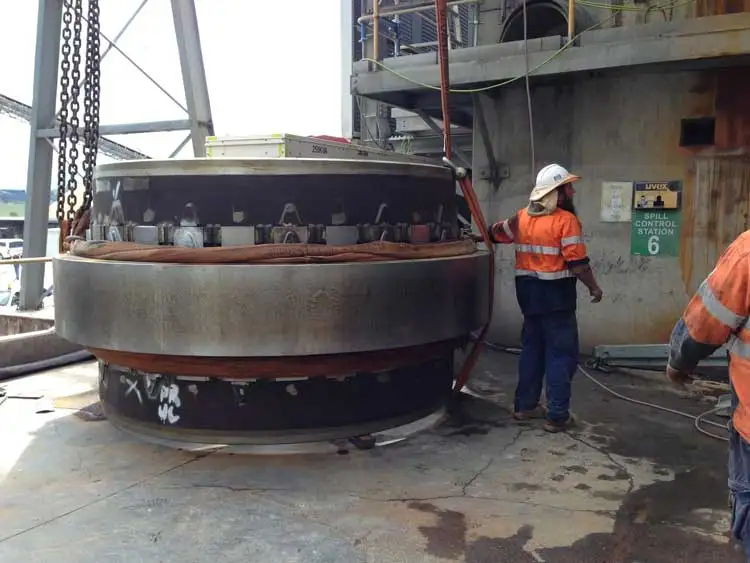

Customer Photos

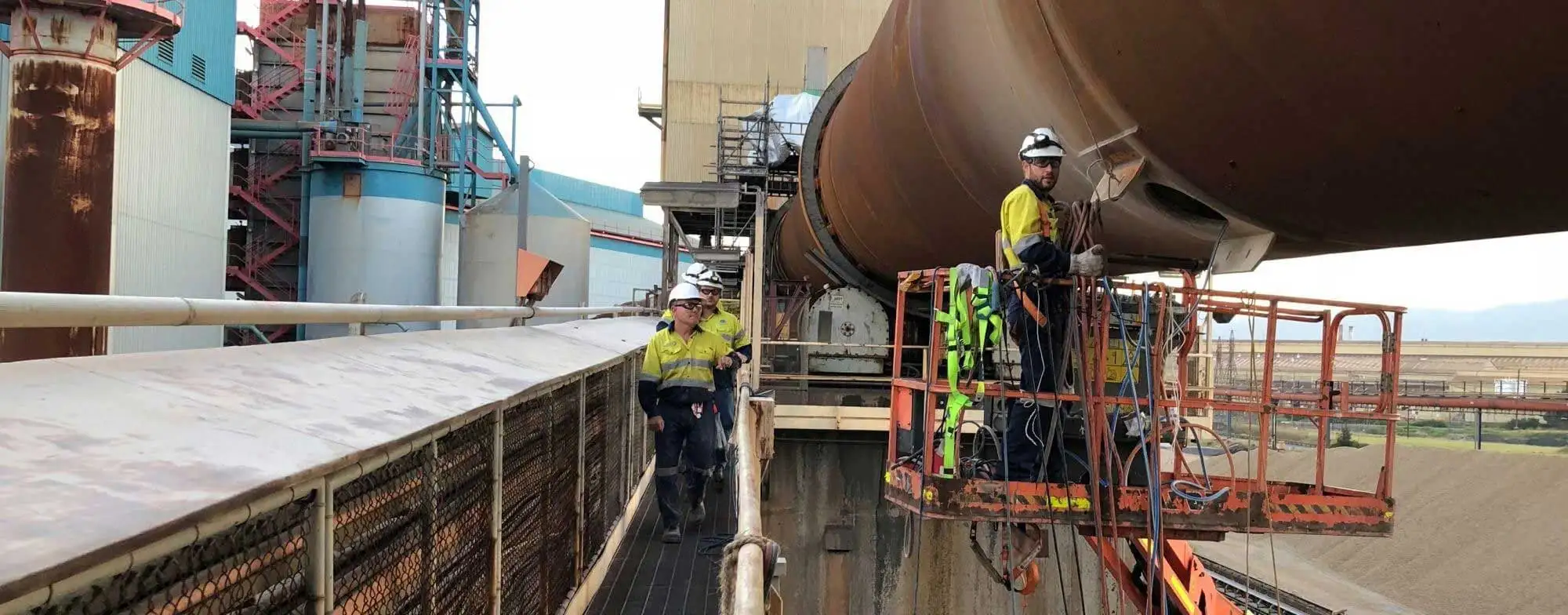

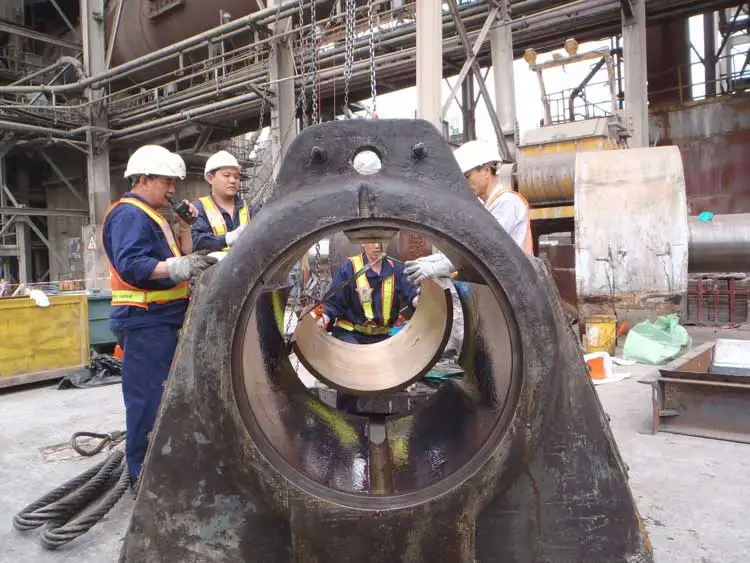

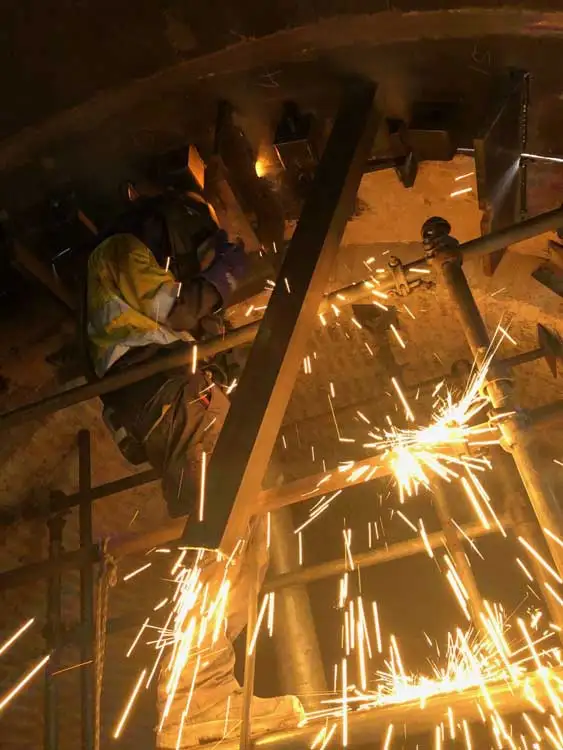

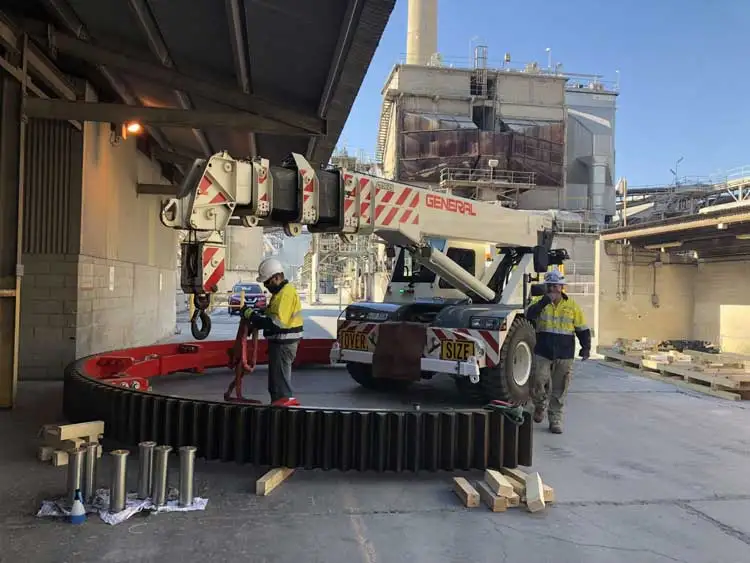

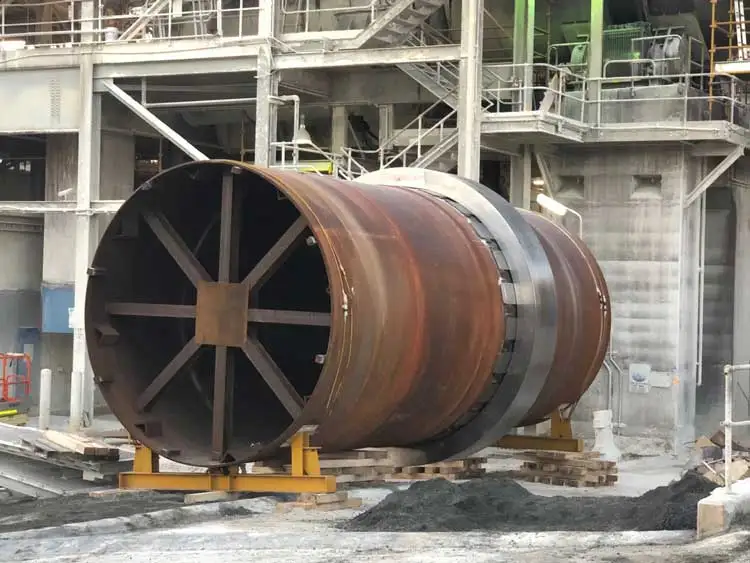

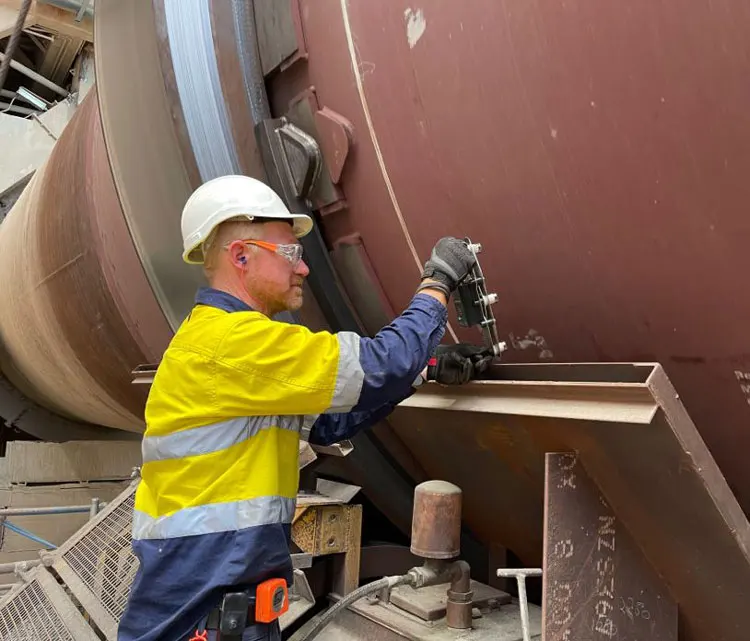

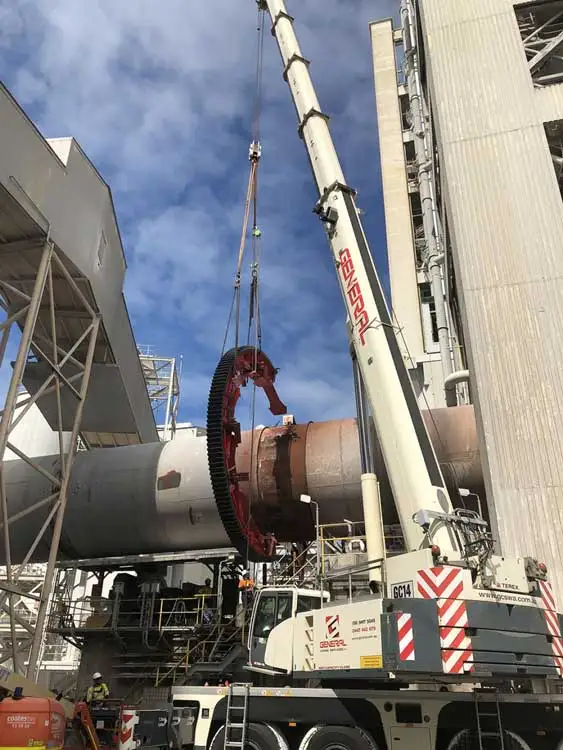

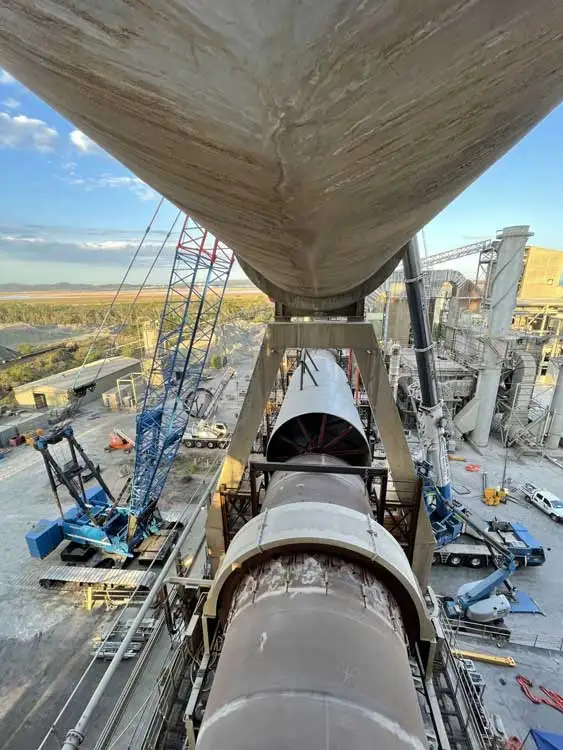

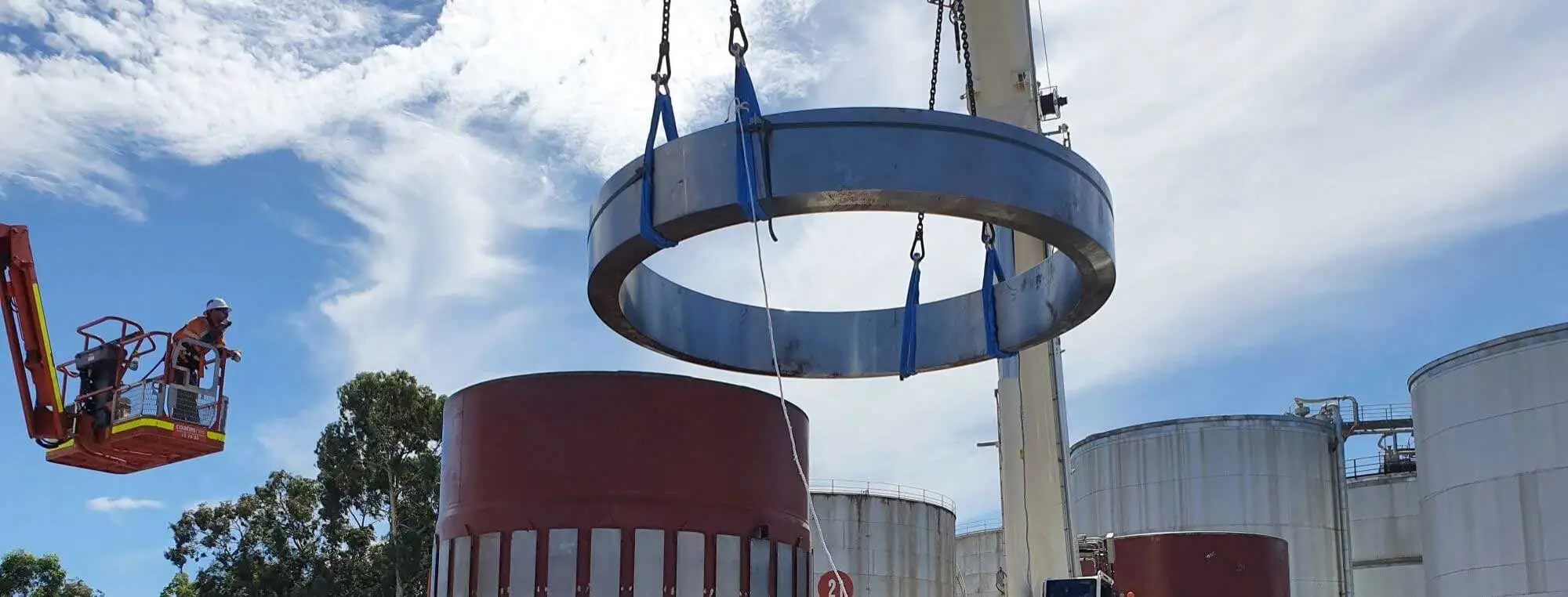

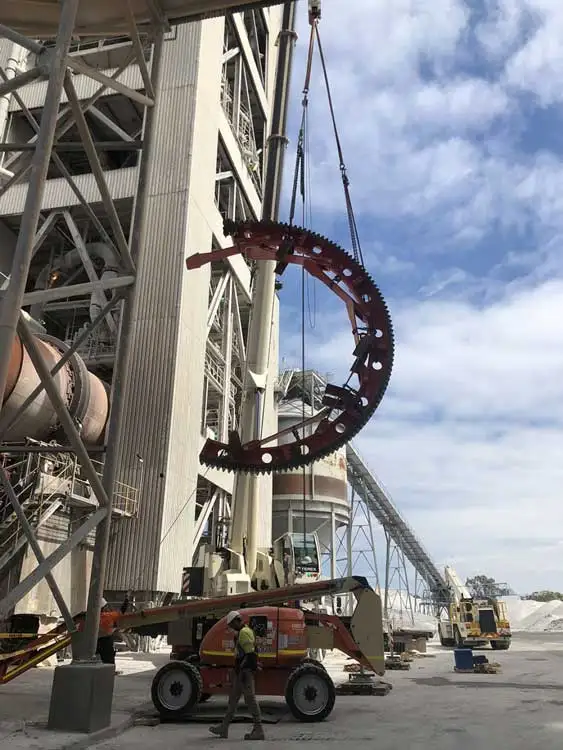

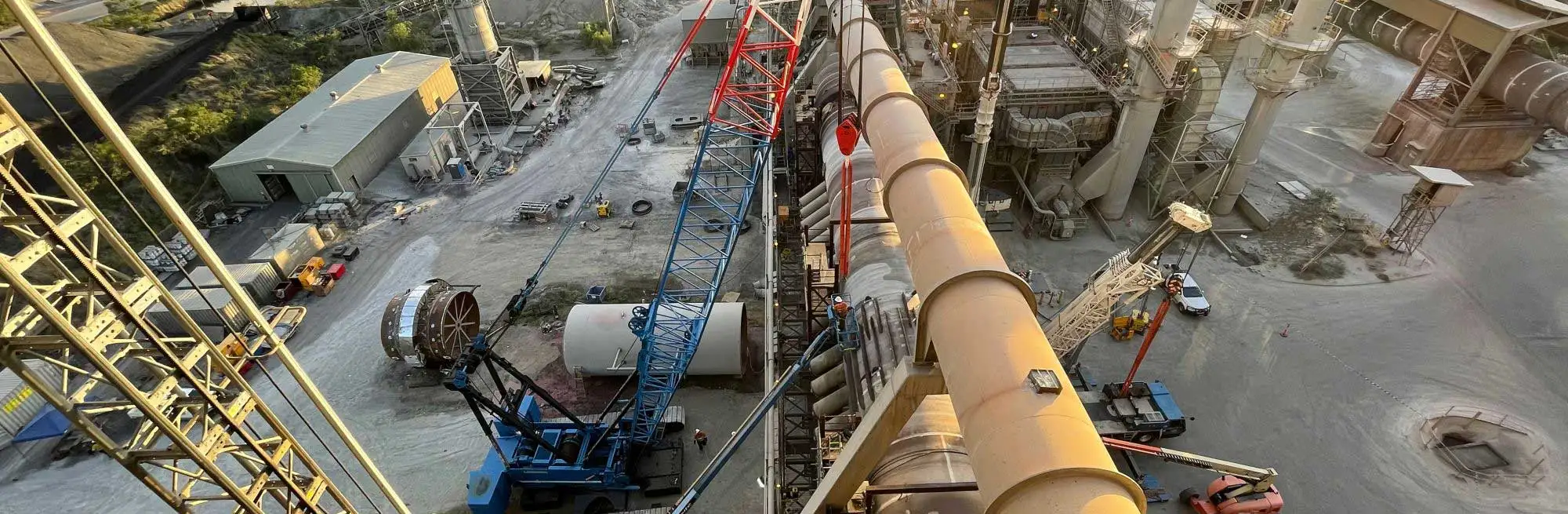

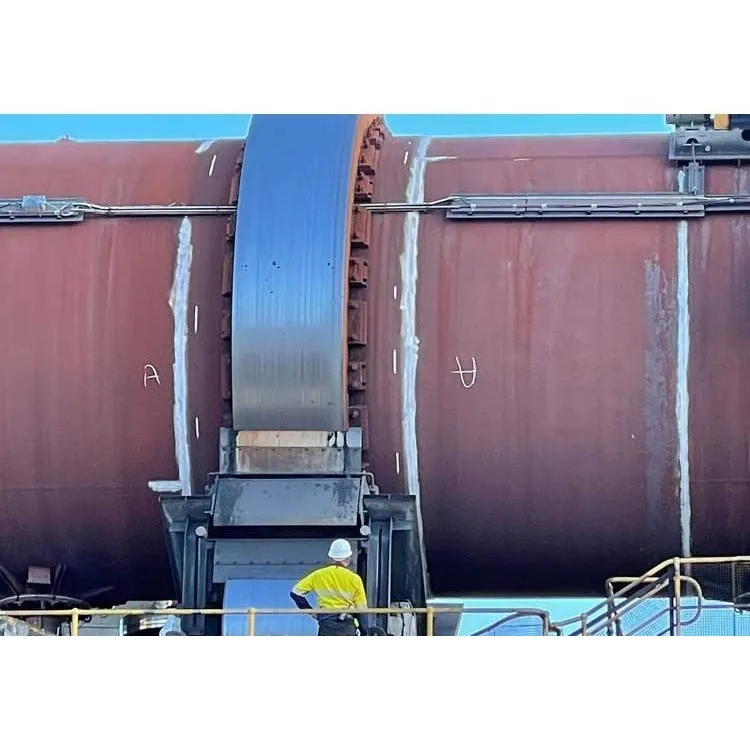

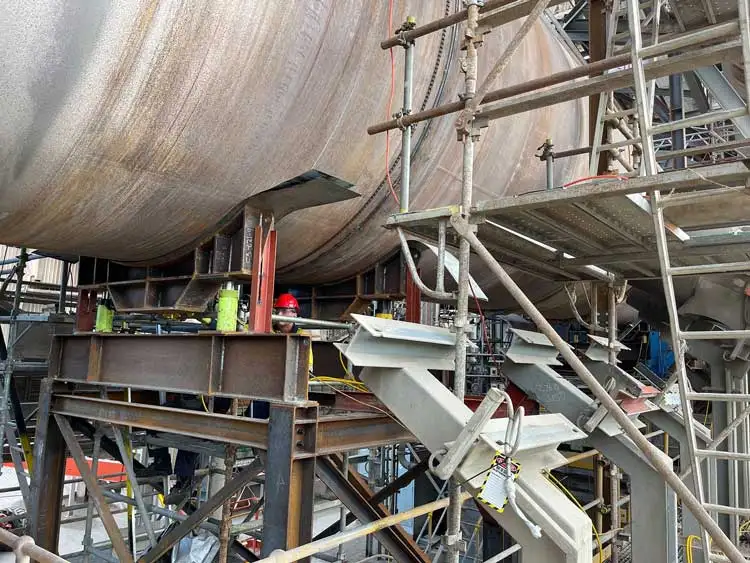

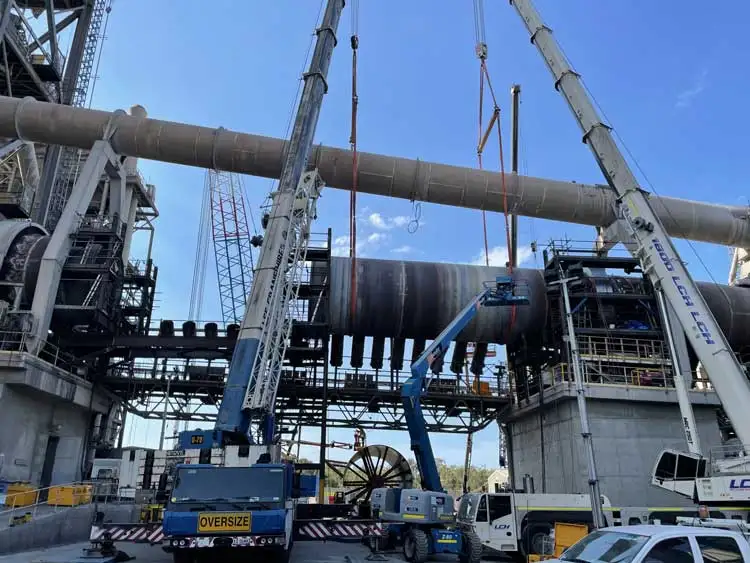

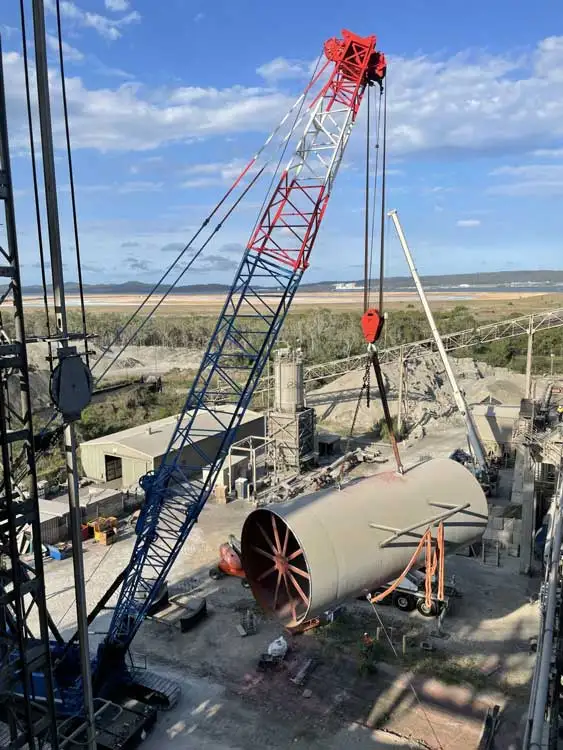

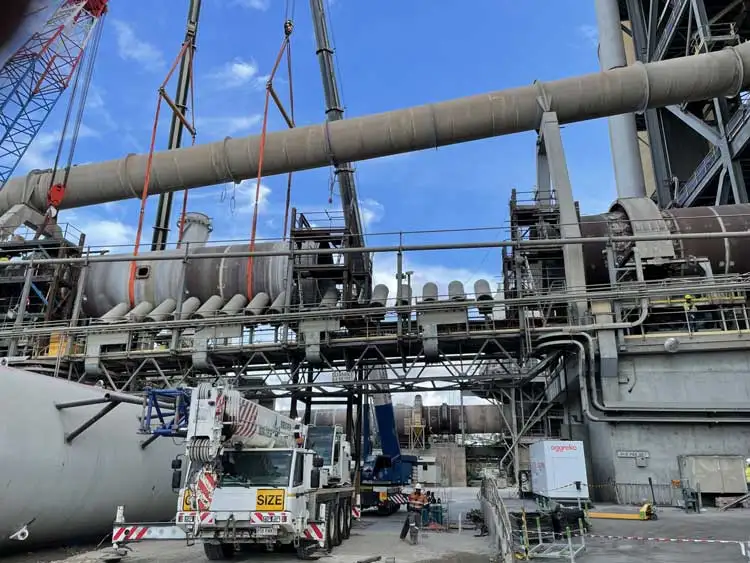

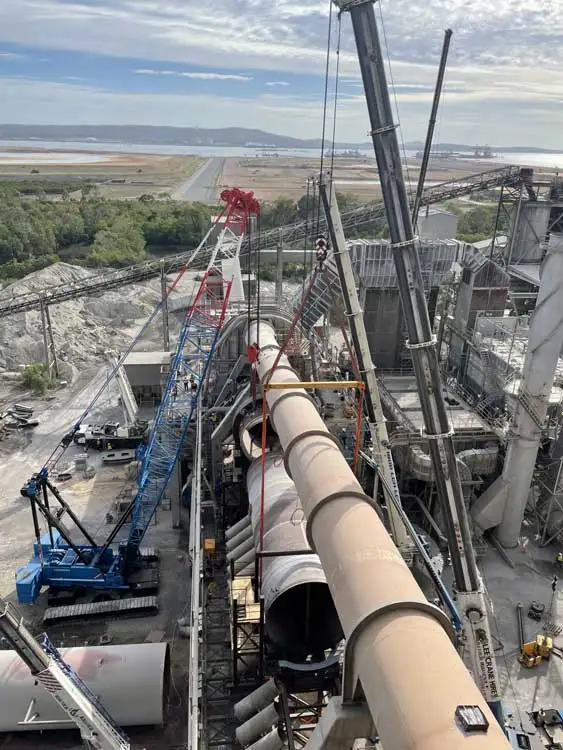

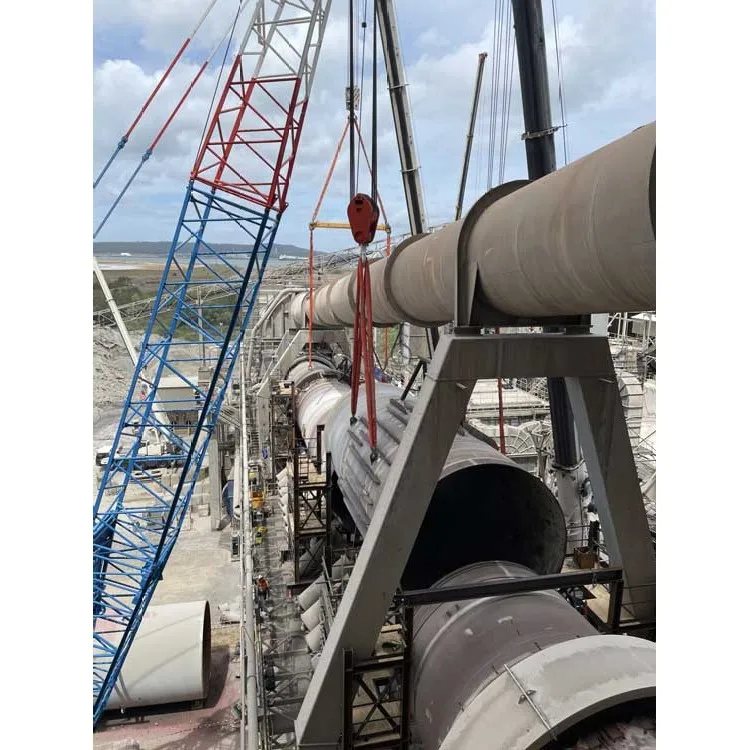

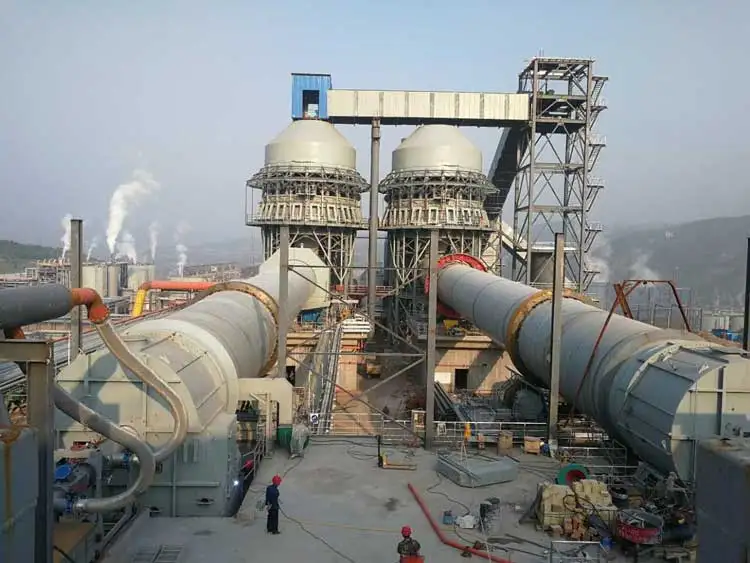

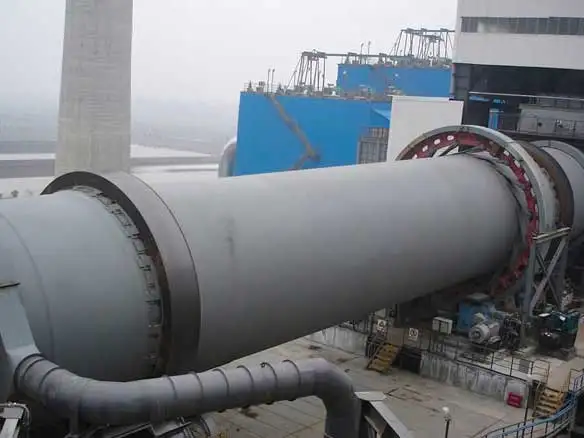

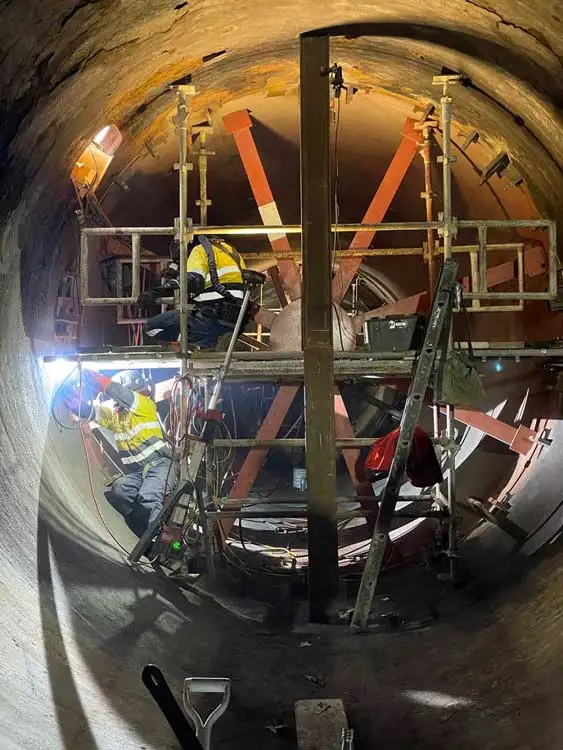

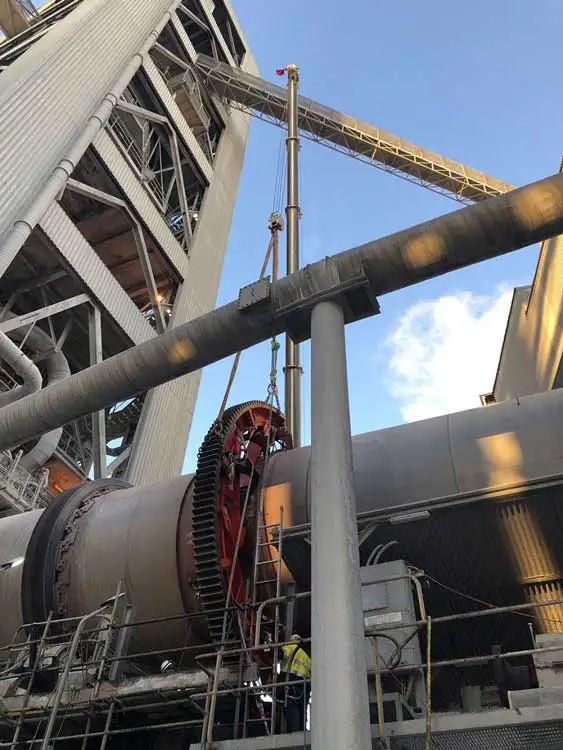

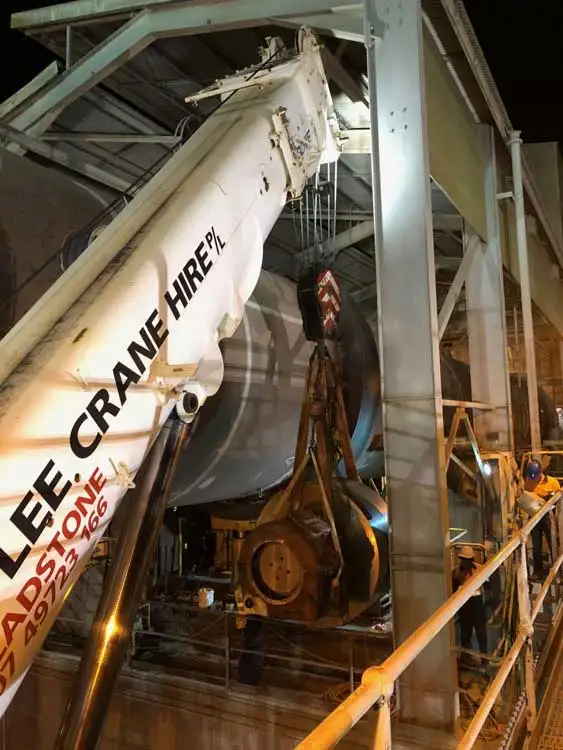

Company Case

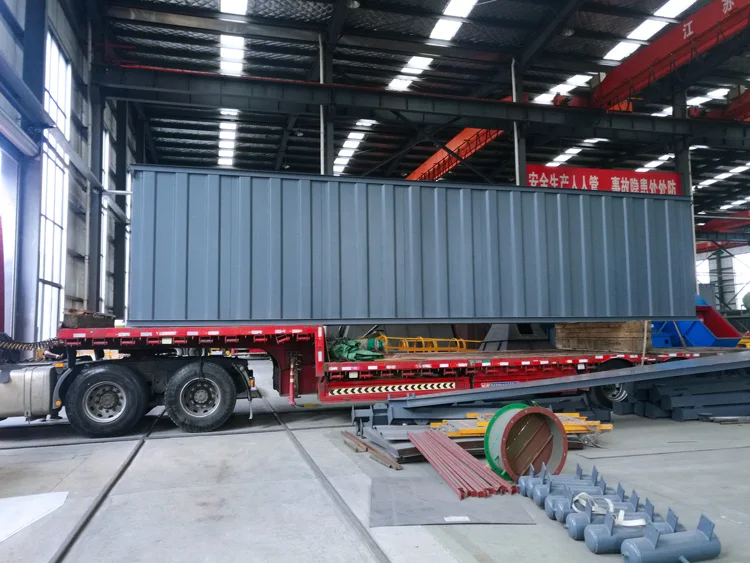

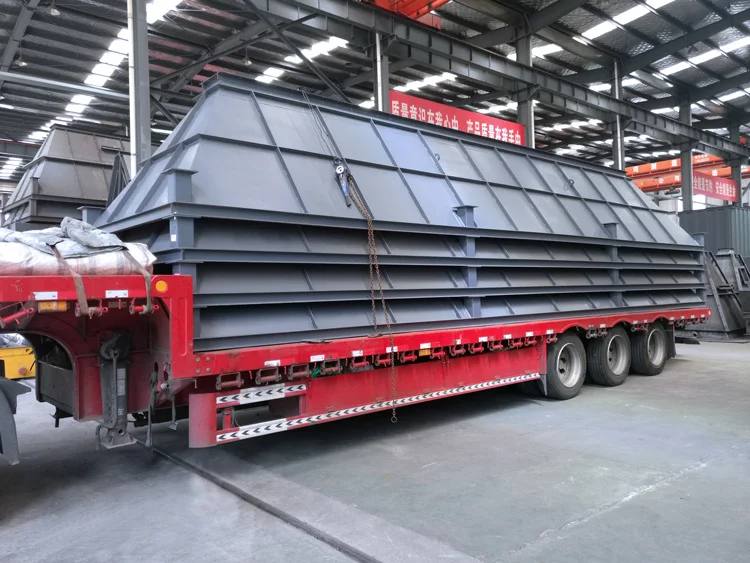

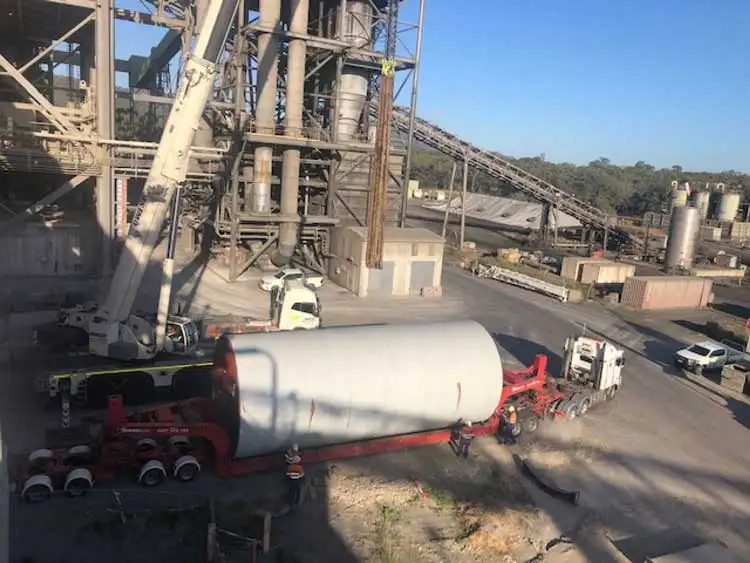

Packing & Delivery
We provide modular equipment for frame and container transportation.
