Greenhouse drip irrigation intelligent water and fertilizer machine for agricultural fertilizer intelligent fertilizer system
- Category: >>>
- Supplier: Shandong Boyun Modern Agricultural Science And Technology Co. Ltd.
Share on (1600735341497):
Product Overview
Description
Products Description

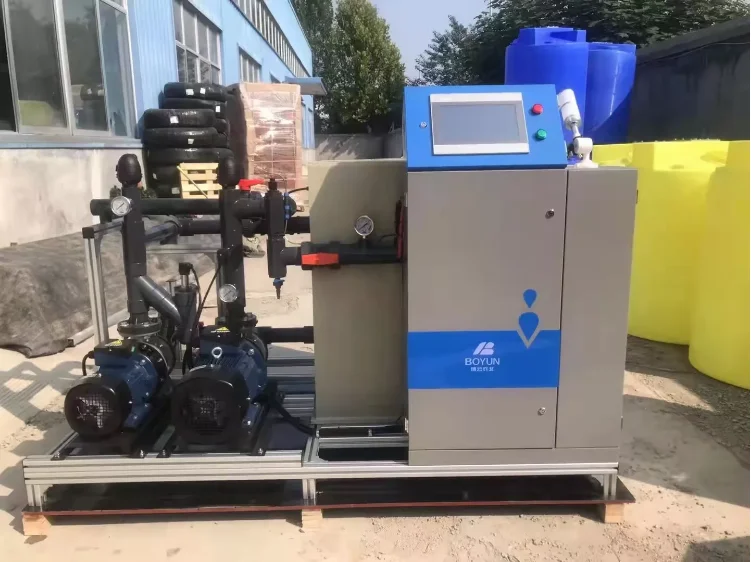

Automatic fertilizer irrigation system for agriculture
Automatic control Through the control system, the controller will automatically control the irrigation water amount, fertilizer amount and other important parameters of the water and fertilizer process according to the formula and irrigation process parameters set by the user, so as to realize the timing and quantitative control of irrigation and fertilization, water saving and water saving, high efficiency and high yield. The integrated water and fertilizer machine can help the producers easily realize
the automatic comprehensive management of water and fertilizer. The PH/EC value is uploaded in real time
the automatic comprehensive management of water and fertilizer. The PH/EC value is uploaded in real time

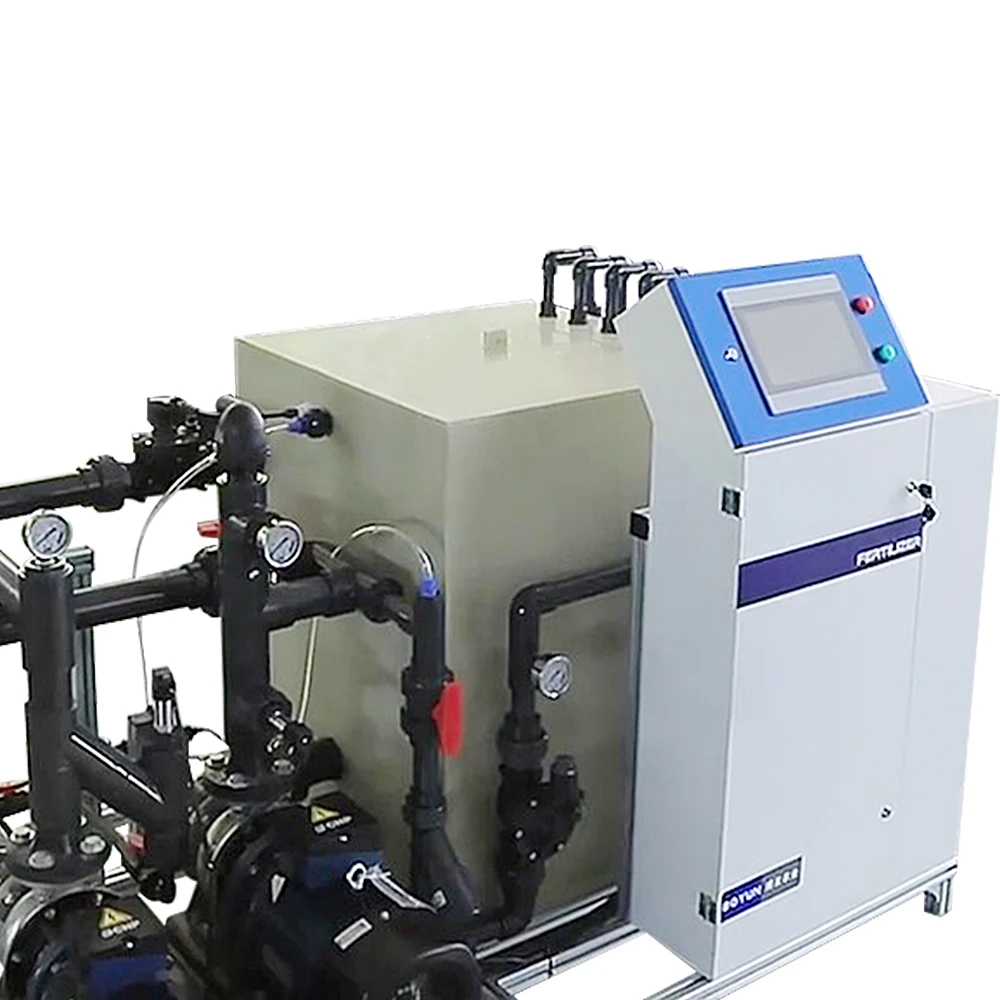

It is composed of human-computer interaction system, industrial PLC control system, fertilizer pump, fertilizer channel and flow
adjustment system
adjustment system
1. This equipment is suitable for soilless culture and substrate culture. Precision culture with soil is composed of fertilization
pump, fertilization channel and flow adjustment system.

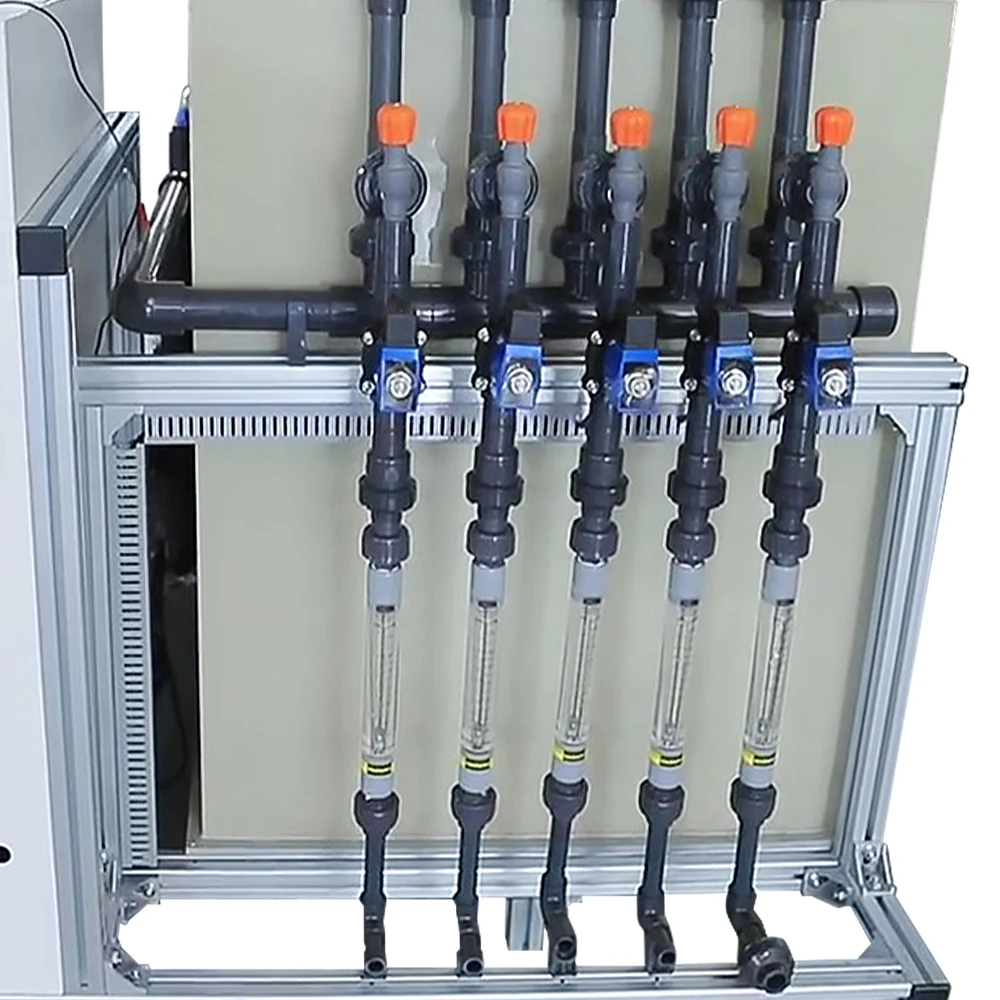

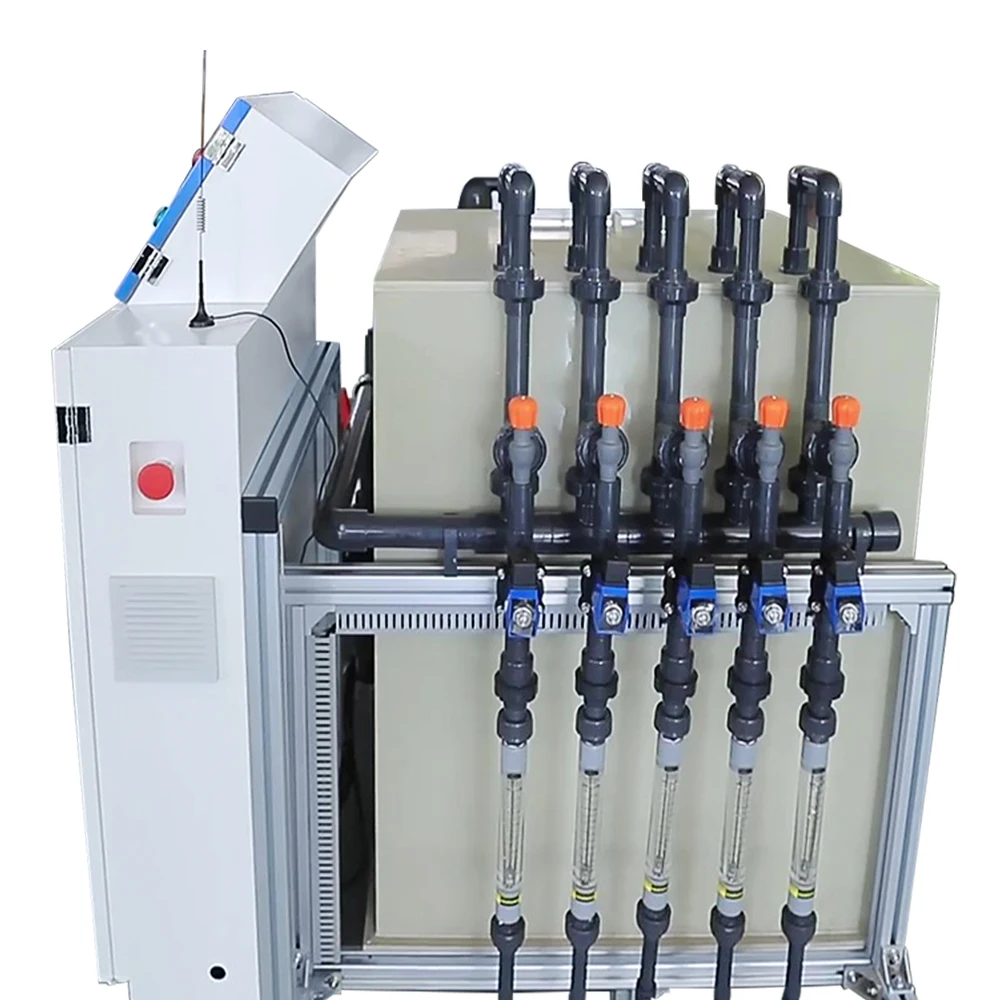

2, 5 way Venturi fertilization channel, each fertilization channel is equipped with flowmeter and flow regulation valve, can
display the current fertilization flow, single channel absorption of 100-600L/H, each channel has Israel imported solenoid valve
through precise calculation automatically adjust the fertilization flow.
pump, fertilization channel and flow adjustment system.
2, 5 way Venturi fertilization channel, each fertilization channel is equipped with flowmeter and flow regulation valve, can
display the current fertilization flow, single channel absorption of 100-600L/H, each channel has Israel imported solenoid valve
through precise calculation automatically adjust the fertilization flow.

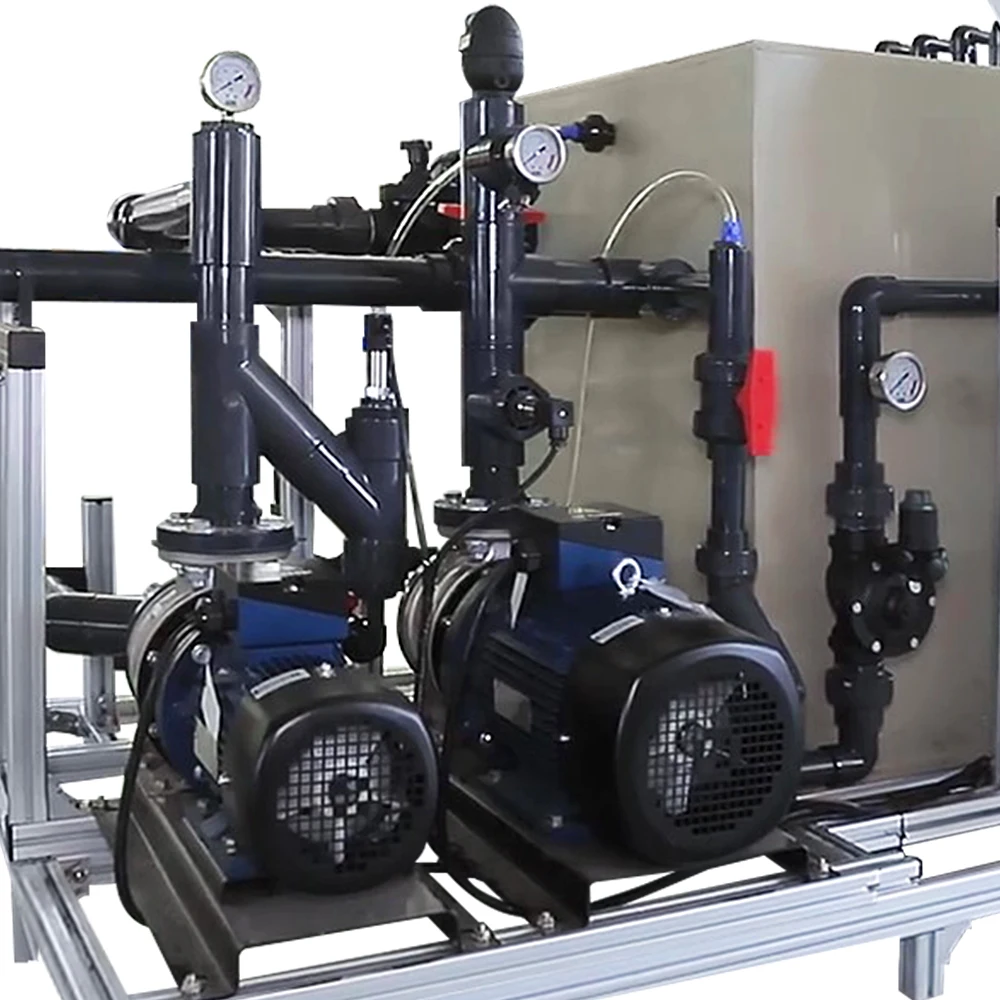

3, stainless steel centrifugal booster pump, parameters: flow 15m³, 30m head, main pipe diameter 63, pressure 0.1-0.2MPA, main
road installation, water and fertilizer synchronization.
road installation, water and fertilizer synchronization.

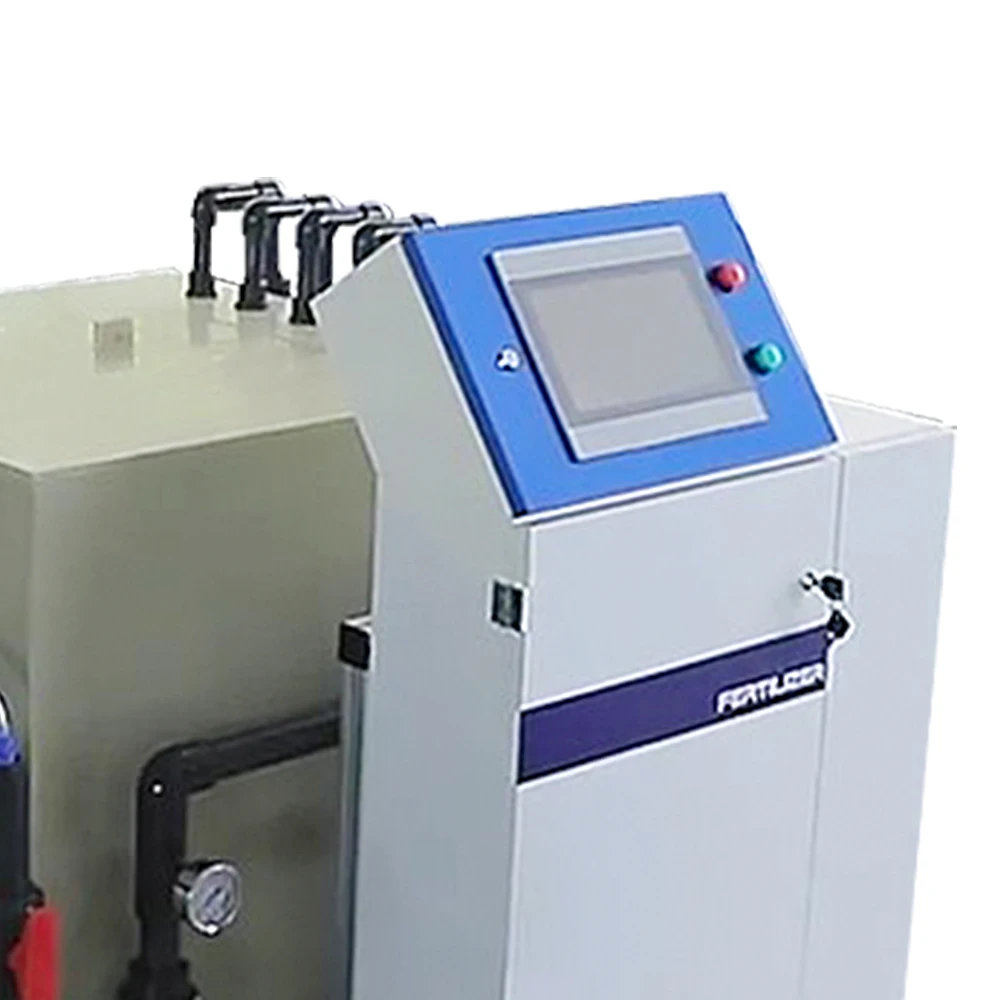

4, 10 inch Kunlun transparent aluminum alloy LCD touch screen + high-end industrial Siemens PLC output control, external can
control the timing of the original irrigation system, including 1 water main pump, 1 mixed fertilizer pump, 4 irrigation area
valves
control the timing of the original irrigation system, including 1 water main pump, 1 mixed fertilizer pump, 4 irrigation area
valves
5, the pipeline system adopts Taiwan Sanli brand, durable corrosion resistance, anti-UV anti-aging. All key components can be
disassembled freely, easy to replace parts, one year free warranty
disassembled freely, easy to replace parts, one year free warranty
Product Paramenters
Size | 182cm*108cm*127cm |
Voltage | 380V、2.2KW+4KW |
Number of channels | Five channels |
Quantity of absorbed fertilizer | 50-600L/h |
Valve control number | 16（extensible） |
Rate of flow | 25m³(Constant pressure variable frequency) |
Flow detection | EC sensor、PH sensor |
Touch screen | 10 inch |
Control mode | local/mobile APP |
